Raimondi KOMPASS KOMP 50 Device for Circular Cuts
Description
Description

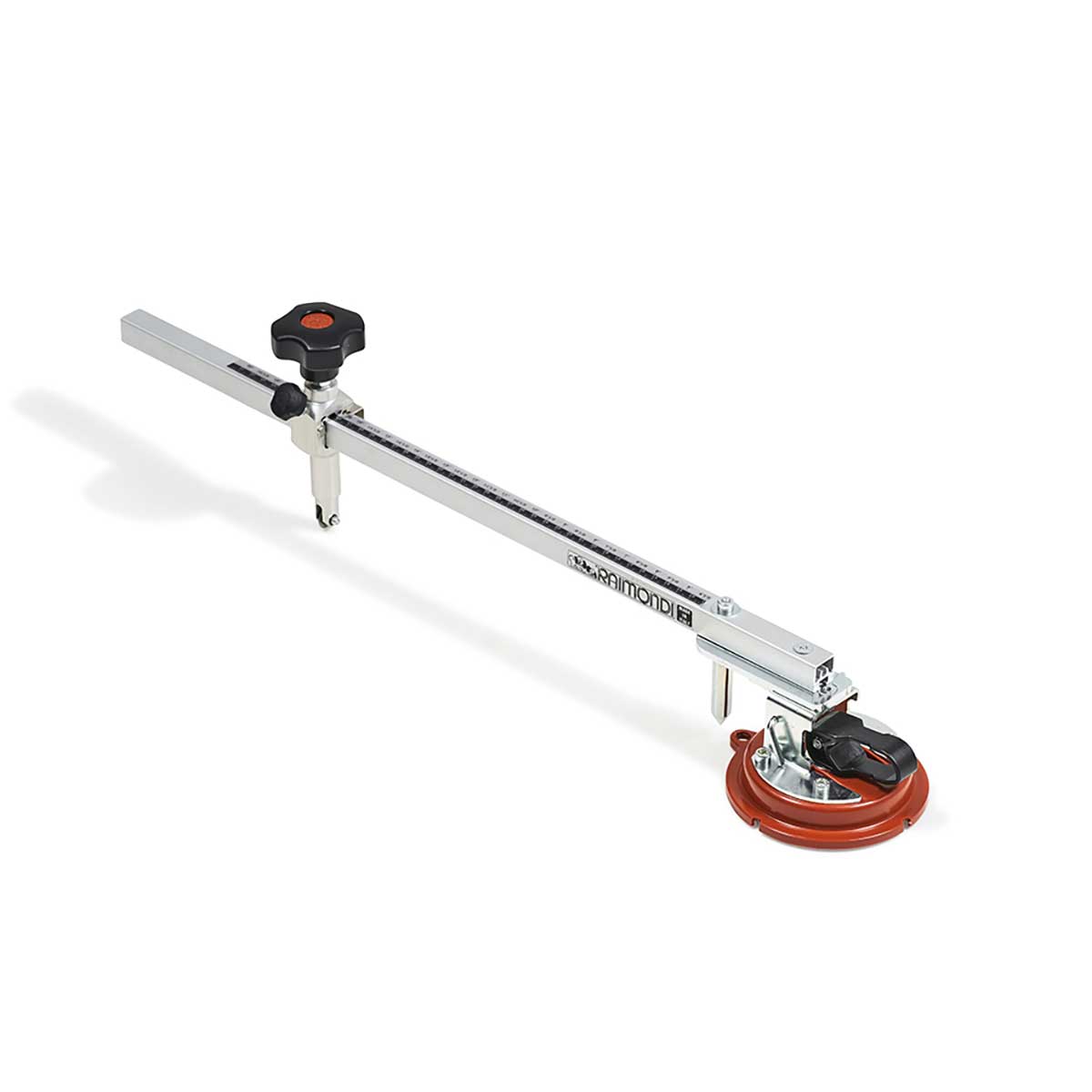

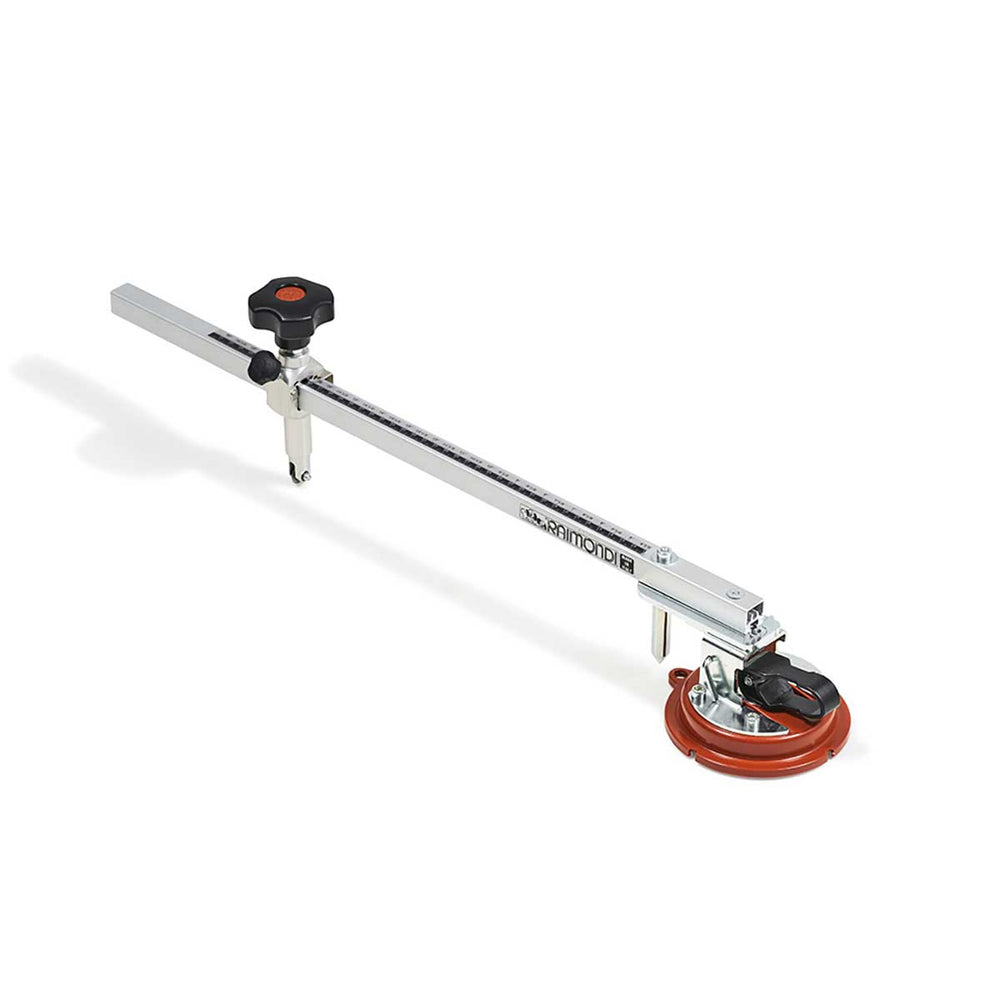

Raimondi KOMPASS KOMP 50 Device for Circular Cuts
The Raimondi KOMPASS KOMP 50 is a specialized device for performing large-diameter circular cuts on large-format tiles and slabs using the score and snap system. The adjustable design allows installers to create centered and off-centered circular openings based on the position of the suction cup on the slab.

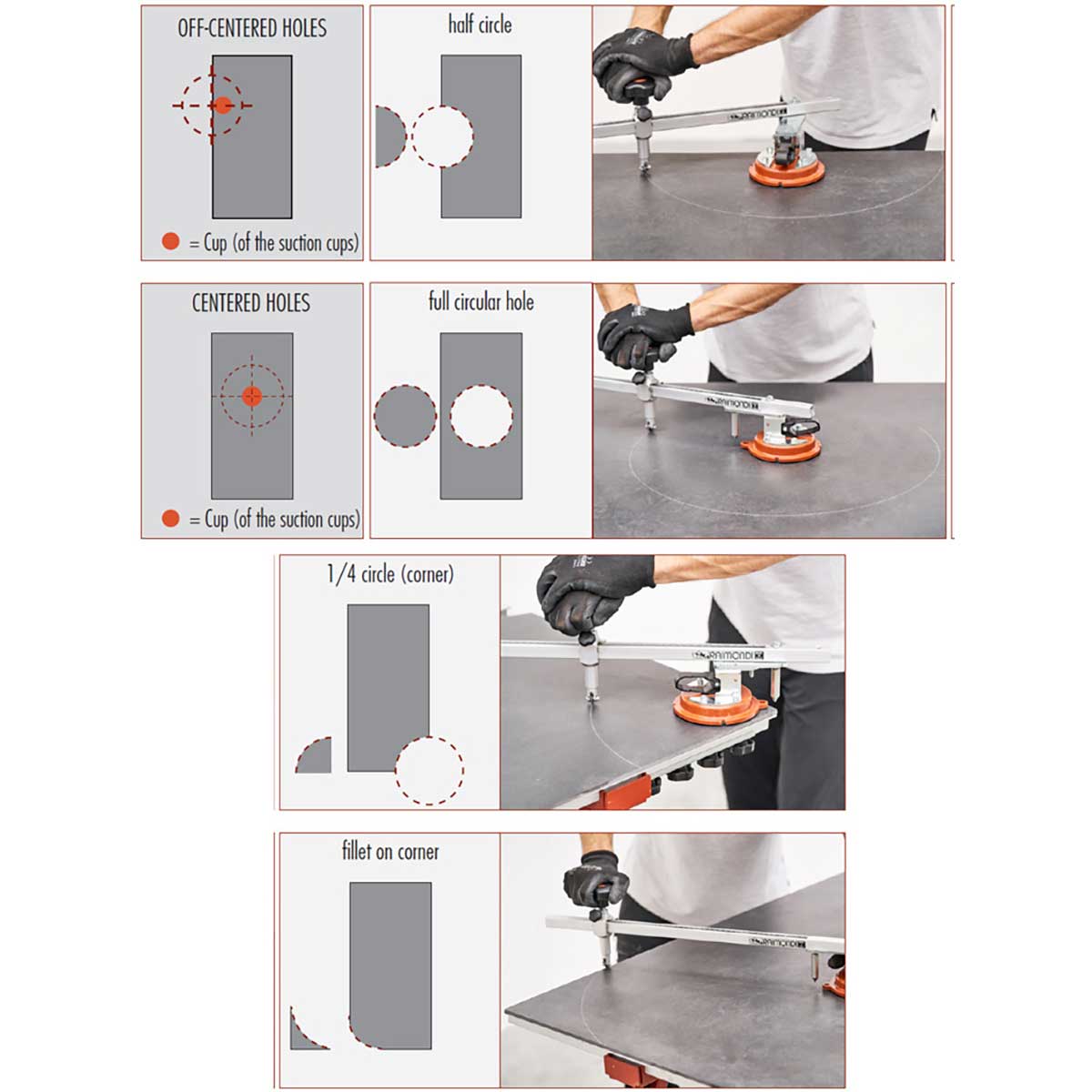

The KOMPASS is designed for large-format tile and slab installations where a precise circular or partial circular cut is required. By changing the suction cup position, the tool can produce different circular and semi-circular cuts, including full circles, half circles, and quarter-circle cuts for rounding the corner of a slab.
Features
- Designed for large-diameter circular cuts on large-format tiles and slabs.

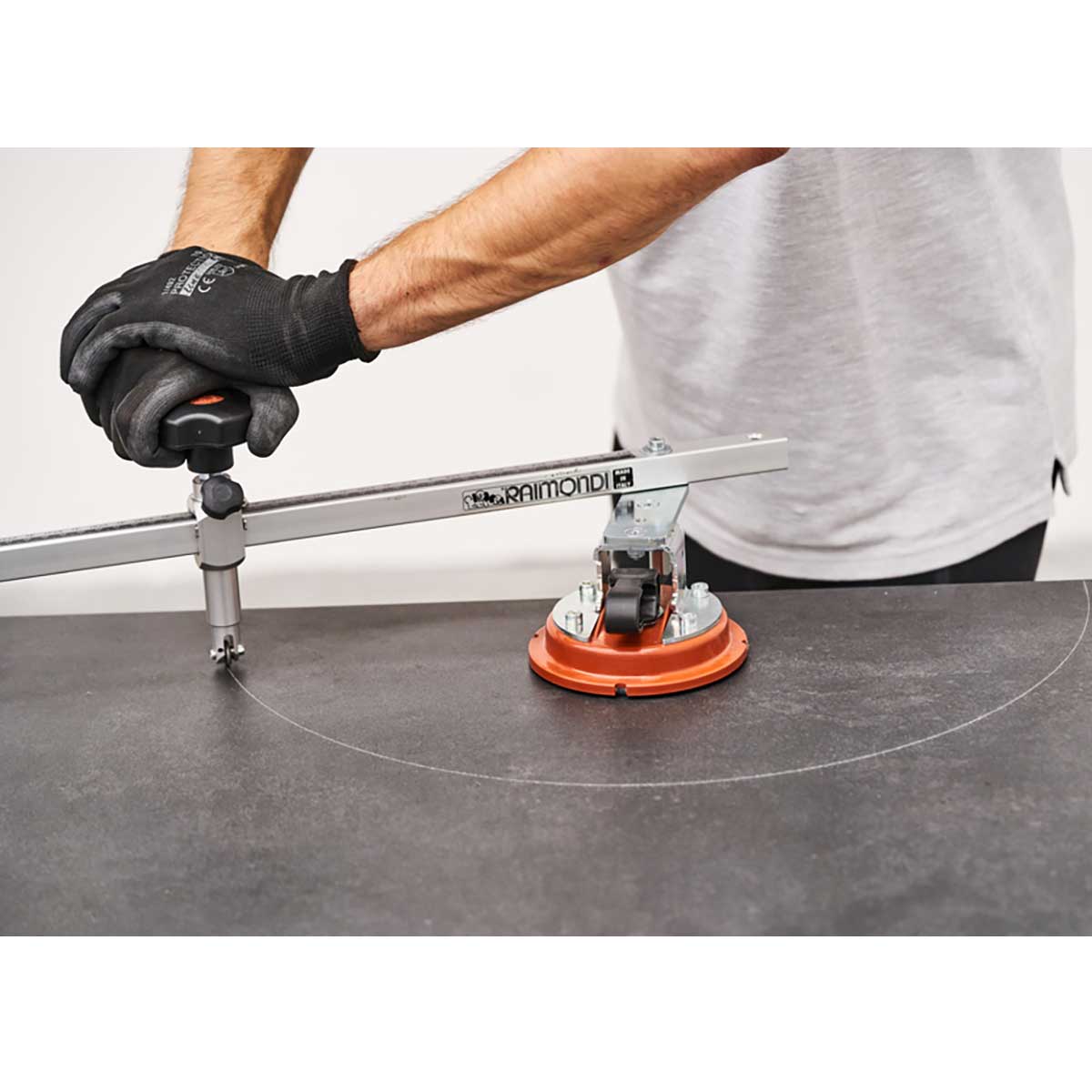

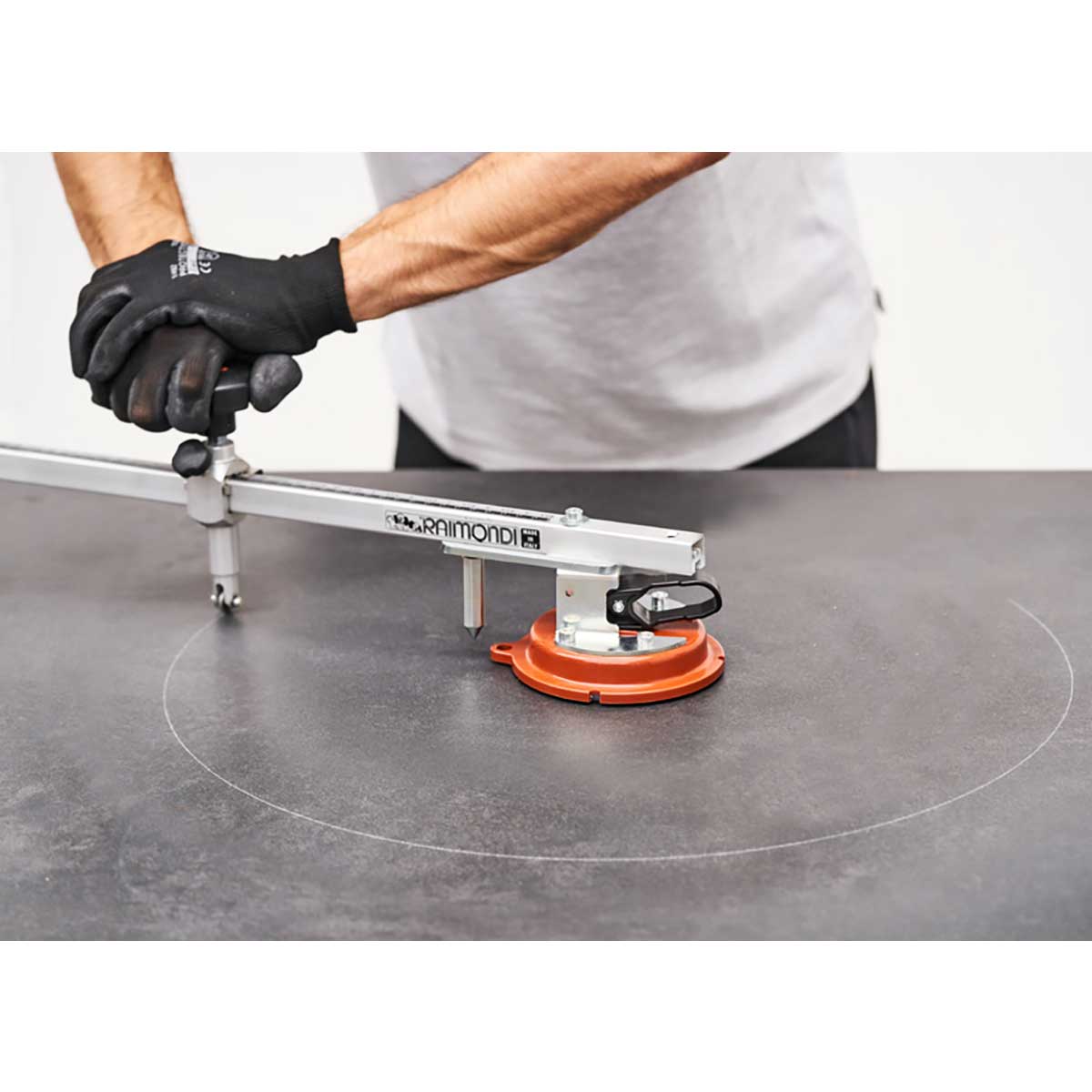

- Performs centered and off-centered circular cuts.

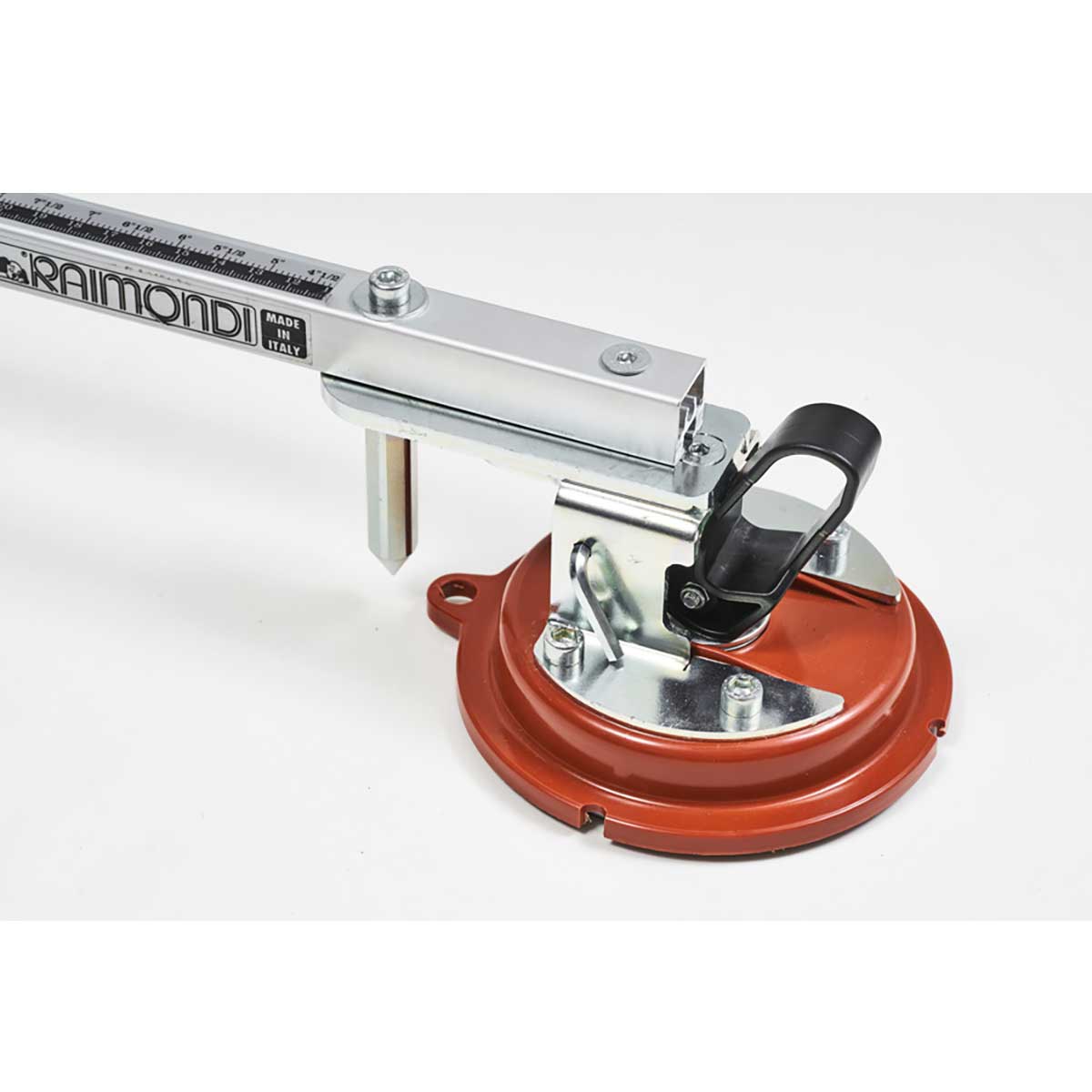

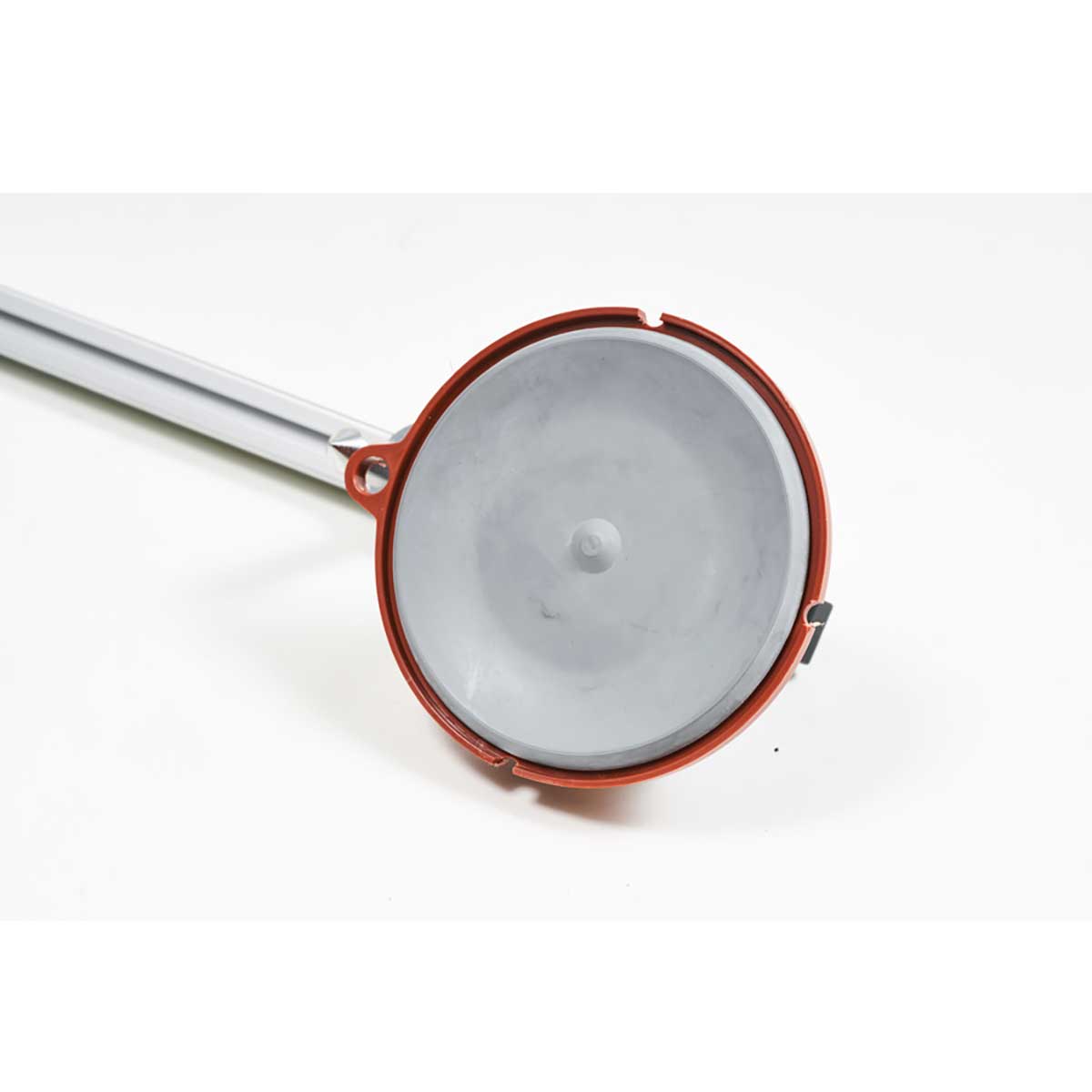

- Suction cup placement determines the position of the circular cut.
- Can create full circular holes, semicircular holes, and quarter-circle cuts.
- Can be used to round the corner of a slab.

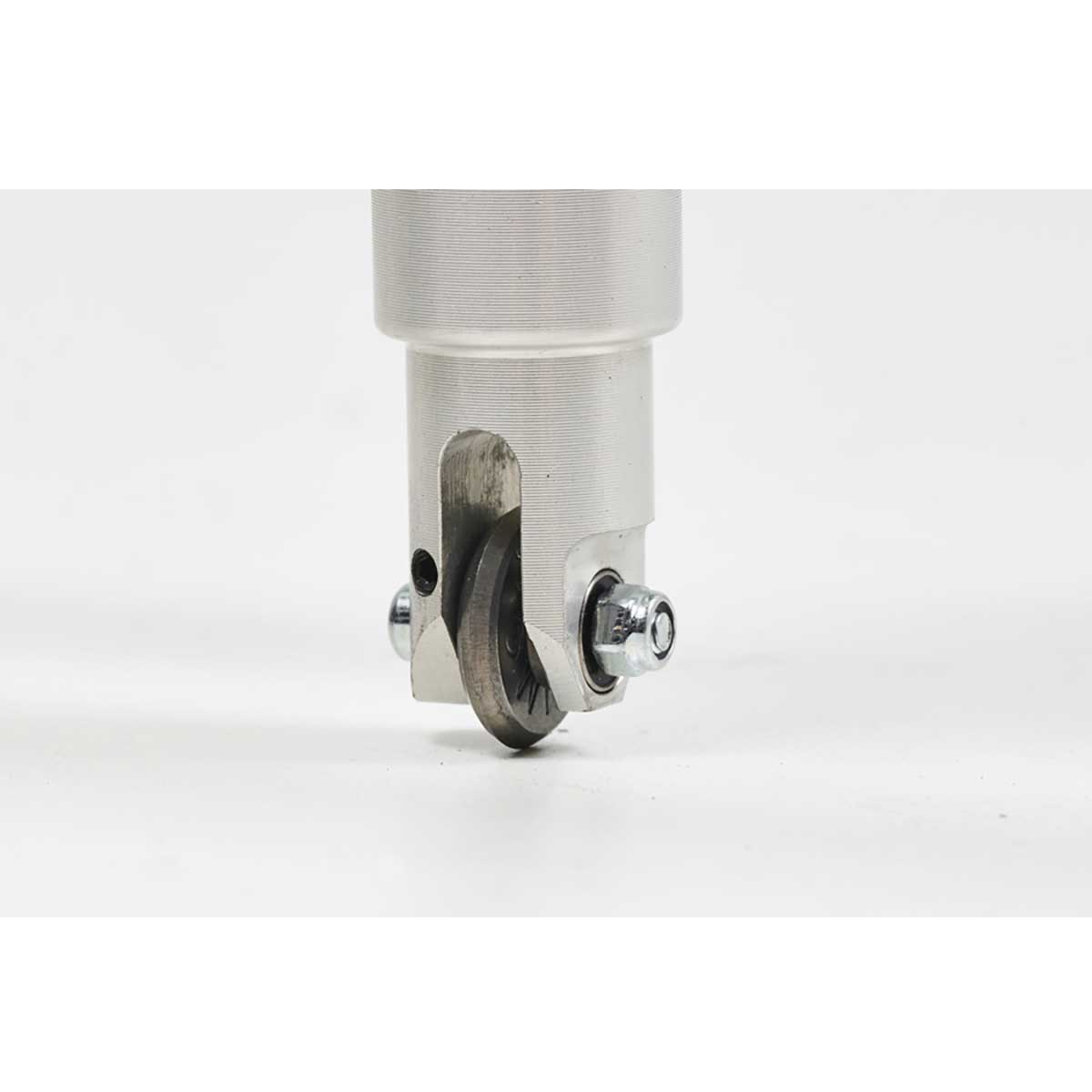

- Includes a 16 mm diamond scoring wheel with pin and bearings.

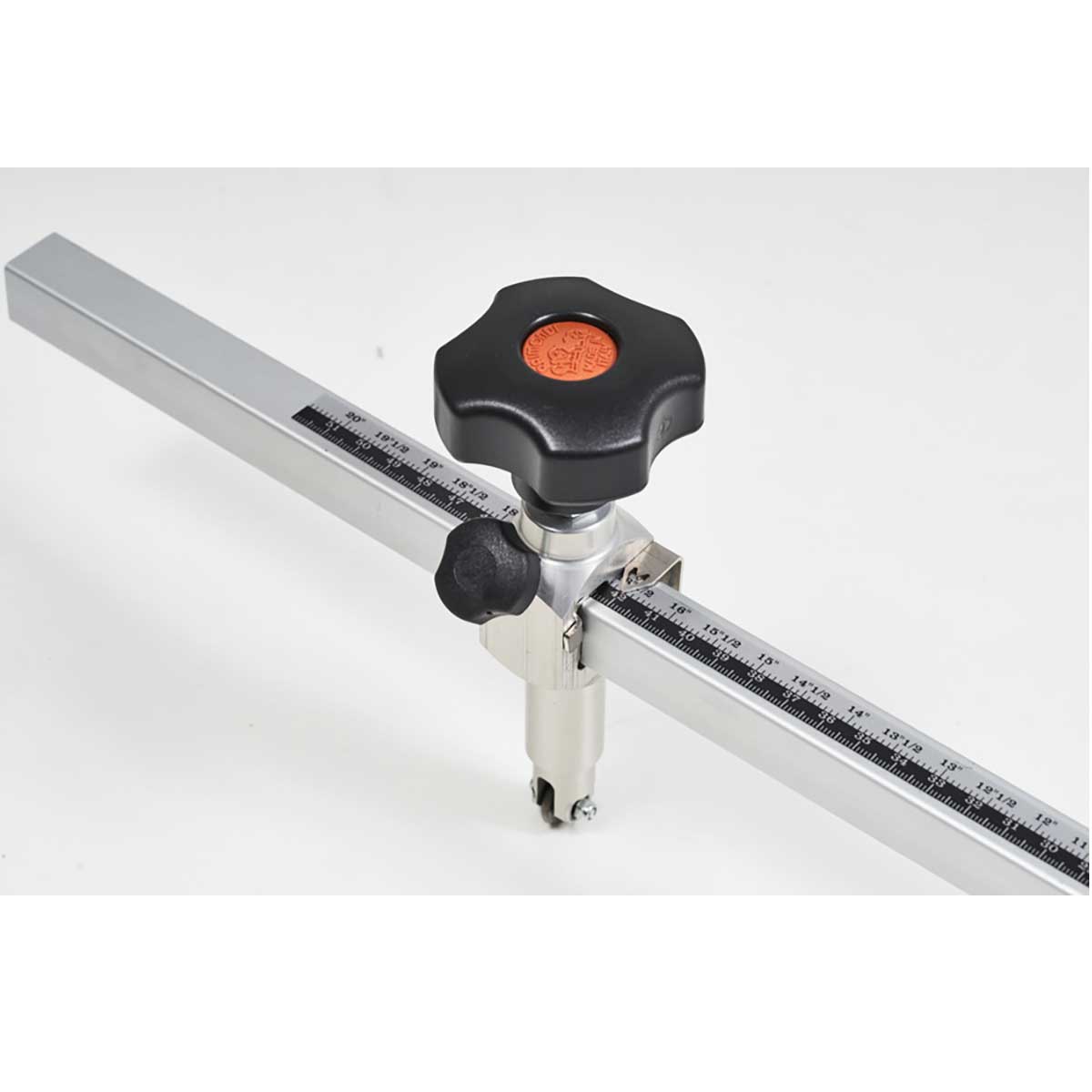

- Metric and imperial ruler with pointer showing the hole diameter.
- Lightweight and easy to transport.
Cutting Capacity
- Centered holes: Minimum diameter 8 5/8" and maximum diameter 39 3/8".
- Off-centered holes: Minimum diameter 12 5/8" and maximum diameter 39 3/8".
Cutting Process

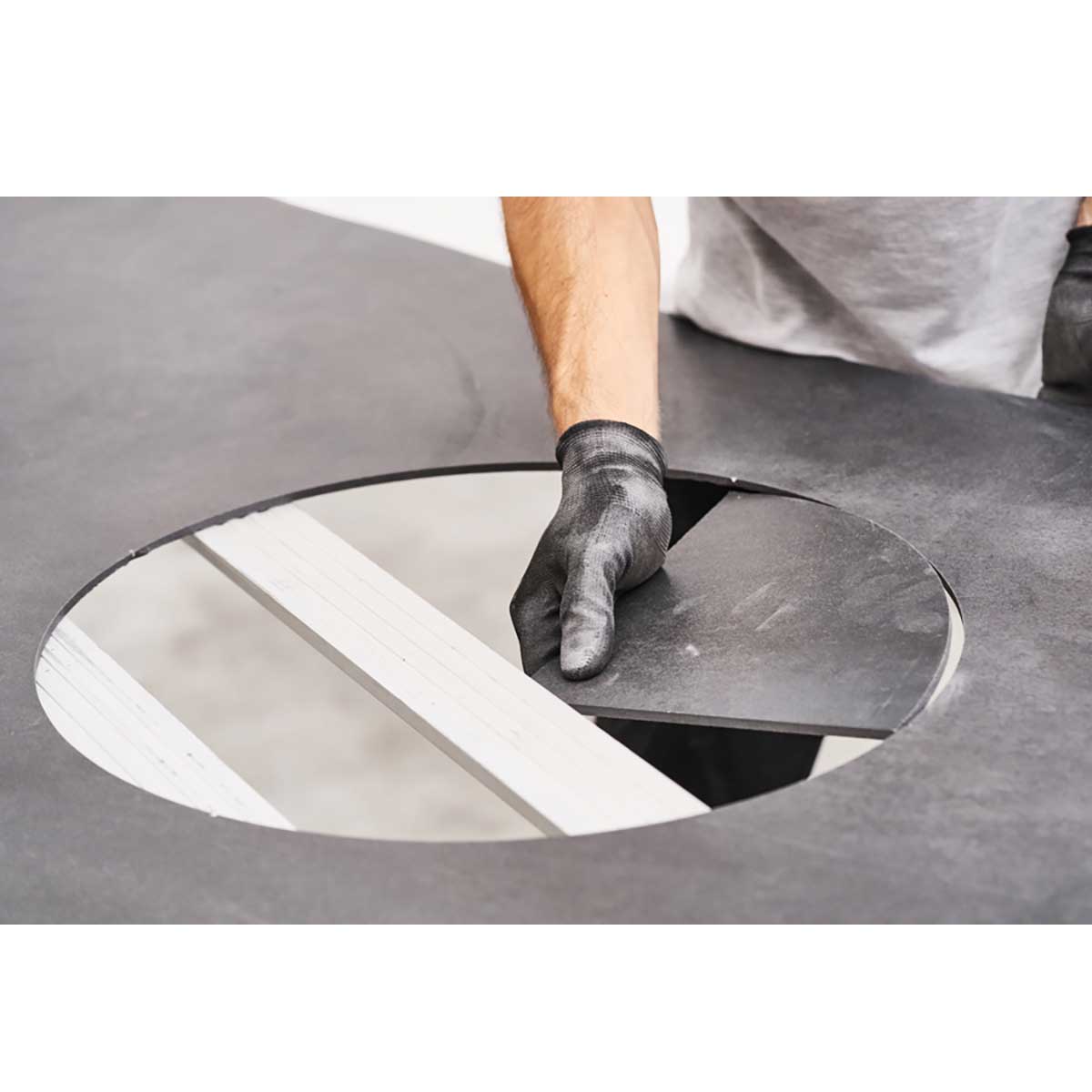

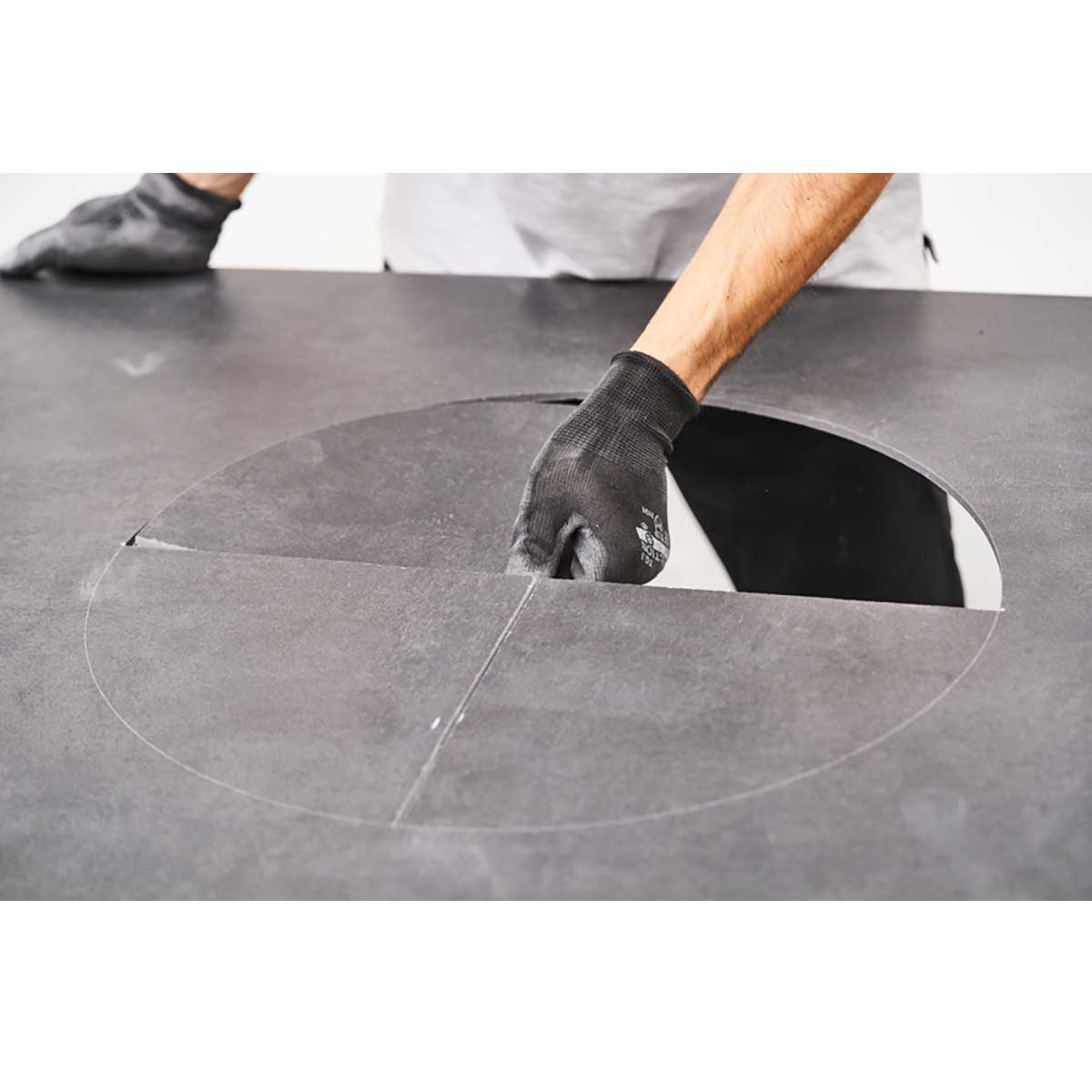

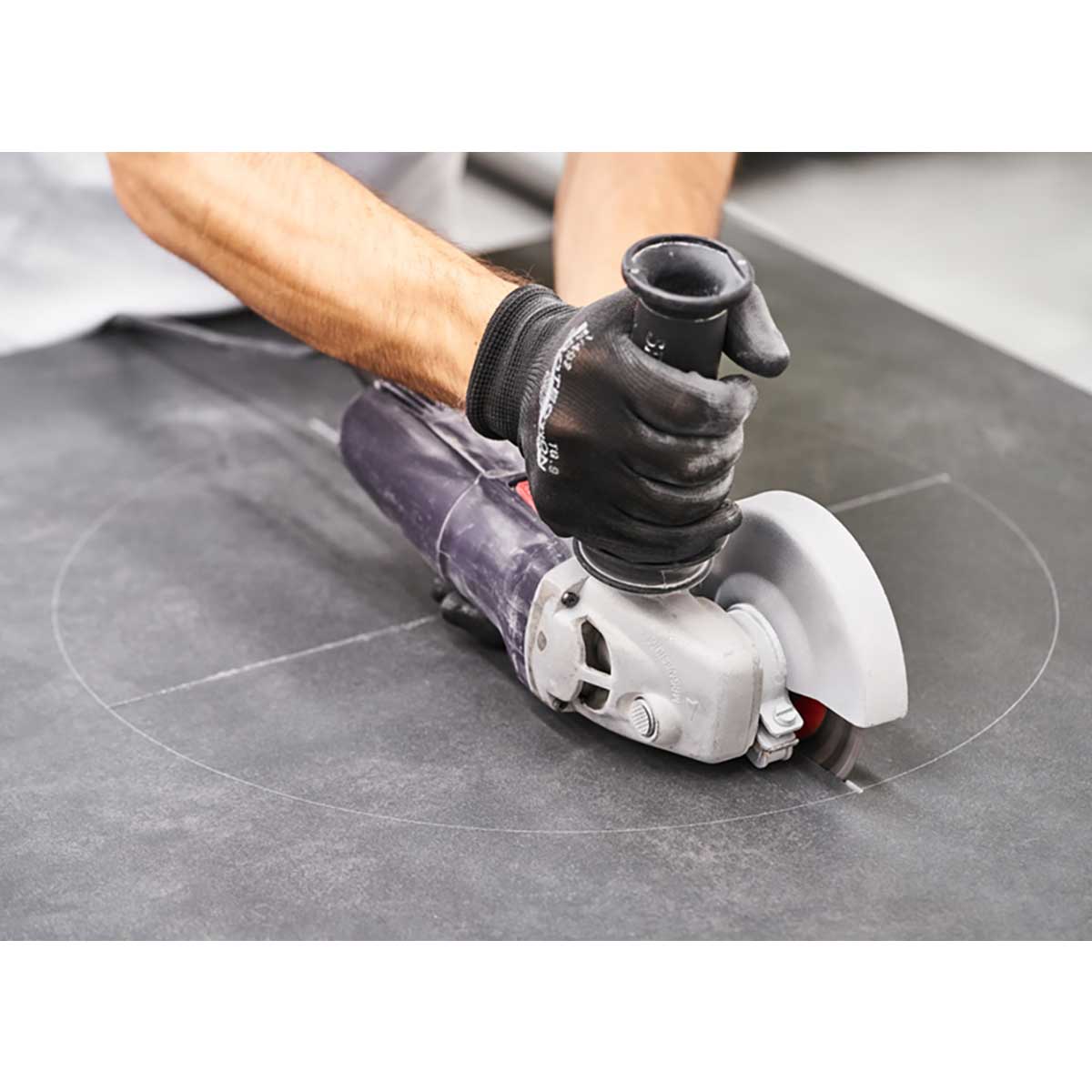

The KOMPASS uses the score and snap system to establish the circular cut on the tile or slab. To complete the hole, it is almost always necessary to perform additional slicing with an angle grinder and remove the remaining sections afterward.
Applications
- Large-format porcelain tile
- Large-format tile slabs
- Stone and slab installations
- Centered circular openings
- Off-centered circular openings
- Semicircular cuts
- Quarter-circle cuts
- Rounding slab corners
Specifications
- Model: KOMP 50
- Product Reference: LTKOMP50
- Centered Hole Diameter: 8 5/8" to 39 3/8"
- Off-Centered Hole Diameter: 12 5/8" to 39 3/8"
- Scoring Wheel: 16 mm diamond scoring wheel with pin and bearings
- Measurement: Metric and imperial ruler with diameter pointer
