Quartz by Aco Linear Shower Drain Brushed Stainless - Piano 60

Quartz Linear Shower Drain Brushed Stainless - Piano 60

A Unique Grate Inspired by the Elegance of Piano Keys

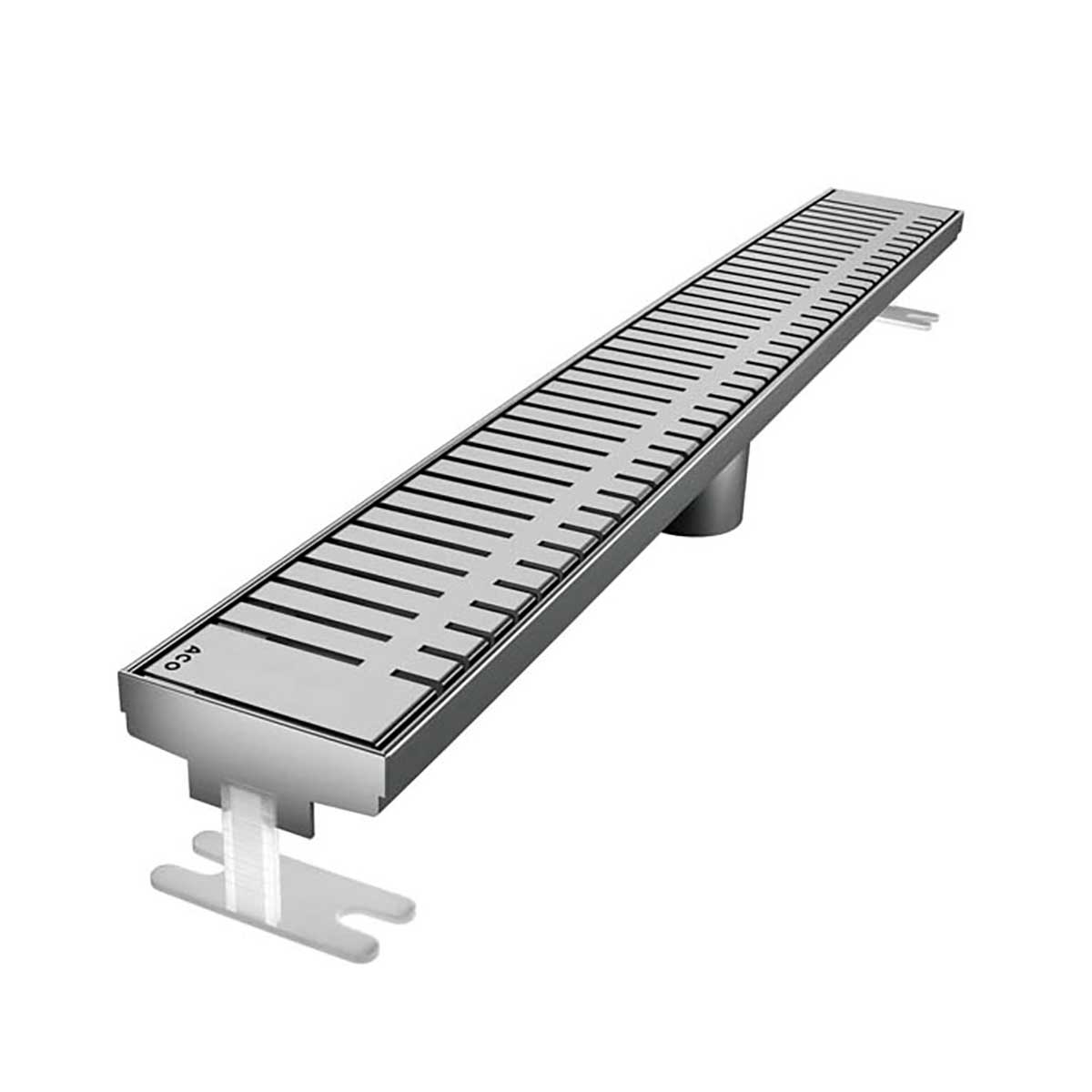

Complete Set Channel Body, Piano Grate Cover, Lifting Key, Adjustable Feet, Hardware

Designed for wood joist shower installations with CPE waterproof membranes

Specifications

Length 59.05" (1500mm), Intake 35.19 sq. in.

Linear Shower Channel Drains Deliver Superior Performance and Modern Style

Features

• 2" diameter central vertical outlet
• Flow rate: 6.3 GPM (0.6 l/s) at the entrance and 9.5 GPM (0.6 l/s) against the wall
• 3.3" (84mm) wide channel body
• Premium stainless steel construction
• Plastic support feet simplify installation and leveling
• Friction-locking plastic plugs securely hold the grate in place
• Lifting key included for easy grate removal and cleaning
• Optional accessories include plumbing connectors, debris strainer, and water-activated LED light

Brushed Stainless Finish

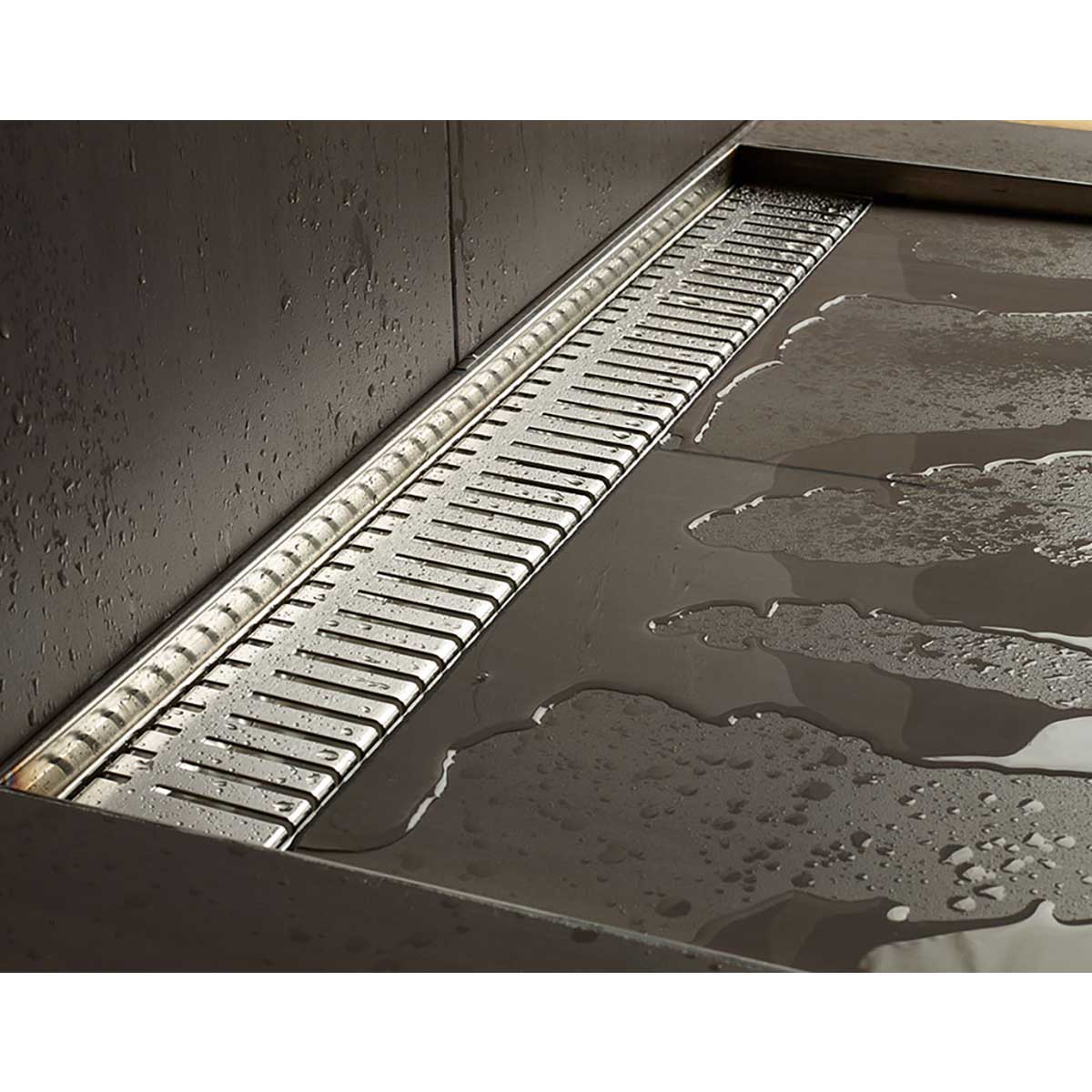

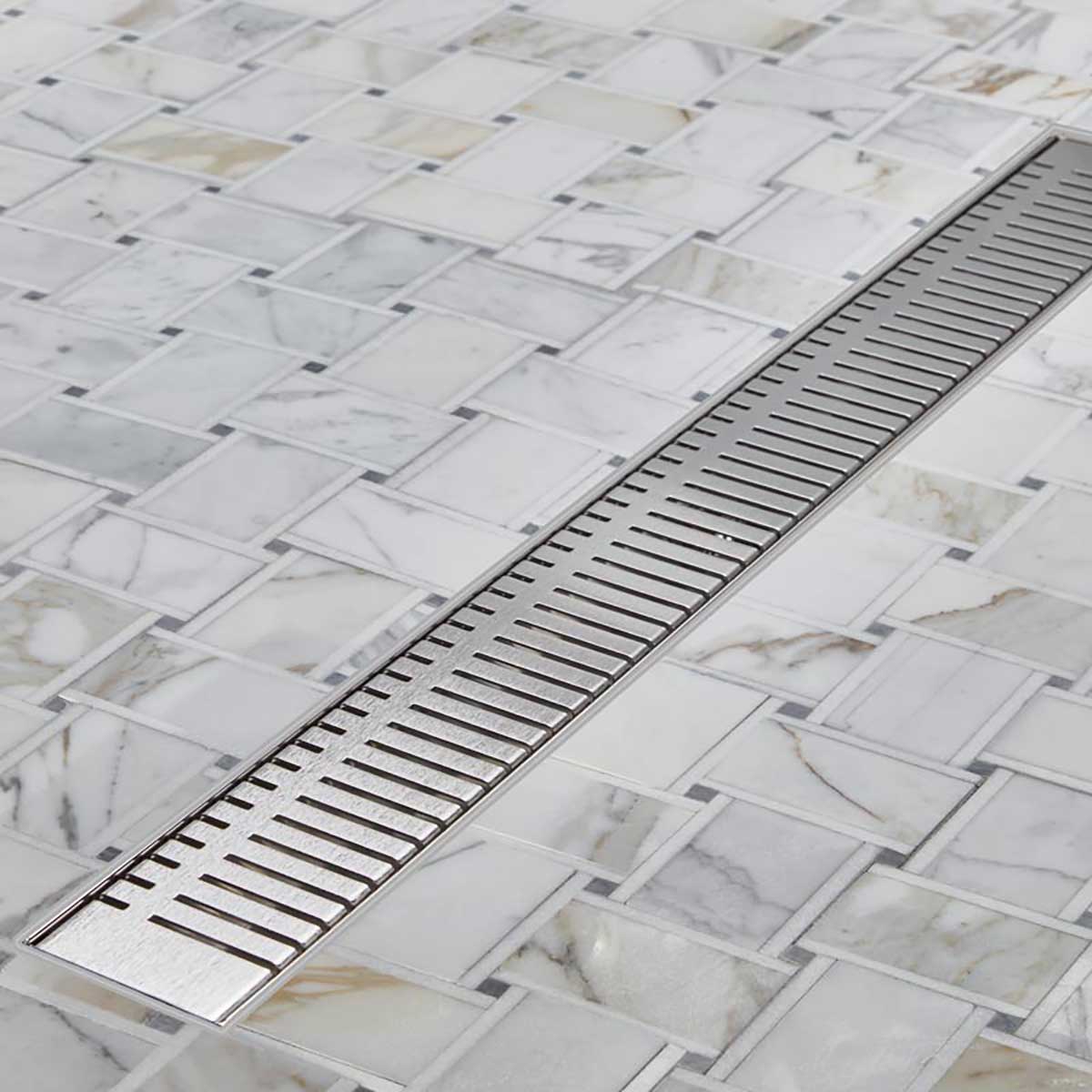

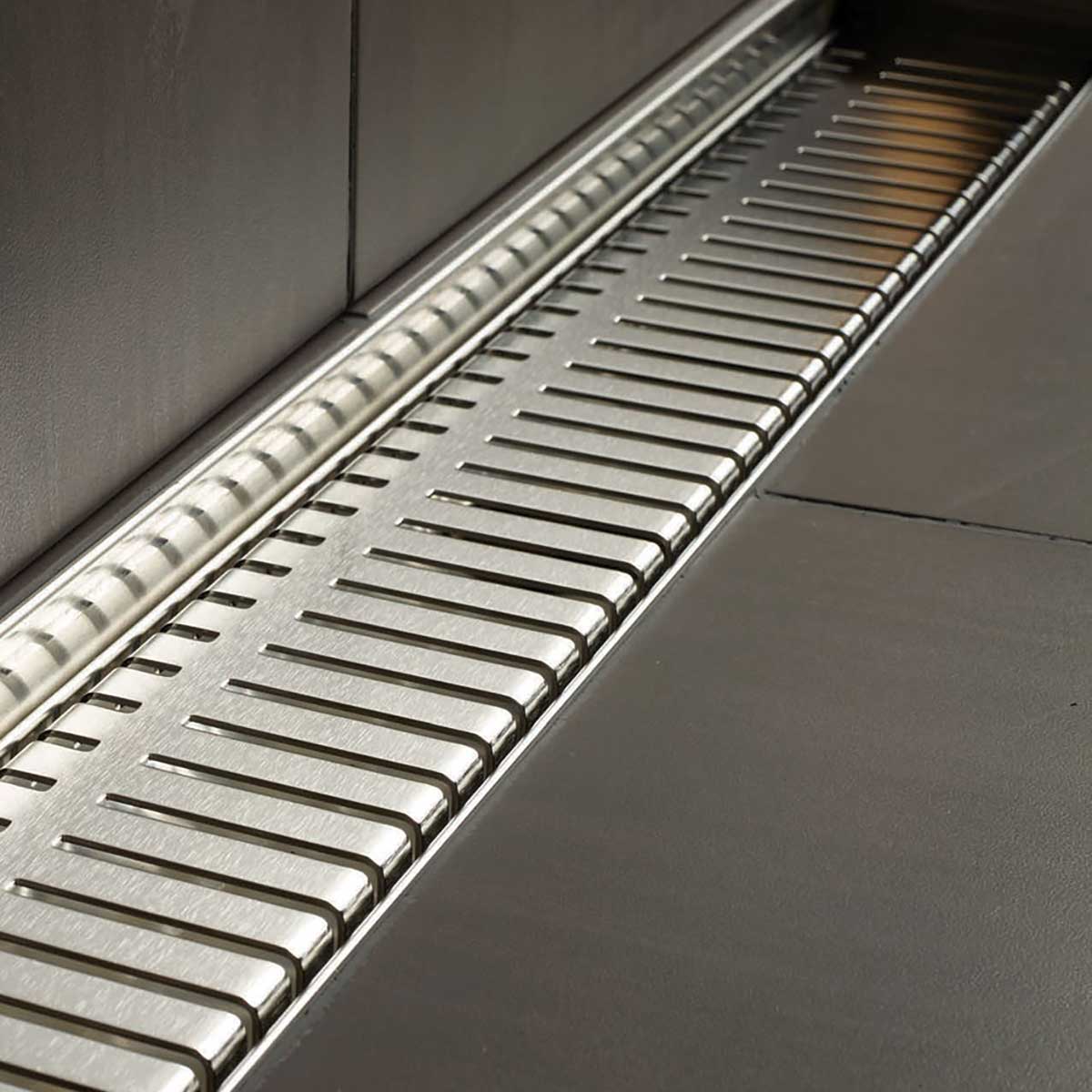

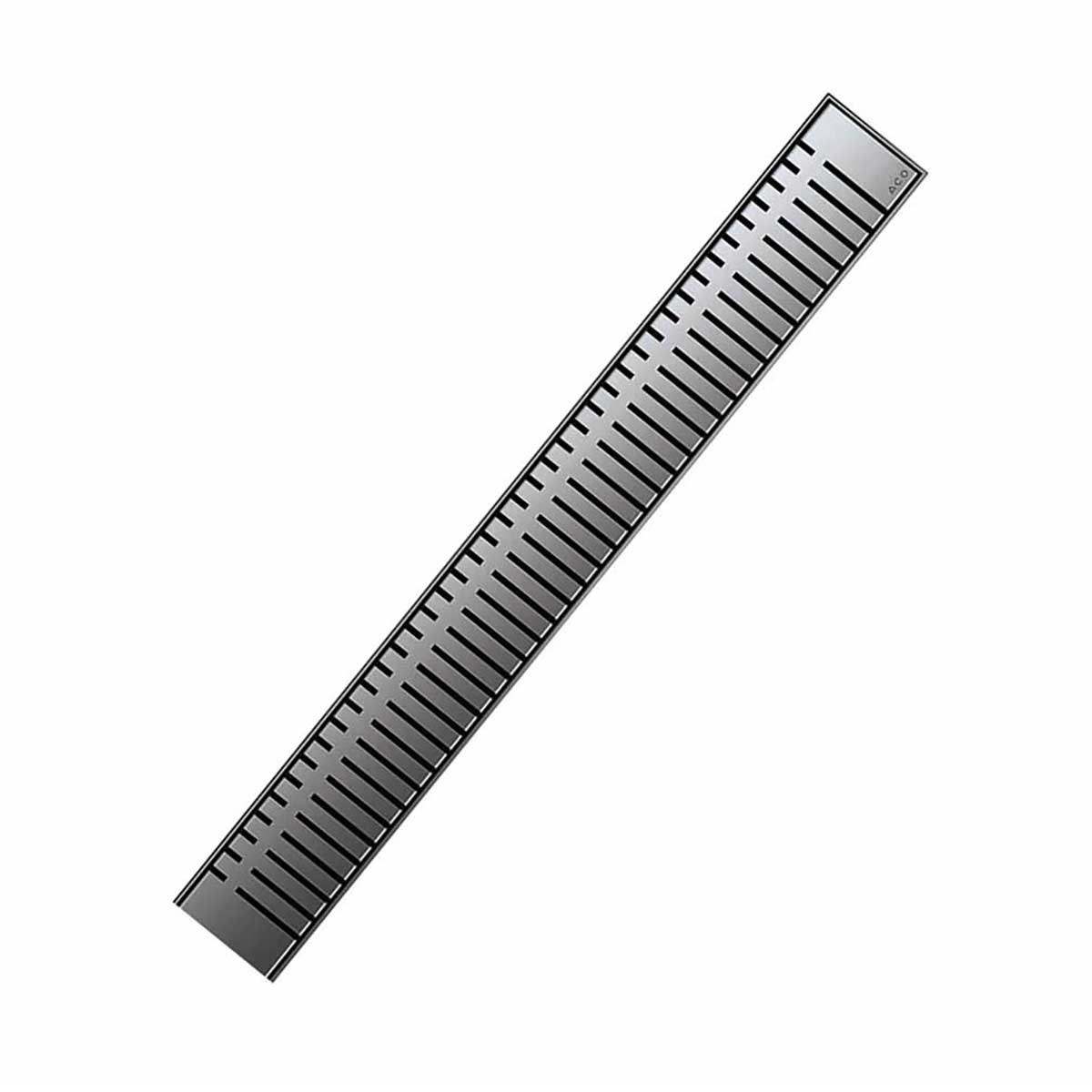

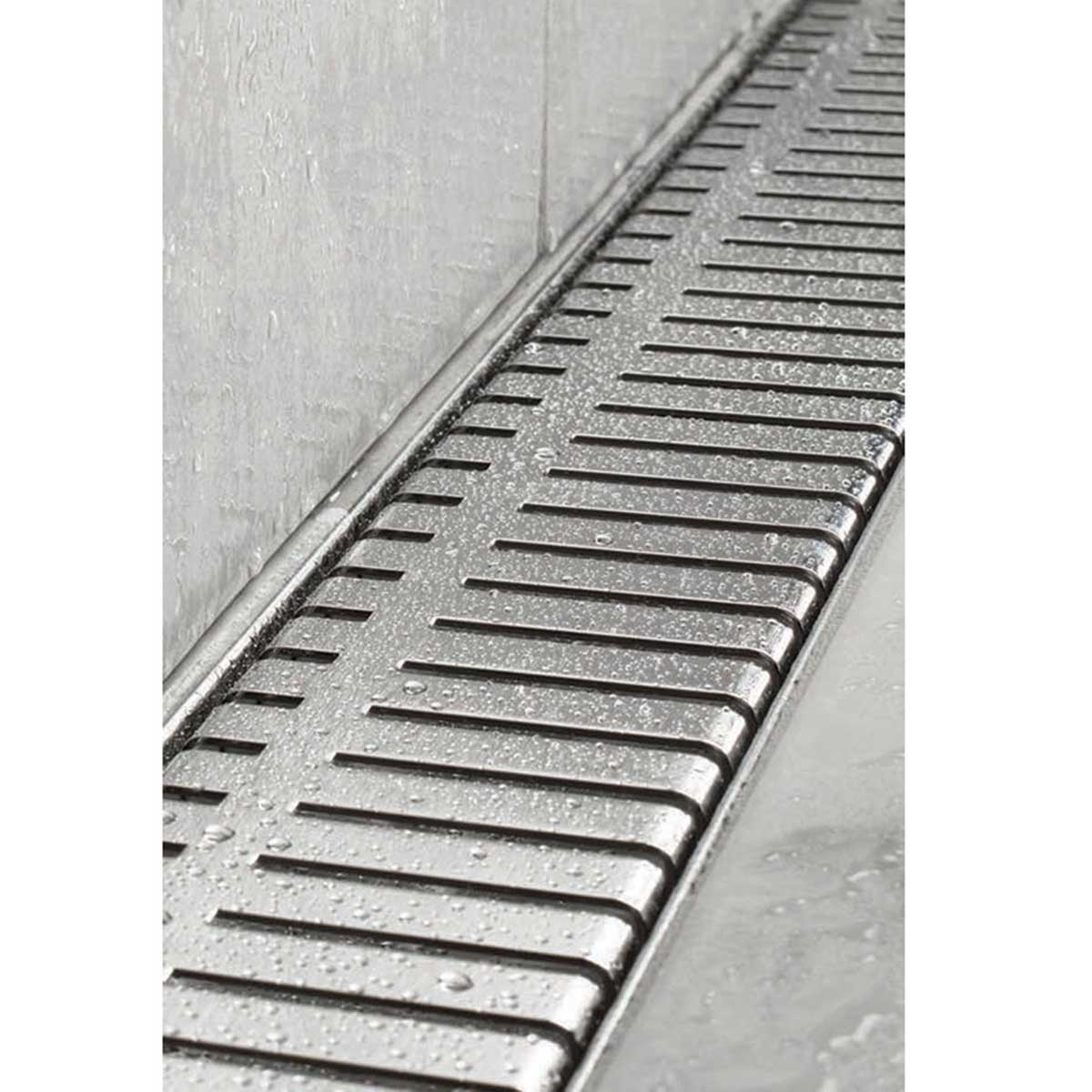

The Quartz Piano linear shower drain features an elegant grate pattern inspired by the clean lines of piano keys. This distinctive design creates a sophisticated focal point while providing exceptional drainage performance for modern showers. The decorative grate complements a wide range of tile styles, from classic porcelain to natural stone and large-format tiles.

ACO's Brushed Stainless finish features a timeless brushed texture that blends effortlessly with virtually any bathroom design. It coordinates beautifully with brushed nickel fixtures, stainless steel hardware, contemporary glass enclosures, and both warm and cool tile colors, making it one of the most versatile finishes available.

The 60 inch length is ideal for large walk-in showers, curbless shower systems, luxury master bathrooms, and commercial wet rooms where maximum drainage capacity and clean architectural lines are desired. Its extended design creates a seamless appearance while efficiently directing water toward the central outlet.

Built for both residential and commercial applications, the Quartz Piano linear shower drain combines premium stainless steel construction with precision European engineering. The removable grate, adjustable support feet, and included lifting key simplify installation, maintenance, and routine cleaning while providing years of dependable performance.

Unlike traditional center drains, Quartz linear shower drains allow a single-direction floor slope that simplifies tile installation and eliminates difficult tile cuts around conventional drains. The drain can be installed against a wall, at the shower entrance, or in the center of the shower floor, making it ideal for barrier-free and curbless shower designs.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO 60 Inch Piano Linear Shower Drain with Brushed Stainless Grate delivers dependable drainage, elegant architectural styling, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that will perform reliably for years in both residential and commercial applications.
