Quartz by ACO Glass Linear Shower Drain Black Finish
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- Orders are shipped via USPS, UPS, or FedEx.
- Shipping time up to 5 business days. Weekends not included.
- Express shipping options available.
- Same-day shipping cut-off time 4:00 PM PST for most items.
- For oversized shipments that require freight delivery, our team will contact you.
Quartz by ACO Glass Linear Shower Drain Black Finish
Description
Description

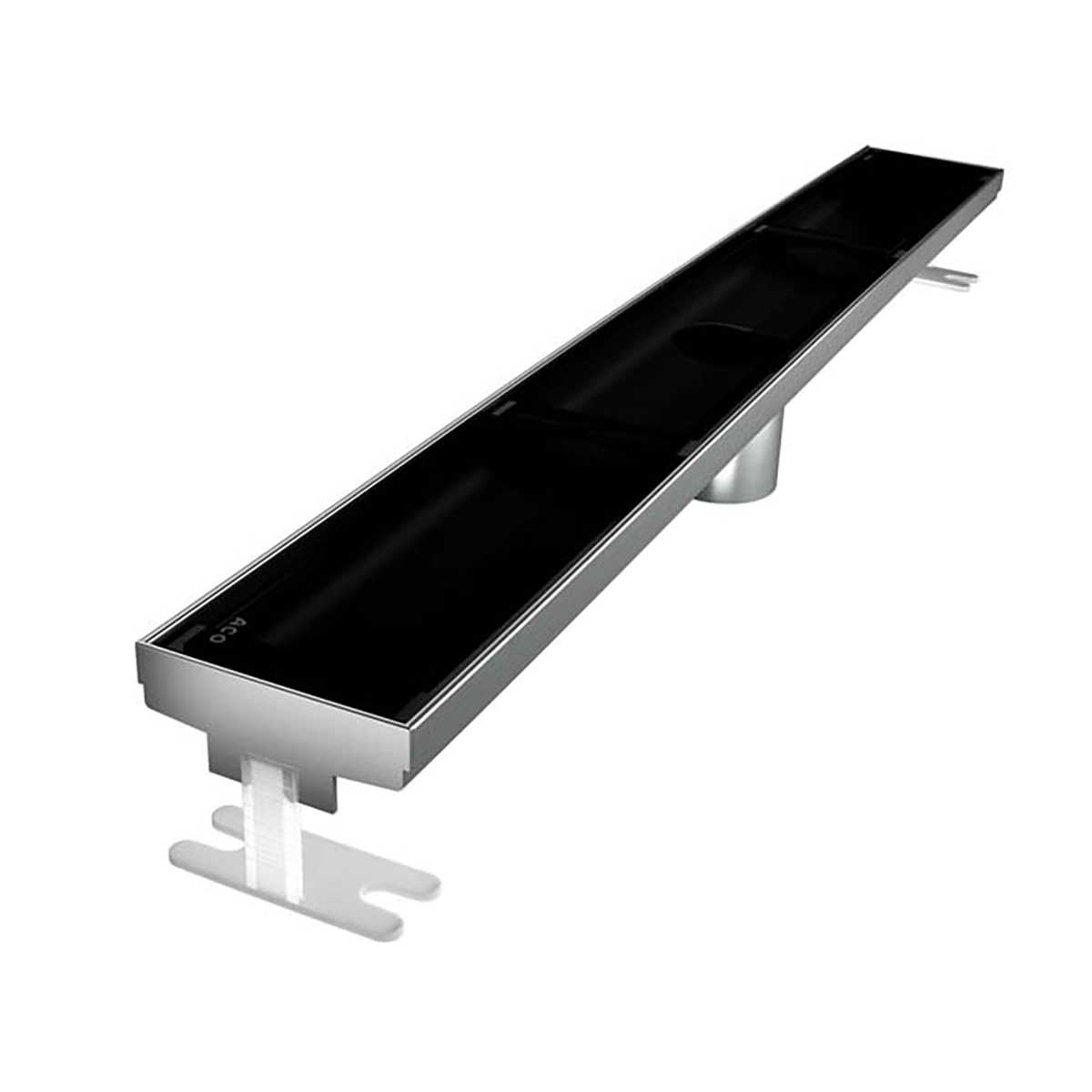

Quartz by ACO Glass Linear Shower Drain - Black Finish
Glass - Modern and Sleek Design with High-Quality Tempered Glass
Complete Set Channel Body, Glass Grate Cover, Lifting Key, Adjustable Feet, Hardware
Designed for wood joist shower installations with CPE waterproof membranes
Available Sizes
28 Inch (27.55" / 700mm), Intake 15.39 sq. in.
32 Inch (31.50" / 800mm), Intake 17.71 sq. in.
36 Inch (35.43" / 900mm), Intake 20.03 sq. in.
40 Inch (39.37" / 1000mm), Intake 22.35 sq. in.
48 Inch (47.25" / 1200mm), Intake 26.68 sq. in.
Linear Shower Channel Drains Provide Superior Performance and Contemporary Style
Features
- 2" diameter central vertical outlet
- Flow rate: 6.3 GPM (0.6 l/s) at the entrance and 9.5 GPM (0.6 l/s) against the wall
- 3.3" (84mm) wide channel
- Plastic support feet simplify installation and leveling
- Premium stainless steel channel body
- High-quality tempered glass grate with black finish
- Lifting key included for easy grate removal and maintenance
Black Glass Finish
The Quartz Glass linear shower drain combines premium stainless steel construction with a sleek tempered black glass grate for a contemporary, minimalist appearance. The smooth glass surface reflects light beautifully while creating a clean, uninterrupted look that complements virtually any modern bathroom design.
The elegant Black Glass finish pairs exceptionally well with matte black fixtures, chrome hardware, brushed nickel, natural stone, porcelain tile, and large-format tiles. Its smooth tempered glass surface is easy to clean and helps maintain a like-new appearance with minimal maintenance.
Manufactured using premium stainless steel and durable tempered safety glass, the Quartz Glass linear shower drain is engineered for years of dependable performance. The included lifting key allows quick grate removal for routine cleaning, while the adjustable feet simplify installation and leveling.
Unlike traditional center drains, the Quartz Glass linear shower drain offers greater installation flexibility by allowing placement against a wall, at the shower entrance, or in the center of the shower floor. The linear design creates a single-direction floor slope, reduces complicated tile cuts, and makes it easier to achieve the barrier-free shower designs popular in today's luxury bathrooms.
Ideal for residential bathrooms, custom showers, hotels, spas, and commercial projects, the Quartz Glass collection combines European-inspired engineering with elegant modern styling to deliver outstanding drainage performance and a sophisticated architectural finish.
Helpful Resources
- Complete Guide to Design, Installation and Planning
- How to Install a Linear Shower Drain on a Joisted Wood Floor
- Quartz Linear Shower Drain Concrete Slab Installation Guide
Related Collections
When installed correctly, the Quartz by ACO Glass Linear Shower Drain in Black Finish delivers dependable drainage, sleek architectural styling, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that will perform reliably for years in both residential and commercial applications.
