Quartz by ACO Piano Linear Shower Drain - Polished Chrome

Quartz Linear Shower Drain - Piano Grate - Polished Chrome

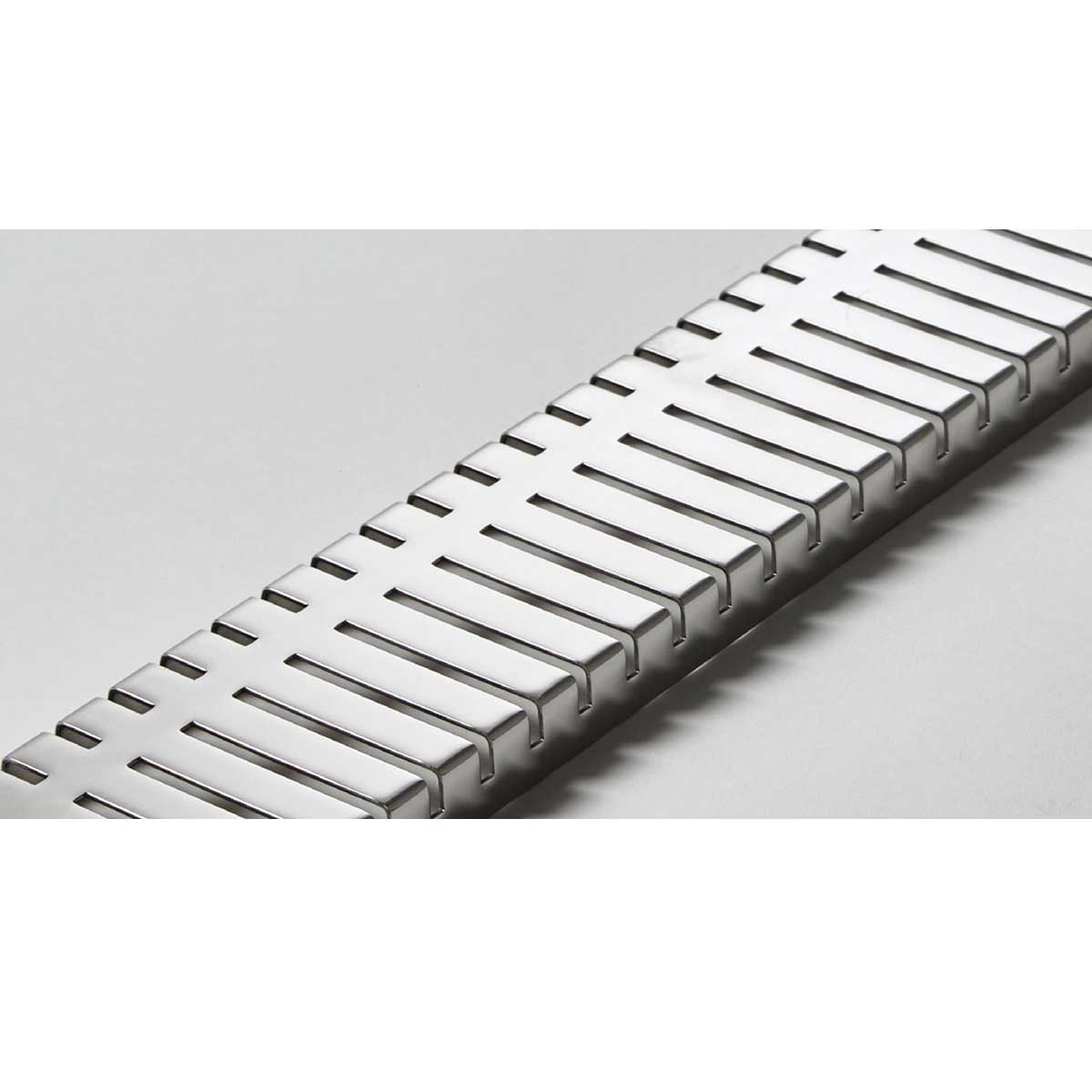

A Unique Grate Inspired by the Elegance of Piano Keys

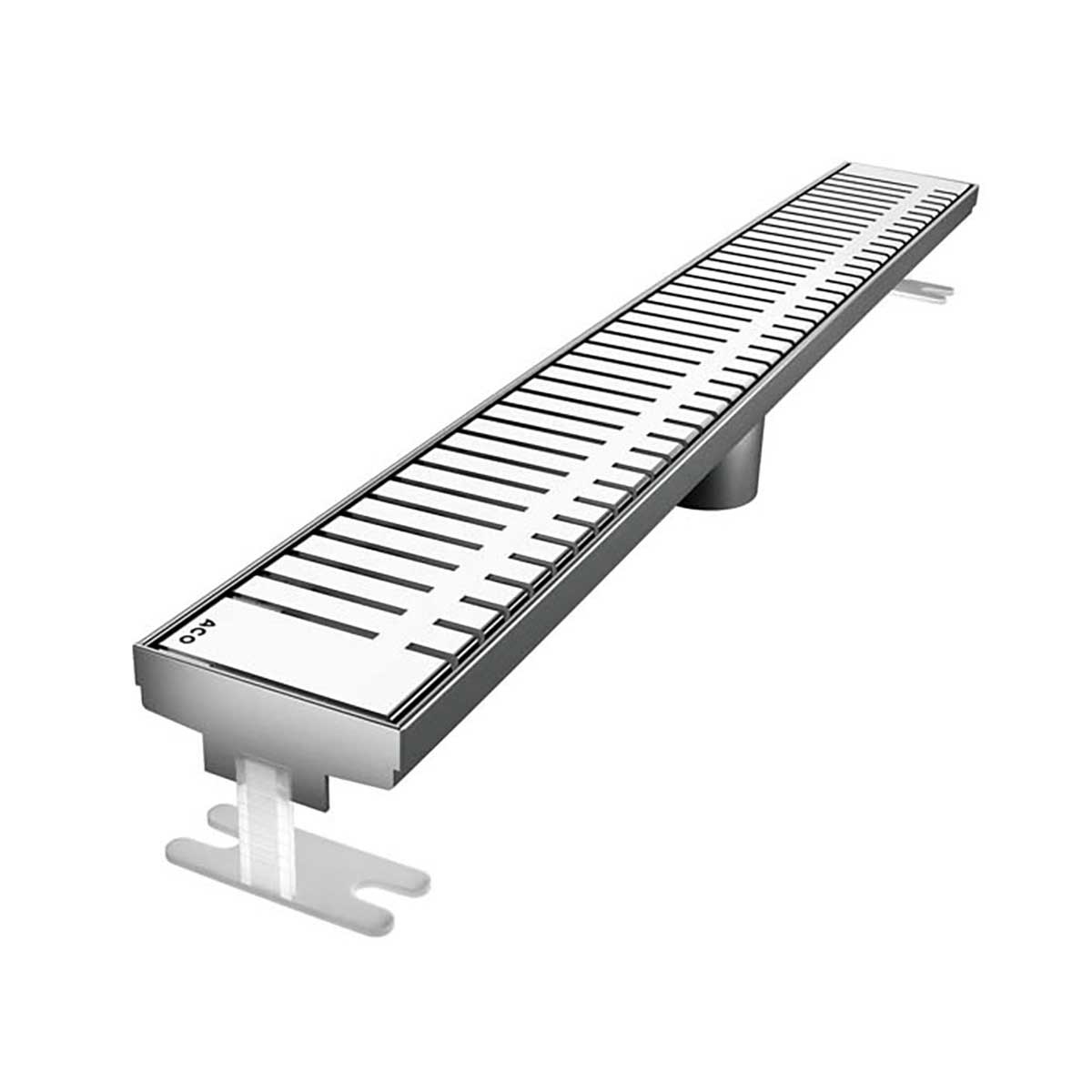

Complete Set Channel Body, Piano Grate Cover, Lifting Key, Adjustable Feet, Hardware

Designed for wood joist shower installations with CPE waterproof membranes

Available Sizes

28 Inch (27.55" / 700mm), Intake 16.62 sq. in.
32 Inch (31.50" / 800mm), Intake 19.11 sq. in.
36 Inch (35.43" / 900mm), Intake 21.60 sq. in.
40 Inch (39.37" / 1000mm), Intake 24.09 sq. in.
48 Inch (47.25" / 1200mm), Intake 29.08 sq. in.
55 Inch (55.12" / 1400mm), Intake 34.89 sq. in.
60 Inch (59.05" / 1500mm), Intake 35.19 sq. in.

Linear Shower Channel Drains Deliver Superior Performance and Modern Style

Features

• 2" diameter central vertical outlet
• Flow rate: 6.3 GPM (0.6 l/s) at the entrance and 9.5 GPM (0.6 l/s) against the wall
• 3.3" (84mm) wide channel body
• Premium stainless steel construction
• Plastic support feet simplify installation and leveling
• Friction-locking plastic plugs securely hold the grate in place
• Lifting key included for easy grate removal and cleaning
• Optional accessories include plumbing connectors, debris strainer, and water-activated LED light

Polished Chrome Finish

The Quartz Piano linear shower drain features an elegant grate pattern inspired by the clean lines of piano keys. This distinctive design creates a sophisticated focal point while providing exceptional drainage performance for modern showers. The decorative grate complements a wide range of tile styles, from classic porcelain to natural stone and large-format tiles.

ACO's Polished Chrome finish offers a brilliant mirror-like appearance that enhances contemporary bathroom designs. Manufactured from premium stainless steel rather than chrome-plated materials, it delivers long-lasting durability while coordinating beautifully with chrome faucets, shower fixtures, and other polished bathroom hardware.

Built for both residential and commercial applications, the Quartz Piano linear shower drain combines premium materials with precision European engineering. The removable grate, adjustable support feet, and included lifting key simplify installation, maintenance, and routine cleaning while ensuring years of dependable performance.

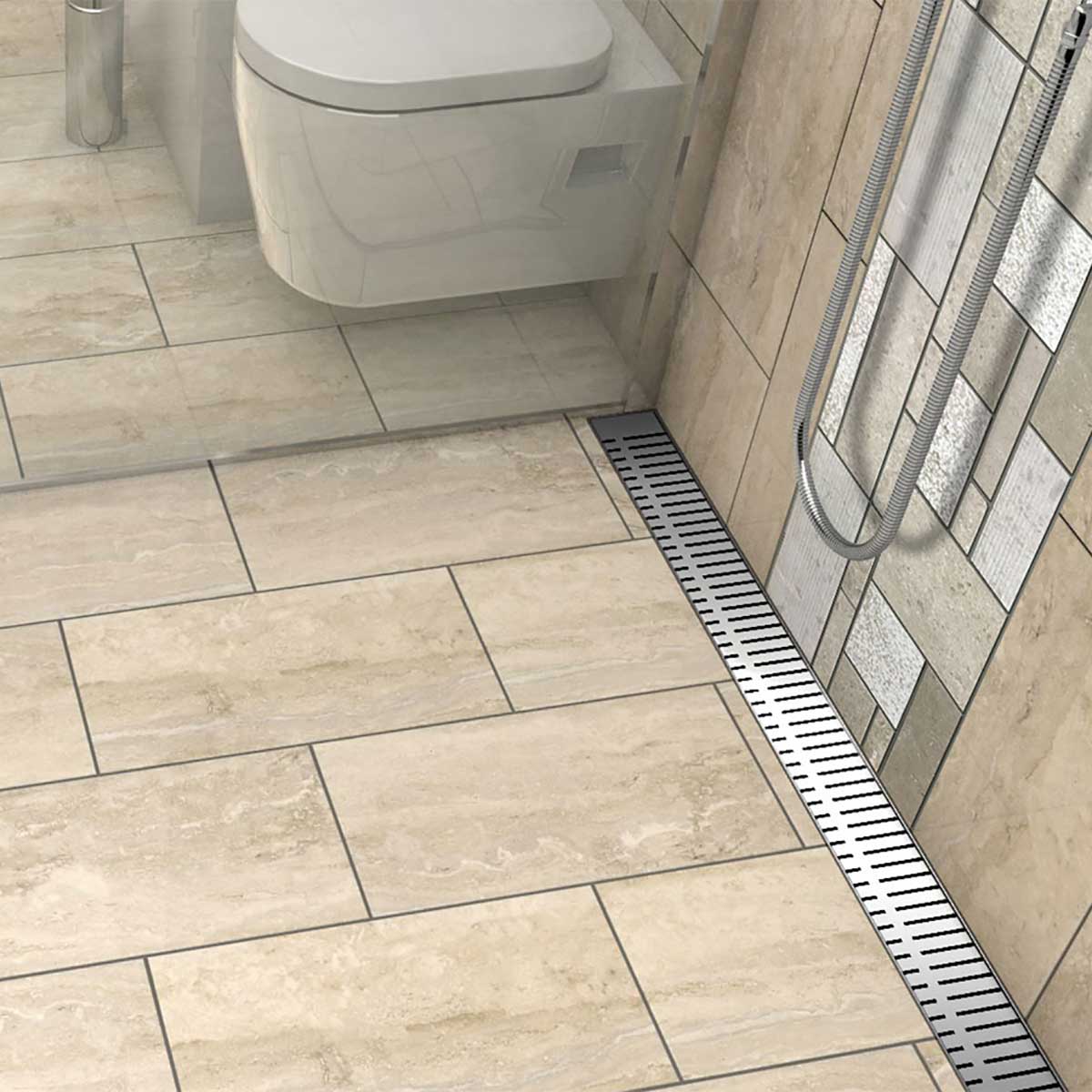

Unlike traditional center drains, Quartz linear shower drains allow a single-direction floor slope that simplifies tile installation and eliminates difficult tile cuts around conventional drains. The drain can be installed against a wall, at the shower entrance, or in the center of the shower floor, making it ideal for barrier-free and curbless shower designs.

Available in multiple standard lengths, the Quartz by ACO Piano collection provides outstanding design flexibility while delivering the reliable drainage performance expected in luxury residential bathrooms, hotels, spas, healthcare facilities, and commercial shower installations.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO Piano Linear Shower Drain with Polished Chrome Grate delivers dependable drainage, elegant architectural styling, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that will perform reliably for years in both residential and commercial applications.
