Quartz by ACO Solid 28 Inch Linear Shower Drain Brushed Stainless
Description
Description

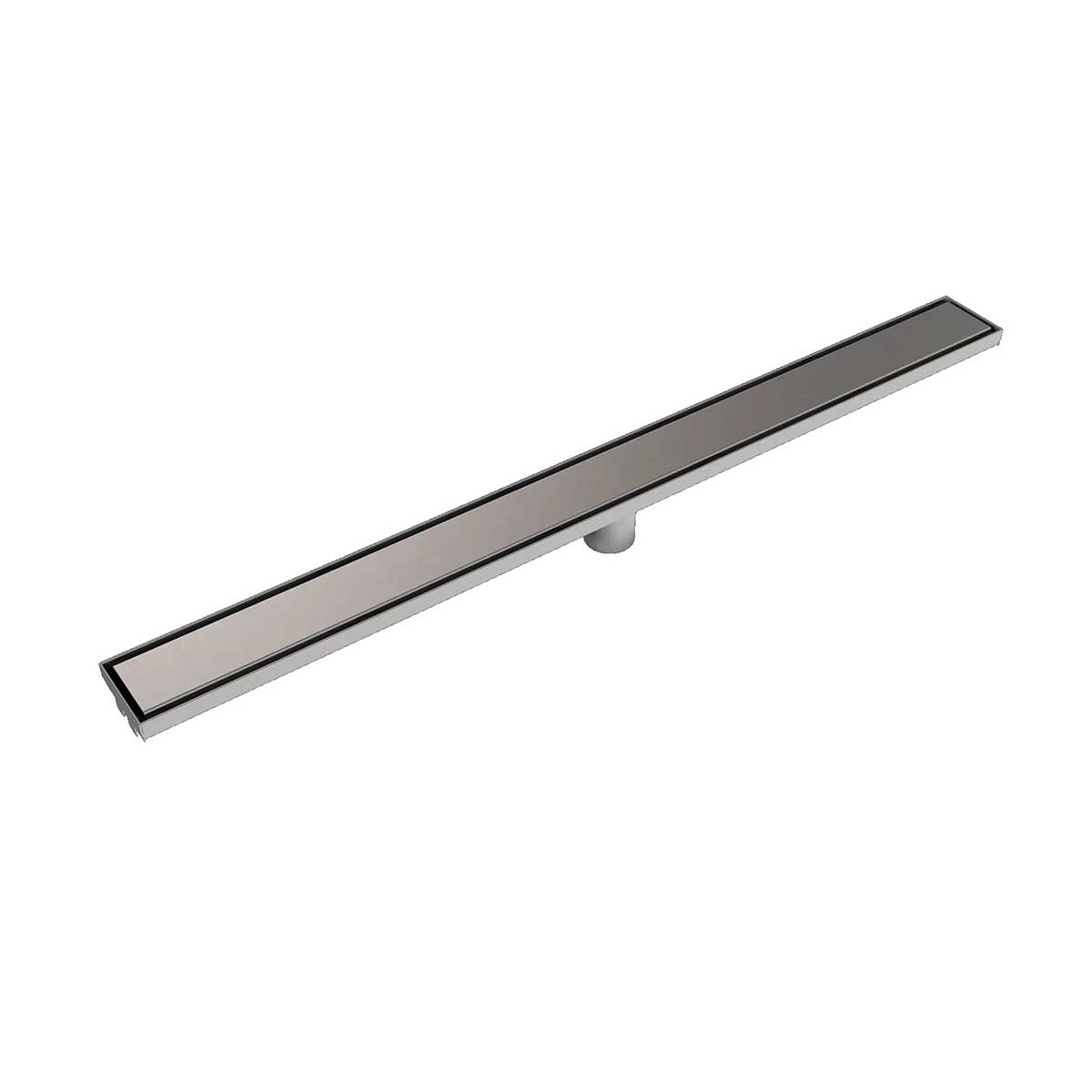

Quartz 28 Inch Solid Linear Shower Drain - Brushed Stainless
Solid - Clean and Sleek Architectural Design

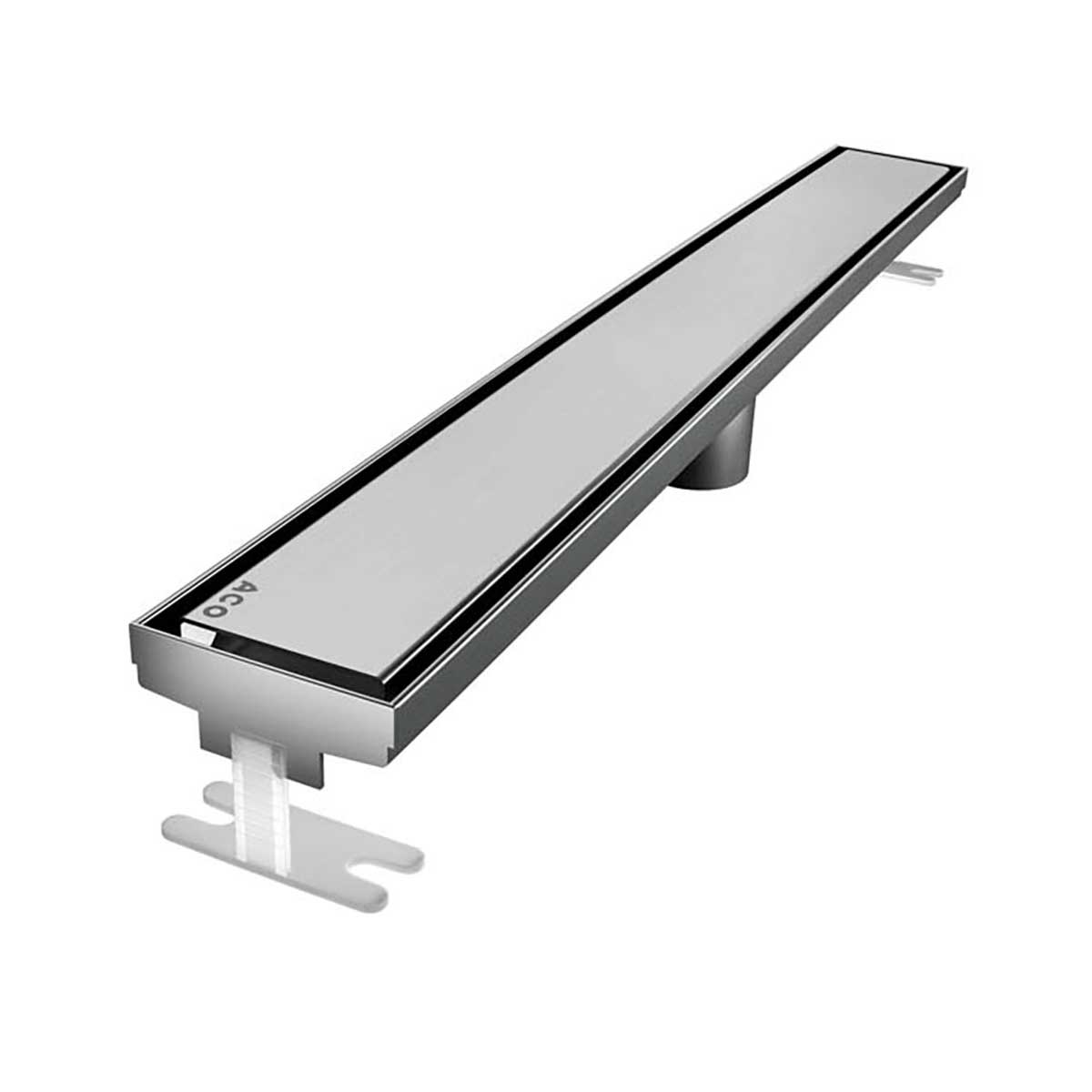

Complete Set Channel Body, Solid Grate Cover, Lifting Key, Adjustable Feet, Hardware
Designed for wood joist shower installations with CPE waterproof membranes
Size: 28 Inch (27.55" / 700mm), Intake 15.39 sq. in.
Linear Shower Channel Drains Provide Superior Performance and Contemporary Style
Features
- 2" diameter central vertical outlet
- Flow rate: 6.3 GPM (0.6 l/s) at the entrance and 9.5 GPM (0.6 l/s) against the wall
- 3.3" (84mm) wide channel
- Plastic support feet simplify installation and leveling
- Premium stainless steel construction

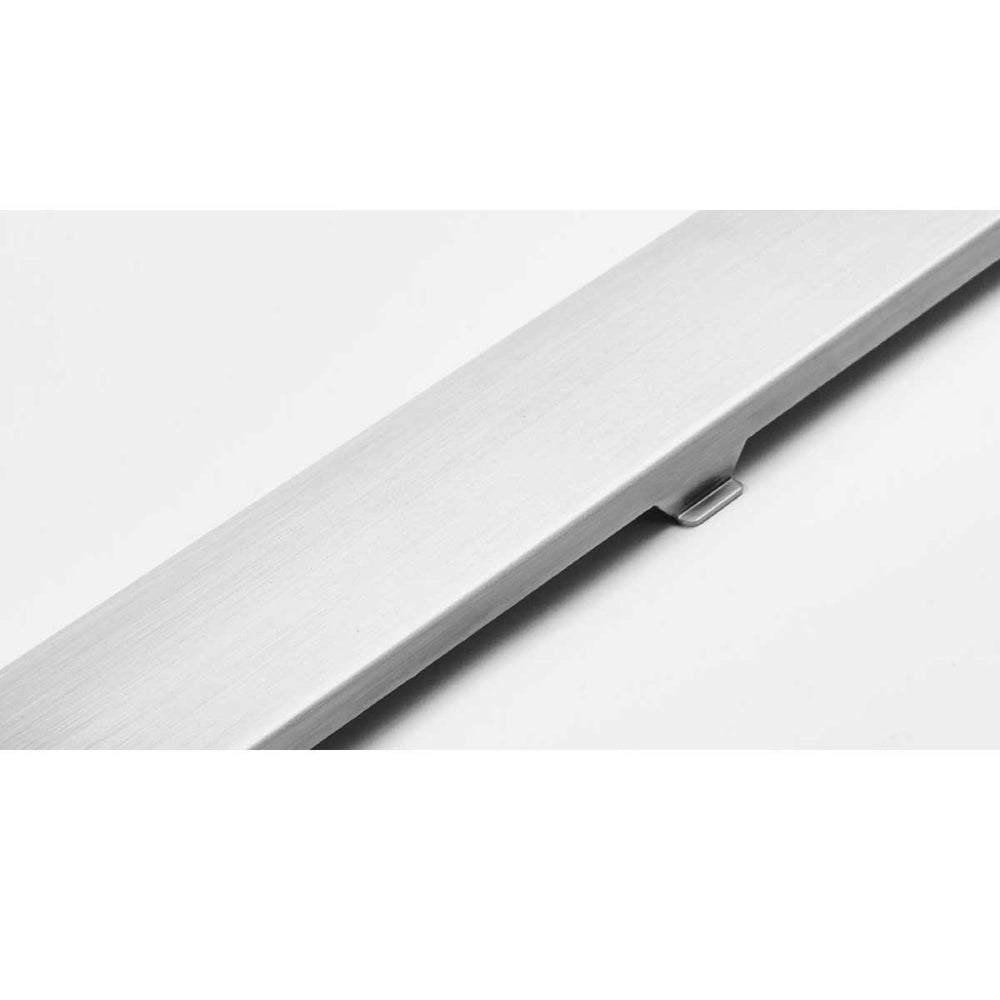

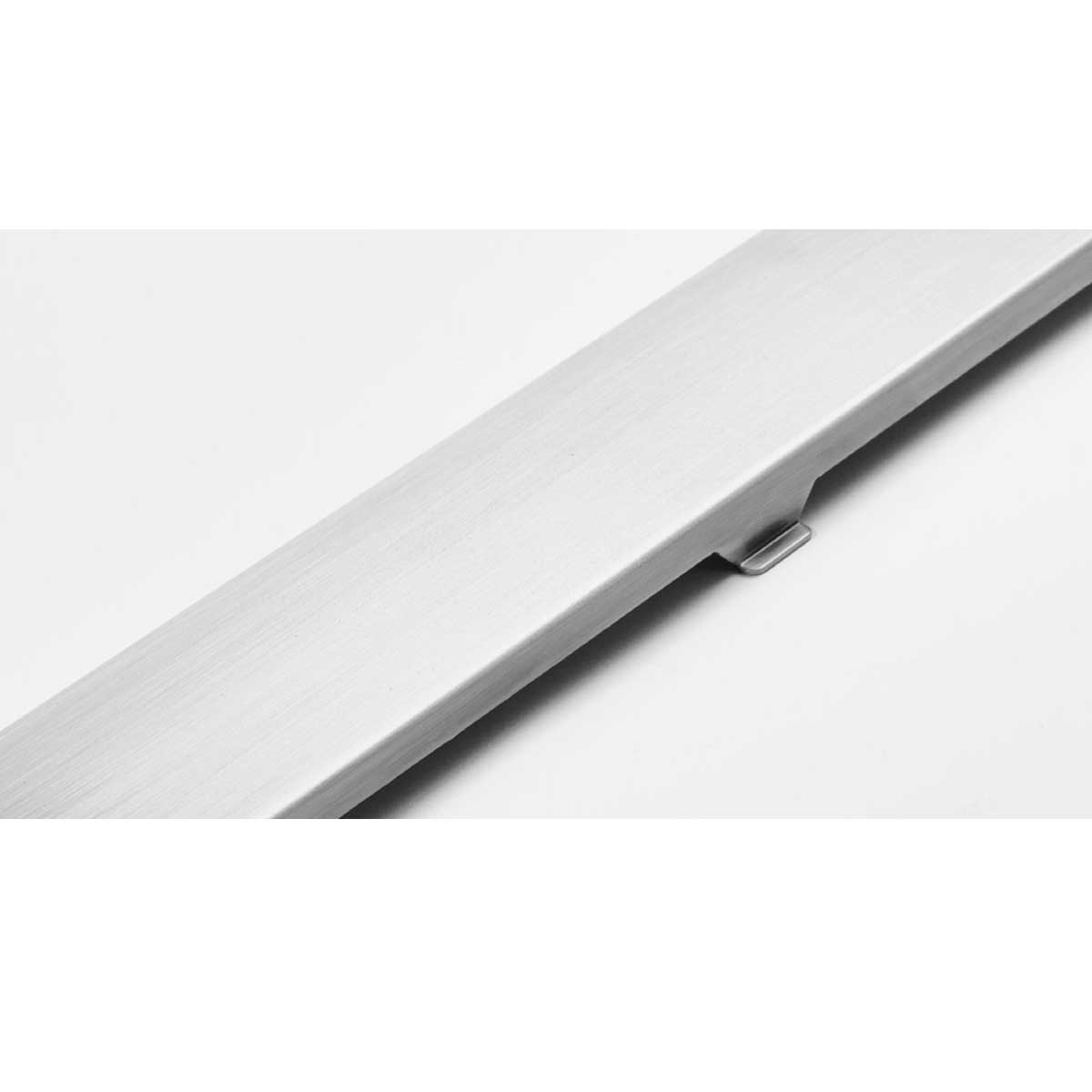

- Solid grate design for a clean, uninterrupted appearance
- Lifting key included for easy grate removal and maintenance
Brushed Stainless Finish
The Quartz 28 Inch Solid linear shower drain features a smooth, uninterrupted grate that delivers a clean architectural appearance while providing dependable drainage performance. Its minimalist styling blends seamlessly into contemporary, transitional, and luxury bathrooms, making it an excellent choice for compact residential showers and commercial applications.
ACO's Brushed Stainless finish features a finely textured brushed surface that complements brushed nickel, chrome, stainless steel fixtures, and most silver-toned bathroom hardware. The durable finish maintains its refined appearance while resisting everyday wear.
Manufactured from premium stainless steel, the Quartz 28 Inch Solid linear shower drain is engineered for years of reliable performance. The included lifting key allows quick grate removal for routine cleaning, while adjustable support feet simplify installation and ensure accurate leveling.

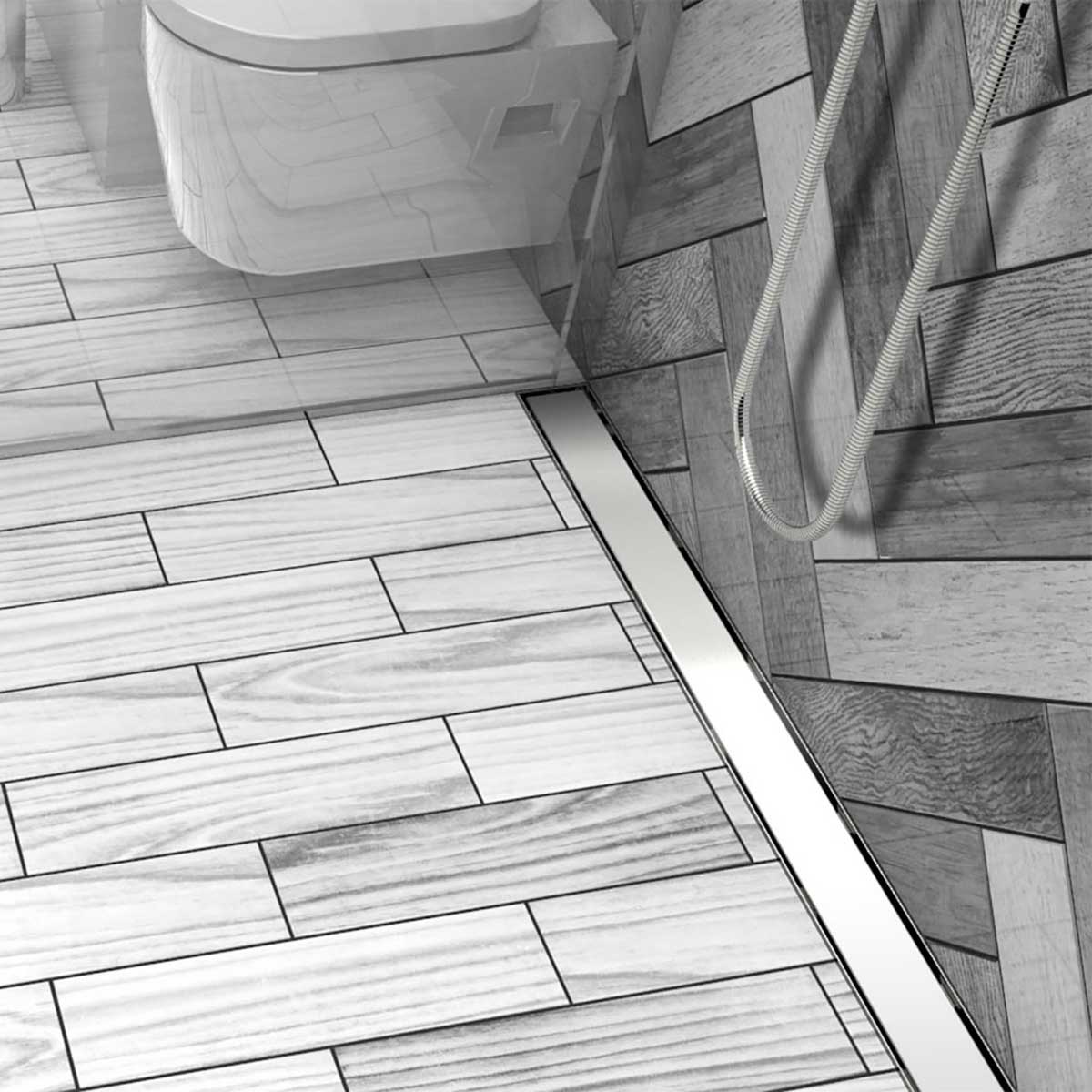

Unlike traditional center drains, the Quartz 28 Inch linear shower drain offers flexible placement along a wall, at the shower entrance, or in the center of the shower floor. The linear channel creates a single-direction floor slope, reduces complex tile cutting, and helps achieve today's clean, curbless shower designs.
Ideal for smaller residential bathrooms, guest baths, custom showers, hotels, and commercial installations, the Quartz Solid collection combines European-inspired engineering with premium materials to deliver dependable drainage, simple maintenance, and timeless architectural style.
Helpful Resources
- Complete Guide to Design, Installation and Planning
- How to Install a Linear Shower Drain on a Joisted Wood Floor
- Quartz Linear Shower Drain Concrete Slab Installation Guide
Related Collections
When installed correctly, the Quartz by ACO 28 Inch Solid Linear Shower Drain with Brushed Stainless Grate delivers dependable drainage, clean architectural styling, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that will perform reliably for years in both residential and commercial applications.
