Raimondi BigFoot XXL Workbench For Large Format Tiles - TCWBXXLBF

Raimondi BigFoot XXL Adjustable Workbench for Large Format Tiles - TCWBXXLBF

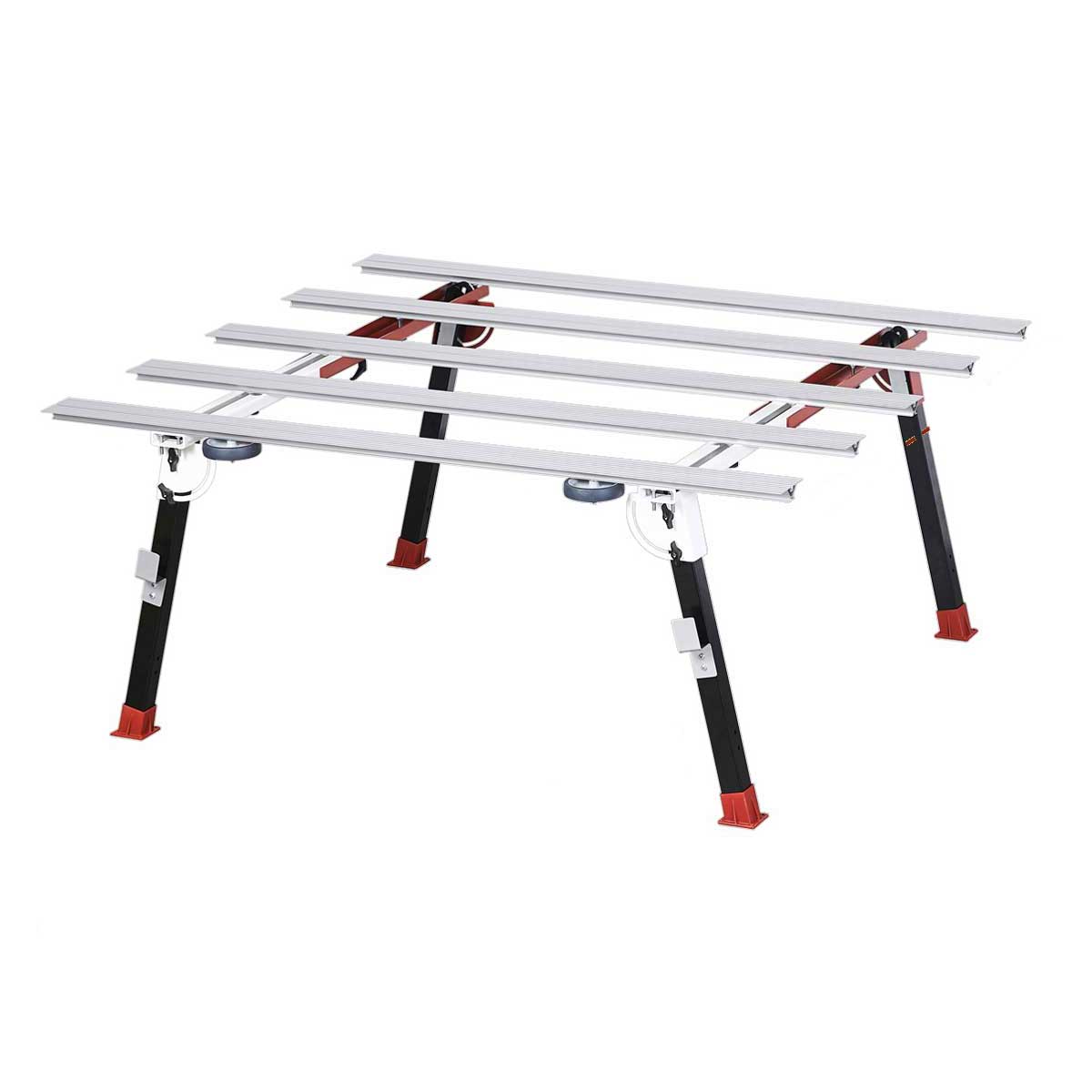

The Raimondi BIGFOOT XXL workbench is designed to handle extra-large porcelain and ceramic slabs with maximum stability and flexibility. Its innovative adjustable width design allows installers to quickly adapt the working surface for tiles of different sizes, making it an ideal professional workstation for cutting, preparing, and installing large format materials.

Specifications:

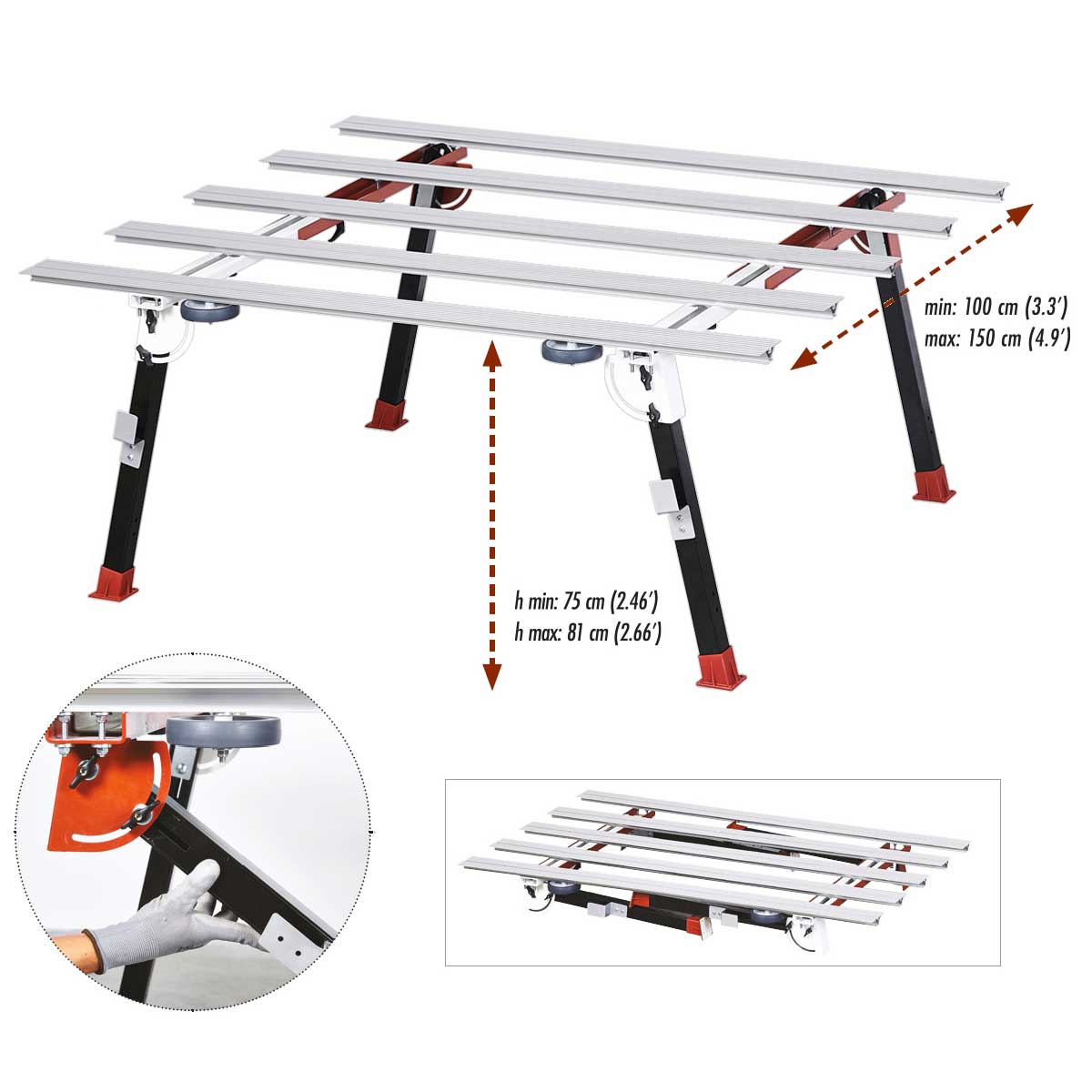

• Adjustable table width from 39.4" to 59" (100–150 cm) with multiple intermediate positions to accommodate various tile sizes.
• Adjustable worktop height from 29.5" to 31.9" (75–81 cm) for comfortable working positions.
• Worktop length 66.9" (170 cm), expandable up to 110.2" (280 cm) with optional extension accessory.
• Two workbenches combined can create an extended working surface of 133.9" (340 cm).
• Maximum load capacity: 331 lbs (150 kg).
• Heavy-duty steel structure with reinforced legs and crossbars for excellent strength and stability.

Features:

• Variable width work surface adjusts from 39.4" to 59", allowing the table to support large format tiles and slabs of different sizes.
• When adjusting the width of the bench, the legs move accordingly to maintain optimal positioning and ensure maximum stability at any selected width.
• Height-adjustable worktop from 29.5" to 31.9" provides ergonomic working conditions without requiring tools.
• Strong steel frame construction with large legs and crossbars delivers exceptional rigidity and durability.
• Special non-slip feet help keep the table securely positioned during cutting or installation work.
• Movable aluminum support profiles can be repositioned to adapt to different slab sizes and working requirements.
• Spaced aluminum profiles allow safe cutting with an angle grinder and diamond blade without damaging the work surface.
• Optional tile support cylinders create clearance between the tile and the table, preventing the blade from contacting the worktop.
• Additional aluminum profiles can be installed to provide extra support when working with very large slabs.
• Quick folding leg locking system allows the legs to be opened or closed rapidly for transport and storage.
• Integrated support hooks allow convenient storage of cutting guides such as Raimondi Raizor systems.
• Built-in wheels make the workbench easy to move around the jobsite.
• The redesigned aluminum profile structure increases the work surface by 33% compared to previous Raimondi workbench models.
• Can also be used alongside Raimondi electric tile saws as an additional support table for large materials.

Range of available accessories:

-- Worktop extension to increase table length up to 110.2" (9.2’) – Art. 394CP280AXXL
-- Pair of clamps for securing tiles and materials – Art. 394BLOPIA2CP
-- Tile support cylinders – Art. 394CC01A
-- Tool storage bag – Art. 394TS01A
-- Vertical clamps for working with slabs – Art. 394SVL01A2P
-- Tilting tile support plate TSE 180 – Art. 394RB RAI
