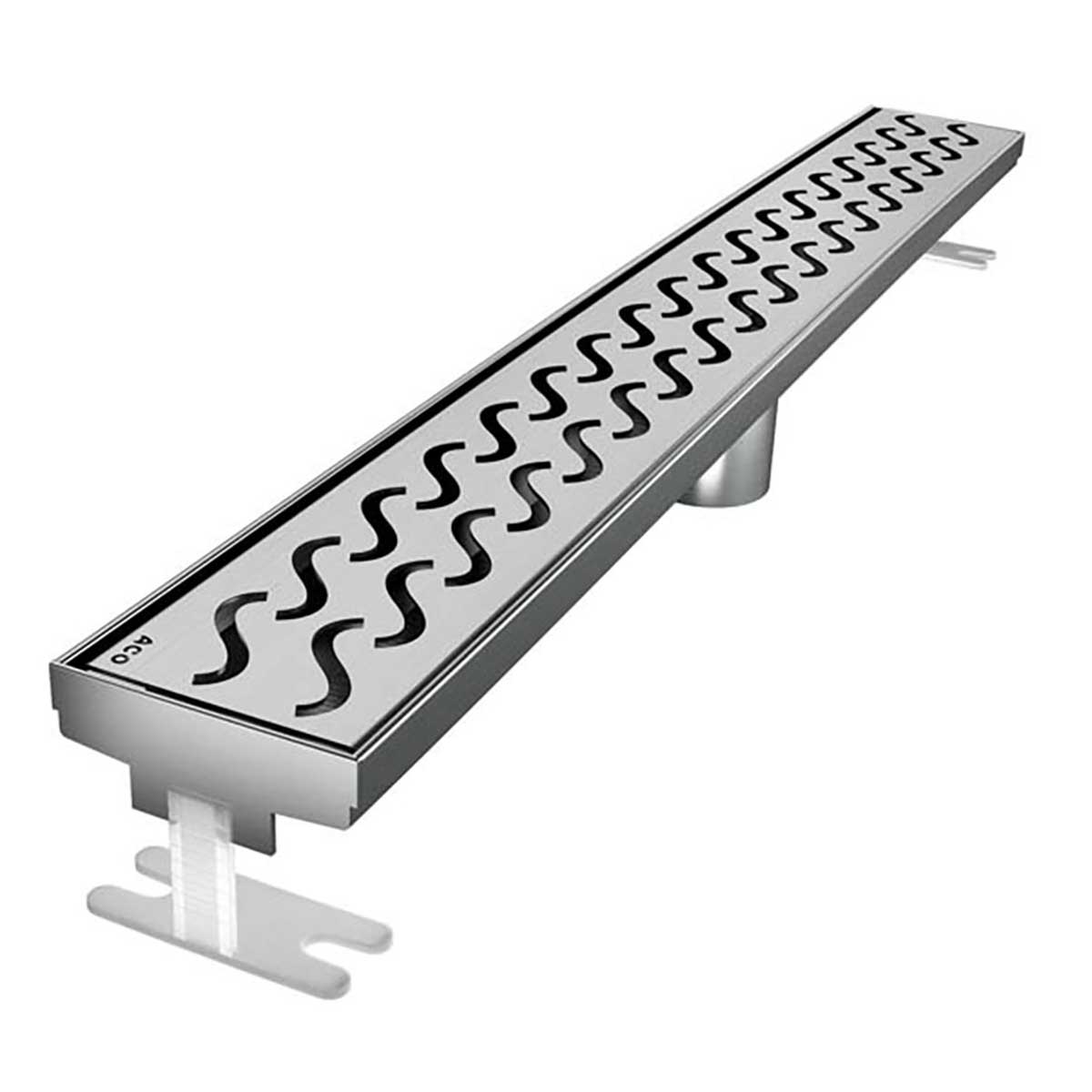

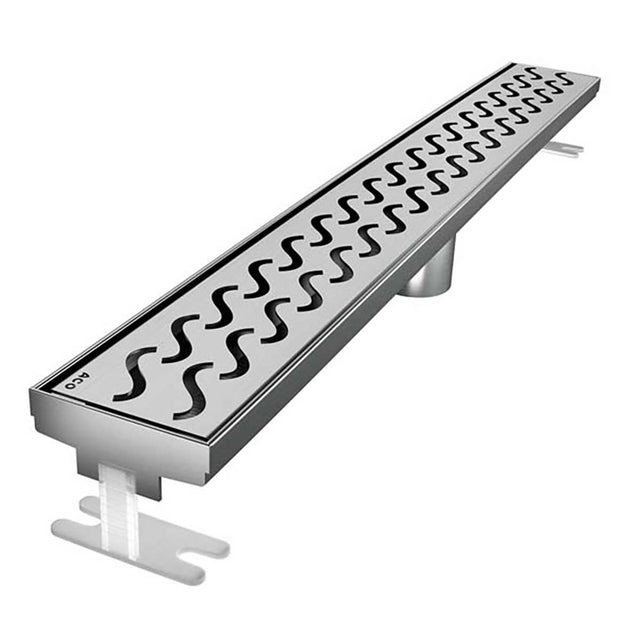

Quartz by ACO 60 Inch Hawaii Linear Shower Drain with Brushed Stainless Grate

Quartz by ACO 60 Inch Hawaii Linear Shower Drain with Brushed Stainless Grate

Decorative linear shower drain featuring the distinctive Hawaii curved slot design.

The Quartz by ACO Hawaii Linear Shower Drain combines exceptional drainage performance with an elegant decorative grate inspired by flowing ocean waves. Its parallel curved "S" longitudinal slot pattern creates a sophisticated architectural appearance while efficiently directing water away from the shower floor. Finished in classic Brushed Stainless, this premium linear drain complements virtually any bathroom design, from contemporary to traditional.

Complete Drain Kit Includes

• Stainless steel channel body
• Hawaii decorative grate in Brushed Stainless finish
• Lifting key
• Adjustable installation feet
• Installation hardware

Designed for Wood Joist Installations

This linear shower drain is designed for wood joist applications using a CPE shower pan membrane. Proper installation following the manufacturer's recommendations helps ensure dependable waterproofing and years of reliable performance.

Specifications

• Length: 59.05 in. (1500 mm)
• Water intake: 35.14 sq. in.
• 2 inch diameter central vertical outlet
• Flow rate: At entrance - 6.3 GPM (0.6 l/s); Against the wall - 9.5 GPM (0.6 l/s)
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet for easier installation
• Optional accessories include plumbing connectors, water-activated LED light, and debris strainer

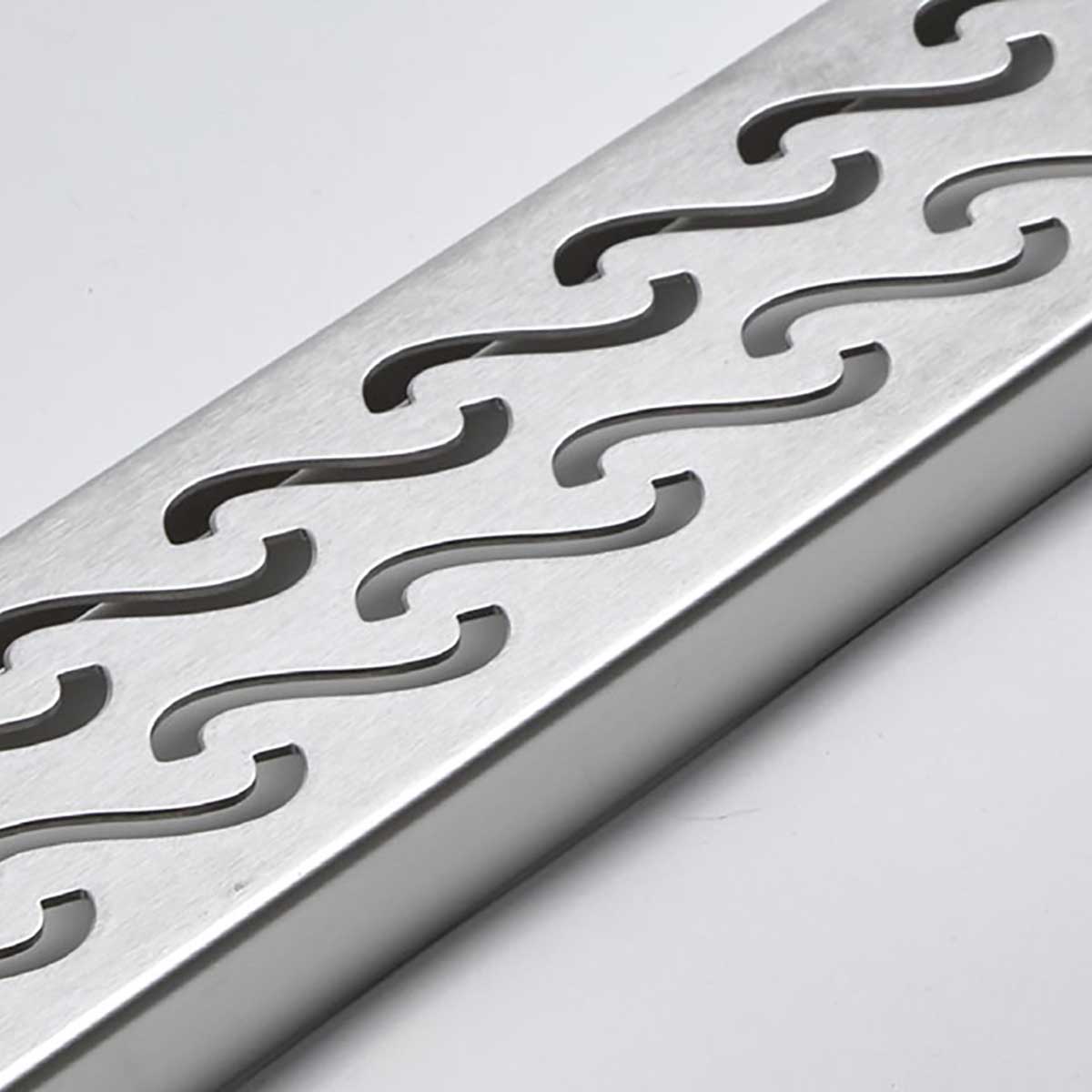

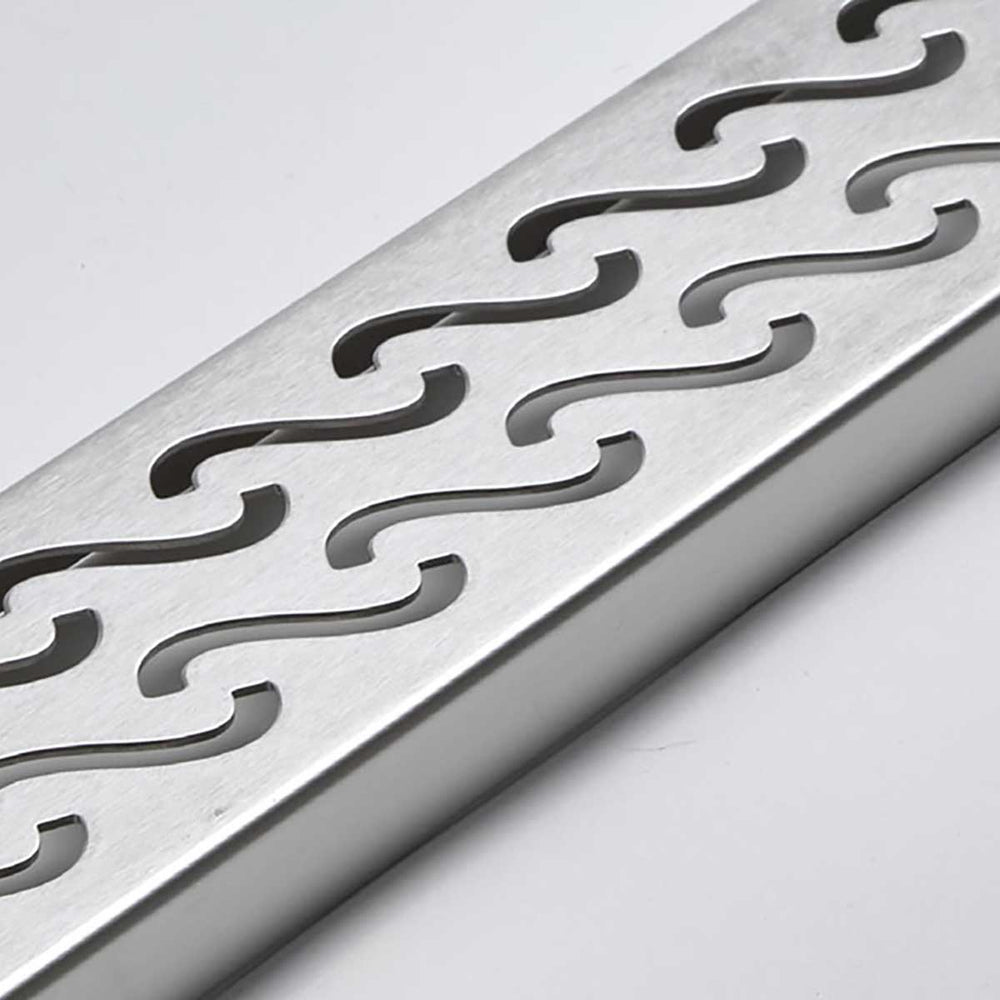

Brushed Stainless Hawaii Grate

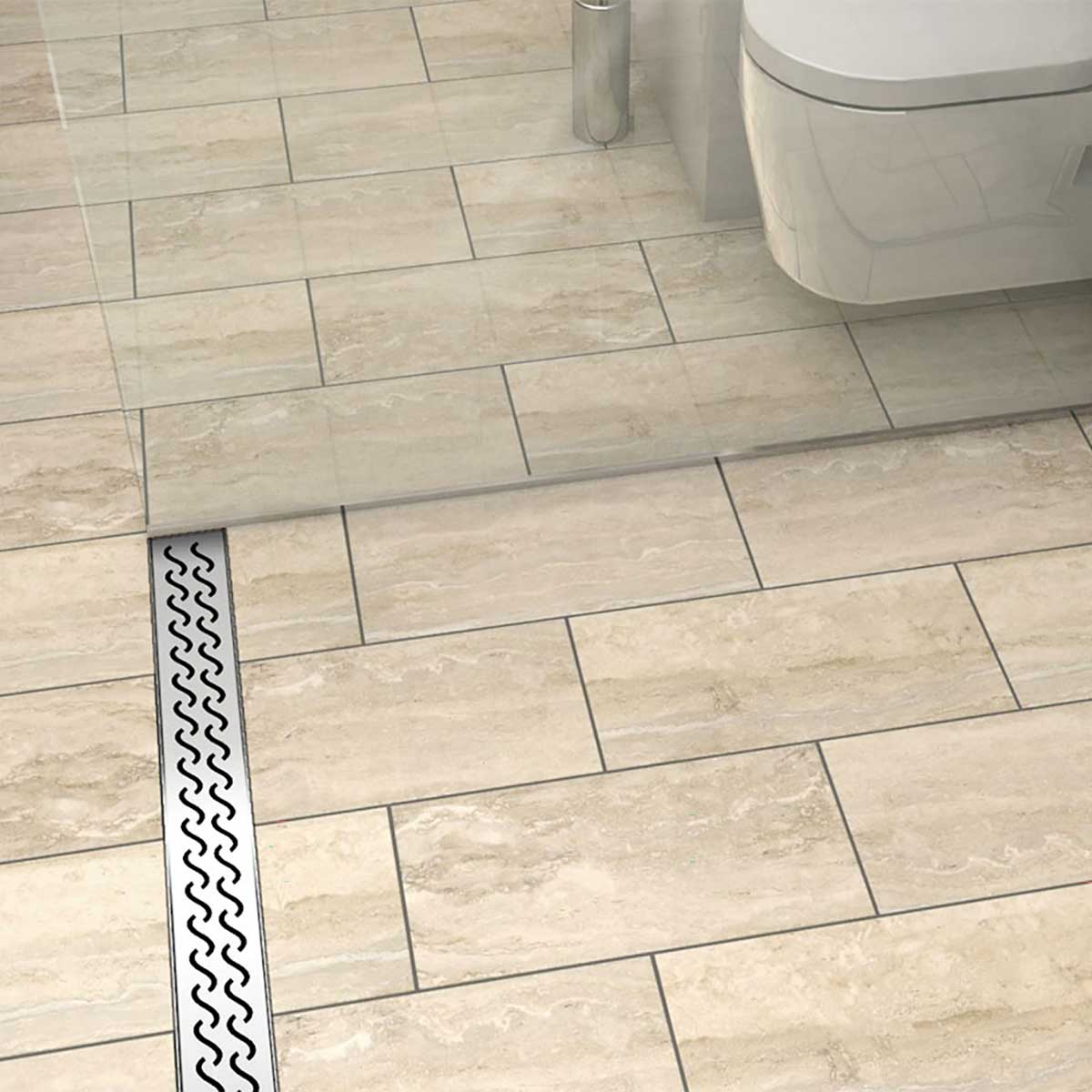

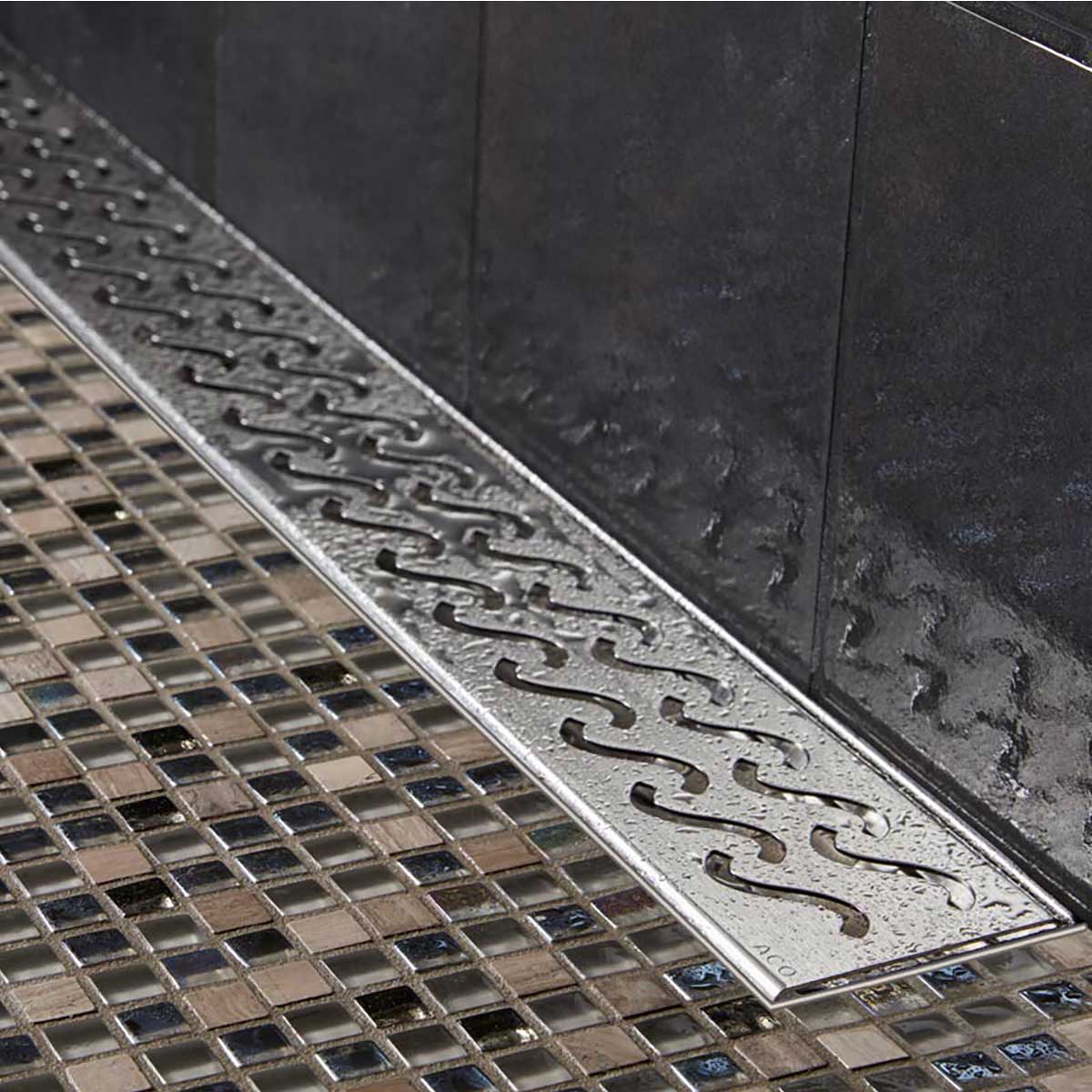

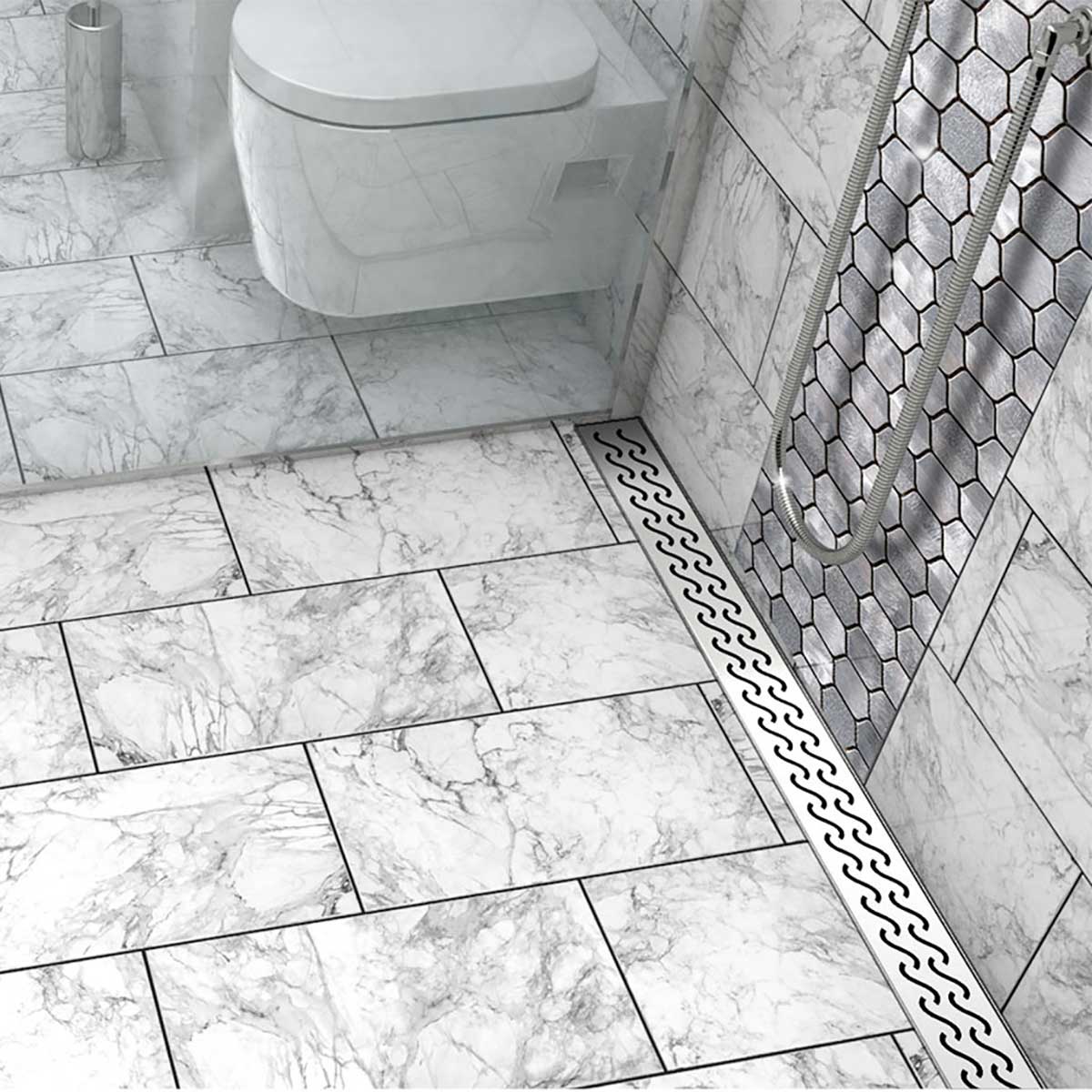

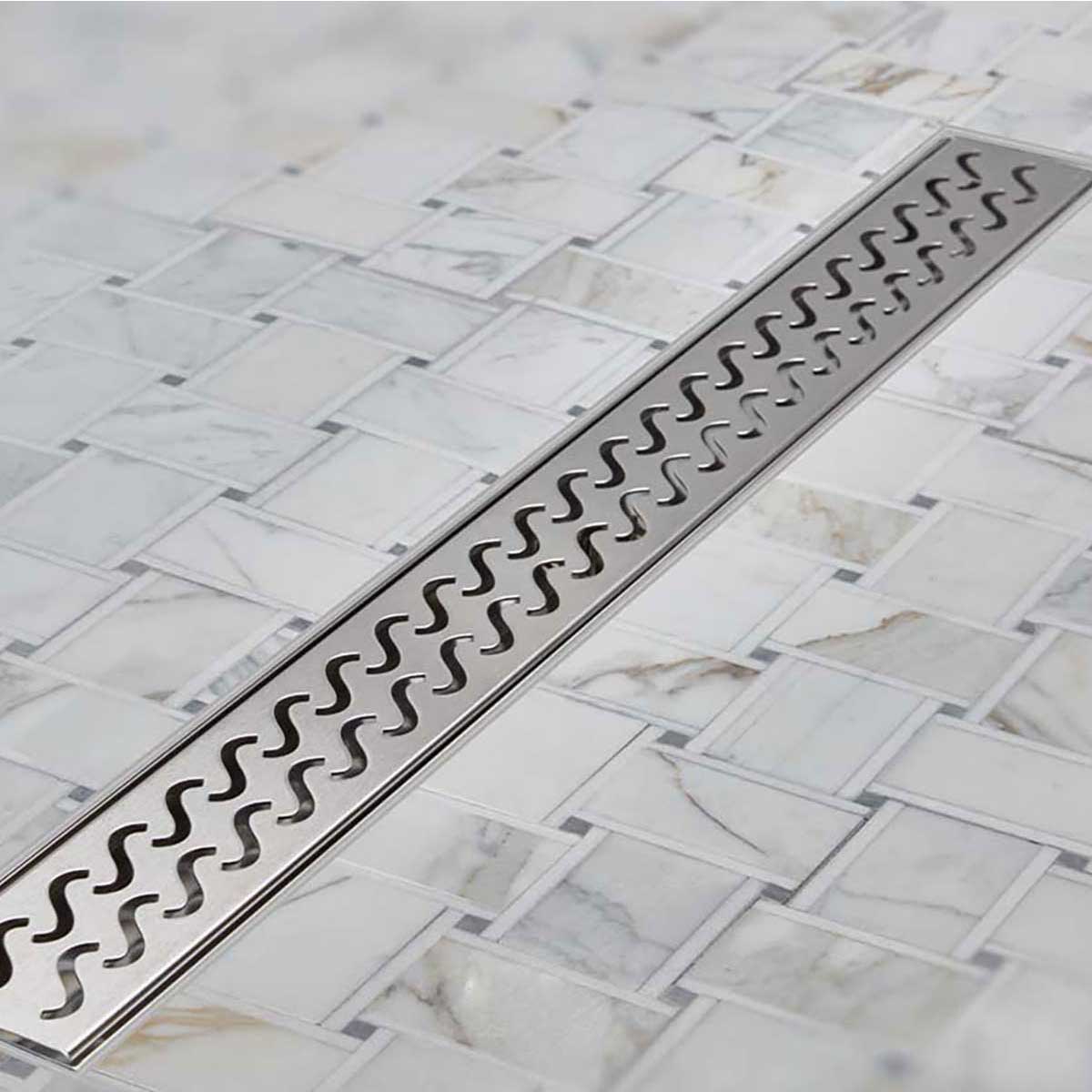

The Hawaii grate features elegant parallel curved slots that create a flowing pattern across the shower floor while providing outstanding drainage performance. Inspired by gentle ocean waves, this decorative grate brings a refined, contemporary look to walk-in showers, curbless showers, and luxury bathroom renovations.

The Brushed Stainless finish captures a timeless brushed texture that pairs beautifully with brushed nickel fixtures, chrome hardware, stainless steel accessories, and a wide variety of porcelain tile, ceramic tile, and natural stone. Its versatile appearance makes it an excellent choice for both residential and commercial shower installations.

Benefits of a Linear Shower Drain

Linear shower drains provide greater design flexibility than traditional center drains. They can be installed against a wall, at the shower entrance, or in the center of the shower floor, making them ideal for barrier-free showers, wet rooms, and open-concept bathroom layouts. Their design also simplifies floor sloping while minimizing difficult tile cuts for a cleaner, more professional installation.

Manufactured from premium stainless steel, Quartz by ACO linear shower drains combine European-inspired styling with dependable drainage performance. Built for long-term durability, they provide an attractive, low-maintenance solution for modern residential and commercial shower projects when installed according to the manufacturer's instructions.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO 60 Inch Hawaii Linear Shower Drain with Brushed Stainless Grate delivers dependable drainage, a striking architectural appearance, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that performs reliably for years in both residential and commercial applications.
