Quartz by ACO 60 Inch Wave Linear Shower Drain Brushed Stainless

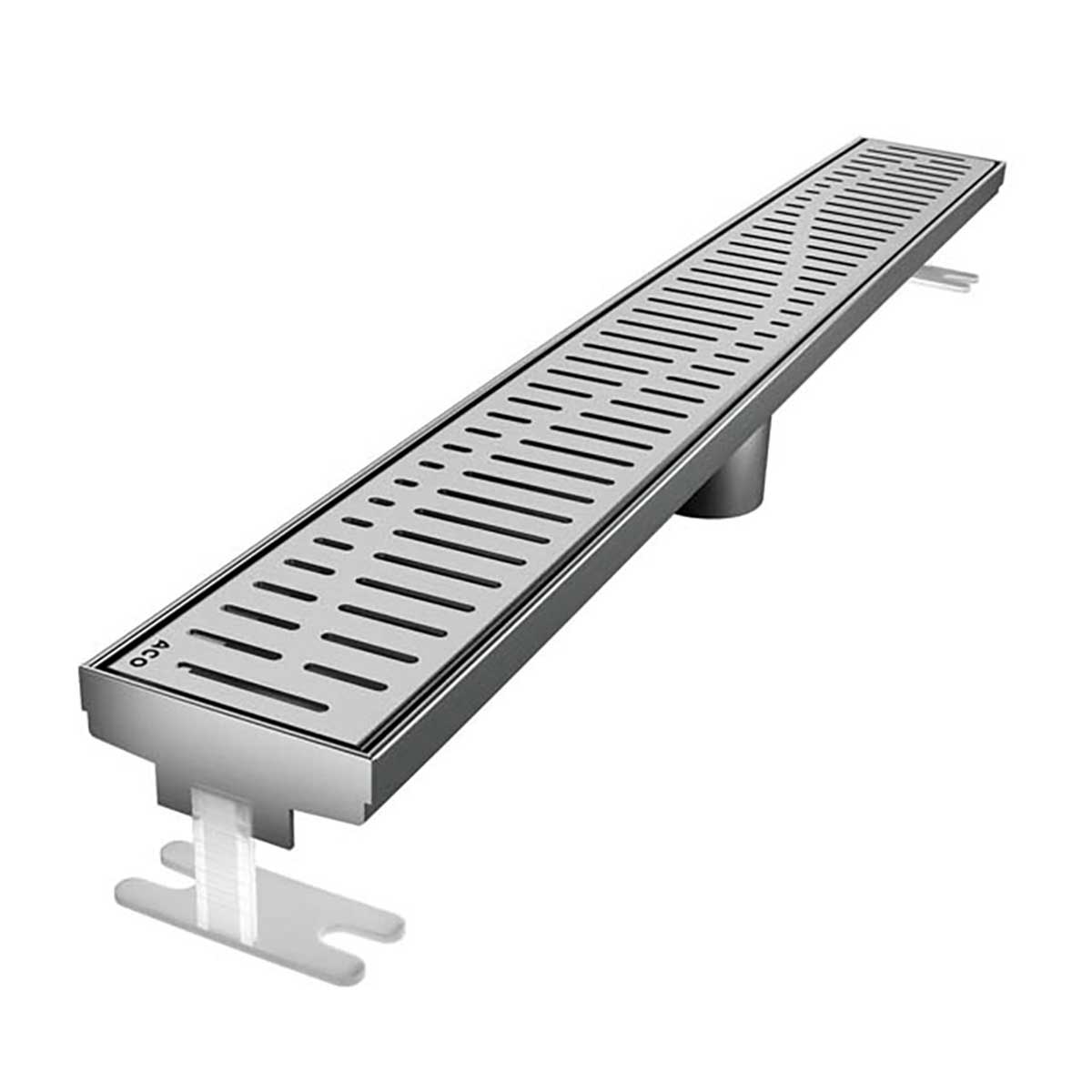

Quartz by ACO 60 Inch Wave Linear Shower Drain with Brushed Stainless Grate

Premium 60 inch linear shower drain featuring the elegant Wave grate design with a timeless Brushed Stainless finish.

The Quartz by ACO 60 Inch Wave Linear Shower Drain combines outstanding drainage performance with a graceful flowing grate pattern inspired by the movement of water. Designed for modern residential and commercial showers, this premium linear drain creates a sophisticated architectural appearance while providing dependable water management. The 60 inch length is ideal for large walk-in showers, curbless designs, and luxury bathroom installations.

Complete Drain Kit Includes

• Stainless steel channel body
• Wave decorative grate in Brushed Stainless finish
• Lifting key
• Adjustable installation feet
• Installation hardware

Designed for Wood Joist Installations

This linear shower drain is designed for wood joist applications using a traditional CPE shower pan membrane. Proper installation according to the manufacturer's recommendations helps ensure dependable waterproofing and years of reliable performance.

Specifications

• Length: 59.05 inches (1500 mm)
• Water intake area: 31.33 sq. in.
• 2 inch diameter central vertical outlet
• Flow rate at entrance: 6.3 GPM (0.6 l/s)
• Flow rate against the wall: 9.5 GPM (0.6 l/s)
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet for easier installation
• Optional accessories include plumbing connectors, water-activated LED light, and debris strainer

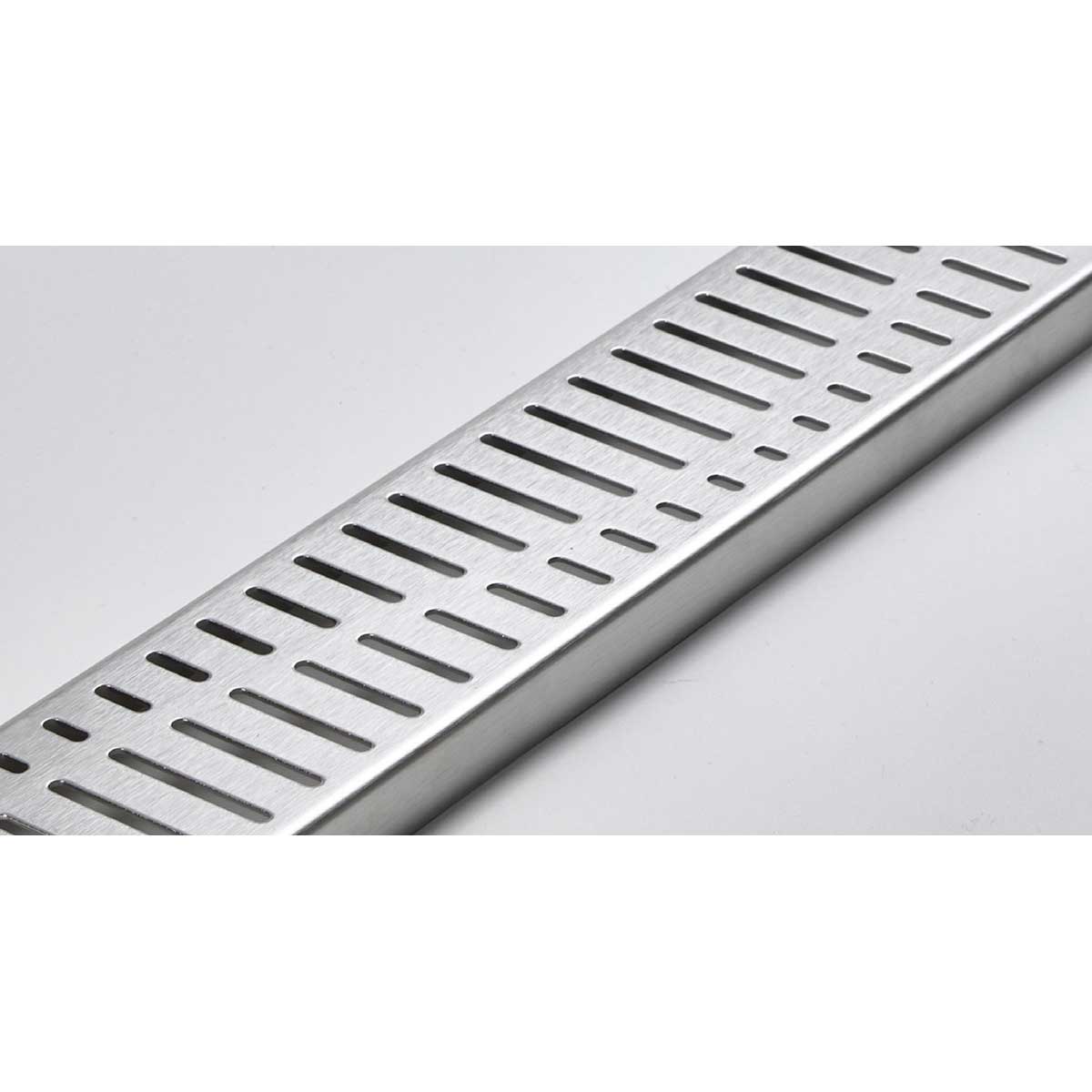

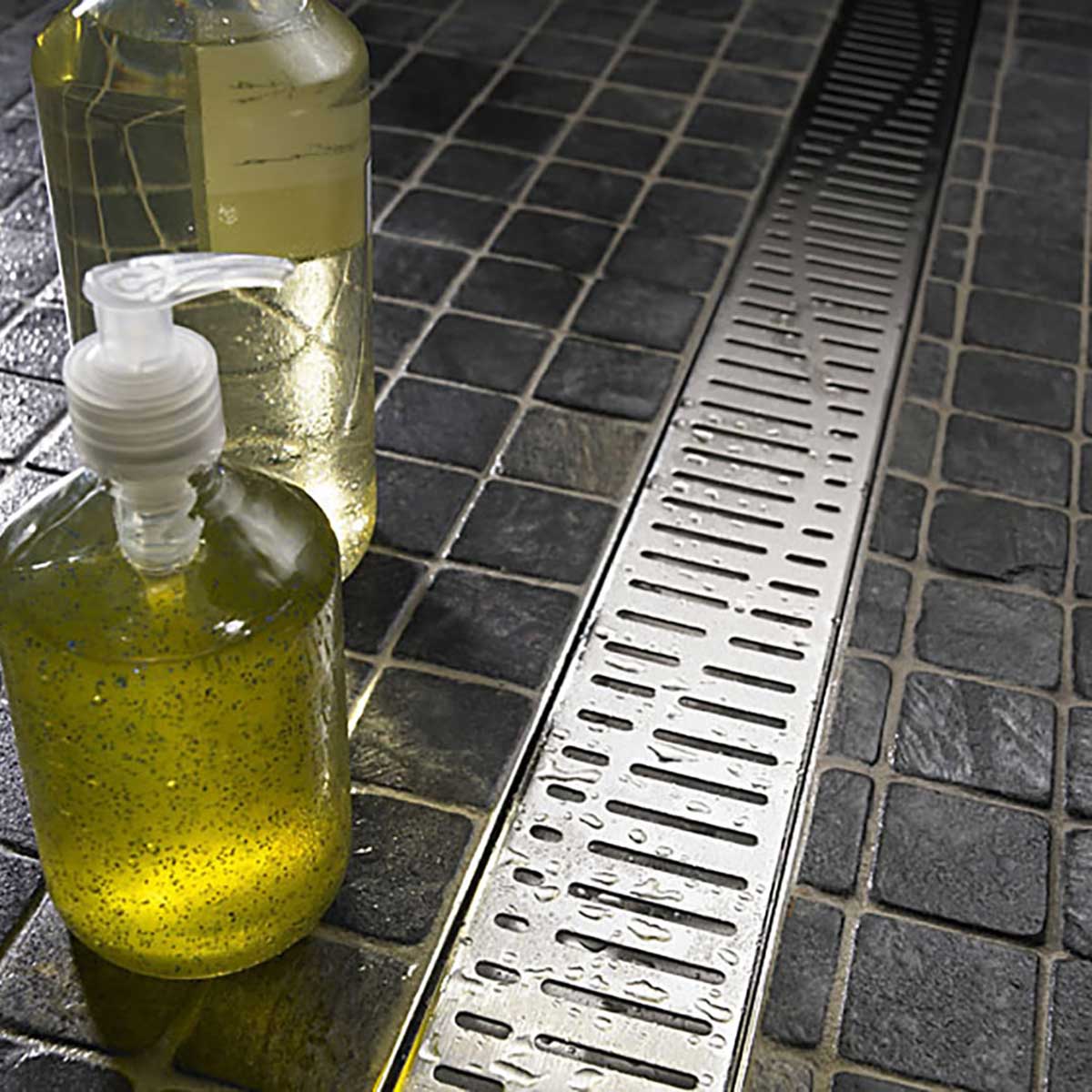

Wave Decorative Grate

The Wave grate features elongated offset slots that form a flowing wave pattern across the drain surface. This elegant design complements a wide variety of tile styles, from porcelain and ceramic to natural stone and large-format tile, creating a sophisticated focal point without overwhelming the shower floor.

Brushed Stainless Finish

ACO's Brushed Stainless finish features a classic brushed texture that complements nearly any bathroom style. It pairs exceptionally well with brushed nickel, stainless steel, chrome, and other silver-toned fixtures, making it one of the most versatile finishes for contemporary and traditional bathrooms alike.

Advantages of a Linear Shower Drain

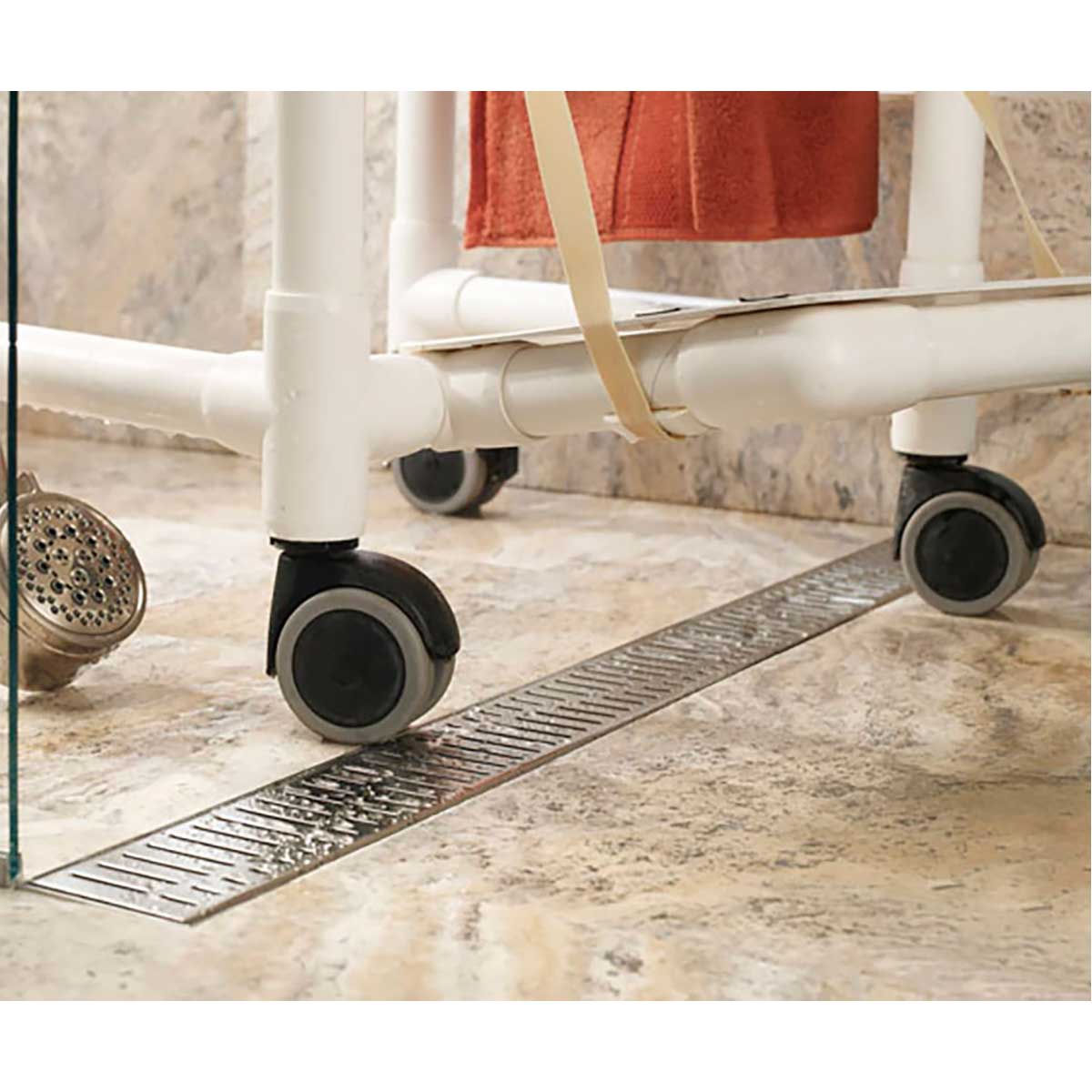

Unlike traditional center drains, a linear shower drain allows greater flexibility in shower layout and floor design. It can be positioned along a wall, at the shower entrance, or in the center of the shower floor, making it ideal for curbless showers and barrier-free bathroom designs. The linear configuration simplifies floor sloping while reducing complicated tile cuts, creating a cleaner and more professional installation.

Manufactured from premium stainless steel, Quartz by ACO linear shower drains combine European-inspired engineering with dependable drainage performance. Designed for both residential and commercial applications, they provide a durable, low-maintenance drainage solution that delivers years of reliable service when installed according to the manufacturer's instructions.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO 60 Inch Wave Linear Shower Drain with Brushed Stainless Grate delivers dependable drainage, a refined architectural appearance, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that performs reliably for years in both residential and commercial applications.
