Quartz by ACO 40 Inch Wave Linear Shower Drain Matte Black

Quartz by ACO 40 Inch Wave Linear Shower Drain with Matte Black Grate

Premium 40 inch linear shower drain featuring the elegant Wave grate design with a sophisticated Matte Black finish.

The Quartz by ACO 40 Inch Wave Linear Shower Drain combines outstanding drainage performance with a flowing Wave grate pattern inspired by the movement of water. Designed for luxury residential and commercial showers, this premium linear drain delivers dependable water management while creating a bold architectural statement. The 40 inch length is ideal for standard walk-in showers, curbless shower installations, and contemporary bathroom renovations.

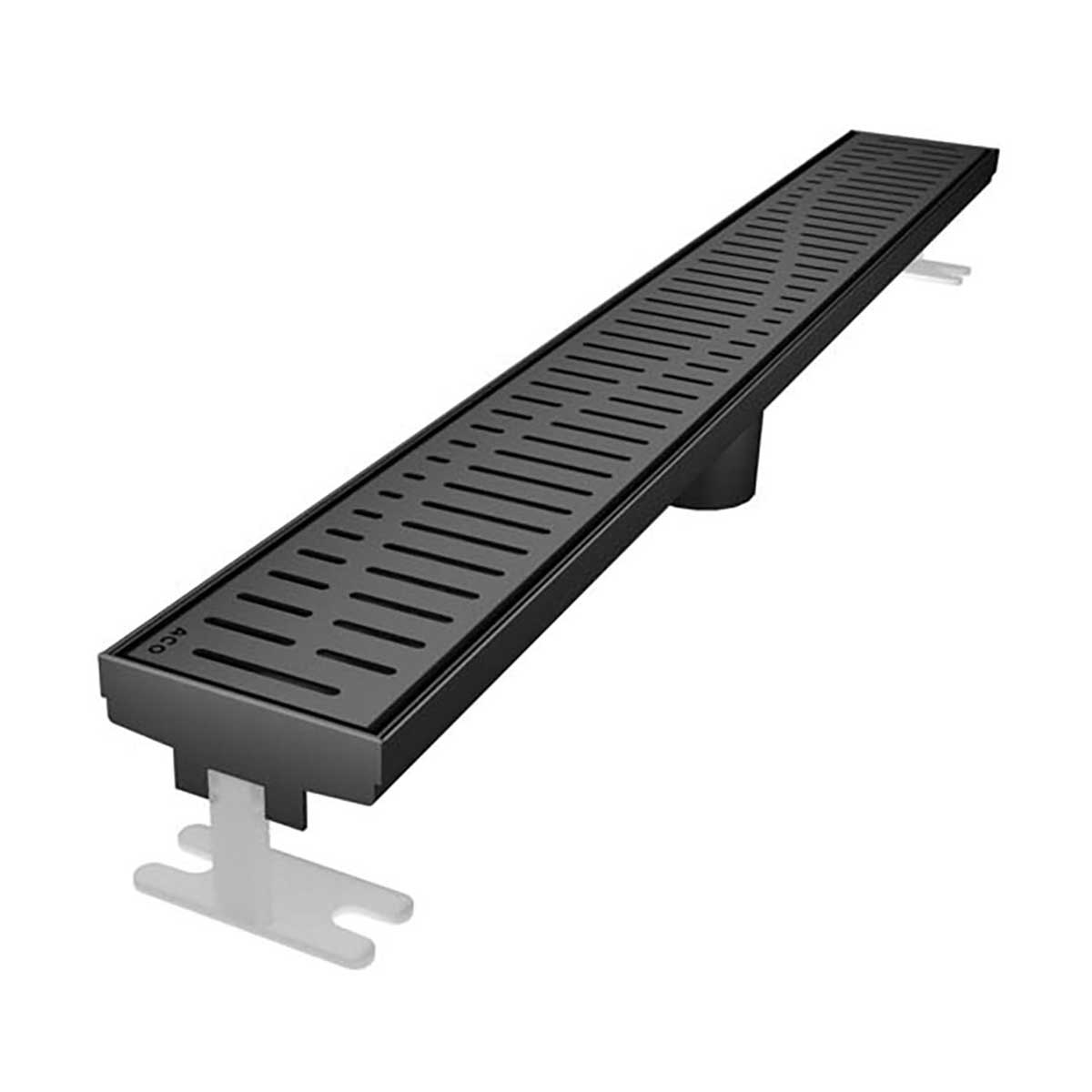

Complete Drain Kit Includes

• Stainless steel channel body
• Wave decorative grate in Matte Black finish
• Lifting key
• Adjustable installation feet
• Installation hardware

Designed for Wood Joist Installations

This linear shower drain is designed for wood joist applications using a traditional CPE shower pan membrane. Proper installation following ACO recommendations helps ensure long-lasting waterproofing performance and reliable drainage.

Specifications

• Length: 39.37 inches (1000 mm)
• Water intake area: 19.39 sq. in.
• 2 inch central vertical outlet
• Flow rate at center installation: 6.3 GPM (0.6 l/s)
• Flow rate when installed against the wall: 9.5 GPM (0.6 l/s)
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet simplify installation
• Compatible with optional plumbing connectors, debris strainer, and water-activated LED light

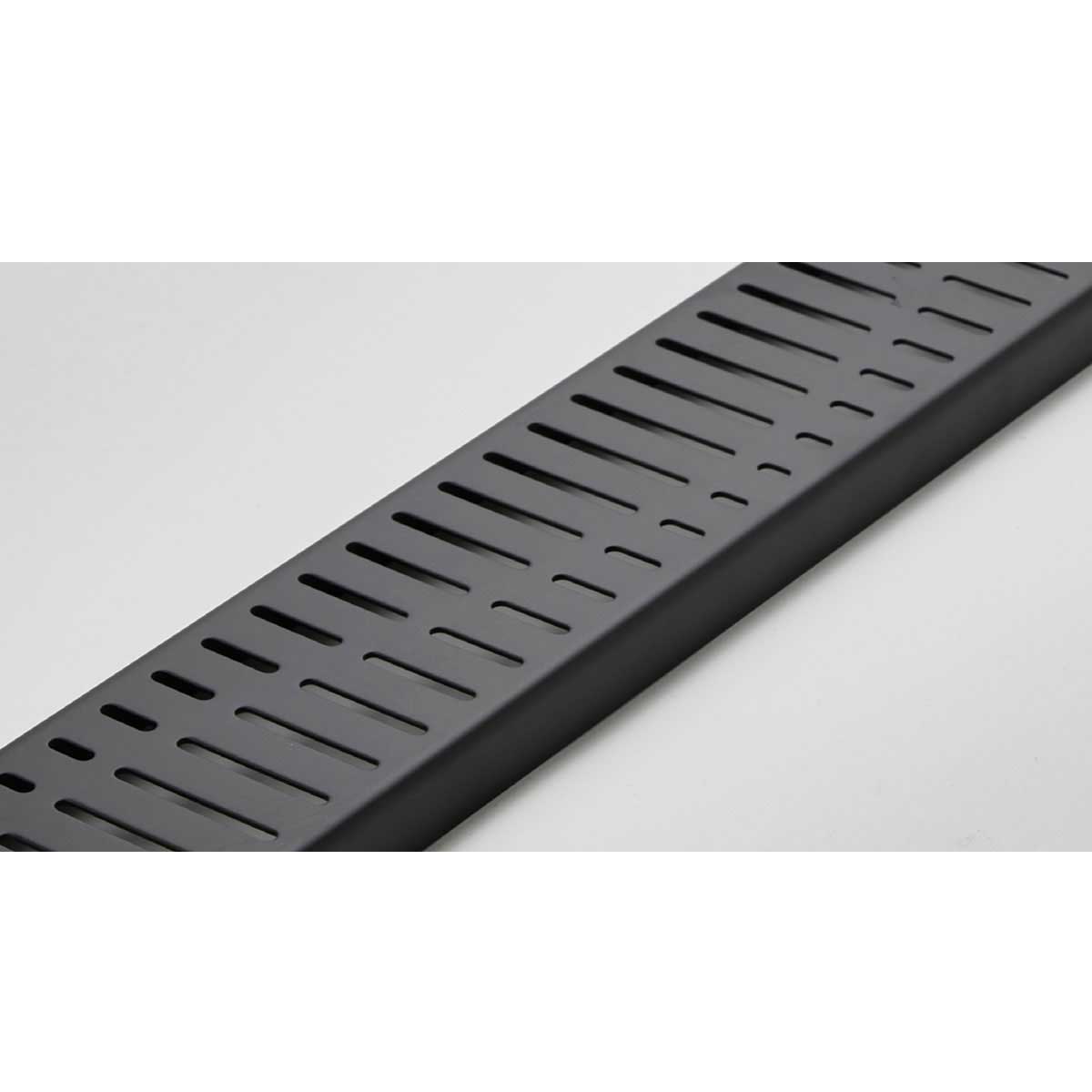

Wave Grate Design

The Wave grate features elongated offset slots that create a graceful flowing pattern across the drain surface. Inspired by the movement of water, this elegant design complements porcelain, ceramic, natural stone, and large-format tile installations while delivering exceptional drainage performance.

Matte Black Finish

ACO's Matte Black finish creates a bold, contemporary appearance with a smooth, non-reflective surface. Its rich black tone pairs beautifully with modern fixtures, natural stone, concrete-look tile, wood accents, and a wide variety of bathroom finishes, making it an excellent choice for luxury bathroom designs.

Advantages of a Linear Shower Drain

Linear shower drains offer greater design flexibility than traditional center drains. They can be positioned against a wall, at the shower entrance, or in the center of the shower floor, making them ideal for curbless showers, barrier-free bathrooms, and large-format tile installations. A single-direction floor slope simplifies installation while eliminating many difficult tile cuts required around conventional drains.

Manufactured from premium stainless steel, Quartz by ACO linear shower drains combine European engineering with outstanding durability and dependable long-term performance. Friction-locking plastic plugs securely hold the grate in place while allowing easy removal for maintenance. When installed according to manufacturer recommendations and local plumbing codes, these drains provide years of reliable service in both residential and commercial applications.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO 40 Inch Wave Linear Shower Drain with Matte Black Grate delivers dependable drainage, a refined architectural appearance, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that performs reliably for years in both residential and commercial applications.
