Quartz Plus 36 Inch Tile Insert Linear Shower Drain

Quartz Plus 36 Inch Tile Insert Linear Shower Drain

Premium Tile Insert Linear Shower Drain for a Seamless Contemporary Shower

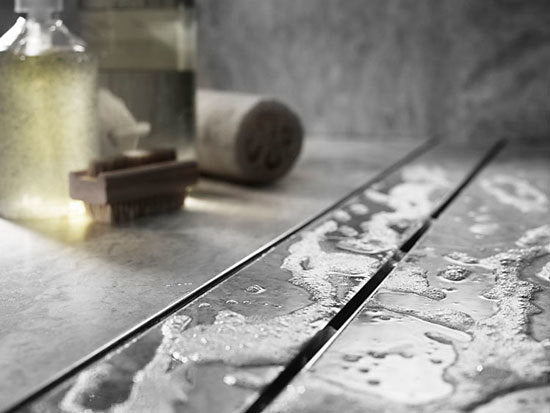

The Quartz Plus 36 Inch Tile Insert Linear Shower Drain creates a clean, uninterrupted shower floor by allowing your finished tile to be installed directly into the drain grate. Only a narrow perimeter drainage opening remains visible, delivering the elegant, minimalist appearance found in luxury bathrooms, modern homes, hotels, and spa-inspired shower designs.

Constructed with a durable ABS shower channel and a passivated stainless steel tile insert grate, this complete linear drain kit provides dependable drainage performance while blending beautifully with porcelain, ceramic, and natural stone tile installations. Its 36 inch length is an excellent choice for many standard walk-in showers and bathroom remodeling projects.

Ideal Applications

• Walk-in and curbless showers
• Barrier-free shower systems
• ADA compliant wheelchair accessible showers
• Residential bathroom renovations
• New shower construction
• Hotels, spas, multifamily housing, and commercial shower installations
• Large format porcelain, ceramic, and natural stone tile showers

Complete Drain Kit Includes

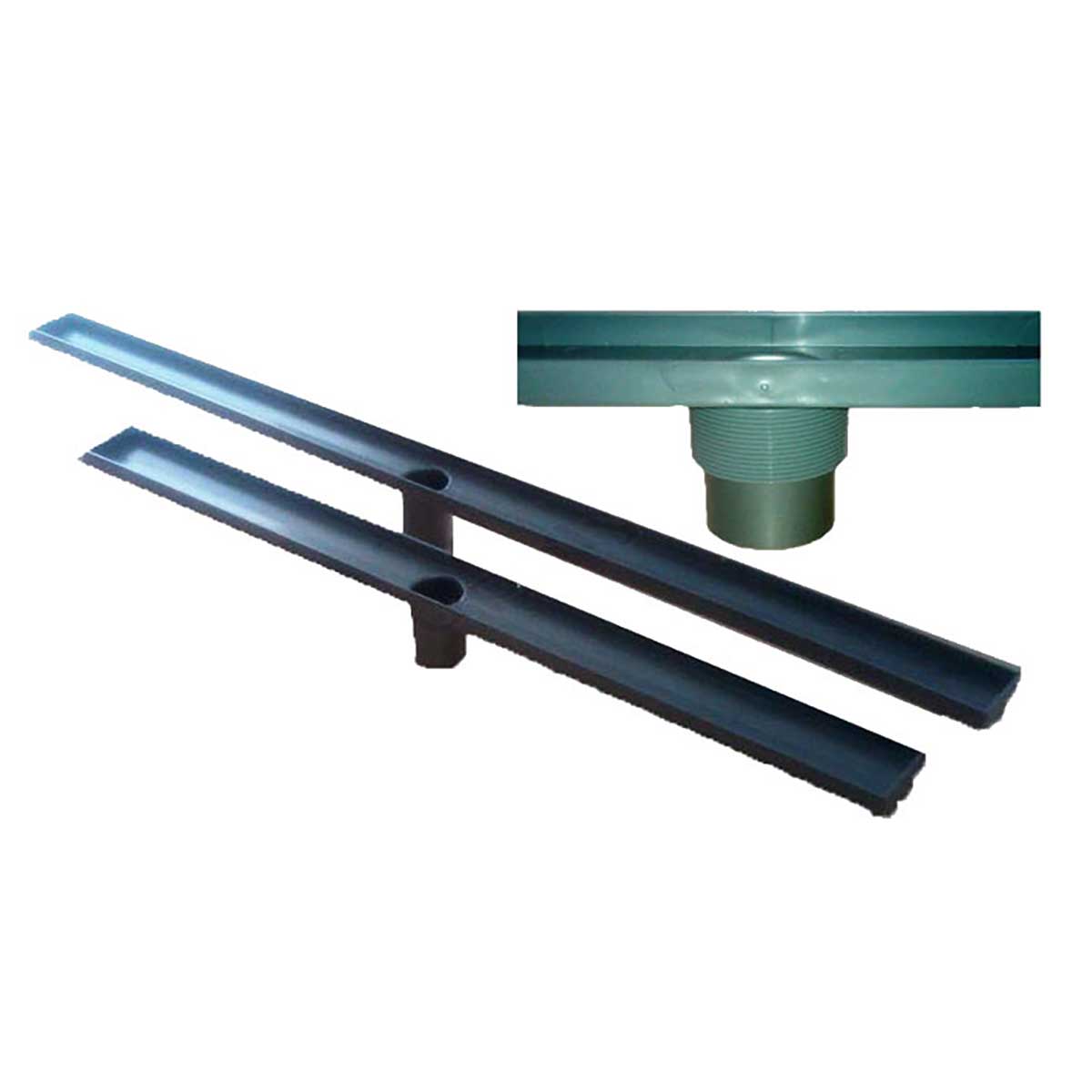

• 36 inch ABS shower channel
• Stainless steel tile insert grate
• Drain flange coupling
• Two adjustable leveling feet
• Grate lifting key
• Installation instructions

Features

• 36 inch (914 mm) linear shower channel
• Channel width: 2.76 inches (70 mm)
• Channel depth: 0.71 inch (20 mm)
• Tile insert grate creates a nearly invisible linear drain
• Designed for installation into any standard 2 inch threaded shower drain flange
• 2 inch central vertical outlet
• V-shaped channel promotes efficient water flow
• Durable ABS shower channel with metallic gray finish
• Passivated stainless steel tile insert grate with a matte finish
• Plastic leveling feet simplify installation and adjustment
• Channel is solvent welded (glued) into the supplied adapter
• Optional debris strainer available separately

Why Choose a Tile Insert Linear Drain?

A tile insert drain creates a nearly invisible drainage solution by allowing the surrounding floor tile to become part of the drain cover. This modern design delivers a continuous shower floor that complements contemporary bathrooms while providing efficient water drainage. The linear configuration also allows for a single-direction floor slope, making tile installation easier and creating a clean architectural finish.

Installation Notes

The Quartz Plus 36 Inch Tile Insert Linear Shower Drain is designed to install into a standard 2 inch threaded shower drain flange, the same connection used with Quartz ShowerPoint square drains. Proper waterproofing, accurate drain placement, and the recommended shower floor slope are essential for dependable drainage and long-lasting performance.

Helpful Resources

• Quartz Plus Linear Shower Drain Installation Guide
• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide
• Watch Installation Videos

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• QuARTz Plus 48 Tile Insert Linear Shower Drain
• QuARTz Plus 27 Square Linear Shower Drain

When installed correctly, the Quartz Plus 36 Inch Tile Insert Linear Shower Drain provides dependable drainage, a clean architectural appearance, and long-lasting performance. Careful planning, proper waterproofing, and accurate installation help ensure years of reliable operation in both residential and commercial shower applications.
