Quartz Plus 48 Inch Linear Shower Drain with Square Grate

Quartz Plus 48 Inch Linear Shower Drain with Square Grate

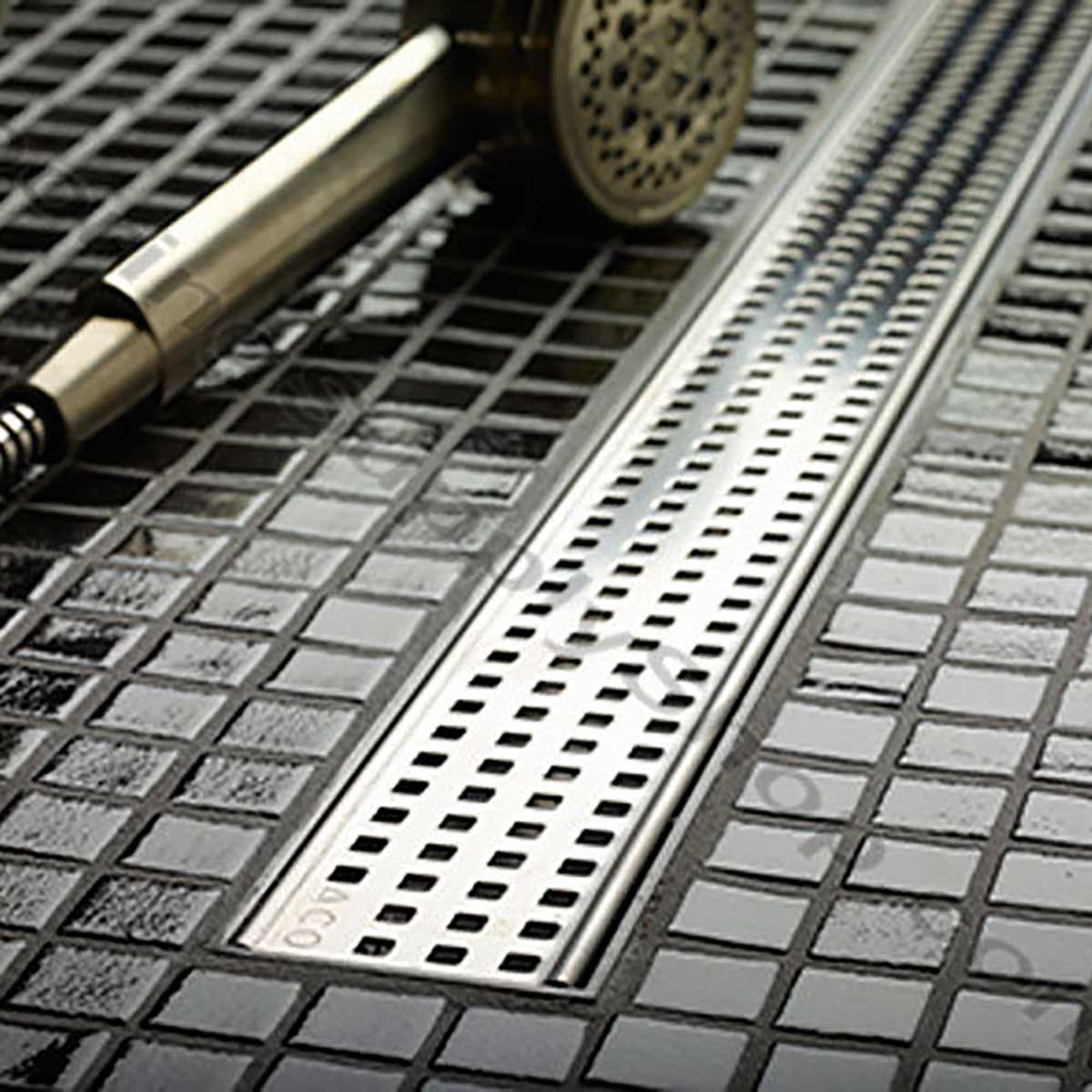

Premium Linear Shower Drain with a Modern Square Perforated Grate

The Quartz Plus 48 Inch Linear Shower Drain combines exceptional drainage performance with contemporary style, making it an excellent choice for modern bathrooms, luxury walk-in showers, and barrier-free shower designs. Featuring a durable ABS shower channel and a passivated stainless steel square perforated grate, this complete drain kit delivers reliable performance while enhancing the appearance of any tiled shower.

Its extended 48 inch length is ideal for larger showers, helping create a clean architectural look while allowing efficient water drainage. Designed for installation into any standard 2 inch threaded shower drain flange, the Quartz Plus linear drain is suitable for both new construction and bathroom remodeling projects.

Ideal Applications

• Walk-in and curbless showers
• Barrier-free shower systems
• ADA compliant wheelchair accessible showers
• Luxury residential bathrooms
• Bathroom renovations and remodels
• Hotels, spas, multifamily housing, and commercial shower installations

Complete Drain Kit Includes

• 48 inch ABS shower channel
• Stainless steel square perforated grate
• Drain flange coupling
• Two adjustable leveling feet
• Grate lifting key
• Installation instructions

Features

• 48 inch (1219 mm) linear shower channel
• Channel width: 2.76 inches (70 mm)
• Channel depth: 0.71 inch (18 mm)
• Compatible with standard 2 inch threaded shower drain flanges
• 2 inch central vertical outlet
• V-shaped channel promotes efficient water flow
• Durable ABS shower channel with metallic gray finish
• Passivated stainless steel grate with an attractive matte finish
• Plastic leveling feet simplify installation and adjustment
• Channel is solvent welded (glued) into the supplied adapter
• Optional debris strainer available separately

Why Choose a Linear Shower Drain?

Linear shower drains offer both functional and aesthetic advantages over traditional center drains. Their long, narrow design supports a single-direction floor slope, making tile installation easier while creating the clean, spa-inspired appearance that has become popular in today's luxury bathrooms. The square perforated grate delivers dependable drainage while complementing a wide variety of tile styles.

Installation Notes

The Quartz Plus 48 Inch Linear Shower Drain is designed to install into a standard 2 inch threaded shower drain flange, the same connection used with Quartz ShowerPoint square drains. Proper waterproofing, accurate drain placement, and the recommended shower floor slope are essential to achieving dependable long-term drainage performance.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• QuARTz Plus 48 Tile Insert Linear Shower Drain
• QuARTz Plus 36 Tile Insert Linear Shower Drain
• QuARTz Plus 27 Square Linear Shower Drain

When installed correctly, the Quartz Plus 48 Inch Linear Shower Drain provides dependable drainage, a clean architectural appearance, and long-lasting performance. Careful planning, proper waterproofing, and accurate installation help create a professional shower system that will perform reliably for years in both residential and commercial environments.
