Better Bench BT-17S Mid Point Corbel Support

Better Bench BT-17S Mid Point Corbel Support

The Better Bench BT-17S Mid Point Corbel Support is a ready-to-tile support bracket designed to provide additional structural support for Better Bench adjustable shower bench systems and floating tile bench installations. Ideal for larger shower benches and open-span installations, the BT-17S helps reinforce bench applications where extra support is required.

Manufactured from corrosion-resistant alloyed aluminum, the BT-17S installs quickly and integrates seamlessly into tiled shower walls, steam showers, wet rooms, and custom bathroom remodels. This support system is commonly used with the Better Bench ADJR Adjustable Bench and BB-BR26 bench installations where additional center support is necessary.

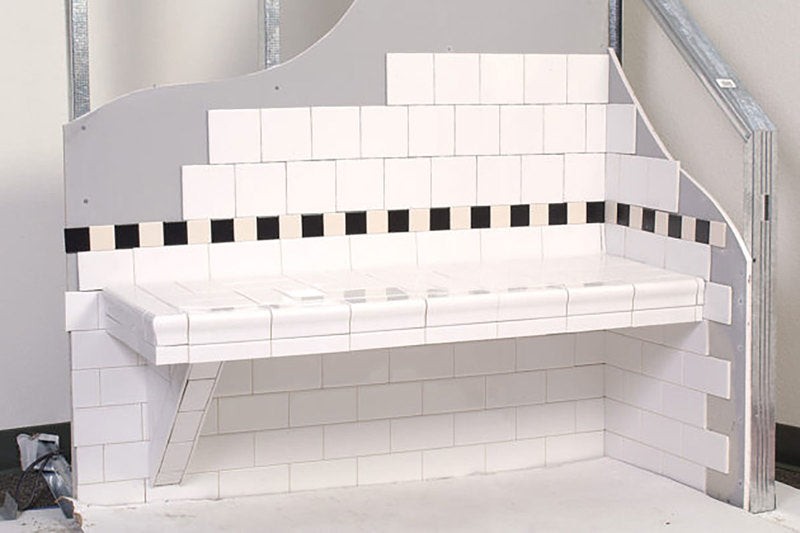

The BT-17S creates a clean professional appearance while maintaining the floating bench design homeowners and contractors prefer in modern bathroom and shower installations.

Support Dimensions: 2" x 12" x 12" x 17"

Designed For

• Better Bench ADJR Adjustable Bench systems
• Better Bench BB-BR26 bench installations
• Floating tile shower benches
• Large span shower seating applications
• Open-end shower bench installations
• Steam showers and spa bathrooms
• Custom tile shower remodels

Support Requirement Guidelines

For BB-BR26 Bench Installations

• Three-wall installations do not require additional support
• Two-wall installations with one open side require one BT-17S or one Invisabolt support
• Free-floating installations require Invisabolt supports with structural blocking

For ADJR Adjustable Bench Installations

• Wall-to-wall installations up to 36" require no additional support
• Wall-to-wall installations up to 63" require one centered BT-17S or two Invisabolt supports
• Back wall and one side wall installations may require BT-17S or Invisabolt supports depending on span
• Open span installations require multiple Invisabolt supports based on overall bench length

Key Features

• Designed for Better Bench adjustable bench support applications
• Ready-to-tile support system
• Corrosion-resistant alloyed aluminum construction
• Fast and simple installation
• Works in wet and dry environments
• Compatible with approved tile substrates
• Maintains clean floating bench appearance
• Ideal for custom tile shower seating

Compatible Substrates

• Cement board
• HardieBacker
• WonderBoard
• Durock
• Mortar bed installations
• Schluter systems
• Wedi Board
• DensShield
• Approved gypsum-based wall systems in dry areas

Installation Notes

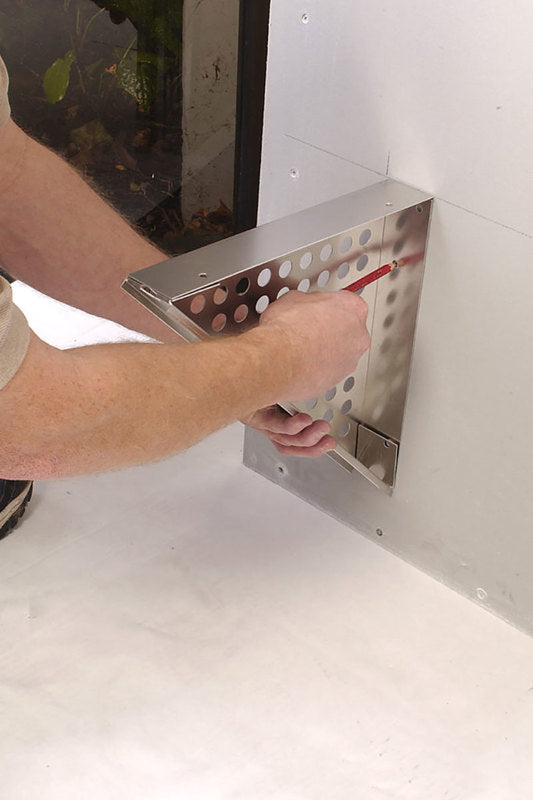

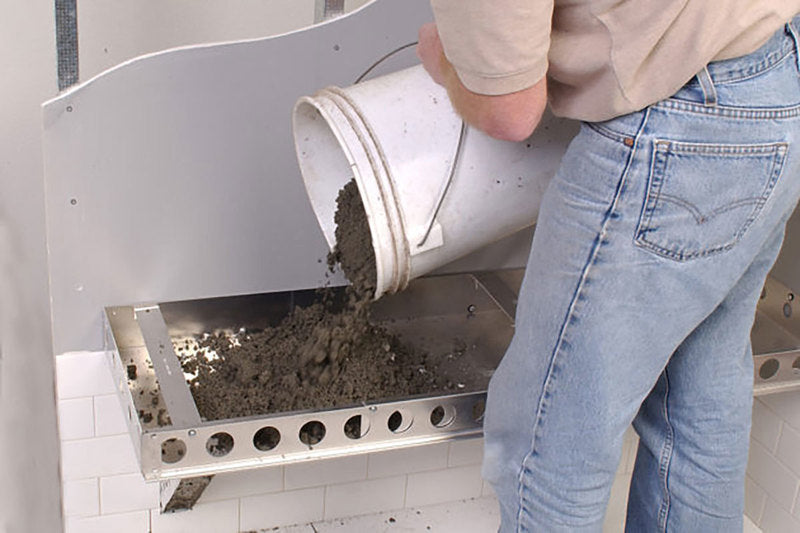

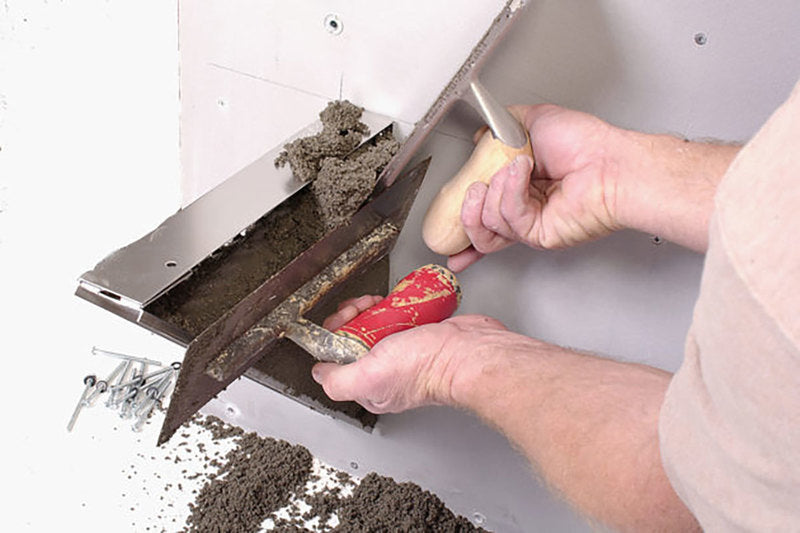

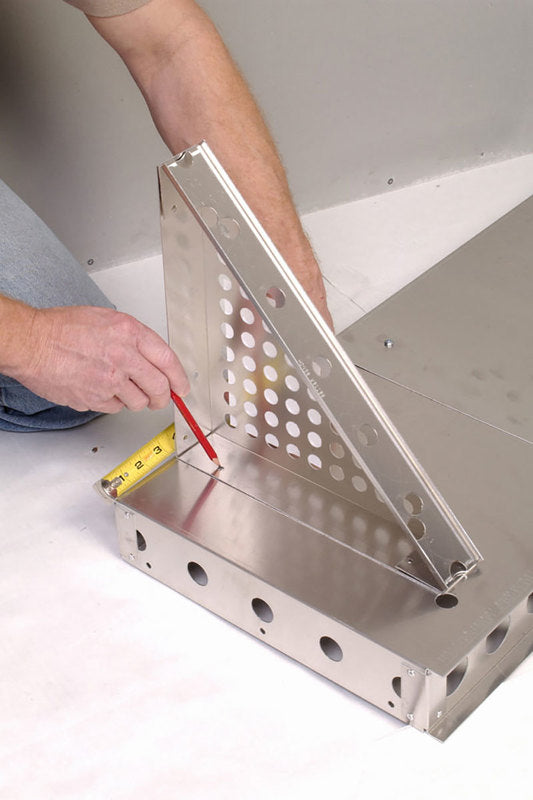

The BT-17S installs using the supplied mounting hardware and is designed to integrate directly into the tiled shower bench system. Fill with dry pack mortar before applying tile.

Important: Do not use thin-set mortar as the fill material. A dry pack mortar mixture using approximately 4 parts sand to 1 part cement is recommended.

Foam board installations require a minimum 2x4 wood backing at all support connection locations. When using Invisabolt support systems, minimum 4x6 structural blocking must be installed flush with the stud face before wall substrate installation.

Waterproof Performance

The BT-17S is designed for wet area installations without requiring additional waterproofing membranes. Proper sealing around fastener penetrations and wall connections is recommended during installation.

Made in the USA

Better Bench products are proudly manufactured in the USA using durable alloyed aluminum engineered for long-lasting performance in tile shower and bathroom environments.

Why Choose Better Bench?

Better Bench systems are trusted by professional tile installers and contractors for their strength, reliability, and simplified installation process. The BT-17S provides additional support while preserving the clean floating bench appearance desired in modern shower and bathroom designs.
