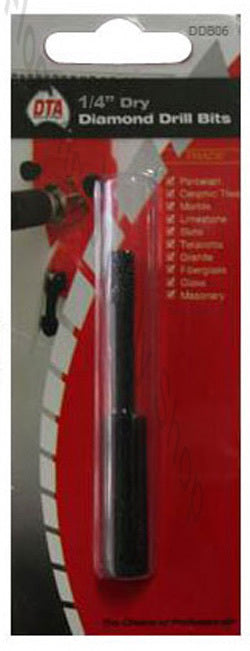

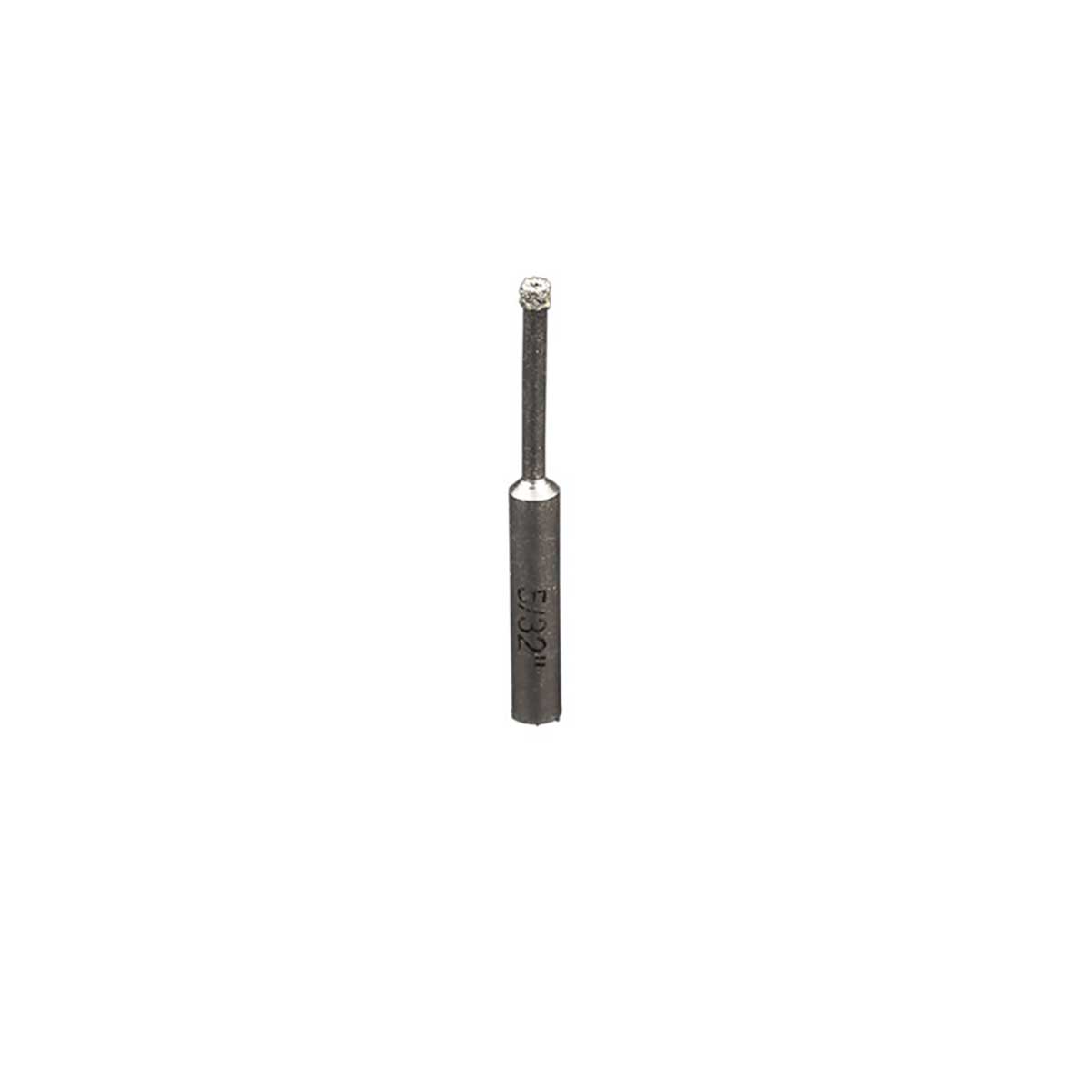

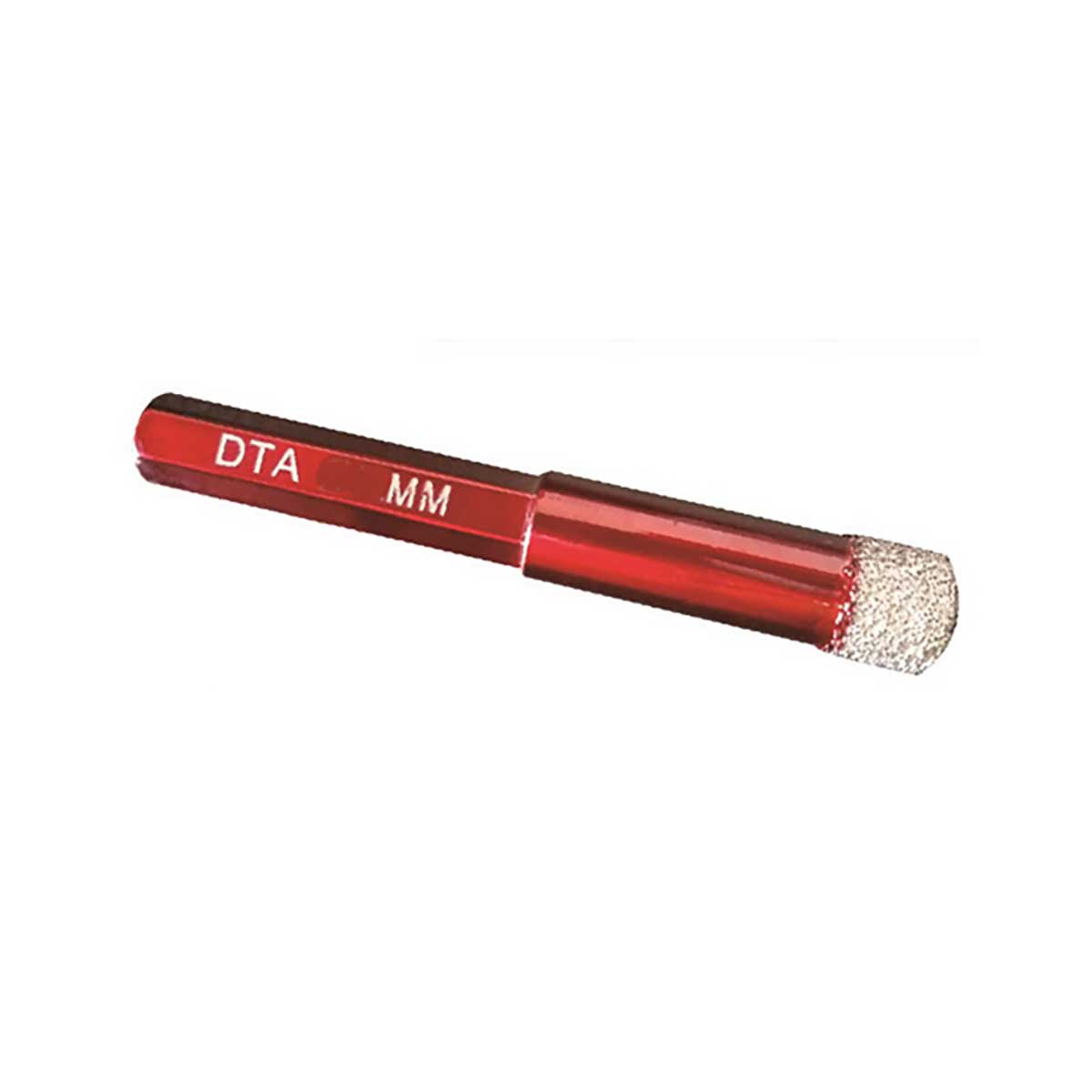

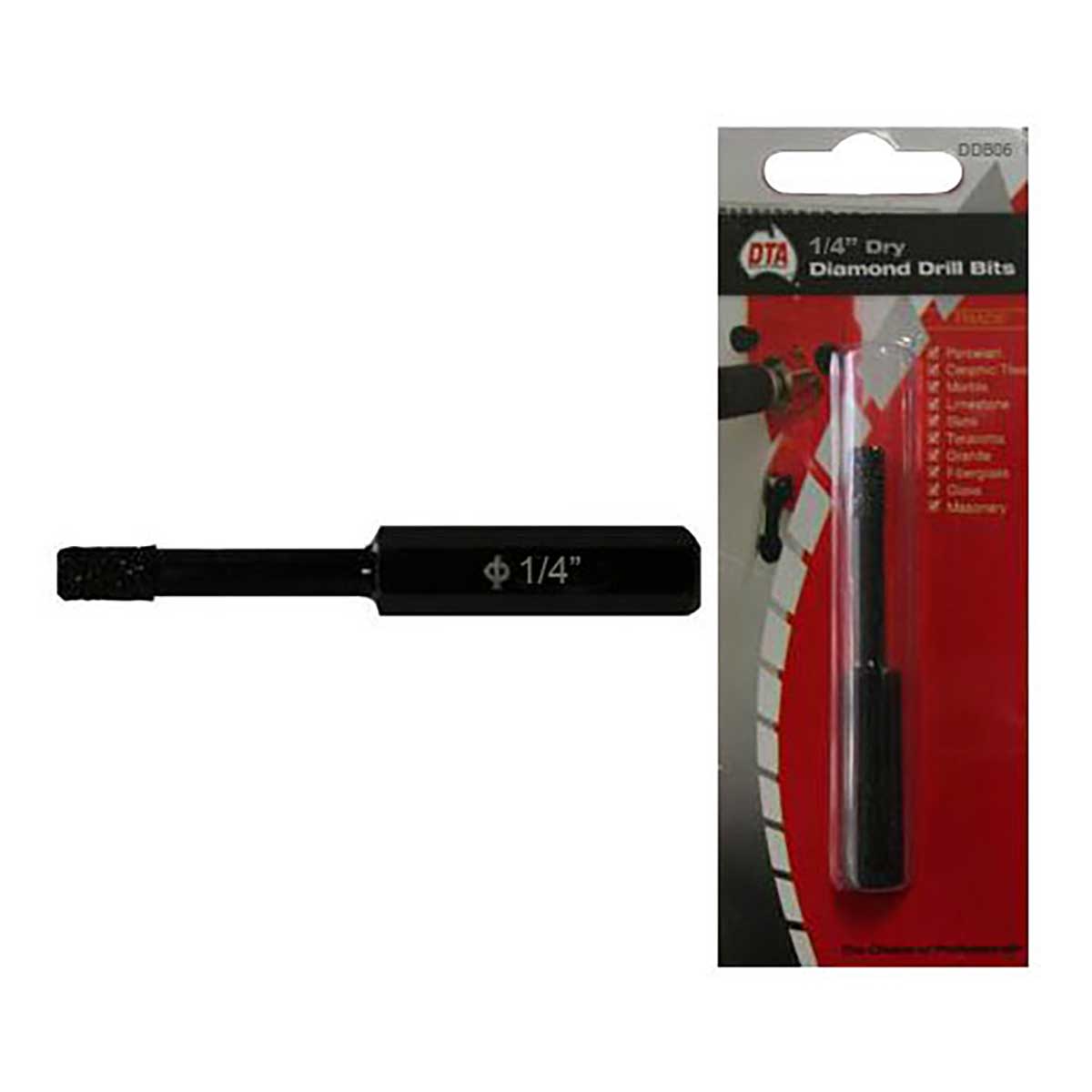

DTA Tornado Dry Cut Diamond Drill Bit

Professional dry-cut diamond drill bit for drilling hard tile, stone, glass, and masonry materials.

The DTA Tornado Dry Cut Diamond Drill Bit is designed for fast, precise drilling in hard materials without requiring water during the drilling process. Its diamond cutting surface is suitable for a wide range of tile, natural stone, glass, and masonry applications, making it a versatile choice for tile installers, contractors, fabricators, and other professionals.

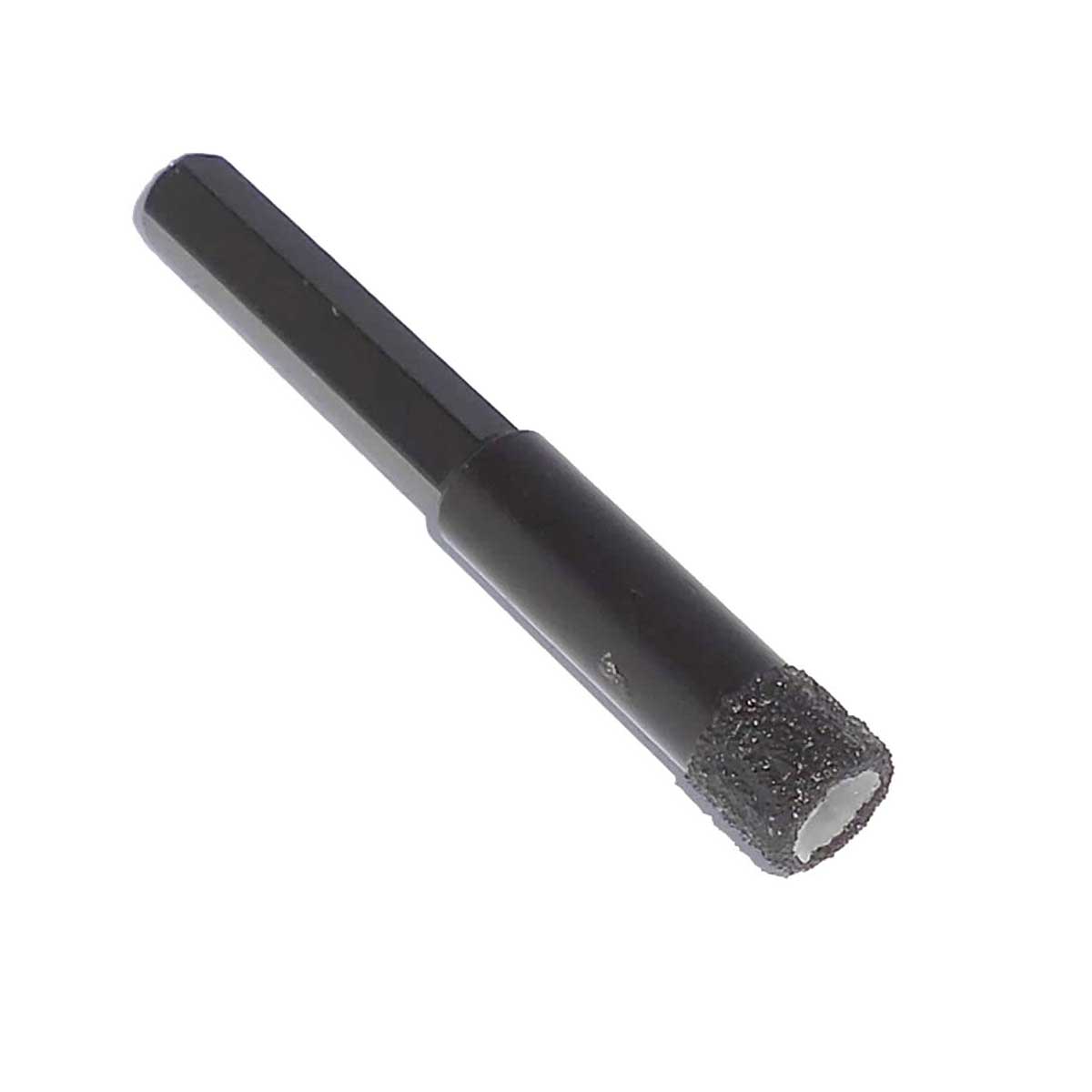

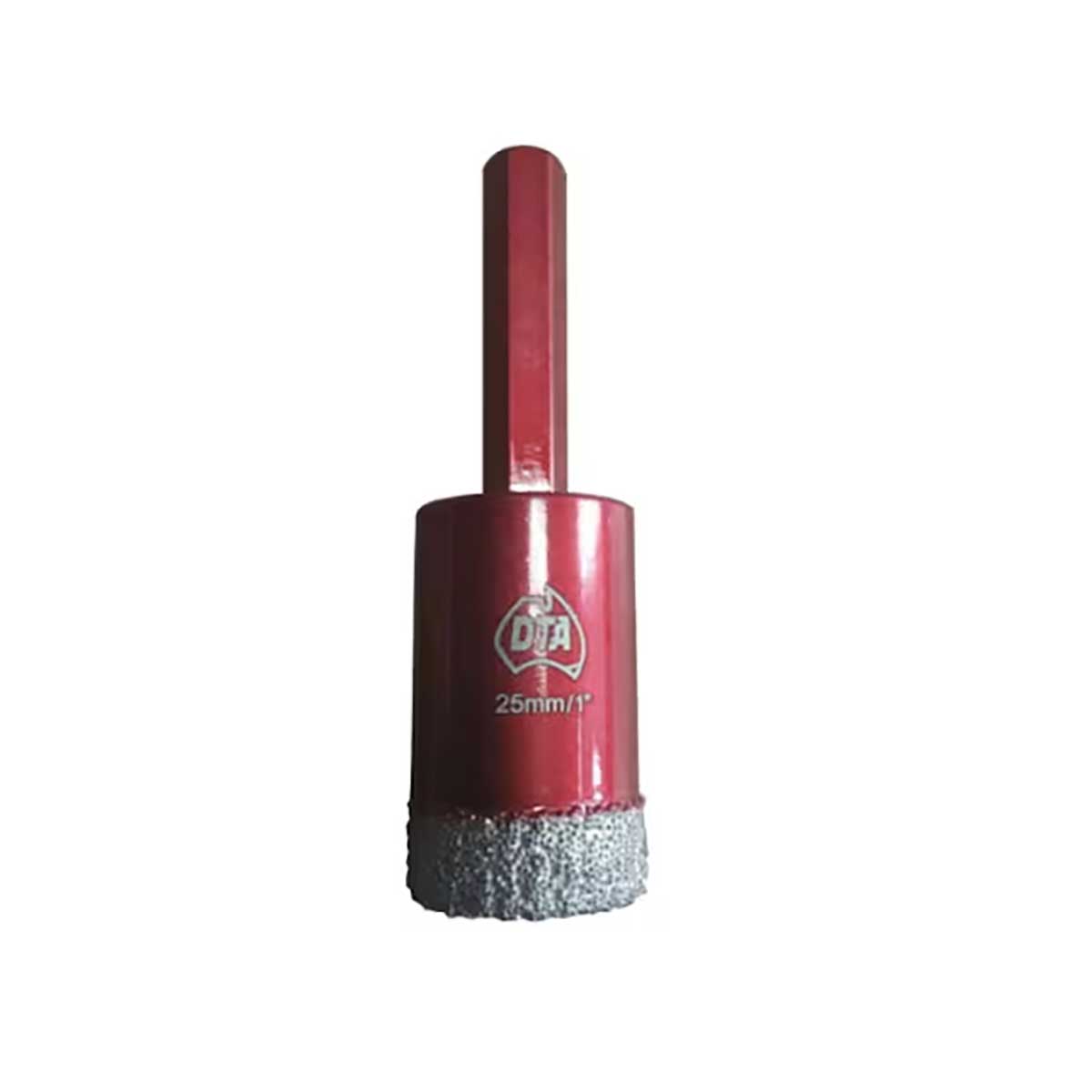

The Tornado drill bit features a hexagonal shaft and is designed for dry drilling applications in porcelain, marble, granite, ceramic, limestone, slate, terracotta, fiberglass, glass, travertine, and masonry.

Use For:

• Porcelain
• Marble
• Granite
• Ceramic
• Limestone
• Slate
• Terracotta
• Fiberglass
• Glass
• Travertine
• Masonry

Features and Benefits

• Designed for dry drilling applications
• Diamond cutting technology for hard materials
• Suitable for porcelain, natural stone, glass, and masonry

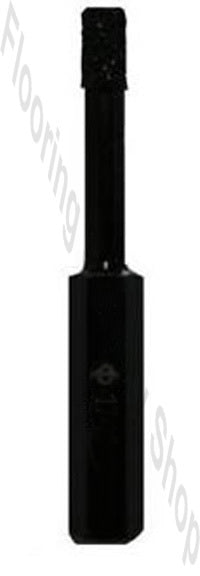

• Hexagonal shaft design
• Ideal for tile installation and stone fabrication applications
• Available in multiple drilling sizes

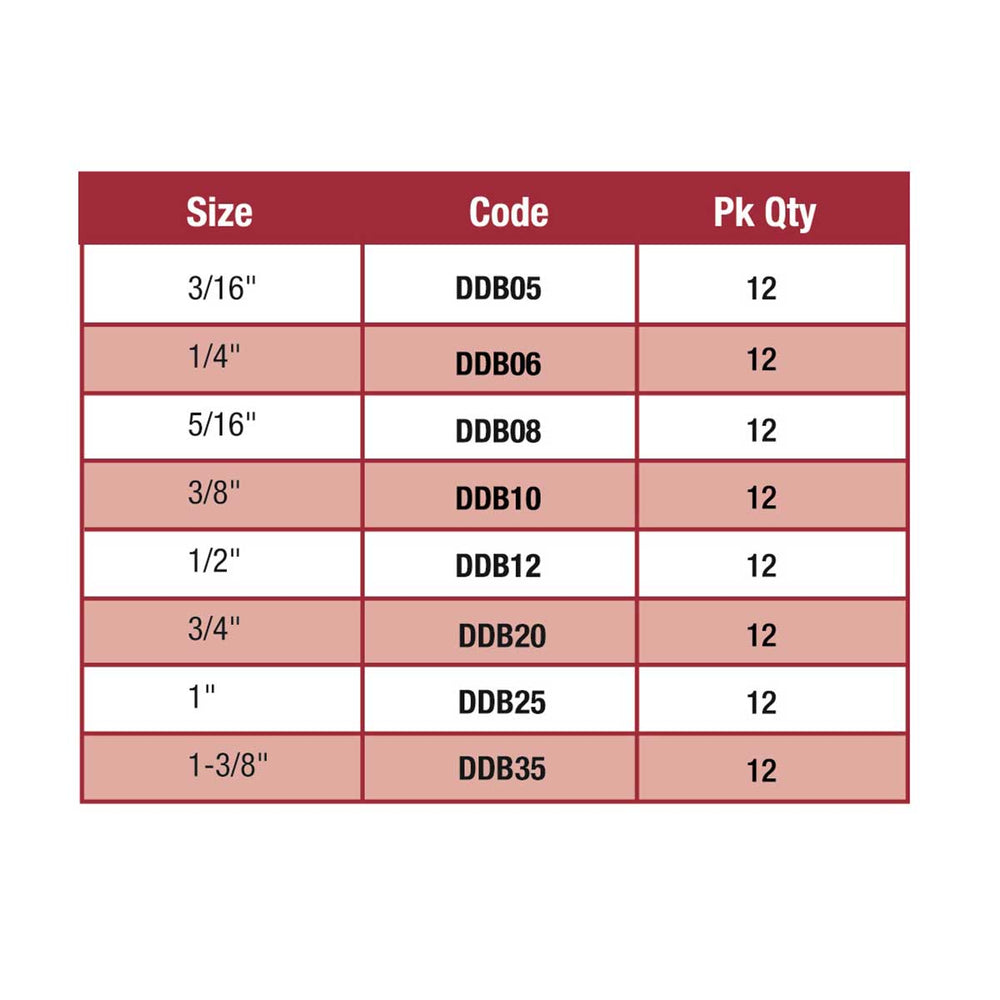

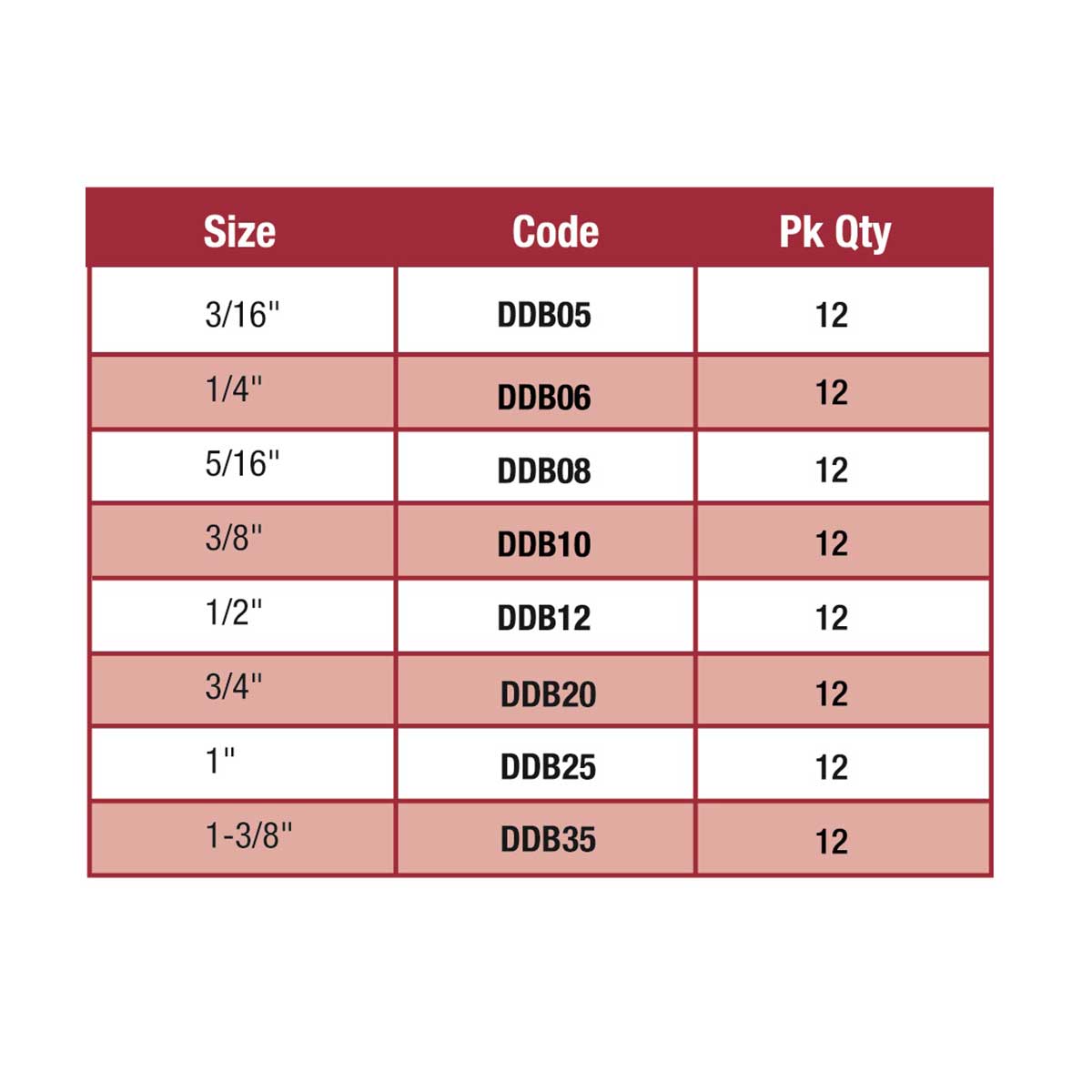

Available Sizes: 3/16", 1/4", 5/16", 3/8", 1/2", 3/4", 1", and 1 3/8"

Recommended RPM: 2,000 - 3,000 RPM

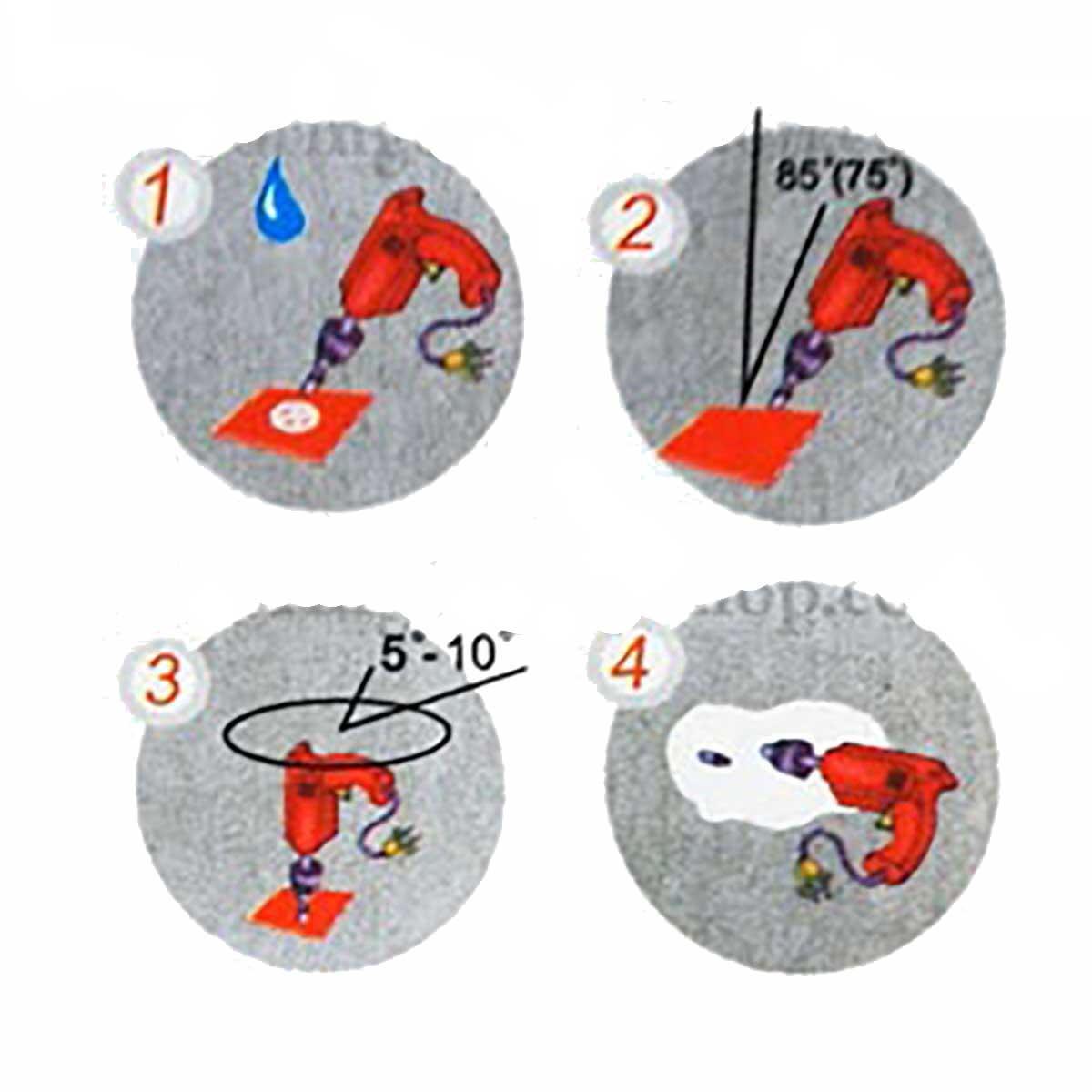

How to Use

Step 1 - Prepare the Material

Place the tile or slab on a solid, non-slip surface such as a wood or concrete plate. The original instructions call for water to be applied to the drilling area. For dry drilling, follow the manufacturer's recommended dry-drilling procedure and avoid using water unless specifically permitted for the application.

Step 2 - Start the Hole

Start drilling at approximately a 75-85 degree angle to allow the diamond bit to bite into the material. Drill to a depth of approximately 1-2 mm (1/16") to establish the opening.

Step 3 - Complete the Hole

Gradually bring the drill to a 90-degree position and use a controlled swinging motion to finish drilling the hole. Use very little pressure and allow the diamond bit to do the cutting. Do not force the drill straight down.

Step 4 - Remove Debris

After completing the hole, remove the drilling debris and clean the area before installing the required fixture or fitting.

Important: Follow appropriate drilling practices for the material being drilled and use suitable personal protective equipment.

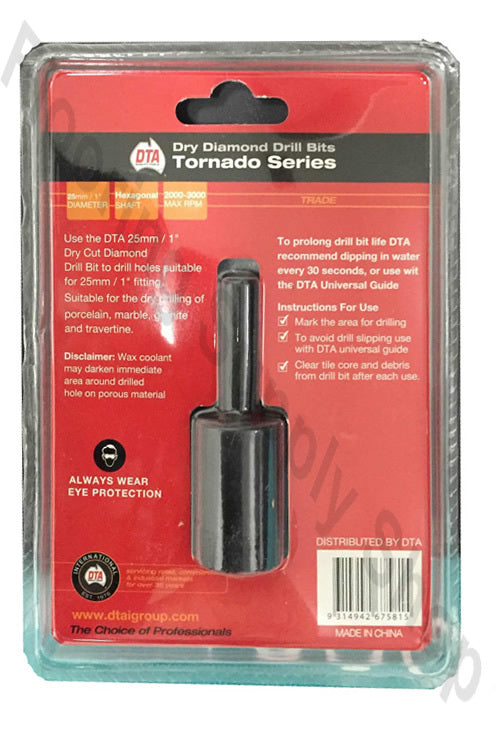

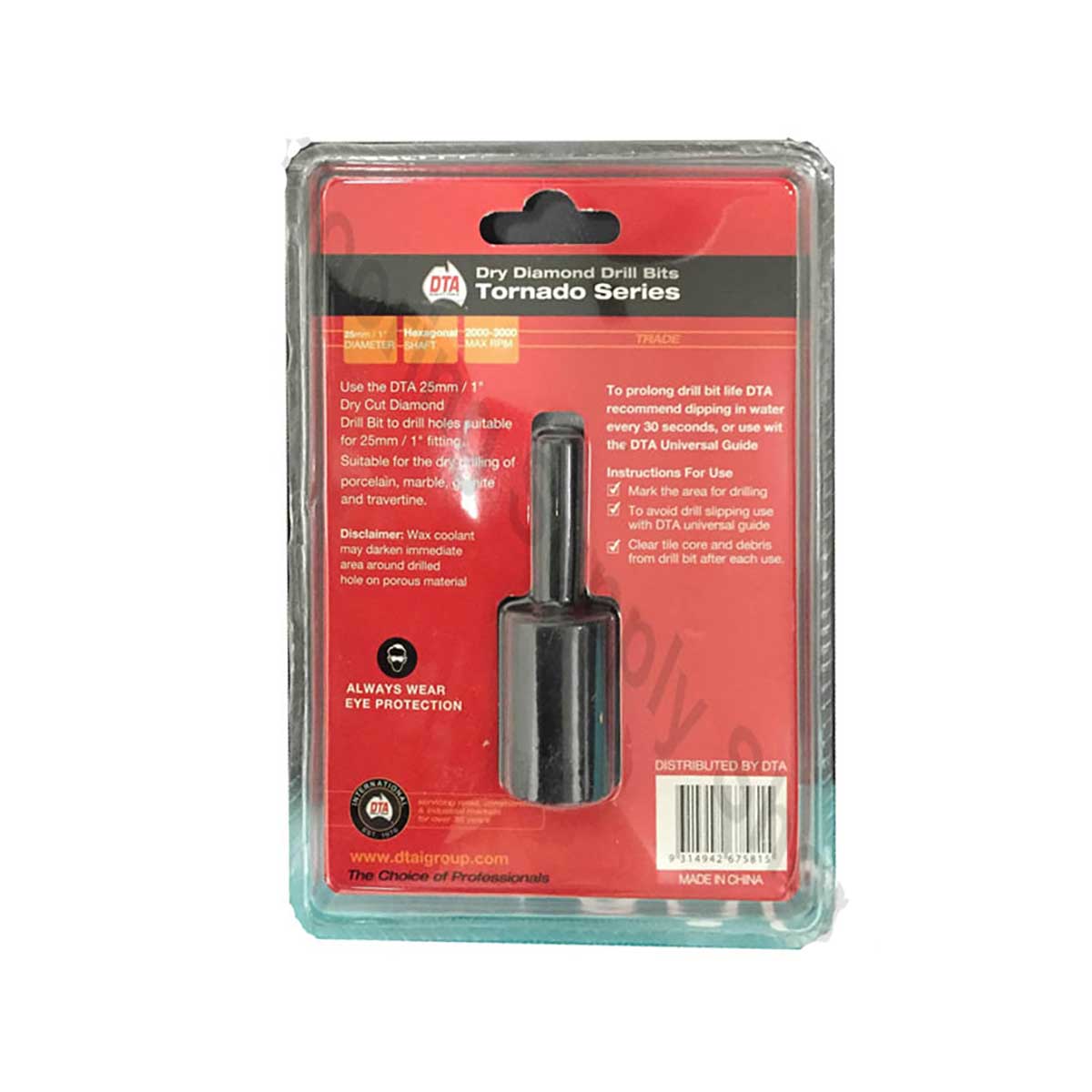

Disclaimer: Wax coolant may darken the immediate area around a drilled hole when used on porous materials.
