Serene Drains 24 Inch Linear Shower Drain - Ocean Wave Brushed Stainless Steel

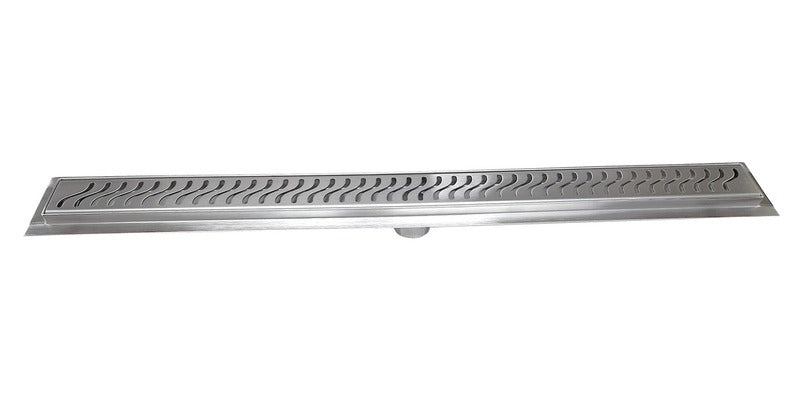

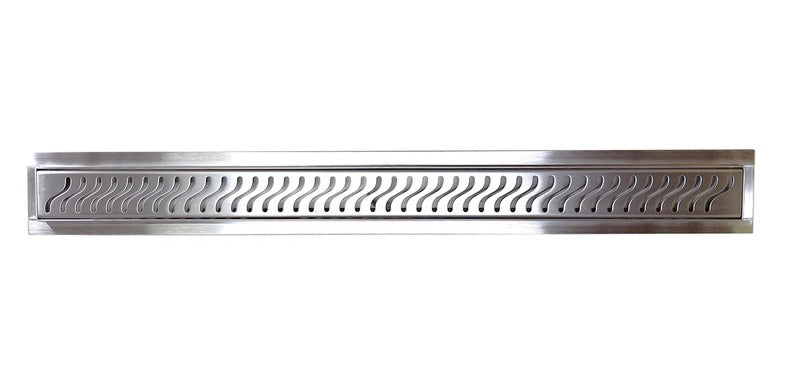

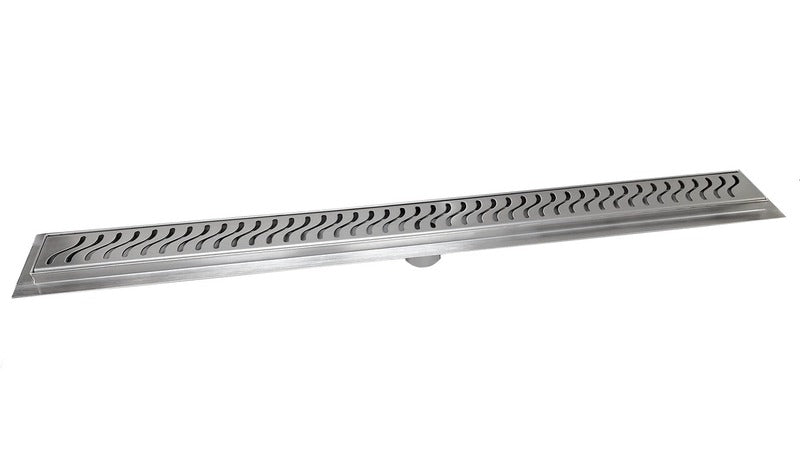

The Serene Drains 24 inch linear shower drain with Ocean Wave grate in brushed stainless steel is a premium linear shower drain designed for modern, high-performance shower systems. The wave-pattern design adds a unique flowing look while maintaining efficient water drainage.
In stock - Ships same day

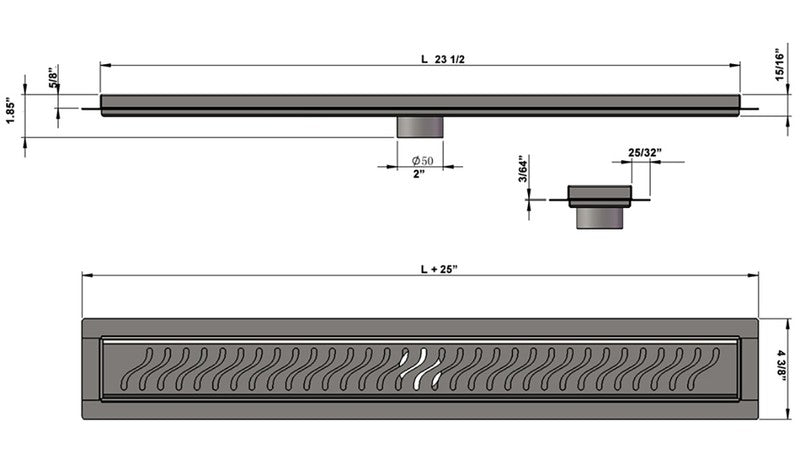

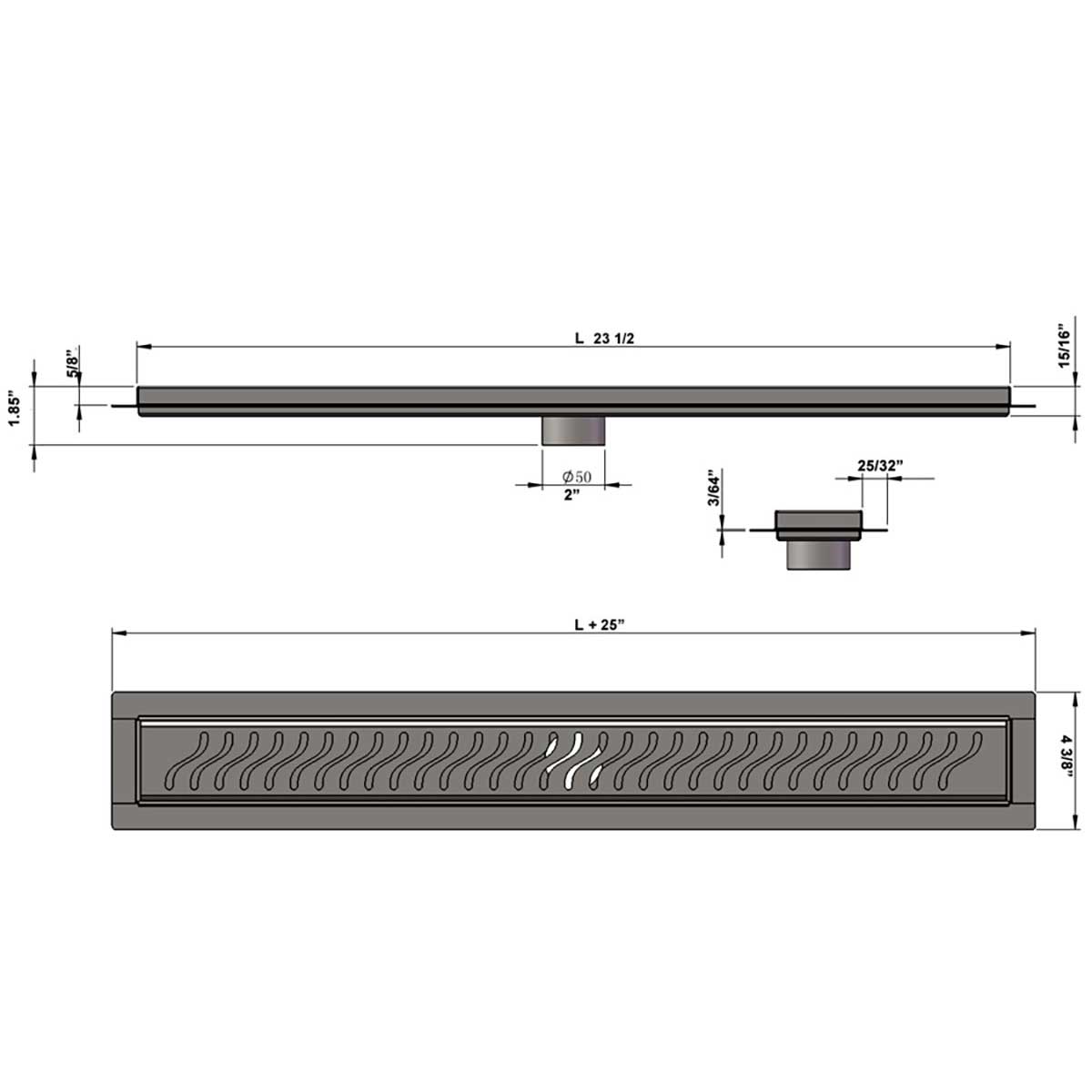

Overall Size 25.2" x 4 3/8" - Net Size 23 1/2" x 2 3/4"
Available Finish: Brushed Stainless Steel
Perfect for modern showers, curbless designs, and wet rooms.

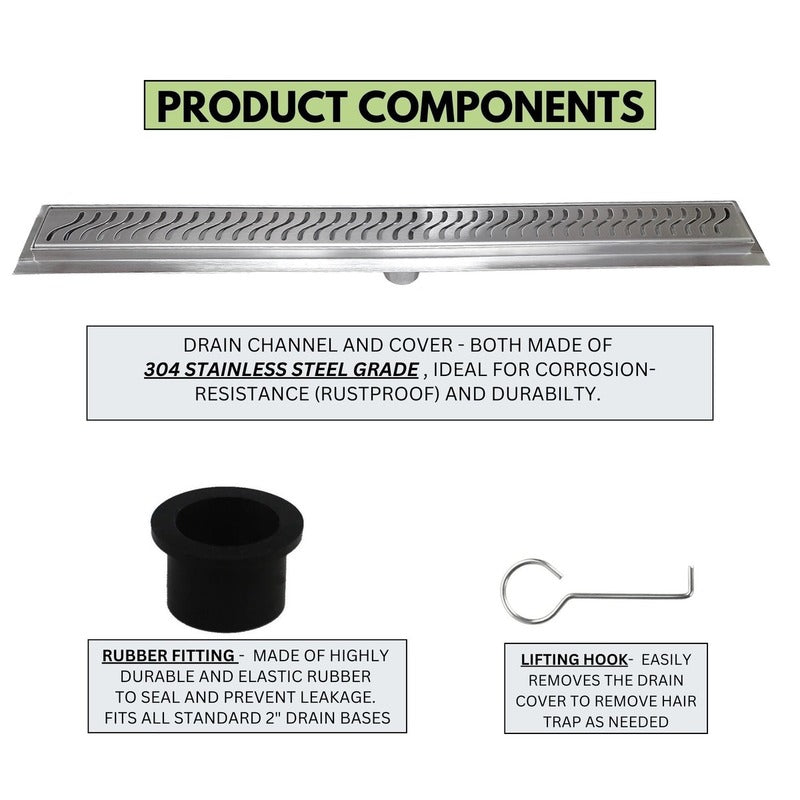

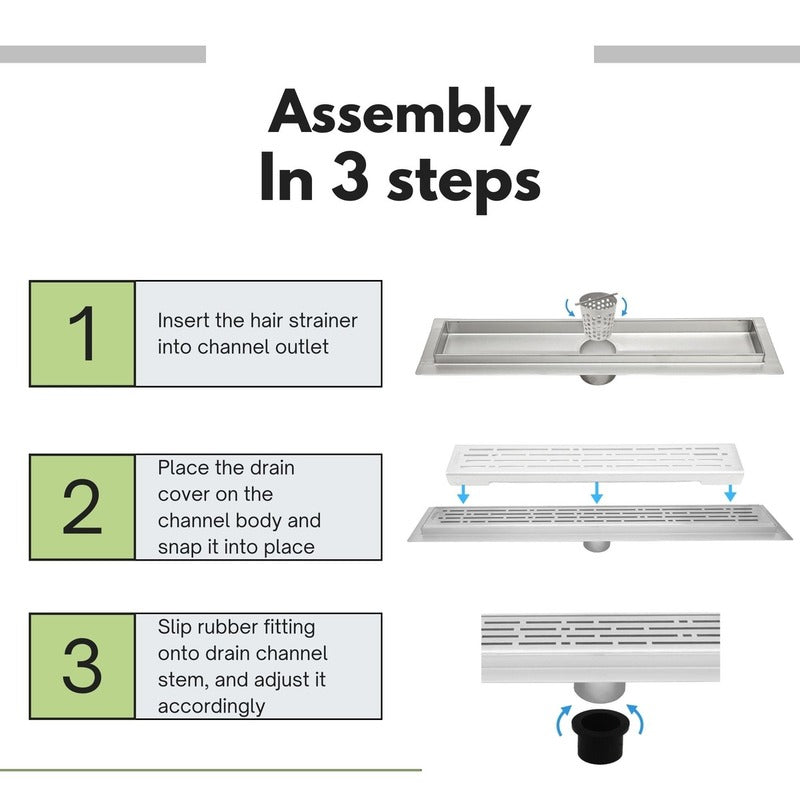

COMPLETE SET includes: Channel Body, Ocean Wave Grate, Drain Rubber Fitting, Drain Puller Key, Waterproofing Membrane Sheet around the drain flange (optional but included)
Optional: ABS, PVC, or Cast Iron CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap
Square channel design: Easier tile cutting compared to round drains, saving time and effort
Superior quality at an affordable price

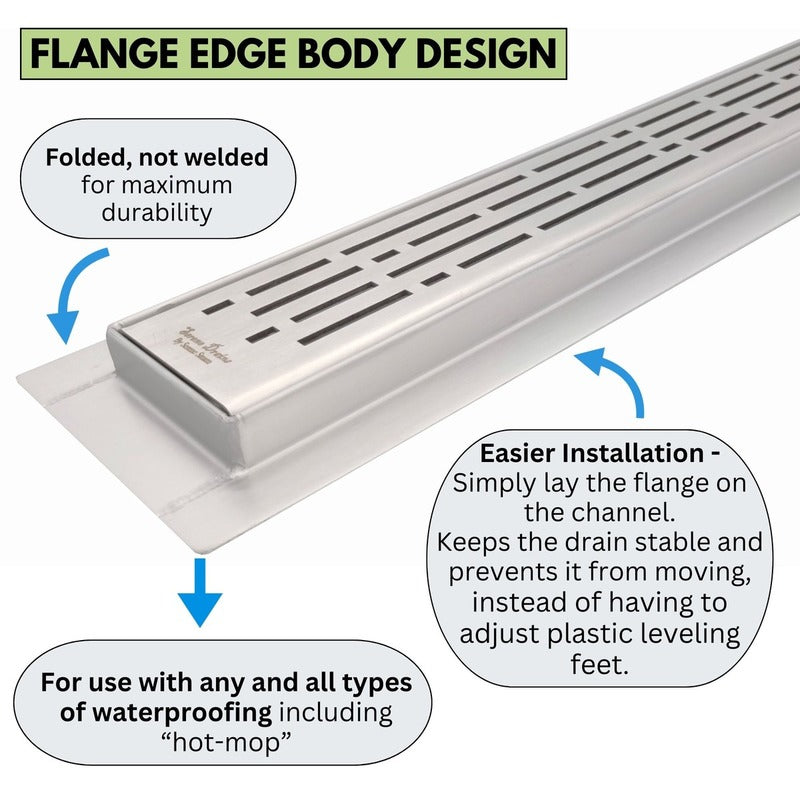

Flange body edge designed for use with all types of waterproofing systems, including hot-mop, liquid-applied membranes, sheet membranes, and vinyl waterproofing
Approximate Dimensions:
Length 16" (400mm), Intake 10.44 sq. in.
Length 24" (600mm), Intake 15.66 sq. in.
Length 30" (762mm), Intake 23.90 sq. in.
Length 35" (900mm), Intake 28.85 sq. in.
Length 39" (1000mm), Intake 31.36 sq. in.
Length 47" (1200mm), Intake 36.37 sq. in.
Length 59" (1500mm), Intake 45.05 sq. in.
Construction
- Pre-sloped channel for efficient drainage
- 2" diameter central vertical outlet
- Flow rate: 6.3 GPM (center) / 9.5 GPM (wall placement)
- Channel width: 2 3/4" (70 mm)
- Fully welded and leak-tested body
- Brushed Stainless Steel finish
- 16-gauge 304 stainless steel grate
- Compatible with tiles up to 10mm thickness (14mm lip)
- Optional stainless steel flexible coupling
- Optional debris strainer and connectors
- Corrosion-resistant and long-lasting construction
- Easy maintenance – no special cleaning required

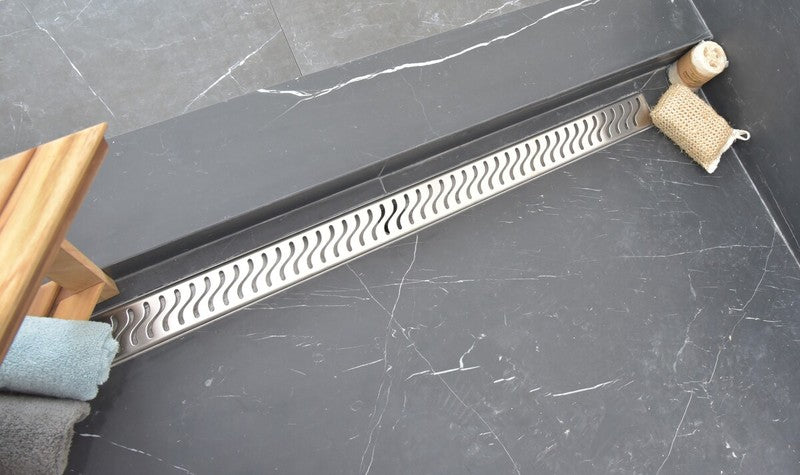

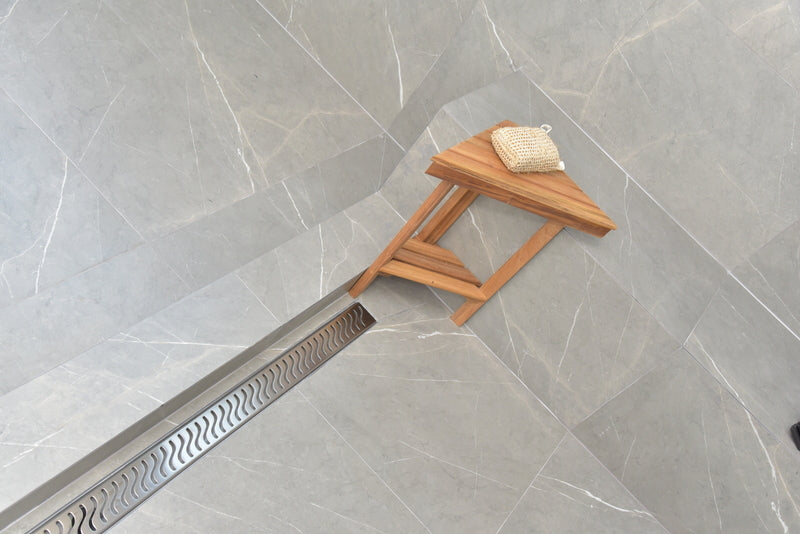

The Serene Drains Ocean Wave linear shower drain combines performance with a distinctive decorative design. The flowing wave pattern adds movement and style, making it a standout feature in modern tile showers.
Constructed from high-quality 304 stainless steel, this drain ensures durability, corrosion resistance, and reliable drainage performance to help prevent water buildup.
Straight cuts allow for faster tile installation with minimal waste. Designed to align with standard tile sizes for clean and precise installation.
Superior Quality - Heavy Drain Grate - Minimal Grout Rim - Designer Finish
