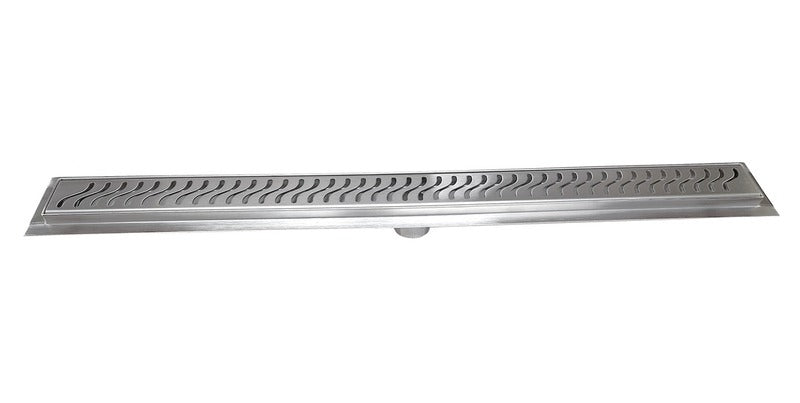

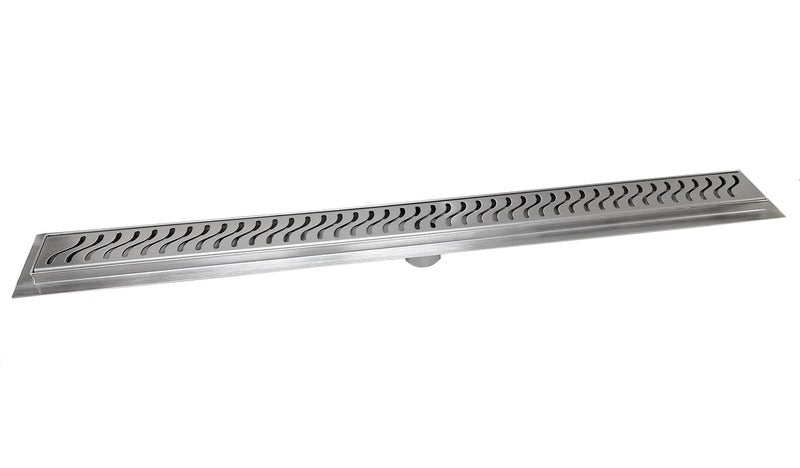

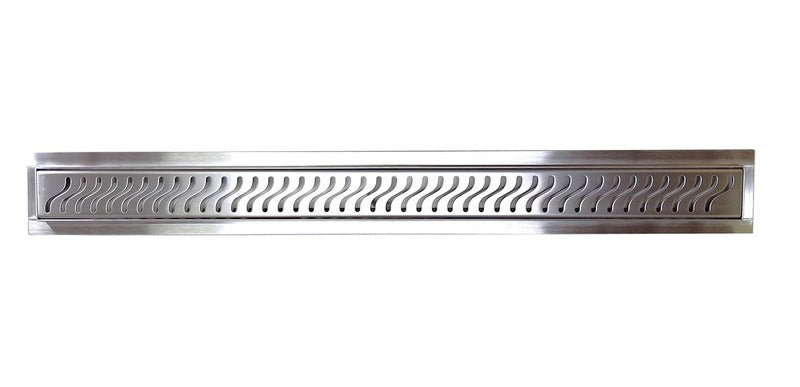

SereneDrains Linear Shower Drain Ocean Wave - Brushed 35

SereneDrains Linear Shower Drain Ocean Wave - Brushed Stainless 35

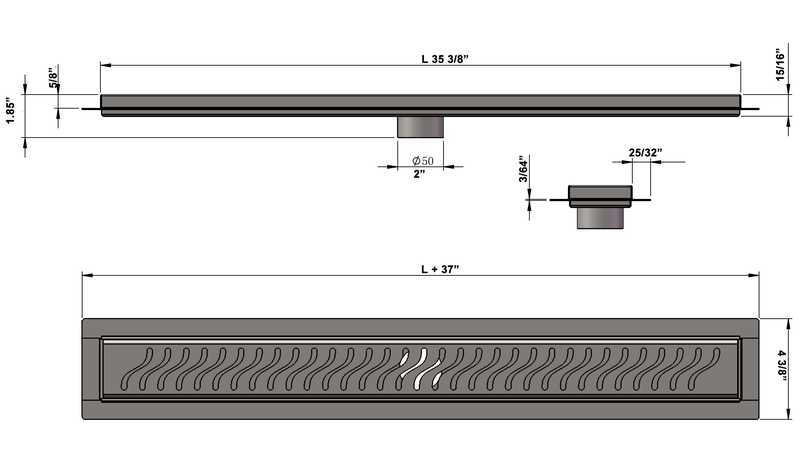

Overall Size 37.01" x 4 3/8" - Net Size 35 3/8" x 2 3/4"

Ocean Wave - wave-pattern grate inspired by flowing water

Available Finish: Brushed Stainless

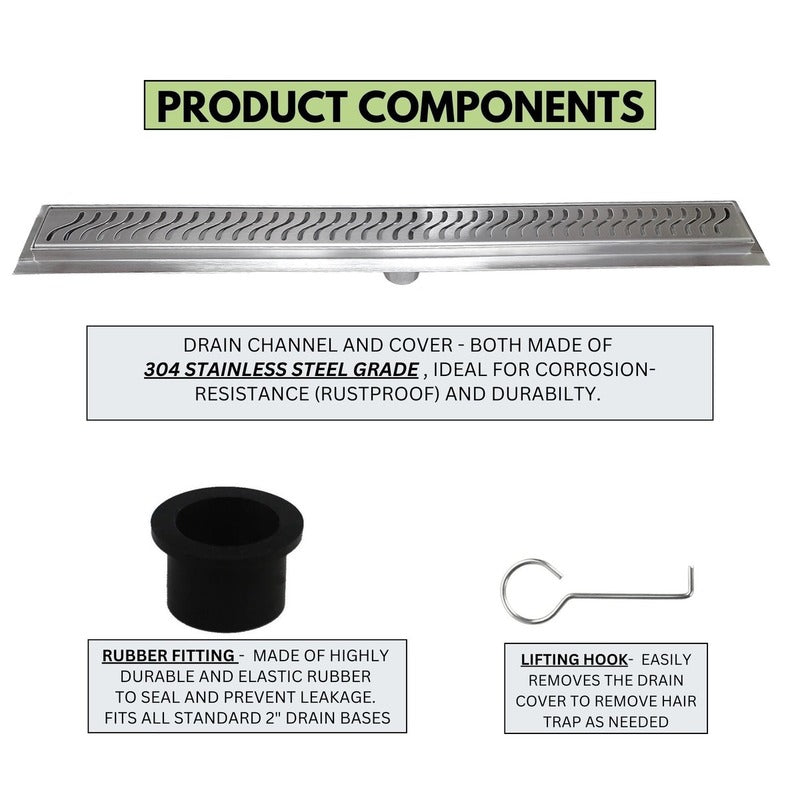

COMPLETE SET - Channel Body, Ocean Wave Grate, Drain Rubber Fitting, Drain Puller Key, Waterproofing Membrane Sheet around the drain flange (not required but included)

Optional: ABS, PVC, or Cast Iron CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap

Square channel design. Easier tile cutting compared to traditional round drains—no complex cutting, nipping, or grinding required.

Premium quality linear shower drain at an affordable price.

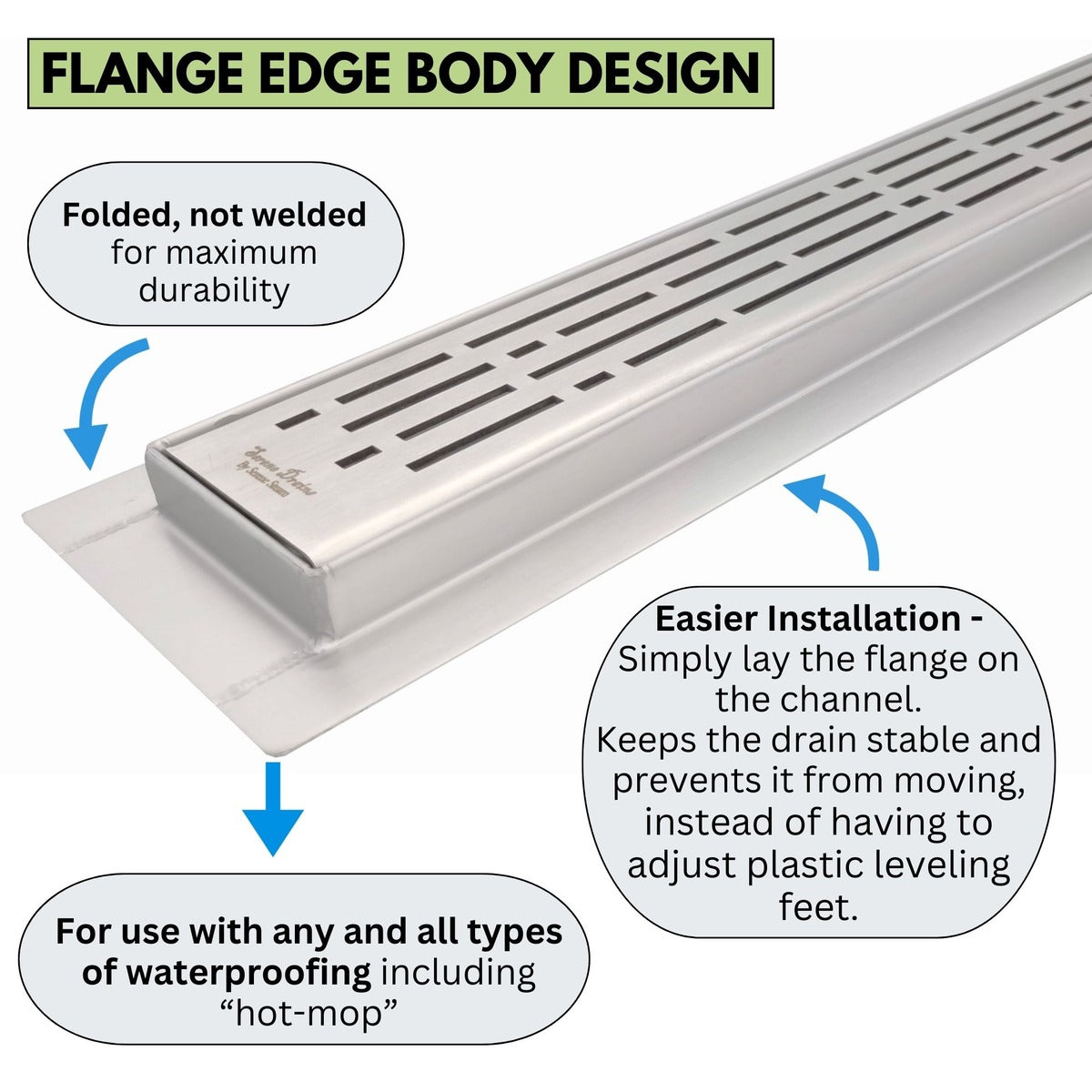

Flange body edge designed for use with all types of waterproofing systems, including hot-mop, liquid-applied membranes, sheet membranes, and vinyl waterproofing.

Approximate Dimensions:

Length 16" (400mm), Intake 10.44 sq. in.
Length 24" (600mm), Intake 15.66 sq. in.
Length 30" (762mm), Intake 23.90 sq. in.
Length 35.43" (900mm), Intake 28.85 sq. in.
Length 39.37" (1000mm), Intake 31.36 sq. in.
Length 47.25" (1200mm), Intake 36.37 sq. in.
Length 59.05" (1500mm), Intake 45.05 sq. in.

Construction

• Pre-sloped channel for efficient water drainage
• 2" diameter central vertical outlet
• High flow rate: entrance of shower - 6.3 GPM (0.4 L/s); against the wall - 9.5 GPM (0.6 L/s)
• Channel width: 2 3/4" (70 mm)
• Fully welded and leak-tested body for reliability
• Compatible with tiles up to 10 mm thickness (14 mm lip)
• Optional stainless steel clad flexible coupling for easy pipe connection
• Optional accessories include plumbing connectors and debris strainer
• 16-gauge 304 stainless steel grate
• Corrosion-resistant and long-lasting construction
• Durable finishes for modern bathrooms
• Easy maintenance – no special cleaning required

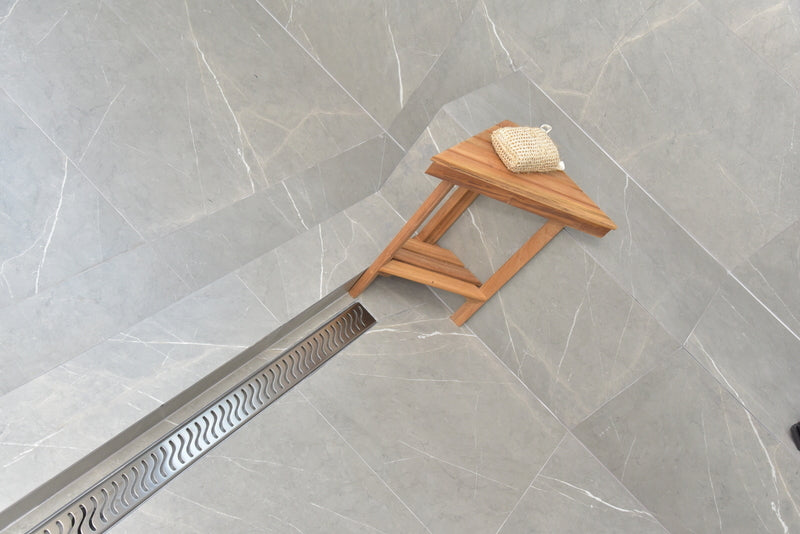

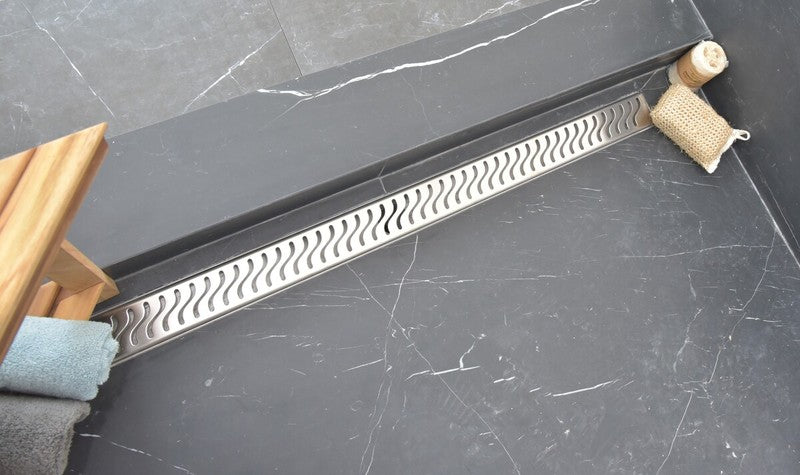

The SereneDrains Ocean Wave Linear Shower Drain combines modern drainage performance with a unique decorative design. The wave-pattern grate adds visual movement and style, making it a standout feature in tile showers and walk-in shower installations.

Made from premium 304 stainless steel, this linear drain provides excellent durability, corrosion resistance, and long-term reliability. Its high-efficiency drainage system quickly removes water to help prevent pooling and maintain a safe, dry shower environment.

Designed for seamless integration with tile flooring, this linear shower drain is ideal for custom showers, bathroom remodels, and modern wet room designs. The Ocean Wave pattern enhances the look of your space while delivering professional-grade performance.

Superior Quality - Heavy Drain Grate - Minimal Grout Rim - Designer Finishes

In Stock - Ships Same Day
