SereneDrains Wow Drain TM Side Discharge Outlet with 4 Inch Square Shower Drain Horizontal Low Profile

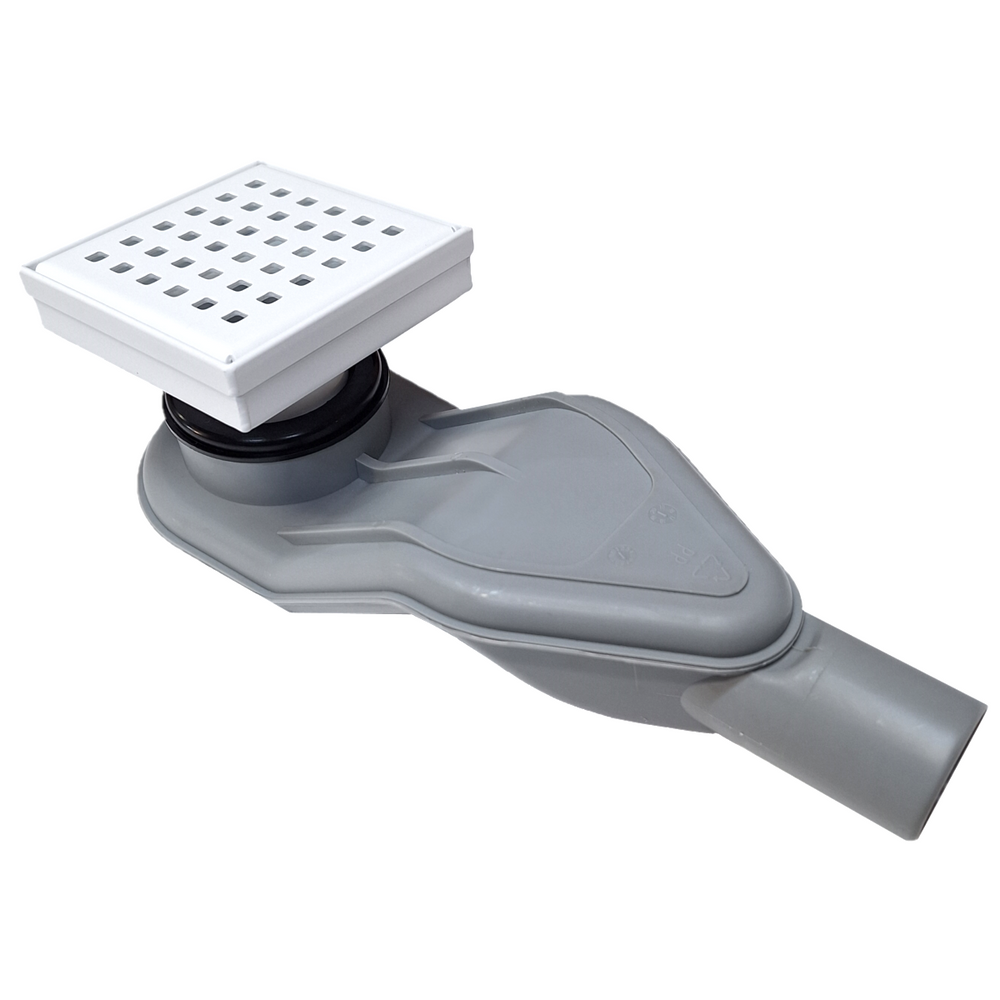

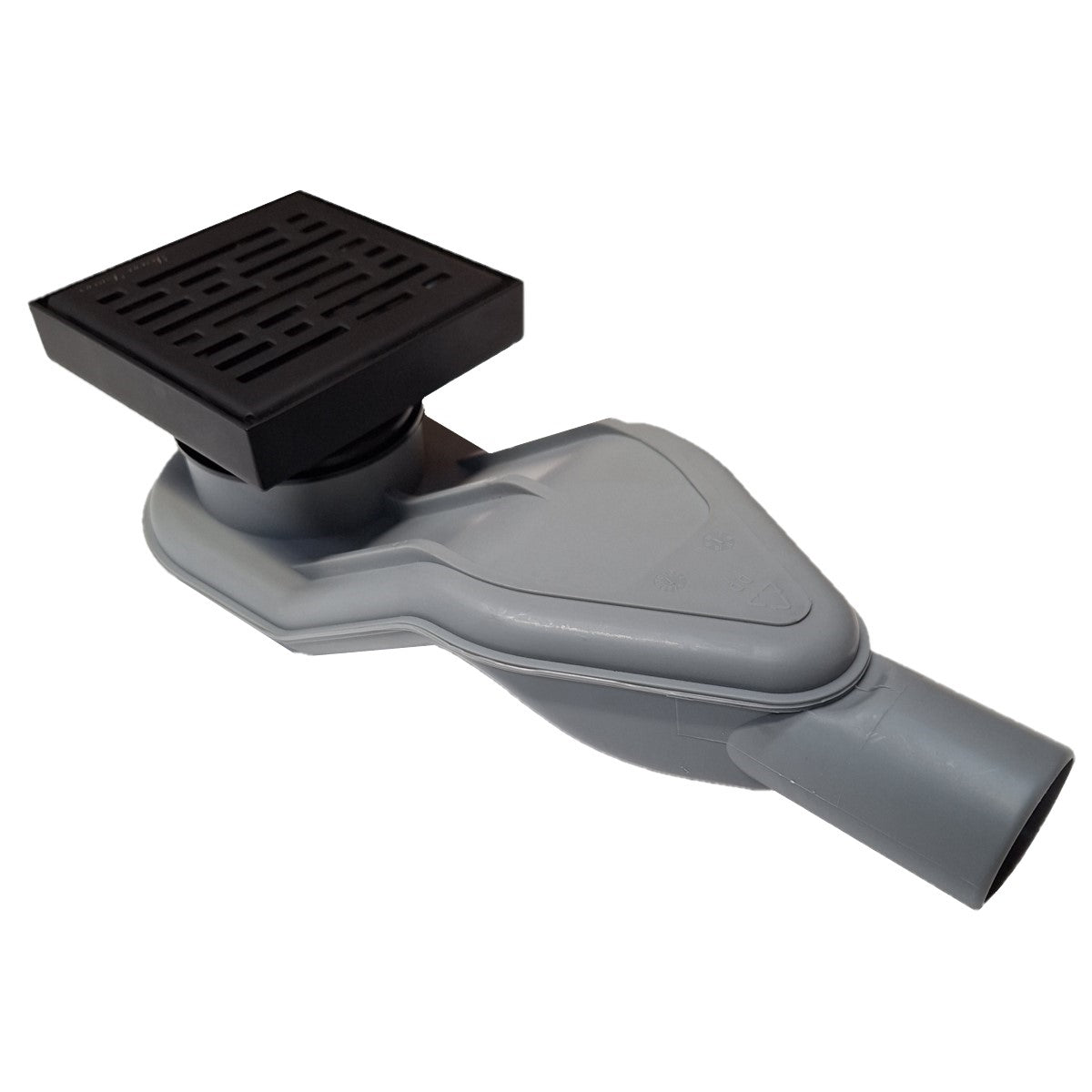

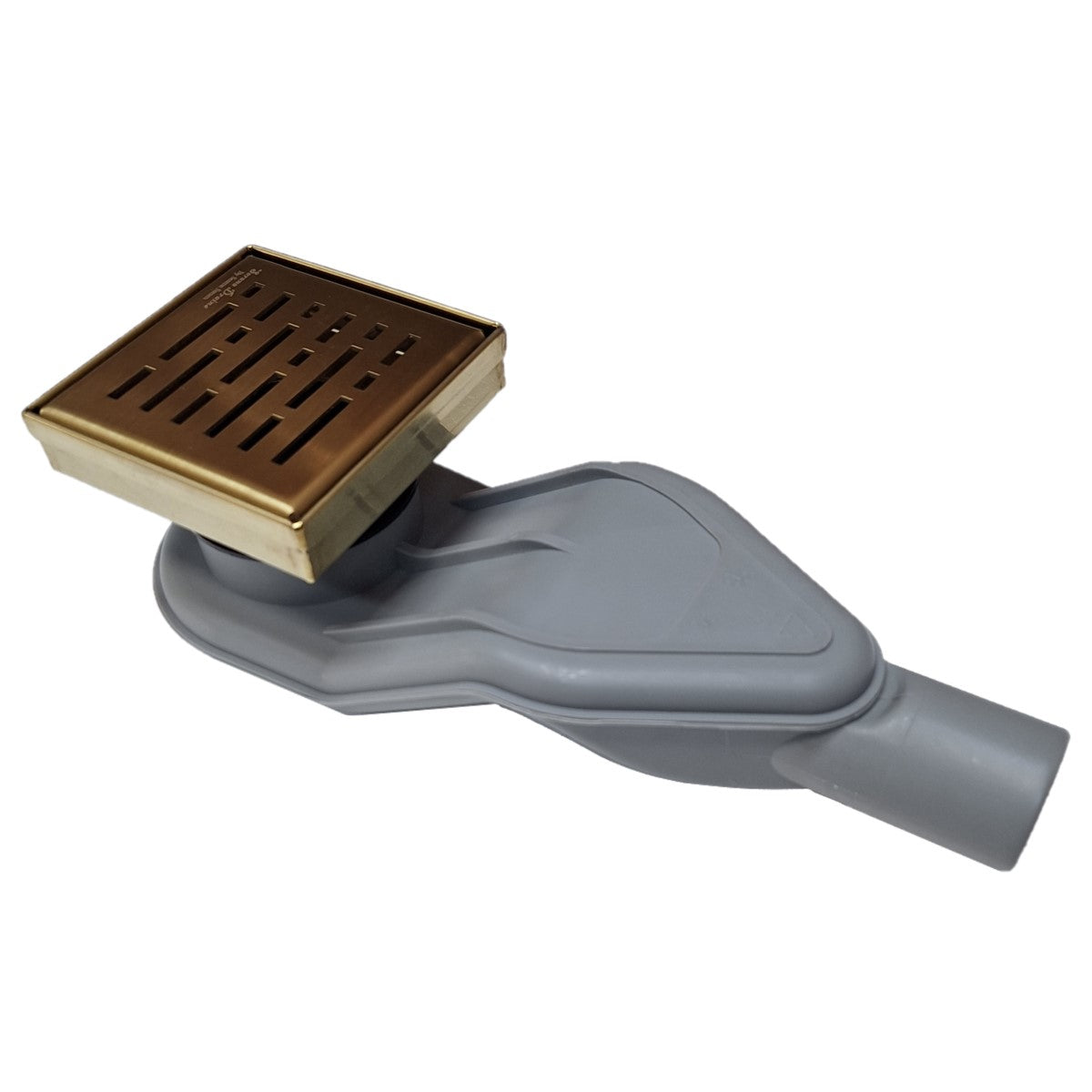

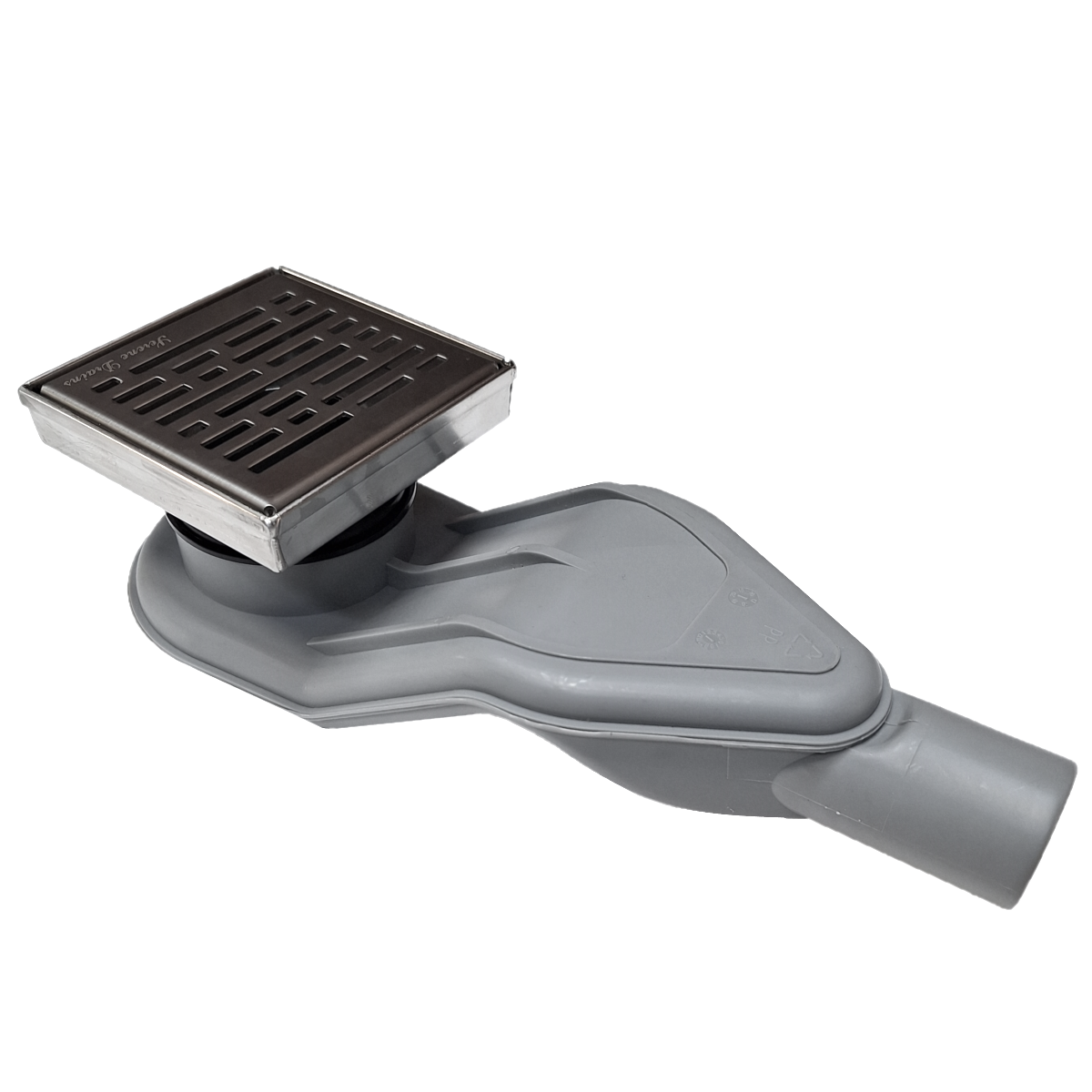

SereneDrains Horizontal Side Dishcarge Outlet with a 4" Broken Lane SereneDrains Square Shower Drain.

Converts any vertical pipe to a horizontal 2 inch drain connection. Allows the use of all standard 2 inch shower drains: including square drains and linear drains.

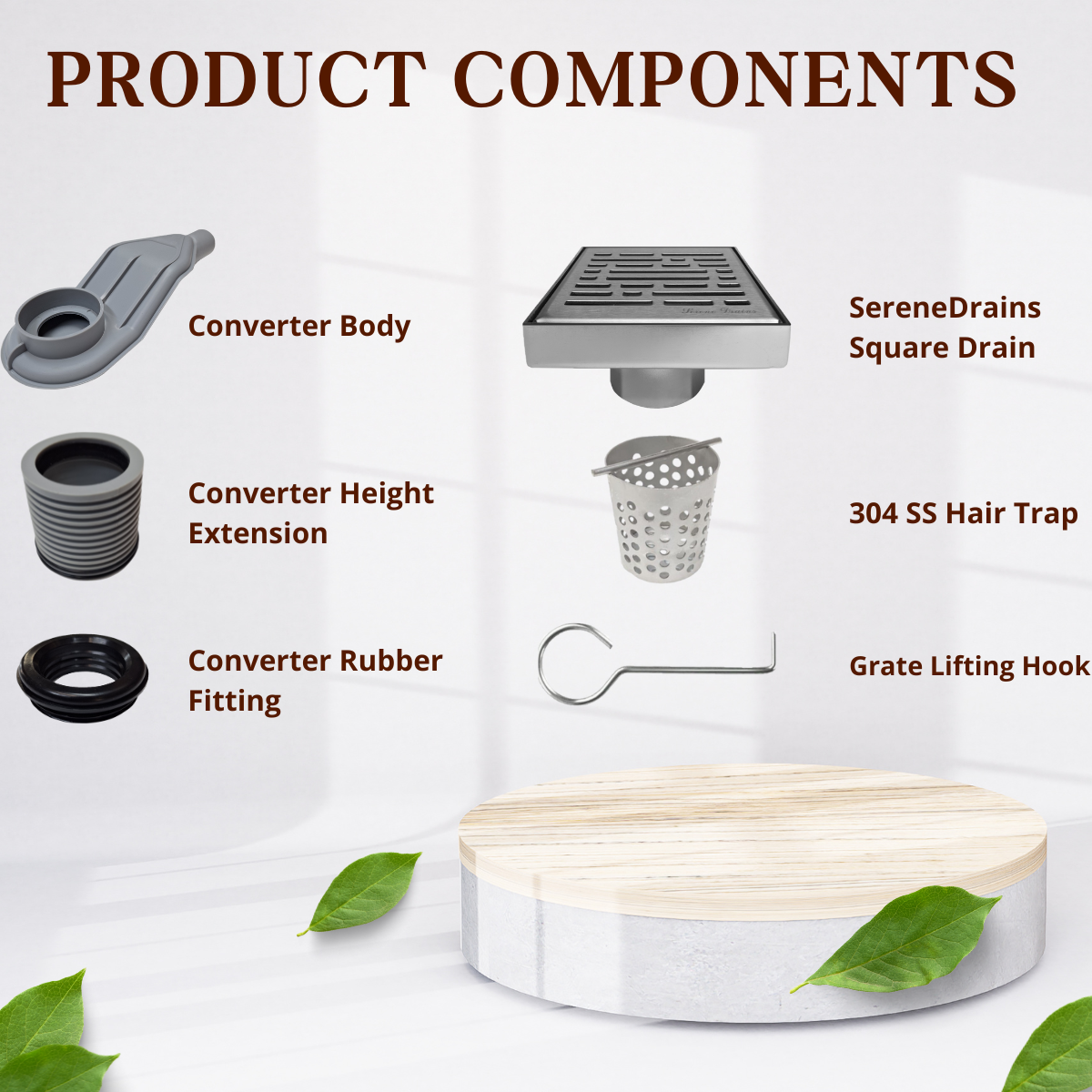

Includes: Converter body , rubber fitting for drain pipe connection and a SereneDrains stainless steel square shower drain with a hair trap and a grate lifting hook.

A Horizontal shower drain converter can simplify the installation process, reduce costs, and open up new possibilities for bathroom renovations and upgrades.

Using a horizontal shower drain converter offers several benefits, including:

Connection to Existing Plumbing: The horizontal outlet allows the new drain to connect to an existing drain pipe and P-trap that are not directly beneath the new drain location. This can minimize the need for extensive demolition and reduce both the mess and cost of the renovation project.

Accessibility in Challenging Installations: In scenarios where there is no access to the space below the floor, such as in slab foundations or second-story installations, the horizontal drain outlet makes it feasible to undertake a project that would otherwise be impossible. This flexibility is particularly valuable for retrofitting older homes or buildings where access to plumbing is limited.

Enhanced Aesthetic Appeal: Horizontal shower drains provide a sleek, modern look, as they can be integrated seamlessly into the floor, often along one side or wall of the shower.

Improved Water Drainage: These drains can handle a larger volume of water more efficiently, which helps prevent water from pooling in the shower.

Increased Design Flexibility: They allow for more flexibility in shower design, enabling the use of large-format tiles or even barrier-free shower entries, which can be particularly useful for creating accessible bathrooms.

Easy Maintenance: Horizontal drains typically have removable covers, making them easier to clean and maintain compared to traditional center drains.

Better Slope Management: With a horizontal drain, the shower floor can have a single slope toward the drain, making it easier to design and construct compared to a traditional center drain that requires multiple slopes.

Enhanced Accessibility: These drains are ideal for walk-in showers and can help create a safer, barrier-free environment for individuals with mobility issues.

Reduced Clogging: Due to their design, horizontal drains can reduce the likelihood of clogs and are often easier to clear if they do occur.

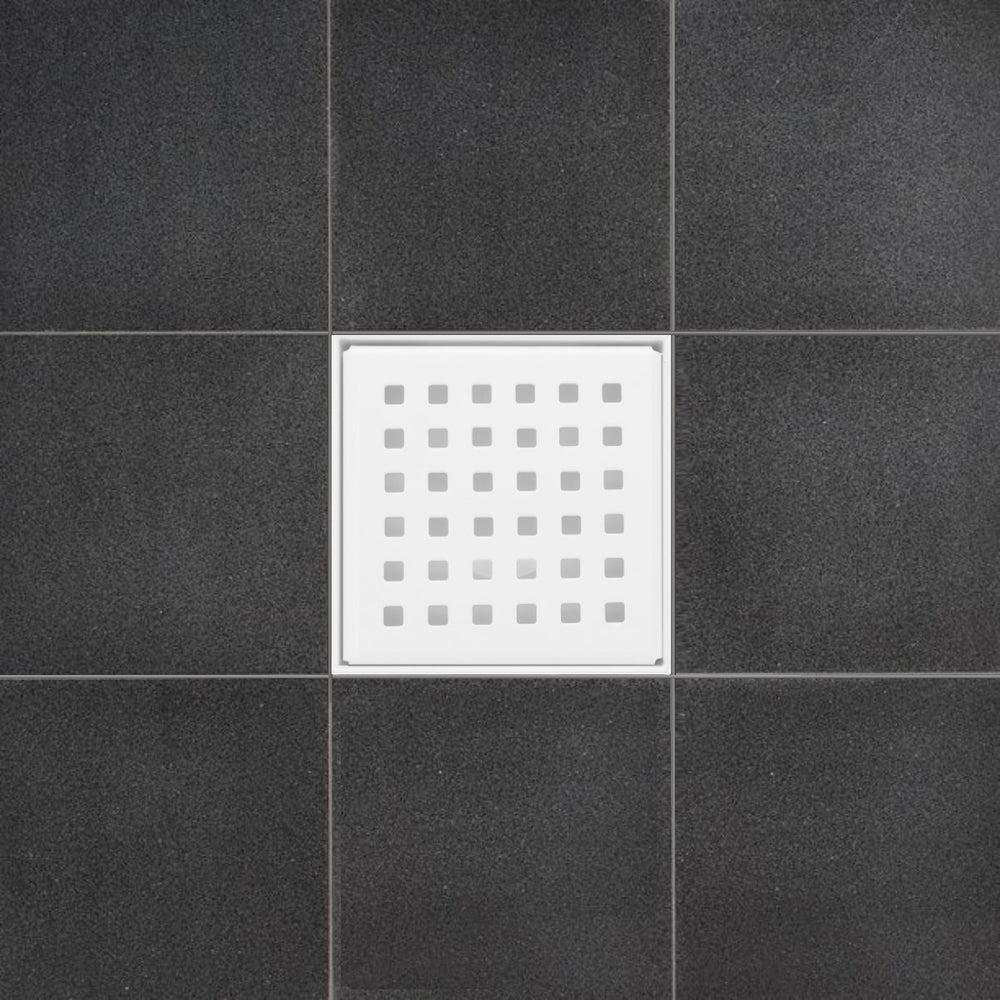

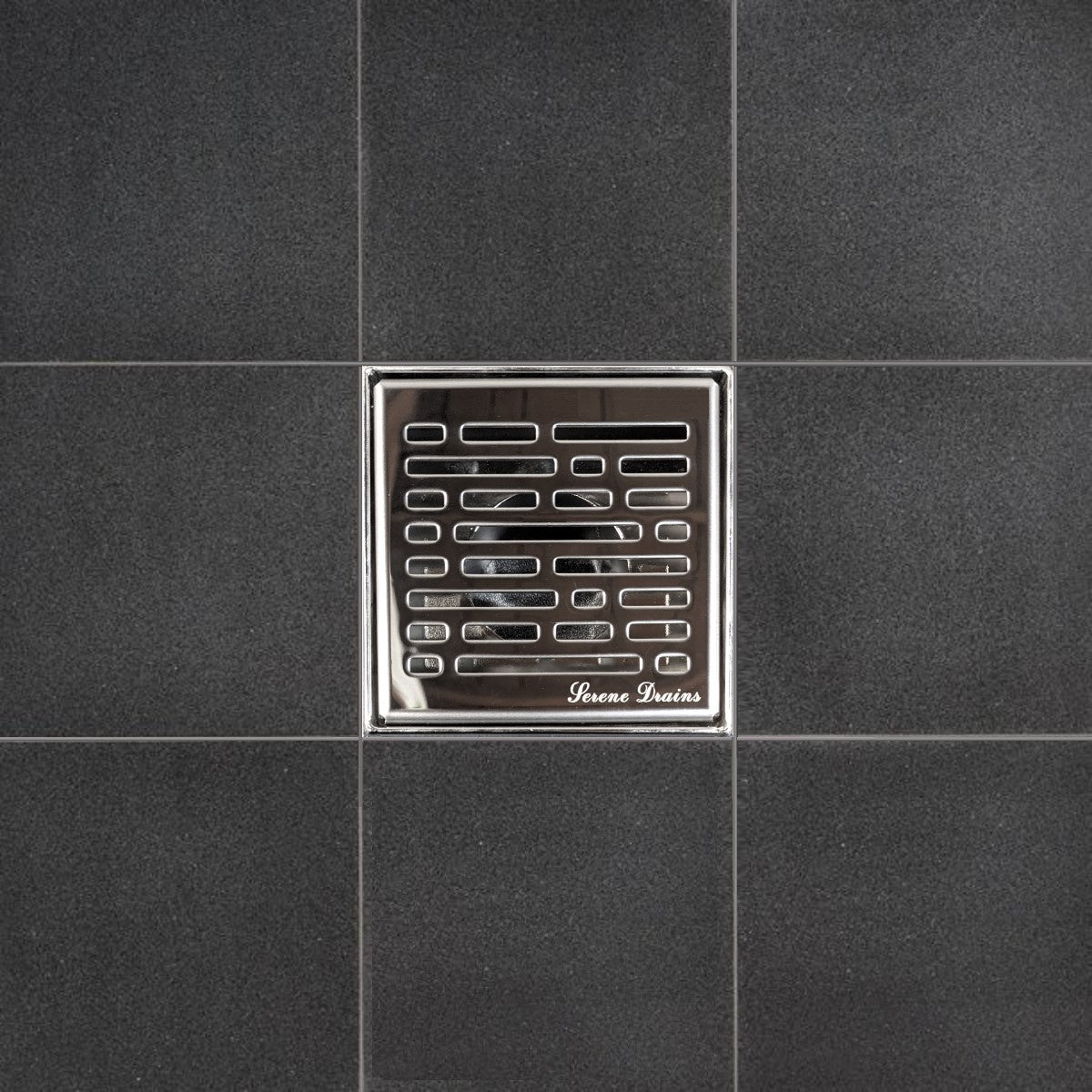

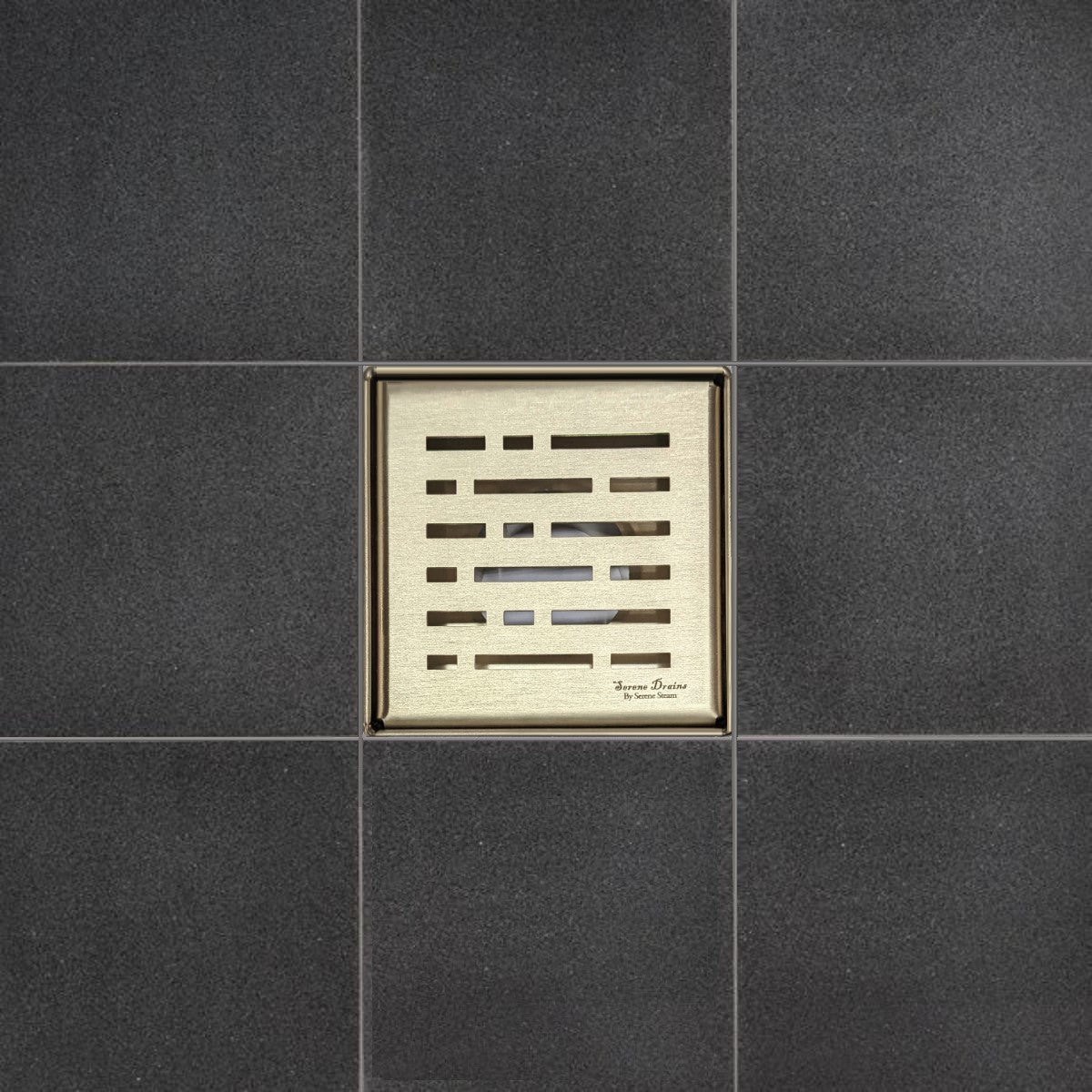

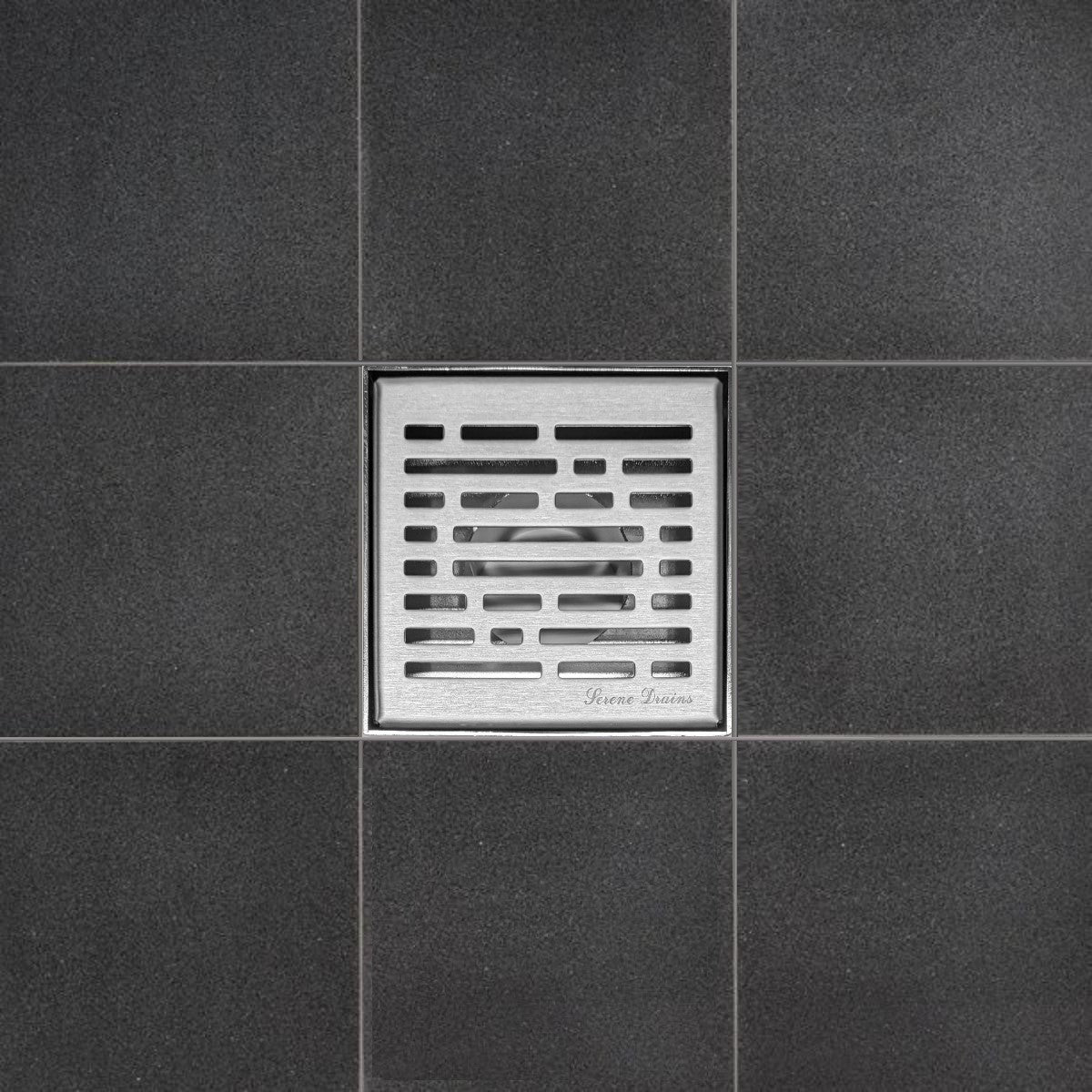

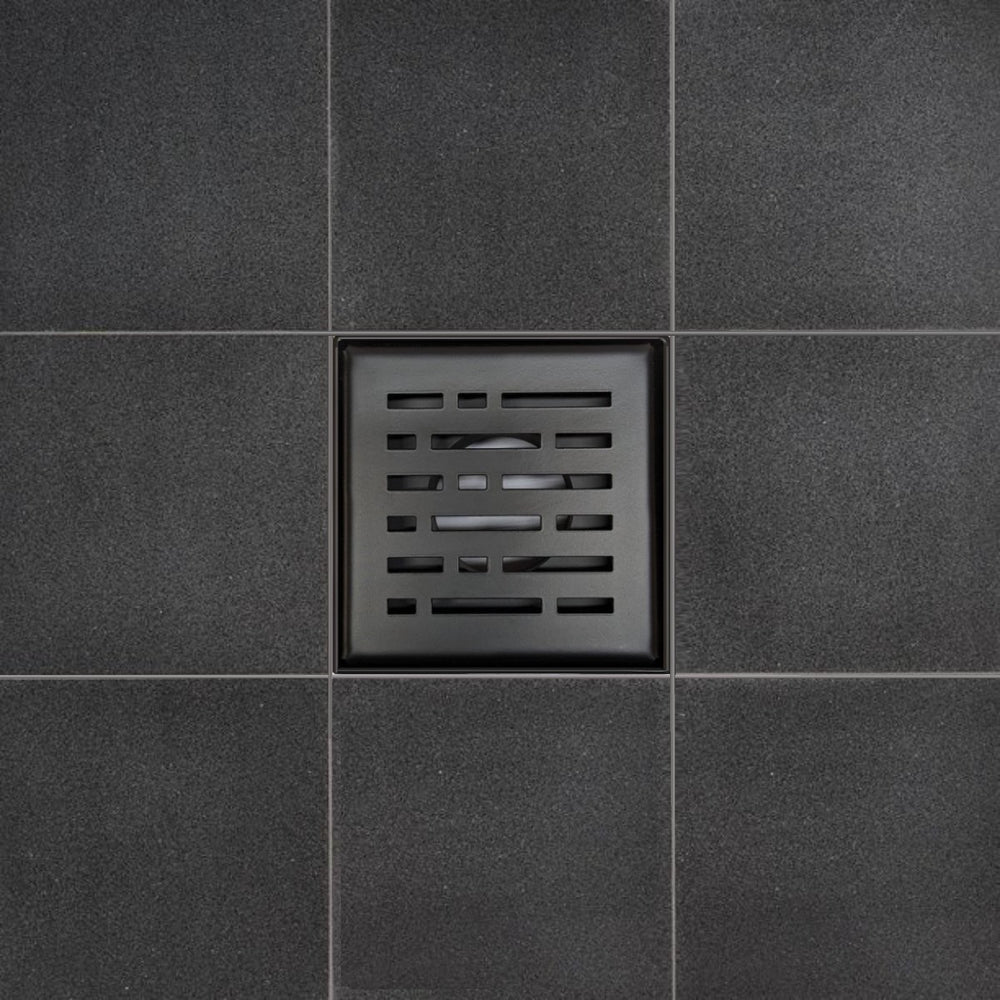

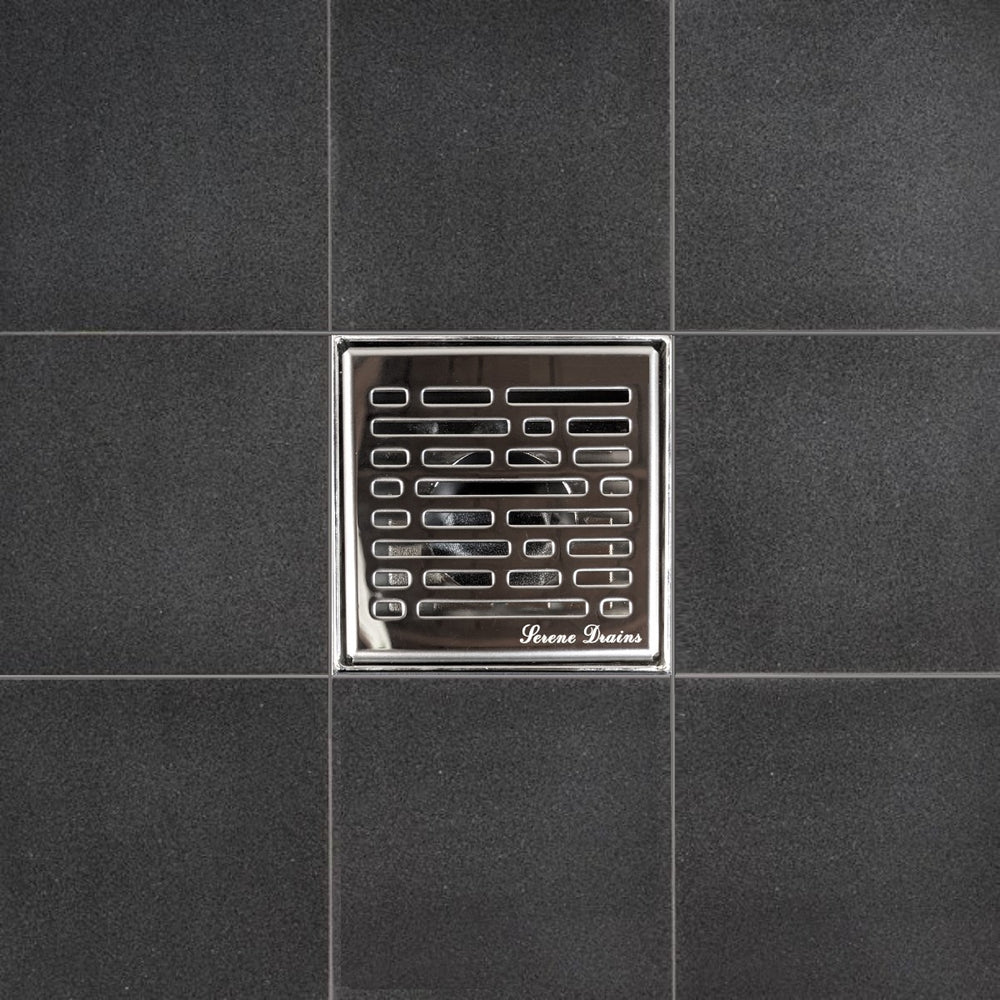

SereneDrains Square Shower Drains - 4 Inch

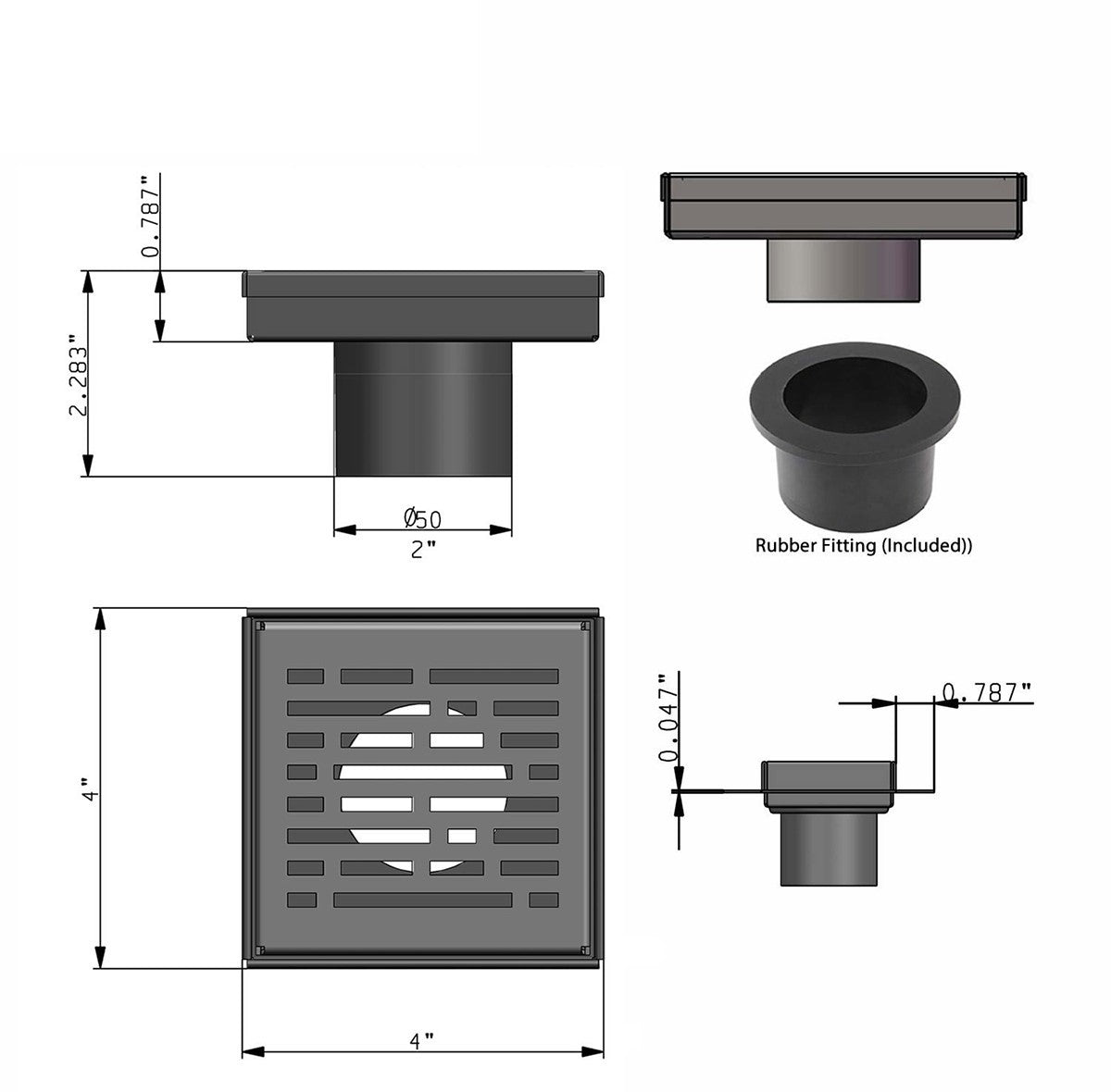

Approximate dimensions: 4" x 4".

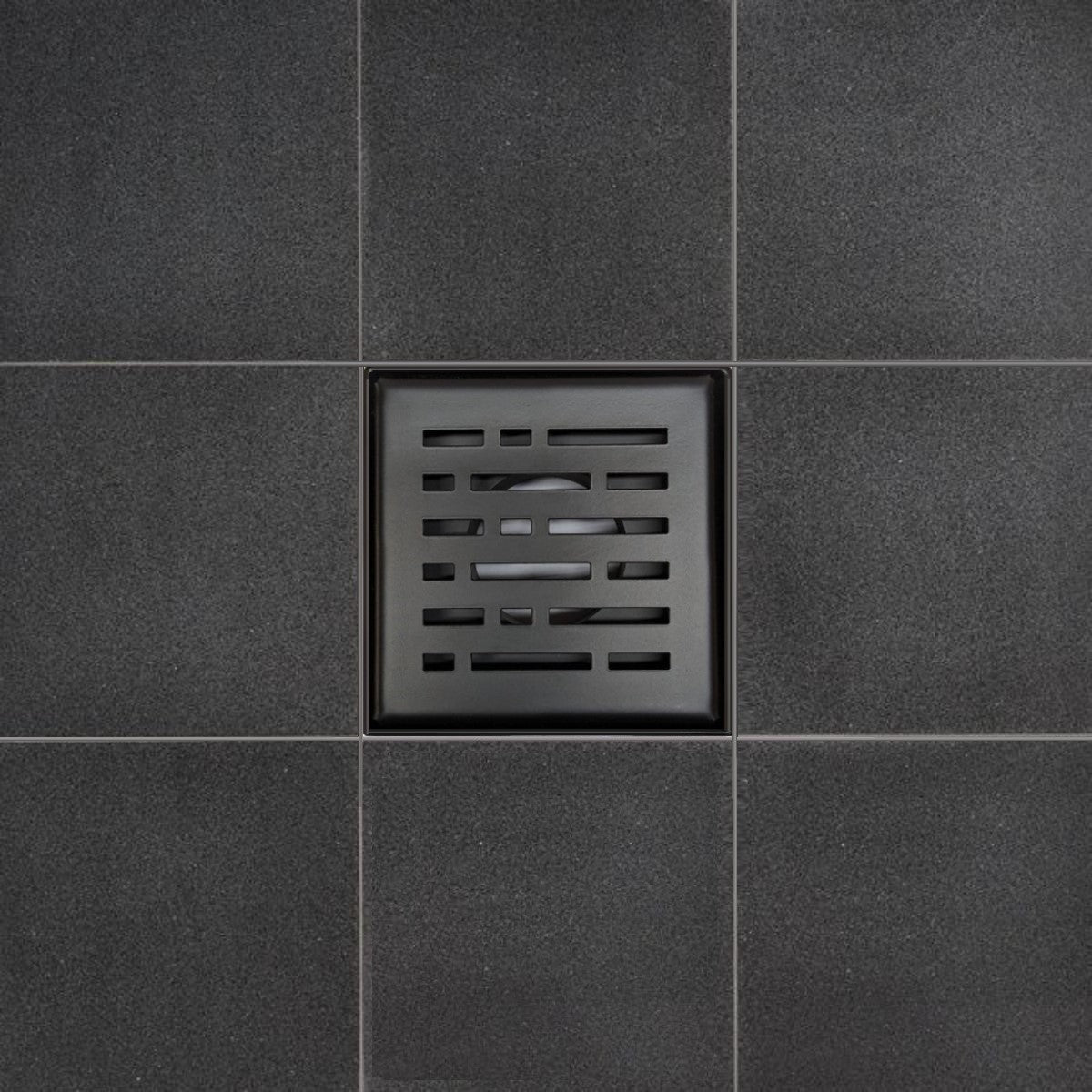

Available Colors: Brushed Stainless/Polished Chrome/Matte Black/Satin Gold.

Features

- High Quality Materials: SereneDrains Square Shower Drains are made of 16 Gauge SS304 Stainless Steel Grate and Body. Brushed Steel Finish protects the Square Shower Drain from corrosion & rust.

- Water and Leak Proof: The SereneDrains Square Shower Floor Drain is designed for use with all waterproofing materials such as: "Hot-Mop", Liquid membranes, Sheet Membranes, Vinyl waterproofing etc.. Bodies are fully welded and leak tested prior to dispatch.

- Easy installation and cleaning: Fits all standard 2" outlet standard drain Bases. SereneDrains Square Shower Drain has a removable grate, simply remove the grate with the included hook and clean.

- Includes: Square Shower Drain Grate and Body, Stainless Steel Hair Trap, Lifting hook and Rubber Fitting.

- Durable, Solid and Smooth: the frame is rounded (folded, not welded). This creates a frame twice as strong and gives the Square Shower Drain a smooth touch to the feet. NO plastic parts.

- Wheelchair access (ADA Compliant) & Barrier-free showers

Technical

- 2" outlet.

- Flow rate: 6.36-7.92 GPM US gal /s (0.4 ~ 0.5 l/s).

- Compatible with tiles up to 10mm depth (14mm lip).

- No Screws

- Easily Maintained. No Special Cleaning.
