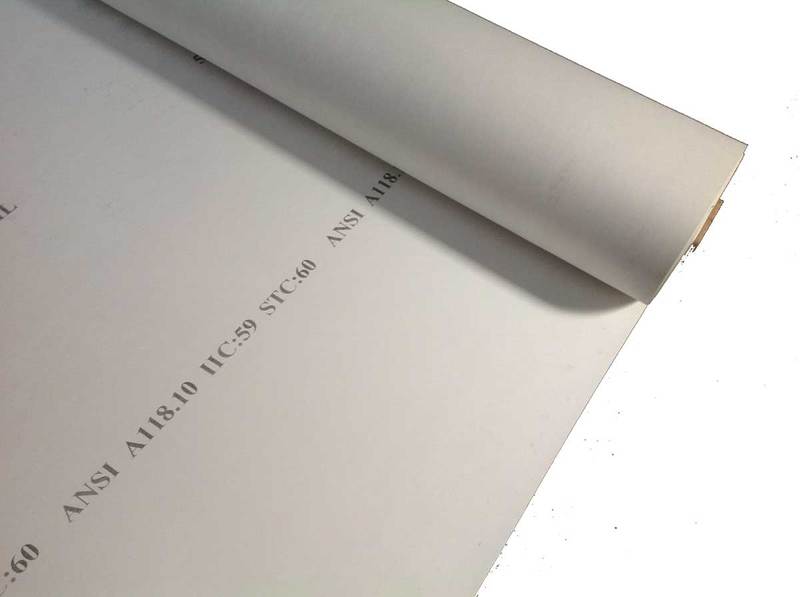

Composeal Gray Gold Sound Control Waterproof Anti-Fracture Membrane Roll 250 Sq Ft

Composeal Gray Gold Sound Control Waterproof Anti-Fracture Membrane Roll 250 Sq Ft

This product was previously referred to as White Gold and is now offered in the Gray color.

50 Mil Sound Control, Crack Isolation, and Waterproofing Membrane

Roll Size: 5 ft x 50 ft = 250 Sq Ft

Thickness: 50 Mil

Sold As: Full Roll

Requires Composeal Flexible Vinyl Cement for seam installation.

Composeal Gray Gold Sound Control Waterproof Anti-Fracture Membrane is a professional-grade 50 mil PVC membrane engineered to provide sound reduction, crack isolation, and waterproofing beneath ceramic tile, porcelain tile, marble, granite, brick, and natural stone installations. Designed for residential and commercial construction, this heavy-duty membrane helps protect finished flooring systems from substrate movement, moisture migration, and unwanted sound transmission.

Featuring durable PVC construction with fused polyester reinforcement, Composeal Gray Gold delivers long-term performance in demanding applications including multi-family housing, commercial buildings, bathrooms, kitchens, balconies, radiant heated floors, and other environments where sound control and waterproofing are critical.

Specifications

• Roll Size: 5 ft x 50 ft
• Coverage: 250 Sq Ft
• Thickness: 50 Mil
• Application: Sound control, waterproofing, and crack isolation
• Installation Method: Thin-set mortar direct bond system
• Seaming: Composeal Flexible Vinyl Cement required
• Made in the U.S.A.

Sound Control Ratings

• STC Rating: 66
• ITC Rating: 66
• IIC Rating: 59

Benefits

Composeal Gray Gold combines sound reduction, crack isolation, and waterproofing into a single membrane system. The membrane helps reduce sound transmission between occupied spaces while protecting tile and stone installations from common shrinkage cracks and moisture-related damage.

Its flexible construction allows it to absorb substrate movement while maintaining a durable waterproof barrier beneath the finished flooring system. This makes it an ideal solution for both new construction and remodeling projects where performance and longevity are essential.

Key Features and Benefits

• 50 mil sound control waterproof membrane
• Provides sound reduction, crack isolation, and waterproofing
• Fused polyester reinforcement for long-term durability
• Helps prevent substrate crack transfer
• Protects against moisture migration and water damage
• Excellent bonding strength for tile and stone installations
• Ideal for radiant heated floor systems
• Suitable for interior and exterior applications
• Superior mildew, fungus, and chemical resistance
• Designed for residential and commercial construction

Ideal Applications

• Ceramic tile flooring systems
• Porcelain tile installations
• Marble and natural stone flooring
• Bathrooms and shower waterproofing
• Kitchen floor waterproofing
• Steam-cleaned floor systems
• Radiant heated flooring installations
• Condominiums and apartment buildings
• Hotels and multi-family construction
• Exterior decks and balconies

Compatible Substrates

• Concrete
• Cementitious backer board
• Mortar beds
• Exterior-grade plywood protected by mortar bed systems
• Thick mortar setting beds

Installation Information

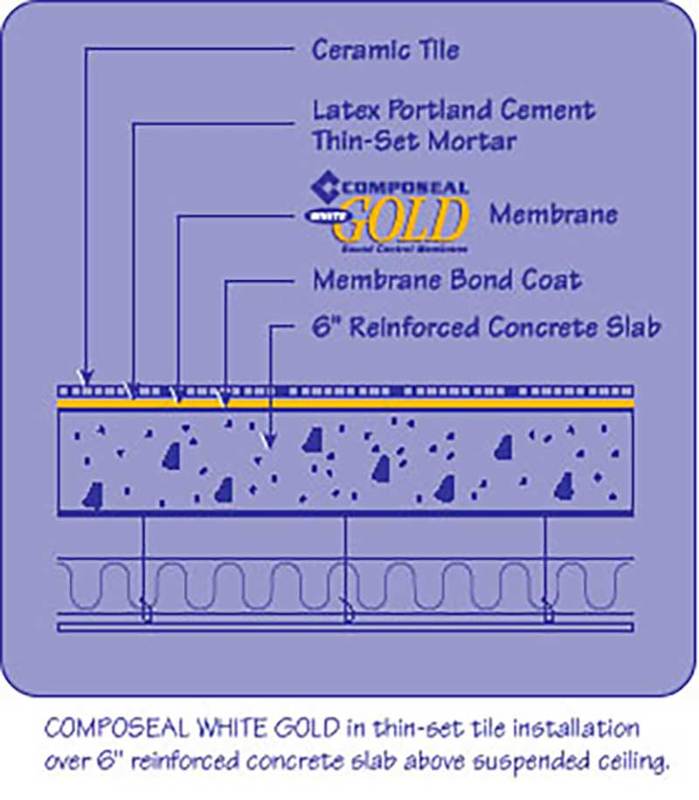

Composeal Gray Gold is designed for direct bond tile and stone installations using thin-set mortar and solvent-welded seams. The membrane can be used in both new construction and renovation projects requiring sound control, waterproofing, and crack suppression.

When used in waterproof applications such as showers, bathrooms, kitchens, and wet areas, plywood substrates must first be covered with cement backer board or reinforced mortar beds before installation.

Composeal Gray Gold should not be used with asphalt-based or bituminous products.

Sound Control Capability

Composeal Gray Gold provides excellent sound reduction performance while adding minimal height and weight to the finished flooring assembly. It is particularly well suited for upper-floor tile installations, condominiums, apartments, hotels, and commercial environments where sound transmission control is important.

Crack Isolation Protection

Independent laboratory testing supervised by the Ceramic Tile Institute of Los Angeles confirmed superior crack suppression performance under load-bearing tile installations. The membrane helps protect finished tile surfaces from common substrate movement and shrinkage cracks.

Waterproofing Performance

The integrated PVC waterproofing layer helps prevent water penetration and moisture migration in showers, bathrooms, kitchens, steam rooms, and other wet-area tile installations.

Warranty Information

Composeal membranes are warranted against membrane failure and are designed to provide long-term performance for the life of the building when properly installed. Warranty coverage applies to the membrane itself and does not extend to installation methods or consequential damages.

Made in the U.S.A.
