SereneDrains Linear Shower Drain Offset Outlet Ocean Wave - Brushed 47
Description
Description
Serene Drains 47 Inch Linear Shower Drain - Offset Ocean Wave Brushed Stainless
The Serene Drains 47 inch linear shower drain with offset outlet and Ocean Wave grate in brushed stainless steel is a premium linear shower drain designed for flexible installation and modern shower designs. The flowing wave pattern adds movement and style while maintaining efficient drainage.
In stock - Ships same day

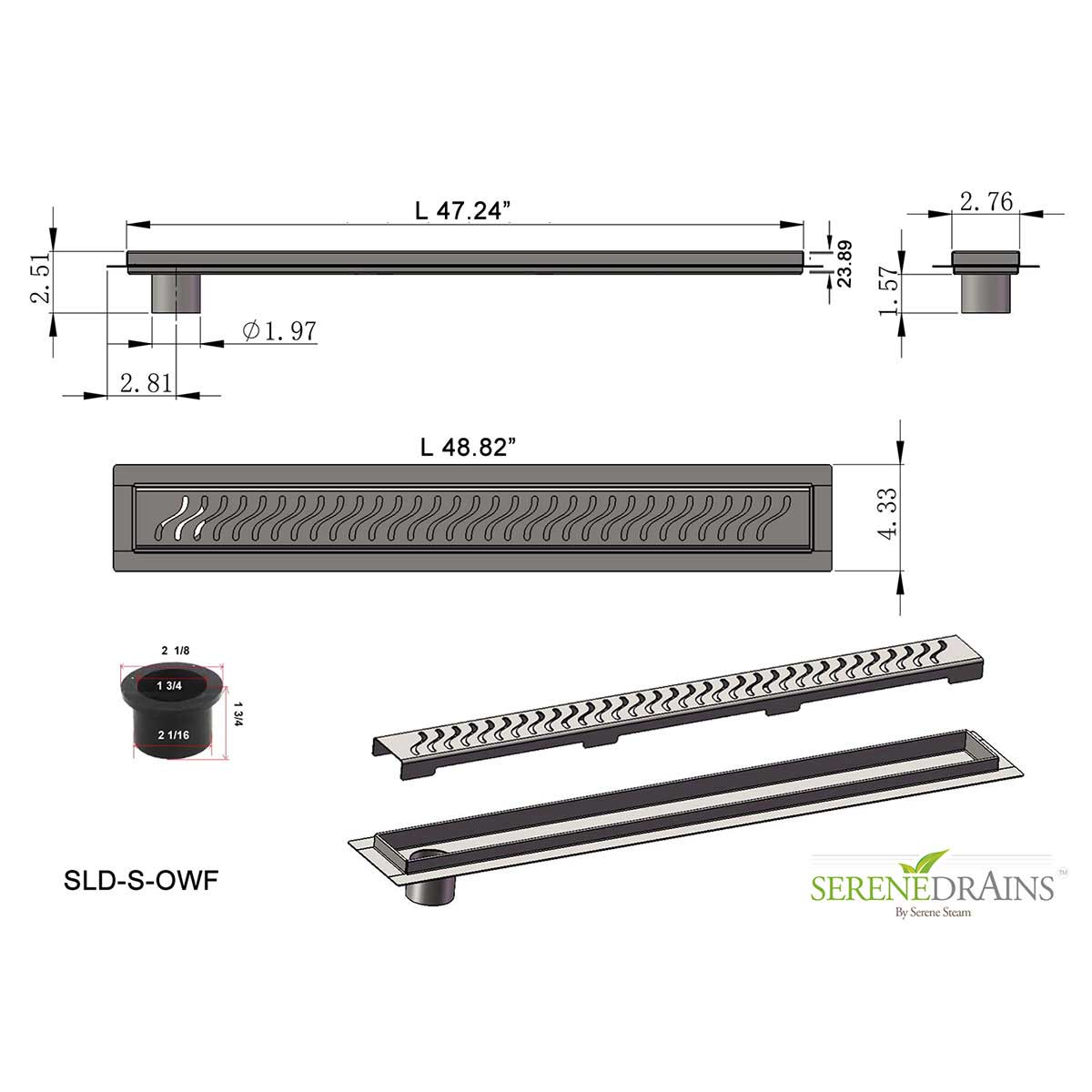

Overall Size 48.82" x 4 3/8" - Net Size 47 1/4" x 2 3/4"
Available Options: Brushed Stainless Steel with center or side outlet
Perfect for modern showers, remodels, and installations with plumbing constraints.
The offset outlet design allows for flexible drain placement, making it easier to work around existing plumbing while maintaining proper drainage performance.
COMPLETE SET includes: Channel Body, Ocean Wave Grate, Drain Rubber Fitting, Drain Puller Key, Waterproofing Membrane Sheet around the drain flange (optional but included)
Optional: ABS, PVC, or Cast Iron CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap
Square channel design: Easier tile cutting compared to round drains, saving time and effort
Superior quality at an affordable price
Flange body edge designed for use with all types of waterproofing systems, including hot-mop, liquid membranes, sheet membranes, and vinyl waterproofing
Approximate Dimensions:
Length 16" (400mm), Intake 10.44 sq. in.
Length 24" (600mm), Intake 15.66 sq. in.
Length 30" (762mm), Intake 23.90 sq. in.
Length 35" (900mm), Intake 28.85 sq. in.
Length 39" (1000mm), Intake 31.36 sq. in.
Length 47" (1200mm), Intake 36.37 sq. in.
Length 59" (1500mm), Intake 45.05 sq. in.
Construction
- Pre-sloped channel for efficient drainage
- Offset side outlet design for flexible installation
- 2" diameter outlet connection
- Flow rate: 6.3 GPM (center) / 9.5 GPM (wall placement)
- Channel width: 2 3/4" (70 mm)
- Fully welded and leak-tested body
- Brushed Stainless Steel finish
- 16-gauge 304 stainless steel grate
- Corrosion-resistant and long-lasting construction
- Easy maintenance – no special cleaning required
The Serene Drains offset Ocean Wave linear shower drain combines installation flexibility with a unique, flowing design. The offset outlet allows for easier placement, while the wave-pattern grate adds a modern and decorative touch to your shower floor.
Constructed from high-quality 304 stainless steel, this drain ensures durability, corrosion resistance, and reliable drainage performance.
Straight cuts allow for faster tile installation with minimal waste. Designed to align with standard tile sizes for clean and precise installation.
Superior Quality - Heavy Drain Grate - Minimal Grout Rim - Designer Finish
