Serene Drains 24 Inch Linear Shower Drain - Tile Insert Matte White

Serene Drains 24 Inch Linear Shower Drain - Tile Insert Matte White

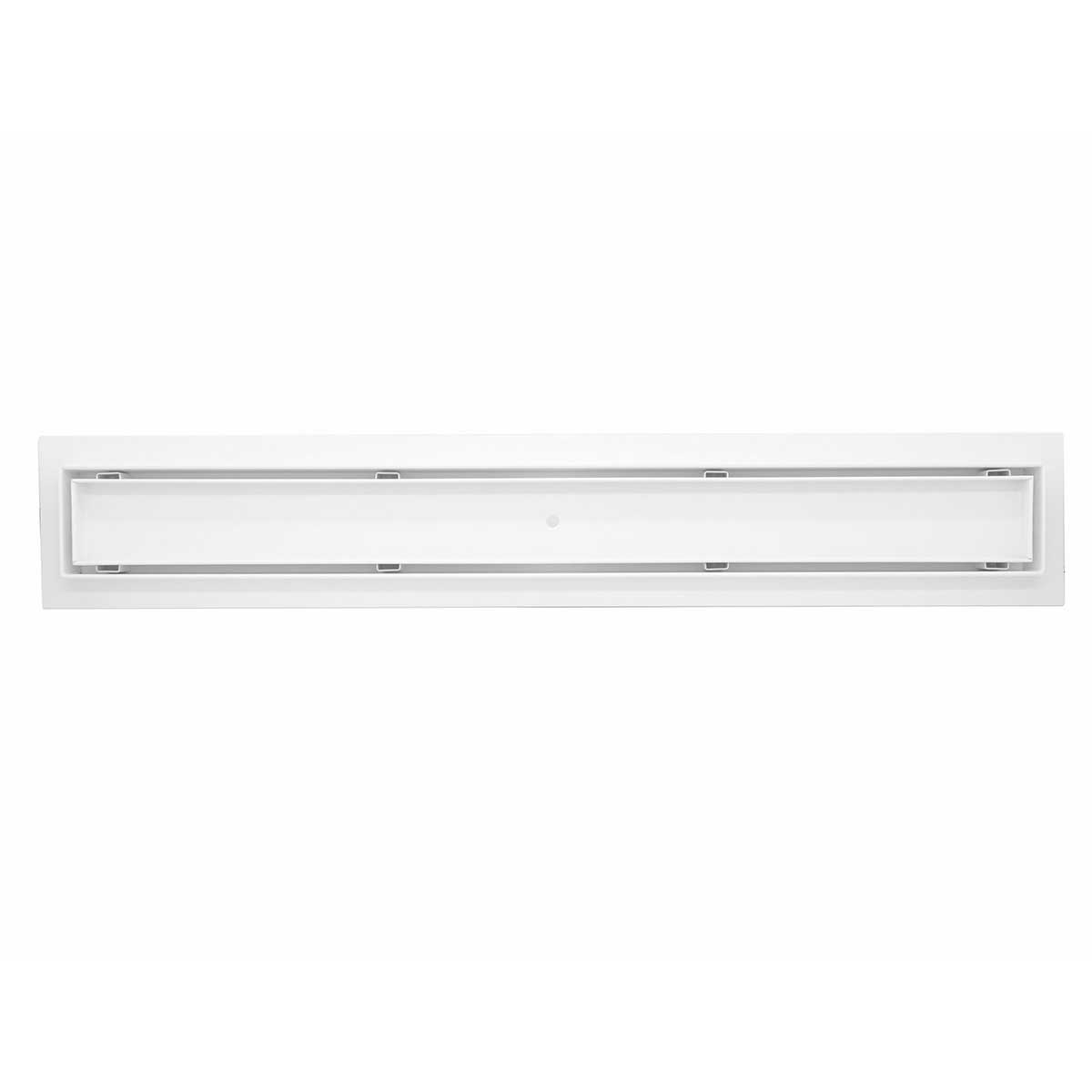

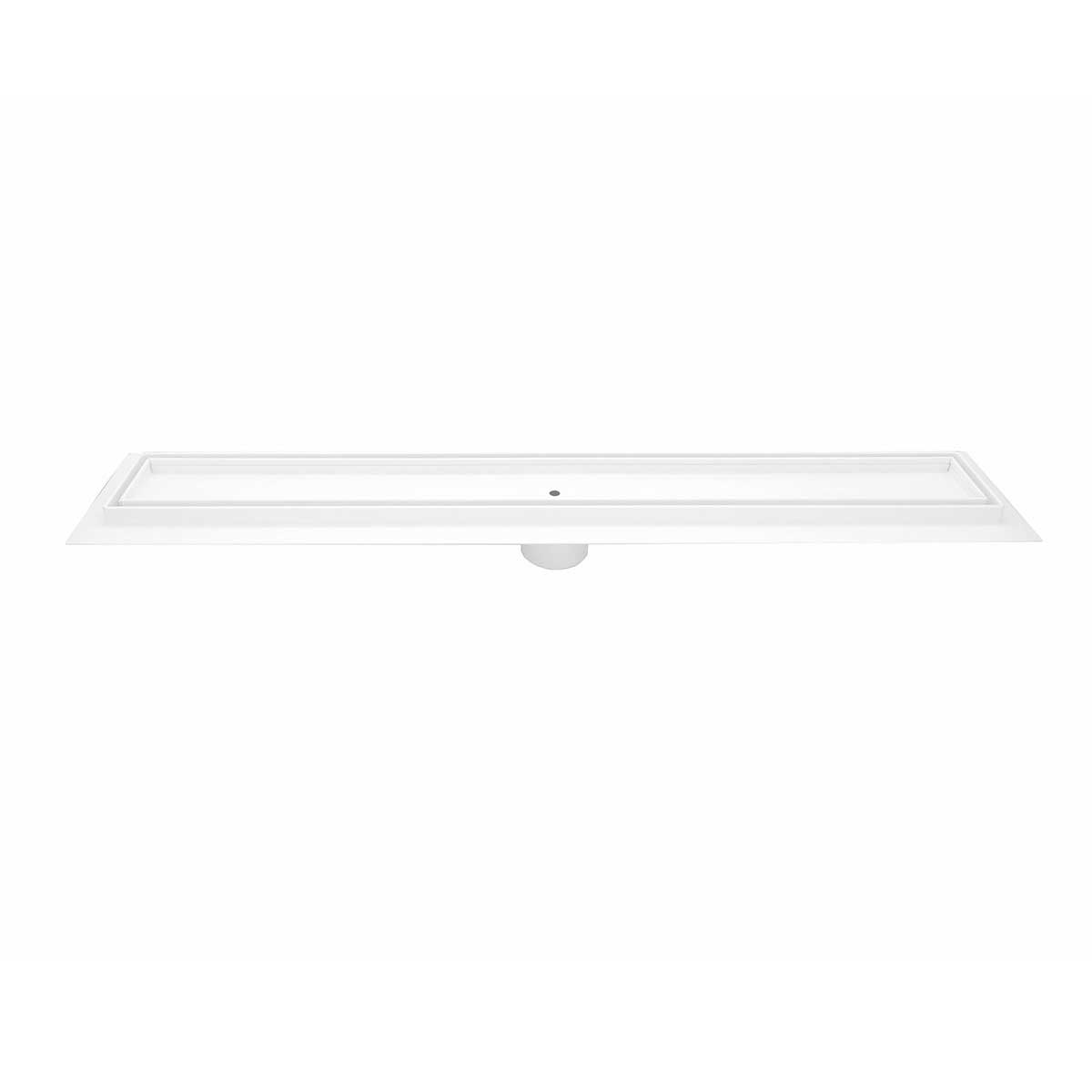

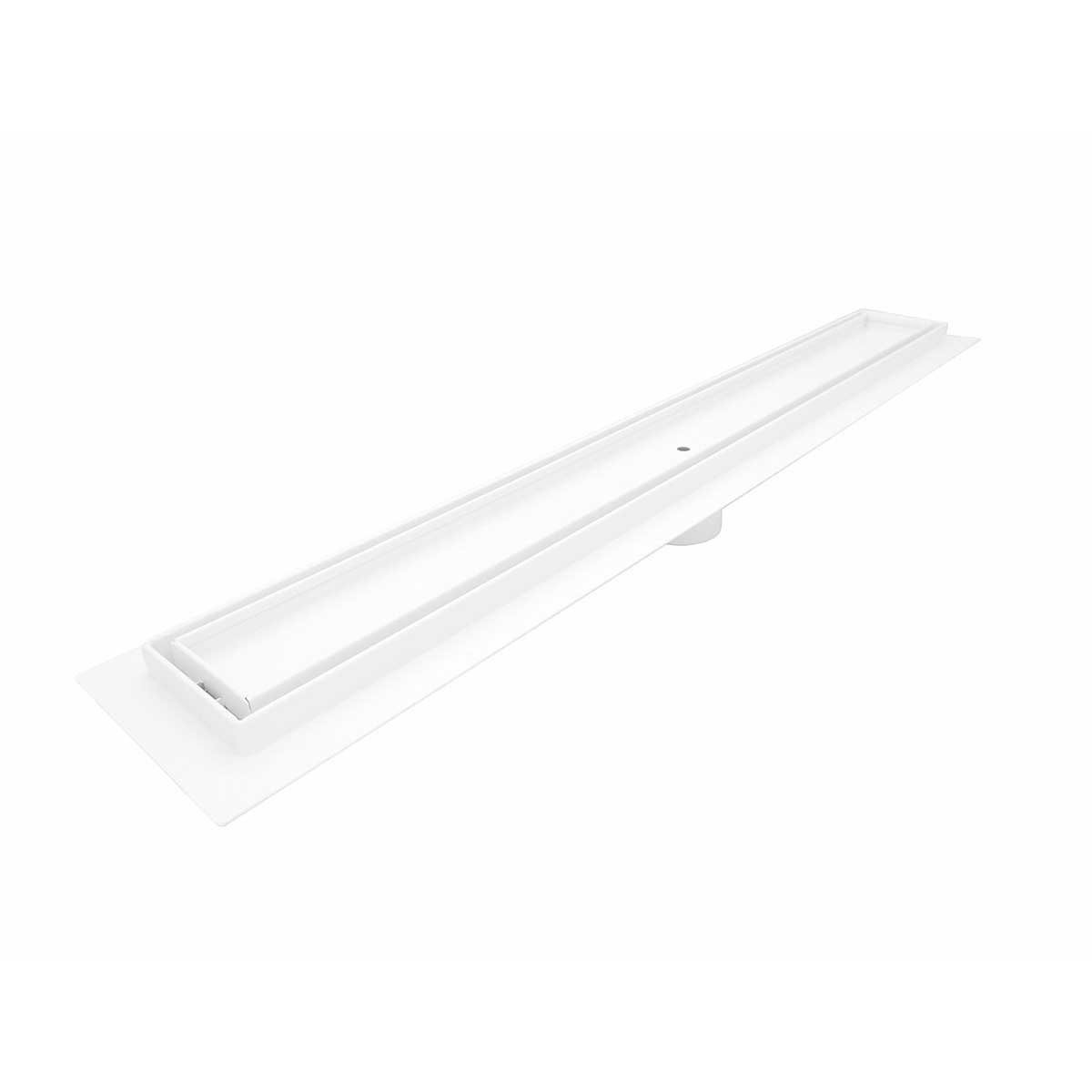

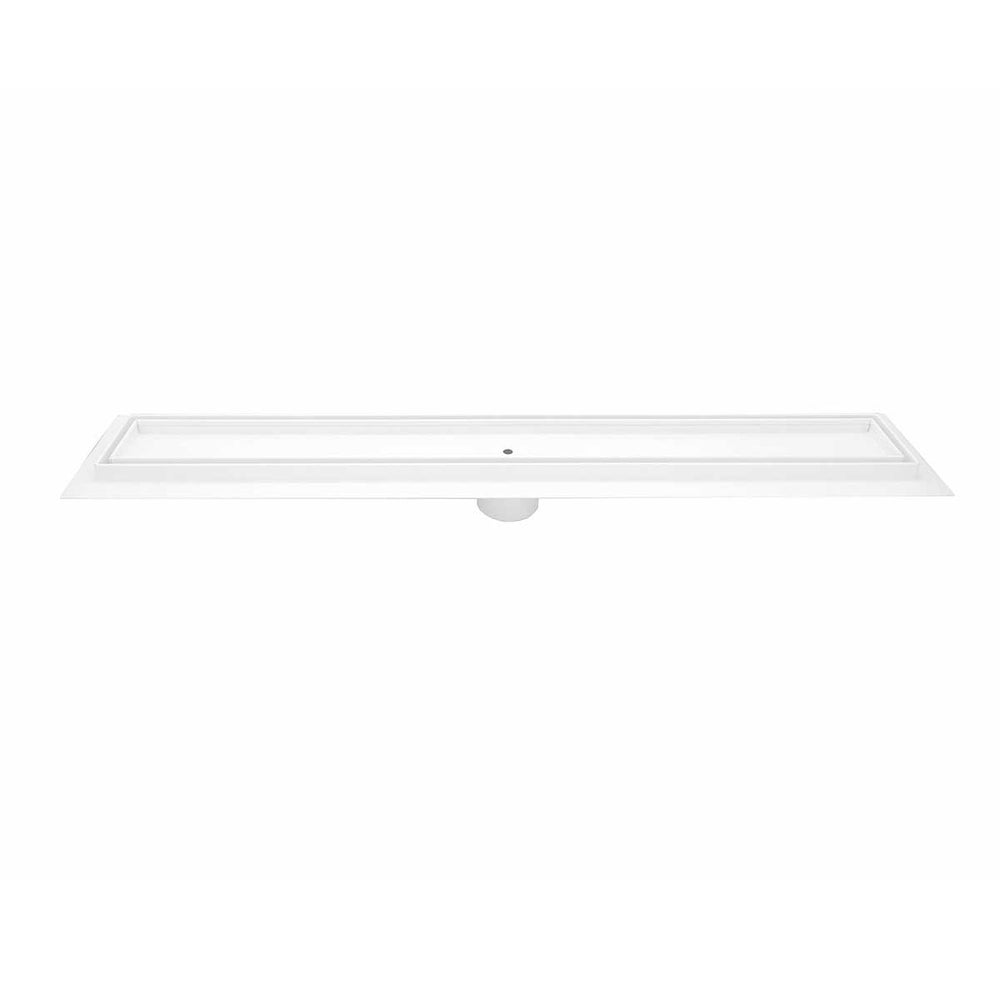

The Serene Drains 24 inch linear shower drain in matte white is a premium tile insert linear shower drain designed for modern, seamless shower designs. It allows you to install the same tile as your shower floor, creating a clean, low-profile and high-end finish.

In stock - Ships same day

Perfect for modern showers, curbless designs, and wet rooms.

Overall Size 25.2" x 4 3/8" - Net Size 23 1/2" x 2 3/4"

Available Colors: Brushed Nickel, Matte Black, Satin Gold, and Matte White

Designed to be faced with the same tile as your shower floor

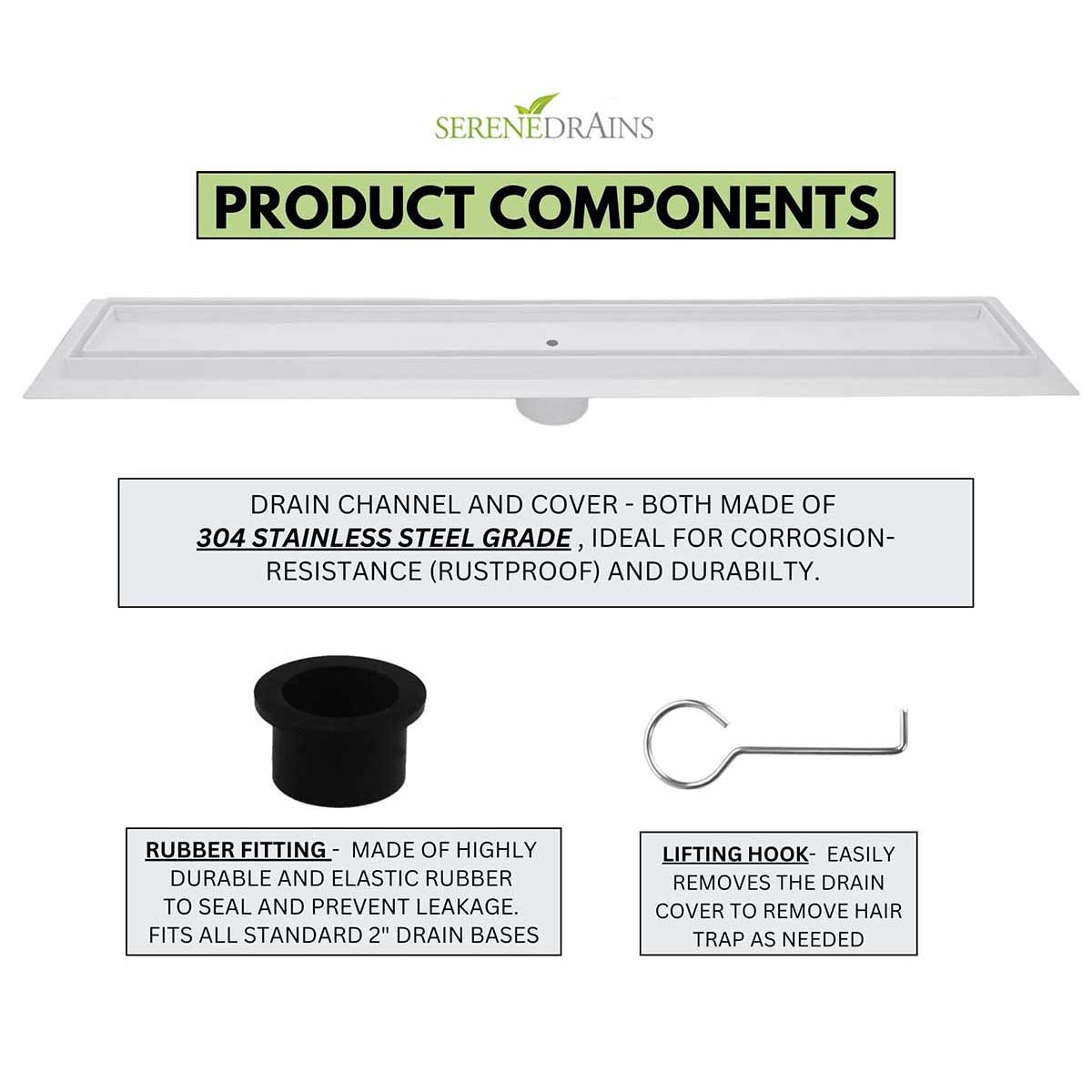

COMPLETE SET - Channel Body, Tile Insert Grate, Drain Rubber Fitting, Drain puller key, Waterproofing membrane sheet around the drain flange (optional but included)

Optional: ABS or PVC or Cast Iron CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap

Square shape. It's easier to cut tile to a square drain than to cut, nip and grind it to fit a round one.

Superior quality at an affordable price

Flange body edge designed for use with all types of waterproofing systems, including hot-mop, liquid membranes, sheet membranes, and vinyl waterproofing.

Approximate Dimensions:

Length 16" (400mm), Intake 7.80 sq. in.
Length 24" (600mm), Intake 11.67 sq. in.
Length 30" (762mm), Intake 14.82 sq. in.
Length 35" (900mm), Intake 17.48 sq. in.
Length 39" (1000mm), Intake 19.39 sq. in.
Length 47" (1200mm), Intake 23.20 sq. in.
Length 59" (1500mm), Intake 27.01 sq. in.

Construction

• Pre-slope channel
• 2" diameter central vertical outlet
• Flow rate: 6.3 GPM (center) / 9.5 GPM (wall placement)
• Channel width: 2 3/4" (70 mm)
• Fully welded and leak tested
• Matte White finish
• Compatible with tiles up to 10mm depth (14mm lip)
• Optional stainless steel flexible coupling
• Optional debris strainer and connectors
• 16 gauge 304 stainless steel grate
• Durable, corrosion-resistant construction
• Easy maintenance, no special cleaning required

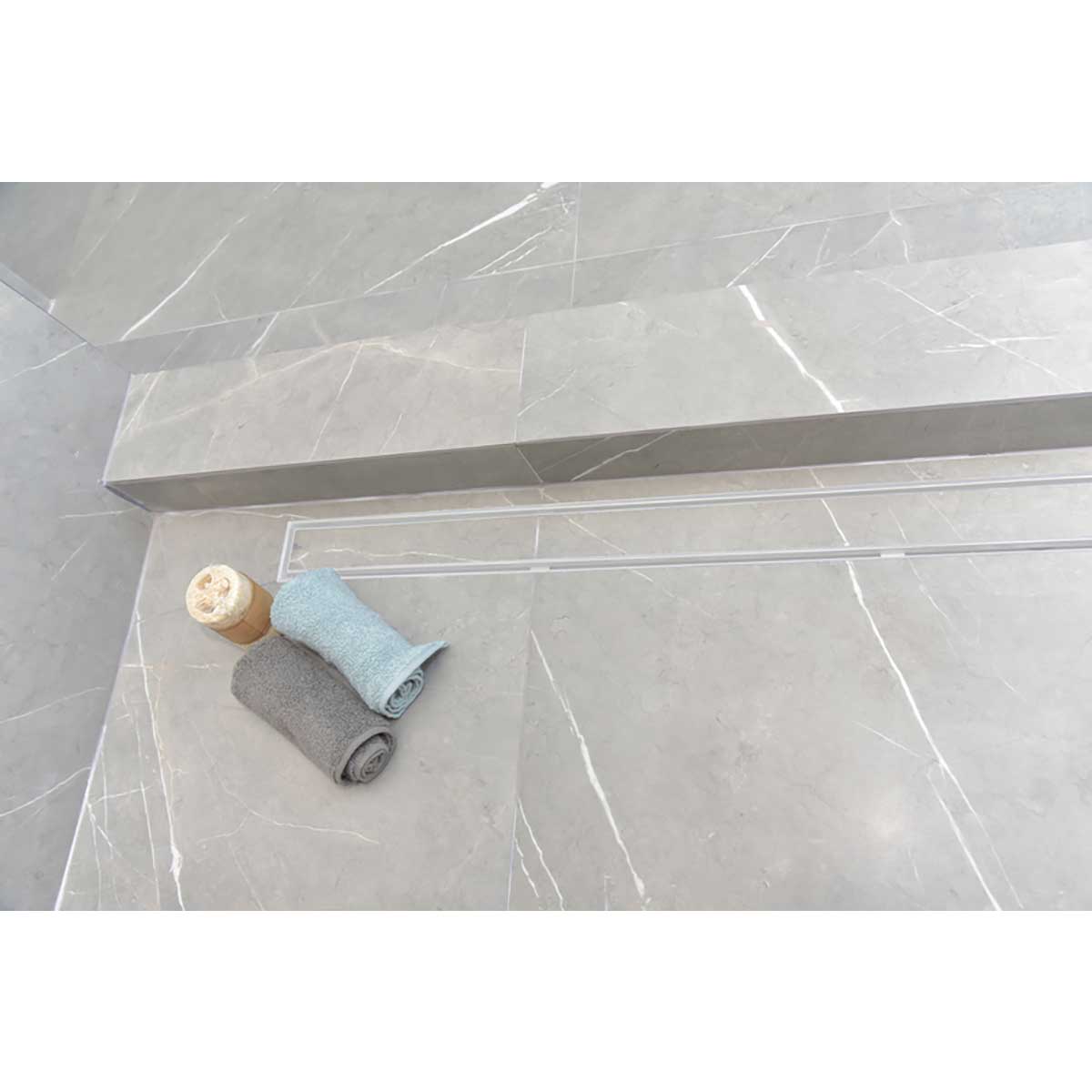

The Serene Drains tile insert drain in matte white offers a clean and modern solution for contemporary shower designs. By allowing your floor tile to sit inside the drain cover, it creates a seamless, minimalist look without visible grates.

Built from high-quality stainless steel, this linear drain ensures long-lasting durability and reliable performance. Its efficient water flow design helps prevent standing water while maintaining a safe and clean shower environment.

Straight cuts make tile installation faster and easier compared to traditional round drains. Designed to align with standard tile sizes, it reduces cutting time and improves installation accuracy.

Superior Quality - Heavy Drain Grate - Minimal Grout Rim - Designer Finishes
