Alpha Black Belt Rail Saw for Large Format Tiles - BBS-012

Alpha Black Belt Rail Saw for Large Format Tiles - BBS-012

Professional Wet-Cutting Rail Saw for Large Format Tile, Porcelain, Ceramic, Glass Panels and Other Materials

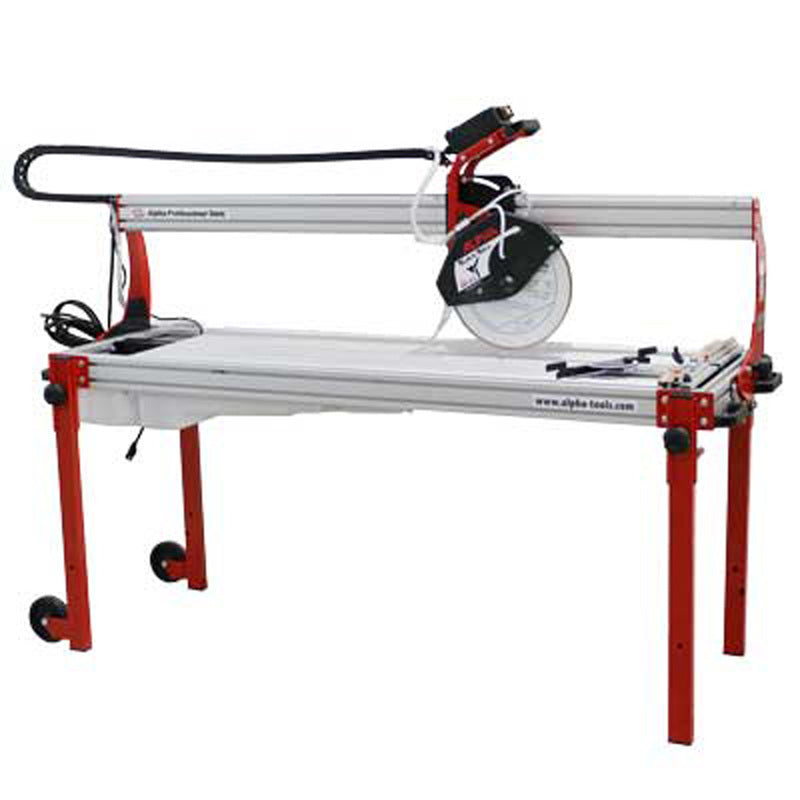

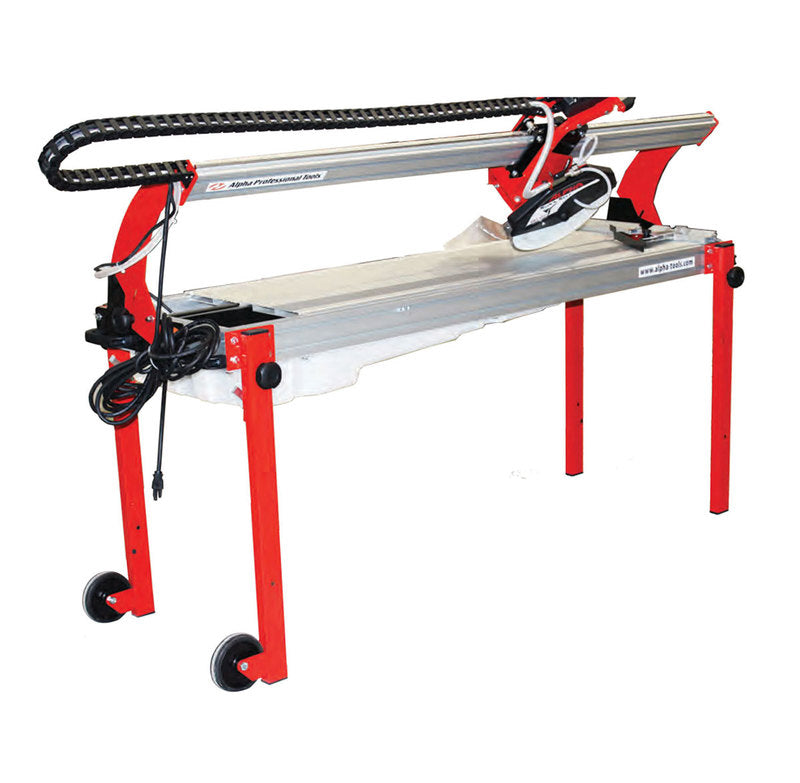

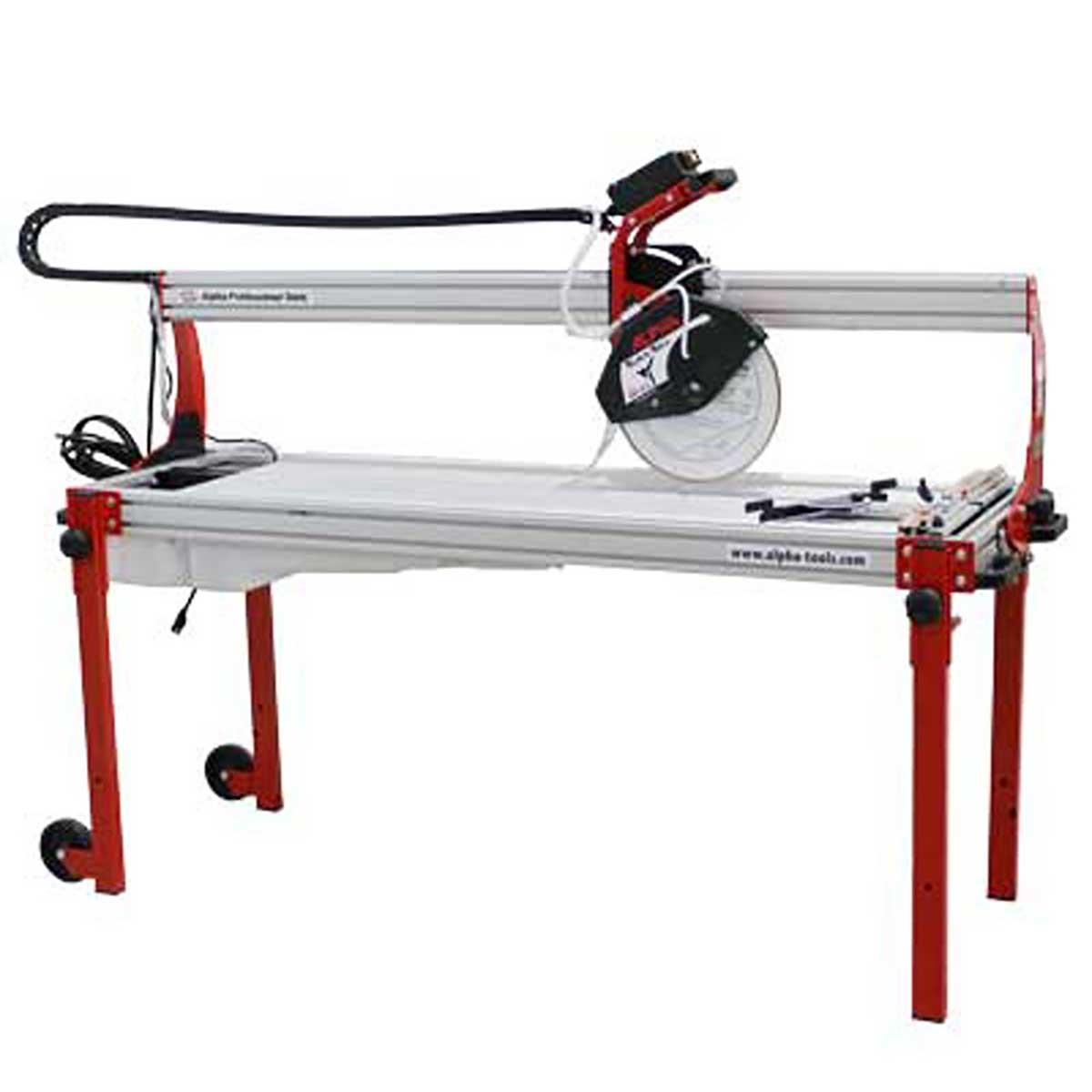

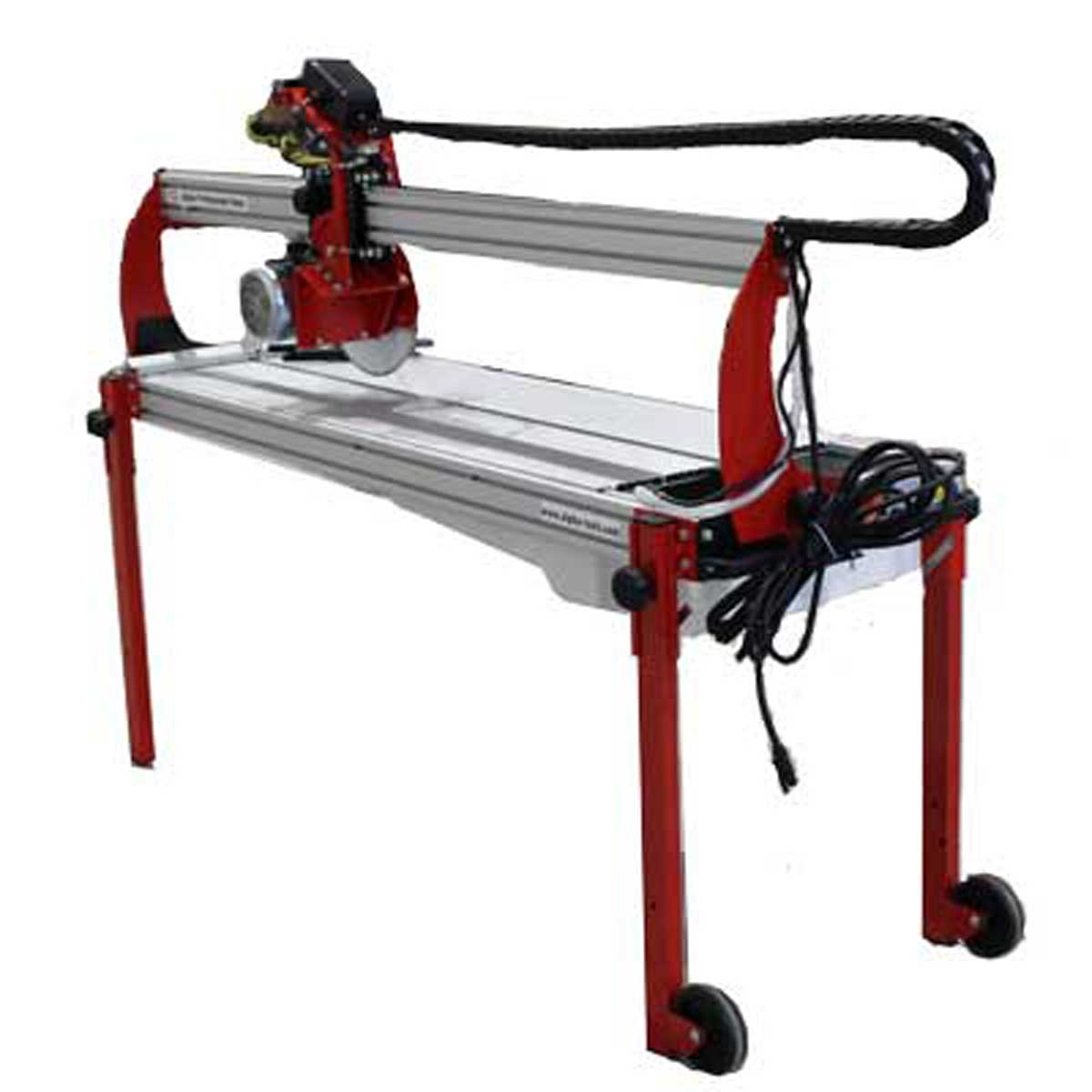

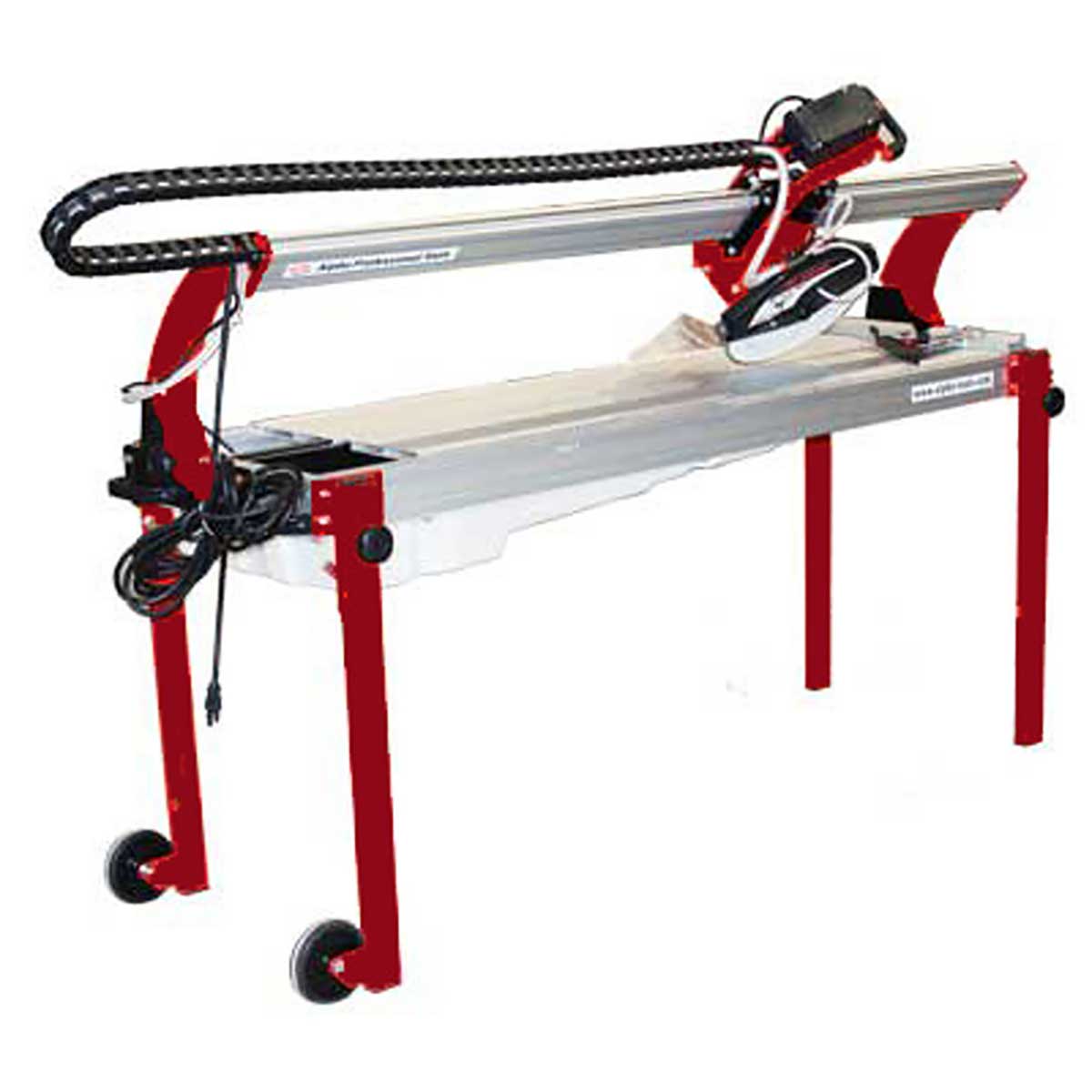

The Alpha® Black Belt Rail Saw BBS-012 is a professional-quality wet cutting saw designed for demanding tile and slab installation work. With a rugged aluminum table chassis, precision rail system, powerful 2 HP motor and a large cutting capacity, it is built for cutting large format ceramic and porcelain tile, glass panels and other suitable materials.

The BBS-012 combines a stable cutting platform with smooth head movement, adjustable cutting depth, 45-degree side tilt capability and a maintenance-free magnetic-induction water pump that delivers water to both sides of the blade. Retractable legs, integrated transportation handles and heavy-duty wheels make the saw easier to move and set up on the jobsite.

Large Format Cutting Capacity

• Rip cuts up to 51" (130 cm)
• Diagonal cuts up to 33" (84 cm)
• Cutting depth up to 2-1/4" in a single pass
• Cutting depth up to 3-3/8" with a step cut
• Accepts 10" and 12" blades
• Supports 1" and 60 mm blade arbors

Features

• Rugged aluminum table chassis provides a stable cutting platform and long service life
• Mechanical vertical tilting system allows the cutting head to be adjusted for cutting depth
• Stainless steel head rails and adjustable armored ball bearings provide smooth, precise movement

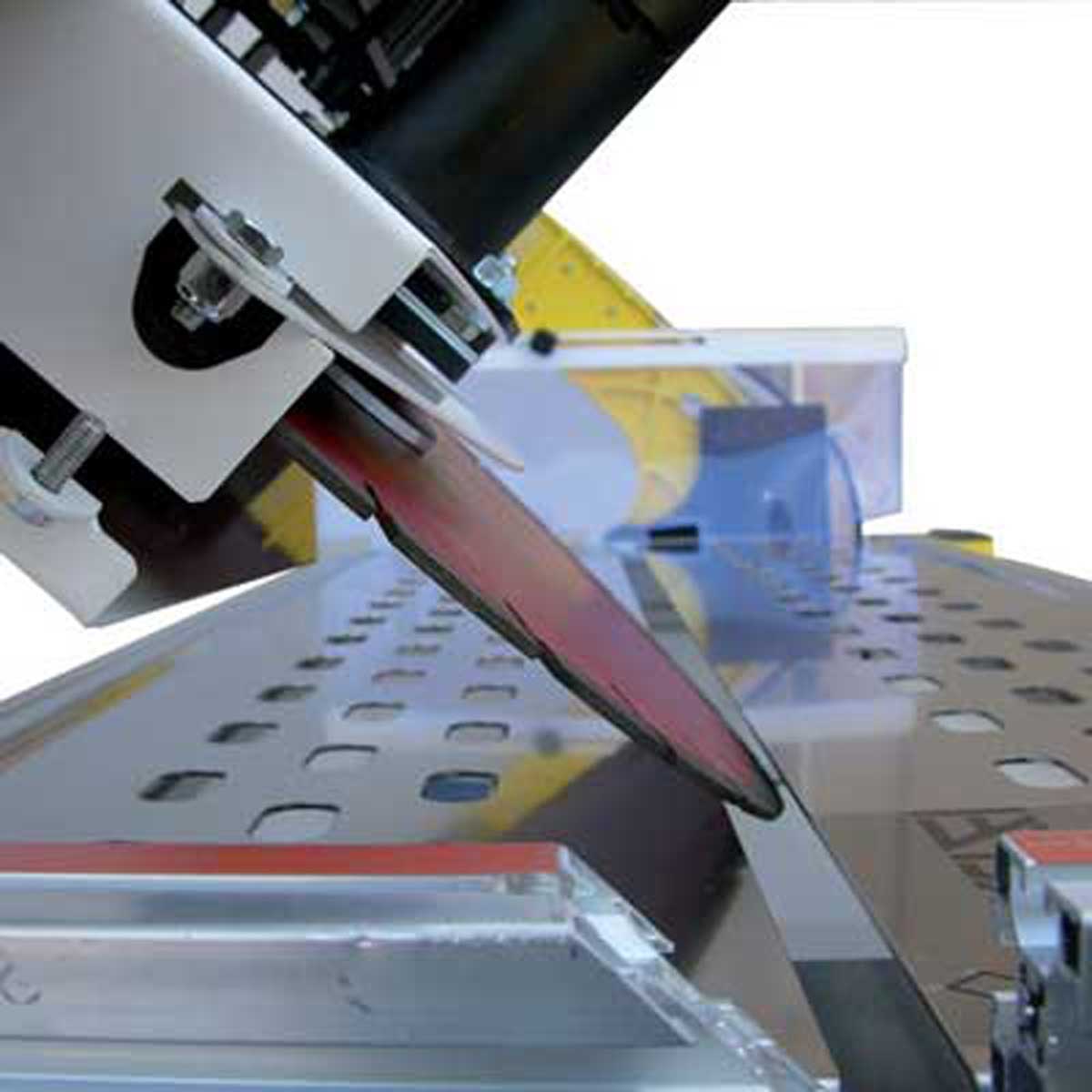

• Side tilt capability up to 45 degrees for angled and miter cuts
• Maintenance-free magnetic-induction water pump delivers ample water to both sides of the blade
• Retractable legs include a fall-protection device

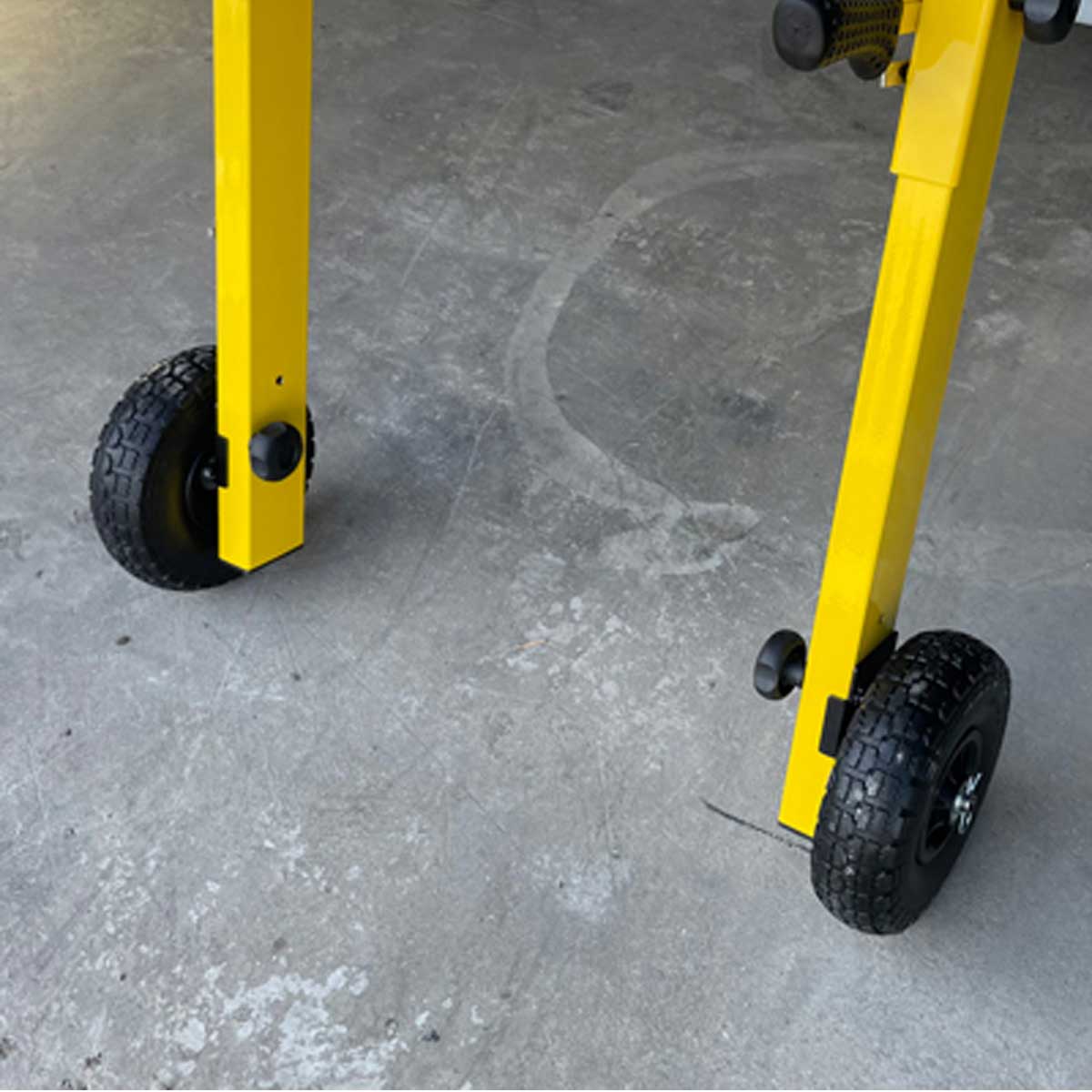

• Table handles and heavy-duty wheels make transportation easier
• Front, back and bilateral blade guards help minimize blade exposure and reduce water splash
• Accepts 10" and 12" cutting blades with 1" and 60 mm arbors
• One-year tool warranty*

Ideal for Large Format Tile Installation

The Alpha Black Belt Rail Saw is designed for professional tile installers, contractors and fabricators who need a stable wet cutting system for large format materials. Its long cutting capacity makes it suitable for large porcelain and ceramic tiles, while the 45-degree tilt capability provides additional versatility for miter and angled cuts.

The wet cutting system provides controlled water delivery during cutting, while the blade guard design helps reduce water splash during operation.

Product Details

• Model: BBS-012
• Rating: 115V-60Hz
• Amperage: 9.6 Amp
• Motor: 1.5 kW / 2 HP
• Maximum RPM: 2,800 RPM with direct drive shaft
• Arbors: 1" and 60 mm
• Recommended Cutting Method: Wet cutting
• Weight: 128 lbs (58 kg)
• Blade Diameter: 10" / 12"
• Maximum Cutting Depth: 3-3/8" with step cut

Applications

• Large format porcelain tile
• Ceramic tile
• Glass panels
• Large format tile installation
• Professional wet cutting
• Straight and rip cuts
• Diagonal cuts
• 45-degree angled and miter cuts
• Residential and commercial tile installation

Important: Cutting blades are not specified as included in the information provided. Please verify blade requirements and compatibility before operation.

*One-year tool warranty as stated in the manufacturer's product information. Warranty terms and conditions may apply.
