Alpha Tools Side Countercut

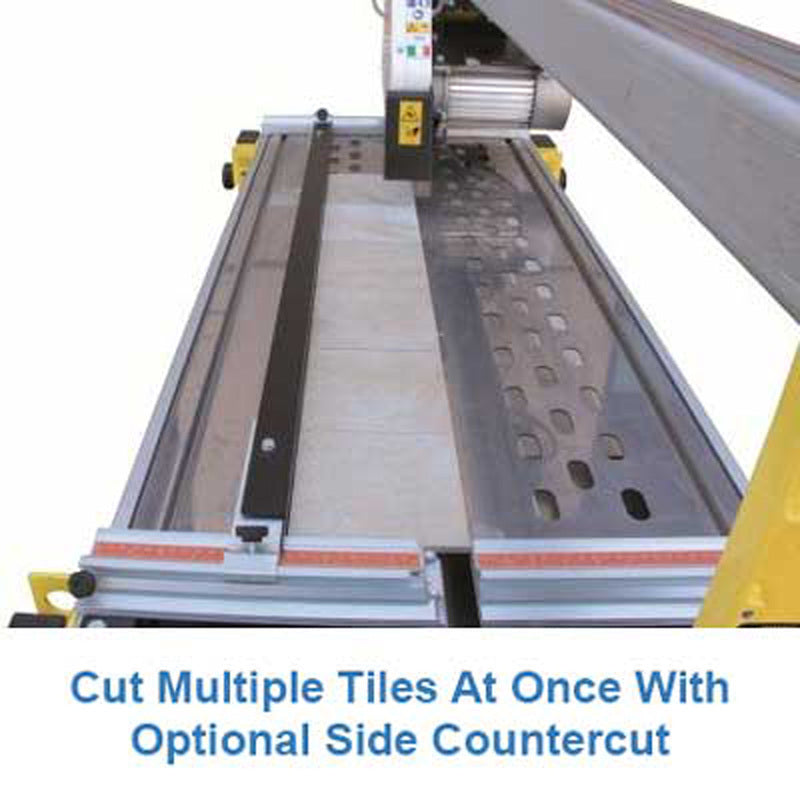

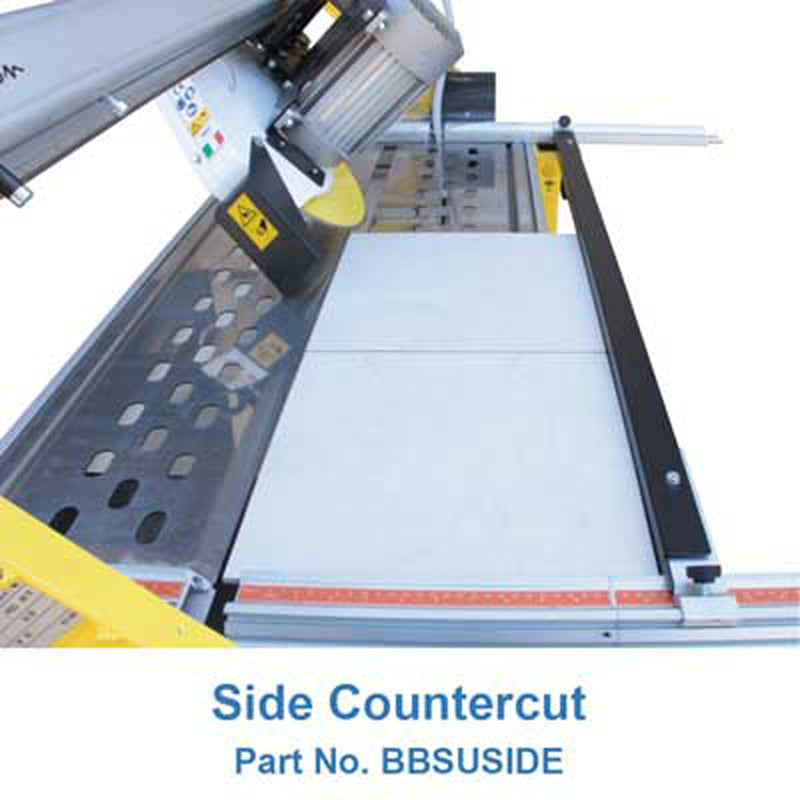

Alpha Side Countercut for table saw

Professional Quality Rail Saw, Ideal For Cutting Ceramics, Porcelain, Glass Panel And Other Materials

Alpha® introduces the black belt rail saw which is a professional quality rail saw, ideal for cutting ceramics, porcelain, glass panel and other materials. It comes with many features such as a rugged aluminum table chassis for a stable operation, and a maintenance-free magnetic-induction water pump that delivers ample water to both sides of blade. This extremely reliable saw is equipped with a 115v-60hz, 9.6amp, 2hp (1.5kw), 2,800 RPM motor with direct drive shaft and accepts 10” & 12” blades.

Features

• Rugged Aluminum Table Chassis For Stable Operation With A Long Life
• The Cutting Head’s Mechanical Vertical Tilting System Allows For Cutting Depth Adjustment
• Stainless Steel Head Rails And Adjustable Armored Ball Barings For Smooth And Precision Movement
• Cutting System’s Side Tilt Capability Eases Up To 45 Degree Cut (Ideal For Miter Cuts)
• Extremely Reliable, Maintenance Free Magnetic-Induction Water Pump Delivers Ample Water To Both Sides Of Blade
• Retractable Legs Include A Fall-Protection Device
• Table Handles And Heavy-Duty Wheels Make For Easy Transportation
• Front, Back And Bilateral Blade Guards Minimize Exposure Of Blade For Safety And Reduces Water Splash
• Supports 10” & 12” Blades With 1” And 60mm Arbors
• It Can Cut Up To 2-1/4” Deep In A Single Pass, 3-3/8” With Step Cut
• Rip Cut Up To 51" (130cm) and Diagonal Cut Up To 33" (84cm)
• One Year Tool Warranty*

Product Details

Model - BBS-012
Rating - 115V-60HZ
Amperage - 9.6AMP
Maximum RPM - 2,800 With Direct Drive Shaft
Type - 1.5KW - 2HP
Arbor(s) - 1", 60mm
Recommended For - Wet Cutting
Weight - 128lbs (58kg)
Cutting Disc Diameter - 10" / 12"
Max. Cutting Depth - 3 3/8" (50.88mm)
