SKU: LAB330  |  Barcode: 8050532020443

Raimondi Laboratory Bridge Wet-Saw 129 - LAB 330

$11,00000
Shipping calculated at checkout.


Delivery and Shipping

  • Orders are shipped via USPS, UPS, or FedEx.
  • Shipping time up to 5 business days. Weekends not included.
  • Express shipping options available.
  • Same-day shipping cut-off time 4:00 PM PST for most items.
  • For oversized shipments that require freight delivery, our team will contact you.

If your address is unable to receive deliveries from USPS, UPS, or FedEx, please contact us.

Description

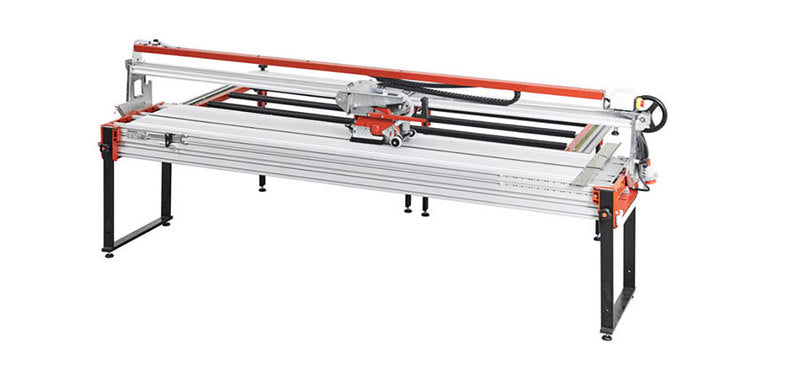

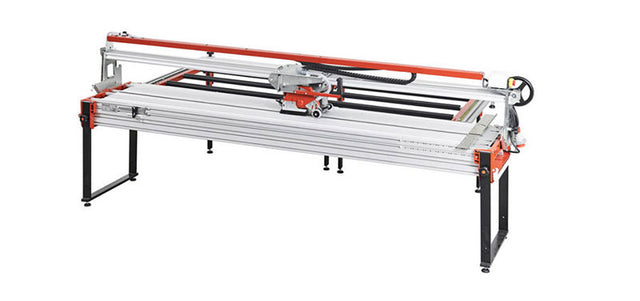

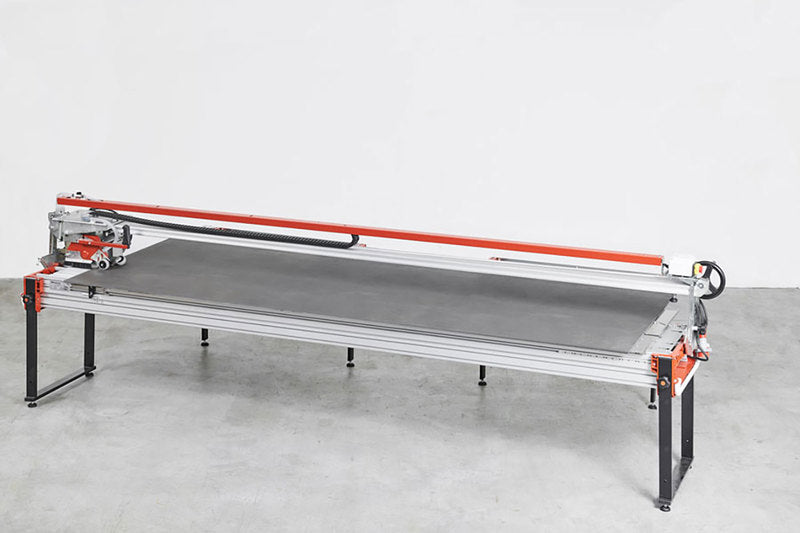

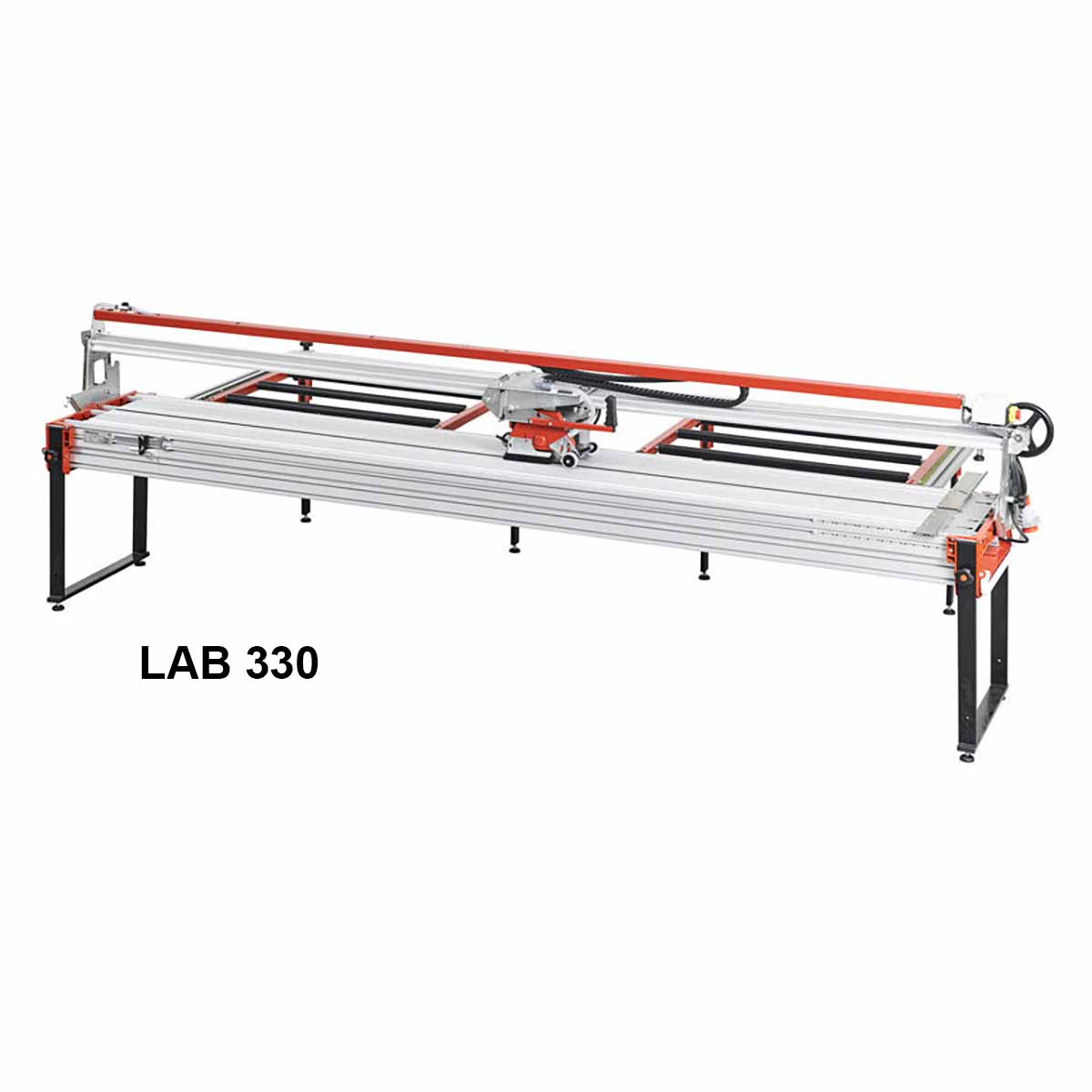

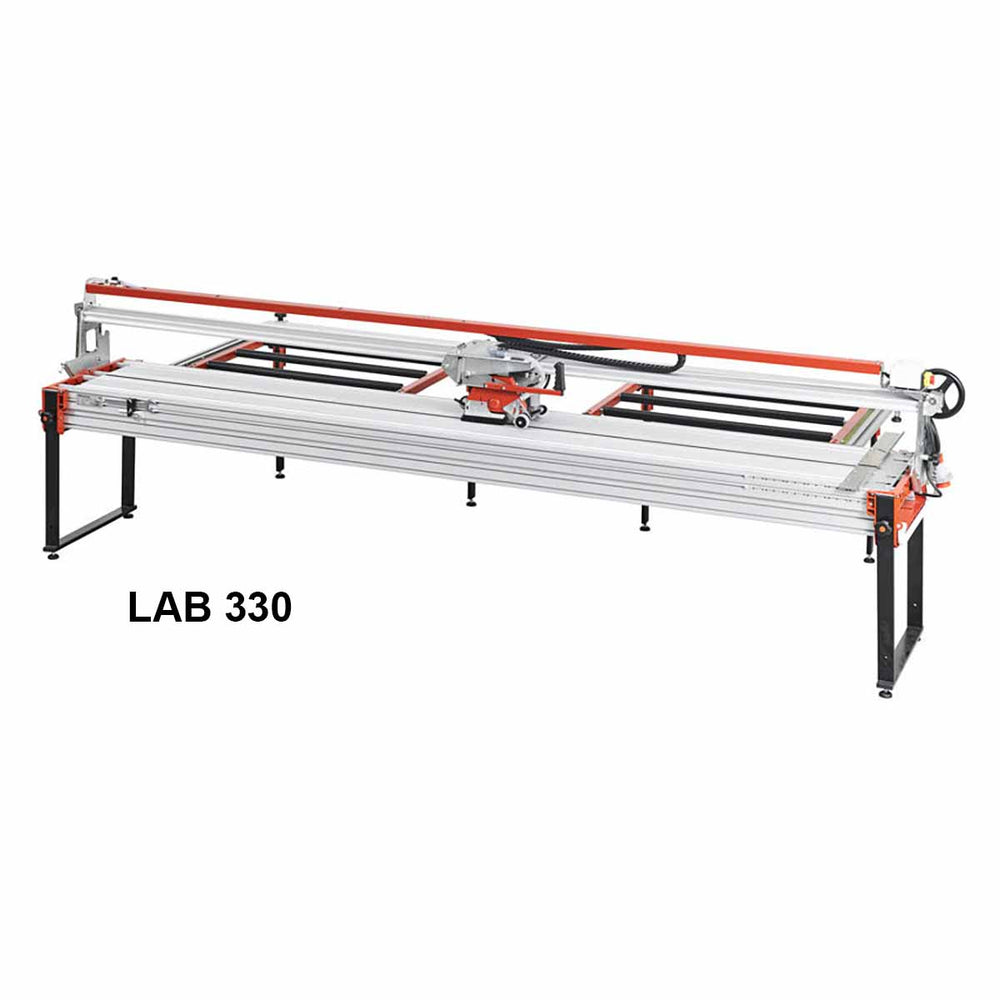

Raimondi Laboratory Bridge Wet-Saw 129" - LAB 330

LAB 330 Bridge wet-saw for 90° cut and 45° edge-miter cut of porcelain tiles, granite, marble, etc… up to 8.85’ length

Contact us for shipping cost

Includes

  • Raimondi LAB330 Laboratory Bridge Saw
  • Equipped with: Ø 8” (200 mm) diamond disc for porcelain
  • Wheel kit feed
  • Dual side bench with countersquare
  • keys kit
  • User Manual

Size - 157" x 67" x 47"
Weight - 532 lbs.
Cutting Length - 130"
Diagonal - 91.7" x 91.7"
Voltage - 230 Volt
Blade - 8"
RPM - 3360 rpm

Feature:

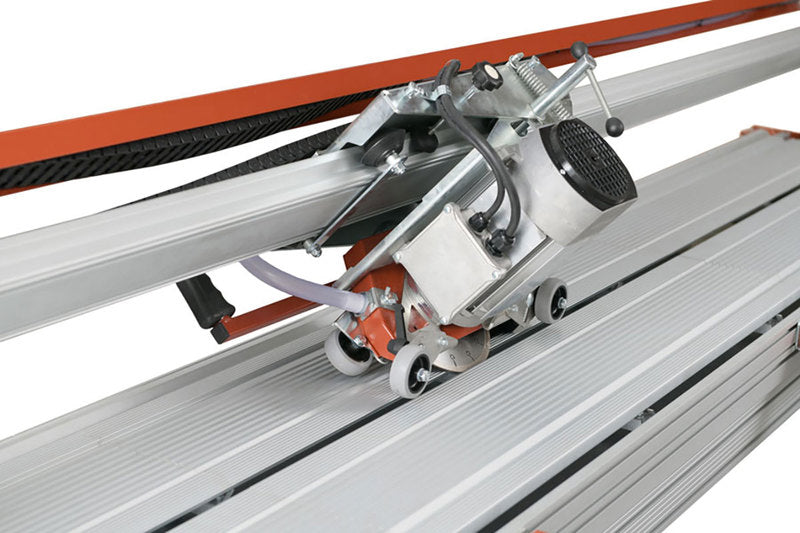

  • Direct drive 3 hp motor.
  • 230 Volt capacity.
  • Straight and 45° cuts.
  • Maximum cutting length of 130" (330cm) of which 4" (10 cm) of plunge cut;
  • Accepts tile up to 5.3’ (161cm)
  • Extruded aluminum side countersquare, (length 8.5" / 260 cm).
  • Maximum cutting depth for straight and angle cuts: 0.79" (20mm)
  • Maximum load capacity 661lbs (300Kg)

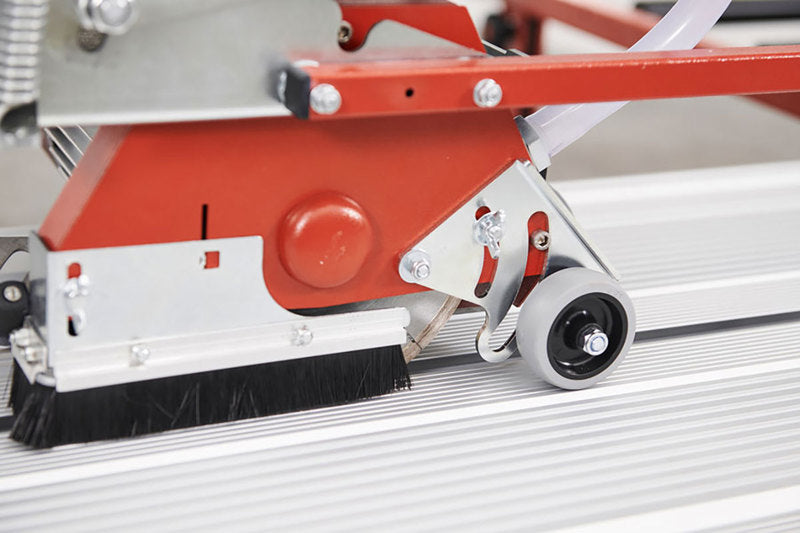

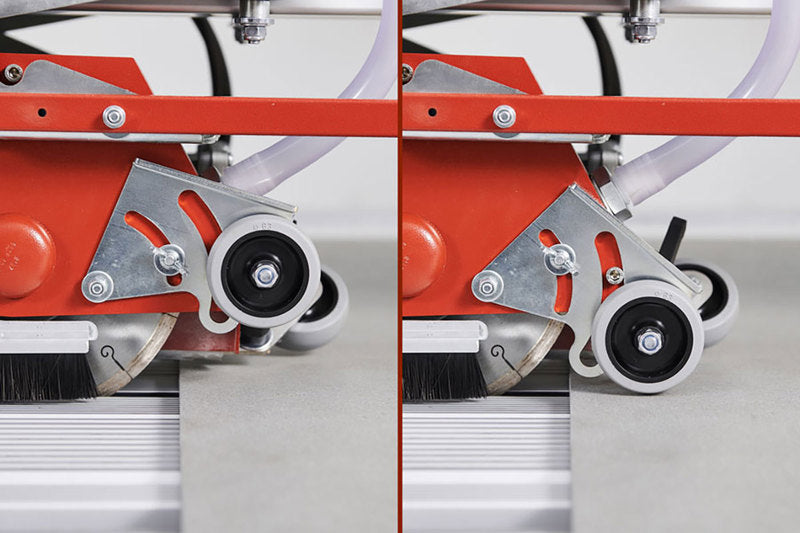

  • Motor feed system with wheel kit.

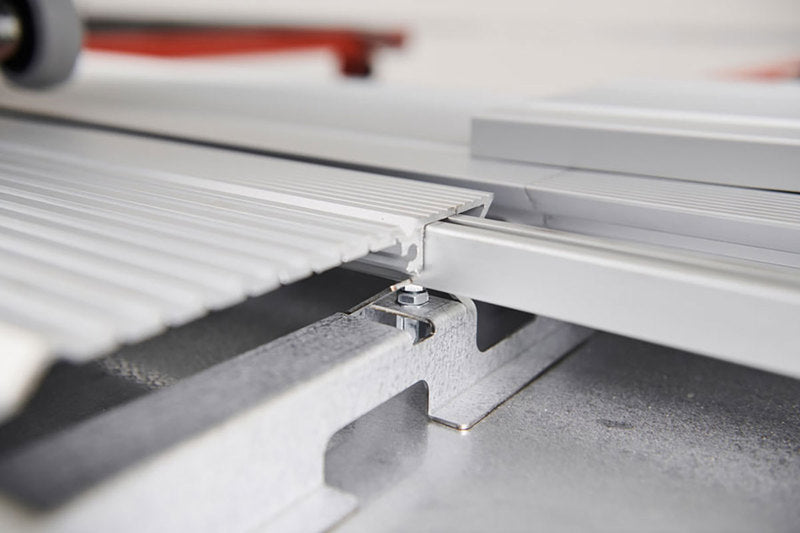

  • Aluminum framework and galvanized steel.
  • Accomodates 8" blades

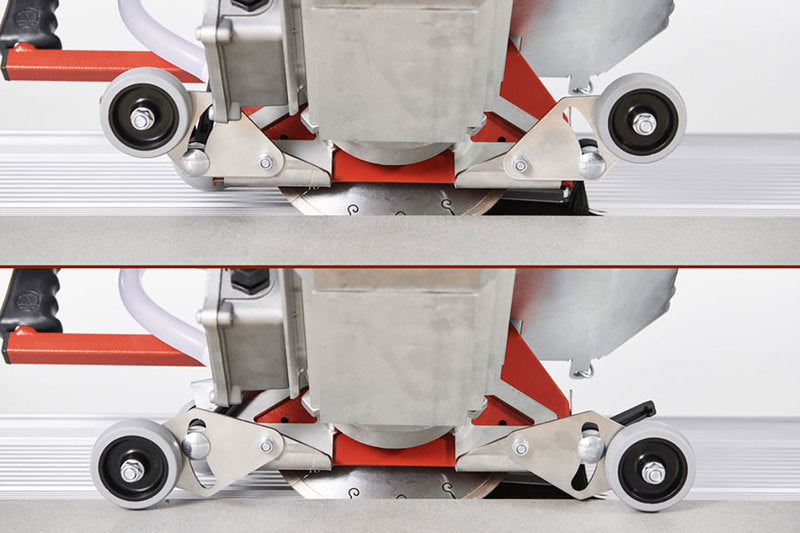

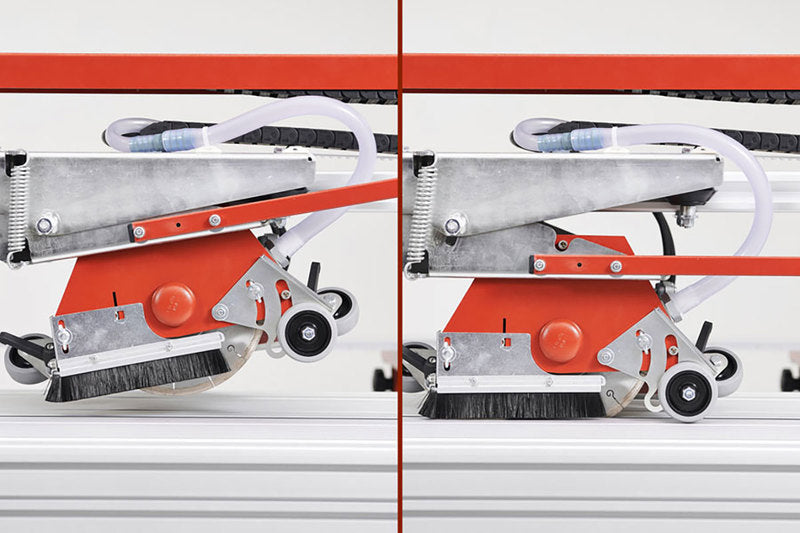

  • Plunge cut and adjustable cutting depth.
  • Water jet inside blade guard for superior cooling.

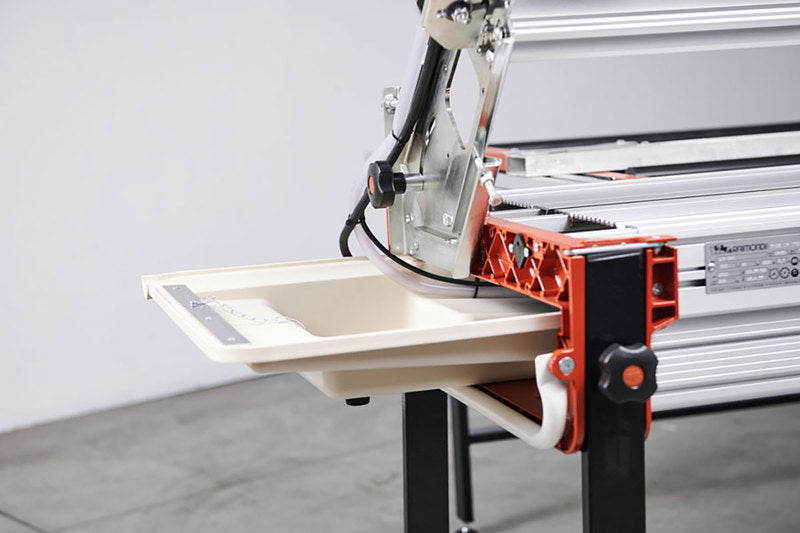

  • Easy to remove polypropylene tank.
  • Tank capacity of 10gal (38lt)
  • Minimum recommended work area for this machine: 19.7ft. x 15ft (5,5m x 4,5m)
  • Minimum recommended work area for this machine with extension: 19.7ft. x 19.7ft (5,5m x 6m)
