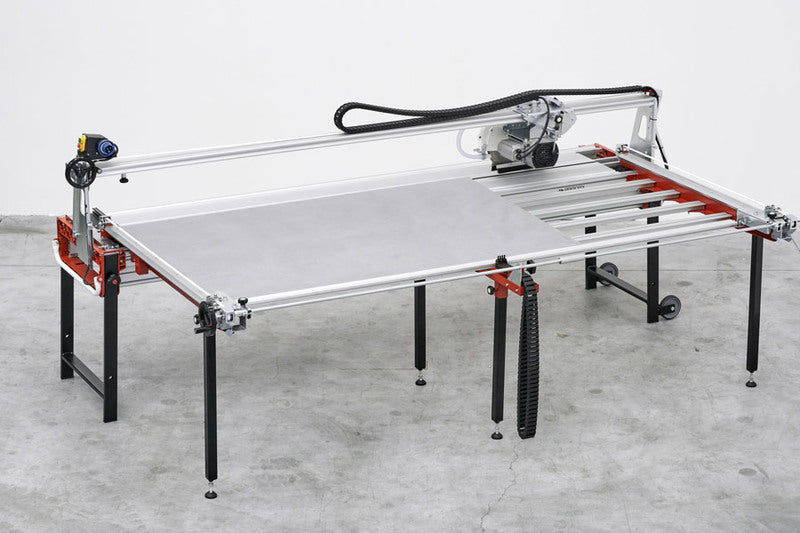

Raimondi SMS Large Bridge Tile Wet Saw SMS 220-260

Raimondi SMS Large Bridge Tile Wet Saw

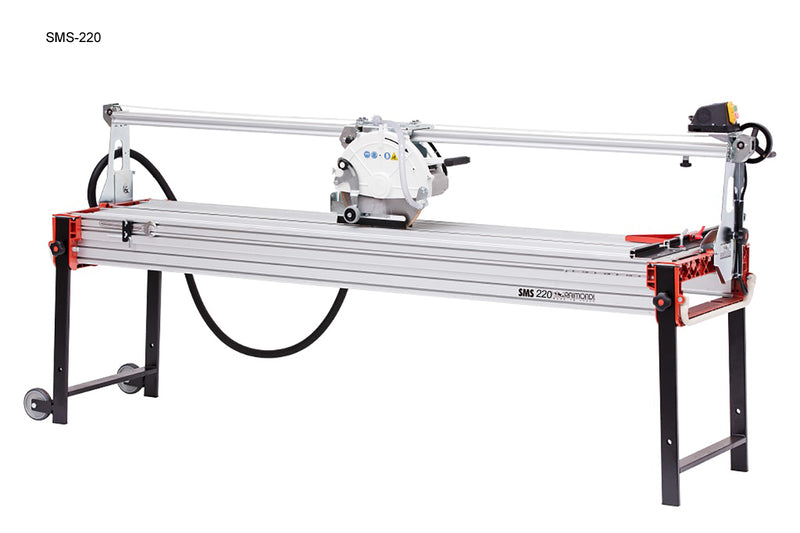

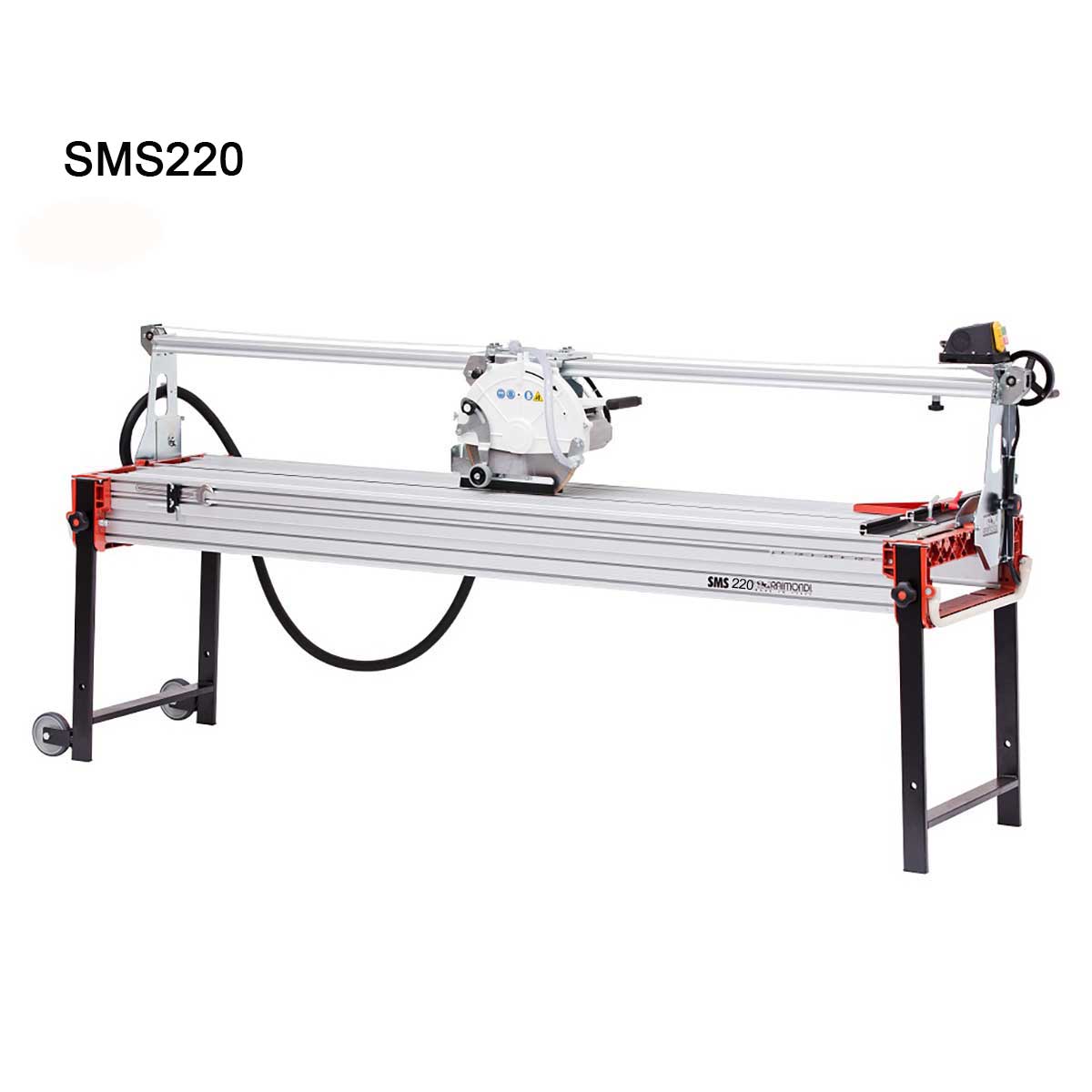

WSMS220 Wet Saw 86-2/3" Rip Cut

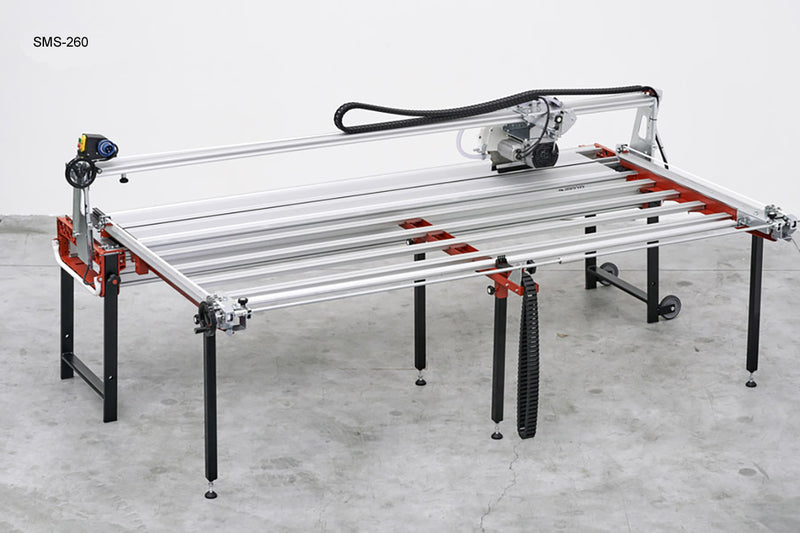

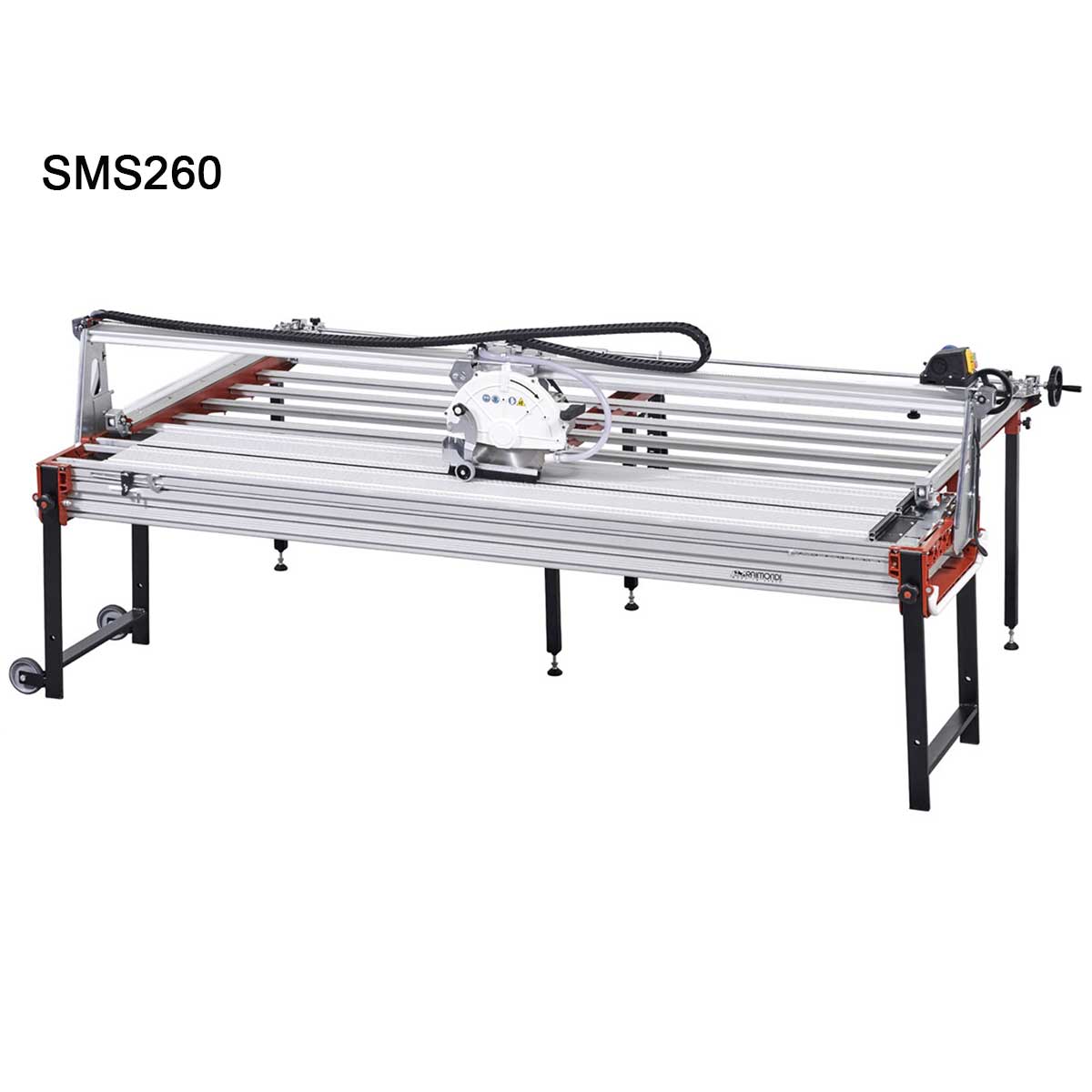

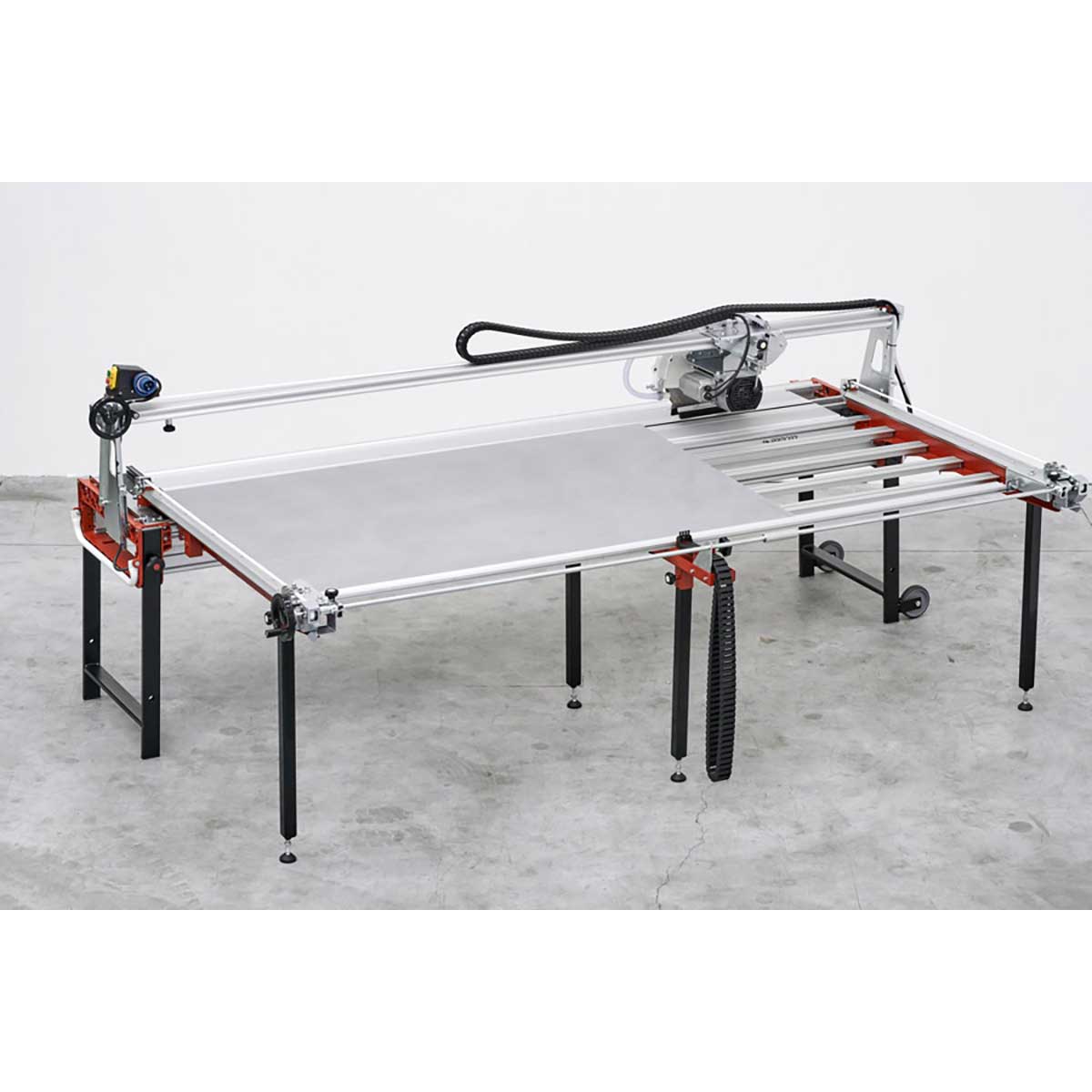

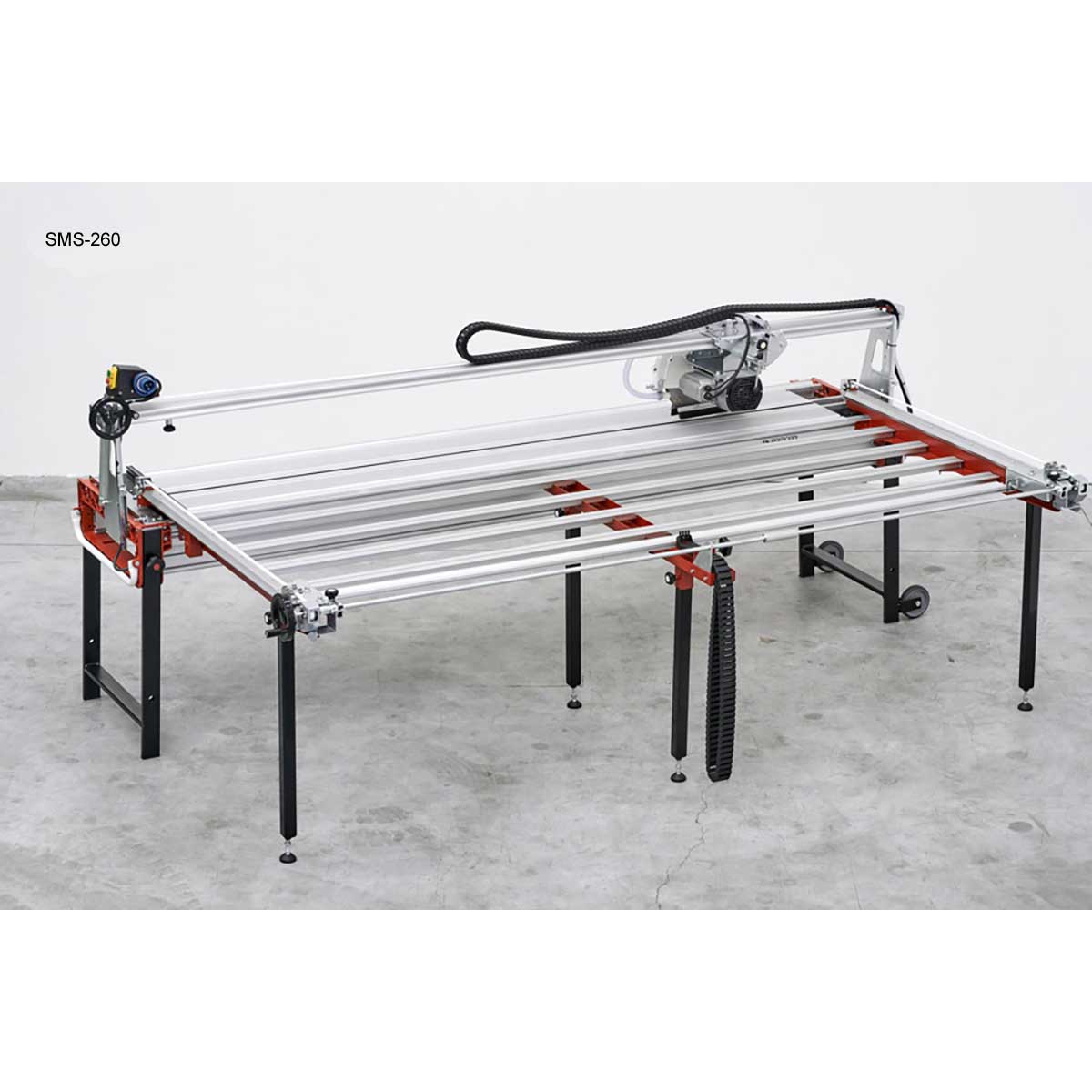

WSMS260 Wet Saw 102-1/3" Rip Cut

SPECIAL ORDER
Important Shipping Notice:
This item requires freight shipping (UPS not available).
Freight cost will be quoted after purchase and requires customer approval.

For cutting granite, marble, porcelain, single and double fired, bricks, cement etc...

Includes for Both models

• Raimondi SMS220/260 Tile Wet Saw Machine 110 V 60 Hz
• 14" Diamond disc for porcelain tiles
• Wheels kit for easy transport
• Equipped with the motor feed system with wheel kit.
• Telescopic legs provided with double safety device and wheels kit
• Key and Wrench kit
• Easy-to-remove polypropylene tank for easy cleaning. Capacity: 10 Gal
• Dressing Stone

SMS260 Only

Equipped with side bench with adjustable square which allow to maintain a perfect parallelism between the tile and the cutting line, fundamental when performing the jolly/ 45° cut and useful, as well, for 90° standard cuts.

Feature for all Models;

• Diamond blade max Ø 14"; min Ø 12".
• Plunge cut and adjustable cutting depth.

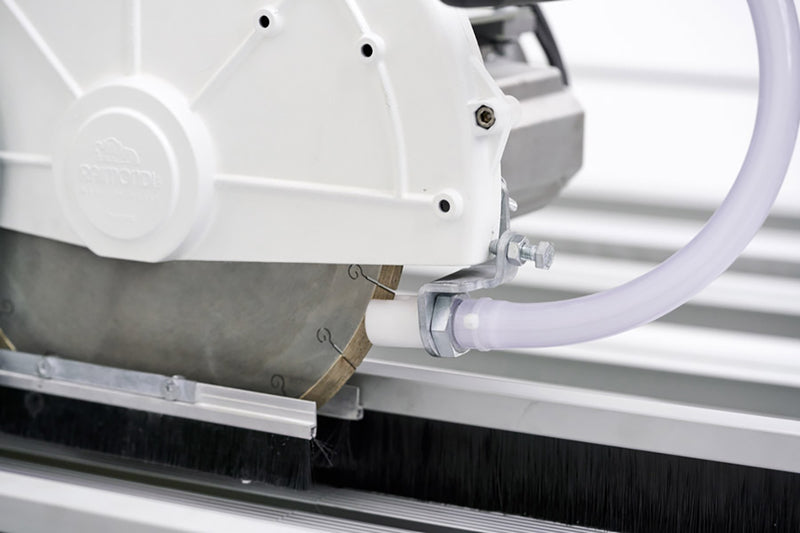

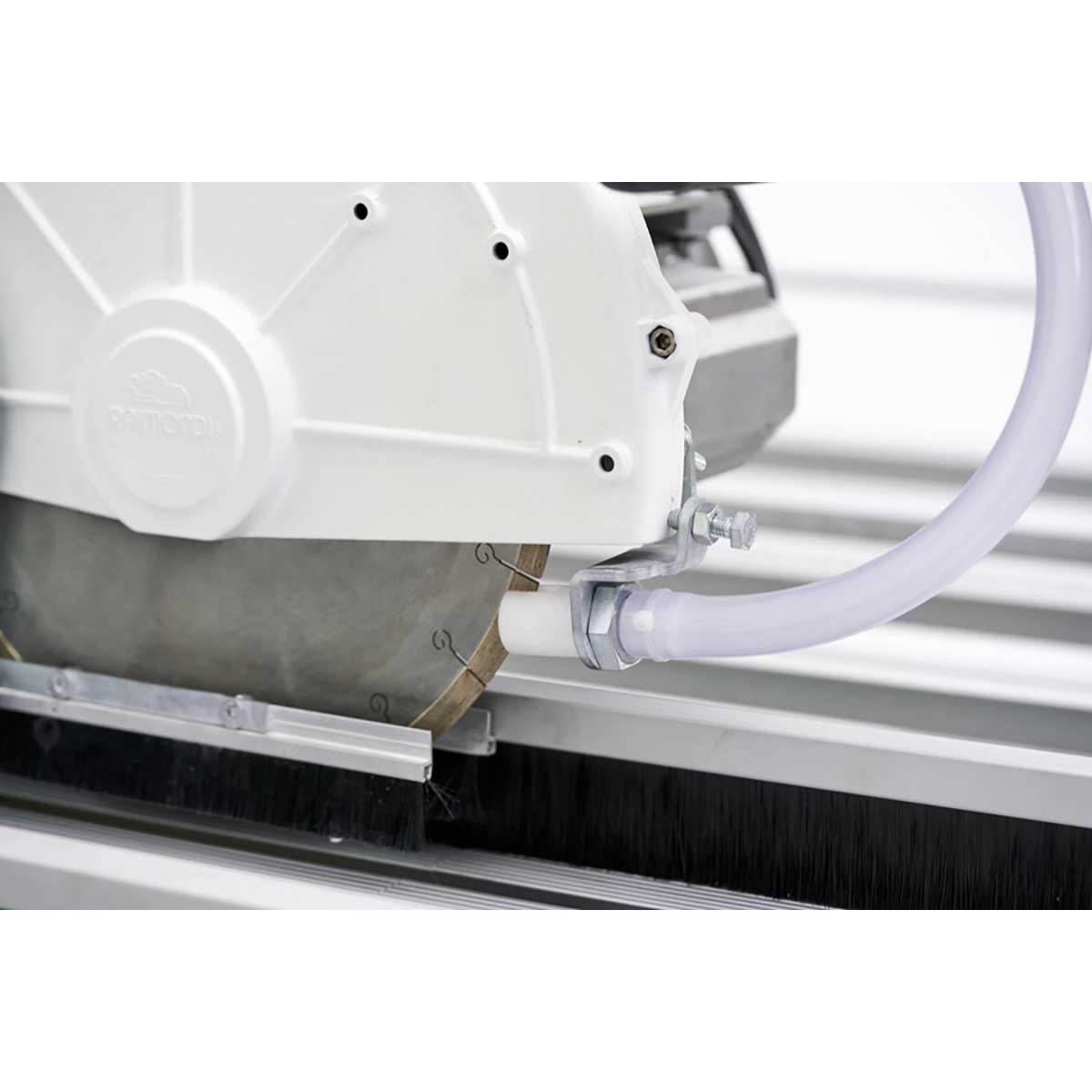

• Water jet near to the cutting point for an optimal cooling.
• Heavy duty water pump and jet nozzles provide superior blade cooling.
• Pivoting blade guard remains parallel with tile to ensure maximum cutting depth.
• Cast and extruded aluminum framework.

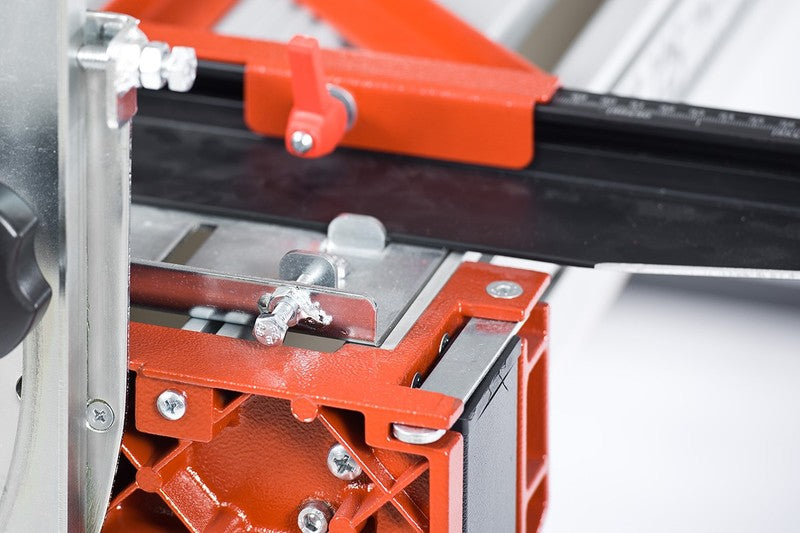

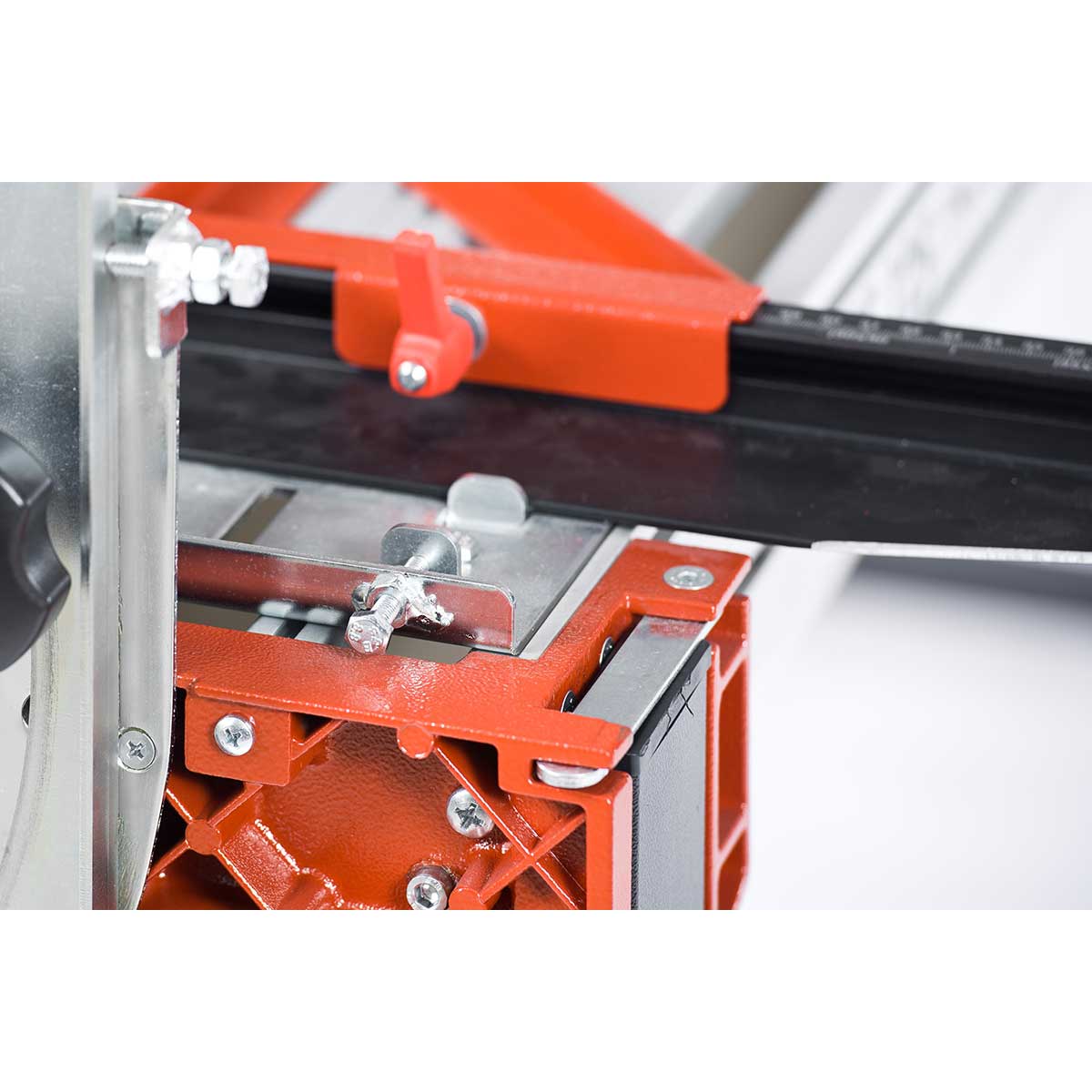

• Re-adjustable square for long lasting precision.

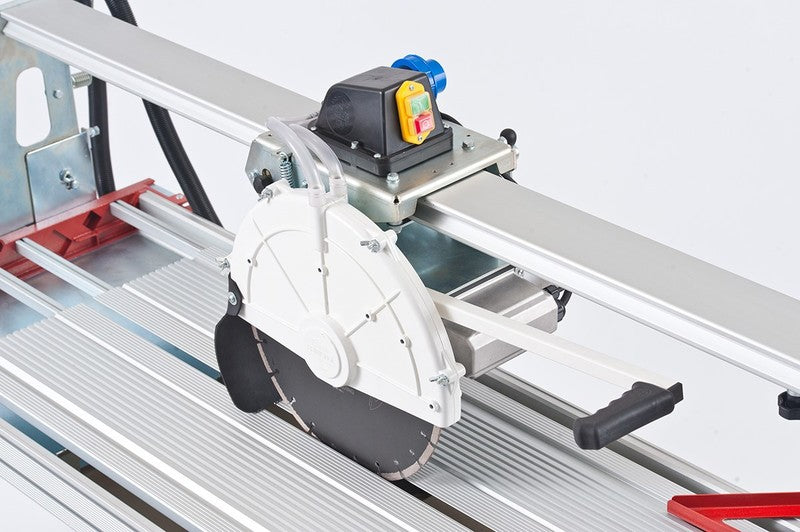

• Sliding motor assembly with galvanized steel housing provided with 4 pulleys (double internal bearings each).
• Pulleys are easy to re-adjust (tighten): avoid play and confer long lasting precision of cut.
• Tilting movement (0-47°) for 45° angle cut (jolly).
• Wide range of accessories available.

WHEEL - Wheel system already included on the machine for better maneuvering of the motor head across the entire length of the machine

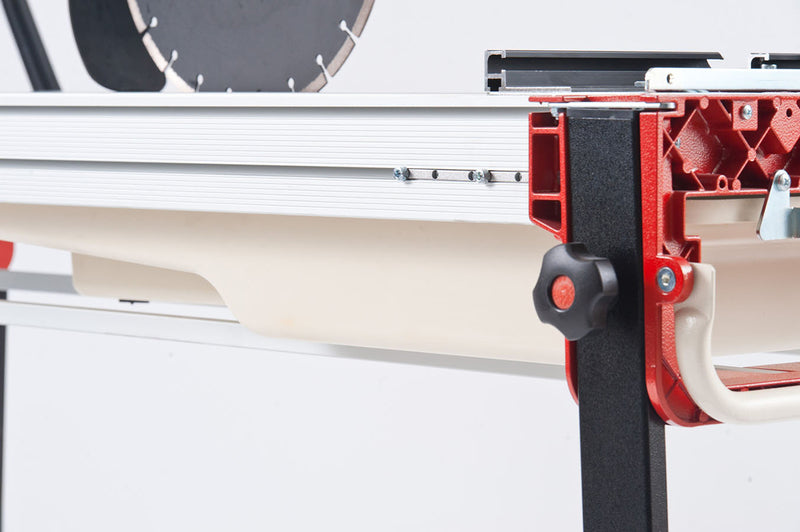

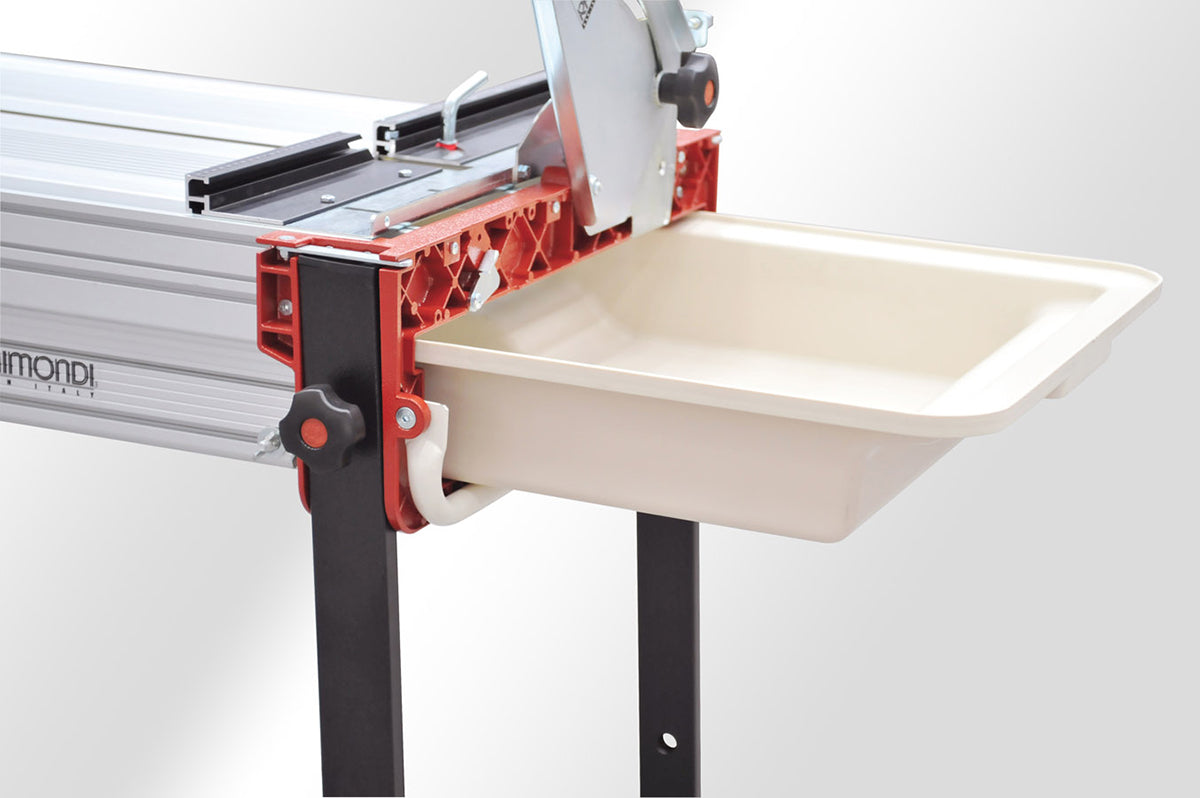

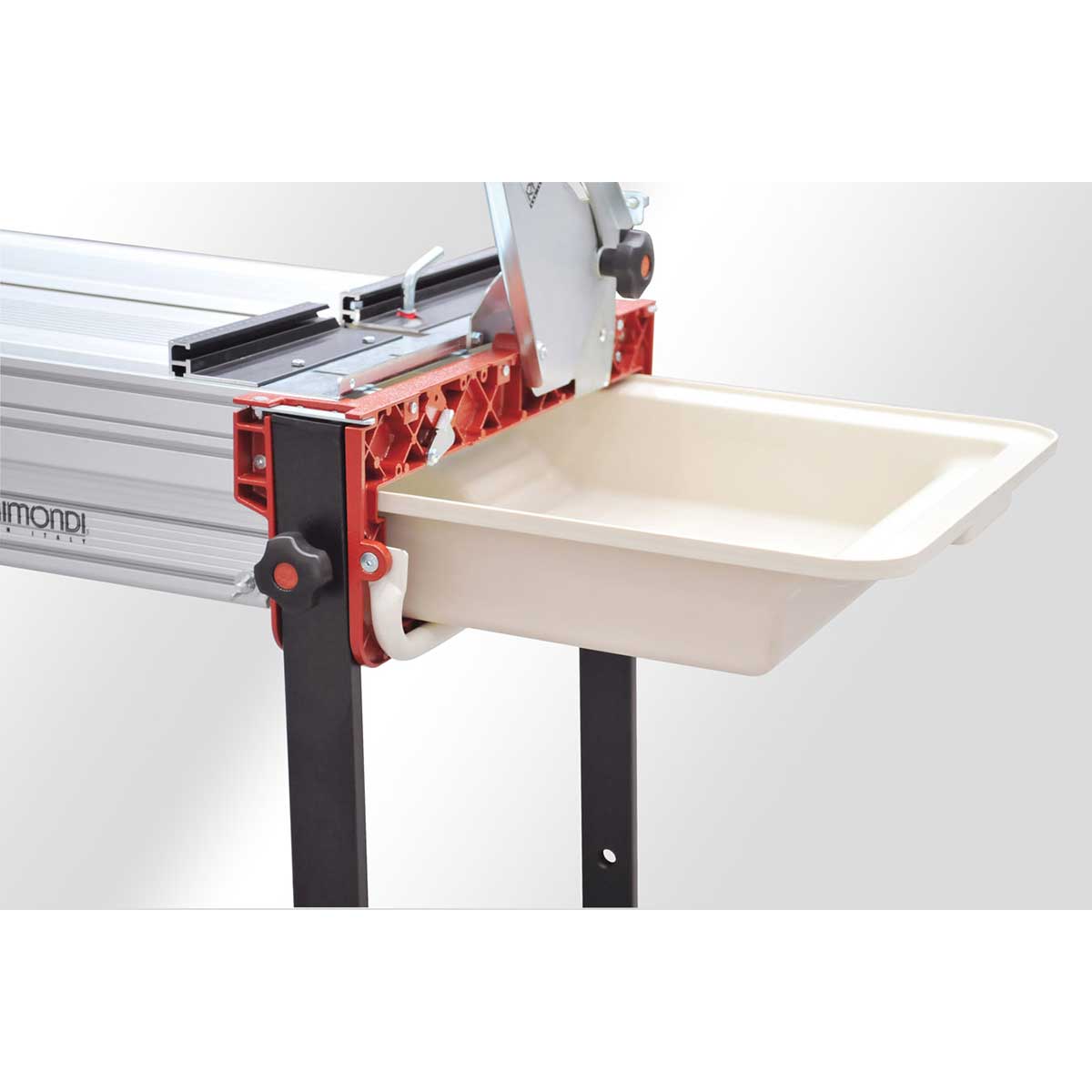

BASIN - Plastic water basin under work area for collecting water and/or debris. The basin can be removed from the smaller side of the machine, just by pulling it out like a tray. Capacity of 10 gallon.

TELESCOPIC LEGS - SMS 220/260 legs, made of aluminum, are telescopic making it easier to move around the job site. The wheels make that task much easier.

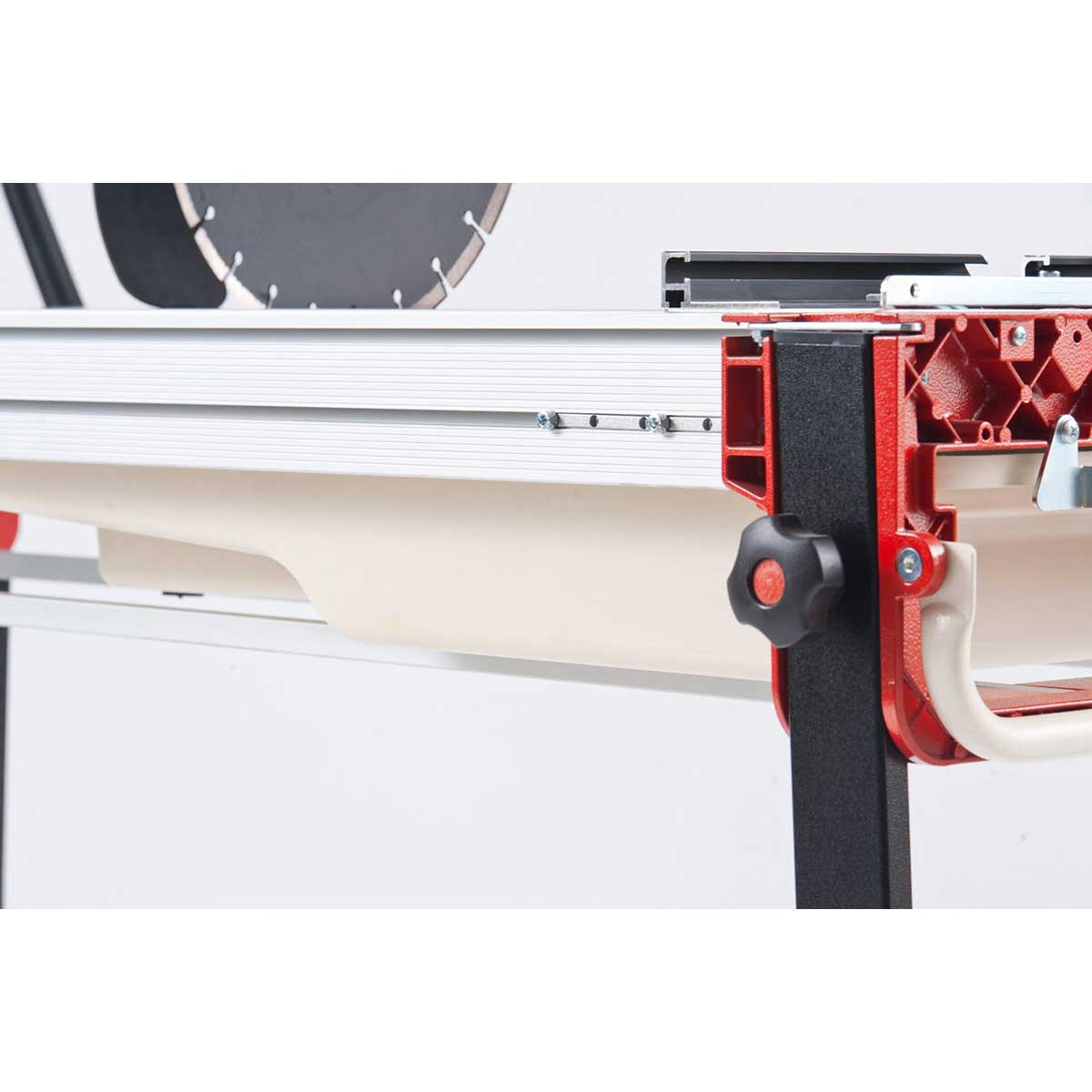

LOCKING - When the legs are set in their upright position, the metal lip (seen in the picture) provides extra security in holding the legs in place.

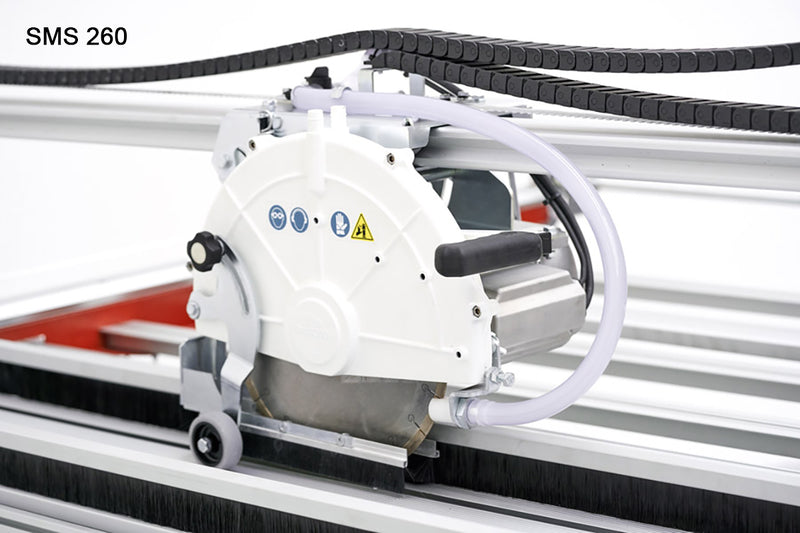

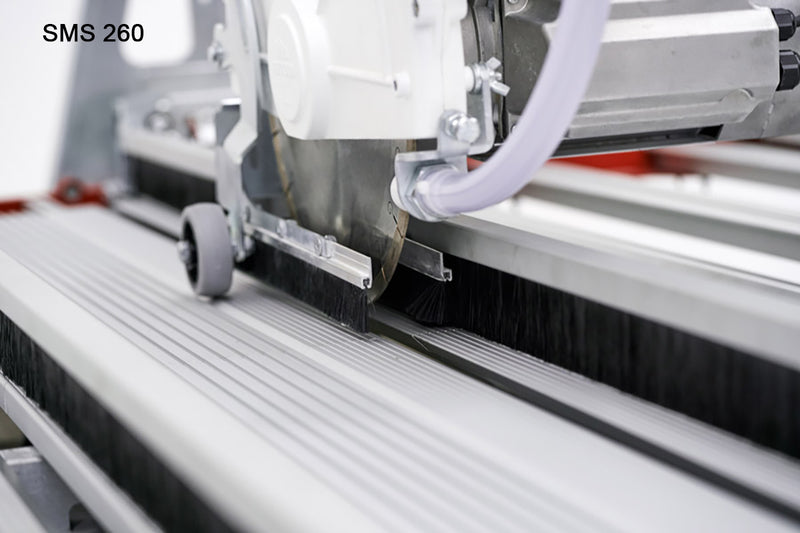

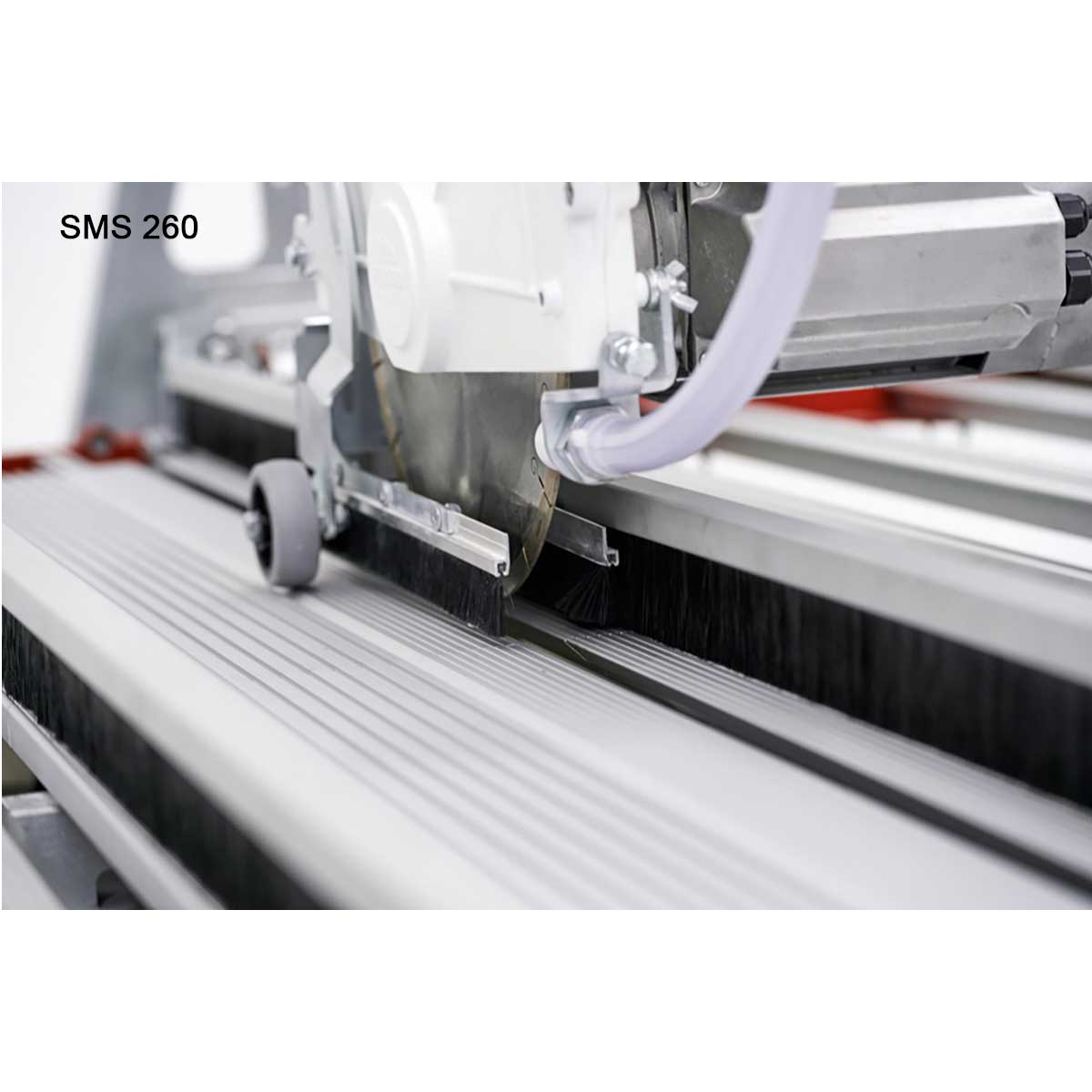

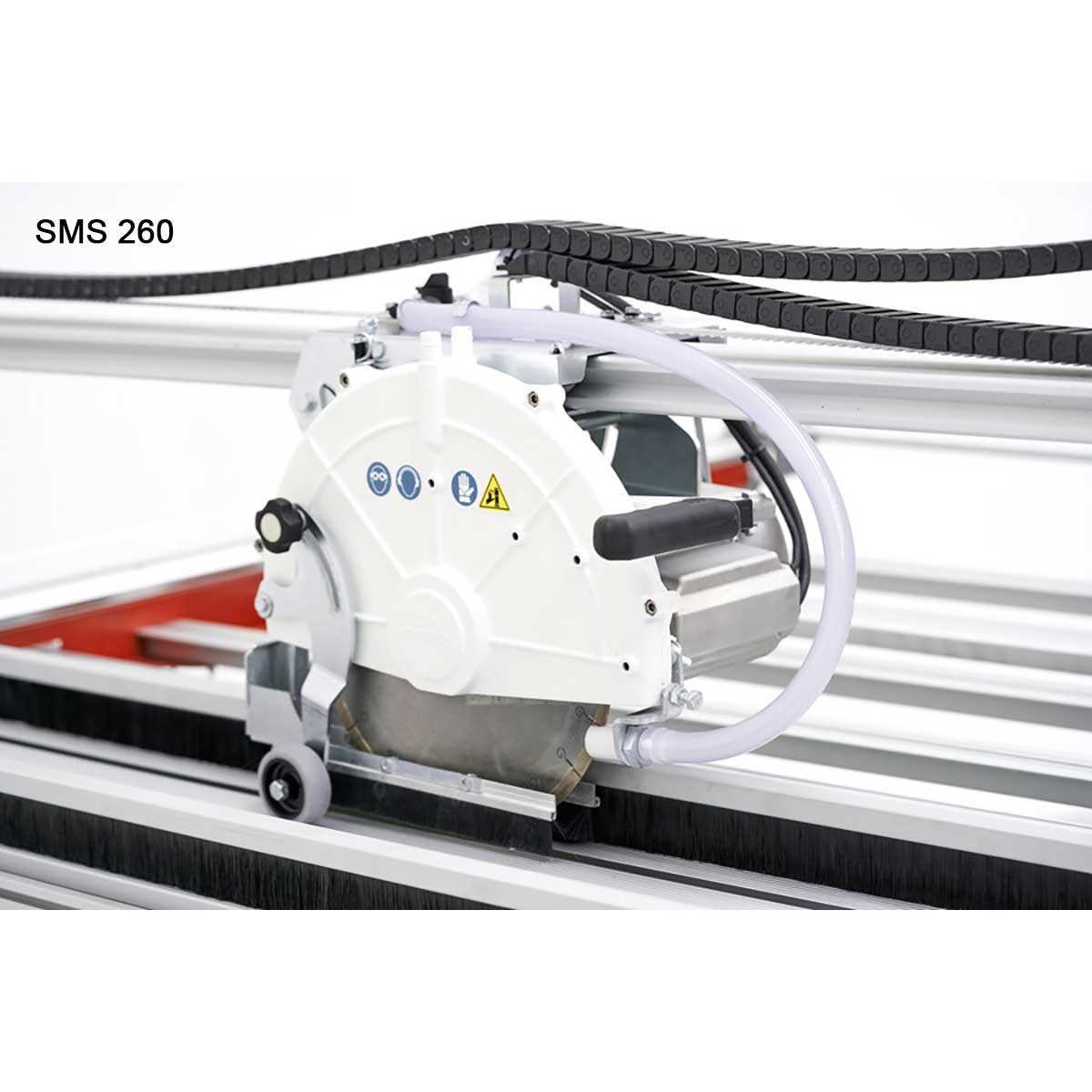

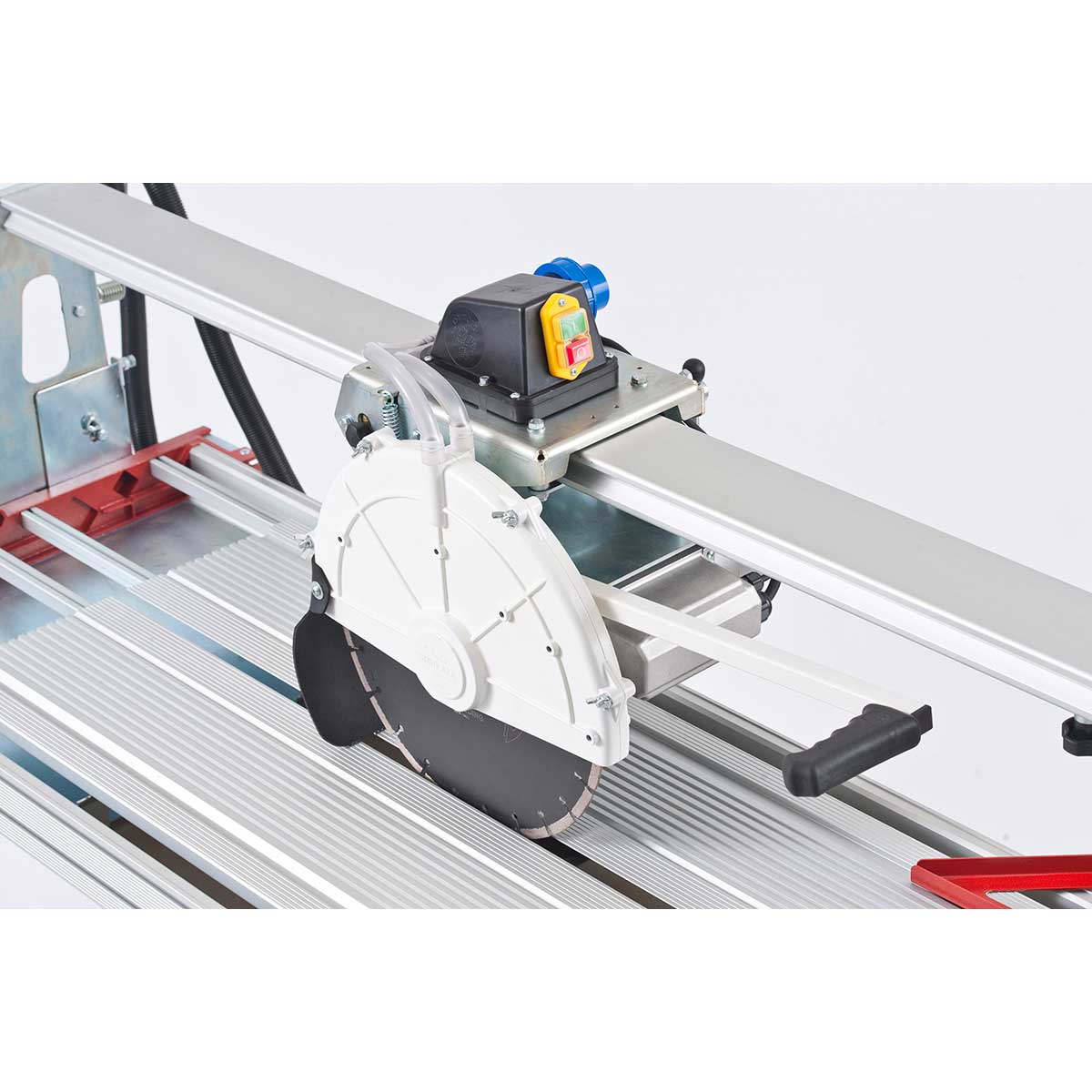

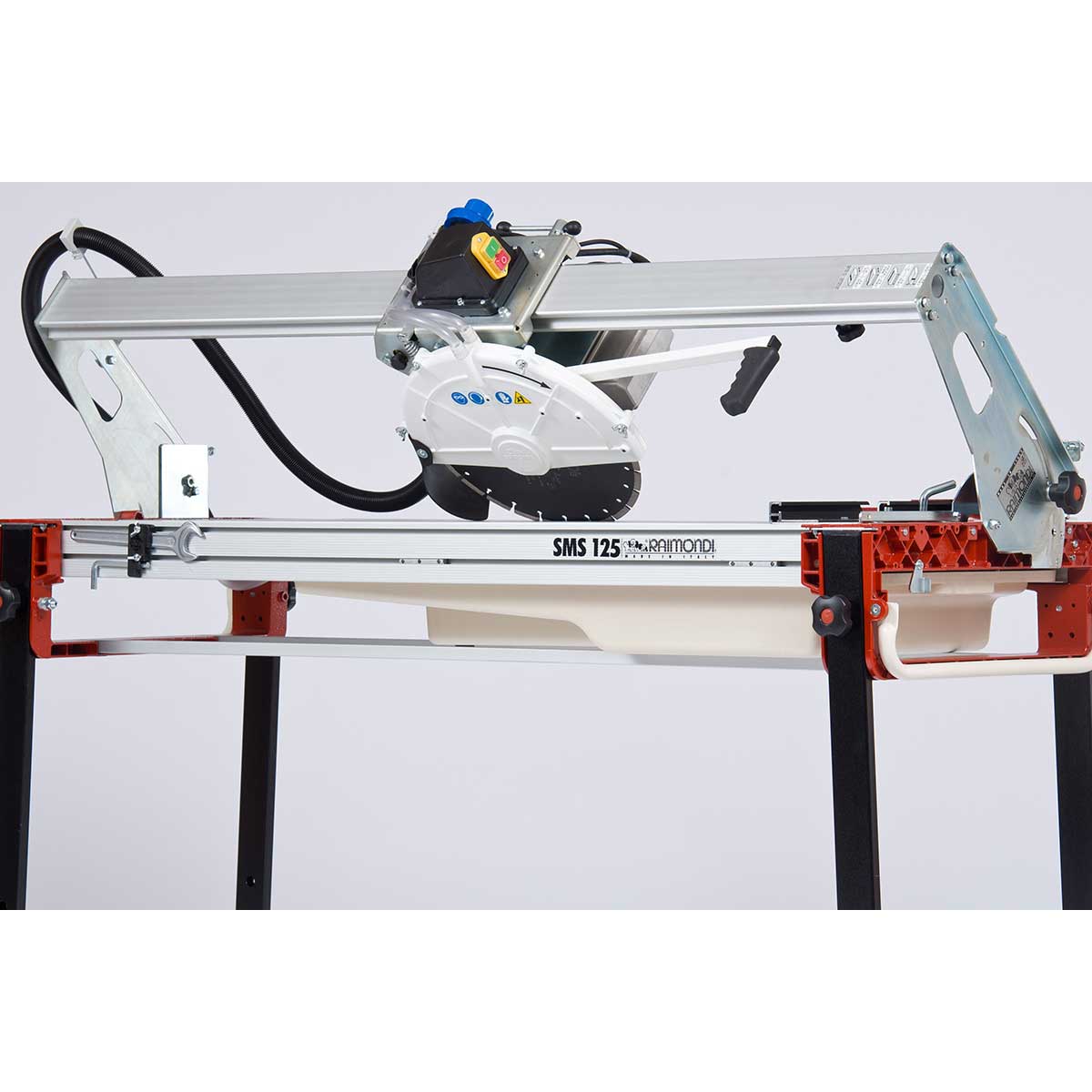

BLADE - Cutting head with blade equipped with brushes on each side to keep the area clean of debris.

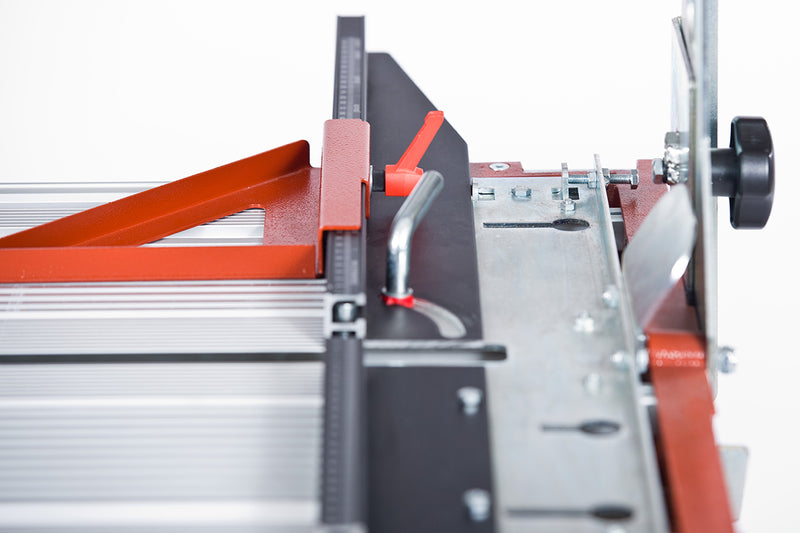

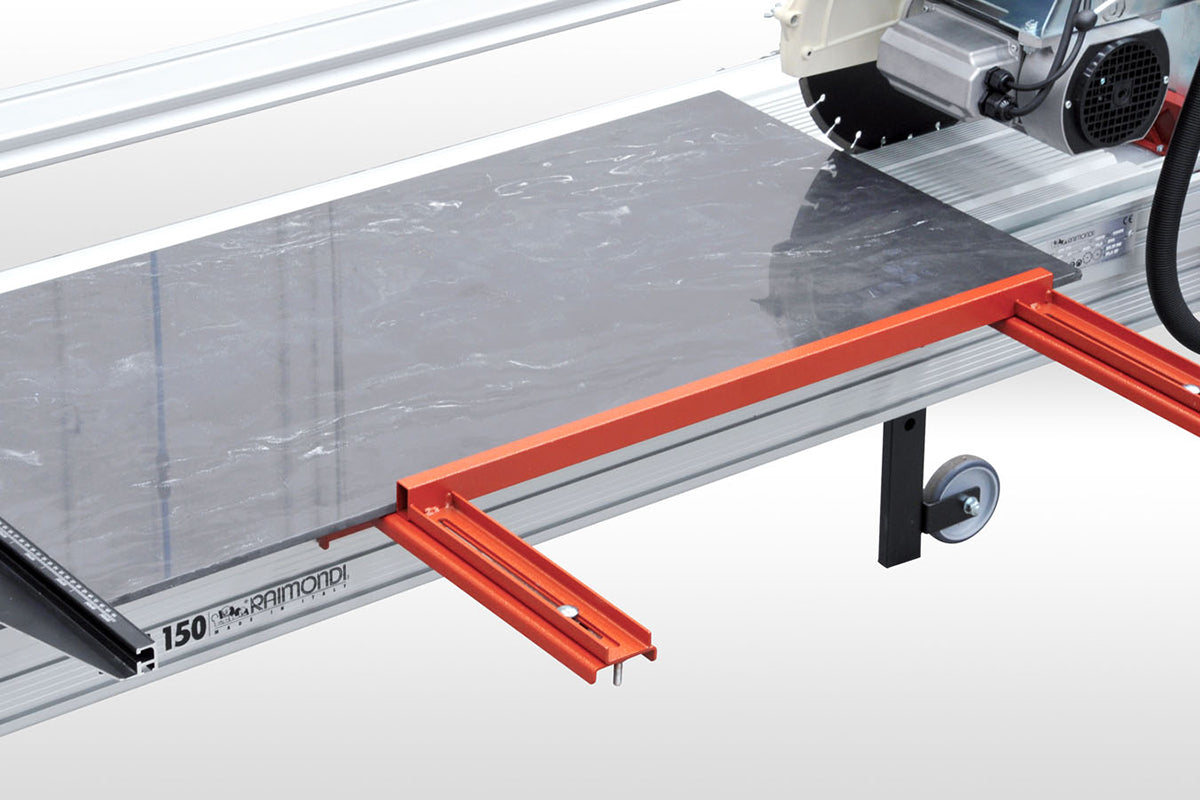

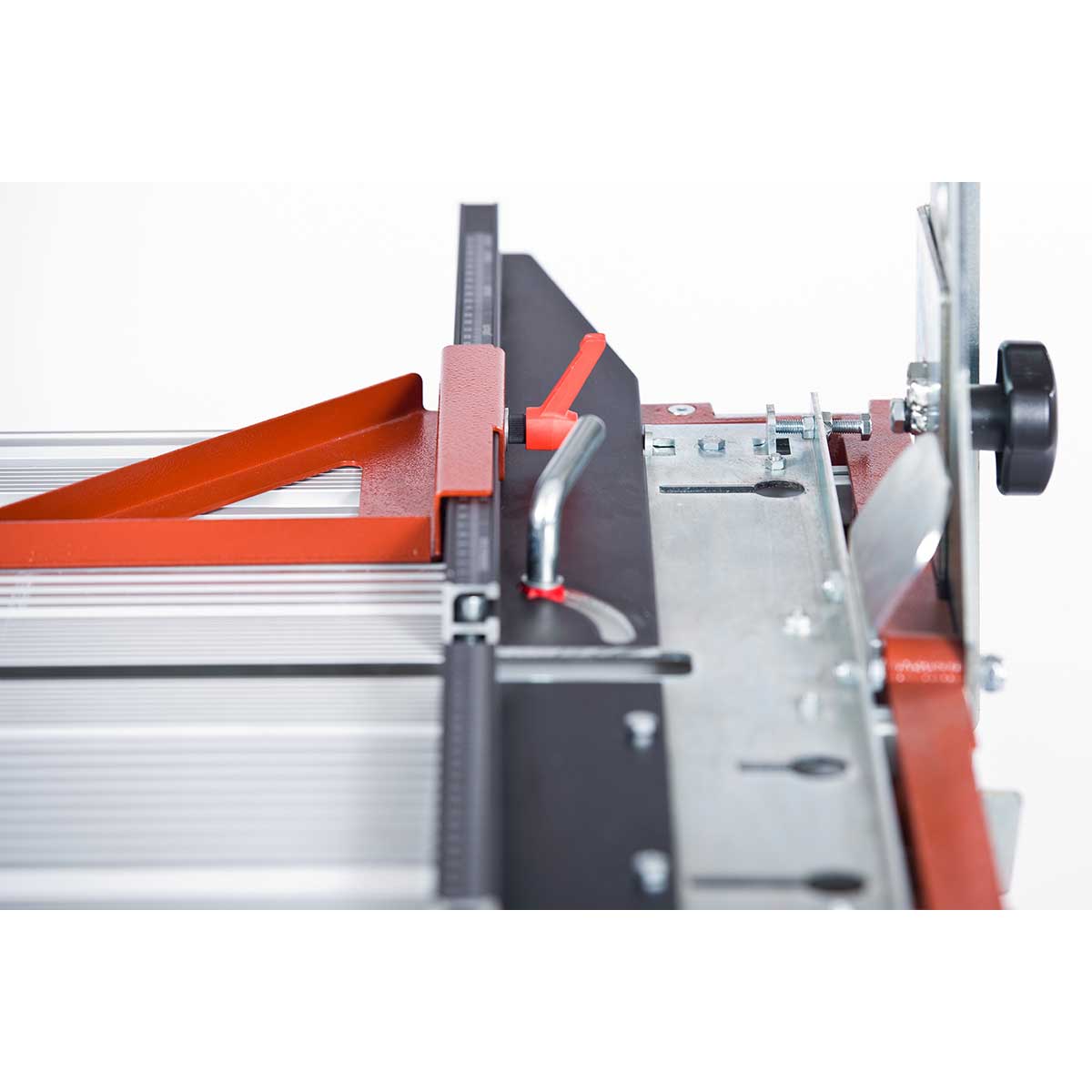

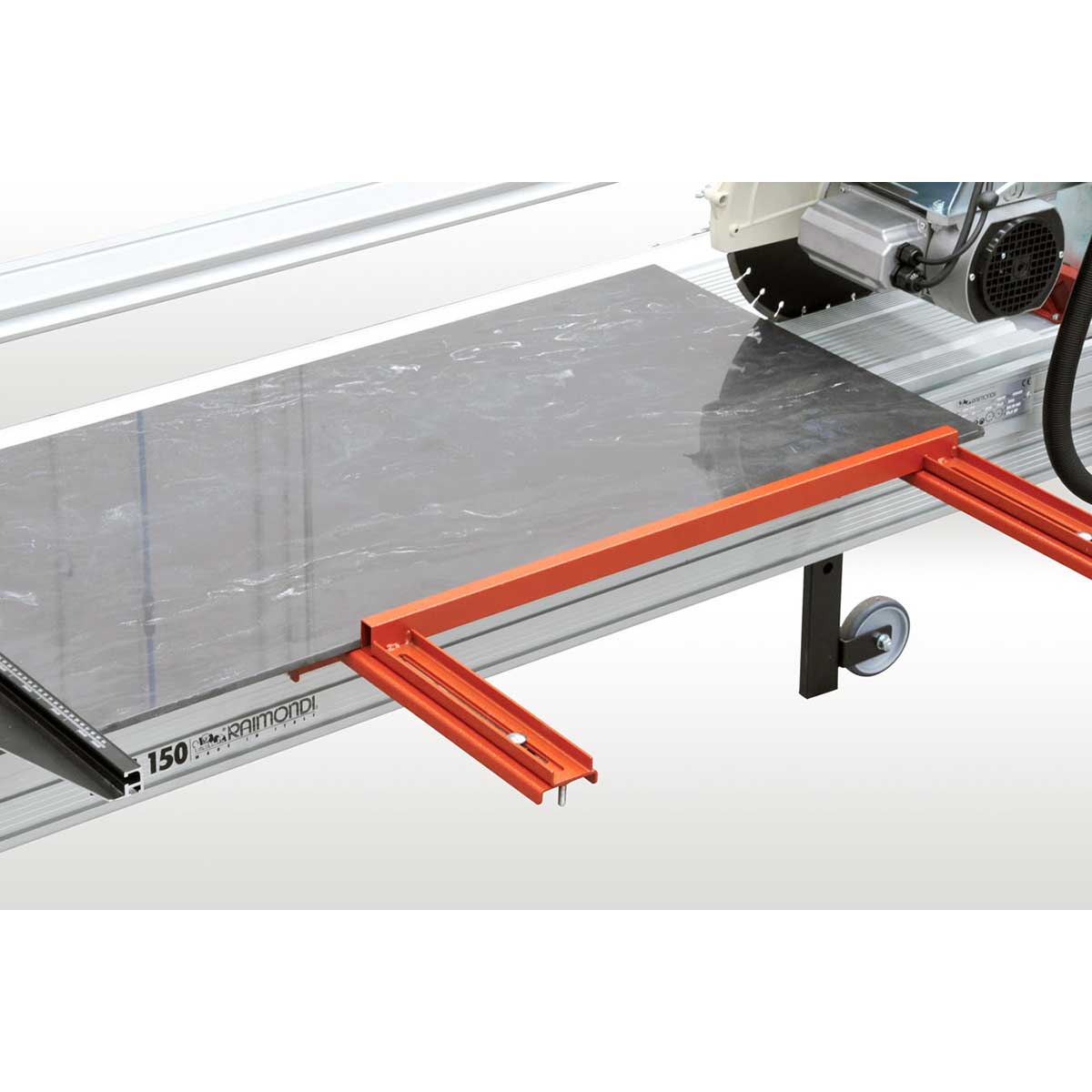

BENCH - Side extension bench with square for WSMS220, for maximum precision cuts, ideal for 45° angle cut/mitering. (Include with SMS260 only)

TRANSPORT - Just like our GLADIATOR machines, the ZIPPERS are equipped with telescopic legs with a couple of wheels for easy maneuvering and transportation around the job site.

45° TILT - Tilting movement for 45° angle cut on jolly (0°-47°)

MATERIALS - Cast and extruded aluminum framework
