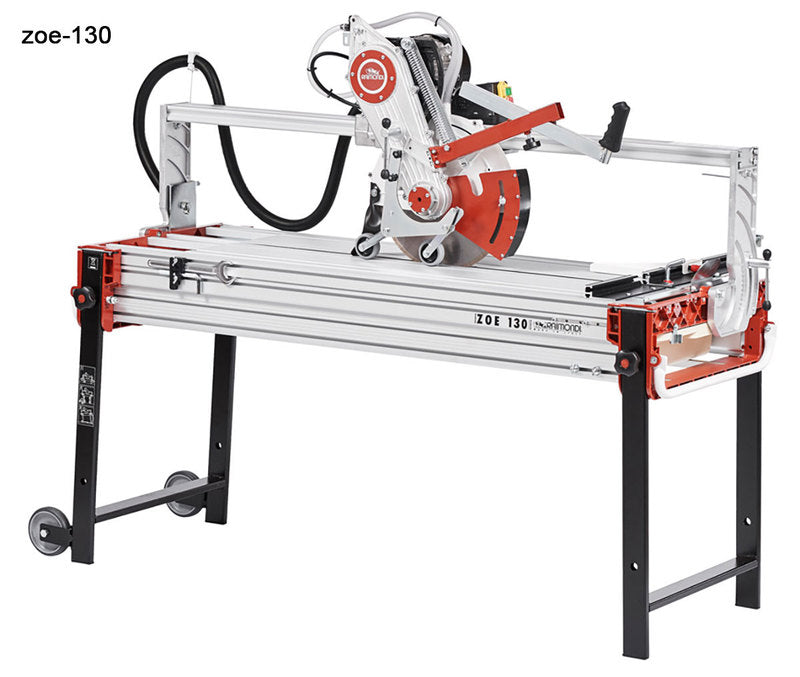

Raimondi Zipper (Zoe) Bridge Tile Wet Saw

Raimondi Zipper (Zoe) Bridge Tile Wet Saw

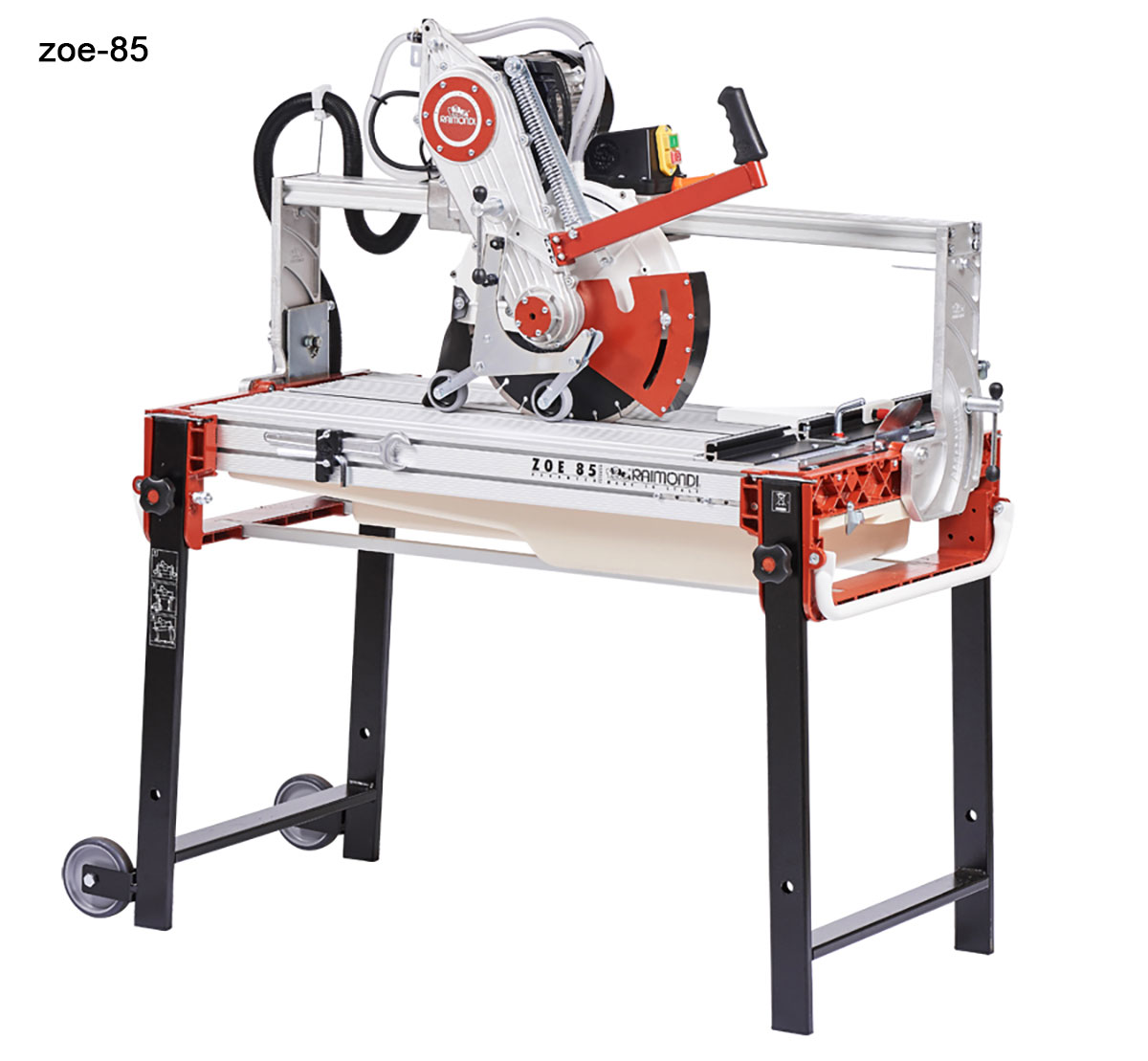

Zipper 85 (Zoe) Wet Saw 33-1/2" Rip Cut
Zipper 105 (Zoe) Wet Saw 41-3/8" Rip Cut
Zipper 130 (Zoe) Wet Saw 51 1/8" Rip Cut

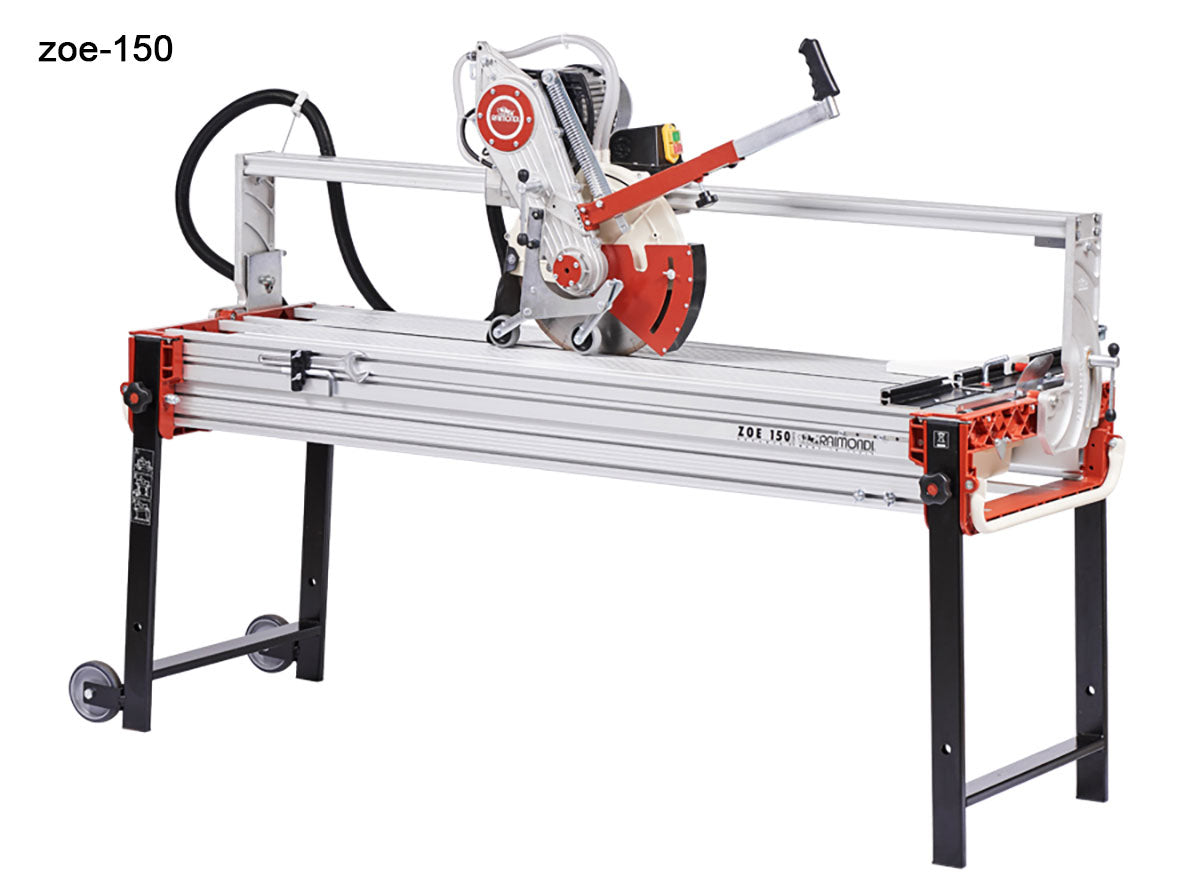

Zipper 150 (Zoe) Wet Saw 61" Rip Cut

For cutting granite, marble, porcelain, single and double fired, bricks, cement, etc…

Includes for all models

• Raimondi Zipper Tile Wet Saw Machine 110 V 60 Hz
• 14" Segmented diamond disc
• Wheels kit for easy transport
• Pressure device to hold tile
• Key and Wrench kit
• Square
• Dressing Stone
• Easy-to-remove polypropylene tank for easy cleaning. Capacity: 10 Gal.
• Heavy duty water pump and (2) jet nozzles provide superior blade cooling.

Feature for all Models;

• Motor Power / RPM (all models) 2,2 HP/1,65 kW - rpm 3360
• Maximum blade diameter (all models) Ø 14"; smallest blade diameter Ø 12".
• Blade RPM (all models) 2400
• Adjustable cutting depth.
• Maximum thickness of cut: 4 3/4” in single pass; 9 1/2" in double pass.
• Tilting motor assembly for bevel cuts from 0° to 45°.
• Belt driven system optimizes motor torque and cutting capacity.
  Gear ratio of motor to disc 1,4 ÷ 1. Drive belt type poly V.
• Cast and extruded aluminum framework.
• Easy-to-remove polypropylene tank for easy cleaning. Capacity: 38 lt (10 Gal).
• Heavy duty water pump and (2) jet nozzles provide superior blade cooling.
• Sliding motor assembly with cast aluminum housing provided with 4 re-adjustable pulleys
  (double bearings). Extruded aluminum rail.
• Re-adjustable square for long lasting precision.
• Telescopic legs provided with safety device to prevent collapsing.
• Pivoting blade guard remains parallel with tile to ensure maximum cutting depth.
• Floating blade guard remains in contact with tile to provide extra safety during operation.

TRANSPORT - Just like our GLADIATOR machines, the ZIPPERS (Zoe) are equipped with telescopic legs with a couple of wheels for easy maneuvering and transportation around the job site.

HOLDER - All ZIPPER machines have the tile holder available as an accessory.

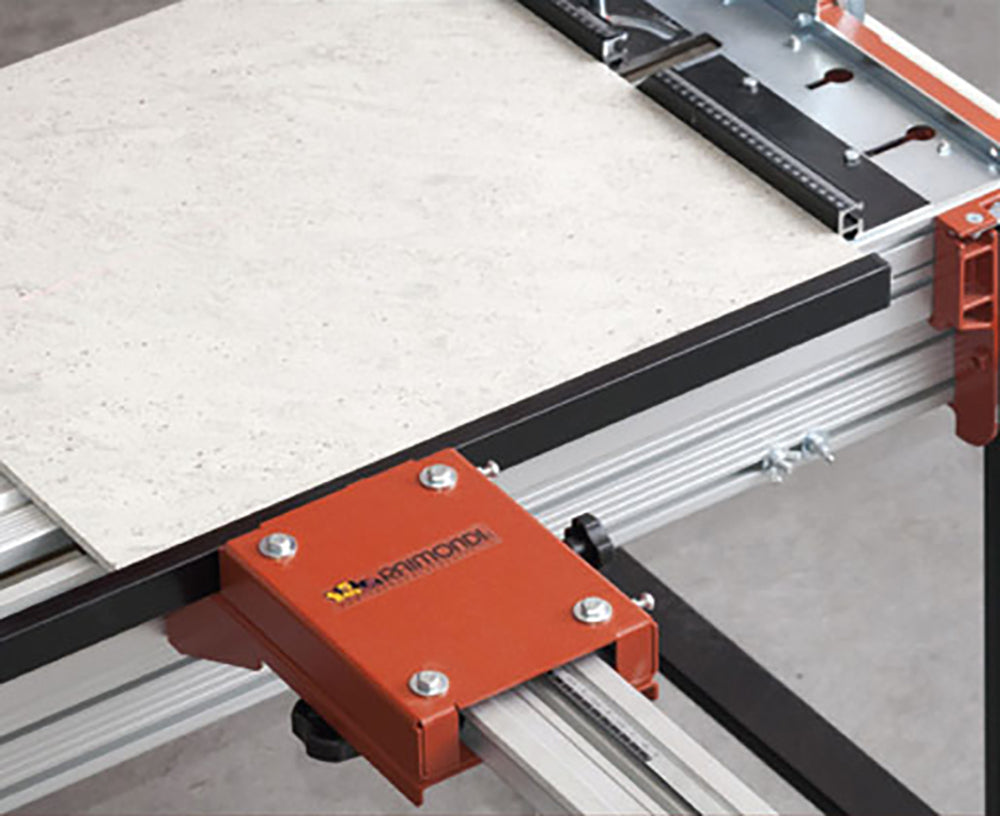

SQUARE - A square is provided with every wet saws in the Raimondi series, extra squares or replacement squares can be purchased individually. These are perfect for 45° cuts, two squares can be used for better stability.

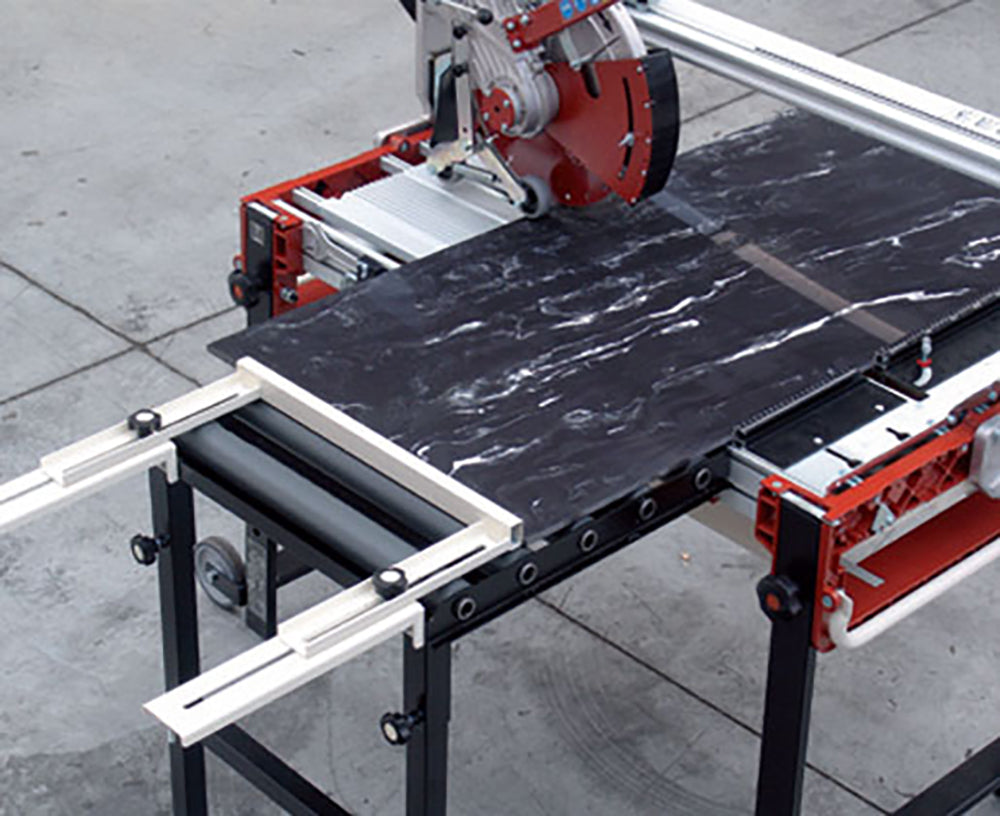

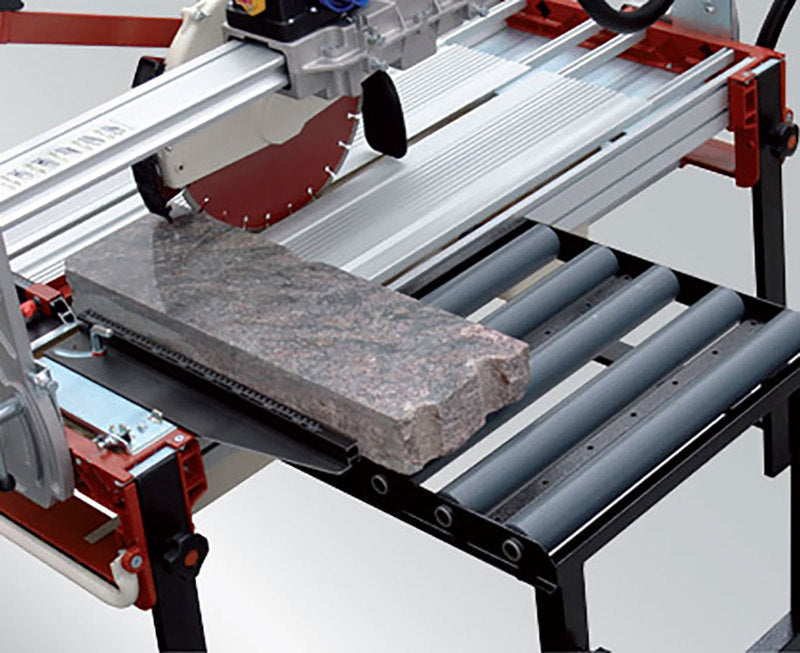

SIDE BENCH - The side bench, seen here with our extension side square 16" in length, can be used with any of our wet saws

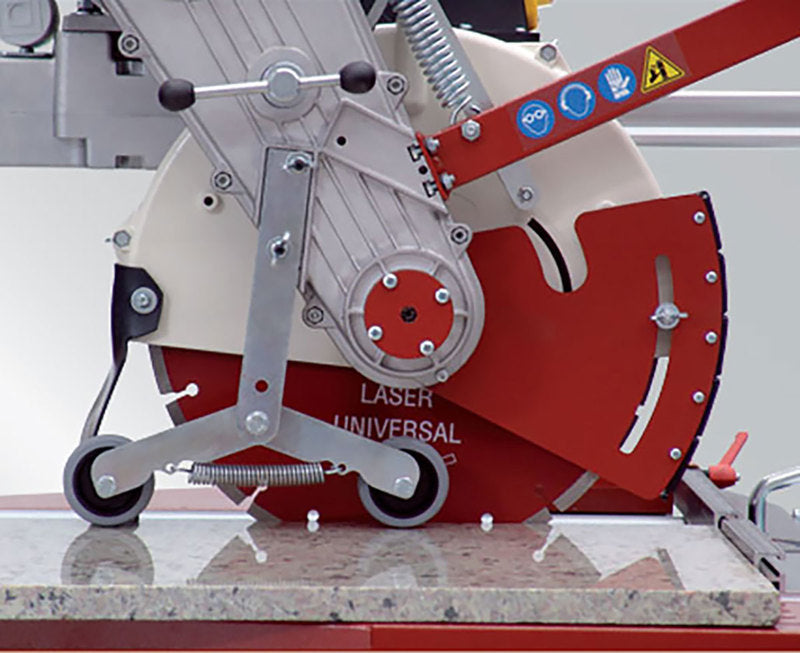

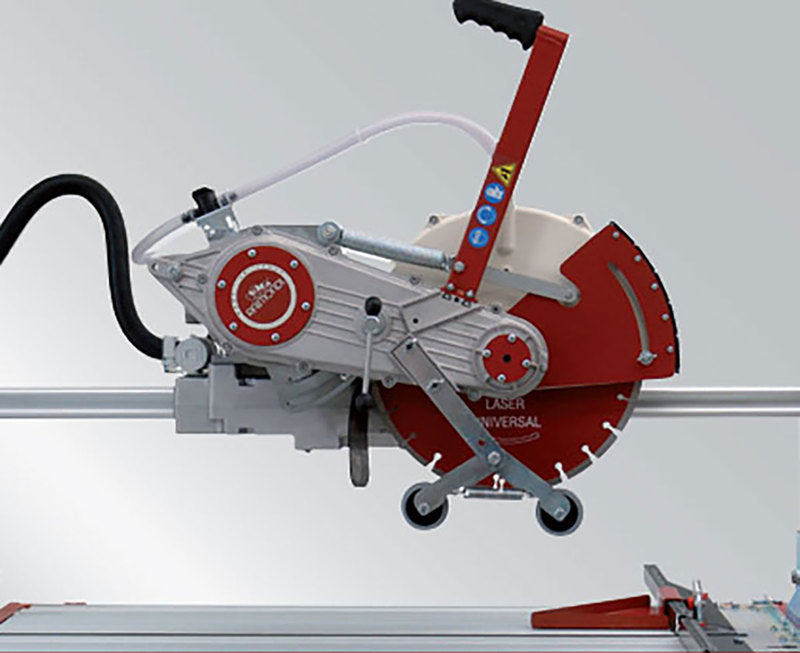

SMOOTH PLUNGE - Our ZIPPERS, with their sliding motor head and pressure sensitivity, can perform smooth plunge cuts on the materials listed above in our description.

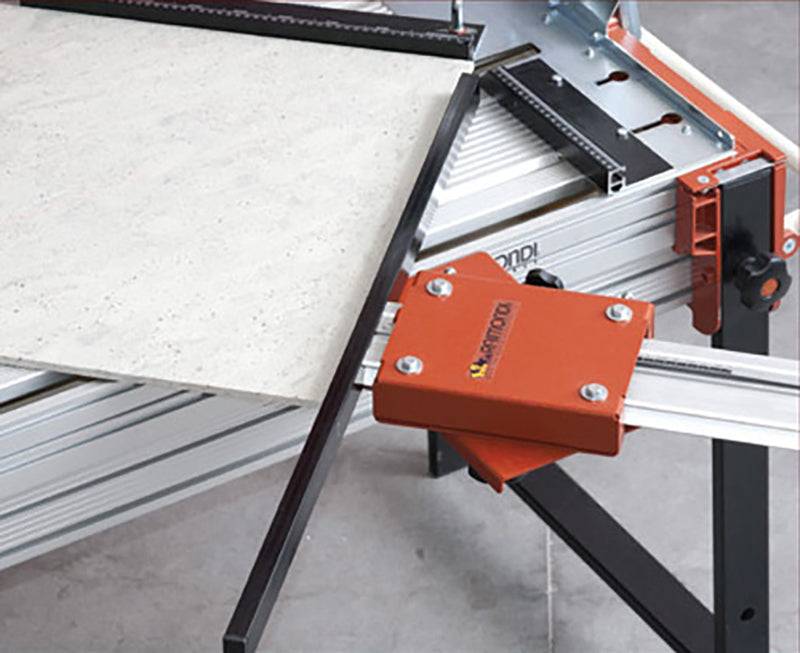

PRECISE SQUARE - Precise extension side square, 32" in length, fits onto all of our GLADIATORS and ZIPPERS.

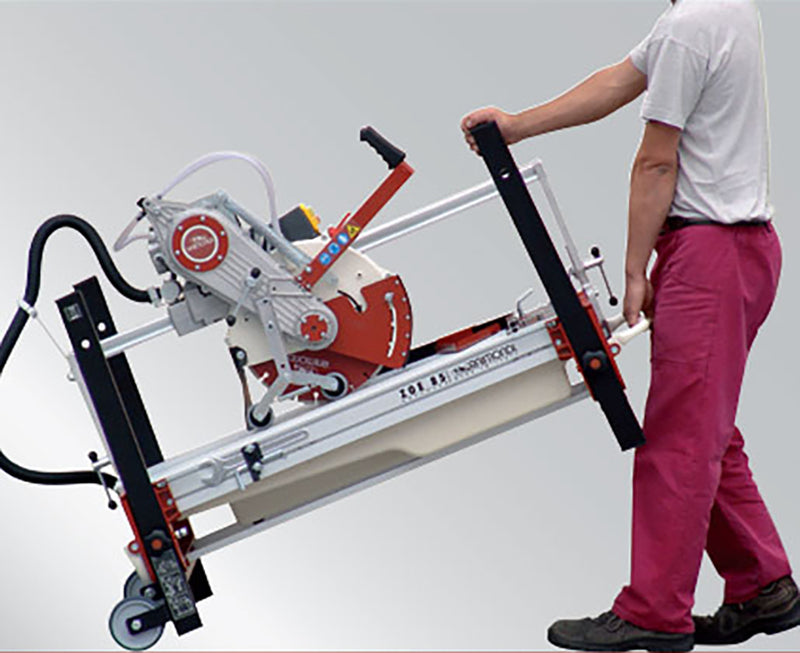

TRANSPORT - Just like our GLADIATOR machines, the ZIPPERS are equipped with telescopic legs with a couple of wheels for easy maneuvering and transportation around the job site.

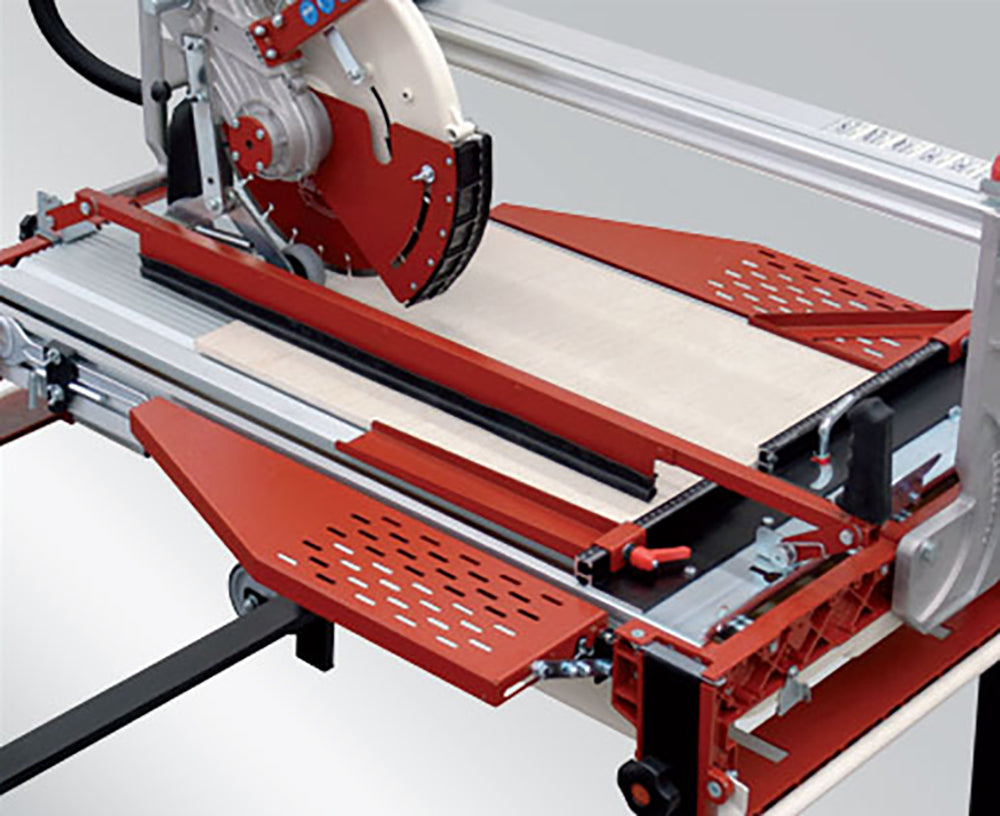

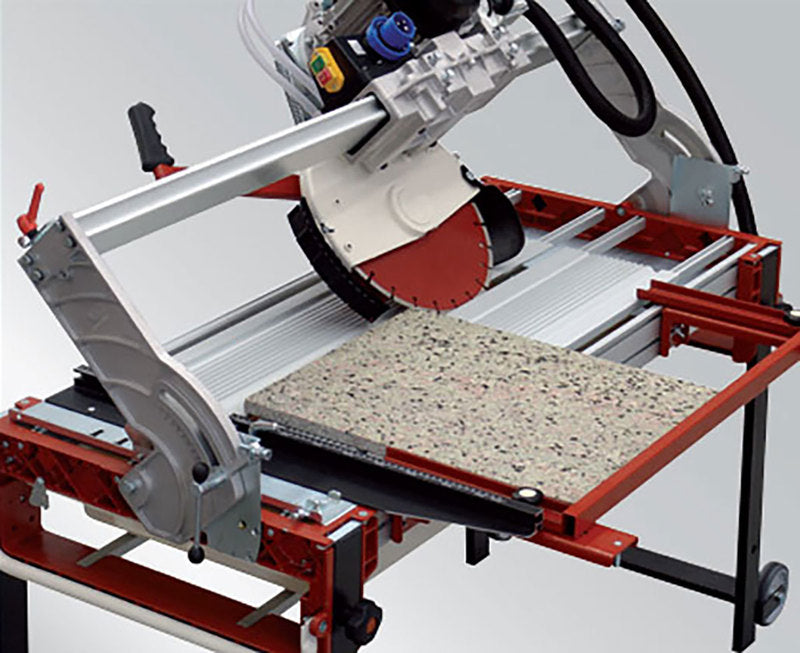

45° TILT - Tilting motor enables one to make a 45° bevel cut. The picture seen here shows the motor head tilted at a 45° angle while using the extension miter square.

MATERIALS - Cast and extruded aluminum framework

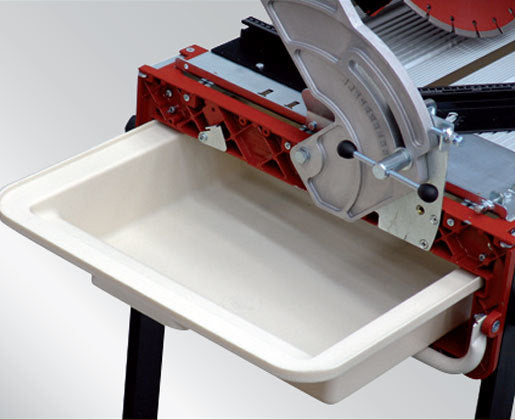

EASY CLEANING - Easy to remove polypropylene water basin (10 gal.) for easy cleaning
