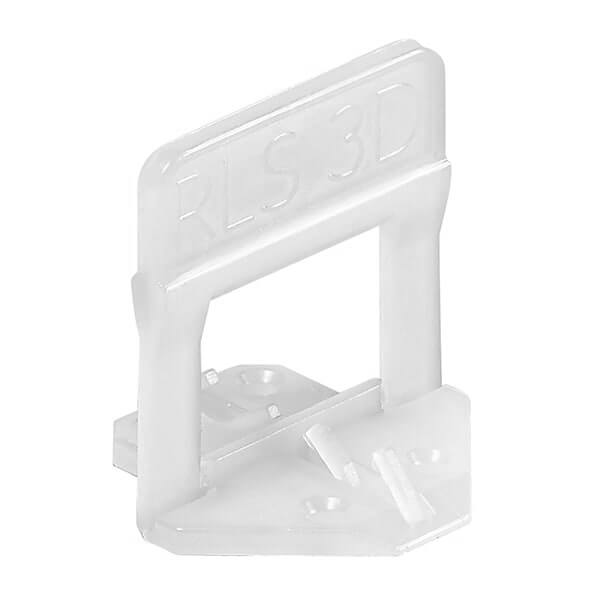

Raimondi RLS 3D Tile Leveling Spacers 1.5 mm (1/16") Clips

Raimondi Tile Leveling System 3D Spacers 1.5 mm (1/16")

Professional Raimondi RLS 3D tile leveling spacer clips designed to help eliminate tile lippage and create perfectly level tile installations.

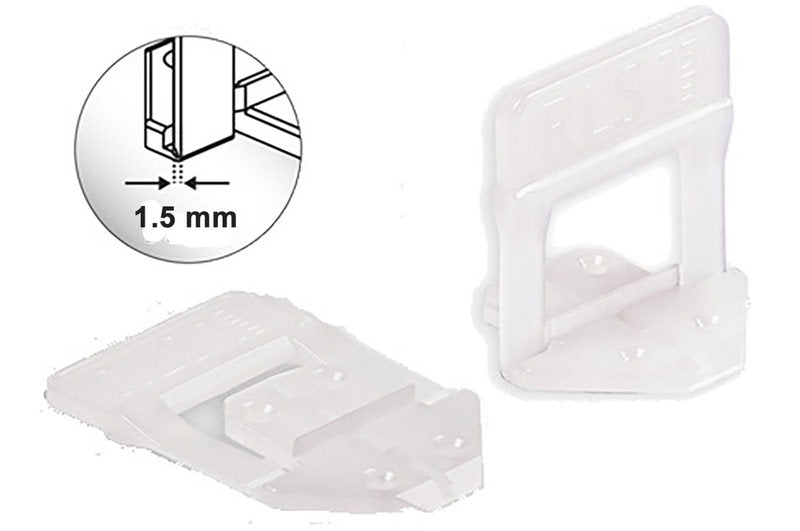

The Raimondi RLS 3D Spacer Clips feature a foldable clear clip design that arrives in a flat position and can easily be unfolded into the upright position for wedge insertion during installation.

Joint Size: 1.5 mm (1/16")

Compatible Tile Thickness: 1/8" - 1/2" (3 mm - 12 mm)

These disposable tile leveling spacer clips help maintain consistent grout joints while holding adjacent tiles firmly in place as the thin-set adhesive cures. The Raimondi RLS system helps reduce tile lippage and creates smooth, level tile surfaces on both floors and walls.

The Raimondi RLS 3D system is ideal for porcelain tile, ceramic tile, marble, granite, rectified tile, gauged tile, natural stone, and large format tile installations.

All Raimondi RLS clips feature a precision break-point design positioned close to the tile surface, allowing clean removal after installation while preserving proper grout joint spacing even with thinner tile materials.

The clips are manufactured from high-quality engineered plastic designed to provide the ideal balance between elasticity and strength for professional tile installation performance.

Key Features

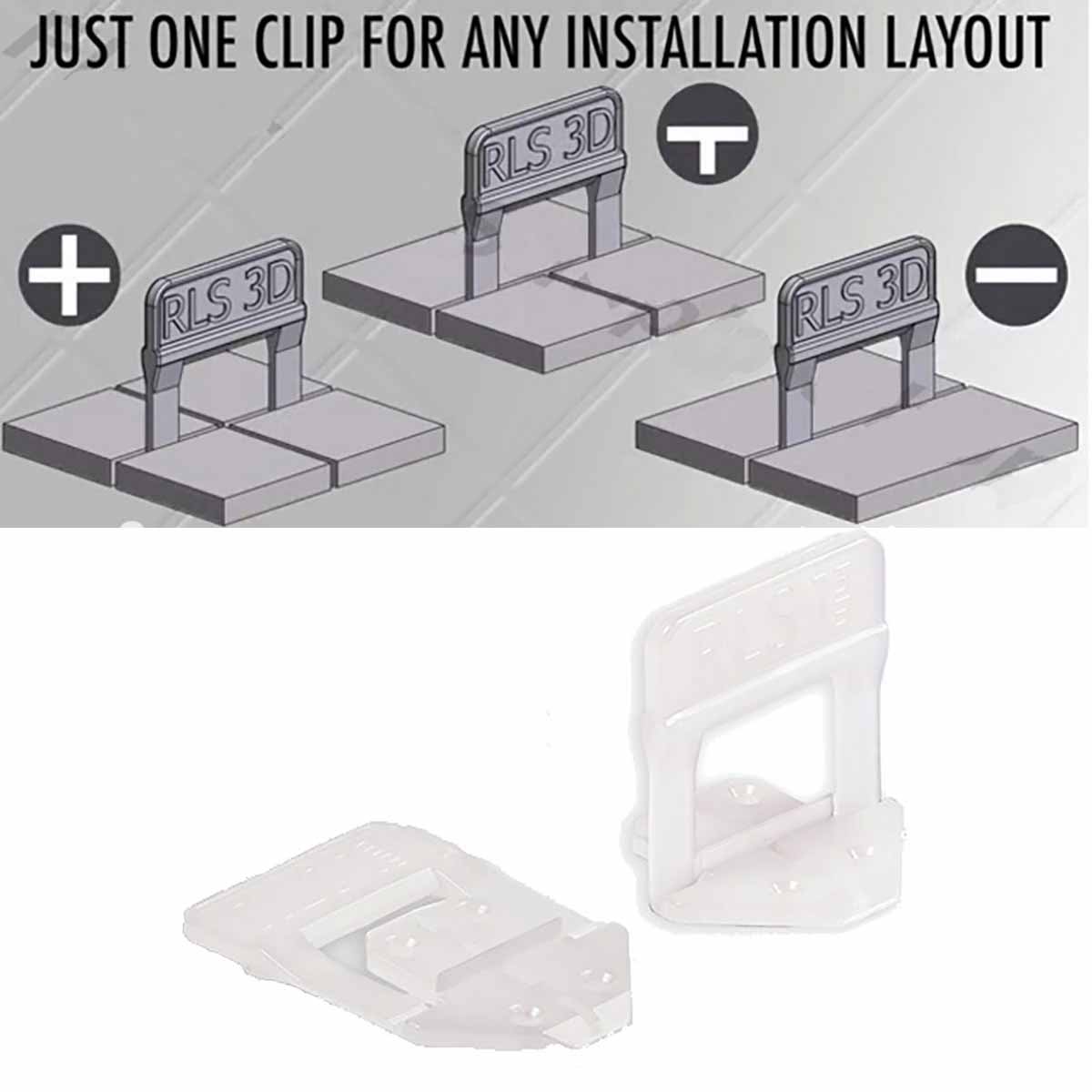

• Foldable 3D clip design allows fast and convenient installation.

• Professional tile leveling spacer clips designed to help reduce and eliminate tile lippage.

• Creates consistent 1.5 mm grout joints between adjacent tiles.

• Compatible with tile thickness from 3 mm to 12 mm.

• Break-point design allows quick and clean clip removal after installation.

• Manufactured from durable engineered plastic for optimal flexibility and strength.

• Compatible with Raimondi wedges and installation pliers.

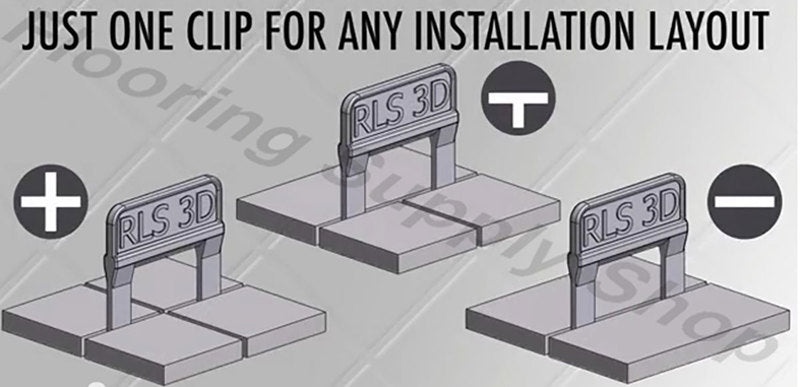

• Suitable for floor and wall tile installations.

How the Raimondi RLS 3D System Works

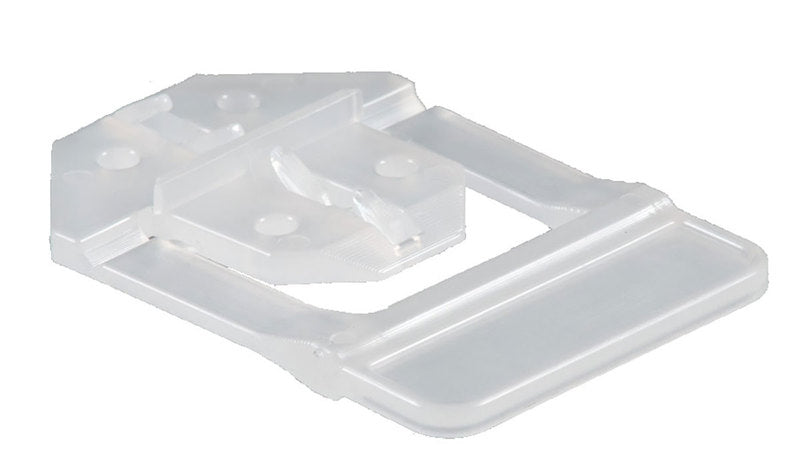

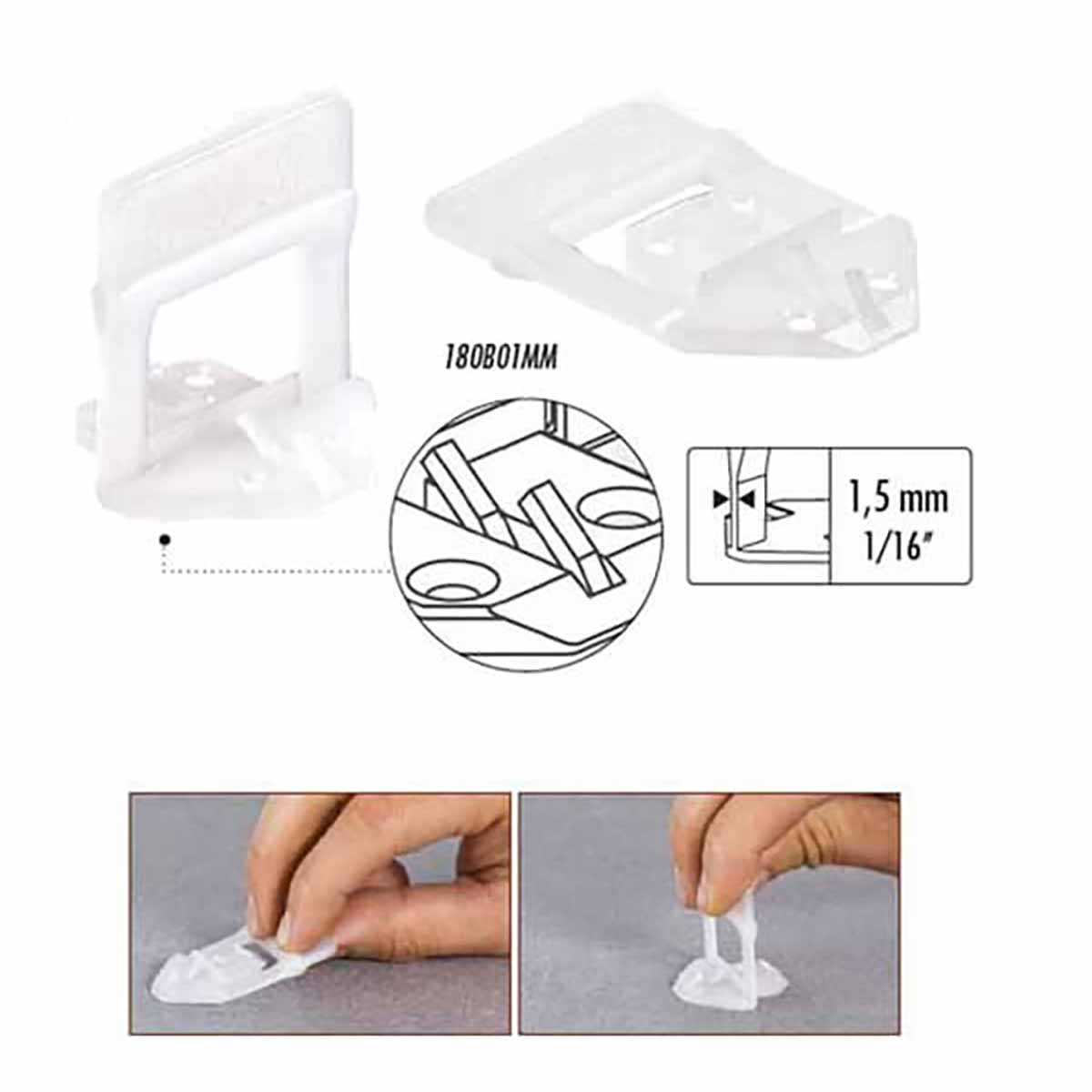

3D Clip Unfold
The clear 3D clip can easily be unfolded into the upright position using one hand before placement.

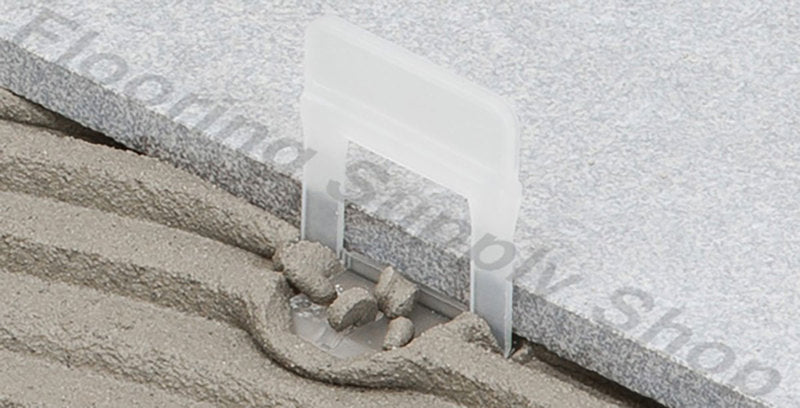

Step 1 - Insert the Clip
After spreading the adhesive, insert the leveling clip underneath the tile along all sides.

Step 2 - Position the Tile
Place the tile and gently beat it into position using a rubber mallet.

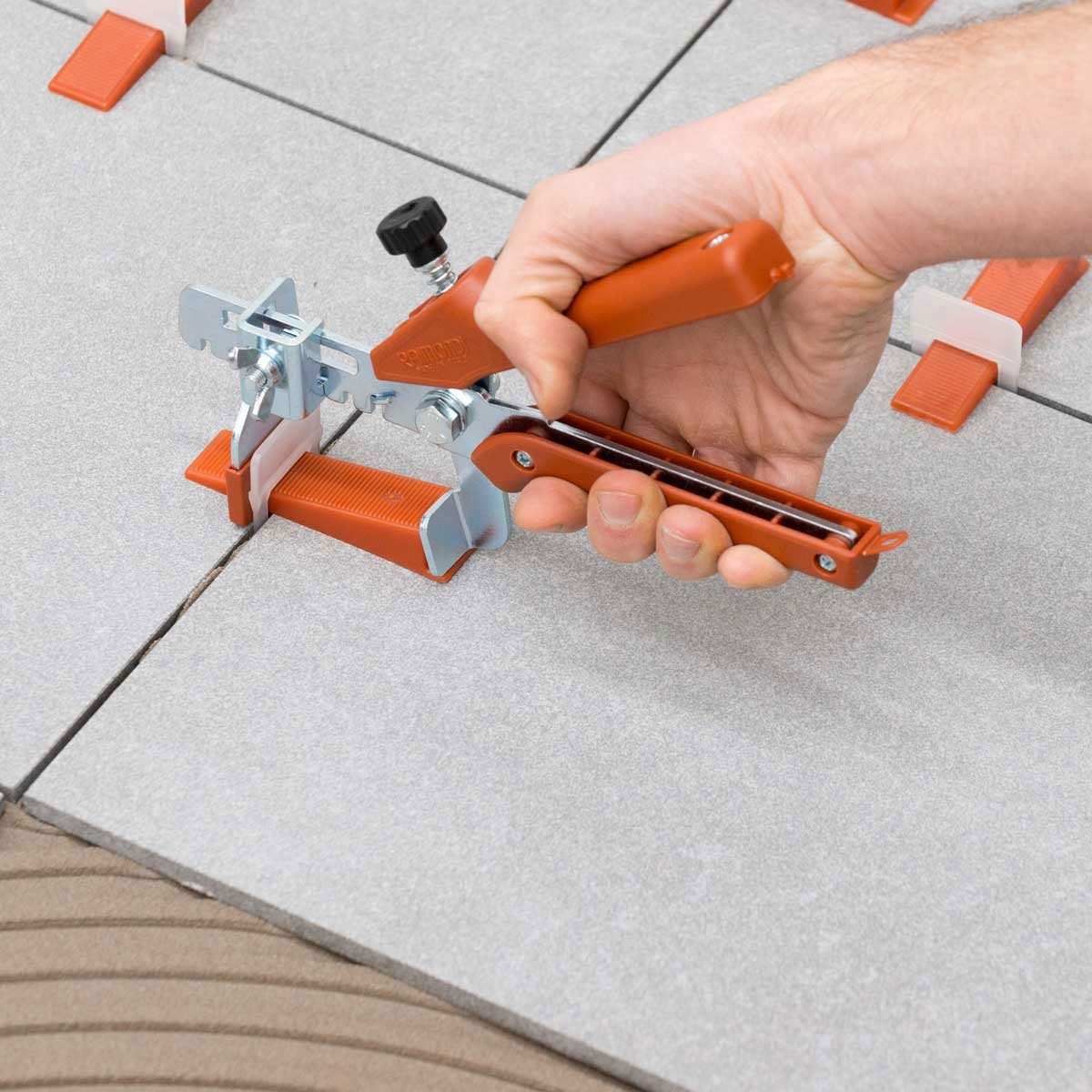

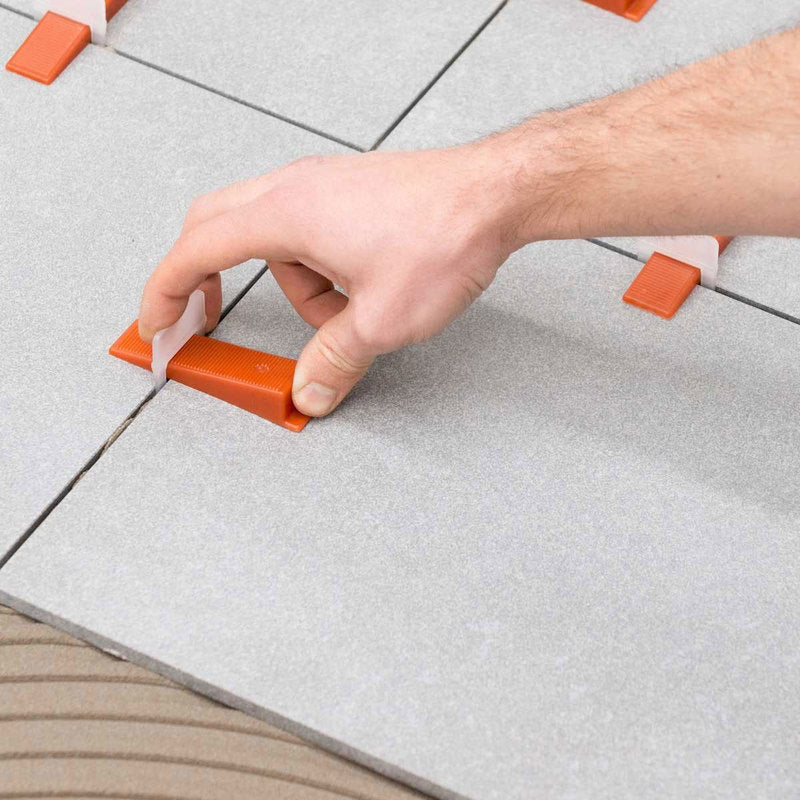

Step 3 - Insert the Wedge
Insert the wedge into the clip and tighten using Raimondi installation pliers until adjacent tiles are perfectly level.

Step 4 - Remove the Clip

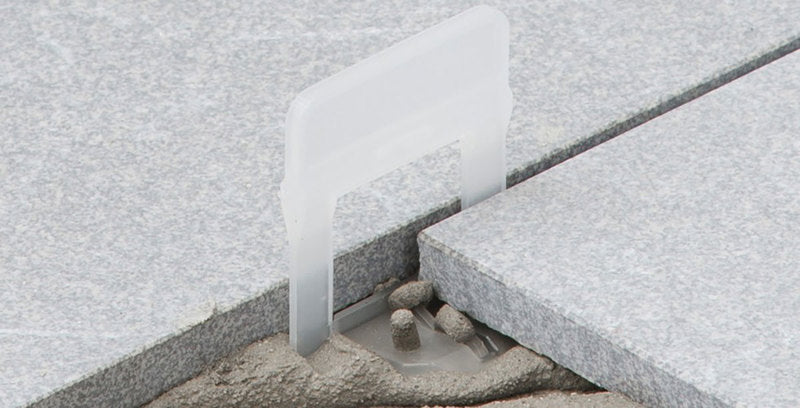

After the adhesive cures, remove the clip by tapping or kicking parallel to the grout joint. The clip breaks below the tile surface leaving the grout joint ready for grouting.

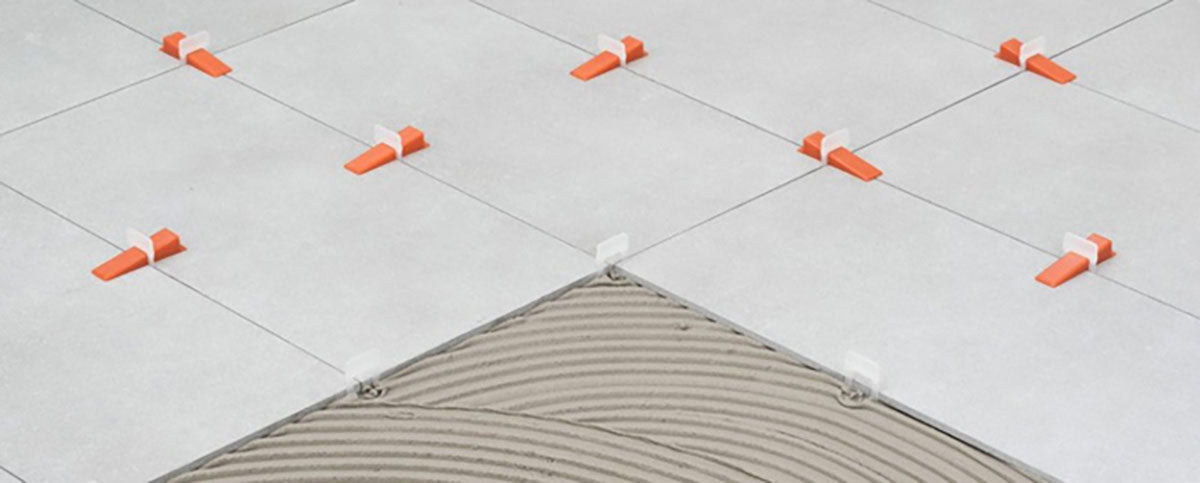

Lippage Control
As the wedge is tightened using the pliers, adjacent tile surfaces are pulled into alignment to reduce lippage.

Vertical Applications

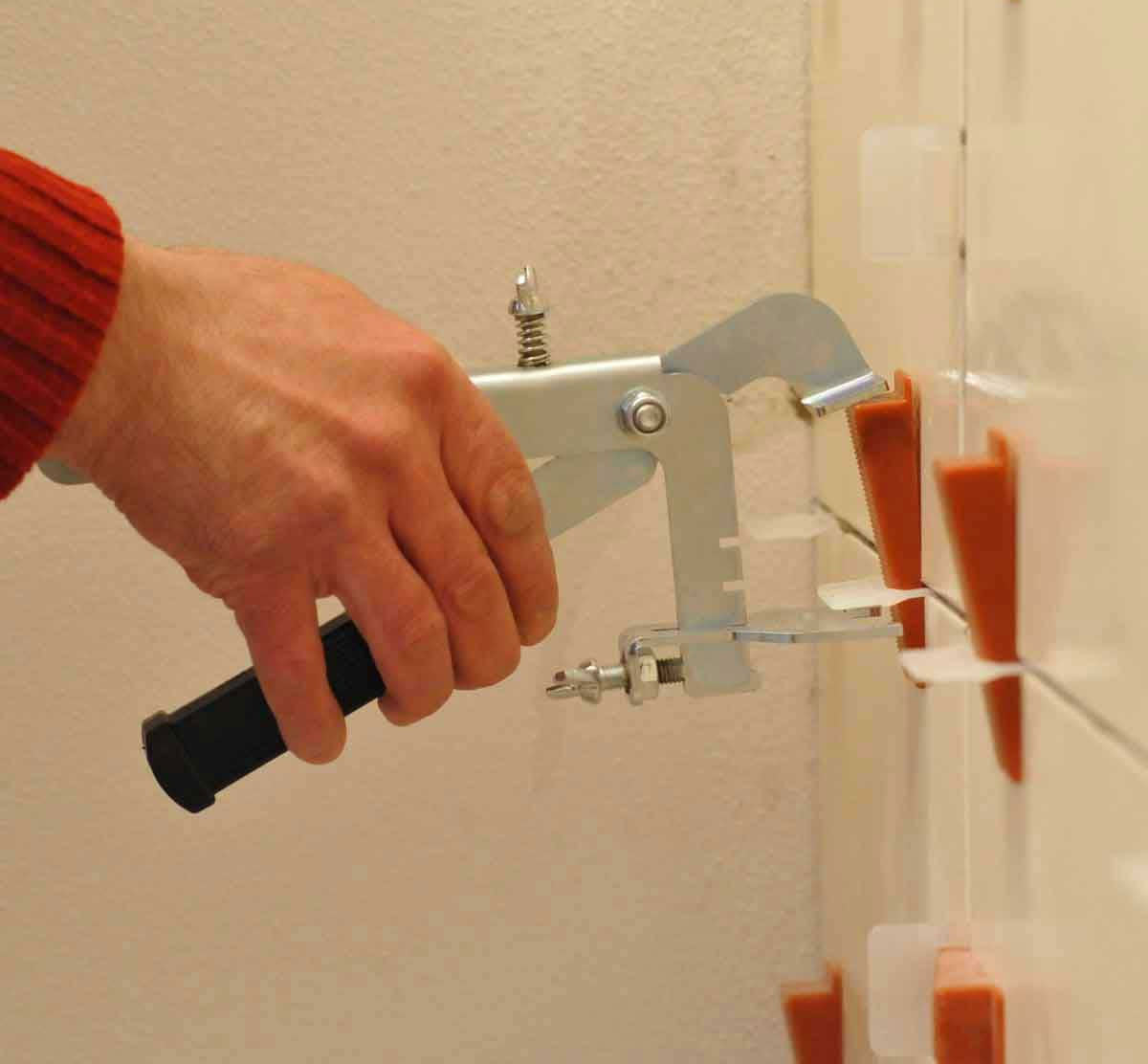

The Raimondi RLS system can also be used for walls, backsplashes, and vertical tile installations when using Raimondi wall installation pliers.

Click here for instructions and specifications
