Raimondi RLS Standard Kit 300 Tile Leveling System with Wedges, Clips & Pliers

Raimondi Tile Leveling System RLS Standard Kit - 300

Complete Raimondi RLS Standard Kit designed to help eliminate tile lippage and achieve perfectly level tile installations on floors and walls.

The Raimondi RLS Standard Kit 300 includes reusable wedges, leveling clips, and installation pliers needed for professional tile leveling during installation. The Raimondi RLS system helps maintain consistent tile height while the thin-set adhesive cures, creating flat and evenly aligned tile surfaces.

This tile leveling system is ideal for porcelain tile, ceramic tile, marble, granite, natural stone, and large format tile installations.

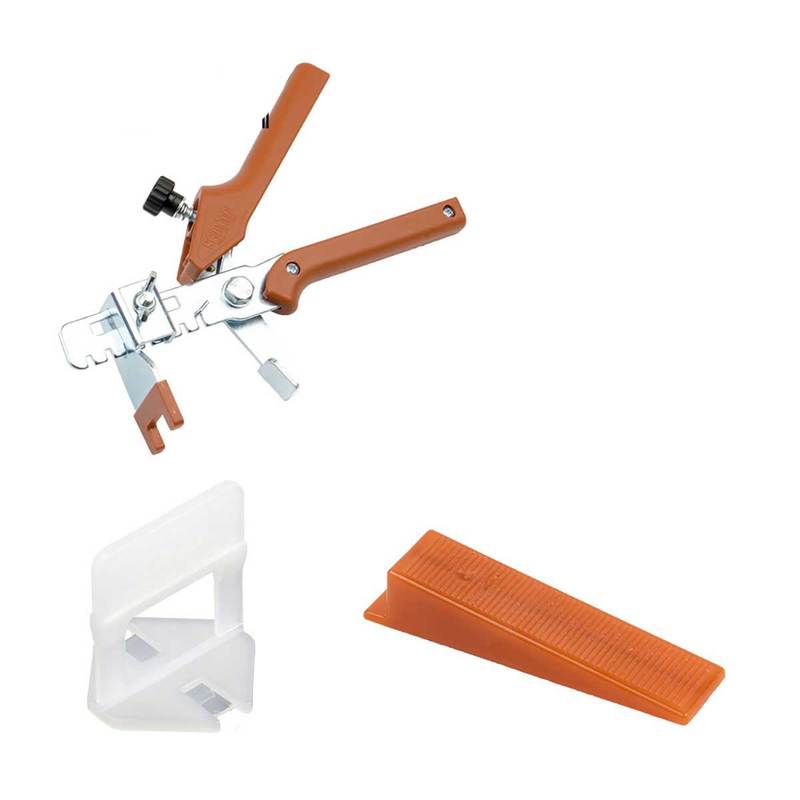

Kit Includes

• 100 Reusable Raimondi RLS Wedges
• 200 Raimondi RLS Leveling Spacer Clips

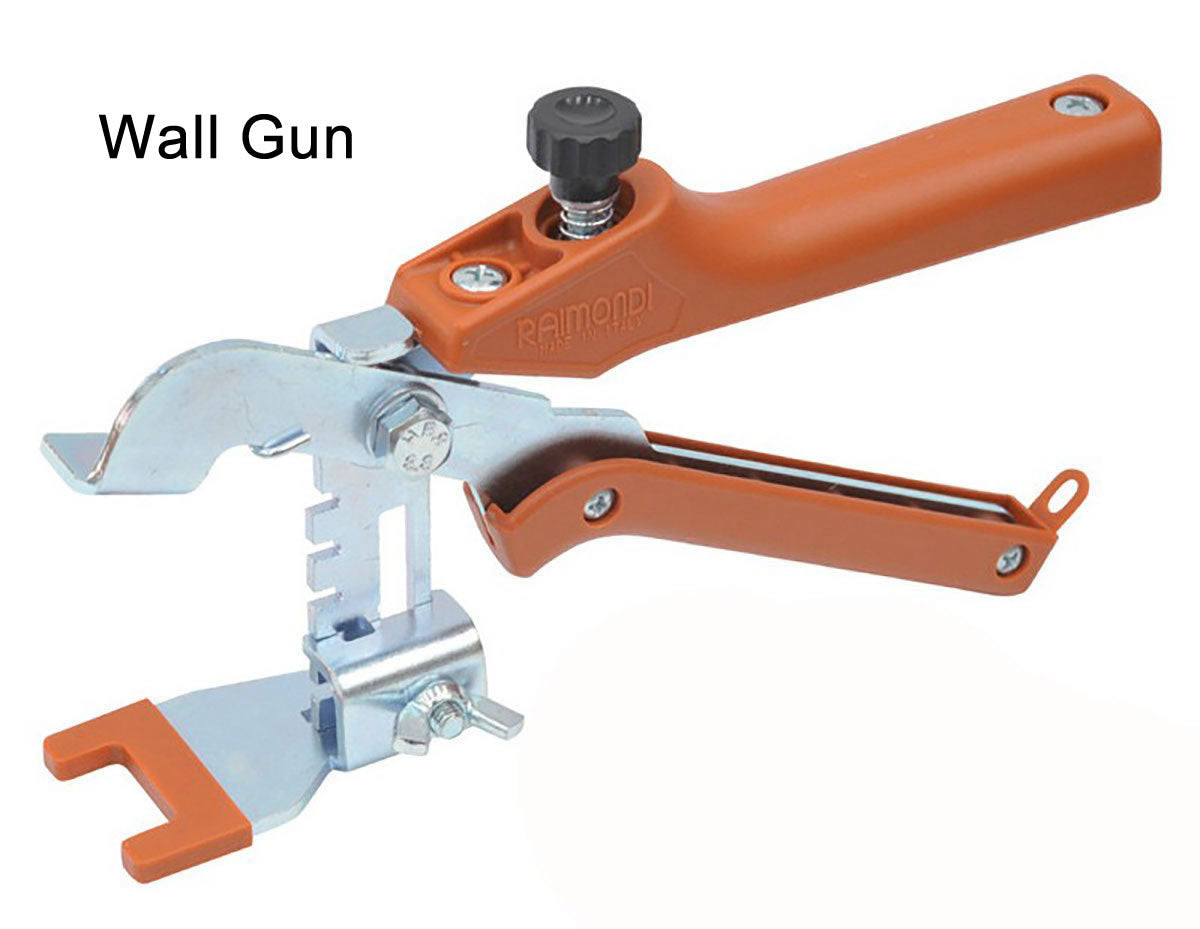

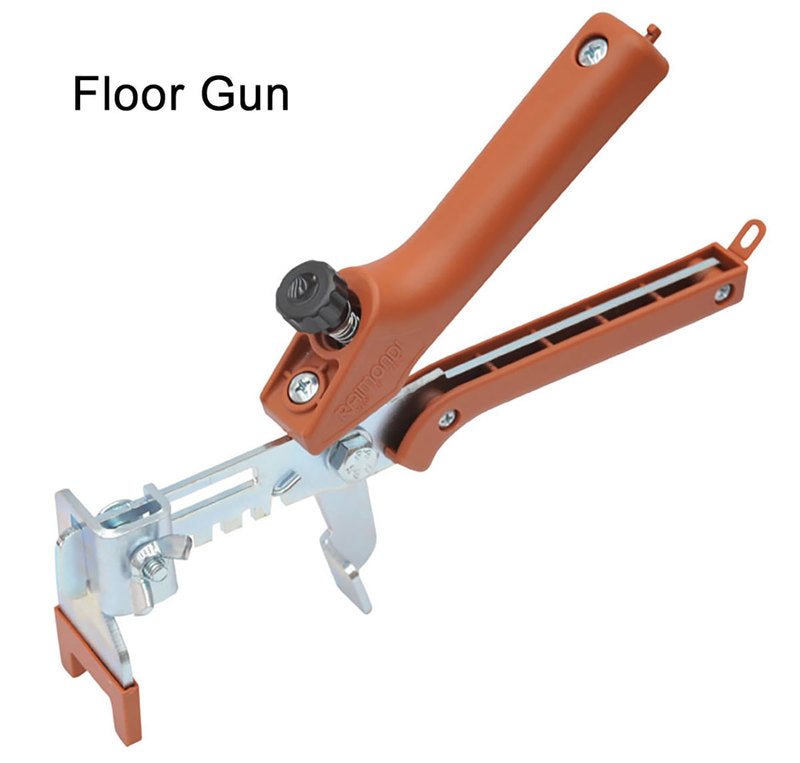

• 1 Raimondi Installation Pliers for floor or wall installation (your choice)

Available Joint Sizes

• 1/16" (1.5 mm)
• 1/8" (3 mm)

Key Features

• Helps reduce and eliminate tile lippage.
• Designed for both professional installers and DIY projects.
• Ideal for large format tile and uneven subfloors.
• Reusable wedges made from durable engineered plastic.
• Provides consistent pressure for precise tile alignment.
• Suitable for both floor and wall tile installations.
• Speeds up tile installation while improving final results.

System Specifications

• Minimum grout joint: 3/32"
• Tile thickness: minimum 1/8", maximum 1/2"

Applications

Recommended for porcelain tile, ceramic tile, marble, granite, rectified tile, gauged tile, and natural stone installations on floors, walls, showers, backsplashes, and other vertical tile applications.

How the Raimondi RLS System Works

Step 1 - Insert the Clip

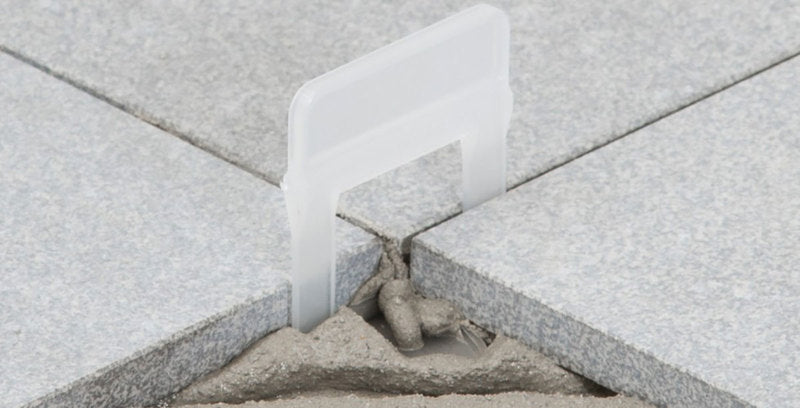

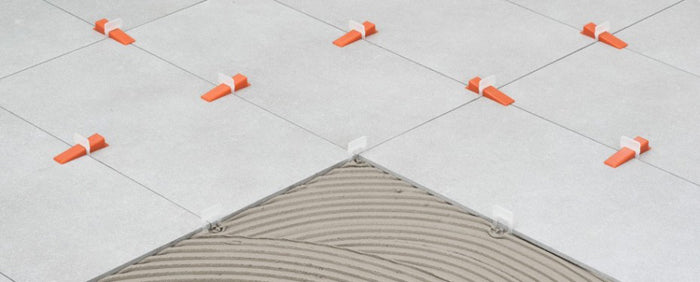

After spreading the adhesive, insert the leveling clip underneath the tile along all sides.

Step 2 - Position the Tile
Place the tile and gently beat it in using a rubber mallet.

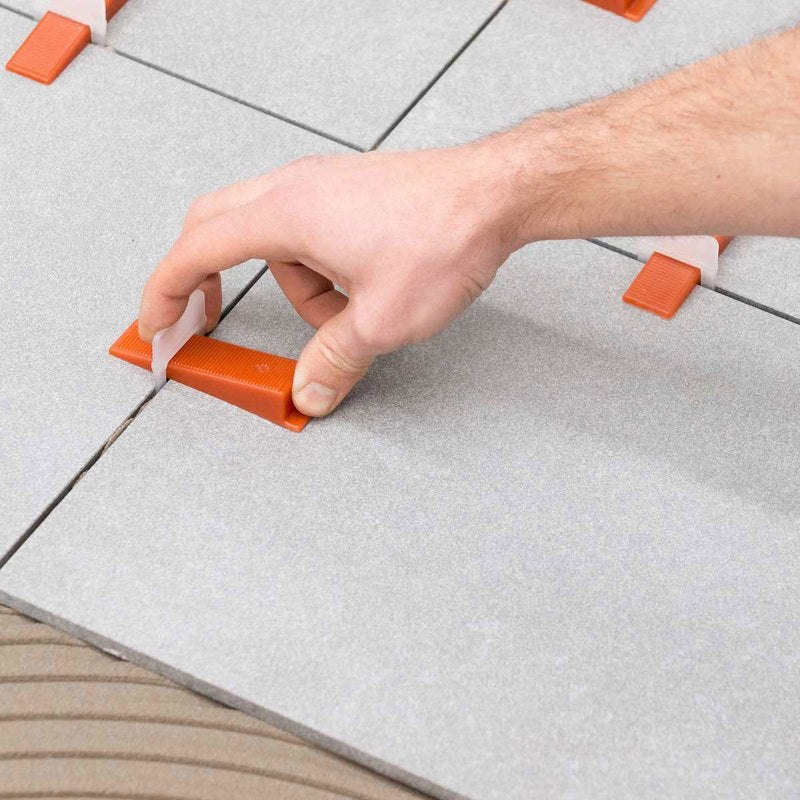

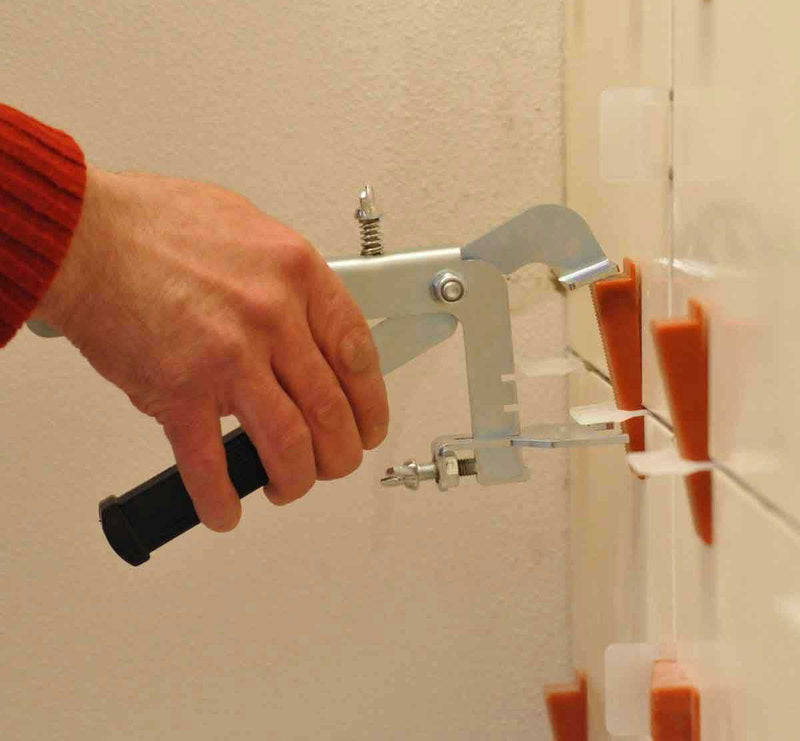

Step 3 - Insert the Wedge

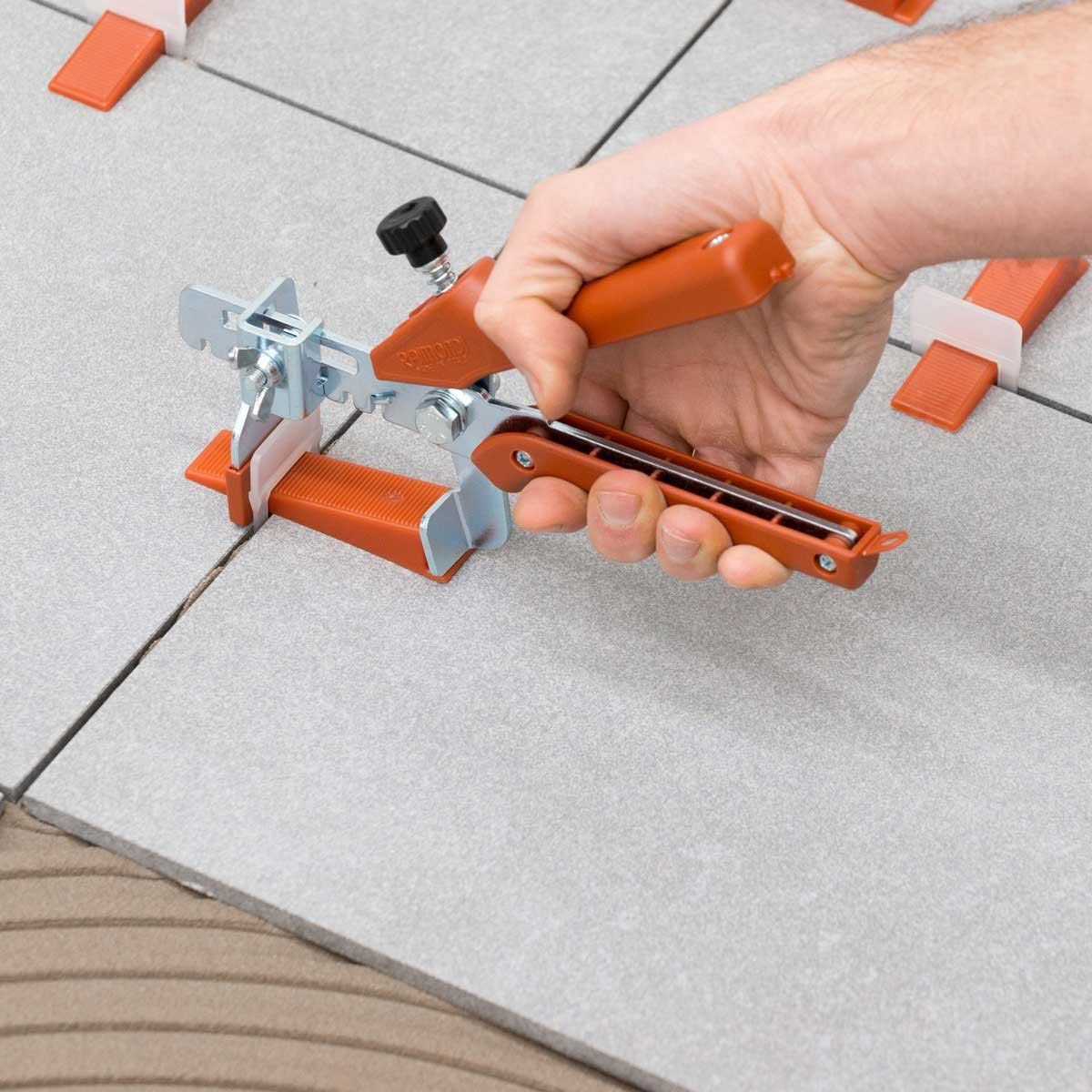

Insert the wedge into the clip and tighten using Raimondi installation pliers until adjacent tiles are perfectly level.

Step 4 - Remove the Clips

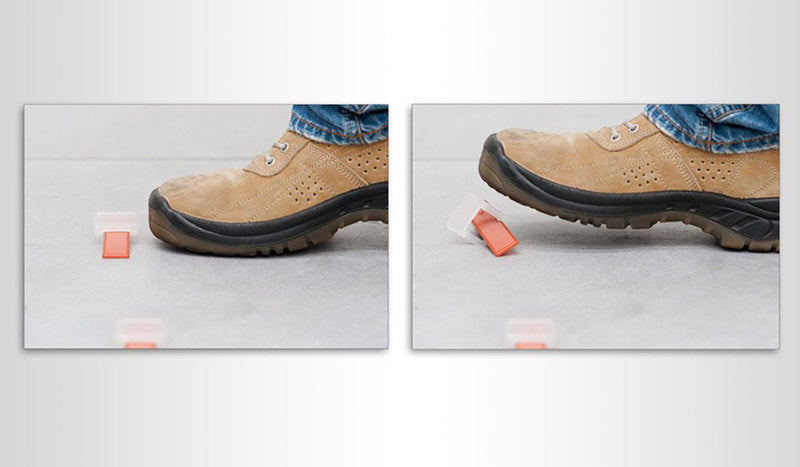

After the adhesive cures, remove the clips by tapping parallel to the grout joint using a rubber mallet, pliers, or foot pressure. The wedges are reusable for future installations.
