Raimondi RLS Tile Leveling System Clips 1 mm (1/32") Tile Spacers

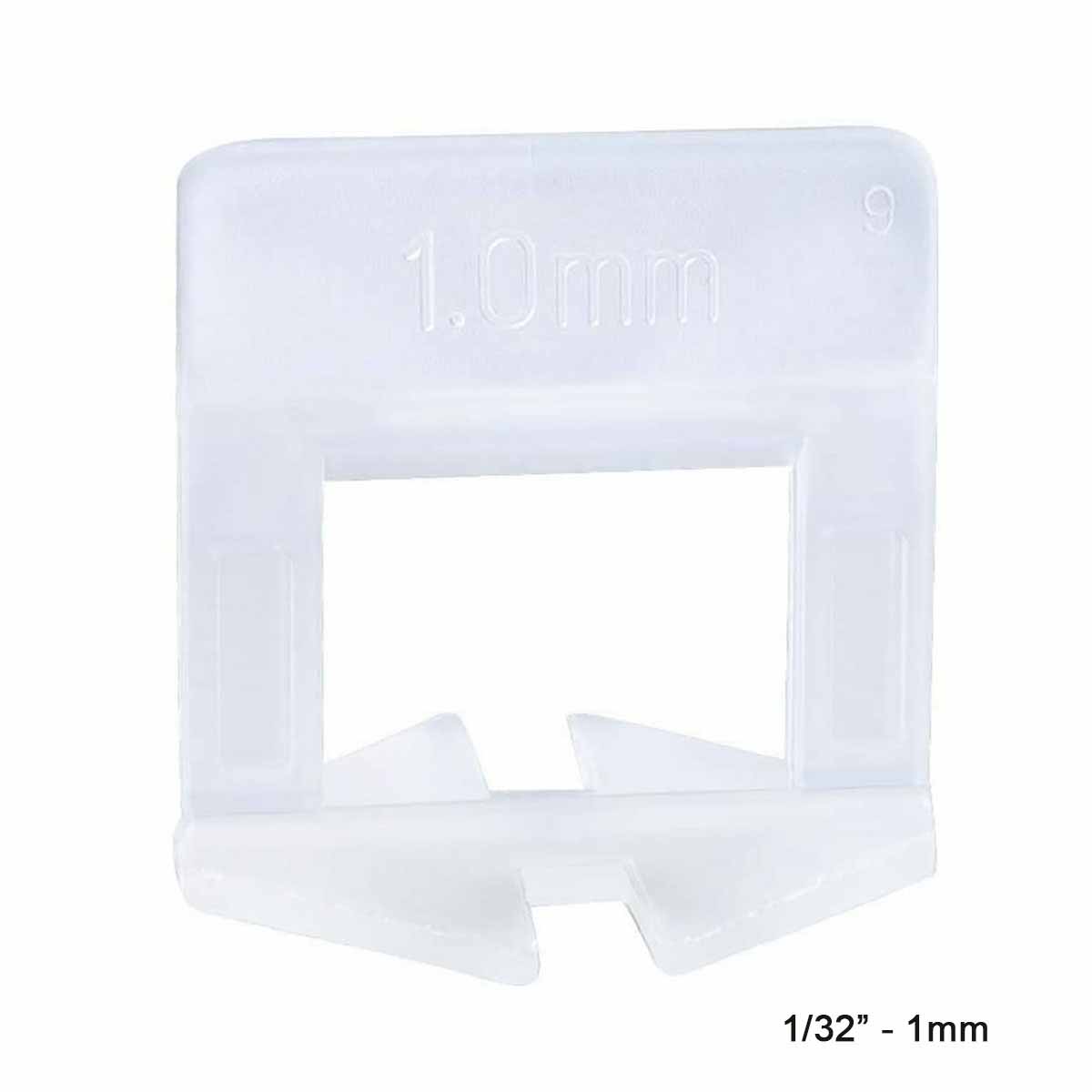

Raimondi Tile Leveling System RLS Clips - 1 mm (1/32") Tile Spacers

Professional Raimondi tile leveling clips designed to help eliminate tile lippage and create perfectly level tile installations.

Joint Size: 1 mm (1/32")

Compatible Tile Thickness: 1/8" - 1/2" (3 mm - 12 mm)

The Raimondi RLS Tile Leveling System Clips help maintain perfectly aligned tile surfaces while the thin-set adhesive cures. These disposable spacer clips create consistent grout joints and help reduce tile lippage during installation.

The Raimondi RLS system is ideal for porcelain tile, ceramic tile, marble, granite, rectified tile, gauged tile, natural stone, and large format tile installations on floors and walls.

These professional tile leveling clips are especially useful when working with thinner tiles, large format tiles, or uneven substrates where maintaining precise tile alignment is critical.

All Raimondi RLS clips feature a precision break-point design positioned close to the tile surface, allowing quick and clean removal after installation while maintaining proper grout joint spacing.

The clips are manufactured from high-quality engineered plastic designed to provide the ideal balance between elasticity and strength for professional tile installation performance.

Key Features

• Professional tile leveling clips designed to help reduce and eliminate tile lippage.

• Creates consistent 1 mm grout joints between adjacent tiles.

• Compatible with tile thickness from 3 mm to 12 mm.

• Break-point design allows fast and clean clip removal after installation.

• Manufactured from durable engineered plastic for optimal elasticity and strength.

• Compatible with Raimondi wedges and installation pliers.

• Suitable for floor and wall tile installations.

Applications

Recommended for porcelain tile, ceramic tile, marble, granite, rectified tile, gauged tile, and natural stone installations on floors, walls, showers, backsplashes, and vertical tile applications.

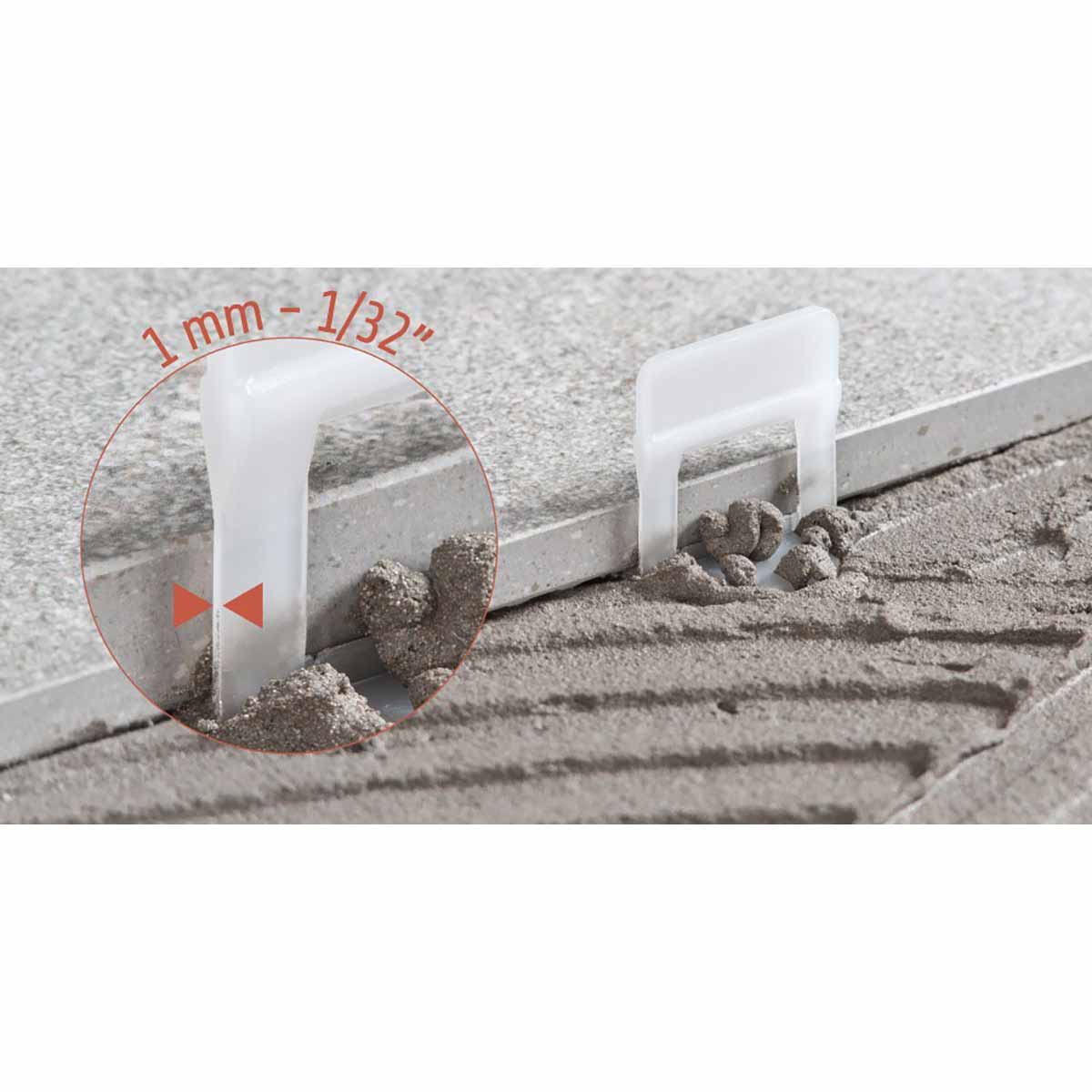

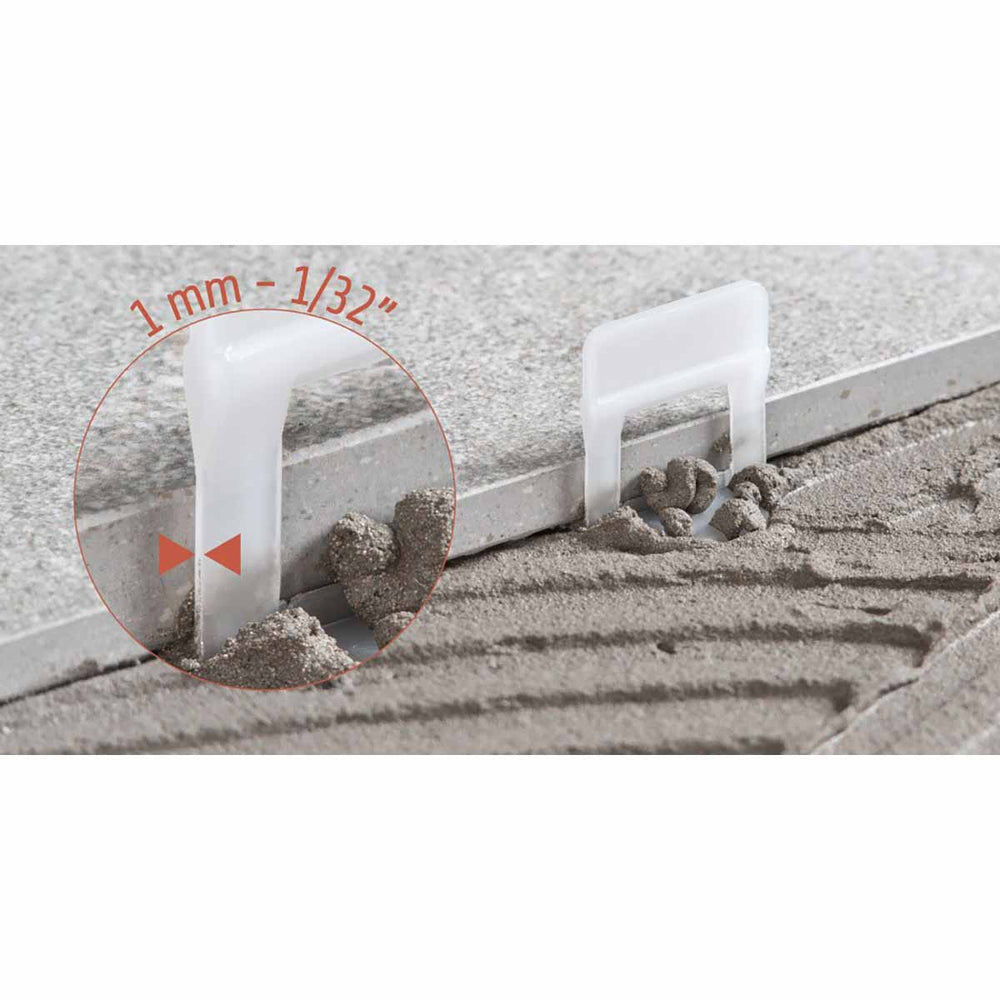

How the Raimondi RLS System Works

Step 1 - Insert the Clip
After spreading the adhesive, insert the leveling clip underneath the tile along the edges.

Step 2 - Insert the Wedge
Insert the wedge into the clip and tighten using Raimondi installation pliers until adjacent tiles are perfectly level.

Step 3 - Remove the Clip
After the adhesive cures, remove the clip by tapping or kicking parallel to the grout joint. The clip breaks below the tile surface leaving the grout joint ready for grouting.

Click here for instructions and specifications

Watch Raimondi Tile Leveling System Videos
