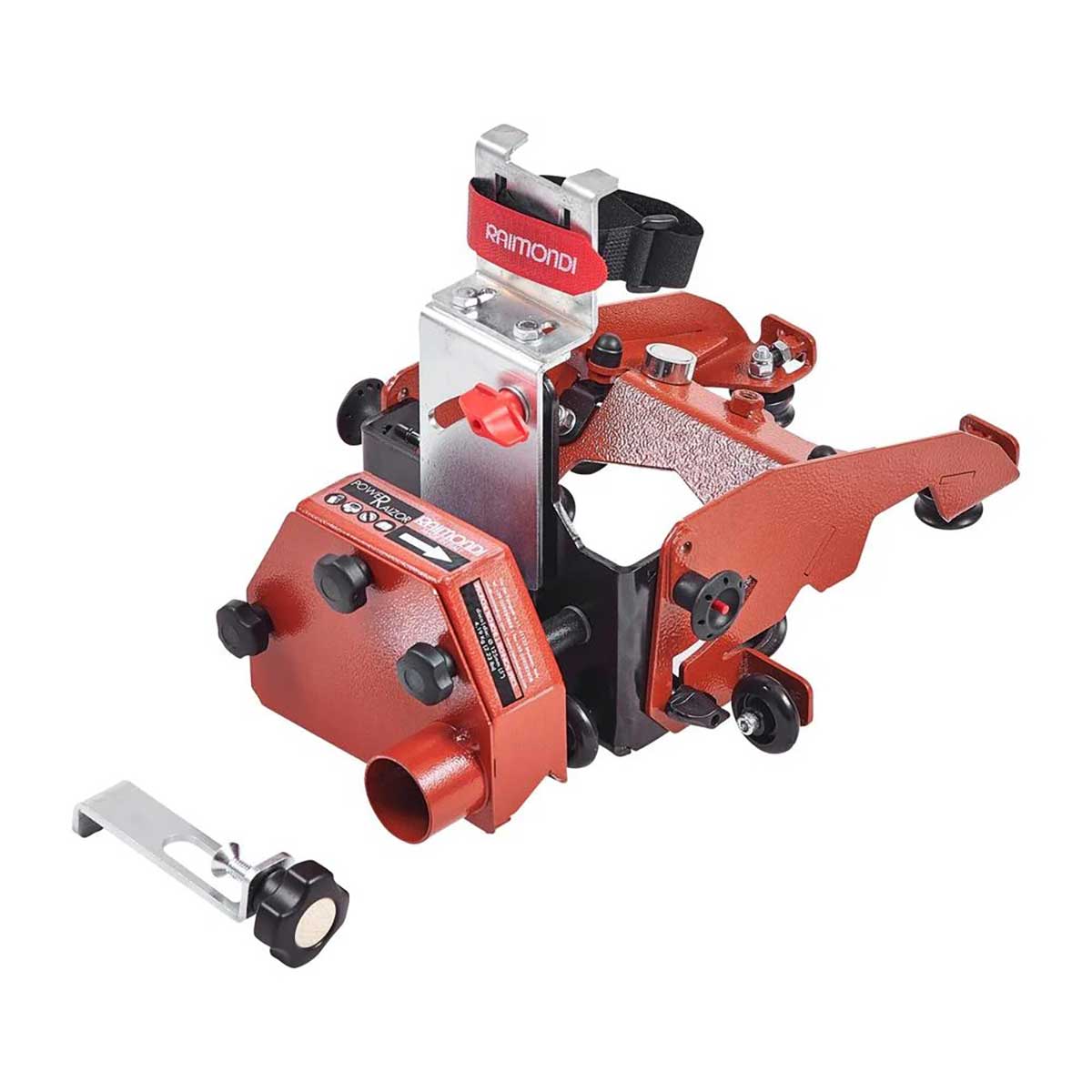

Raimondi POWER RAIZOR MkII Cutting Unit with 5" Variable-Speed Angle Grinder

Raimondi POWER RAIZOR MkII Cutting Unit with 5" Variable-Speed Angle Grinder

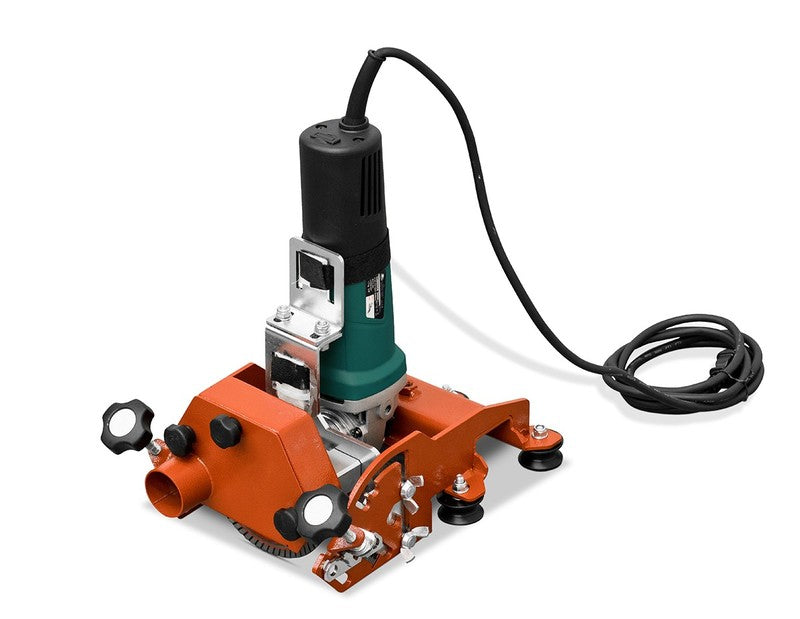

Includes: POWER RAIZOR MkII Cutting Unit, 125 mm (5") Turbo Diamond Blade, and 5" Variable-Speed Angle Grinder.

The Raimondi POWER RAIZOR MkII with Angle Grinder Package provides a complete cutting solution for professional installers working with large format porcelain panels and slabs. Designed exclusively for use with the RAIZOR MkII rail cutting system, this package combines the precision of the POWER RAIZOR MkII cutting unit with a powerful 5" variable-speed angle grinder for accurate straight cuts, miter cuts, and intermediate-angle cuts.

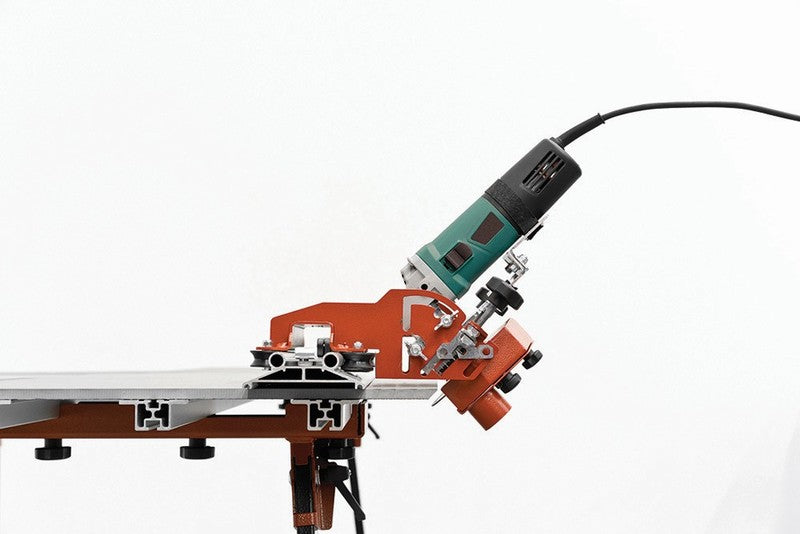

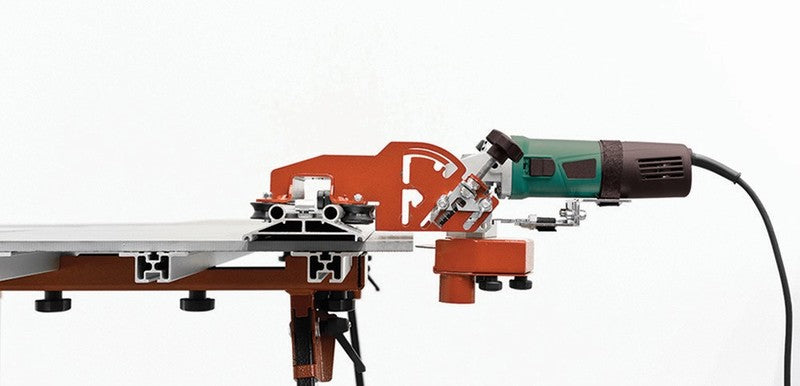

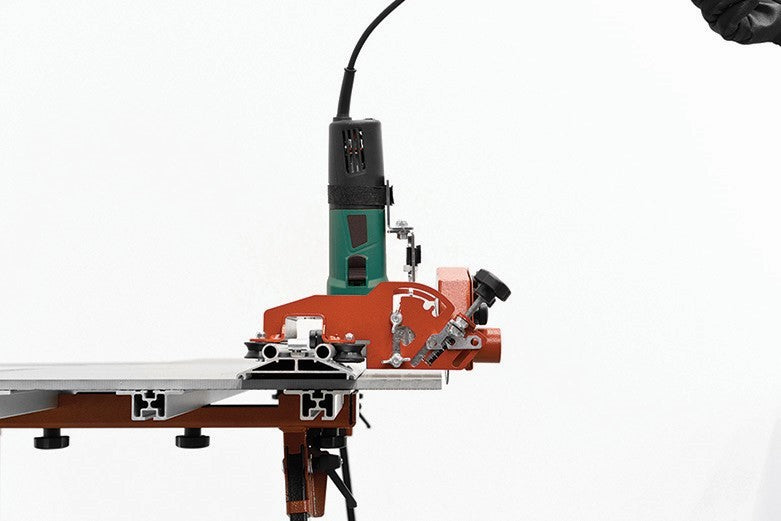

Designed for professional tile installers and fabricators, the POWER RAIZOR MkII performs precise 90° straight cuts, 45° miter cuts (actual angle 47°), and all intermediate angles between them. The plunge-cut feature allows adjustable cutting depth for square and rectangular openings directly within the tile.

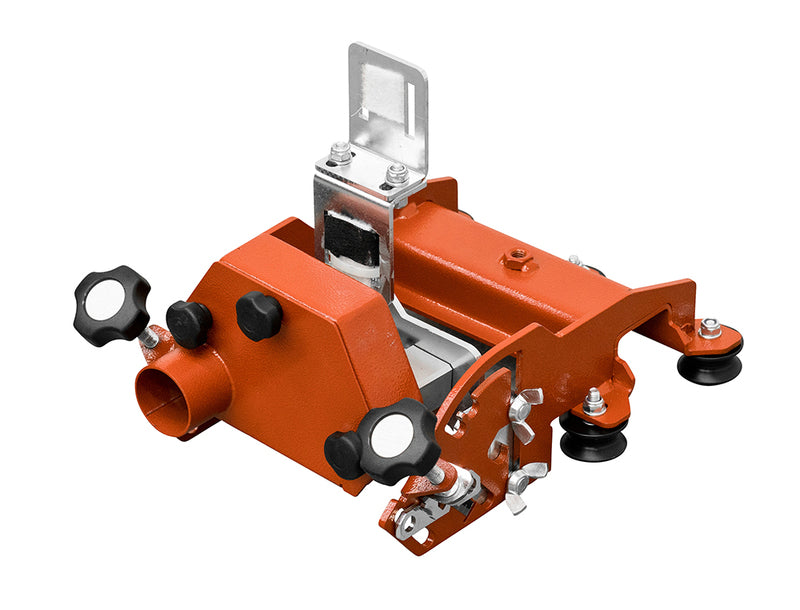

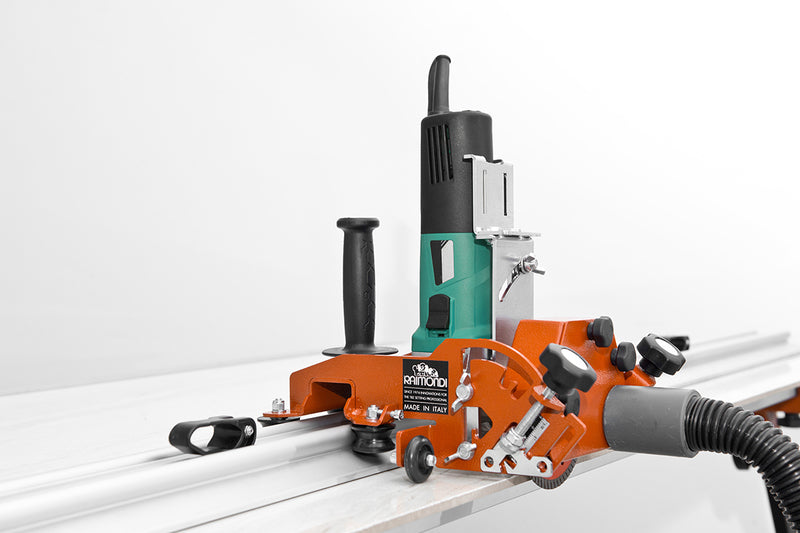

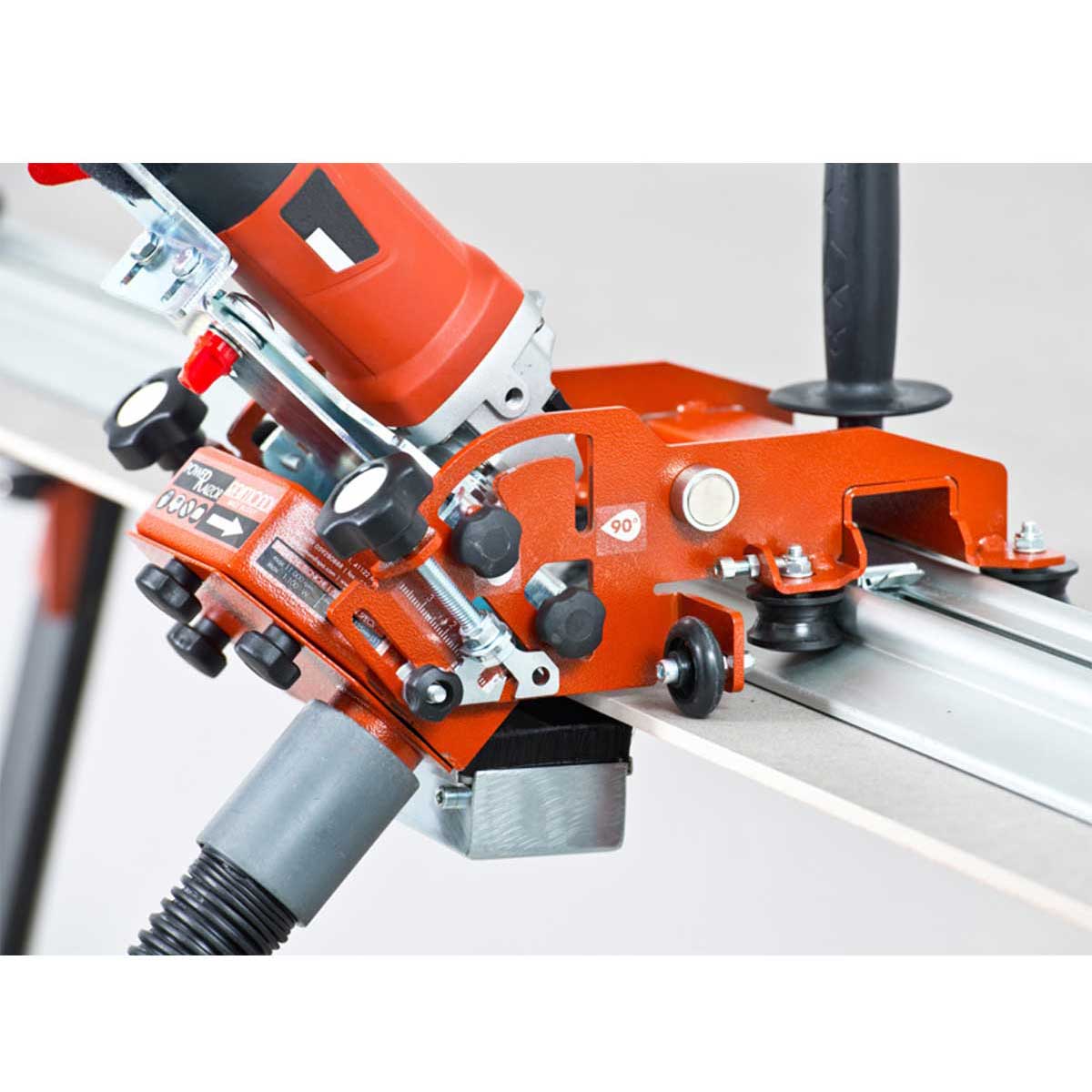

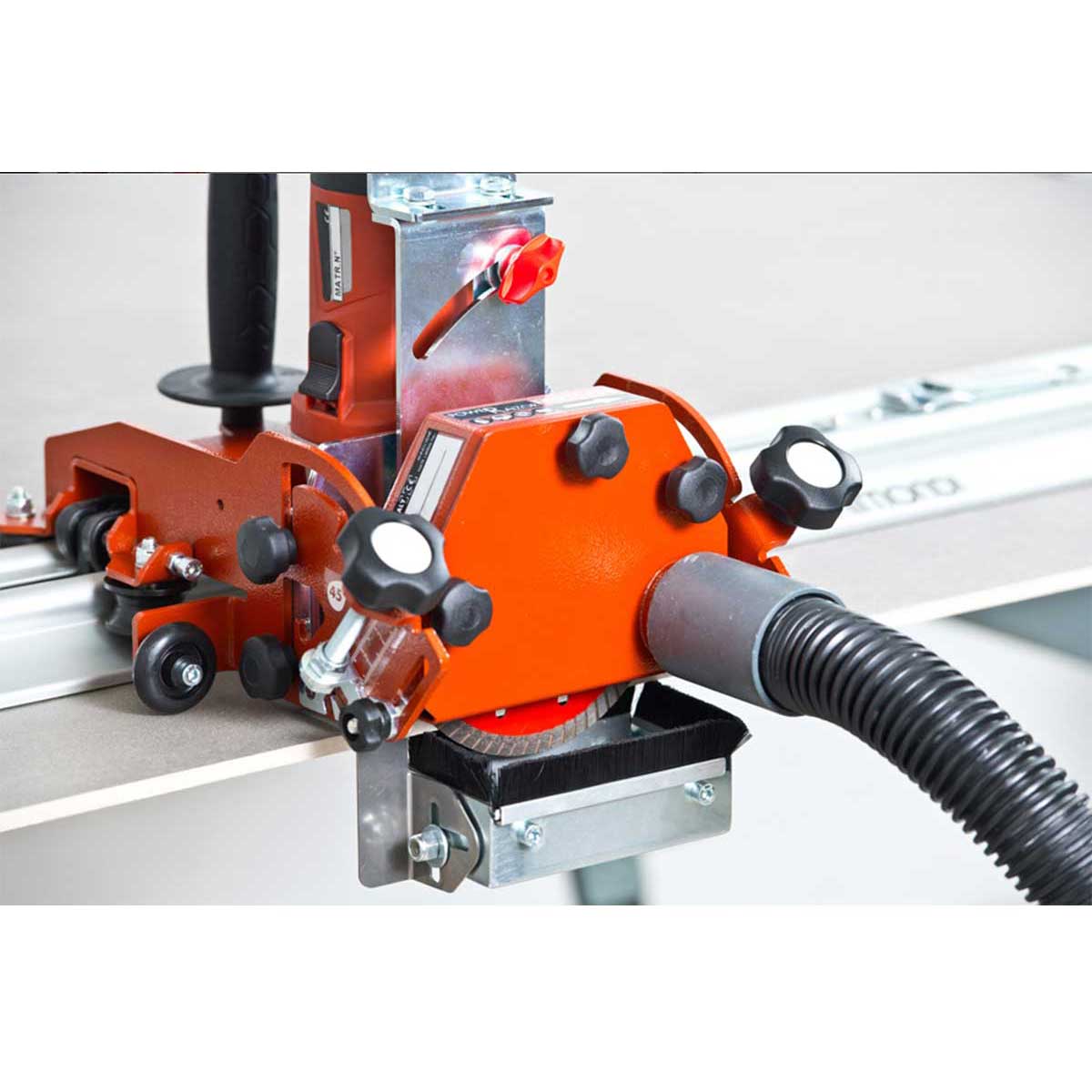

The MkII design incorporates a dual-wheel support system for maximum stability. Four support wheels positioned near the cutting blade help reduce mechanical stress and improve cutting accuracy, while an additional set of wheels rides along the RAIZOR MkII rail for smooth movement and precise guidance.

Features & Benefits:

• Complete package with cutting unit, diamond blade, and angle grinder
• Designed exclusively for Raimondi RAIZOR MkII rail cutting systems
• Performs precise 90° straight cuts
• Performs 45° miter cuts (actual angle 47°)
• Supports all intermediate cutting angles between 90° and 45°
• Plunge-cut functionality allows adjustable cutting depth
• Ideal for square and rectangular cutouts
• Dual-wheel support system provides exceptional stability

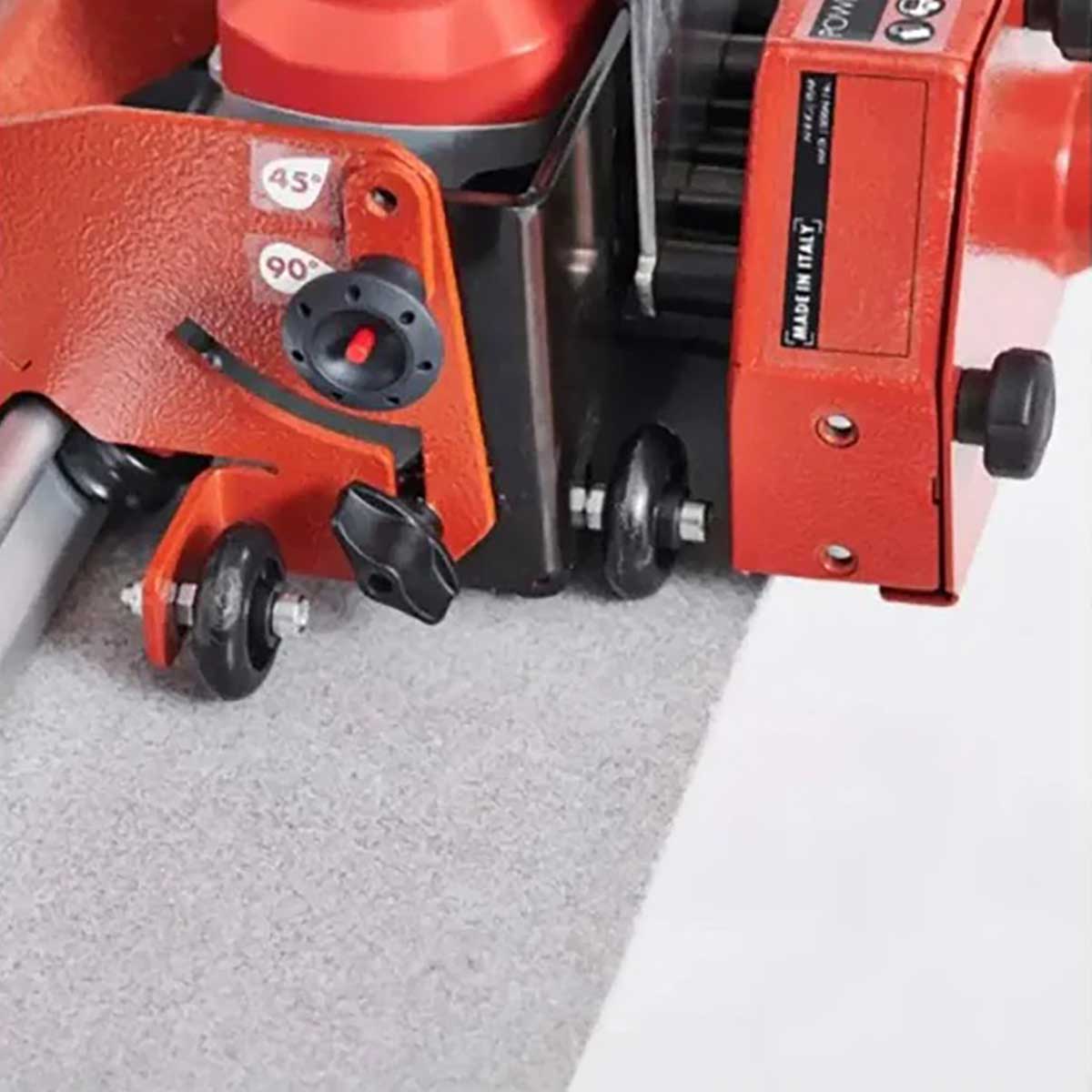

• Four support wheels positioned near the blade reduce mechanical stress
• Additional wheel system ensures smooth movement along the guide rail
• Can be used for dry cutting or wet cutting with optional water-feed accessories
• Integrated dust extraction connection for cleaner work environments
• Includes 125 mm (5") turbo diamond blade

Cutting Capacity:

• Maximum cutting depth at 90°: 20 mm (0.79")
• Maximum cutting depth at 45°: 16 mm (0.63")

Included Angle Grinder Specifications:

• 5" Variable-Speed Electric Angle Grinder
• Corded 110V Power Tool
• 1100W Motor
• 9 Amp Power Rating
• Variable Speed Control
• Maximum Speed: 12,000 RPM
• Designed for cutting and grinding applications
• Suitable for tile, stone, metal, and wood materials
• Provides consistent power for demanding jobsite use

Note: This package includes a corded 110V electric angle grinder. It is not a cordless or battery-powered tool.

Compatibility:

• Compatible only with Raimondi RAIZOR MkII rail systems
• Not compatible with original RAIZOR guide rails
• Designed for large format porcelain panels and slabs

Applications:

• Large format porcelain tile cutting
• Porcelain slab fabrication
• 90° straight cuts
• 45° miter cuts
• Intermediate-angle cuts
• Plunge cuts and openings
• Square and rectangular cutouts
• Professional tile installation
