Raimondi POWER RAIZOR MkII Multi-Angle Cutting Unit for RAIZOR MkII - TCPWRV2BU

Raimondi POWER RAIZOR MkII Multi-Angle Cutting Unit for RAIZOR MkII - TCPWRV2BU

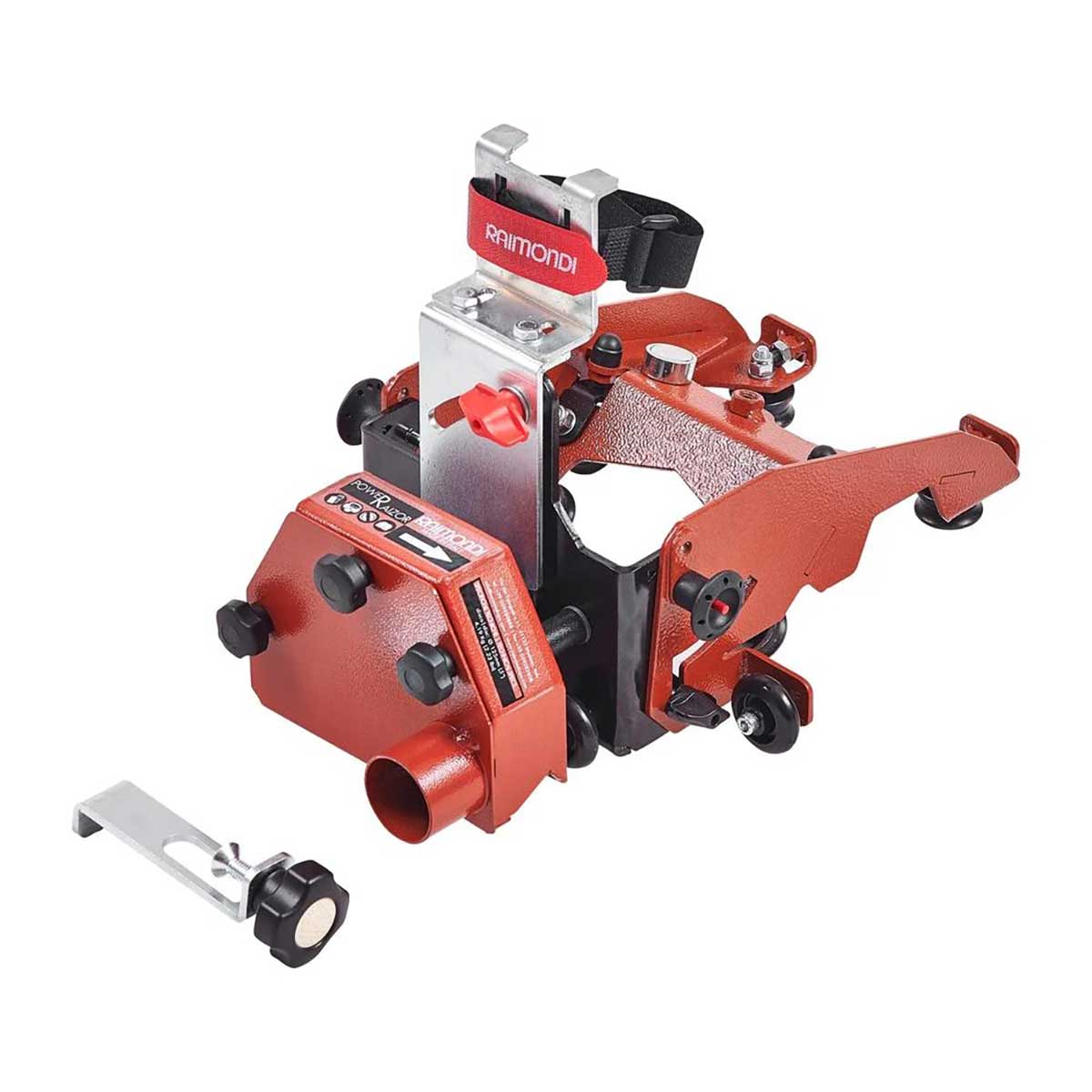

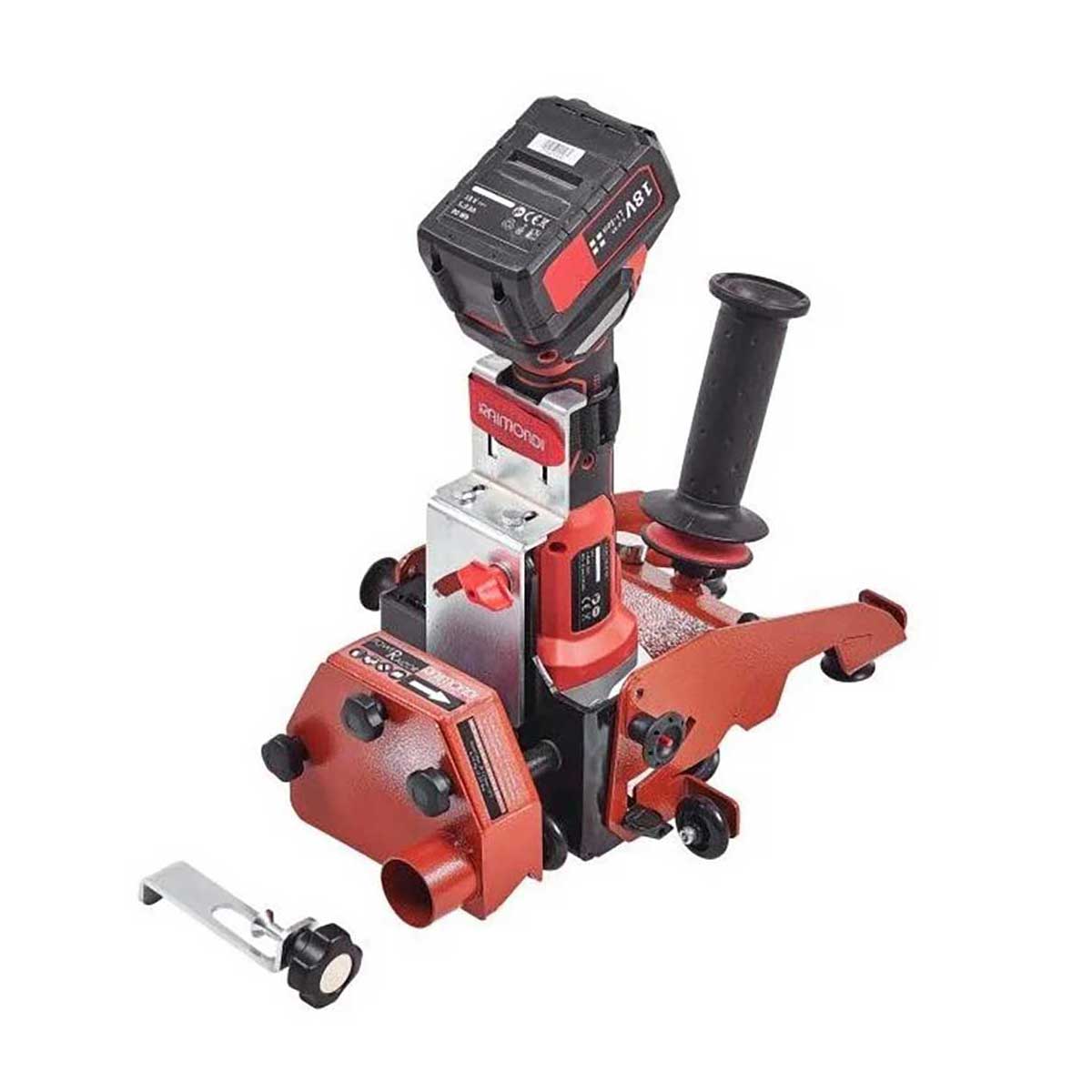

Includes: POWER RAIZOR MkII Cutting Unit and 125 mm (5") Turbo Diamond Blade. Angle grinder not included.

The Raimondi POWER RAIZOR MkII is a professional multi-angle cutting unit designed exclusively for use with the RAIZOR MkII rail cutting system. Developed for cutting large format porcelain panels and slabs, it provides precise straight cuts, miter cuts, and intermediate-angle cuts while maintaining exceptional stability and accuracy throughout the cutting process.

Designed for professional tile installers and fabricators, the POWER RAIZOR MkII performs accurate 90° straight cuts, 45° miter cuts (actual angle 47°), and all intermediate angles between them. The plunge-cut feature allows the operator to adjust cutting depth and create square and rectangular openings directly within the tile.

The MkII design incorporates a dual-wheel support system for maximum stability. Four support wheels positioned near the cutting blade help reduce mechanical stress and improve cutting accuracy, while an additional set of wheels rides along the RAIZOR MkII rail for smooth movement and precise guidance.

Features & Benefits:

• Designed exclusively for Raimondi RAIZOR MkII rail cutting systems
• Performs precise 90° straight cuts
• Performs 45° miter cuts (actual angle 47°)
• Supports all intermediate cutting angles between 90° and 45°

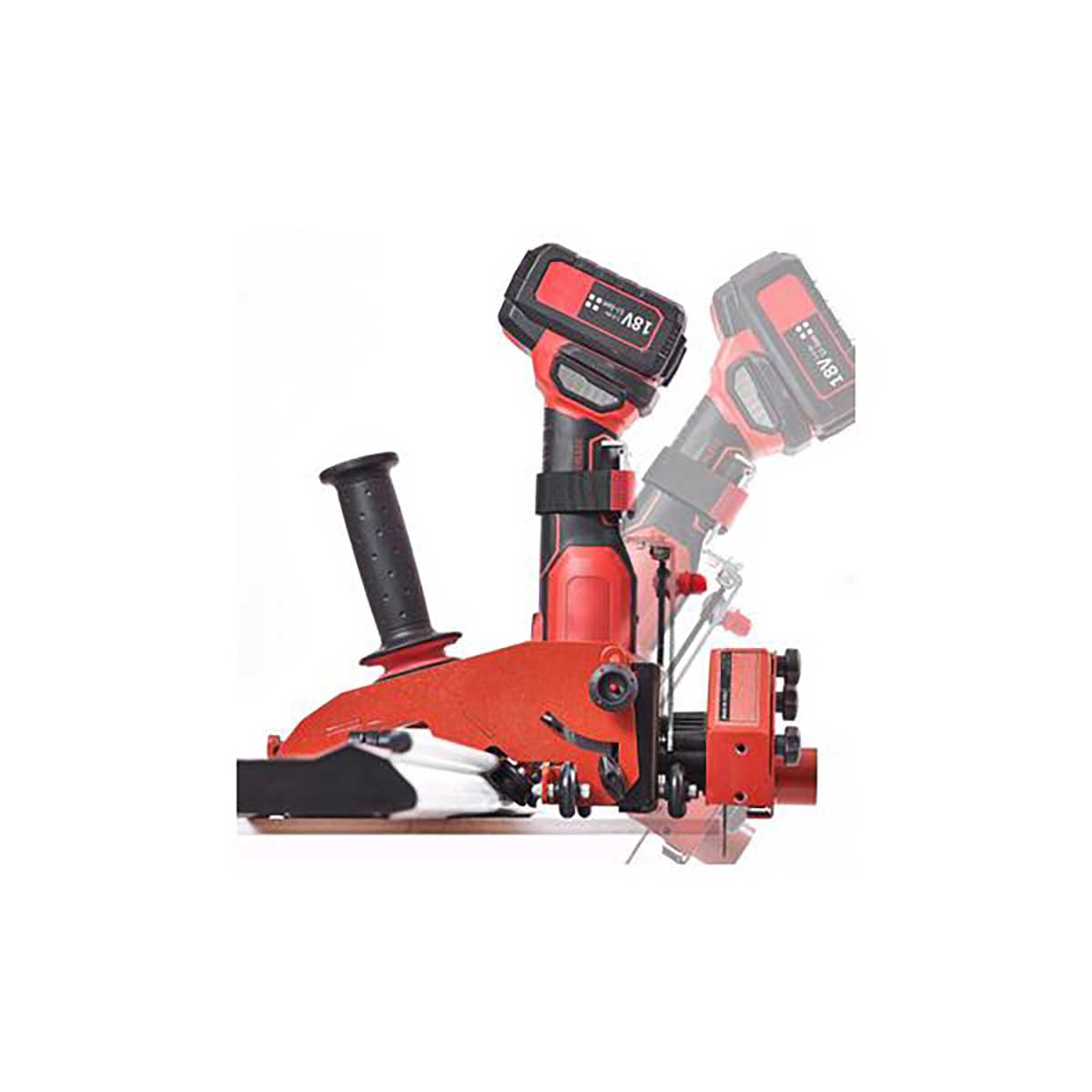

• Plunge-cut functionality allows adjustable cutting depth
• Ideal for square and rectangular cutouts
• Dual-wheel support system provides exceptional stability
• Four support wheels positioned near the blade reduce mechanical stress
• Additional wheel system ensures smooth movement along the guide rail

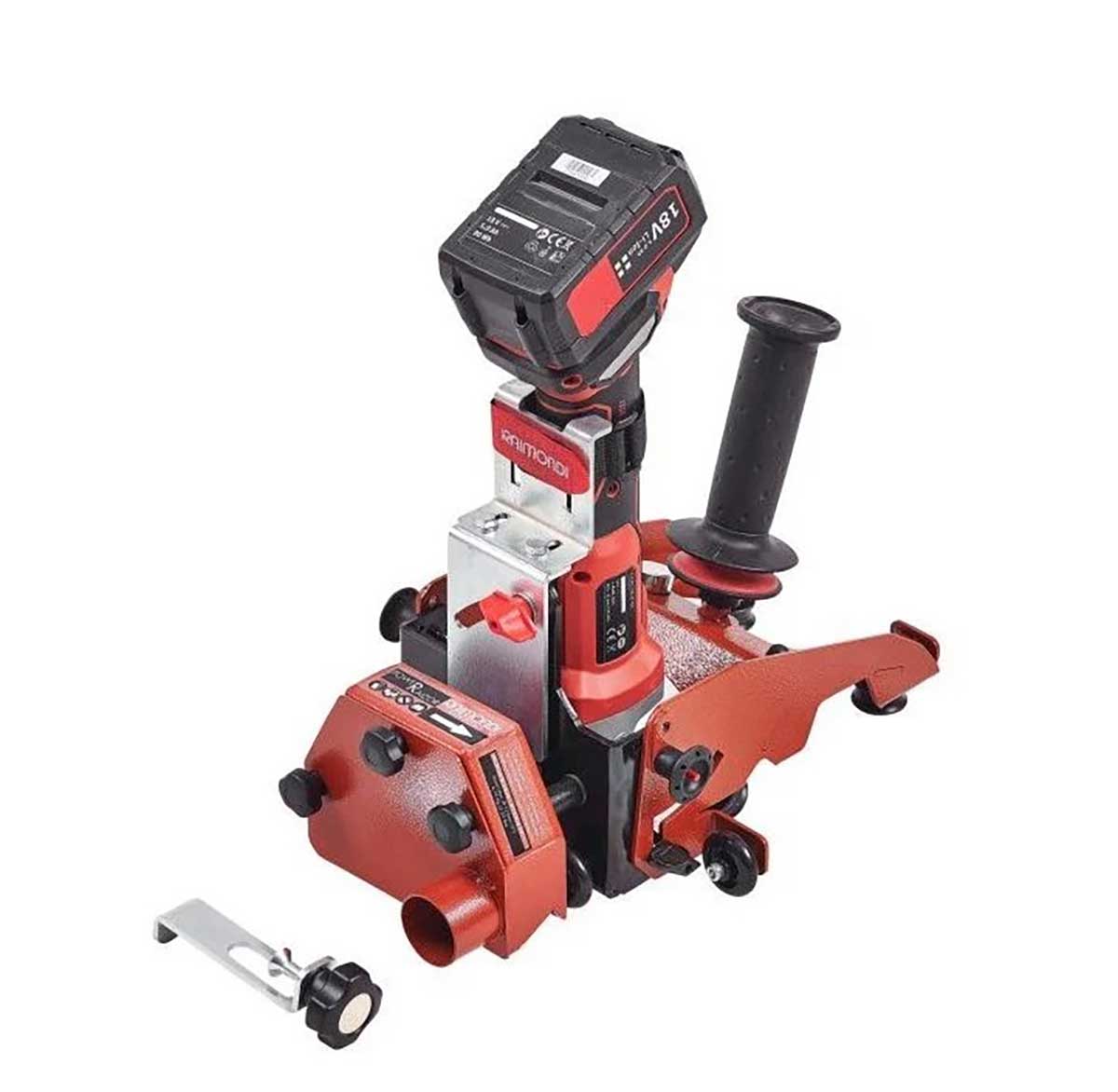

• Compatible with many popular angle grinders
• Available for M14 metric arbor and 5/8"-11 imperial arbor grinders

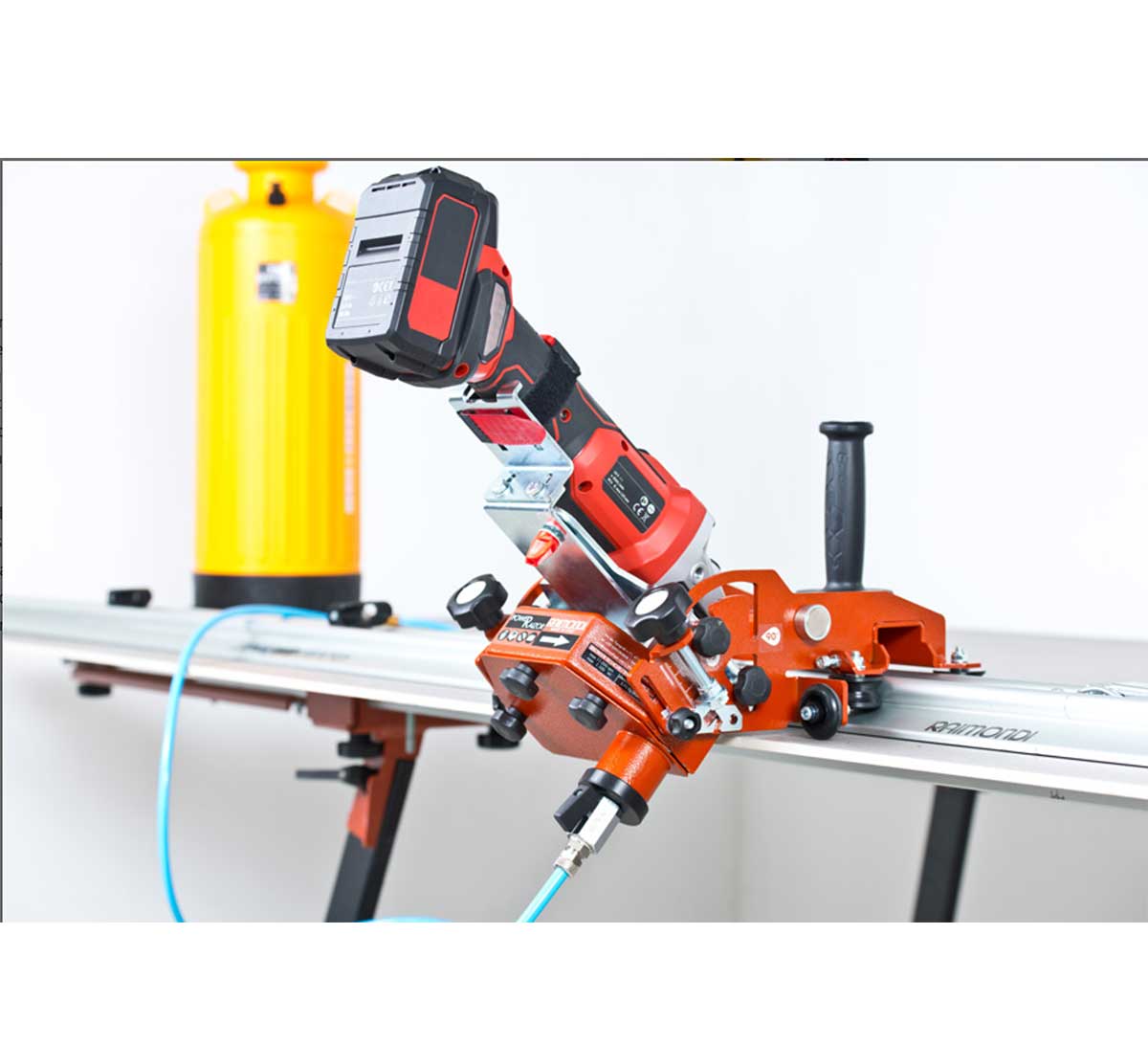

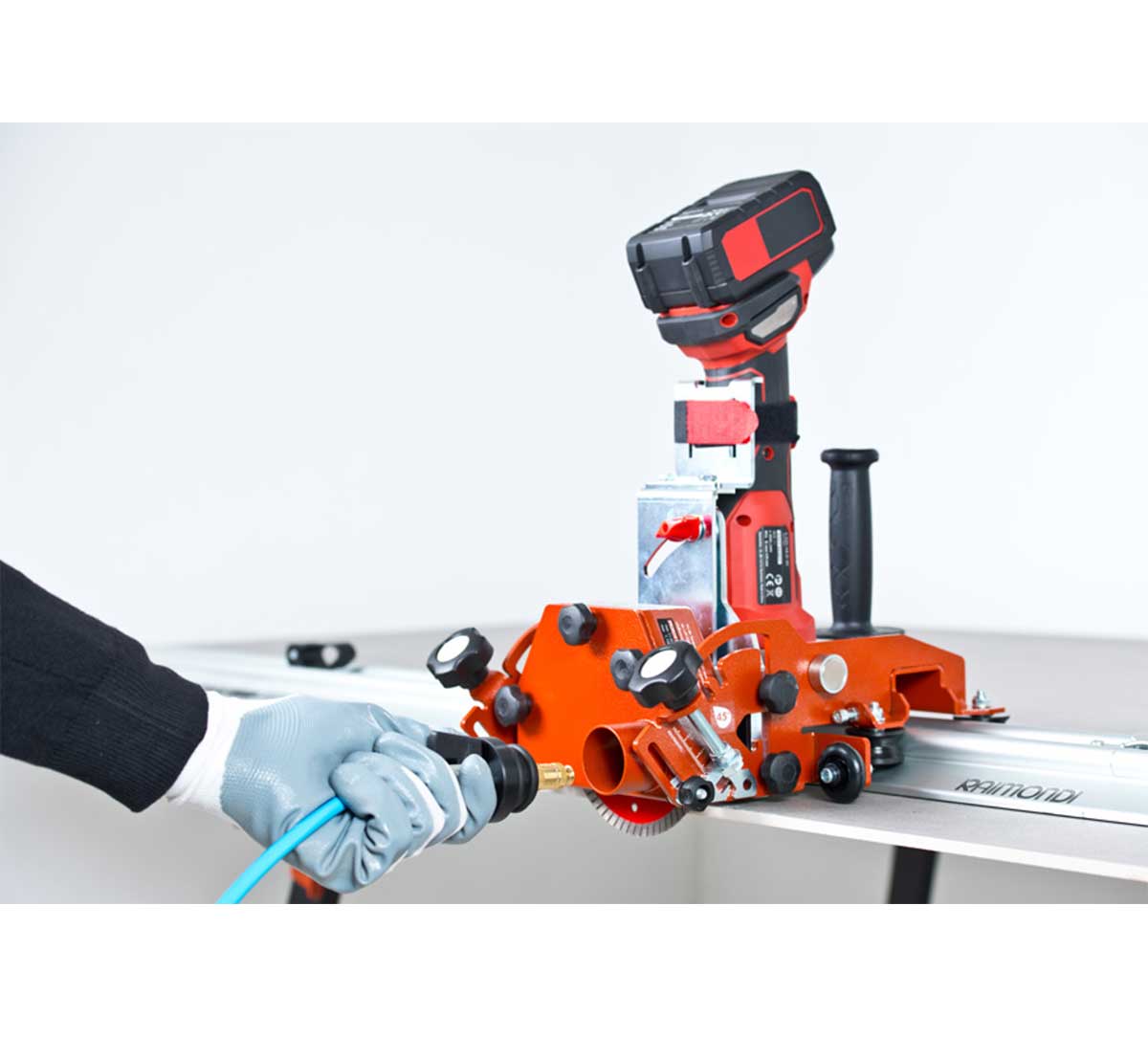

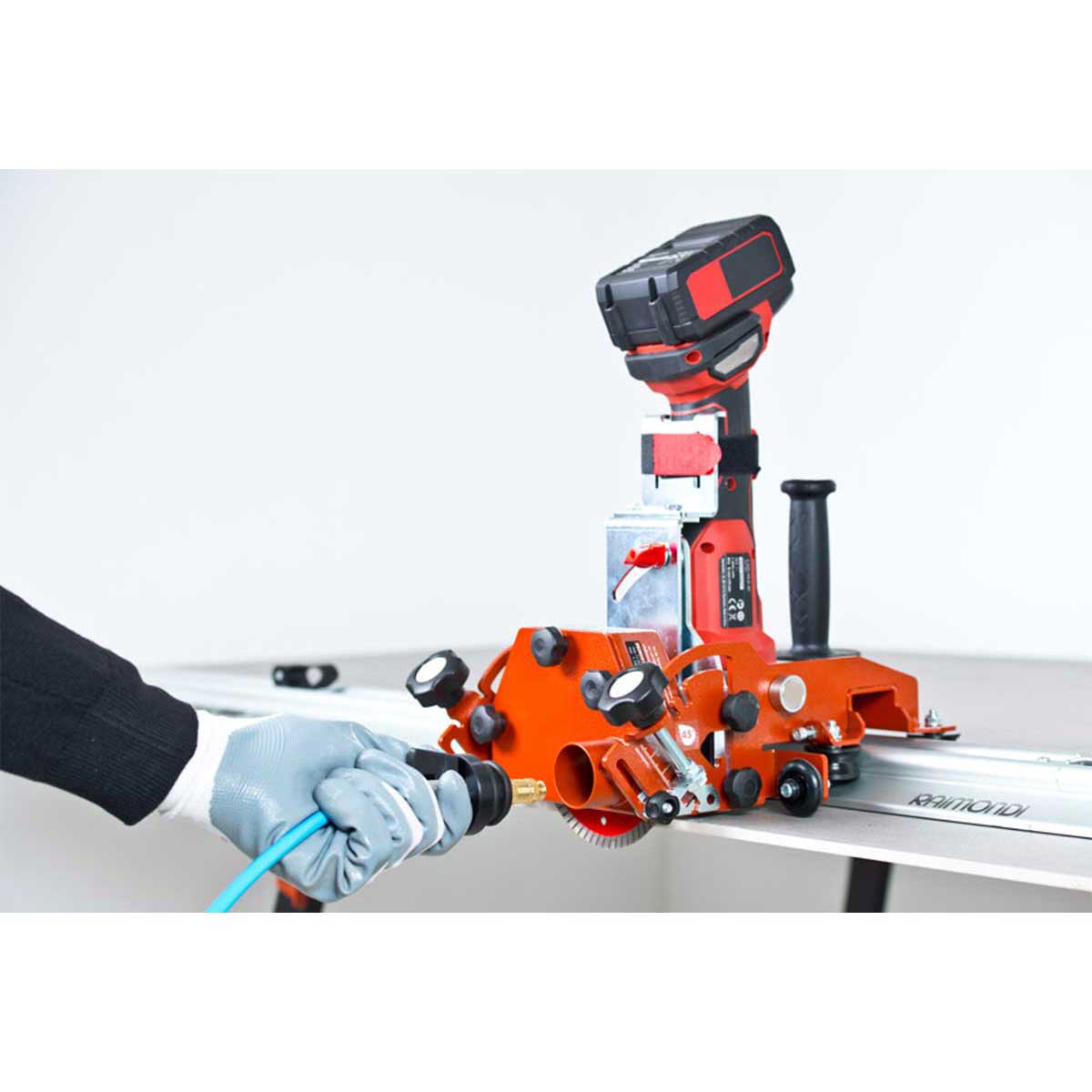

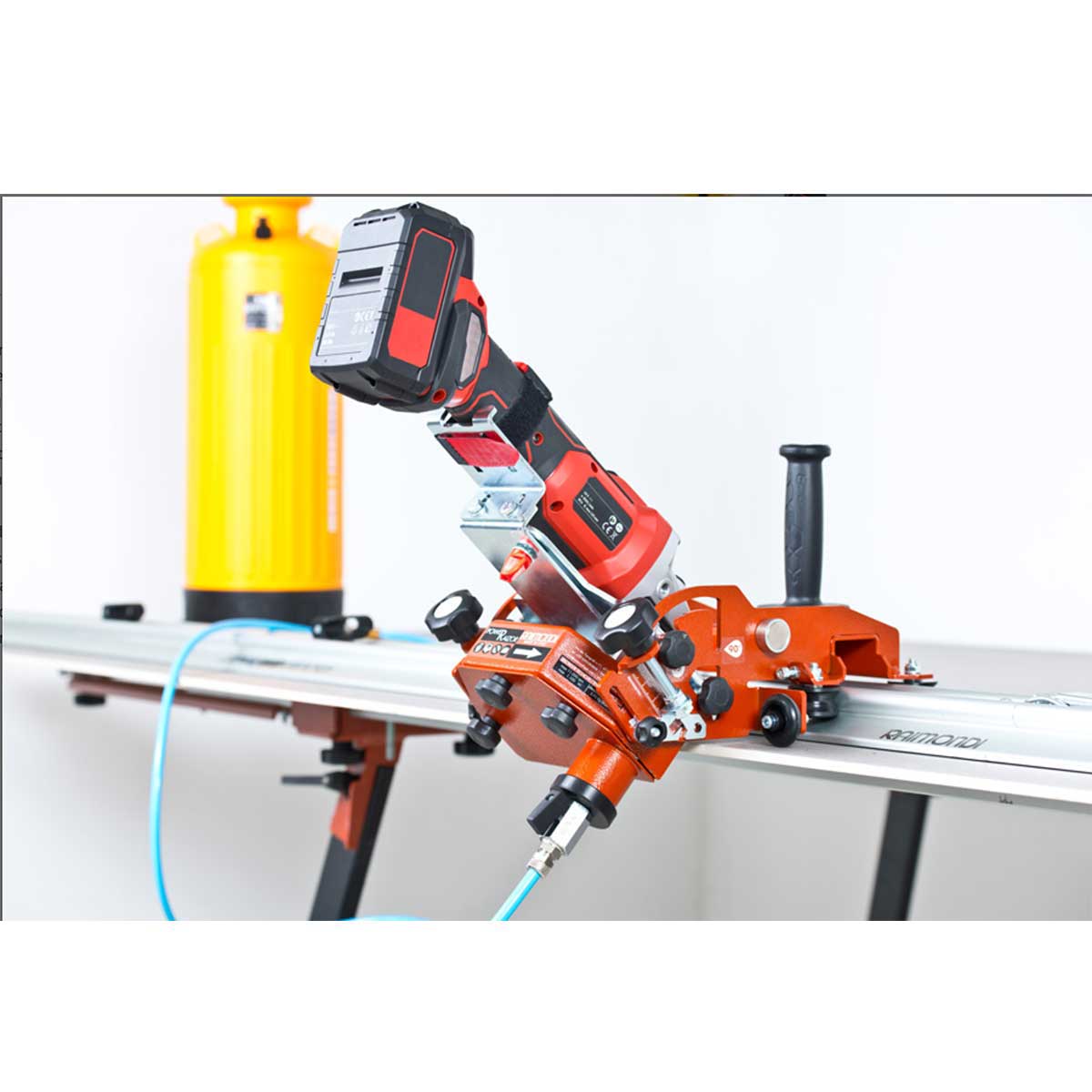

• Can be used for dry cutting or wet cutting with optional water-feed accessories

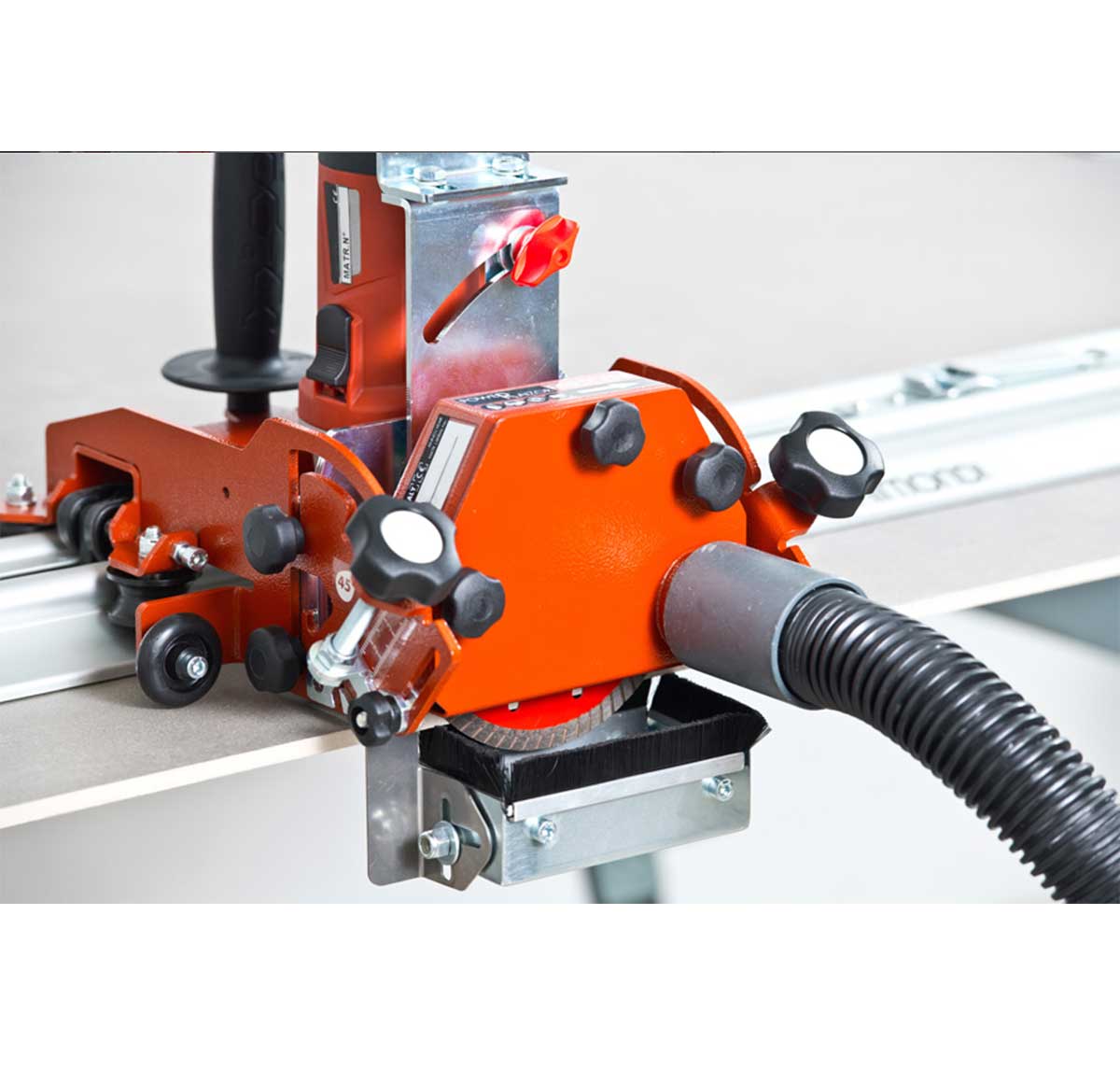

• Integrated dust extraction connection for cleaner work environments
• Includes 125 mm (5") turbo diamond blade

Cutting Capacity:

• Maximum cutting depth at 90°: 20 mm (0.79")
• Maximum cutting depth at 45°: 16 mm (0.63")

Compatibility:

• Compatible only with Raimondi RAIZOR MkII rail systems
• Not compatible with original RAIZOR guide rails
• Designed for large format porcelain panels and slabs
• Angle grinder required and sold separately

Applications:

• Large format porcelain tile cutting
• Porcelain slab fabrication
• 90° straight cuts
• 45° miter cuts
• Intermediate-angle cuts
• Plunge cuts and openings
• Square and rectangular cutouts
• Professional tile installation
