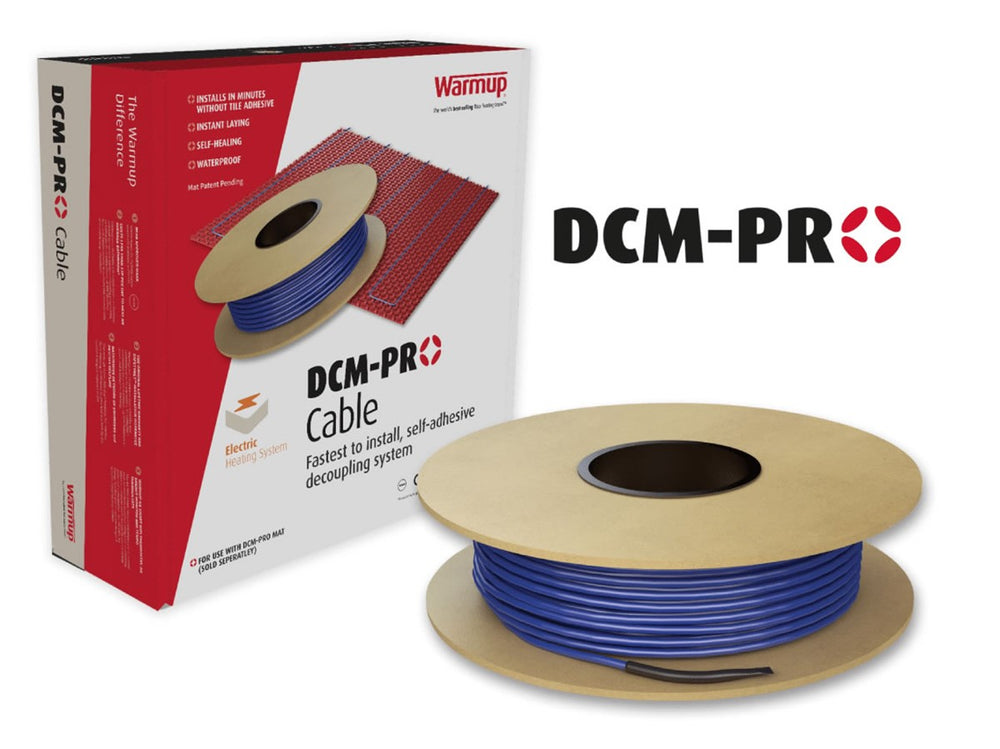

Warmup DCM-PRO Electric Floor Heating Cable 125 Sq Ft 240V

Warmup DCM-PRO Electric Floor Heating Cable 125 Sq Ft 240V

Professional Electric Floor Heating Cable for Tile and Stone Installations

The Warmup DCM-PRO Heating Cable is a high-performance electric radiant floor heating solution designed for use with uncoupling membranes under tile, stone, porcelain, and other heated flooring applications. Engineered with durable twin-core ETFE insulated heating technology, this flexible floor heating cable delivers reliable warmth, efficient heat distribution, and long-lasting performance for residential and commercial installations.

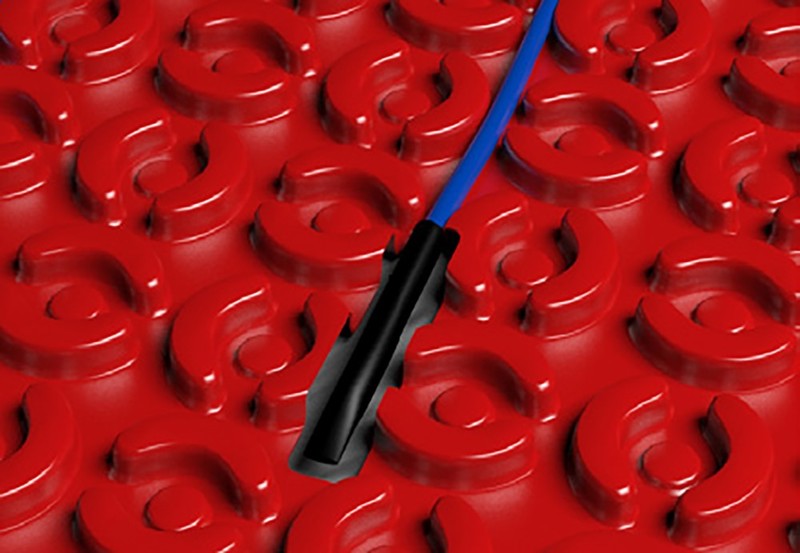

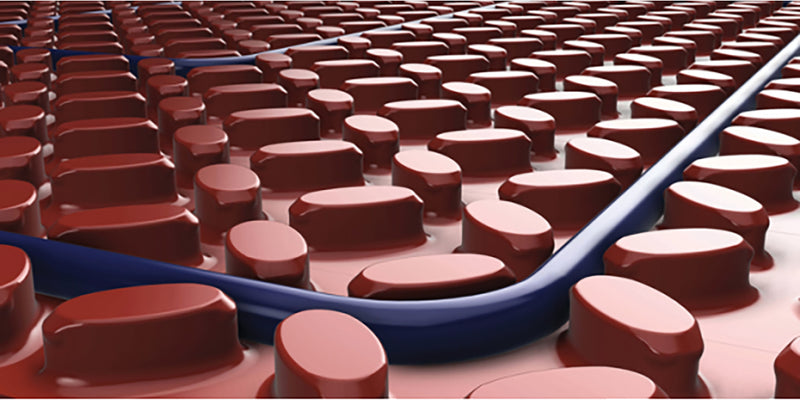

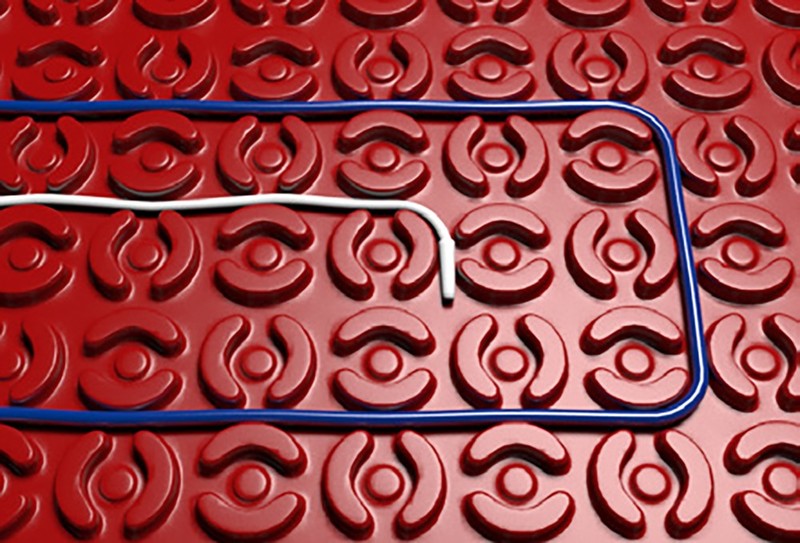

Designed for use with the Warmup DCM-PRO Membrane and compatible uncoupling systems, this floor heating cable installs quickly without tools by securely fitting between membrane castellations. The cable spacing can be adjusted at 2, 3, or 4 pegs, allowing installers to customize heat output and floor coverage based on the room layout and heating requirements.

This 240V Warmup DCM-PRO cable is ideal for larger bathrooms, kitchens, basements, living spaces, commercial applications, and other indoor tile floor heating projects where higher voltage radiant heating performance is required.

Key Features

• Designed for electric radiant floor heating systems
• Compatible with uncoupling membranes and tile underlayment systems
• Flexible twin-core ETFE heating cable construction
• Adjustable cable spacing for customized heat output
• Quick and tool-free installation with membrane castellations
• Suitable for tile, porcelain, ceramic, and natural stone flooring
• Durable PVC outer jacket for installation protection
• Ideal for large bathrooms, kitchens, basements, and open floor plans
• Compatible with Warmup 4iE Smart Thermostat
• Backed by a 30-year manufacturer warranty

Cable Coverage and Performance

• Coverage Area: 125 Sq Ft
• Voltage: 240V
• Cable Length: 414.7 ft
• Resistance: 35.1 Ω
• Amperage: 6.83 Amps
• Power Output: 1640 Watts
• Approximate Output: 4W per linear foot

Cable Spacing Coverage

• 2 Peg Spacing: Covers approximately 83 sq ft
• 3 Peg Spacing: Covers approximately 125 sq ft
• 4 Peg Spacing: Covers approximately 167 sq ft

Construction Specifications

• Operating Voltage: 240V Only
• Construction: Multi-stranded dual wire
• Inner Insulation: ETFE
• Outer Jacket: PVC
• Earth Braid: Minimum 85% copper
• Cold Lead: 10 ft long 2-core braided lead
• Cable Thickness: 3/16 in. (4.5 mm +/- 0.2 mm)

Compatible Heating Membranes

• Warmup DCM-PRO Membrane
• Schluter DITRA-HEAT
• Prodeso Heat Mat
• Flextherm FLEXSnap
• Heatmatrix Systems

Installation Benefits

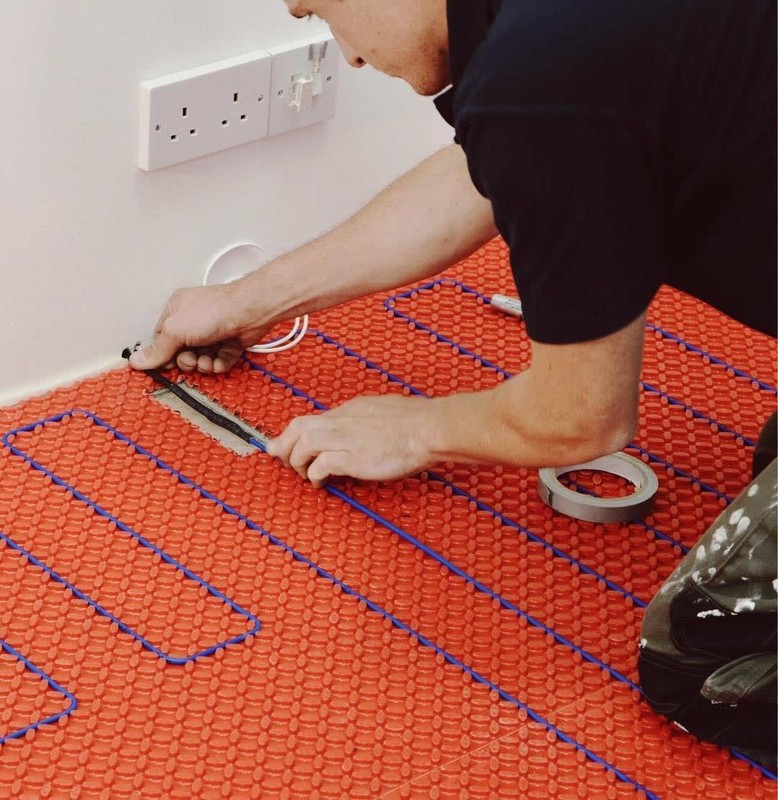

The Warmup DCM-PRO system helps reduce installation time while protecting the heating cable during tile installation. The uncoupling membrane design minimizes movement stress and helps reduce the risk of cable damage or failure during installation and long-term floor use.

This electric floor heating cable is suitable for both renovation and new construction projects and is ideal for large residential rooms, open-concept spaces, basements, kitchens, and commercial tile floor heating installations.

Warranty

When installed according to Warmup installation guidelines, the DCM-PRO Heating Cable is backed by a 30-year manufacturer warranty for long-term peace of mind.

• Warmup DCM-PRO Cable Specifications and Installation
• Warmup DCM-PRO Cable Specifications and Installation PDF
• Warmup DCM-PRO Cable Installation Manual
• Warmup Electric Floor Heating Installation Guide
• Warmup Radiant Floor Heating Videos
