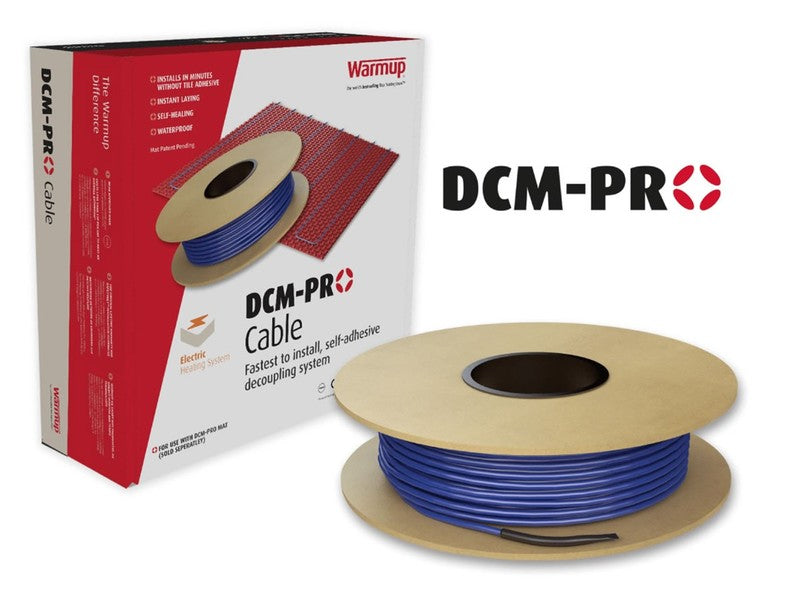

Warmup DCM-PRO Electric Floor Heating Cable 30 Sq Ft 120V/240V

Warmup DCM-PRO Electric Floor Heating Cable 30 Sq Ft 120V/240V

Professional Electric Floor Heating Cable for Tile and Stone Installations

The Warmup DCM-PRO Heating Cable is a high-performance electric radiant floor heating solution designed for use with uncoupling membranes under tile, stone, porcelain, and other heated flooring applications. Engineered with durable twin-core ETFE insulated heating technology, this flexible floor heating cable delivers reliable warmth, efficient heat distribution, and long-lasting performance for residential and commercial installations.

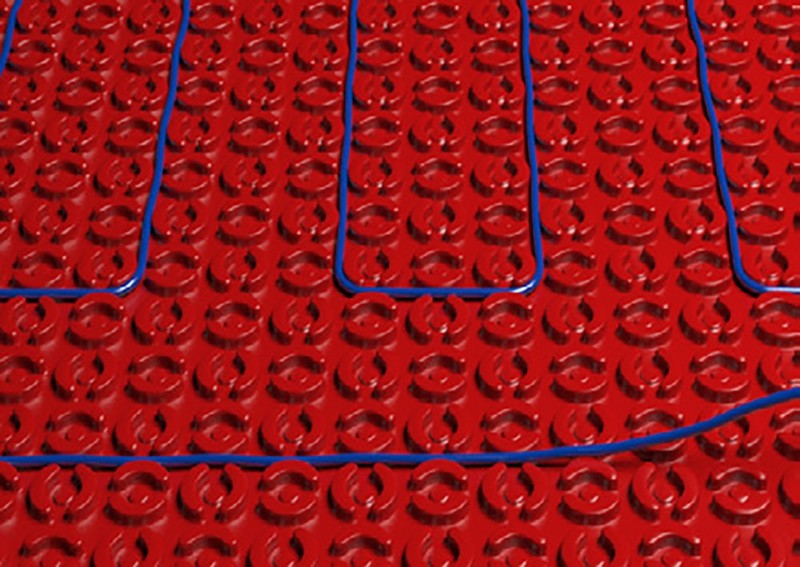

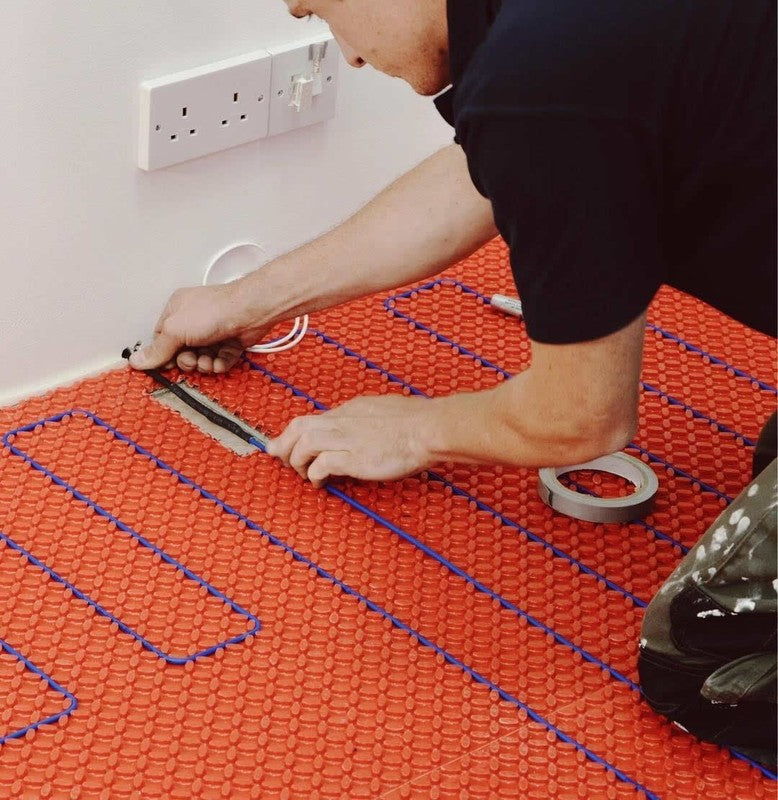

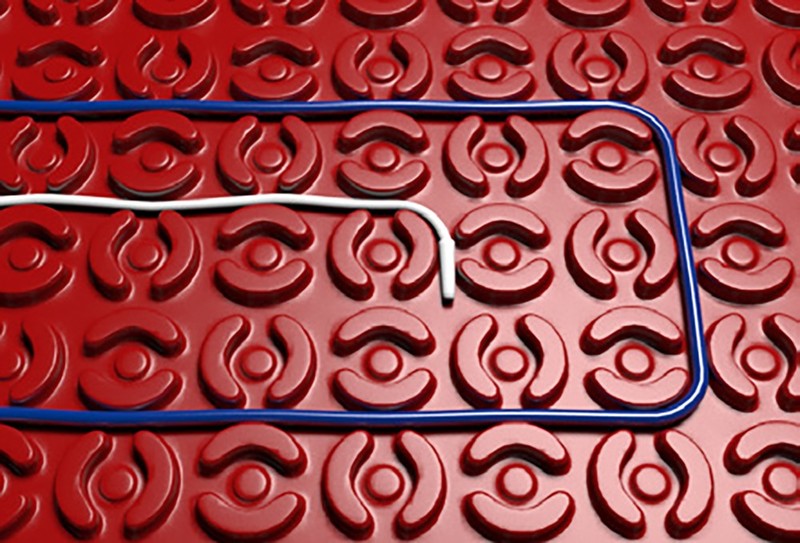

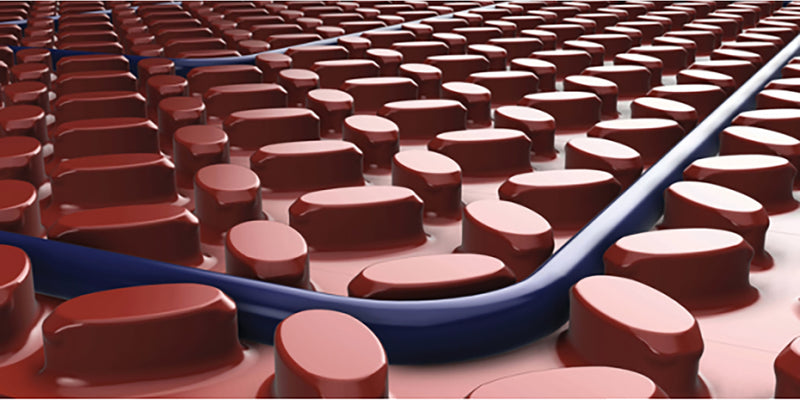

Designed for use with the Warmup DCM-PRO Membrane and compatible uncoupling systems, this floor heating cable installs quickly without tools by securely fitting between membrane castellations. The cable spacing can be adjusted at 2, 3, or 4 pegs, allowing installers to customize heat output and floor coverage based on the room layout and heating requirements.

Available in both 120V and 240V options, this Warmup DCM-PRO cable is ideal for bathrooms, kitchens, showers, mudrooms, laundry rooms, and other indoor tile floor heating applications where comfort and energy efficiency are important.

Key Features

• Designed for electric radiant floor heating systems
• Compatible with uncoupling membranes and tile underlayment systems
• Flexible twin-core ETFE heating cable construction
• Adjustable cable spacing for customized heat output
• Quick and tool-free installation with membrane castellations
• Suitable for tile, porcelain, ceramic, and natural stone flooring
• Durable PVC outer jacket for installation protection
• Available in 120V and 240V configurations
• Compatible with Warmup 4iE Smart Thermostat
• Backed by a 30-year manufacturer warranty

Cable Coverage and Performance

• Coverage Area: 30 Sq Ft
• Available Voltages: 120V and 240V
• Cable Length: 99.4 ft
• Power Output: 390 Watts
• Approximate Output: 4W per linear foot

120V Specifications

• Resistance: 36.9 Ω
• Amperage: 3.25 Amps
• 2 Peg Spacing Coverage: Approximately 20 sq ft
• 3 Peg Spacing Coverage: Approximately 30 sq ft
• 4 Peg Spacing Coverage: Approximately 40 sq ft

240V Specifications

• Resistance: 147.7 Ω
• Amperage: 1.62 Amps
• 2 Peg Spacing Coverage: Approximately 20 sq ft
• 3 Peg Spacing Coverage: Approximately 30 sq ft
• 4 Peg Spacing Coverage: Approximately 40 sq ft

Construction Specifications

• Operating Voltage: 120V or 240V
• Construction: Multi-stranded dual wire
• Inner Insulation: ETFE
• Outer Jacket: PVC
• Earth Braid: Minimum 85% copper

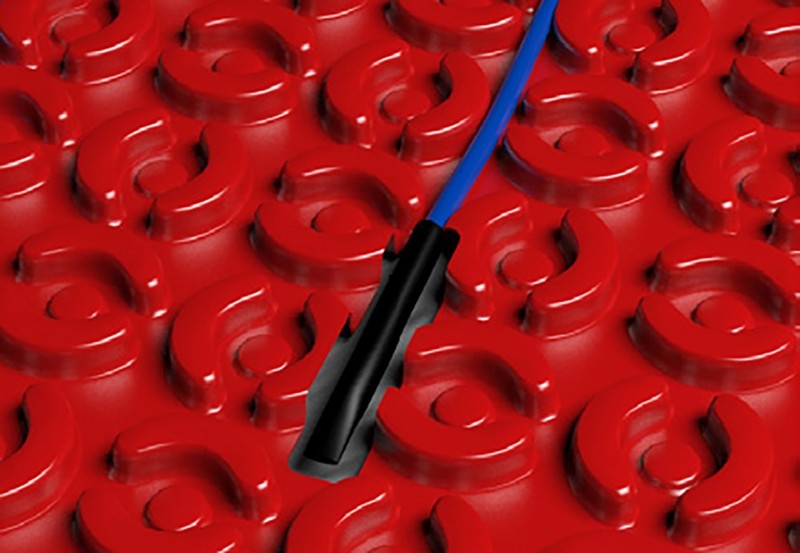

• Cold Lead: 10 ft long 2-core braided lead
• Cable Thickness: 3/16 in. (4.5 mm +/- 0.2 mm)

Compatible Heating Membranes

• Warmup DCM-PRO Membrane
• Schluter DITRA-HEAT
• Prodeso Heat Mat
• Flextherm FLEXSnap
• Heatmatrix Systems

Installation Benefits

The Warmup DCM-PRO system helps reduce installation time while protecting the heating cable during tile installation. The uncoupling membrane design minimizes movement stress and helps reduce the risk of cable damage or failure during installation and long-term floor use.

This electric floor heating cable is suitable for both renovation and new construction projects and works well in bathrooms, kitchens, laundry rooms, showers, and smaller residential tile floor heating installations.

Warranty

When installed according to Warmup installation guidelines, the DCM-PRO Heating Cable is backed by a 30-year manufacturer warranty for long-term peace of mind.
