Warmup Insulated Underlayment for Foil Radiant Floor Heating System 110 Sq Ft

Warmup Insulated Underlayment for Foil Radiant Floor Heating System 110 Sq Ft

The Warmup Insulated Underlayment 110 Sq Ft is specifically designed for use beneath the Warmup Foil Radiant Floor Heating System to improve heating efficiency, reduce heat loss, and provide excellent acoustic performance. Installed between the subfloor and the foil heating mat, this lightweight insulated underlayment helps direct more heat upward into the finished floor, allowing your electric radiant floor heating system to perform more efficiently.

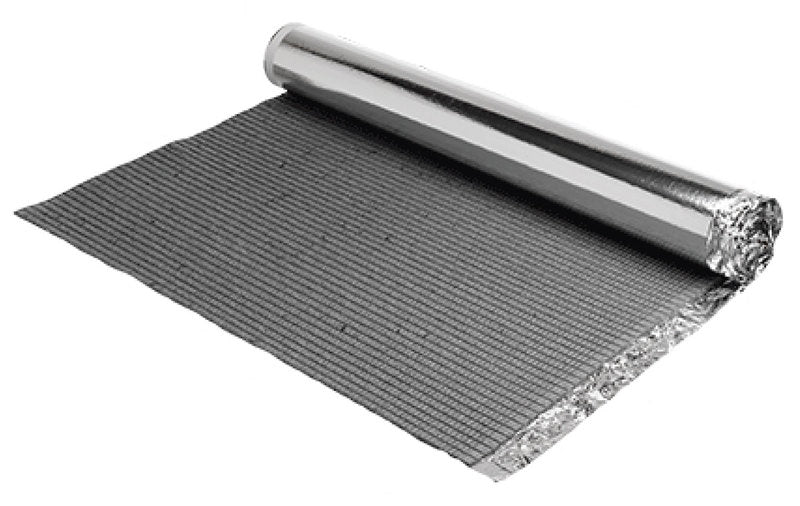

Manufactured from grooved polystyrene with an integrated foil moisture barrier, this insulated underlayment provides thermal insulation while helping reduce contact noise between floors. It is an ideal solution for laminate flooring, engineered wood flooring, floating luxury vinyl tile (LVT), and carpet installations used with the Warmup Foil Heating System.

Designed specifically for floating floor installations, the Warmup Underlayment is quick to install and adds only a minimal amount of floor height while helping maximize the performance of your electric underfloor heating system.

Ideal Applications

• Laminate flooring
• Engineered wood flooring
• Floating luxury vinyl tile (LVT)
• Carpet installations
• Bedrooms
• Living rooms
• Family rooms
• Finished basements
• Sunrooms
• Residential remodeling and new construction

Features & Benefits

• Designed specifically for Warmup Foil Radiant Floor Heating Systems
• Reflects heat upward to improve heating efficiency
• Helps reduce heat loss through the subfloor
• Excellent acoustic properties help reduce contact noise
• Foil backing provides an effective moisture barrier
• Lightweight and easy to cut and install
• Adds minimal floor height with a slim profile
• Suitable beneath laminate, engineered wood, floating LVT, and carpet
• Improves overall comfort and system performance

How It Improves Heating Performance

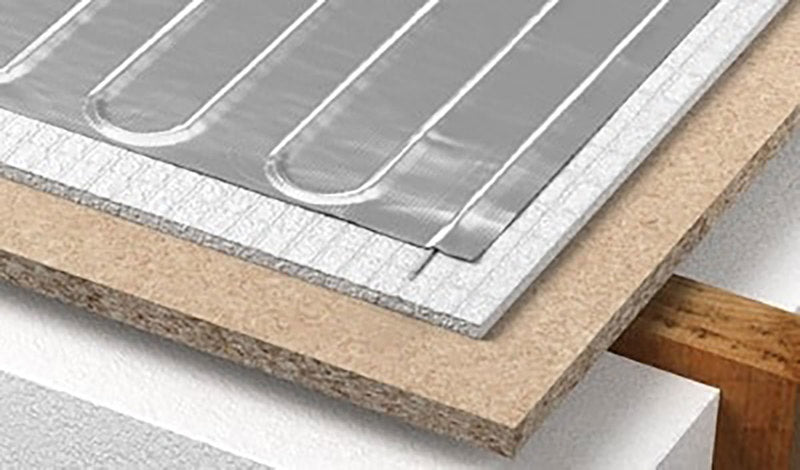

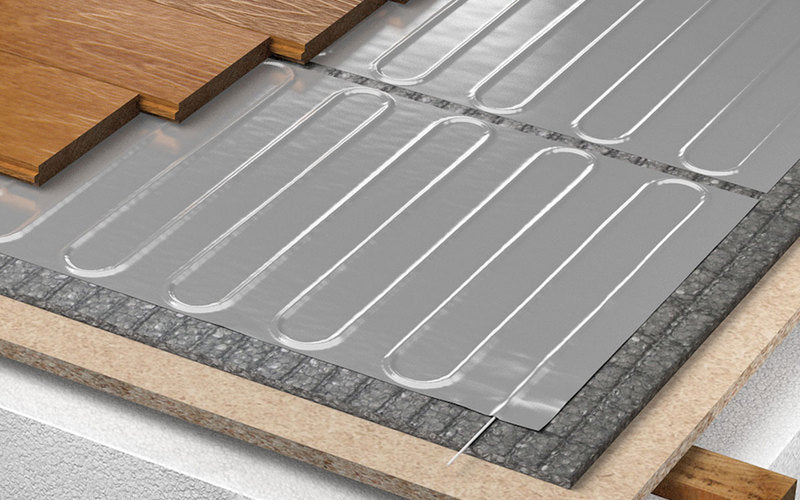

Without insulation, a portion of the heat produced by an electric floor heating system can be lost into the subfloor. Warmup Insulated Underlayment creates a thermal barrier that reflects more heat upward toward the finished flooring, allowing rooms to warm more efficiently while helping the heating system reach operating temperature faster.

The integrated foil backing should always be installed facing downward toward the subfloor, where it also functions as a moisture barrier to help protect the flooring assembly.

Compatible Floor Coverings

• Laminate flooring
• Engineered wood flooring
• Floating luxury vinyl tile (LVT)
• Carpet installed over the Warmup Foil Heating System

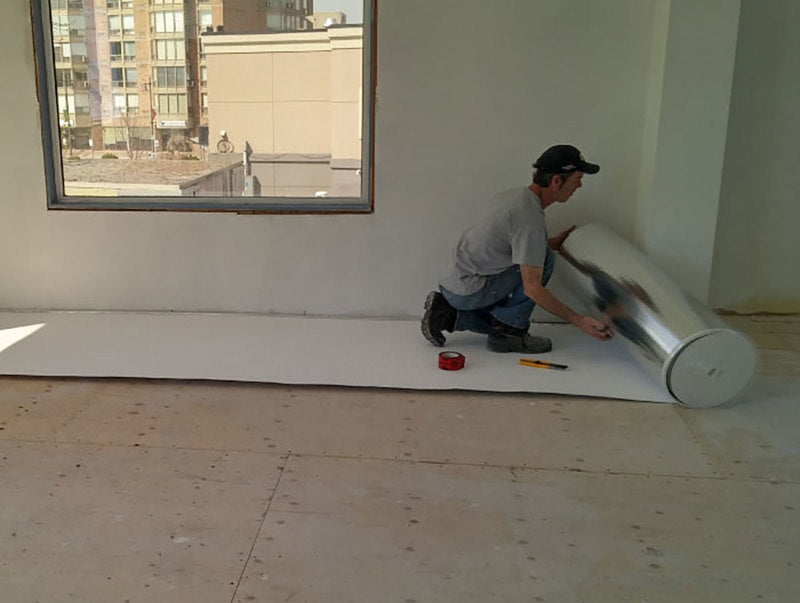

Installation Notes

• Designed for use beneath the Warmup Foil Heating System.
• Install directly over the prepared subfloor.
• Position the foil backing facing downward.
• Install the Warmup Foil Heating System directly over the underlayment.
• Complete the flooring installation according to the flooring manufacturer's recommendations.

Specifications

• Coverage: 110 sq ft roll
• Roll Width: 4 ft
• Thickness: 1/4 in (6 mm)
• Top Layer Material: Grooved polystyrene
• Foil backing acts as an effective moisture barrier

Why Use Warmup Underlayment?

Adding insulated underlayment beneath your Warmup Foil Heating System improves thermal efficiency while reducing sound transmission through the floor. It is an important component that helps maximize the comfort, efficiency, and overall performance of your electric radiant floor heating installation.

Helpful Resources

• Warmup Foil Radiant Heating Overview
• Warmup Foil Radiant Heating Specifications and Installation
• Warmup How to Videos
