Quartz by ACO Mix 48 Inch Linear Shower Drain Brushed Stainless

Quartz by ACO Mix 48 Inch Linear Shower Drain with Brushed Stainless Grate

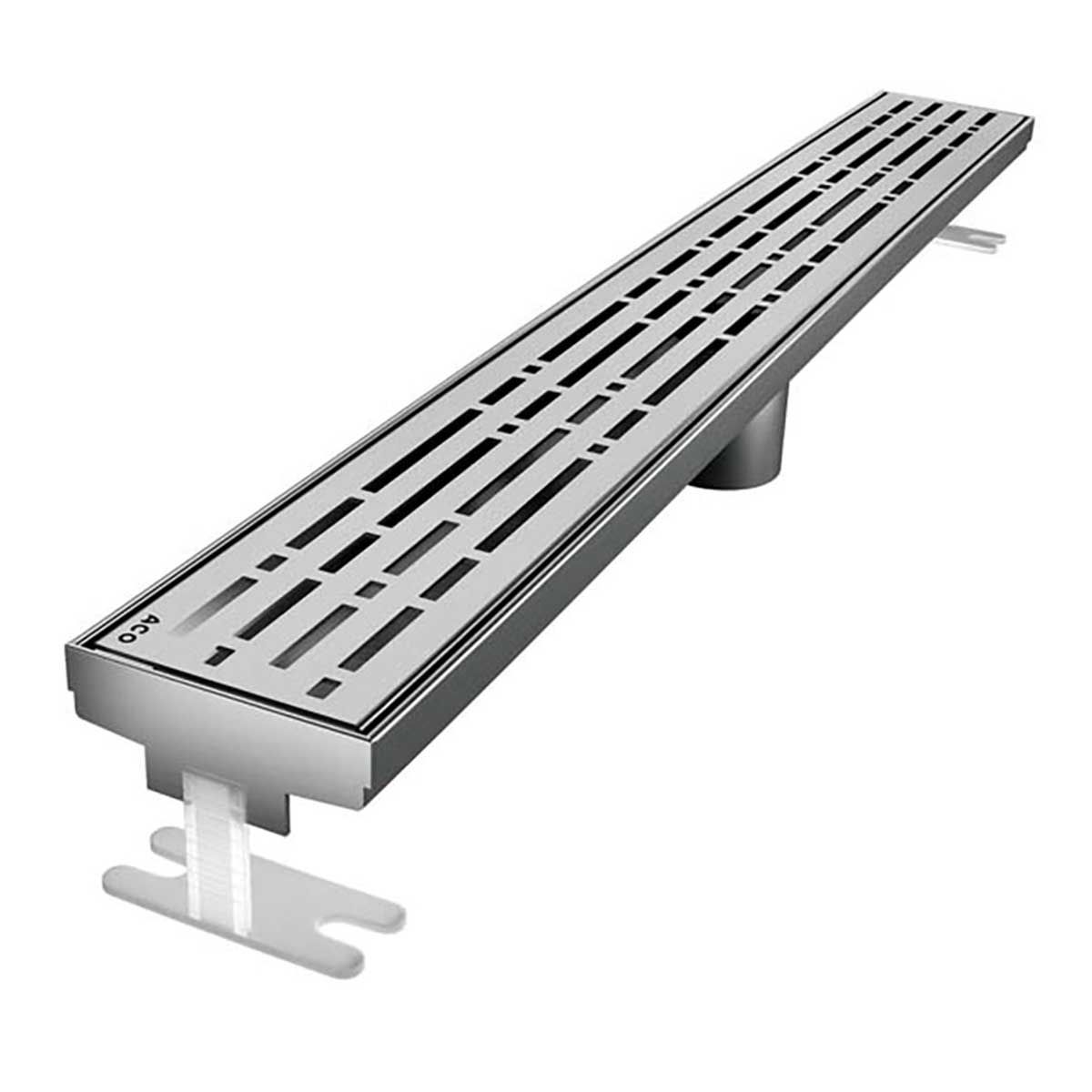

48 inch linear shower drain featuring the distinctive Mix geometric slot grate in a Brushed Stainless finish.

The Quartz by ACO Mix 48 Inch Linear Shower Drain combines outstanding drainage performance with a modern geometric grate pattern formed by interchangeable rectangles and squares. Designed to create a clean architectural appearance while efficiently removing water, this premium linear drain is ideal for curbless showers, luxury bathrooms, wet rooms, and commercial installations. The Brushed Stainless finish complements virtually any bathroom style while providing exceptional durability and corrosion resistance.

Complete Drain Kit Includes

• Stainless steel channel body
• Mix decorative grate in Brushed Stainless finish
• Lifting key
• Adjustable installation feet
• Installation hardware

Designed for Wood Joist Installations

This 48 inch linear shower drain is designed for wood joist applications using a traditional CPE shower pan membrane. Proper installation according to the manufacturer's recommendations helps provide reliable waterproofing and years of dependable performance.

Specifications

• Overall length: 47.25 inches (1200 mm)
• Water intake area: 27.72 sq. in.
• 2 inch diameter central vertical outlet
• Flow rate: At entrance - 6.3 GPM (0.6 l/s)
• Flow rate: Against the wall - 9.5 GPM (0.6 l/s)
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet for easier installation
• Optional accessories include plumbing connectors, water-activated LED light, and debris strainer

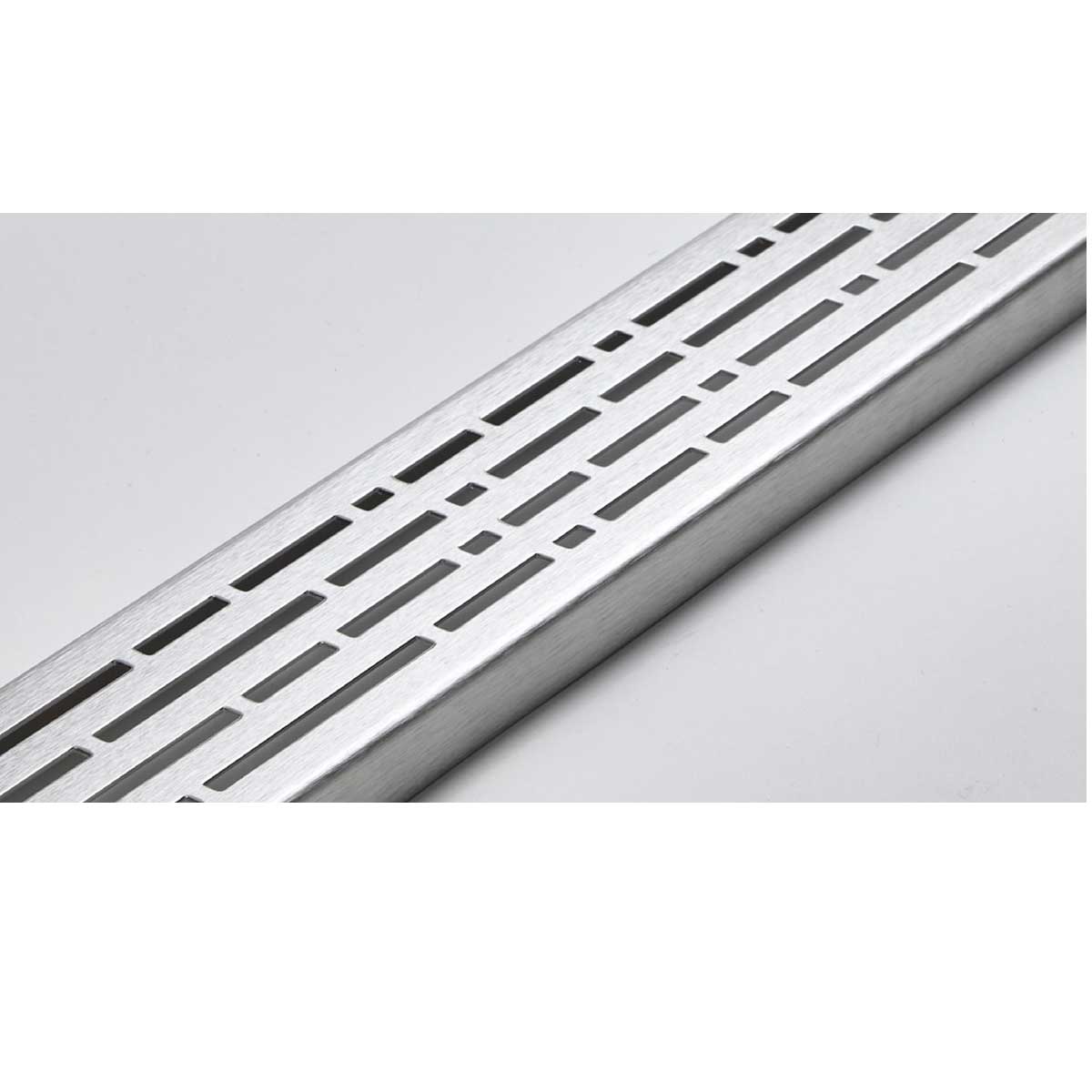

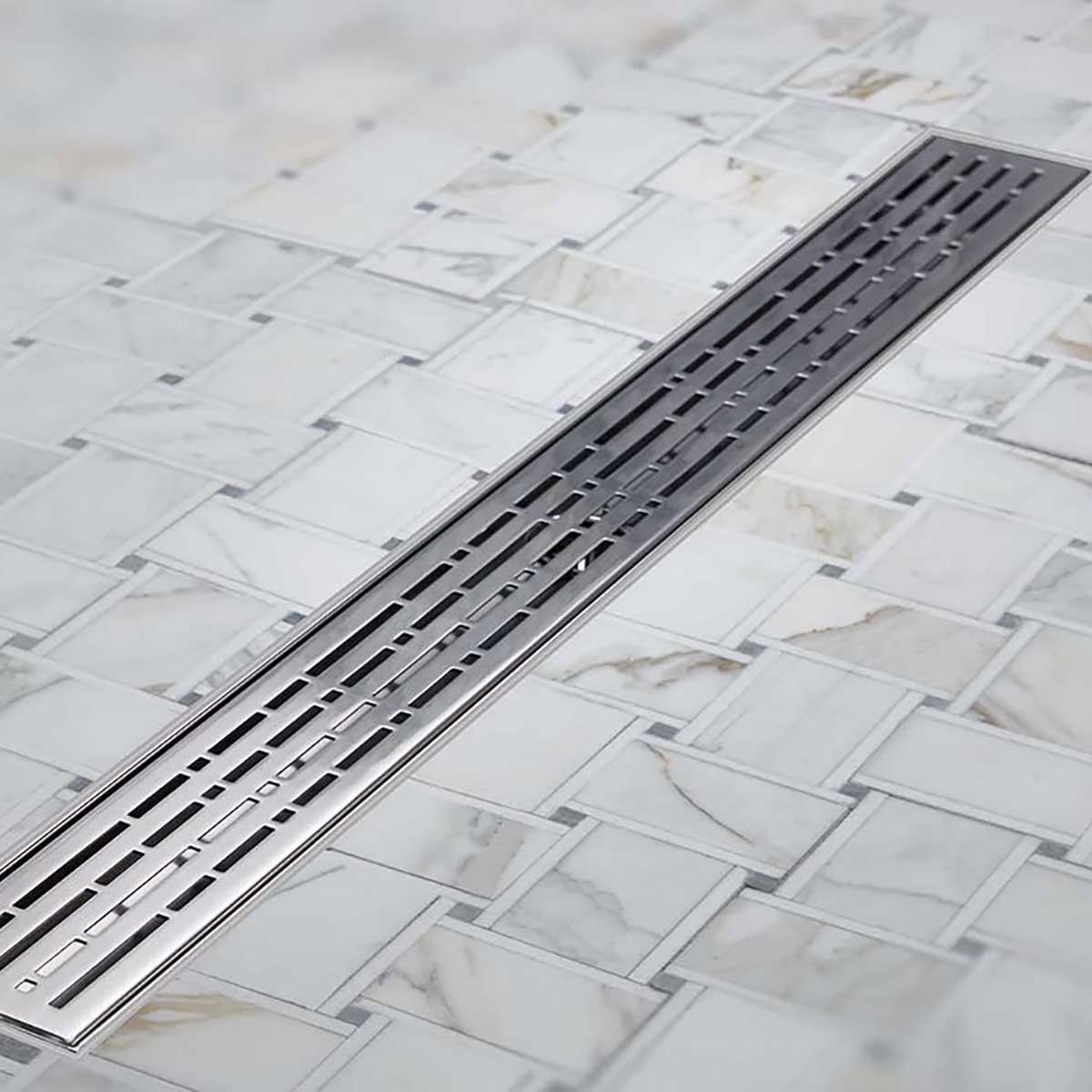

Mix Decorative Grate

The Mix grate features an eye-catching geometric arrangement of rectangles and squares that delivers a contemporary appearance while maintaining excellent drainage capacity. Its distinctive design complements porcelain tile, ceramic tile, natural stone, and large-format tile installations, making it a favorite for upscale residential and commercial bathrooms.

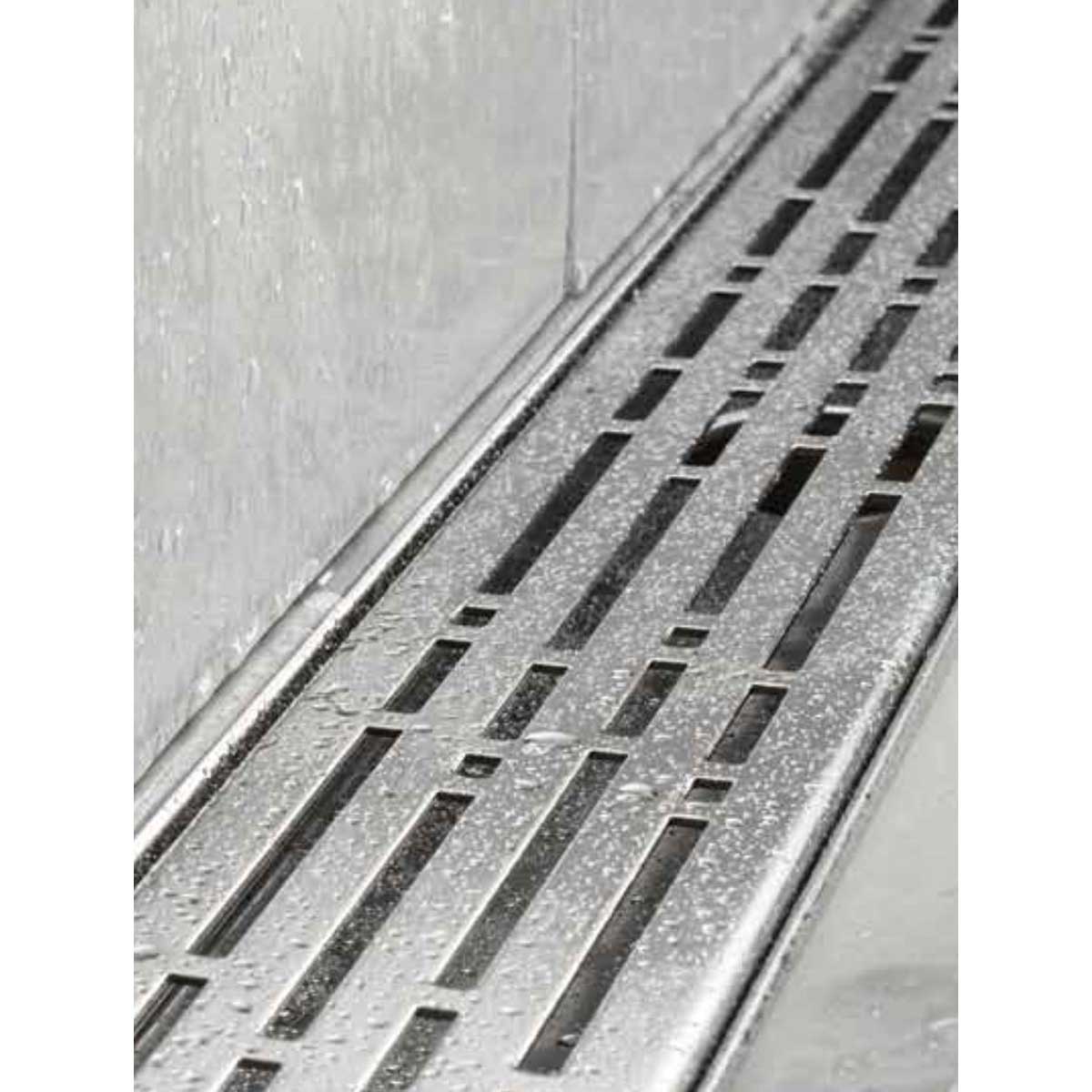

Brushed Stainless Finish

The Brushed Stainless finish showcases a timeless brushed metal texture that coordinates beautifully with brushed nickel fixtures, stainless steel hardware, and other silver-toned bathroom accessories. Its durable finish helps resist everyday wear while maintaining a clean, sophisticated appearance for years.

Advantages of a Linear Shower Drain

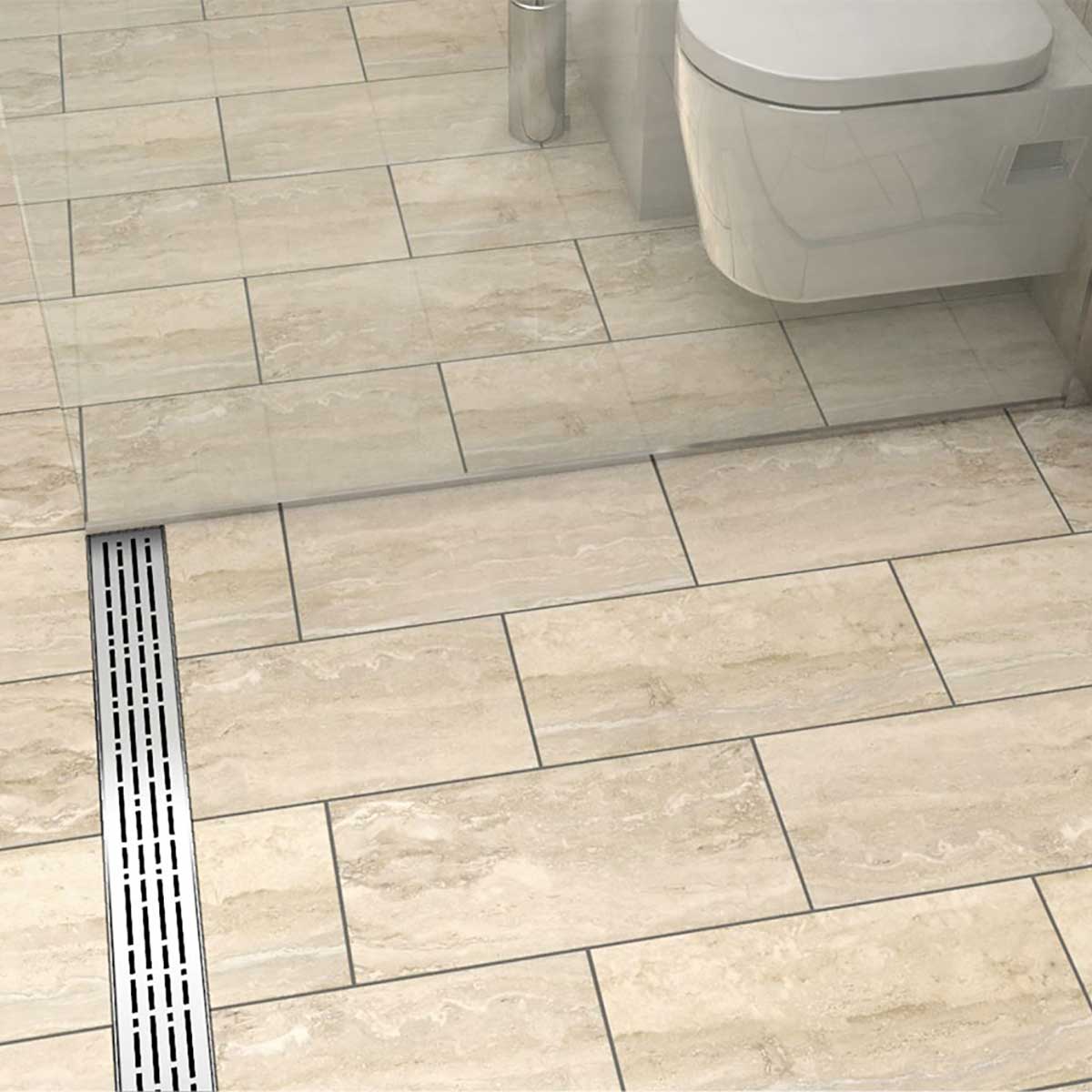

Unlike traditional center drains, a linear shower drain allows greater flexibility in shower layout and floor design. It can be positioned against a wall, at the shower entrance, or in the center of the shower floor, making it ideal for curbless showers and barrier-free bathrooms. The linear design also simplifies floor sloping while reducing complicated tile cuts, creating a cleaner, more professional installation.

Manufactured from premium stainless steel, Quartz by ACO linear shower drains combine European-inspired engineering with dependable drainage performance. Built for residential and commercial applications, they provide an attractive, low-maintenance drainage solution that delivers years of reliable service when installed according to the manufacturer's instructions.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO Mix 48 Inch Linear Shower Drain with Brushed Stainless Grate delivers dependable drainage, a clean architectural appearance, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that performs reliably for years in both residential and commercial applications.
