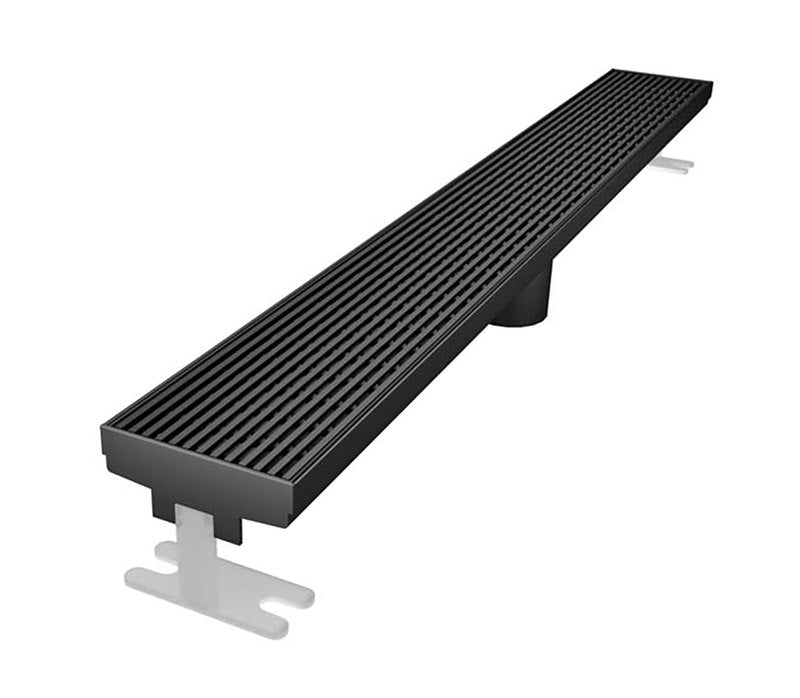

Quartz Linear Shower Drain Matte Black - Linear Wedge 60
From: $1,564.11Description
Quartz Linear Shower Drain Matte Black - Linear Wedge 60

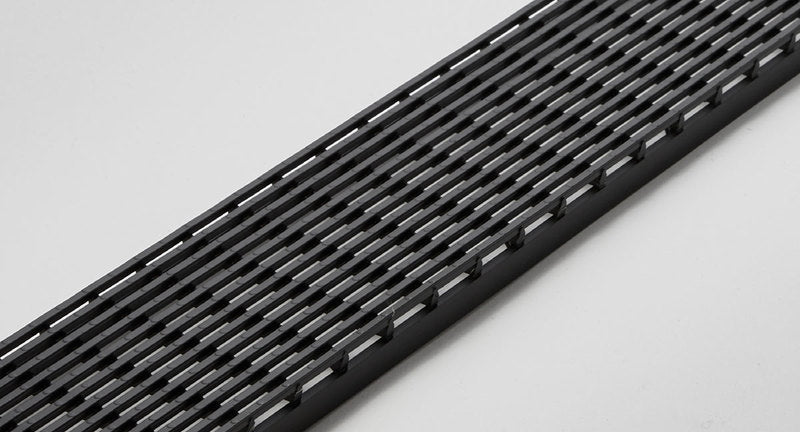

Foot friendly grate with anti-slip nodules.
Complete Set Channel Body, Grate cover, Lifting Key, Adjustable Feet, Hardware
To be use in wood joist application with CPE membrane
Length 59.05" (1500mm), Intake 44.74 sq. in.
Linear Shower Channel Drains Provide Improved Function and Good Looks
Features
• 2" diameter central vertical outlet
• Flow rate: at entrance of - 6.3 GPM (0.6 l/s). against the wall - 9.5 GPM (0.6 l/s).
• Channel Width 3.3" (84mm)
• Plastic support feet aid installation.
• Optional accessories include plumbing connectors, water activated LED light and debris strainer.
Matte Black
The Linear Wedge shower drain grate features a very uniform, clean, and continuous look, making it a great addition to a neutral or modern bathroom. ACO’s Matte Black finish will create a grand and prestigious feel in your space. It offers a flat black finish without shine or reflection that pairs well with many various colors and hues.
These stainless-steel shower drains are durable and designed to last. With easy installation that includes friction locking plastic plugs that hold the grate in place, you can have these installed in no time. Ensure the system is installed in accordance with instructions and recommendations.

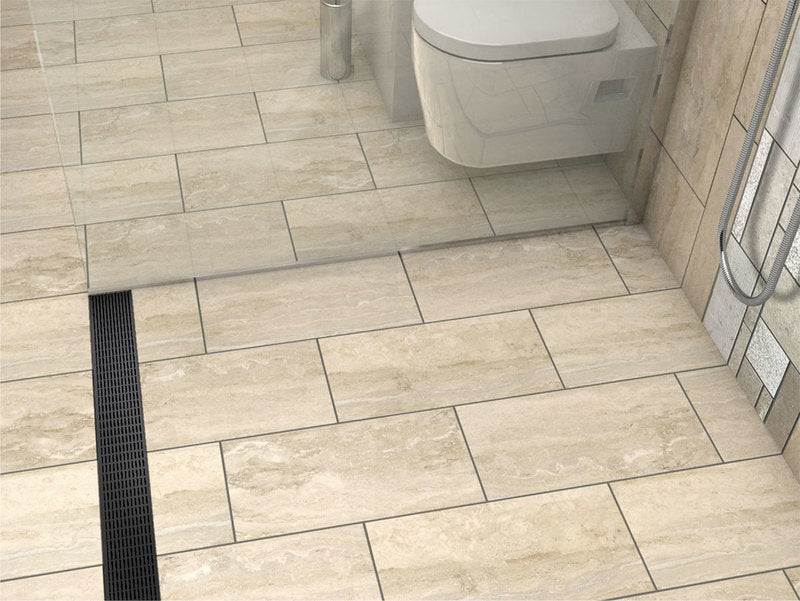

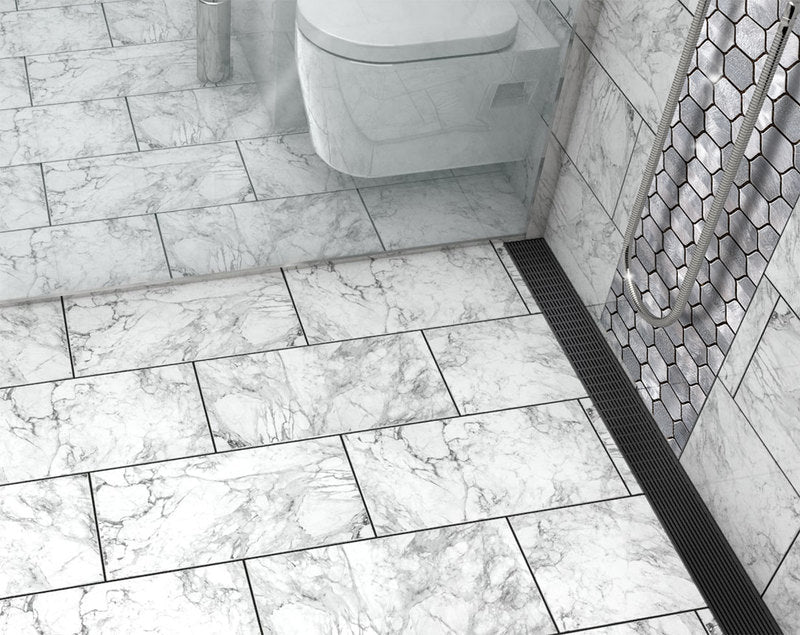

A linear shower channel drain, such as QuARTz by ACO, provide a number of advantages over circular point drains. First of all, flexibility in positioning allows you to place the shower channel drain in the center of a shower or other wet area, against the walls, or let it act as the threshold. As a threshold, it becomes the water barrier that keeps dry zones dry. This allows for more of an open floor plan and traffic flow because it allows the shower or other wet area to be open, without the need of a door.
QuARTz linear shower channel drains come in standard tile widths which mean all those tricky, complicated tile cuts around radii to make something fit are eliminated. The innovation of a flat, shower channel adds to the aesthetic beauty of your bathroom area. The layout can be more open and uncluttered by doors and doorway thresholds that were in place to be water barriers. Now that your floor has its own water barrier in the form of a QuARTz linear shower channel drain, that shower door is no longer needed.
QuARTz linear shower channel drains have a distinctive, attractive European design. Drains are available in 28", 32", 36", 40", 48" 55" and 60" lengths. In combination, it is likely that any area where you would like to have a linear shower channel fills the space, can be done.
