Raimondi Exploit Bridge Tile Wet Saw
From: $1,350.00Description

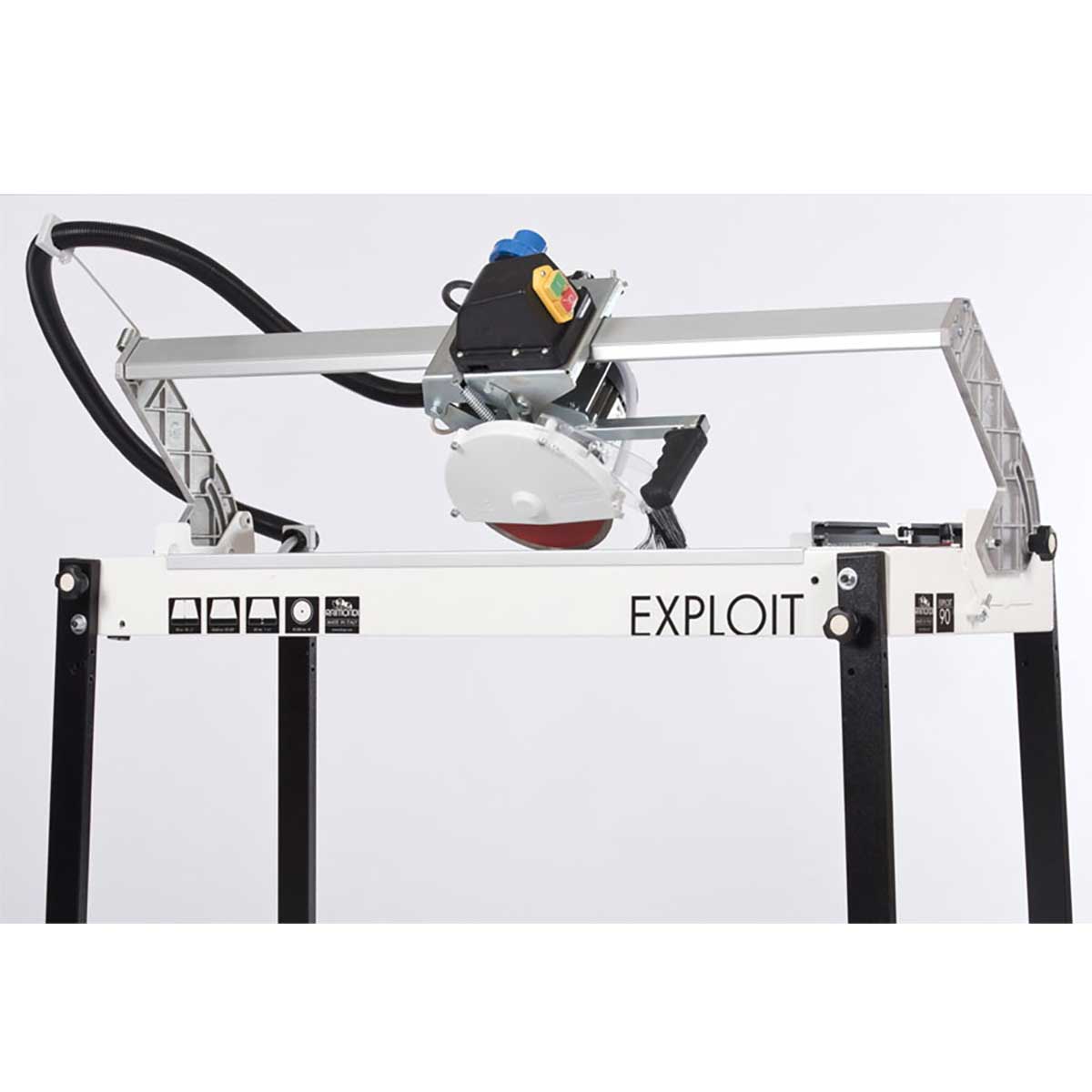

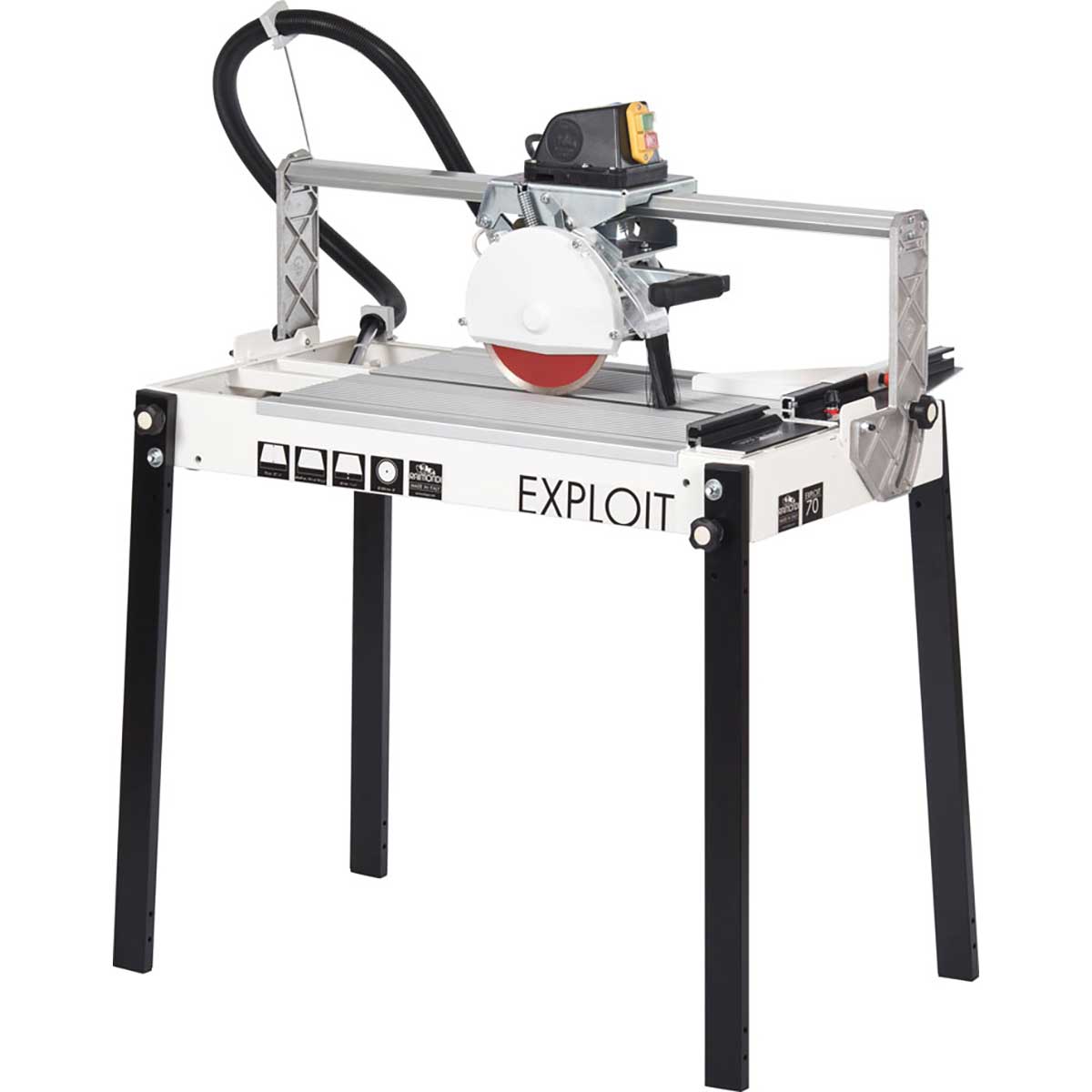

Raimondi Exploit Bridge Wet Saw
Exploit 70 Wet Saw 27-1/2" Rip Cut
Exploit 90 Wet Saw 35-1/2" Rip Cut
Exploit 120 Wet Saw 47-1/4" Rip Cut
For cutting porcelain, single-double fired, marble and granite.
Includes for all models
- Raimondi Exploit Tile Wet Saw Machine 110 V 60 Hz
- 8" Continual crown diamond disc for ceramic tiles
- Wrench kit
- Dressing Stone
- Pump
| Specifications | Exploit 70 | Exploit 90 | Exploit 120 |
|---|---|---|---|
| Maximum Length of Cut | 27 1/2" | 35 1/2" | 47 1/4" |
| Maximum Thickness of Cut | 1 3/8" in single pass 2 3/8" in double pass | 1 3/8" in single pass 2 3/8" in double pass | 1 3/8" in single pass 2 3/8" in double pass |
| Maximum Blade Diameter | Ø 8", smallest blade diameter Ø 7" | Ø 8", smallest blade diameter Ø 7" | Ø 8", smallest blade diameter Ø 7" |
| Diagonal Cut | 19 1/2" x 19 1/2" | 25" x 25" | 33 1/2" x 33 1/2" |
| Overall Size | 39 3/8" x 22” x h 19 5/8" | 49 1/4" x 22" x h 19 5/8" | 61" x 27"x h 20" |
| Weight | 75 lb | 77.2 lb | 101.4 lb |
| Blade RPM | 3360 | 3360 | 3360 |
| Motor Power / RPM | 0,9 HP / 0,65 kW - rpm 3360 | 0,9 HP / 0,65 kW - rpm 3360 | 1,2 HP / 0,9 kW - rpm 3360 |
Feature for all Models;
- Maximum length of cut 27 1/2”.
- Maximum depth of cut: 1 3/4” in single pass; 2 3/8” in double pass.
- Diamond blade: max Ø 8”; min Ø 7”.

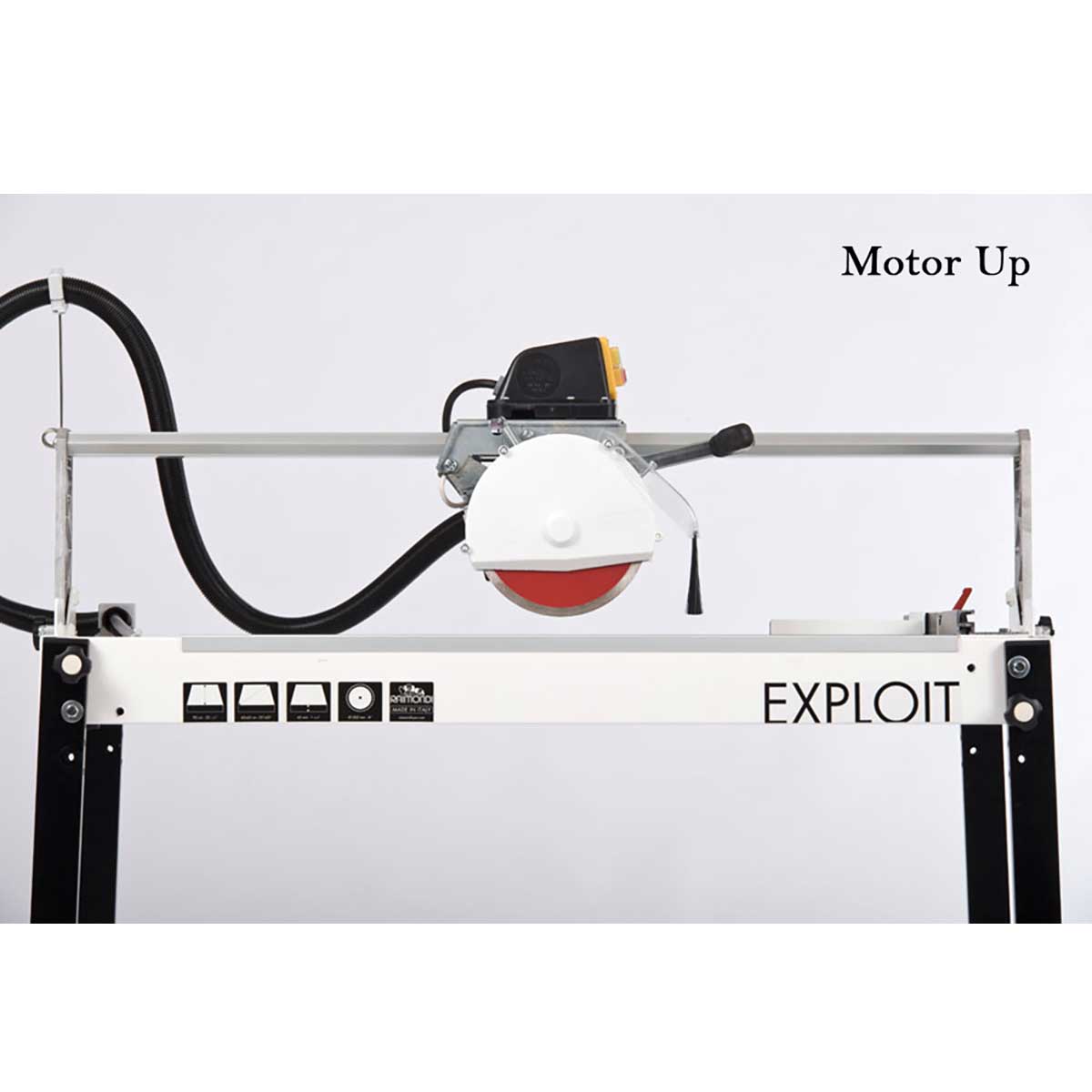

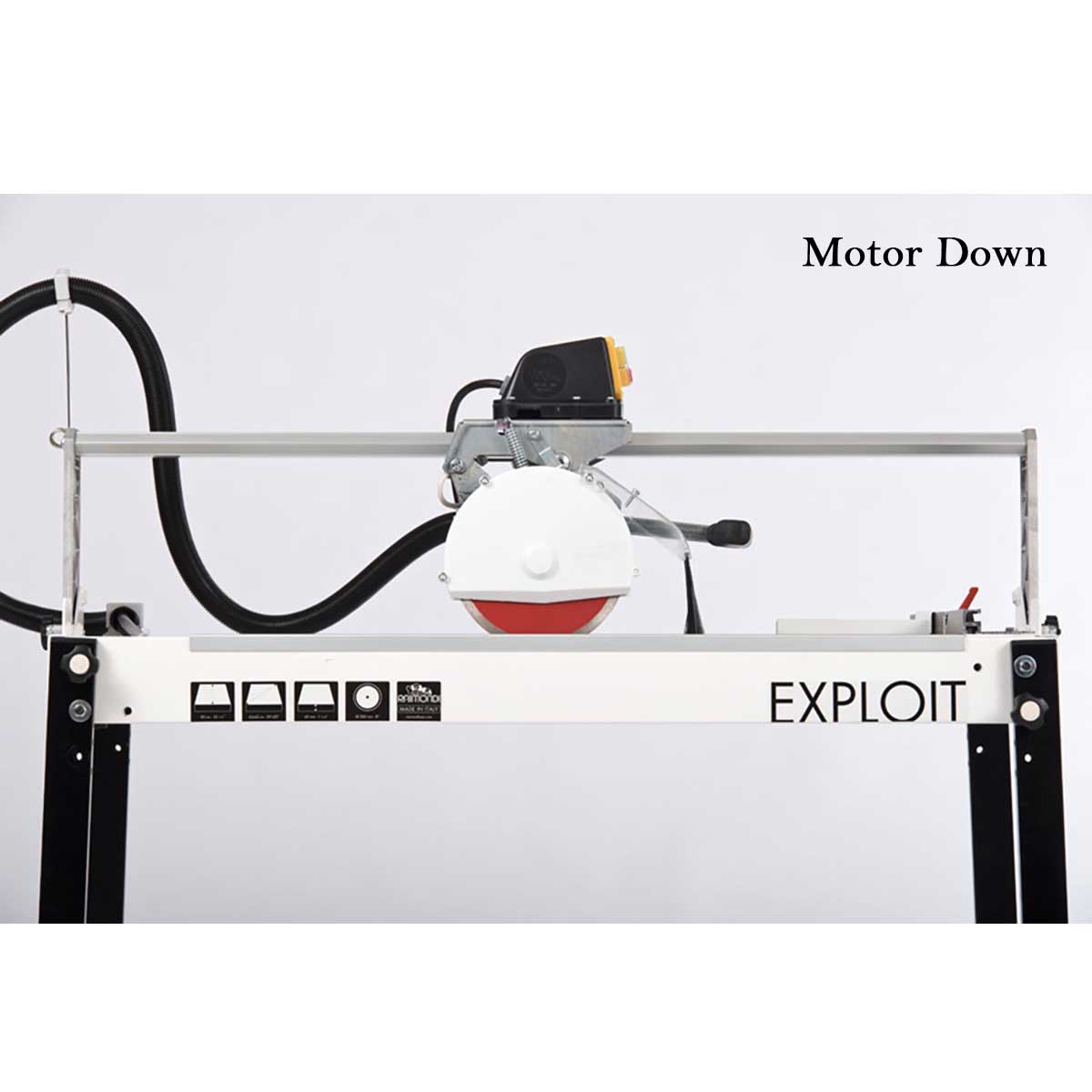

- Plunge cut and adjustable cutting depth.
- Heavy Duty Water pump with two (2) jet nozzles.
- Sliding bar and pivots in aluminum.
- Easy-to-remove aluminum work benches for easy cleaning and maximum sturdiness.
- Coated metal frame.
- Re-adjustable aluminum square.
- Motor moves on 4 polypropylene pulleys; each pulley is reinforced with 2 inside bearings.

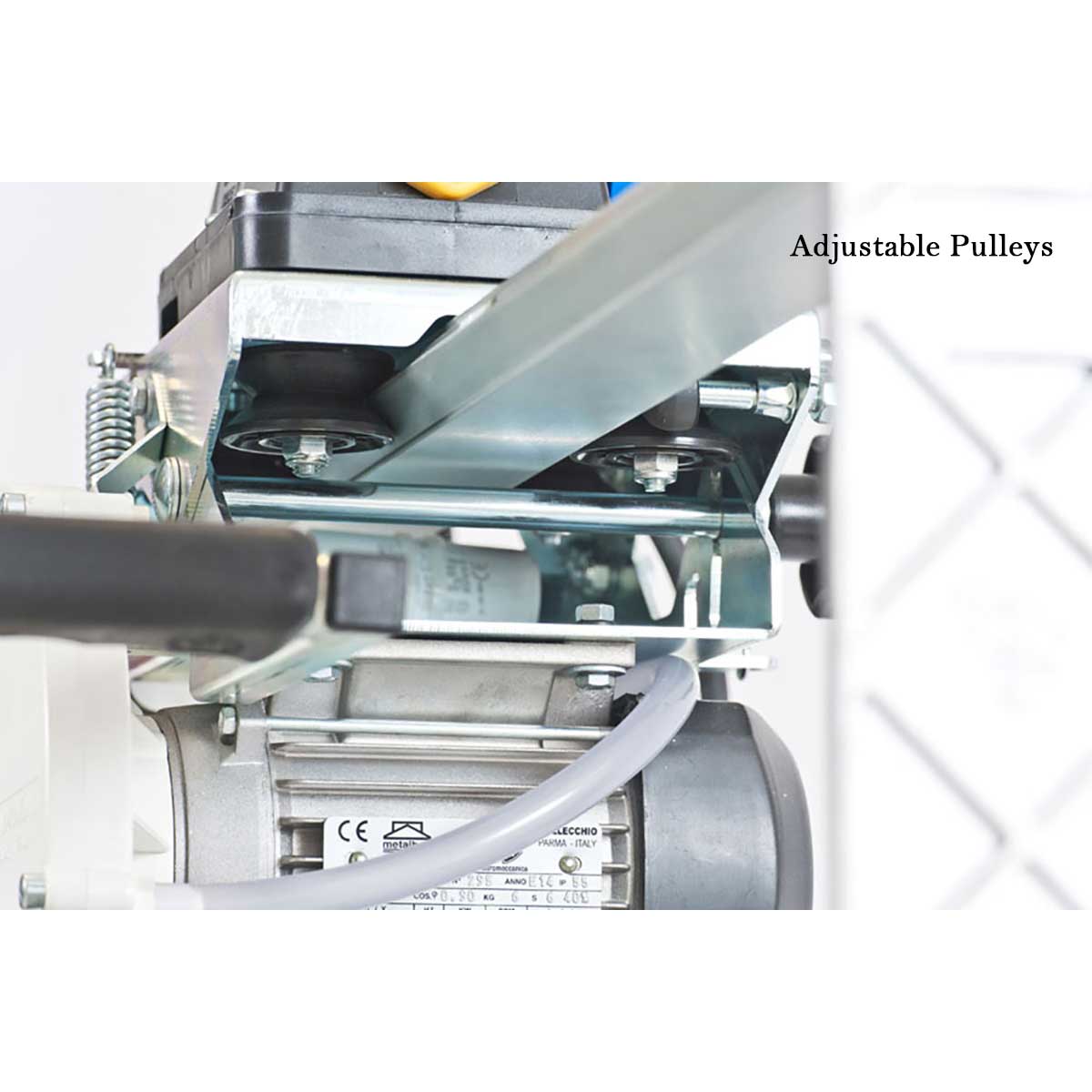

- Pulleys are easy to re-adjust (tighten): avoid play and confer long lasting precision of cut.
- Motor held by galvanized metal frame.
- Folding legs.
- Tilting movement (0-47°) for 45° angle cut (jolly).
- Available accessories: self-standing side bench with rollers, 4 wheels + 2 handles kit.

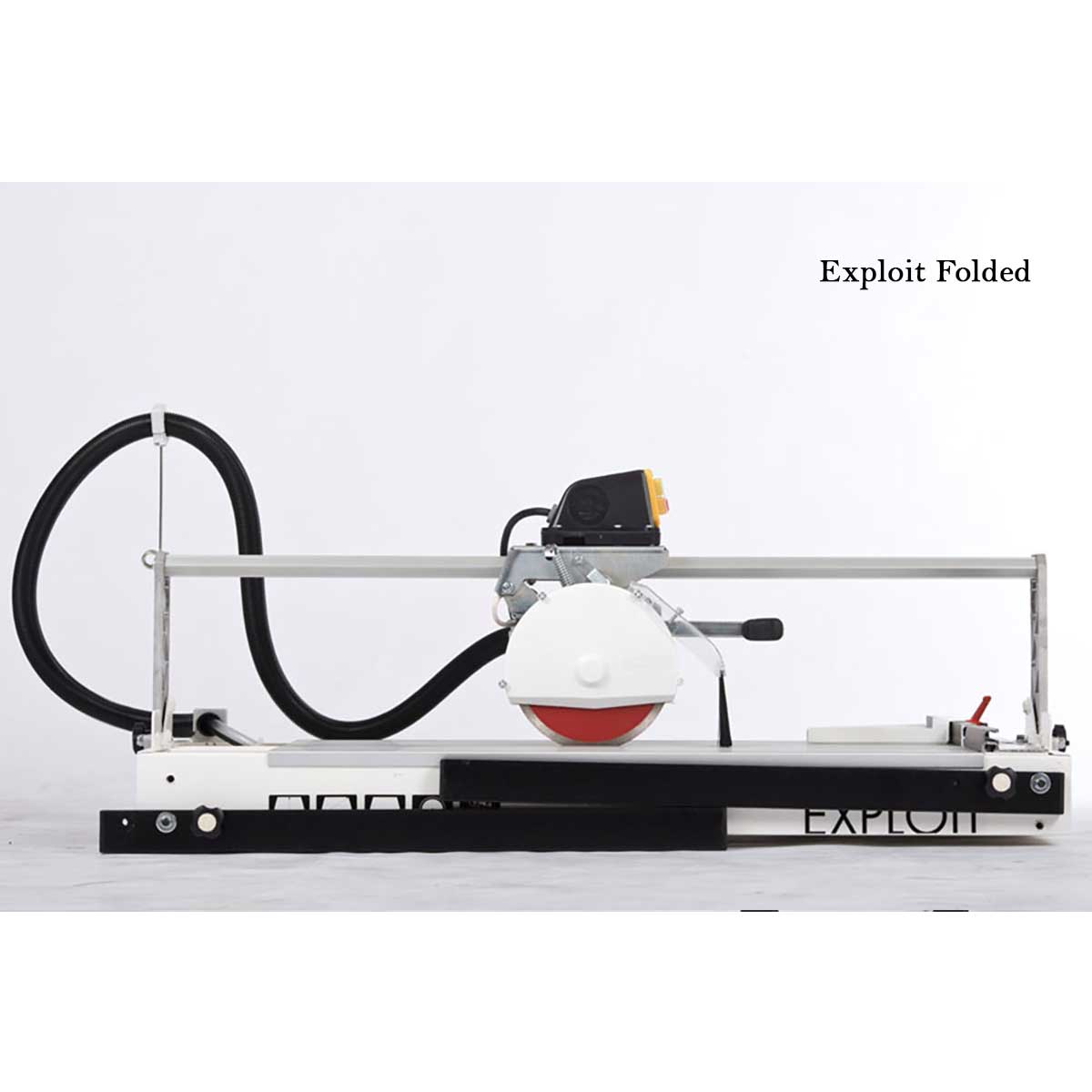

FOLDING - The EXPLOIT series has the ability to fold its legs in for easy maneuvering and storage. Wheels can be added to the legs for easy movement around the job site.

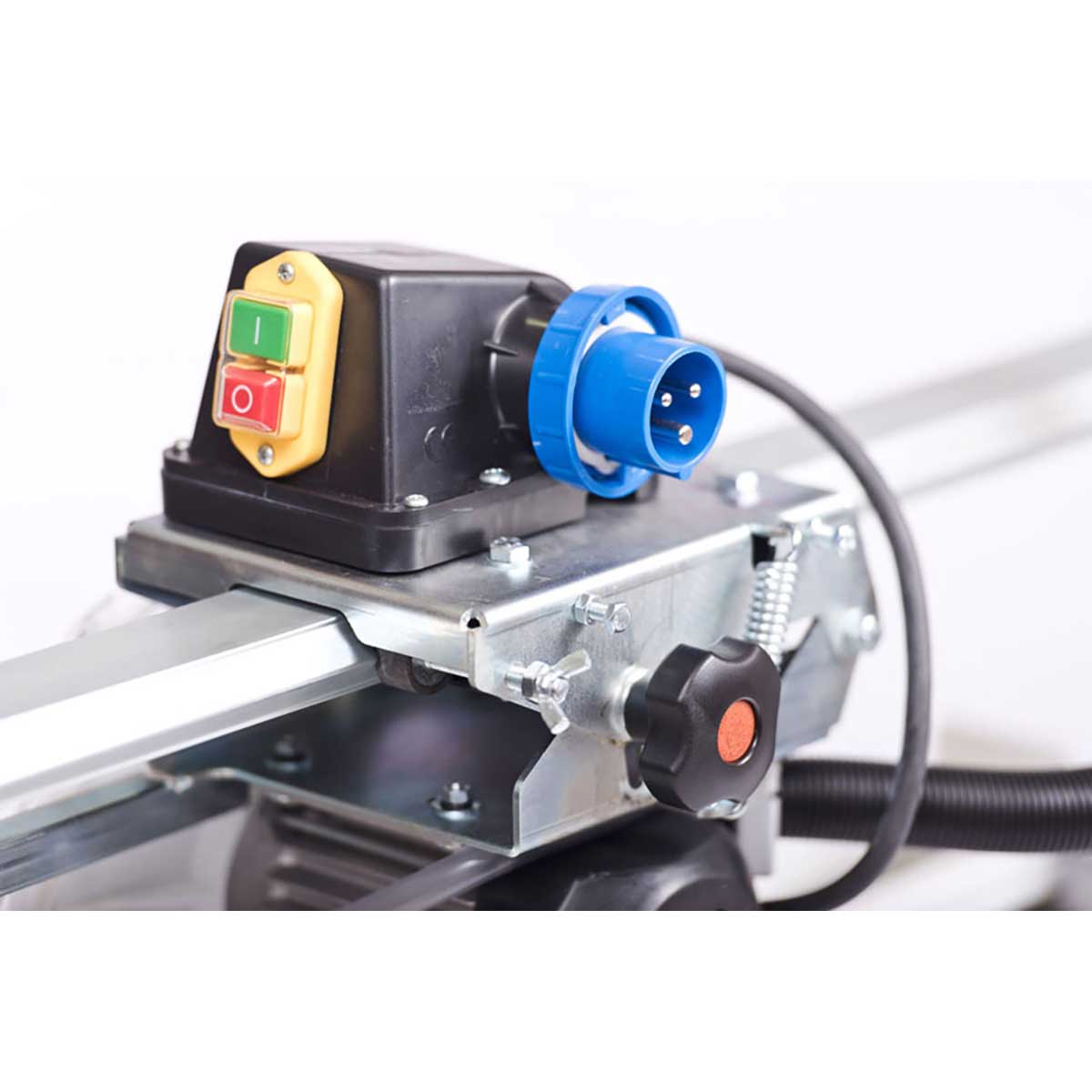

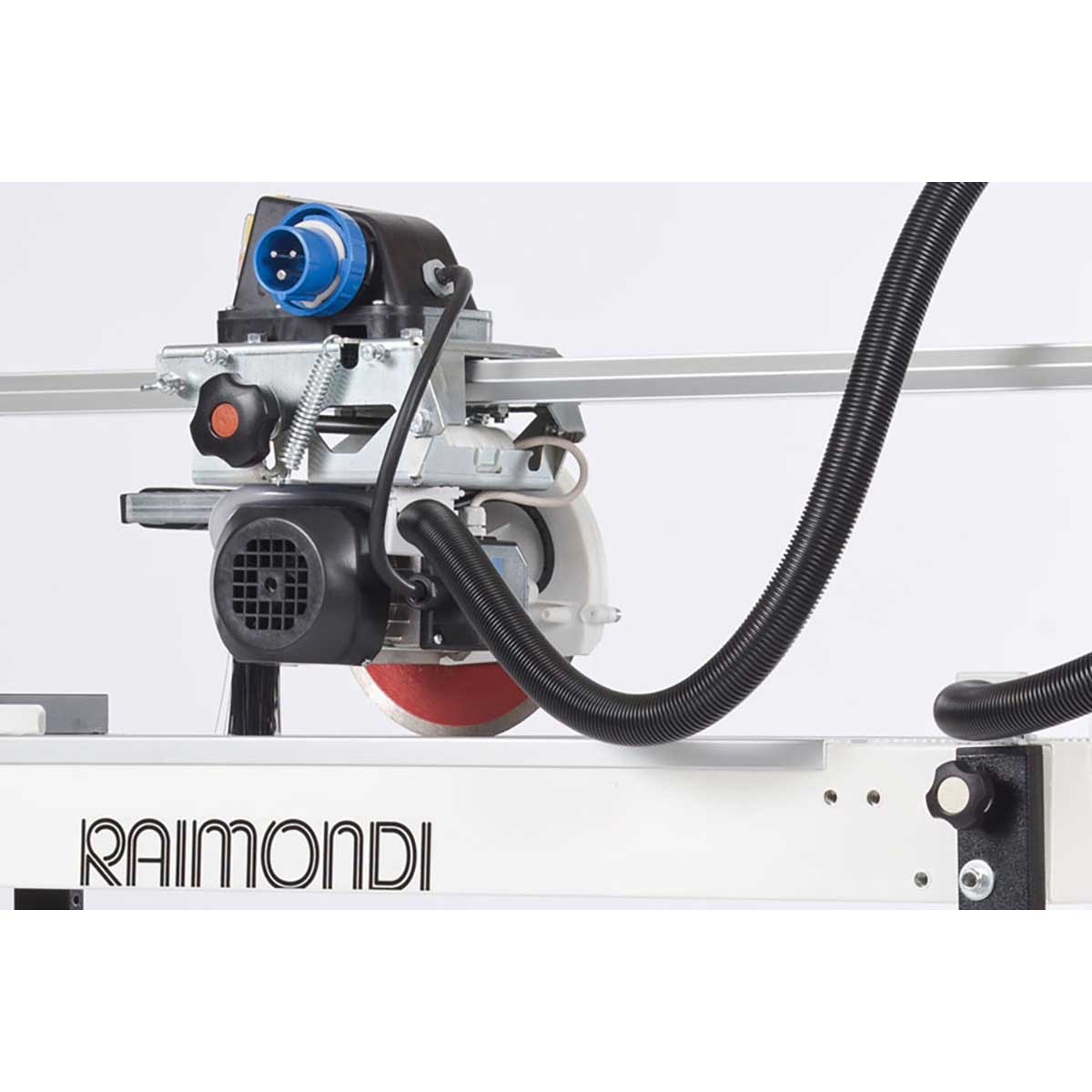

MOTOR - Moves on four (4) polypropylene pulleys, each are reinforced with two (2) inside bearings. Tilting motor assembly for bevel cuts of 45° Motor has a capacity of 0.9hp / 1.2hp with an 3,360 rpm.

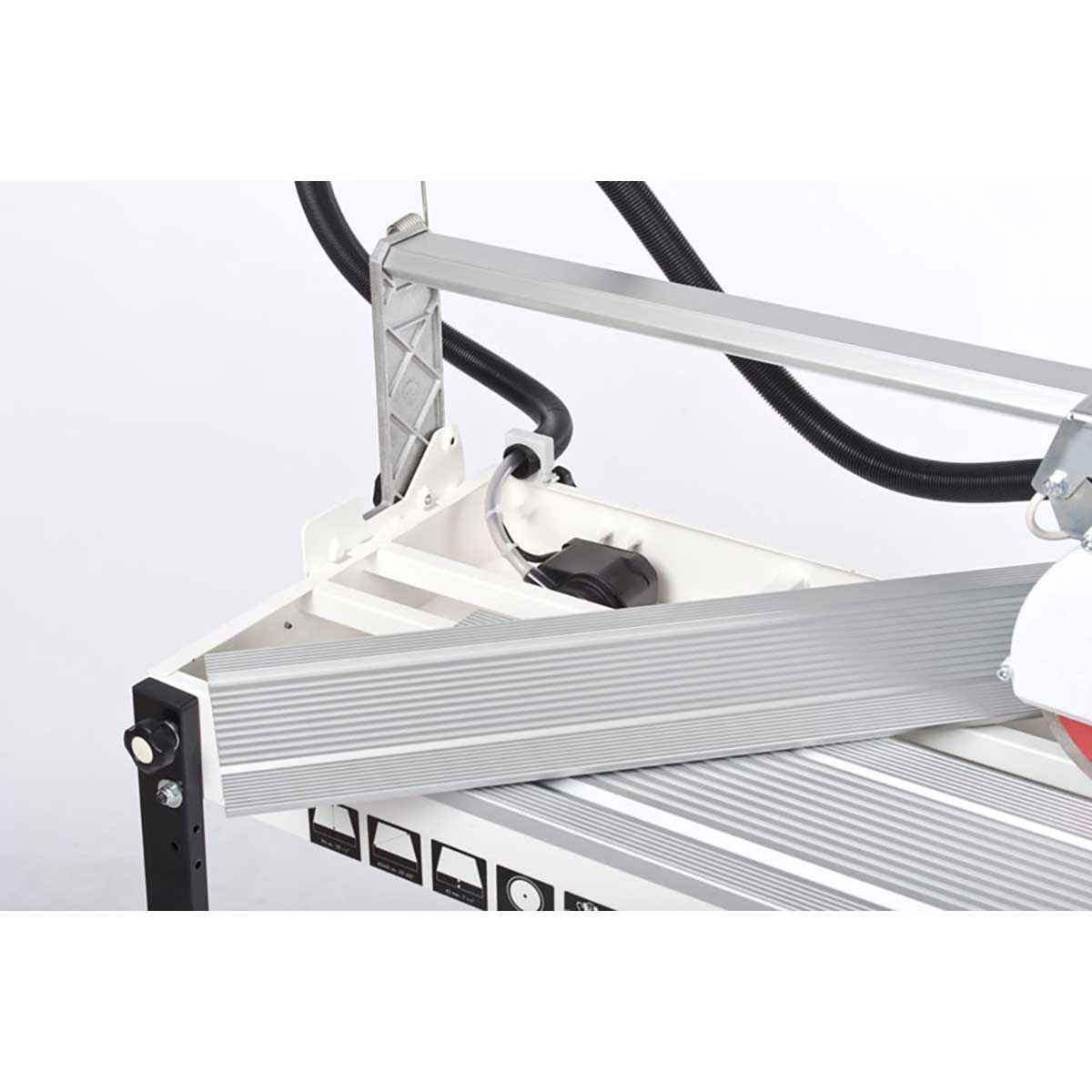

CLEANING - Easy cleaning with its removable tray. Made entirely of aluminum and coated metal for quick one-pass cleaning.

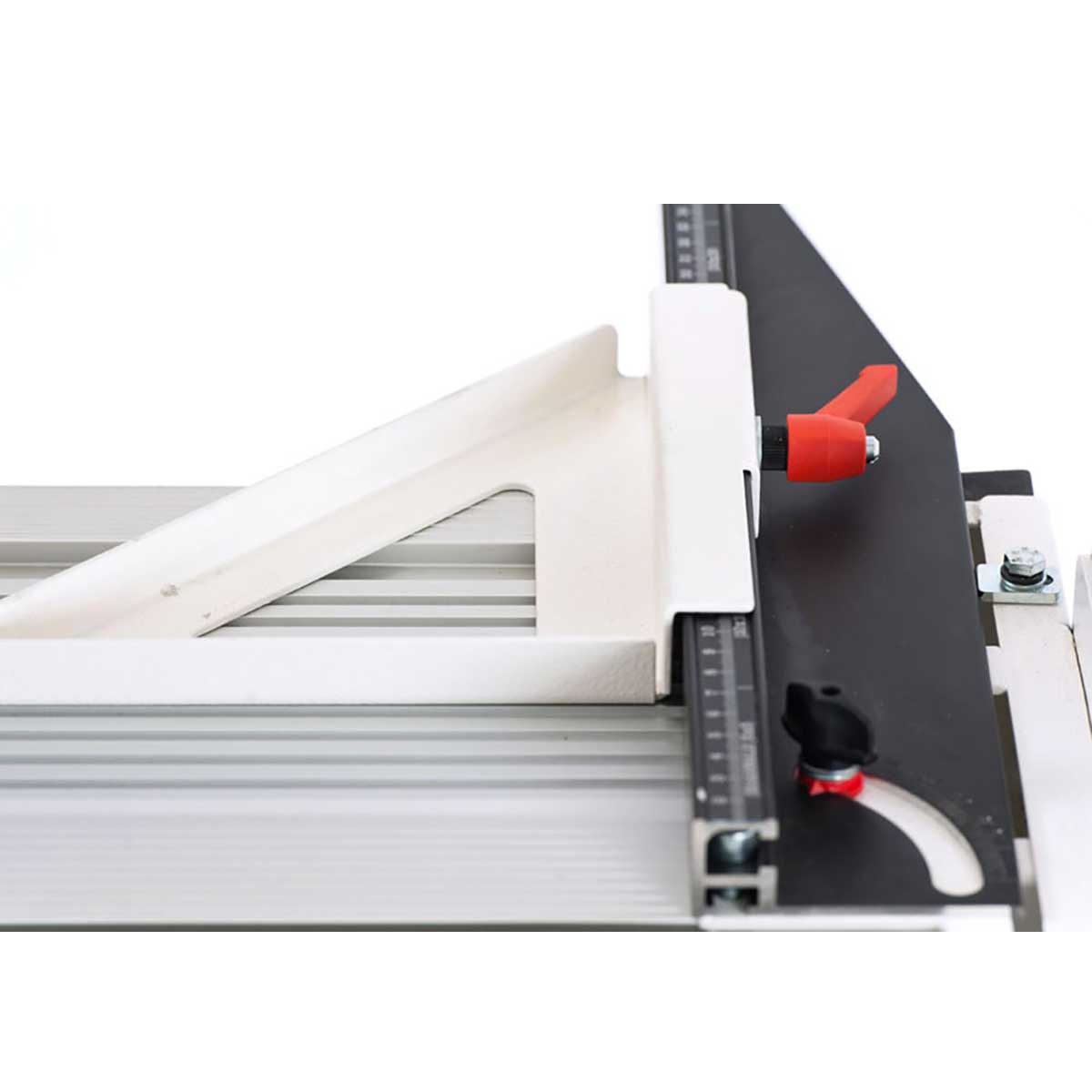

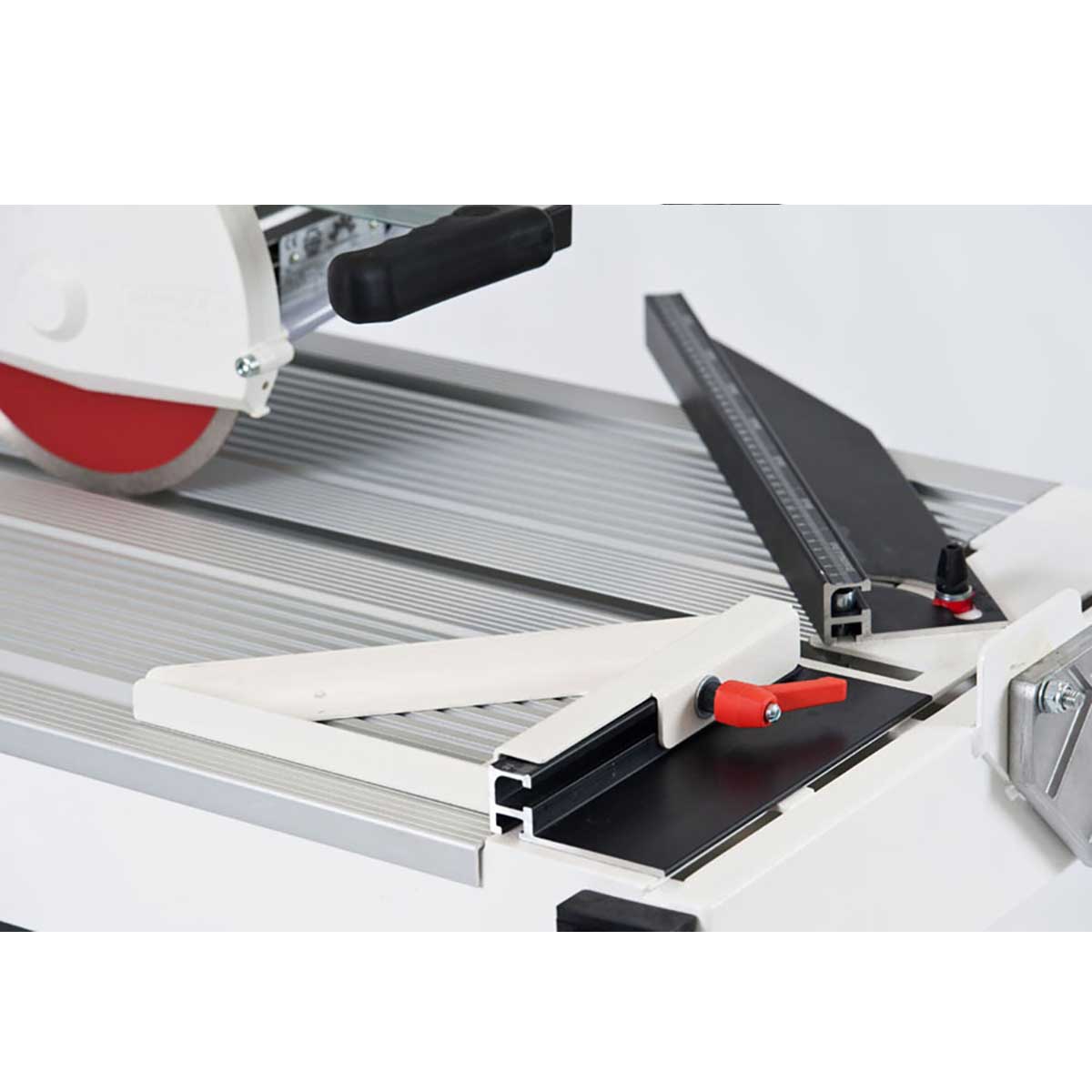

DIAGONAL - Easy diagonal cuts can be achieved with any of the Exploit machines. A sliding square can be fitted onto the machine. Please see below for the WSSQ9045 page.
ROLLER BENCH - A roller bench may be added to the Exploit series machines for the cutting of longer materials. Please check for the WSBROLL.
