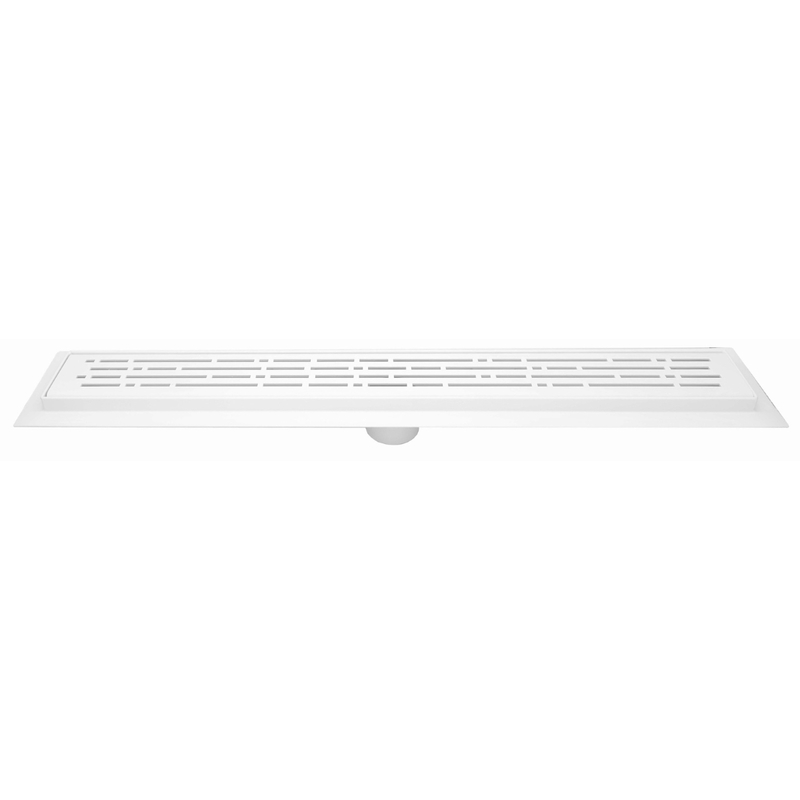

SereneDrains Linear Shower Drain Broken Lane - Matte White 39
From: $399.00Description
SereneDrains Linear Shower Drain Broken Lane - Matte White 39

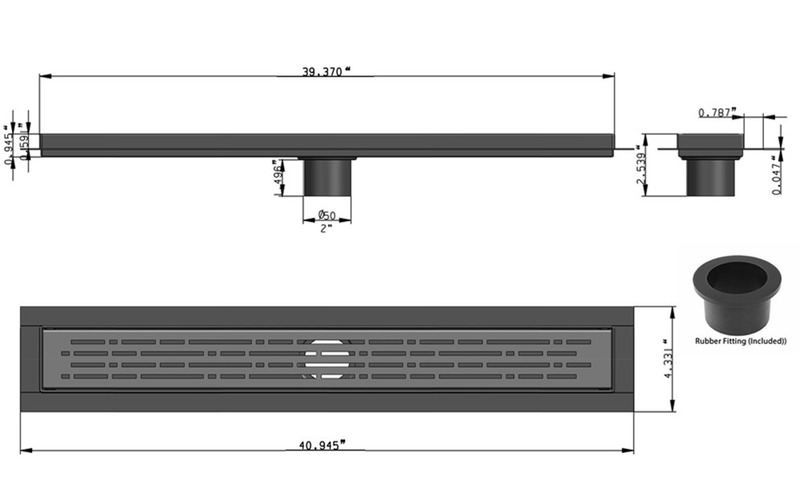

Overall Size 40.95" x 4 3/8" - Net Size 39 3/8" x 2 3/4"
Available Color; Brushed Stainless, Polished Chrome, Matte Black, Satin Gold and Matte White

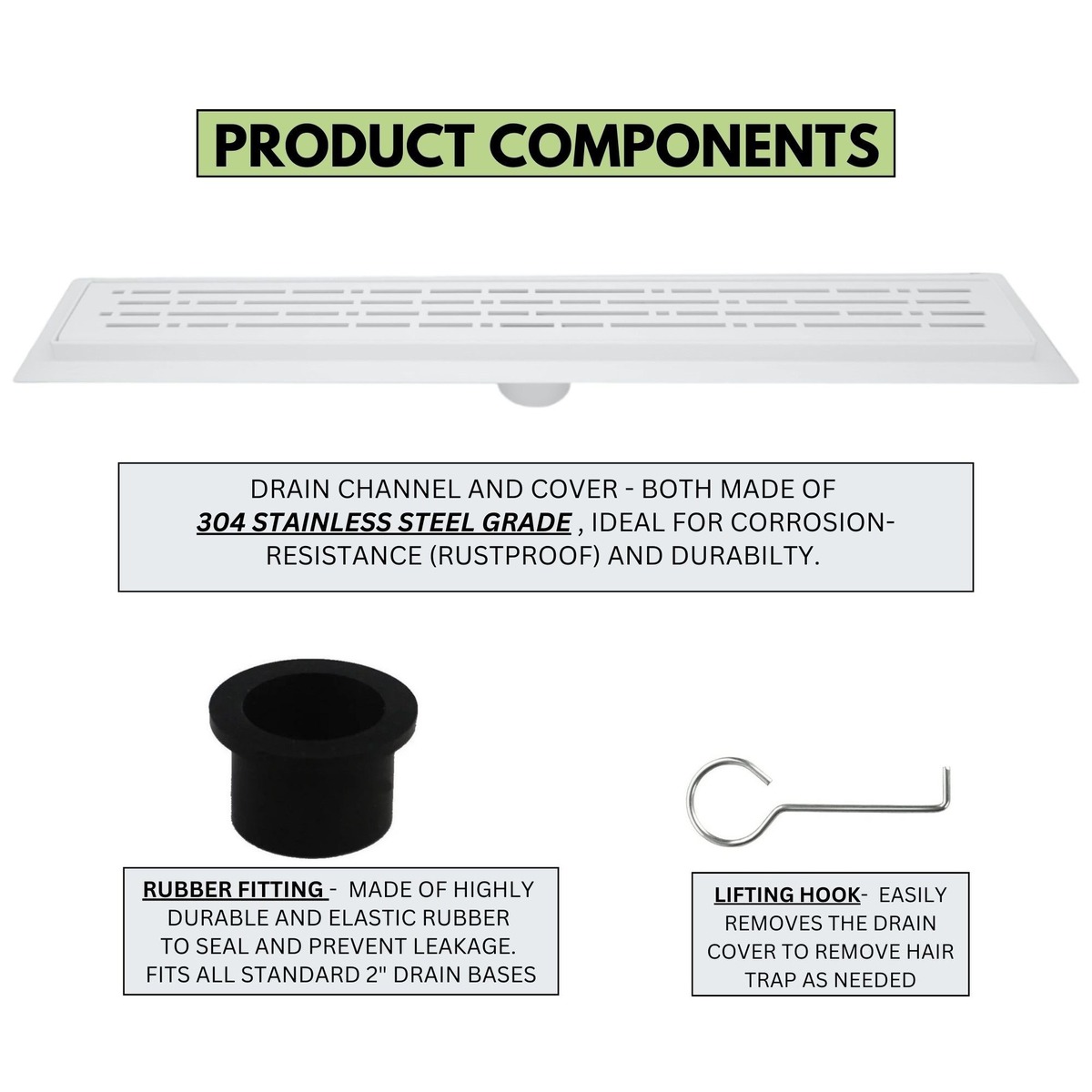

COMPLETE SET - Channel Body, Tile Insert Grate, Drain Rubber Fitting, Drain puller key, Waterproofing membrane sheet around the drain flange (not require but included)
Optional: ABS or PVC or Cast Iron CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap
Square shape. It's easier to cut tile to a square drain than to cut, nip and grind it to fit a round one.
Superior Quality at an Affordable Price

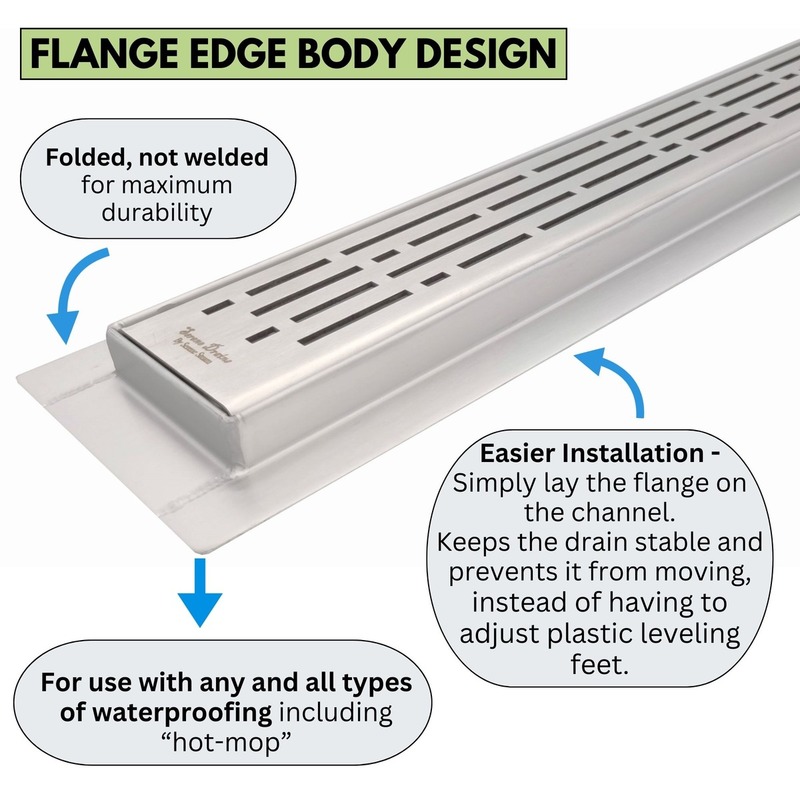

Flange Body Edge designed for use with any and all types of waterproofing, included and not limited to "hot-mop" painted or liquid membranes, Sheet Membrane, Vinyl waterproofing etc.
Approximately Dimensions:
Length 16" (400mm), Intake 10.44 sq. in.
Length 24" (600mm), Intake 15.66 sq. in.
Length 30" (762mm), Intake 19.94 sq. in.
Length 35.43" (900mm), Intake 23.56 sq. in.
Length 39.37" (1000mm), Intake 26.47 sq. in.
Length 47.25" (1200mm), Intake 27.72 sq. in.
Length 59.05" (1500mm), Intake 39.1 sq. in.
Construction
- Pre-Slope Channel
- 2" diameter central vertical outlet
- Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
- Channel width: 2 3/4" (70 mm)
- Bodies are fully welded and leak tested prior to dispatch..
- Compatible with tiles up to 10mm depth (14mm lip)
- Stainless steel clad flexible coupling connects outlet to pipe system (optional)
- Optional accessories include plumbing connectors and debris strainer
- Stainless Steel 16 gauge 304 Grate
- Superior Quality
- Most Durable Finishes Available
- Easily Maintained. No Special Cleaning

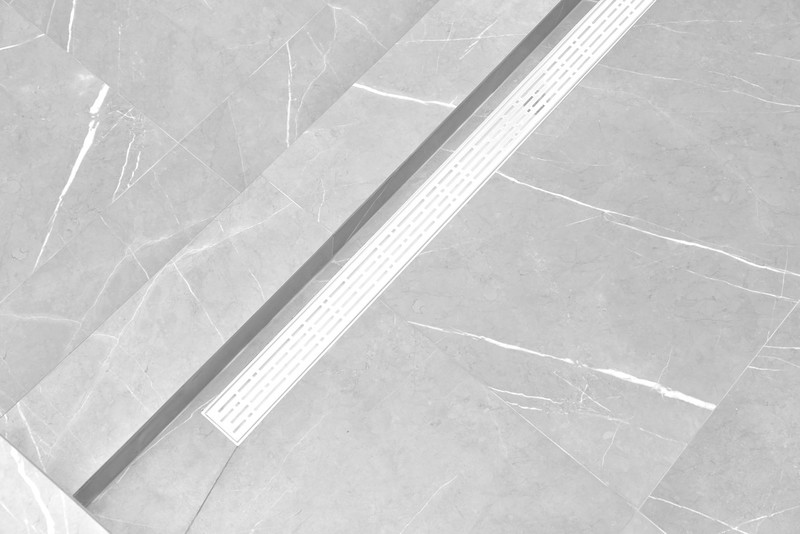

The SereneDrain Broken Lane design drain in Matte White finish is a captivating and contemporary addition to your bathroom. This innovative linear drain features a striking Broken Lane pattern in the cover, which deviates from the conventional solid designs. With its intermittent gaps and breaks, it adds a visually dynamic element to the drain while maintaining efficient water drainage.
Crafted from high-quality brushed 306 stainless steel, this drain not only offers durability but also exudes a sleek and modern aesthetic. The Matte White finish enhances its visual appeal, providing a sophisticated touch to your shower or bathroom floor.
Beyond its stylish design, the SereneDrain Broken Lane design drain ensures effective water flow, preventing pooling and maintaining a clean and safe shower environment. The intermittent gaps in the cover also prevent debris or small objects from blocking the drain, ensuring hassle-free maintenance.
With the SereneDrain Broken Lane design drain in Brushed Stainless Steel finish, you can elevate the overall look of your bathroom while enjoying the functional benefits of efficient water drainage. Its contemporary design and high-quality construction make it a standout feature that combines style and practicality effortlessly.
Simple cuts are easily made, and waste little precious time. SereneDrains are sized to match standard 1/2", 1", 2”, and 4" tile without cutting. When cutting is needed, cuts are straight saw cuts. No grinding to match a radius. Consider how much easier glass mosaics will be to install.
Superior Quality - Heavy Drain Grate - Minimal Grout Rim - Designer finishes
In stock - Ship Same Day
SereneDrains Linear Drain Installation Instruction
