SunTouch WarmWire Radiant Floor Heating Kit 70 sq
From: $810.60Description
SunTouch WarmWire Kits - 56 to 84 sq. ft. 240 Volt
Alternate pricing available - Contact us for pricing.
Toll free 877 880 8453 or Email contact@flooringsupplyshop.com
Cares abut the safety of your love one? CLICK HERE to See SunTouch EMF
Wire Length - 274 Linear Feet = 70* sq. ft.

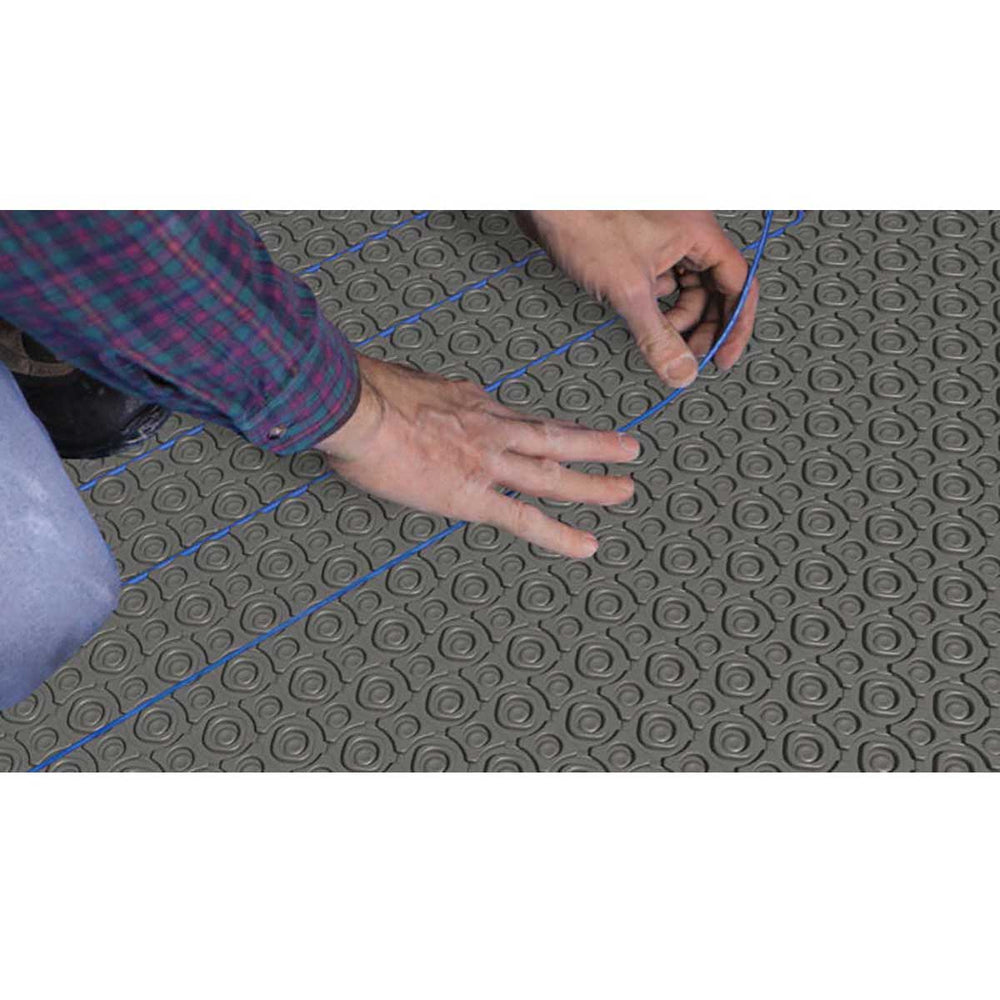

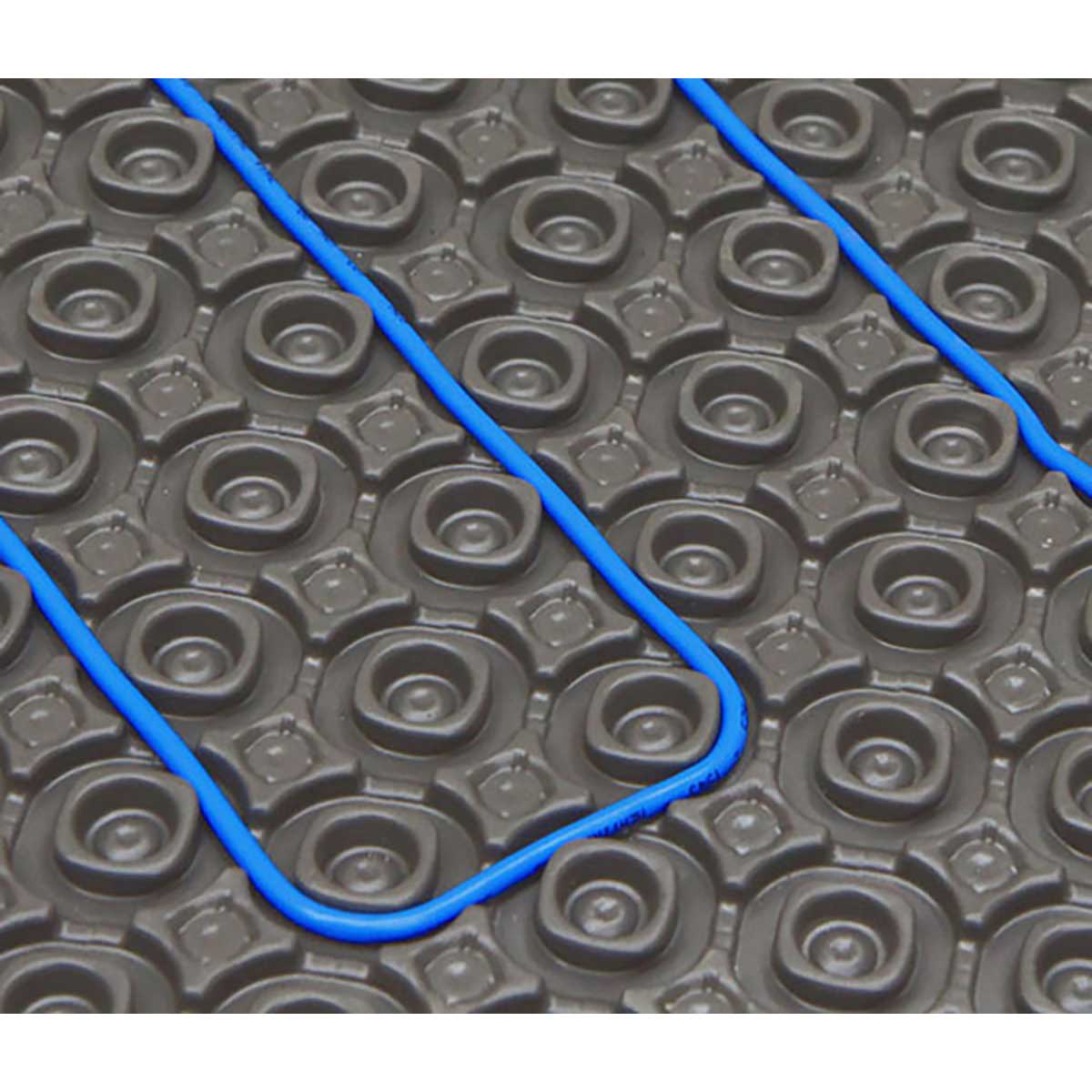

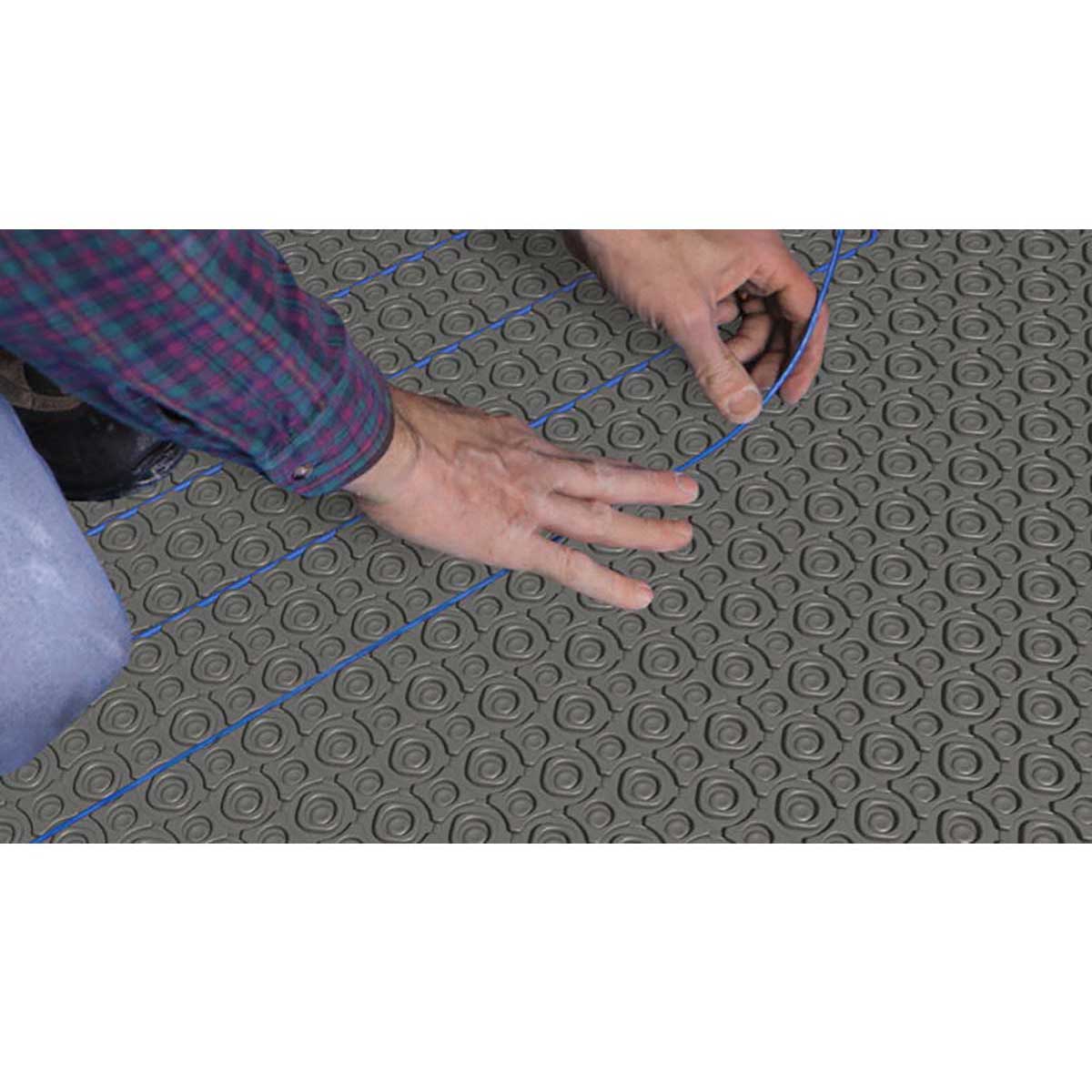

Use with Uncoupling Membrane or Cable Strap

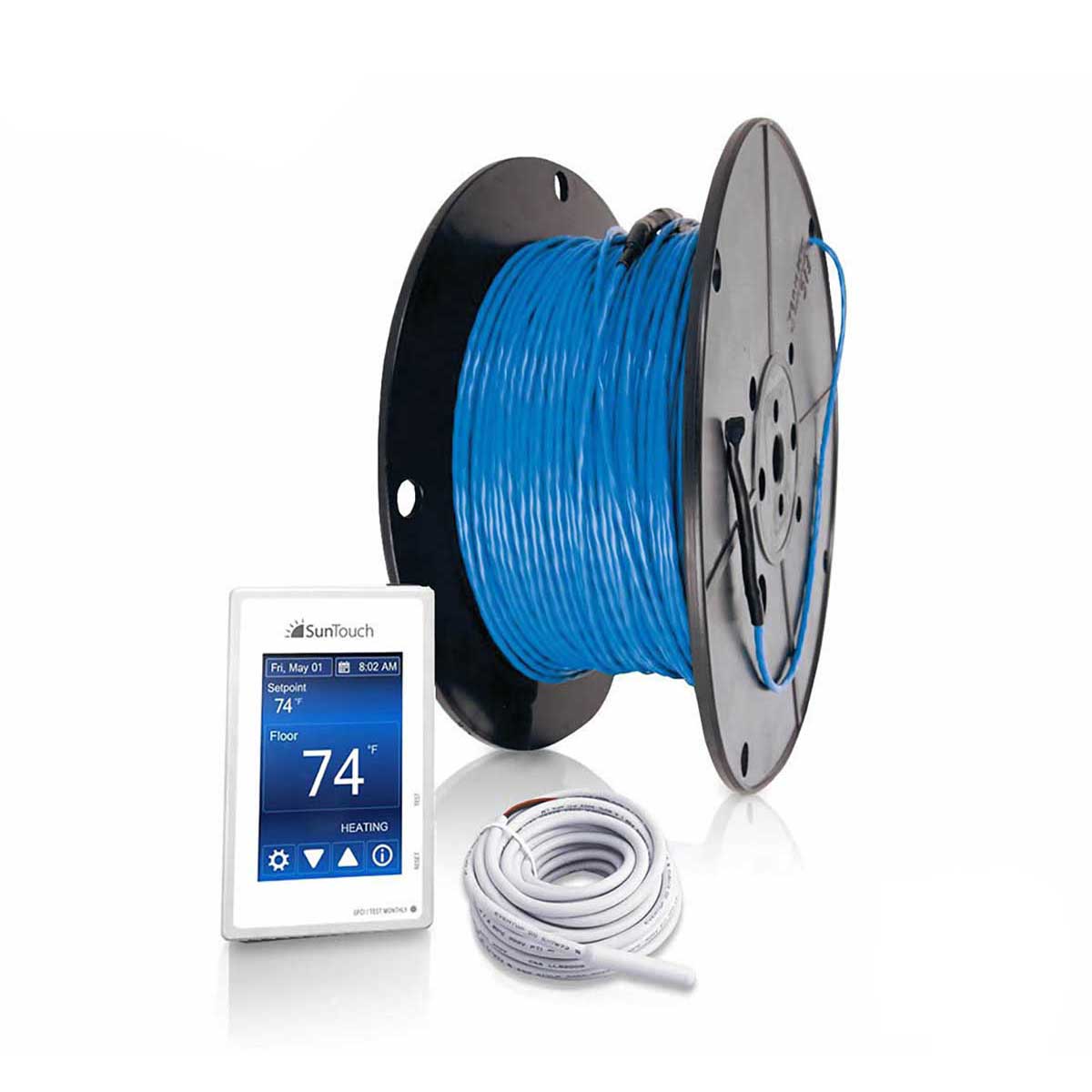

Kit Includes:
- WarmWire Spool/s

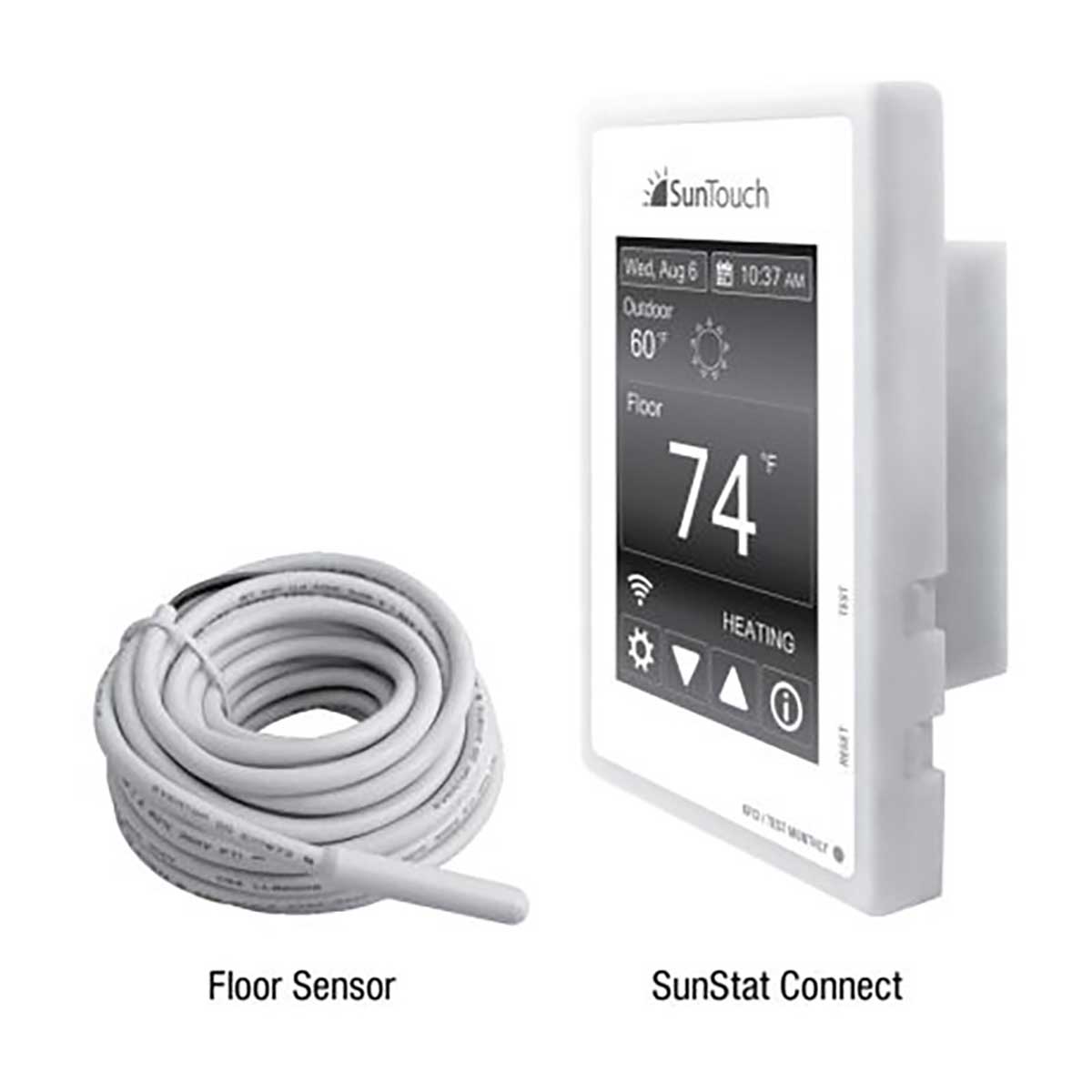

- SunStat Command Programmable Thermostat 500850 120/240V
- Sensor Wire
- Installation Manual
ngCoverage Area & Spec
|
Sq. Ft @ 2.5" O.C.
|
Sq. Ft @ 3" O.C.
|
Sq. Ft @ 3.5" O.C.
|
Amperage Draw
|
Resistance (ohms)
|
56
|
70
|
84
|
3.5
|
57-69
|

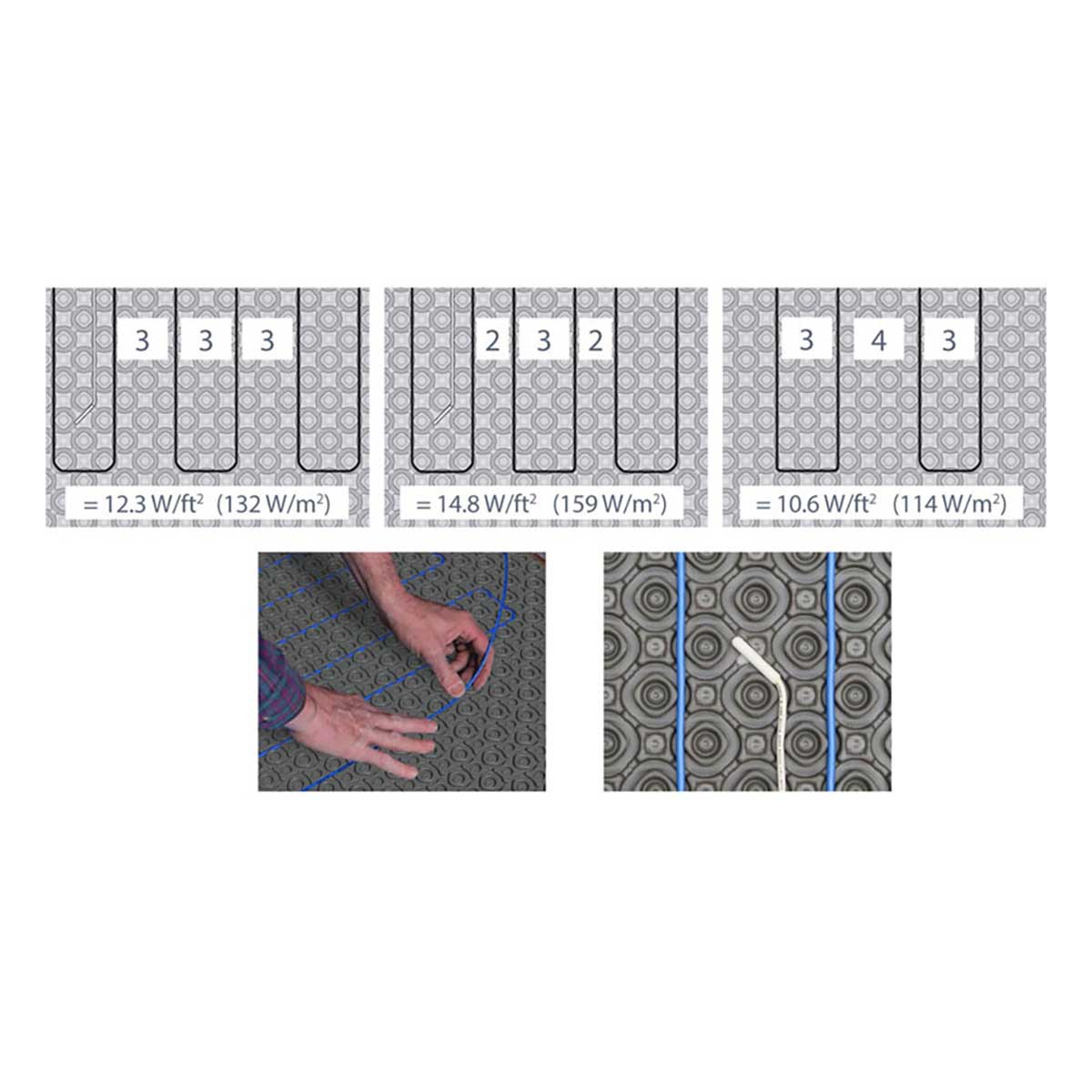

- 2.5" o.c. delivers 15 Watts per sq. ft. - Concrete basement slabs, sunrooms, high heat loss areas, etc.
- 3" o.c. delivers 12 Watts per sq. ft. - Bathrooms, kitchens, dining/living areas, etc.
- 3.5" o.c. delivers 10 Watts per sq. ft. - Hallways, entries, low heat loss areas, etc.
The affordable alternative to radiant heated mats.
WarmWire Features
* Single point connection * High-performance ETFE insulation * Strengthened with armed reinforcing * Protected with stainless steel jacket * Available in 120VAC and 240VAC * Sizes up to 240 sq. ft. * UL listed in Canada & USA * Ultra-low EMF * Grounded from end to end 244-8
WarmWire floor heating cable is an economical way to utilize a radiant heat flooring system as a means of warming floors and providing years of lasting comfort. This floor warming system offers UnderFloor heat that helps keep bathrooms, kitchens, and entry ways dry and safe. Make your home cozy with a SunTouch heated floor system.
The material cost for an average 30 - 40 sq. ft. WarmWire radiant flooring is less than $500 with an operational cost roughly the same as two 60 watt light bulbs.
WarmWire can be used to warm areas as small as a powder room or as large as 240 sq. ft. Even larger areas can be warmed with multiple cables wired in parallel.
