Raimondi RAI-CUT MkII Grooving Tool Box Unit - Without Grinder
The Raimondi RAI-CUT MkII Grooving Tool Box Unit is designed for preparing porcelain tiles, ceramic tiles and natural stone slabs for the Raimondi RAI-FIX Mechanical Fixing System. This specialized attachment creates a precise groove in the back of the tile or slab to accommodate the RAI-FIX stainless steel mechanical safety hooks used for wall installations.
Featuring an adjustable stainless steel cutting box, the RAI-CUT MkII guides a 5" (125mm) diamond grooving blade to create the required slot at the correct depth and angle. Its adjustable design accommodates the RAI-FIX mechanical plates in 1/4" and 3/8" sizes.
The unit features a vacuum connection for attaching a compatible dust extractor and a semi-universal attachment designed to work with many popular angle grinder brands and models. Two arbor connection configurations are available to accommodate different grinder mounting systems.
FEATURES & BENEFITS
- Designed for RAI-FIX: Creates the groove required for installing Raimondi RAI-FIX mechanical safety hooks in the back of tiles and slabs.
- Adjustable Stainless Steel Box: Provides controlled cutting depth and positioning for preparing mechanical fixing grooves.
- 5" Diamond Grooving Blade: Includes a 125mm diamond cutting disc designed for dry grooving applications.
- Vacuum Dust Extraction Connection: Includes a connection point for attaching a compatible vacuum dust extractor.
- Semi-Universal Attachment: Designed to accommodate many popular angle grinder brands and models.
- Two Arbor Options: Available in M14 and 5/8"-11 configurations for compatible angle grinders.
- Wide Material Compatibility: Suitable for tiles and slabs from 5mm (3/16") to 30mm (1-3/16") thick.

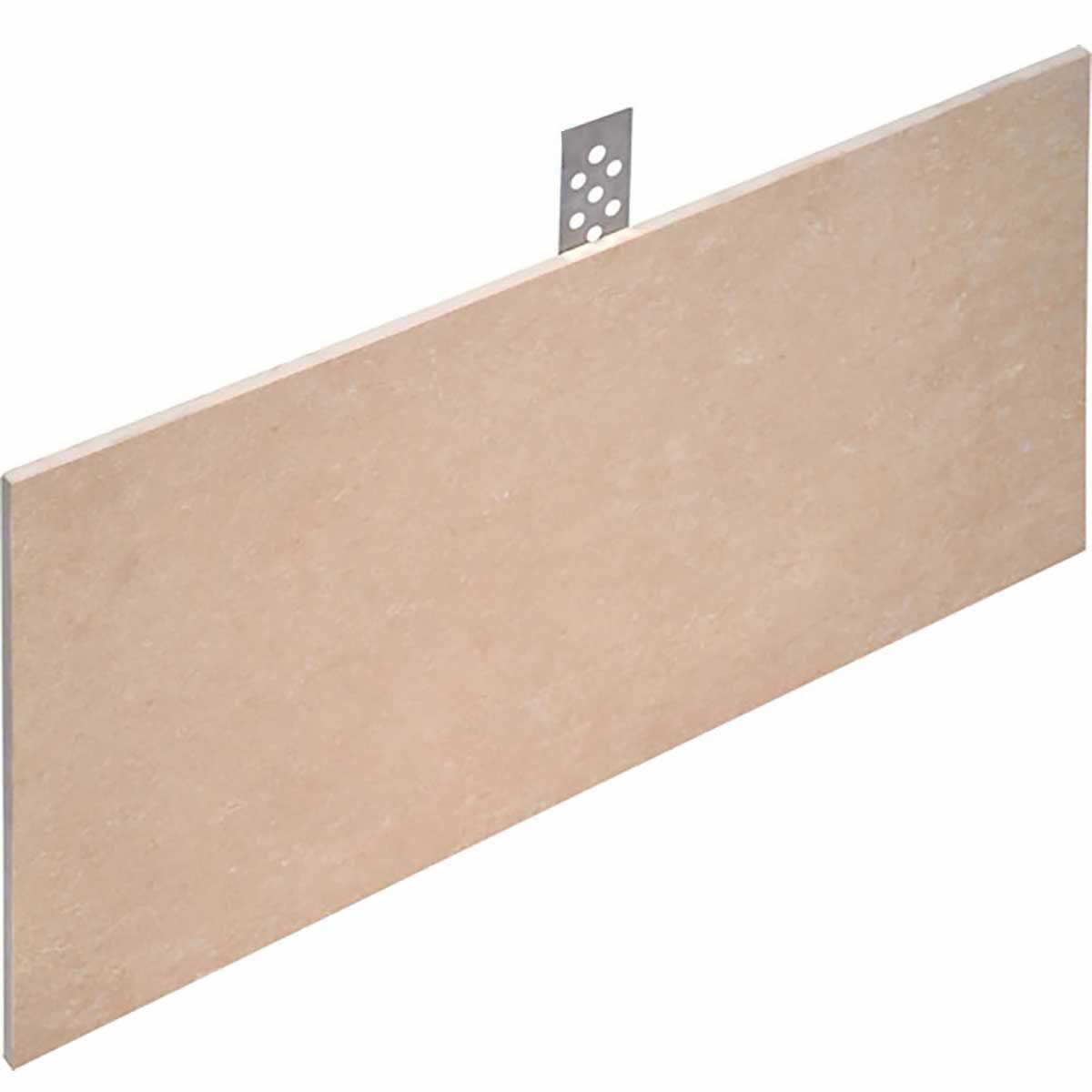

- Mechanical Wall Installation: Prepares the groove needed to receive the RAI-FIX stainless steel withholding hook.
- Professional Construction: Stainless steel housing designed for demanding tile installation and fabrication work.
DESIGNED FOR RAIMONDI RAI-FIX MECHANICAL FIXING SYSTEM

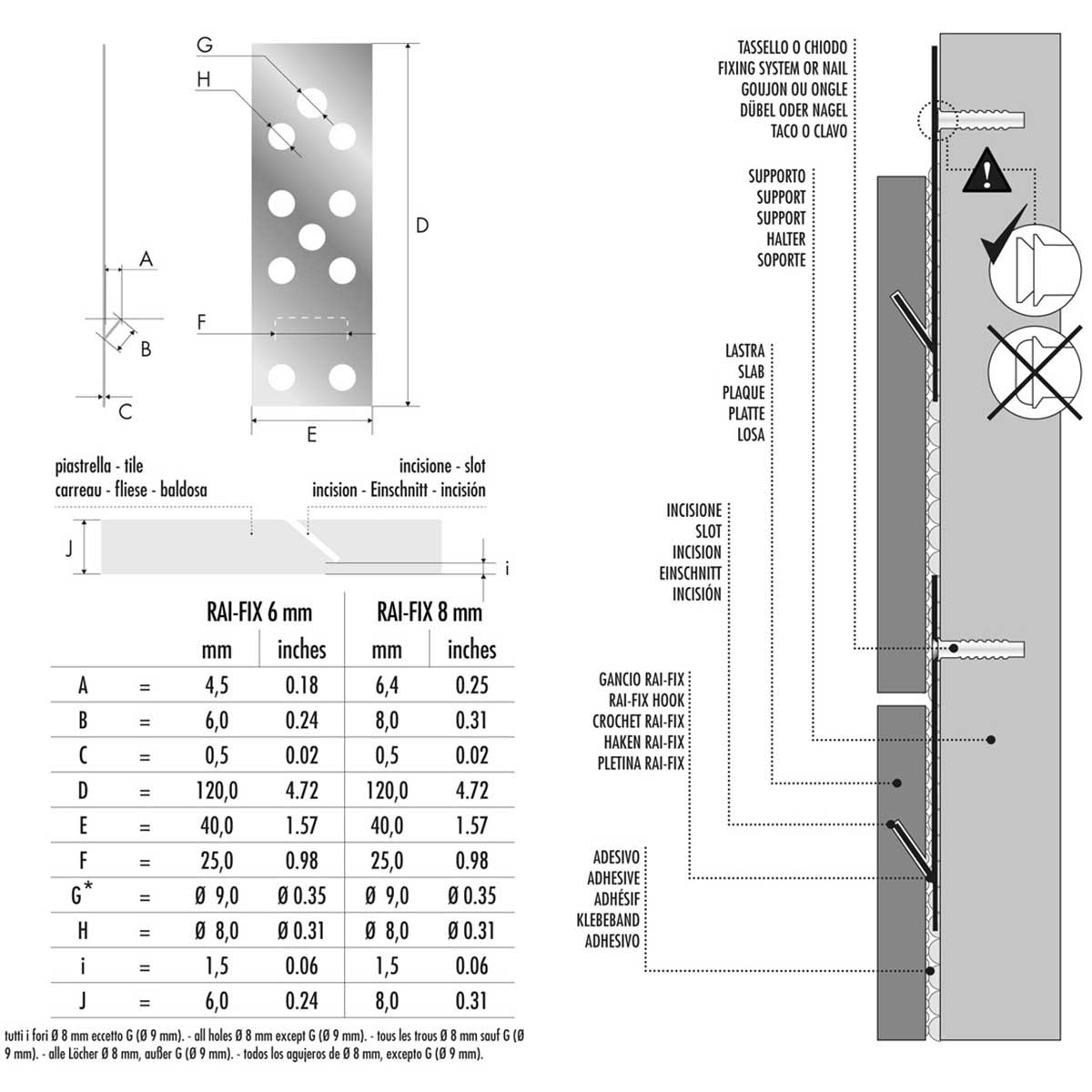

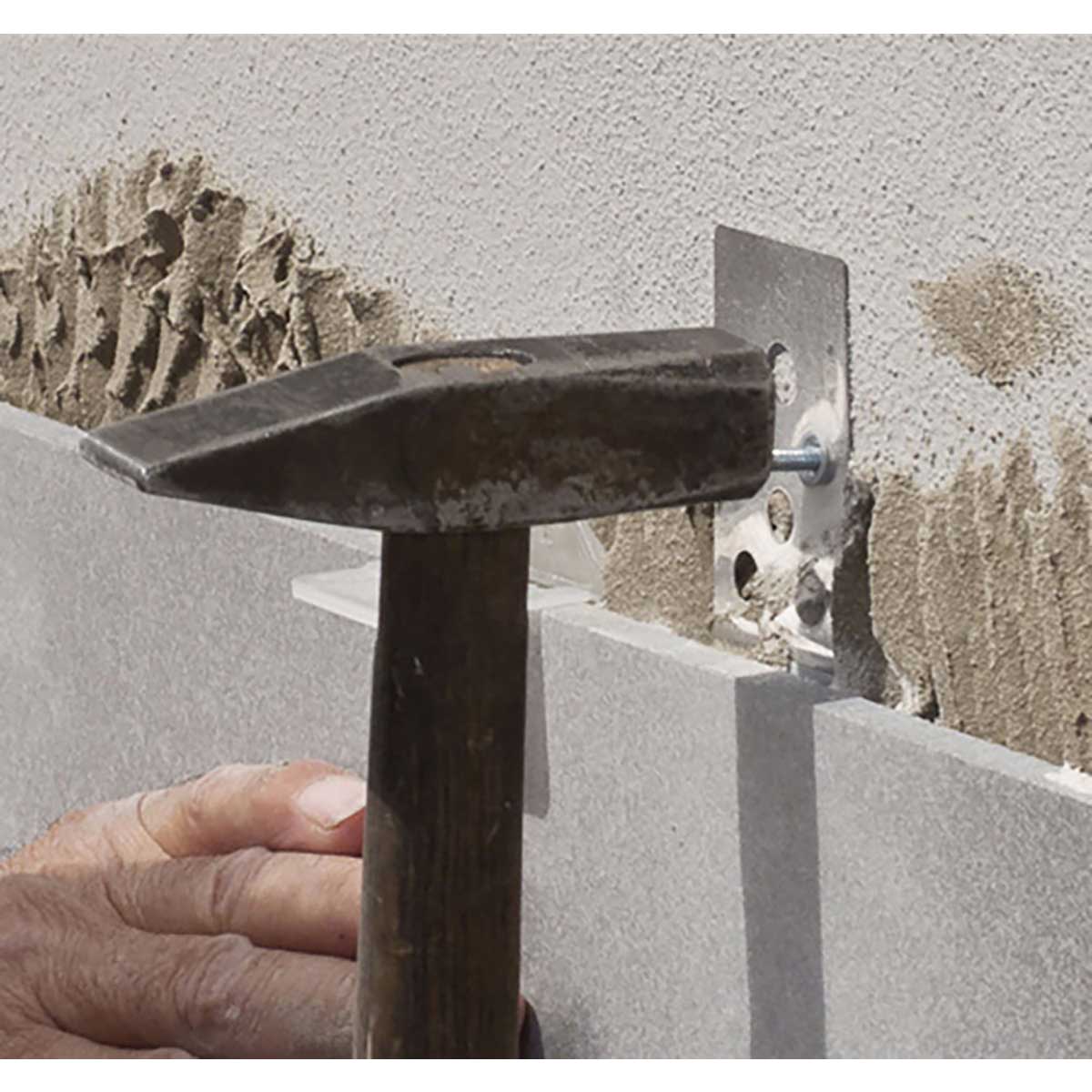

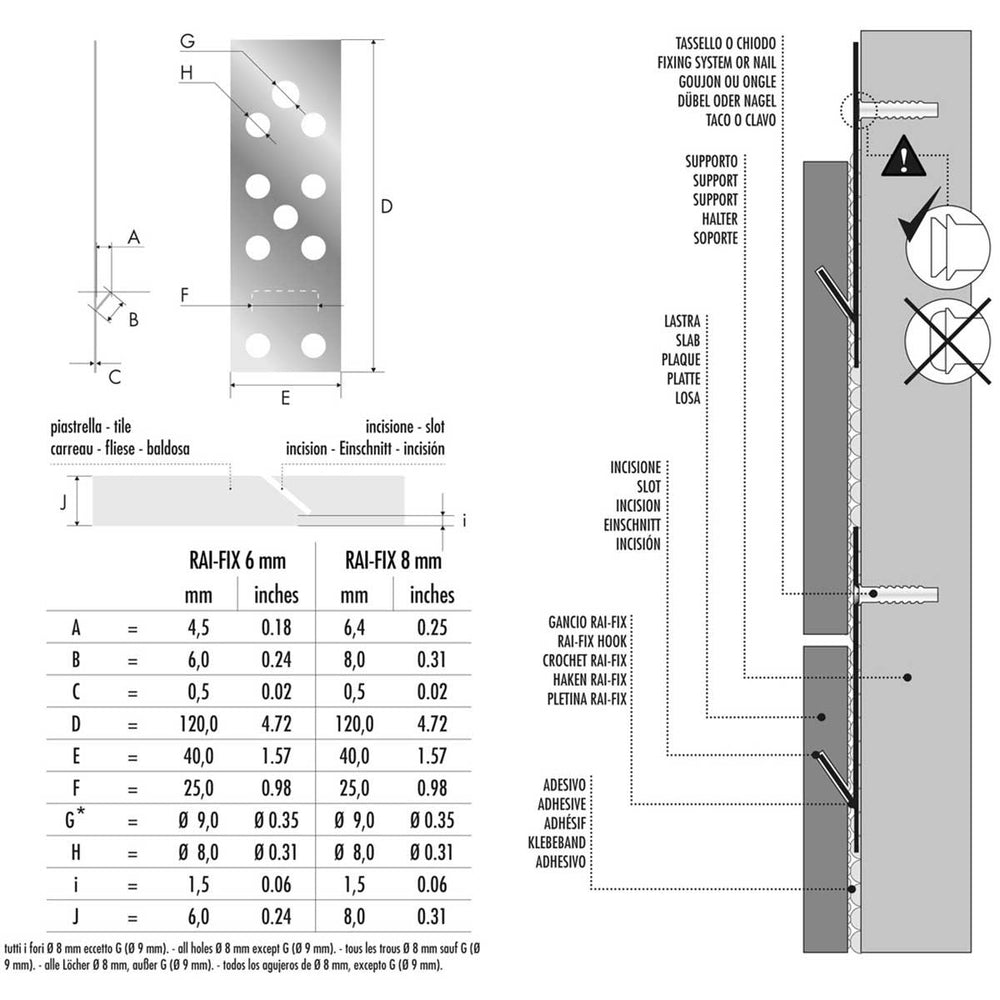

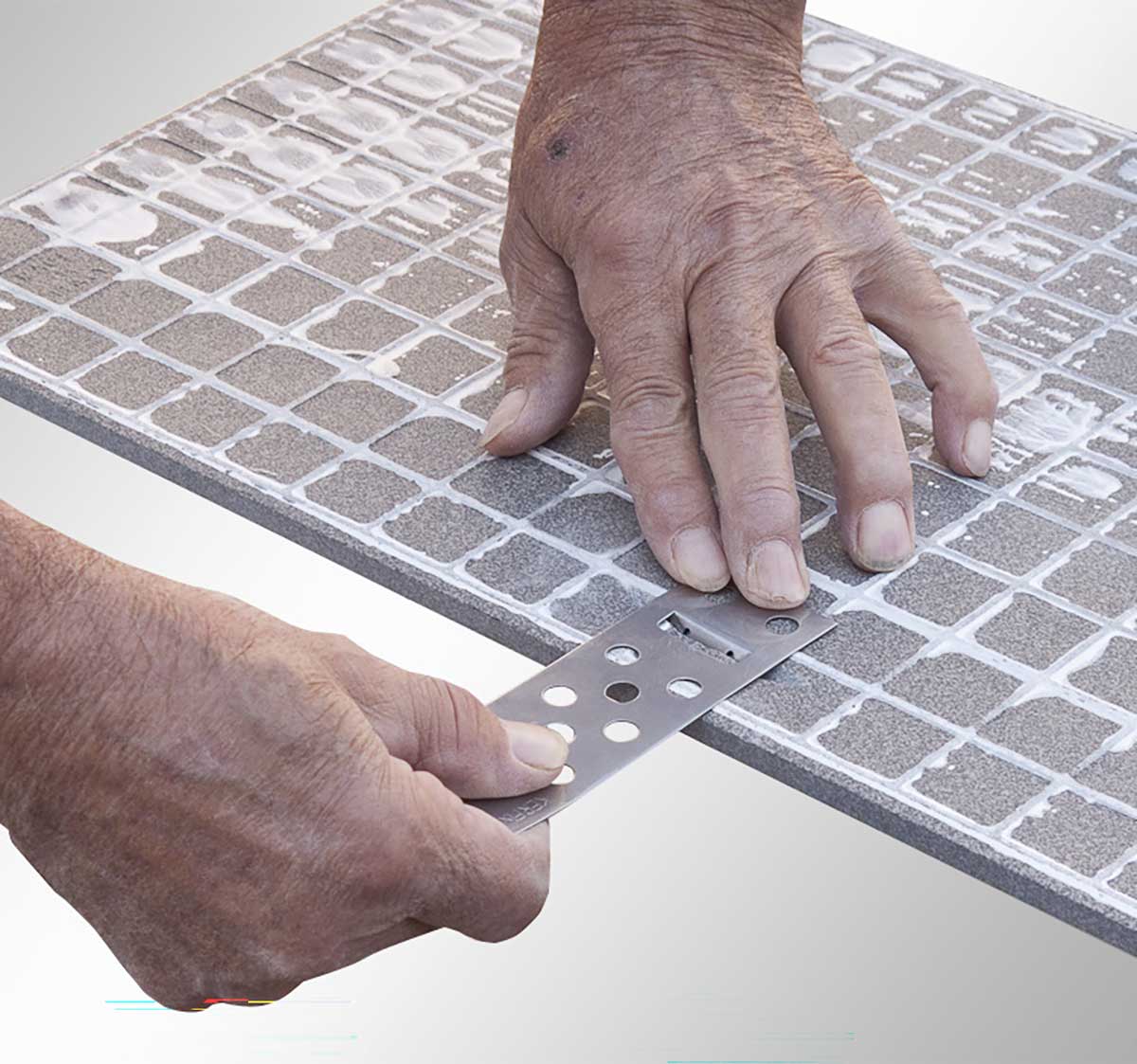

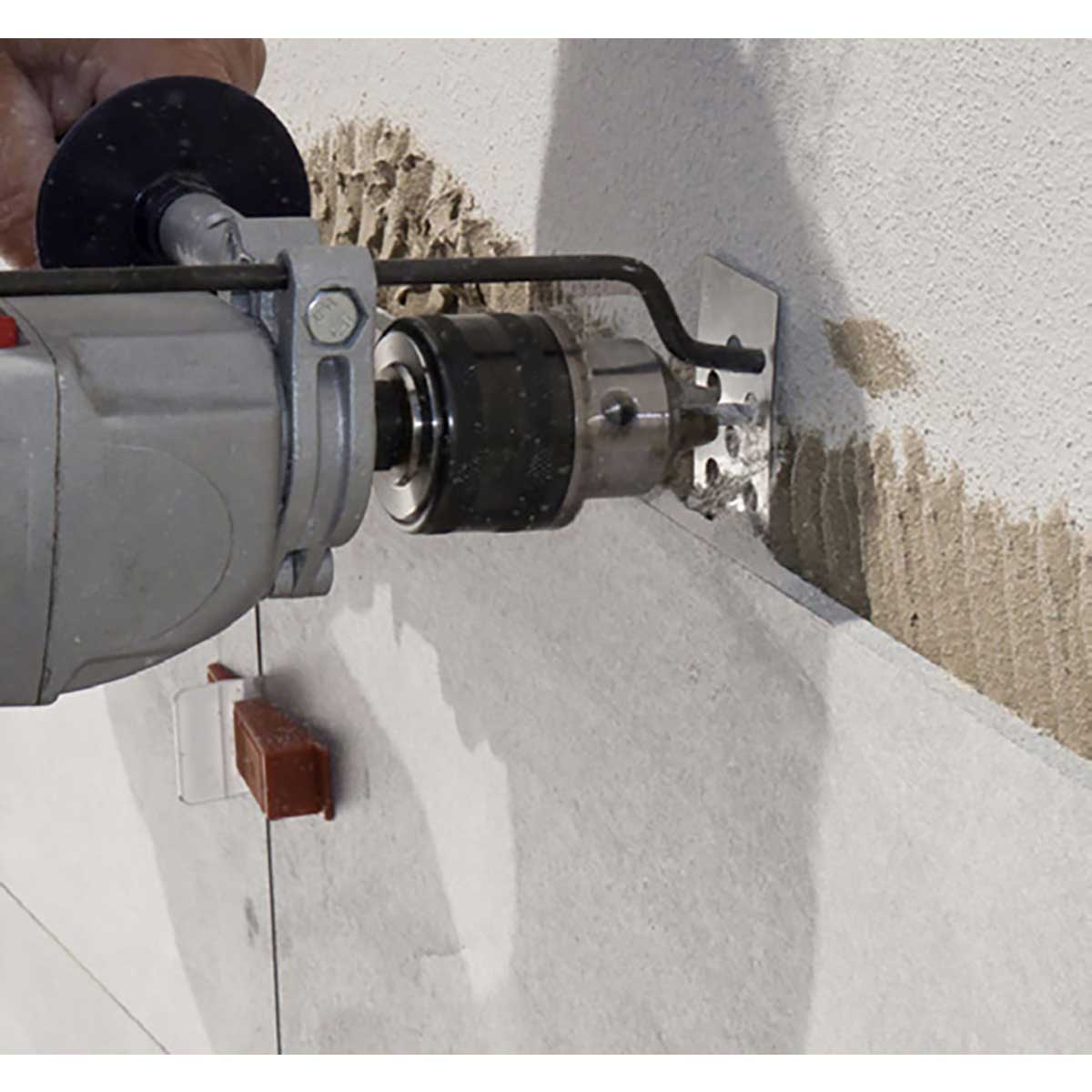

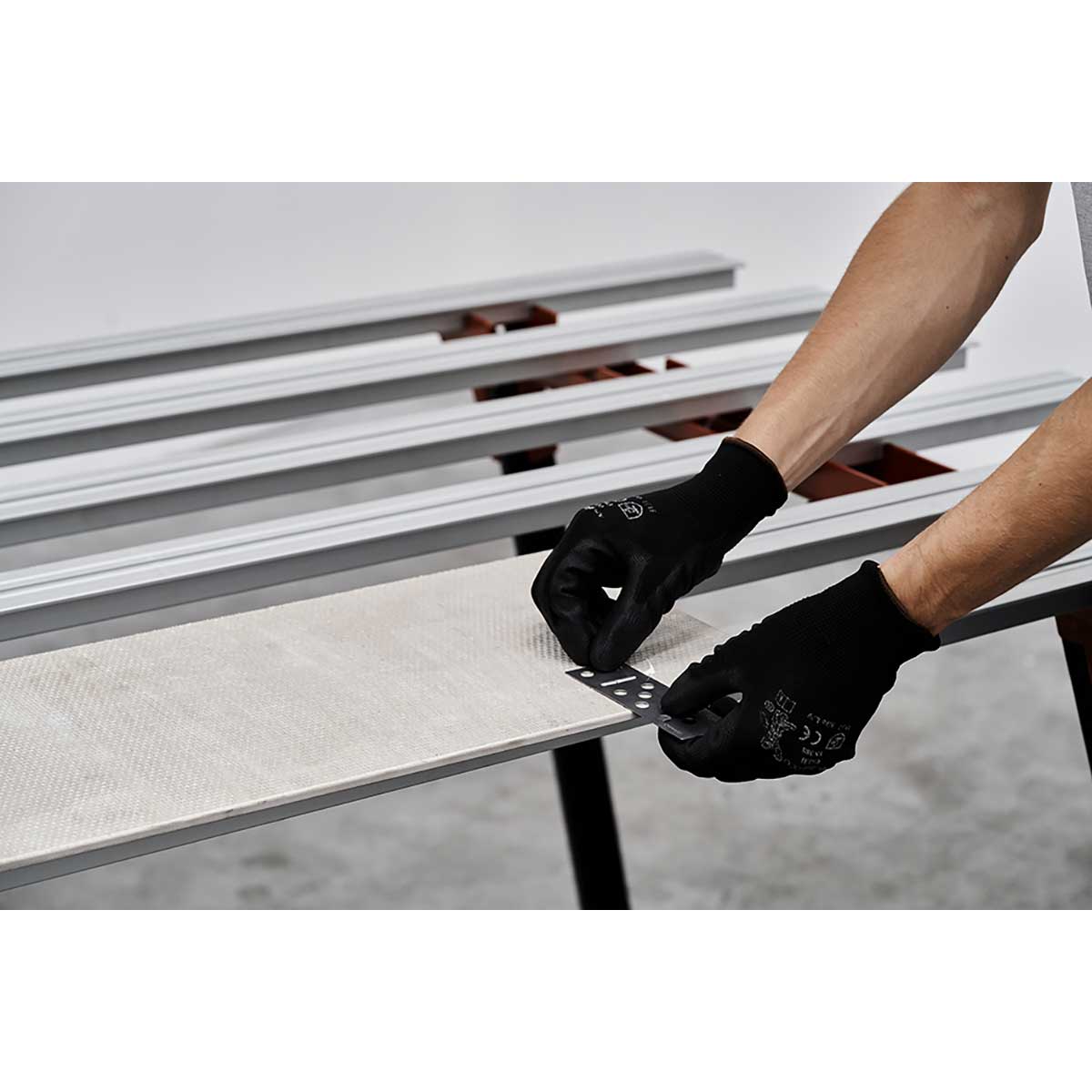

The Raimondi RAI-FIX system provides a mechanical support solution for installing large format tiles and stone slabs on walls. Stainless steel safety withholding hooks are positioned in specially prepared grooves on the back of the tile and incorporated into the mechanical fixing installation.

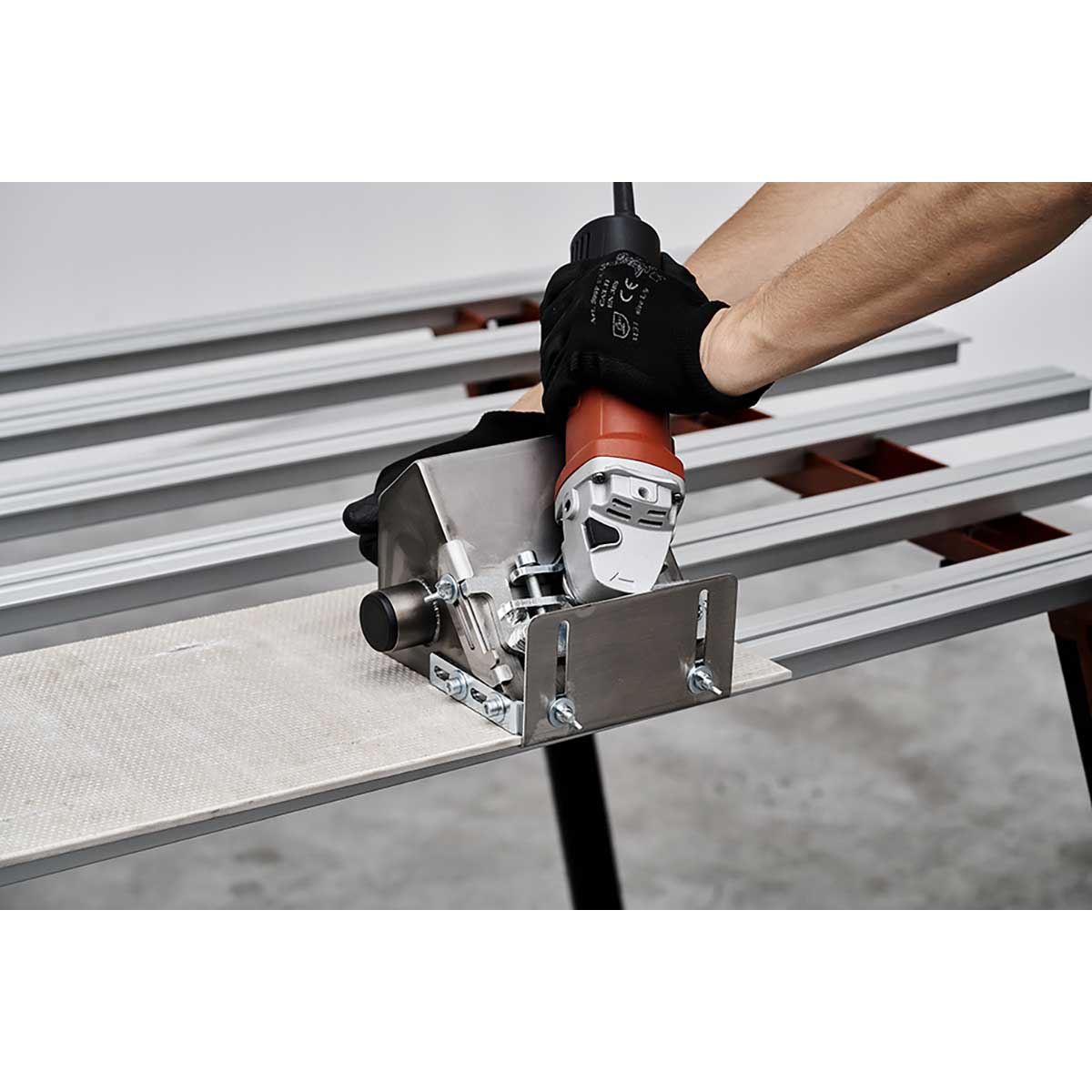

The RAI-CUT MkII is the specialized tool used to create these grooves. Its adjustable cutting box guides the diamond blade to prepare the back of the tile or slab for insertion of the appropriate RAI-FIX hook.

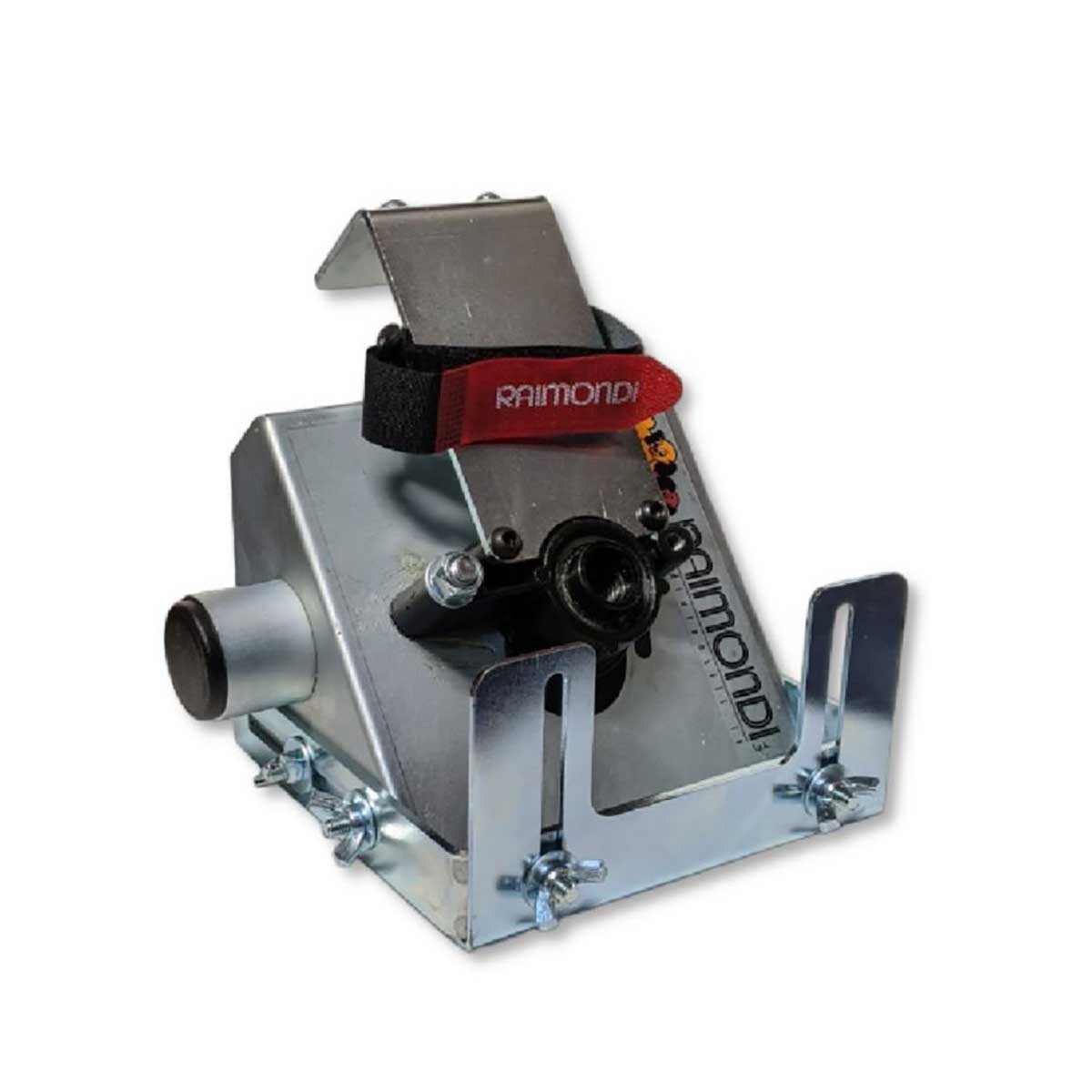

ADJUSTABLE CUTTING BOX
The stainless steel cutting box is adjustable to create the required groove dimensions and positioning for RAI-FIX mechanical plates in 1/4" and 3/8" sizes. The guided cutting design helps provide consistent groove preparation during tile installation.
VACUUM DUST EXTRACTION CONNECTION

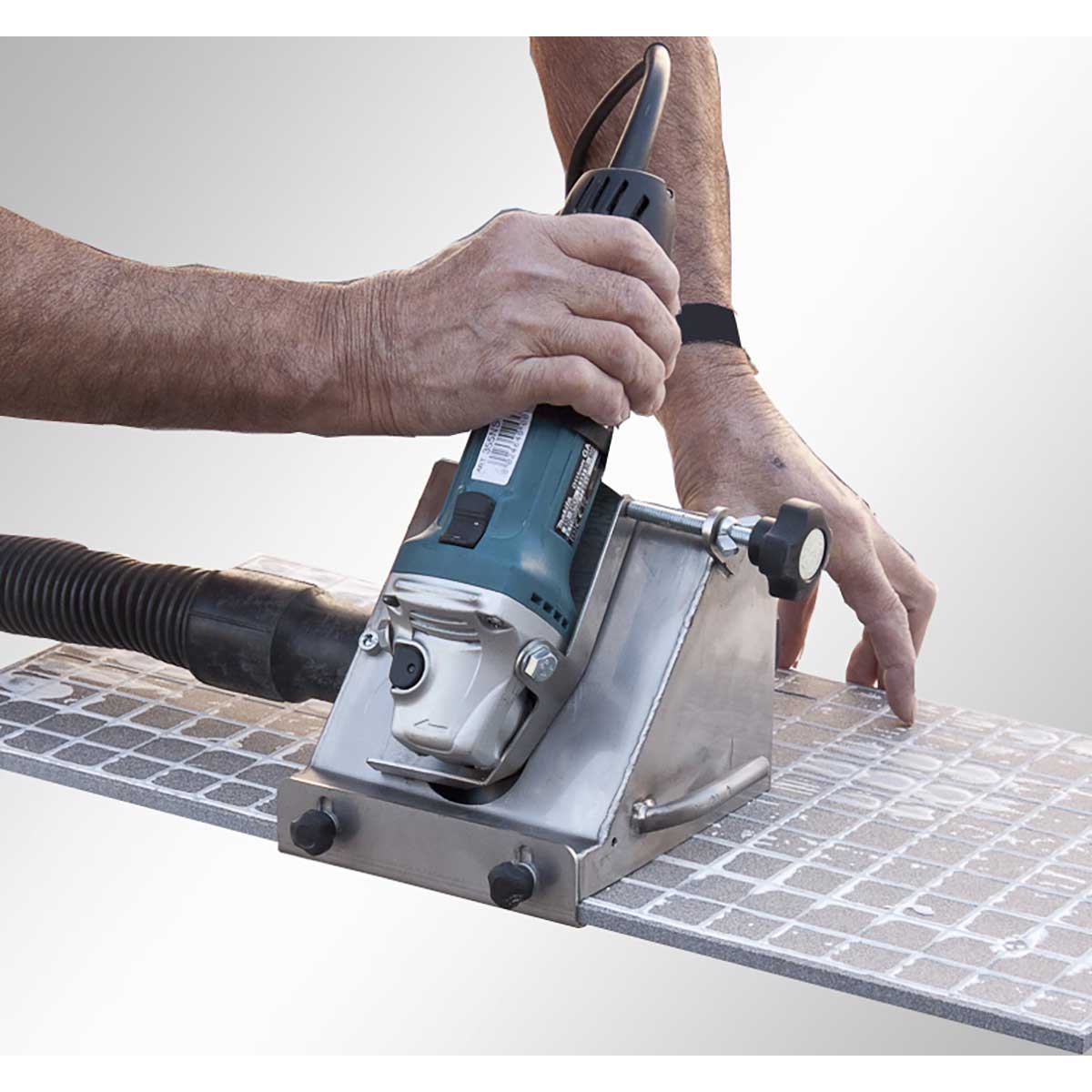

The RAI-CUT MkII includes a dedicated connection point for a compatible vacuum dust extractor. Connecting a suitable dust collection system helps manage dust generated during dry cutting operations.
COMPATIBLE ANGLE GRINDER REQUIREMENTS
- Compatible with most popular angle grinder brands and models.
- Recommended grinder power: 600W to 1,100W.
- Available with M14 arbor attachment (299PFMK2EU).
- Available with 5/8"-11 arbor attachment (299PFMK2US).
- Requires a compatible angle grinder for operation.
PRODUCT SPECIFICATIONS
- Manufacturer: Raimondi
- Product: RAI-CUT MkII
- Product Type: Adjustable Tile Grooving Tool Box Unit
- Construction: Stainless steel
- Minimum Tile Thickness: 5mm (3/16")
- Maximum Tile Thickness: 30mm (1-3/16")
- Diamond Blade Diameter: 125mm (5")
- Cutting Method: Dry cutting
- Vacuum Connection: Included
- Compatible Grinder Power: 600W to 1,100W
- Arbor Options: M14 or 5/8"-11
- Application: Raimondi RAI-FIX Mechanical Fixing System
WHAT IS INCLUDED
- 1 Raimondi RAI-CUT MkII stainless steel adjustable grooving box unit.
- 1 5" (125mm) diamond grooving blade.
- Vacuum dust extraction connection.
IMPORTANT: ANGLE GRINDER NOT INCLUDED
This listing includes the RAI-CUT MkII stainless steel grooving box unit and 5" diamond blade only. An angle grinder is required for operation and must be purchased separately. Select the appropriate M14 or 5/8"-11 attachment configuration to match your grinder.
WHY CHOOSE THE RAIMONDI RAI-CUT MkII?
Preparing porcelain tiles and natural stone slabs for mechanical wall fixing requires specialized equipment capable of producing accurate and consistent grooves. The Raimondi RAI-CUT MkII provides a dedicated solution for creating the slots required by the RAI-FIX mechanical support system.
Its adjustable stainless steel cutting box, included 5" diamond blade and vacuum connection make it a practical tool for professional tile installers and contractors working with large format tile and stone installations.
