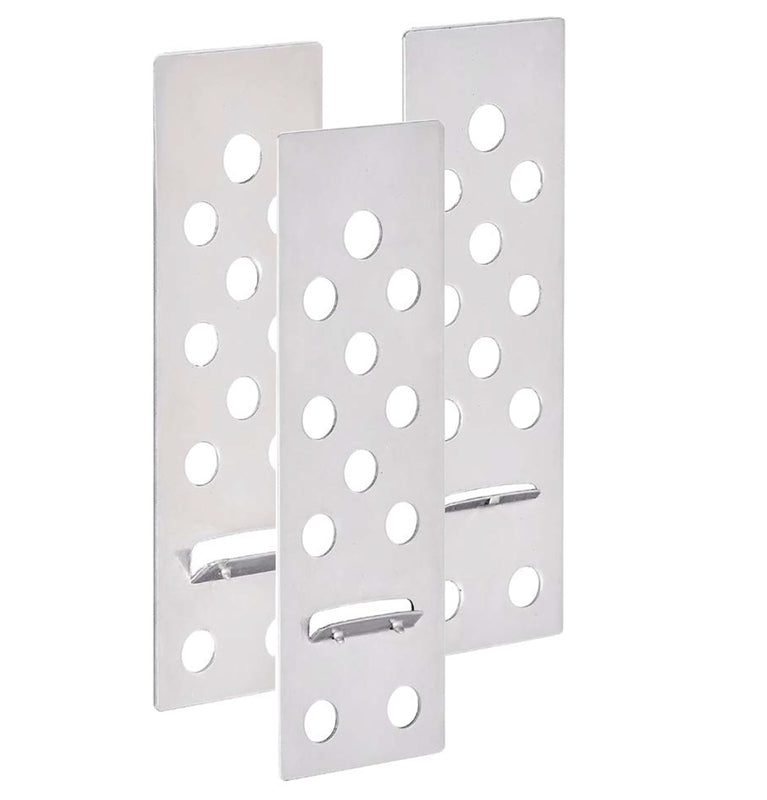

Raimondi RAI-FIX 5mm Stainless Steel Safety Withholding Hooks

Concealed mechanical safety support for vertical tile and large format slab installations. Designed for tiles with a minimum thickness of 5mm (3/16 inch).

PRODUCT OVERVIEW

The Raimondi RAI-FIX 5mm Safety Withholding Hook is a concealed mechanical retaining system designed to provide additional security for ceramic, porcelain and natural stone tiles installed vertically with adhesive.

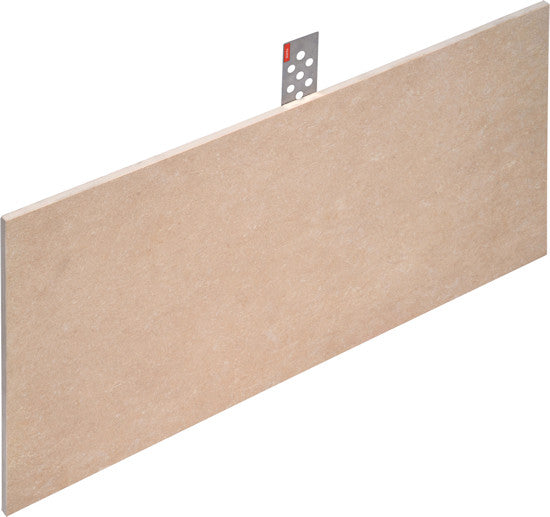

Made from stainless steel, the RAI-FIX hook is installed into a specially prepared groove on the back of the tile or slab and mechanically anchored to the supporting wall. In the event that the tile adhesive loses its grip, the hook provides a secondary mechanical connection to help prevent the tile from falling away from the wall.

Designed for professional tile installers, contractors and architectural façade applications, the RAI-FIX system provides additional mechanical retention while remaining completely concealed behind the finished tile installation.

KEY FEATURES & BENEFITS

  • 5mm Tile Compatibility: Designed for tiles and slabs with a minimum thickness of 5mm (3/16 inch).
  • Stainless Steel Construction: Manufactured from stainless steel for strength and durability.
  • Concealed Installation: Completely hidden between the tile and supporting wall after installation.
  • Mechanical Safety Retention: Helps prevent tile and slab detachment in the event of adhesive failure.
  • Designed for Vertical Installations: Suitable for ceramic, porcelain and natural stone tiles installed on walls and façades.
  • Prepared Groove Attachment: Installs into a specially prepared slot on the back of the tile or slab.
  • MS Polymer Adhesive Required: The 5mm hook must be installed with MS Polymer adhesive/sealant in the prepared groove according to Raimondi's instructions.
  • Mechanical Wall Anchoring: Provides an additional retaining connection between the tile and supporting structure.
  • Jobsite Installation: Designed for installation directly at the jobsite as part of the professional tile installation process.

HOW THE RAI-FIX SYSTEM WORKS

The Raimondi RAI-FIX system works alongside the tile adhesive to provide additional mechanical retention. Under normal conditions, the tile is bonded to the wall using the specified adhesive. If the adhesive loses its grip, the RAI-FIX hook acts as a secondary mechanical retainer to help hold the tile in place.

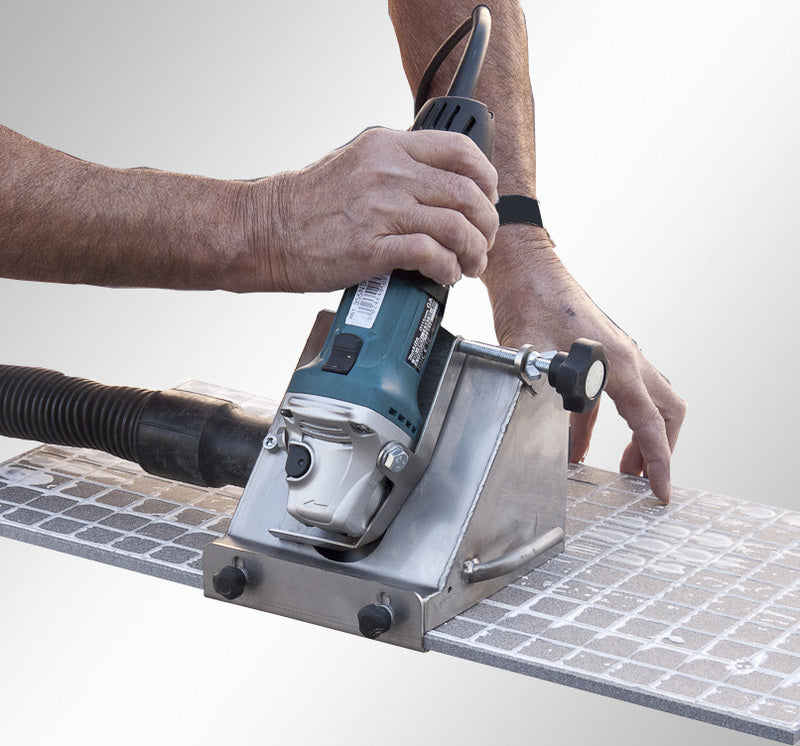

The RAI-FIX 5mm hook is inserted into a specially prepared groove on the back of the tile using the Raimondi RAI-CUT MkII Grooving Tool. Before inserting the hook, the groove must be filled with MS Polymer adhesive/sealant as specified by the manufacturer.

The hook is then mechanically anchored to the supporting wall using an appropriate wall fastener. Once installation is complete, the hook remains concealed between the tile and wall, preserving the appearance of the finished surface.

SPECIAL INSTALLATION REQUIREMENT FOR THE 5MM VERSION

Unlike the 6mm and 8mm RAI-FIX hooks, the 5mm version requires additional MS Polymer adhesive/sealant when installing the hook into the prepared groove.

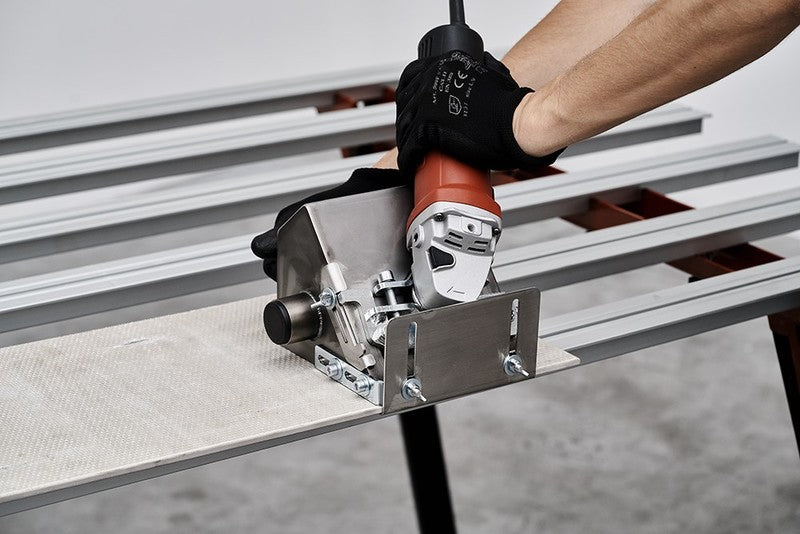

  • Prepare the groove using the Raimondi RAI-CUT MkII.
  • Remove any oil or grease from the hook.

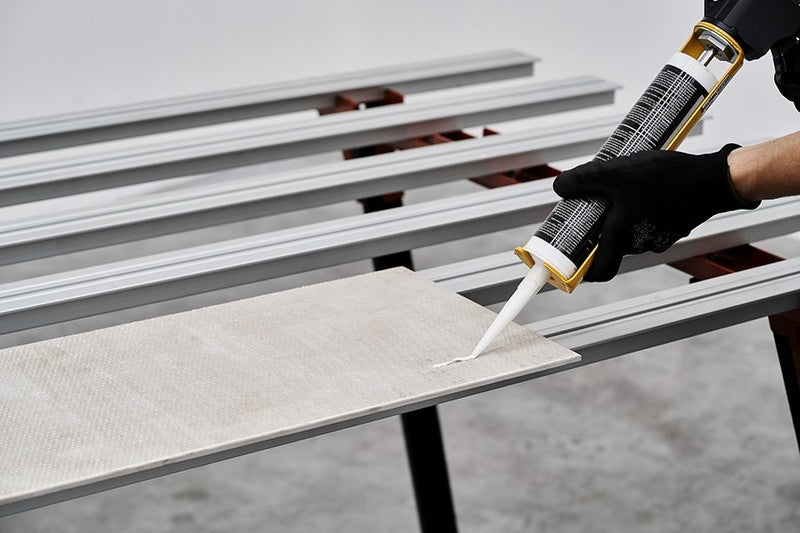

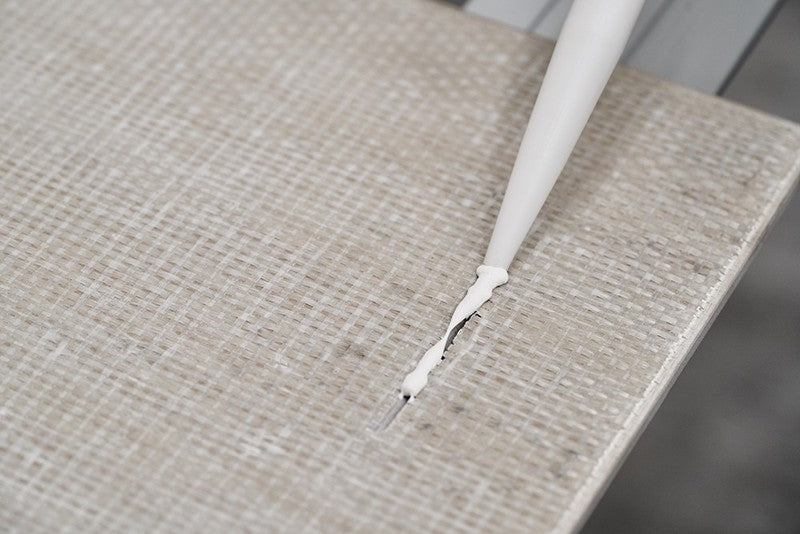

  • Fill the prepared groove with MS Polymer adhesive/sealant without applying excessive amounts.

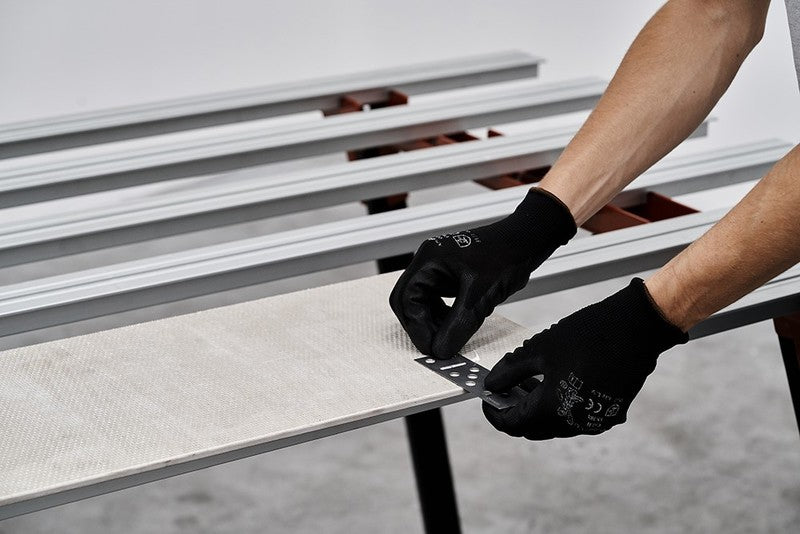

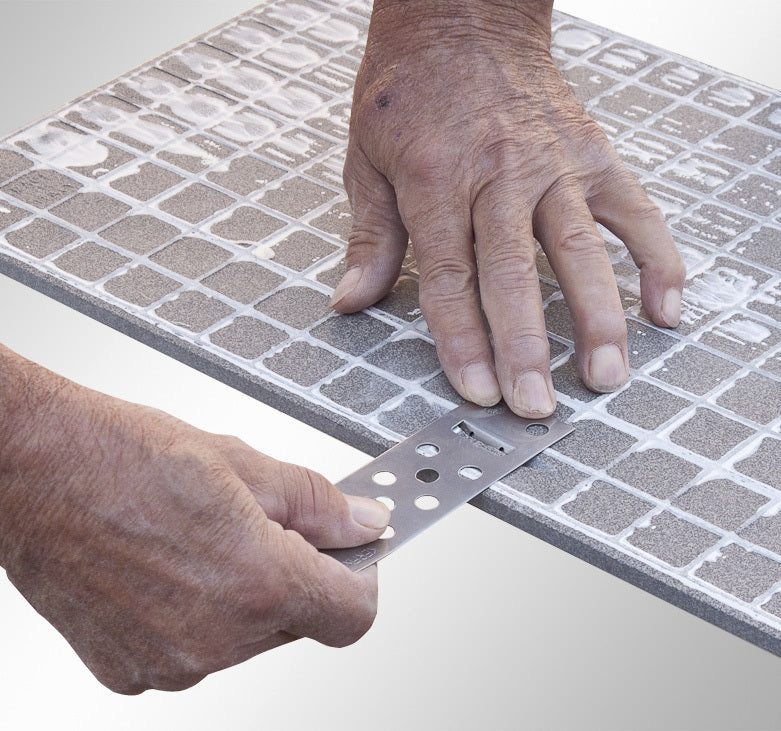

  • Insert the RAI-FIX 5mm hook fully into the prepared groove.
  • Allow the groove adhesive to be used according to the manufacturer's installation requirements.
  • Anchor the hook to the supporting wall using an appropriate mechanical fastener.

DESIGNED FOR LARGE FORMAT TILE & FAÇADE INSTALLATIONS

Large format porcelain panels and natural stone slabs are increasingly used in architectural wall and façade applications. Their dimensions and weight make additional mechanical retention an important consideration in many installation designs.

The RAI-FIX system provides concealed mechanical support that works together with the adhesive installation. It helps address the risk of tile detachment while maintaining a clean, uninterrupted finished appearance.

PERFORMANCE & SAFETY

Raimondi commissioned laboratory testing to evaluate the mechanical resistance of its RAI-FIX retaining system. Testing of the 5mm hook configuration was performed using a 5mm-thick tile with MS Polymer adhesive applied during installation.

Raimondi provides the following approximate design guidance for the 5mm version:

  • Tile side up to 24 inches: 1 hook, approximate maximum tile weight of 72 lbs.
  • Tile side over 24 inches up to 79 inches: 2 hooks, approximate maximum tile weight of 145 lbs.
  • Tile side over 79 inches up to 126 inches: 3 hooks, approximate maximum tile weight of 218 lbs.

These figures represent manufacturer's approximate design guidance for the specified tile dimensions and hook configurations. They are not universal load ratings for an individual hook. The appropriate number and positioning of hooks must be determined by the responsible designer based on tile dimensions, weight, substrate, anchors and project conditions.

PRODUCT SPECIFICATIONS

  • Manufacturer: Raimondi
  • Product: RAI-FIX Safety Withholding Hook
  • Hook Version: 5mm
  • Material: Stainless steel
  • Minimum Tile Thickness: 5mm (3/16 inch)
  • Installation: Concealed mechanical retaining hook
  • Groove Adhesive: MS Polymer adhesive/sealant required
  • Application: Vertical tile and slab installations
  • Compatible Materials: Ceramic, porcelain and natural stone
  • Grooving Tool: Raimondi RAI-CUT MkII
  • Wall Fastening: Suitable mechanical anchor selected for the supporting substrate

WHY CHOOSE RAIMONDI RAI-FIX?

Adhesive bonding is an essential part of tile installation, but additional mechanical retention can provide an important safety measure for vertical installations. The Raimondi RAI-FIX system offers a concealed stainless steel mechanical support solution designed to help retain tiles and slabs in the event of adhesive failure.

The 5mm version makes this mechanical retaining solution available for thinner tiles and slabs, expanding installation possibilities for architects, builders and professional tile installers.

IMPORTANT INSTALLATION & SAFETY INFORMATION

RAI-FIX is designed to work together with the specified tile adhesive and appropriate mechanical wall anchors. The 5mm hook additionally requires MS Polymer adhesive/sealant in the prepared groove. It does not replace proper adhesive application or wall preparation.

Always verify tile thickness, hook positioning, groove preparation, anchoring requirements and installation specifications before use. The selection and installation of the system should be reviewed by qualified technical personnel in accordance with applicable local building codes and project requirements.
