Item#: 12589

Raimondi RAI-CUT MkII Grooving Tool with Angle Grinder - RAI-FIX System

Regular priceFrom $63540
Shipping calculated at checkout.


Delivery and Shipping

  • Orders are shipped via USPS, UPS, or FedEx.
  • Shipping time up to 5 business days. Weekends not included.
  • Express shipping options available.
  • Same-day shipping cut-off time 4:00 PM PST for most items.
  • For oversized shipments that require freight delivery, our team will contact you.

If your address is unable to receive deliveries from USPS, UPS, or FedEx, please contact us.

Description

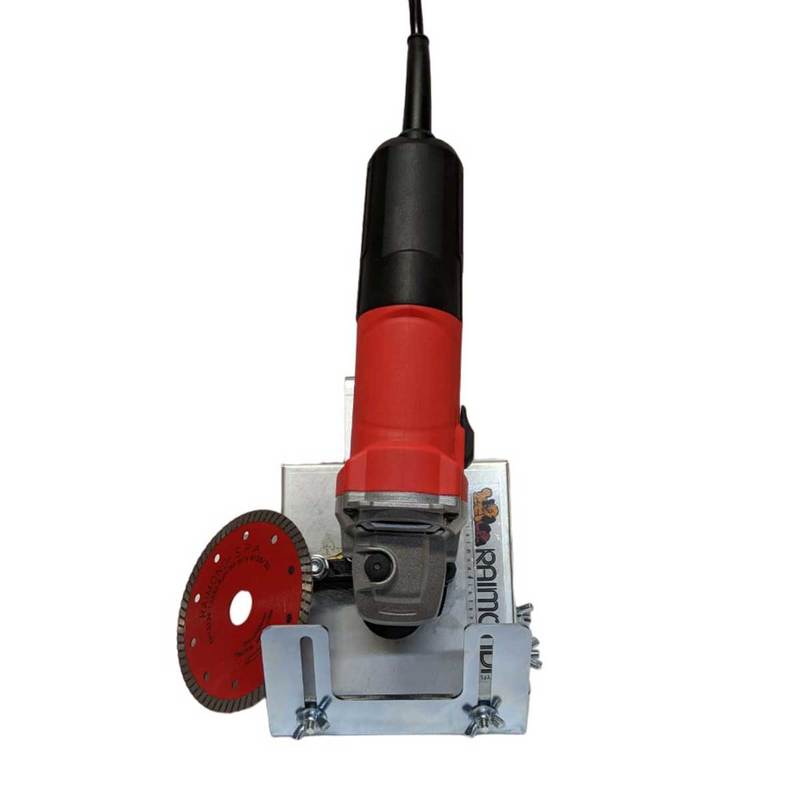

Raimondi RAI-CUT MkII Grooving Tool for RAI-FIX Mechanical Fixing System

The Raimondi RAI-CUT MkII is a specialized grooving tool designed for use with the Raimondi RAI-FIX Mechanical Fixing System. It creates a precise slot in the back of porcelain tiles, ceramic tiles and natural stone slabs to accommodate the RAI-FIX stainless steel safety withholding hooks used for mechanical wall installation.

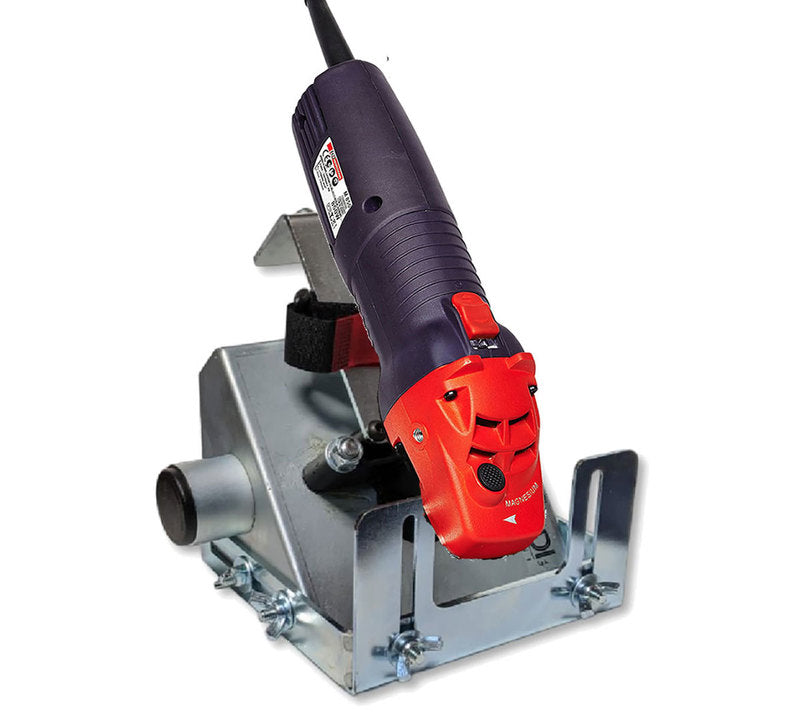

Designed for professional tile installers and contractors, the RAI-CUT MkII features an adjustable stainless steel cutting box that guides the diamond blade to create the required groove in the back of the tile or slab. Its semi-universal attachment accommodates many popular angle grinder brands and models, making it a versatile tool for preparing large format materials for mechanical fixing applications.

The RAI-CUT MkII operates with a 5" (125mm) diamond cutting disc and cuts dry. Its stainless steel construction provides durability, while the integrated dust extractor connection allows a compatible vacuum system to be connected to help control cutting dust.

FEATURES & BENEFITS

  • Designed for RAI-FIX Systems: Creates the groove required to install Raimondi RAI-FIX mechanical safety withholding hooks in the back of tiles and slabs.
  • Adjustable Cutting Box: Guides the cutting disc to create the required groove for the mechanical fixing application.
  • Stainless Steel Construction: Durable stainless steel housing designed for professional jobsite use.
  • 5" Diamond Cutting Disc: Uses a 125mm diamond disc for dry cutting. One disc is included with the tool.
  • Minimum Tile Thickness: Suitable for tiles and slabs with a minimum thickness of 5mm (3/16").
  • Semi-Universal Attachment: Designed for compatibility with many popular angle grinder brands and models.
  • Two Arbor Connection Options: Available with M14 or 5/8"-11 attachment configurations.
  • Vacuum Connection: Equipped with a connection point for a compatible dust extractor.
  • Compatible Grinder Power: Suitable for almost all angle grinders with power ratings between 600W and 1,100W.

DESIGNED FOR RAIMONDI RAI-FIX MECHANICAL FIXING SYSTEM

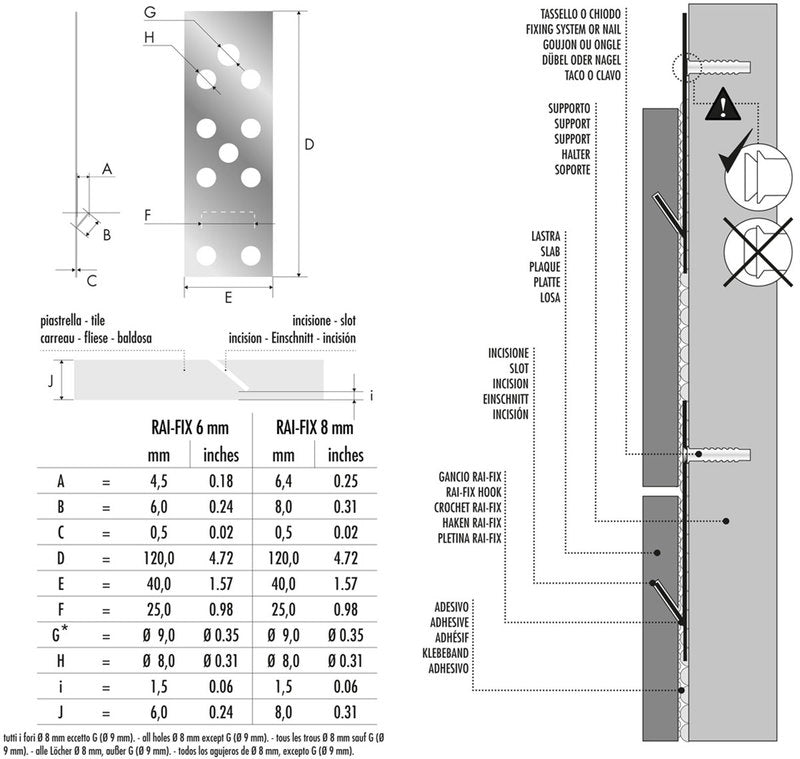

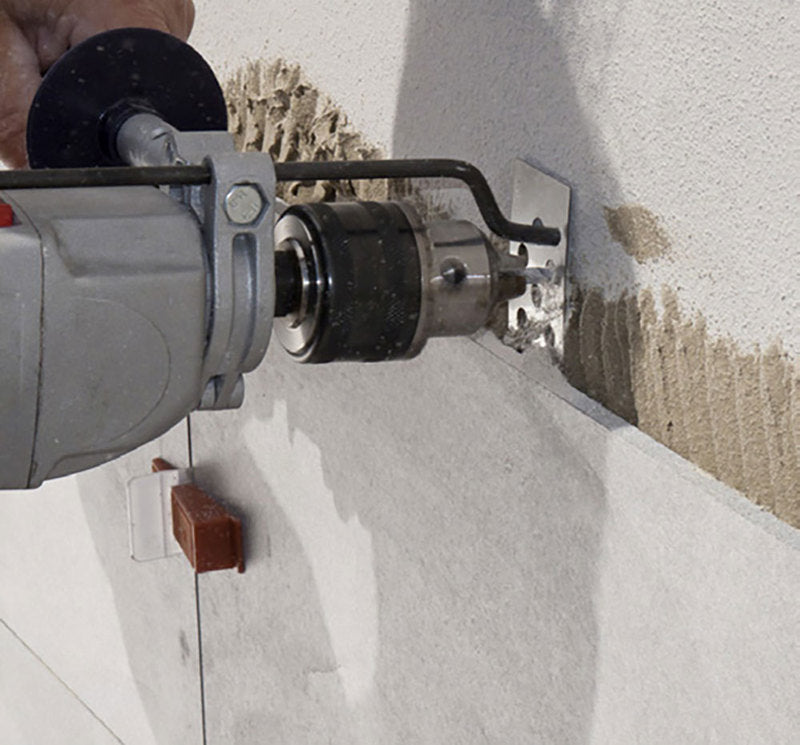

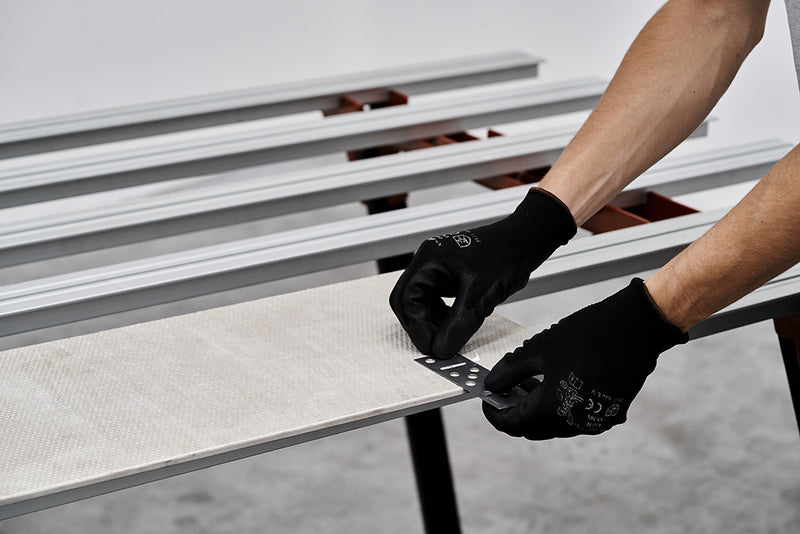

The Raimondi RAI-FIX system provides a mechanical support solution for installing tiles and large format slabs on vertical surfaces. Stainless steel safety withholding hooks are positioned in specially prepared slots on the back of the tile and secured as part of the installation system.

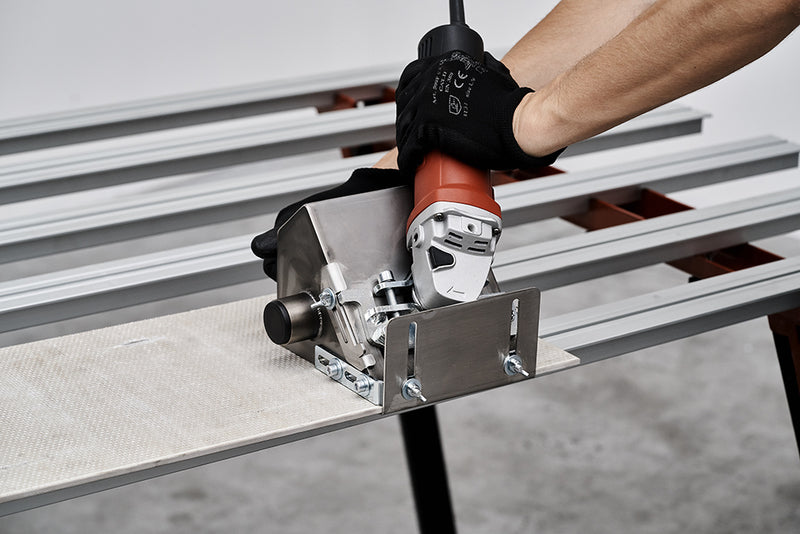

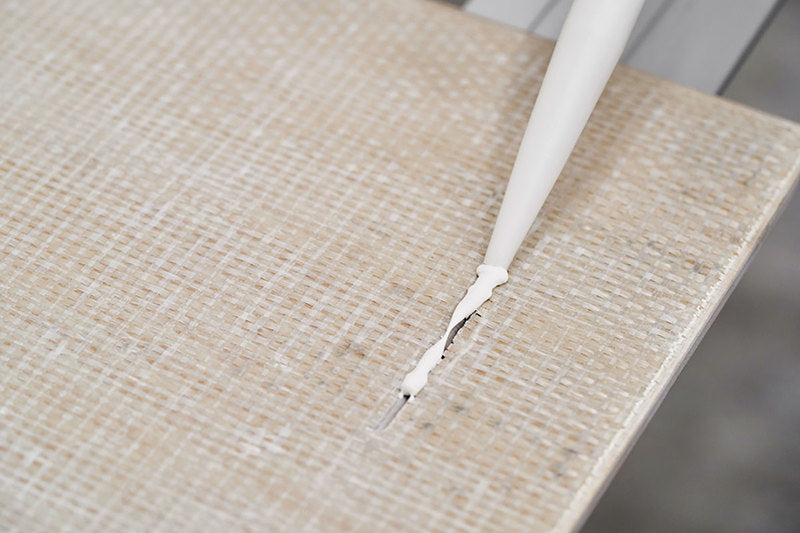

The RAI-CUT MkII is the dedicated tool used to create these slots. Its adjustable cutting box guides the diamond blade to prepare the back of the tile or slab for insertion of the RAI-FIX hook.

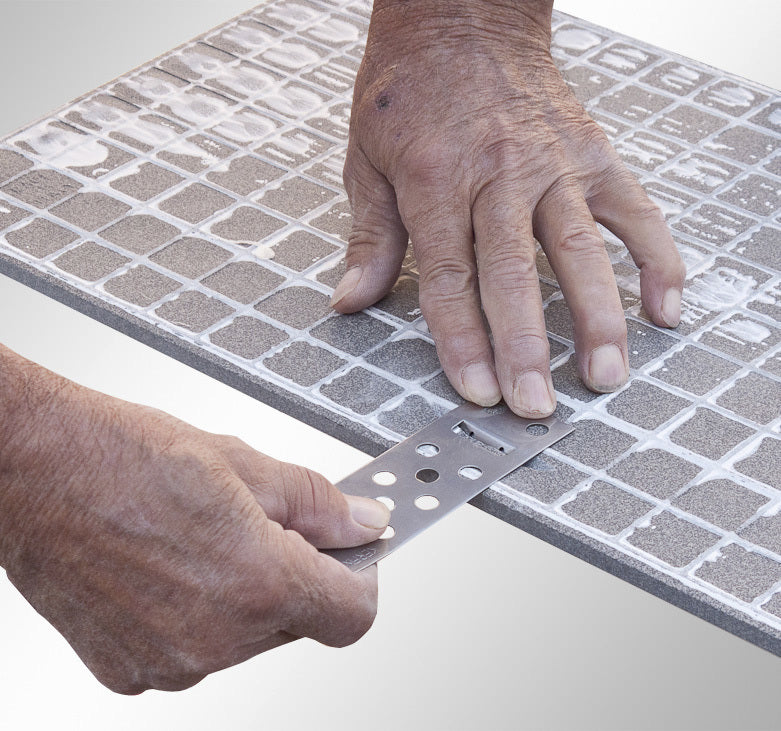

Once the groove is prepared, the appropriate RAI-FIX mechanical hook can be installed according to the selected tile thickness and system requirements.

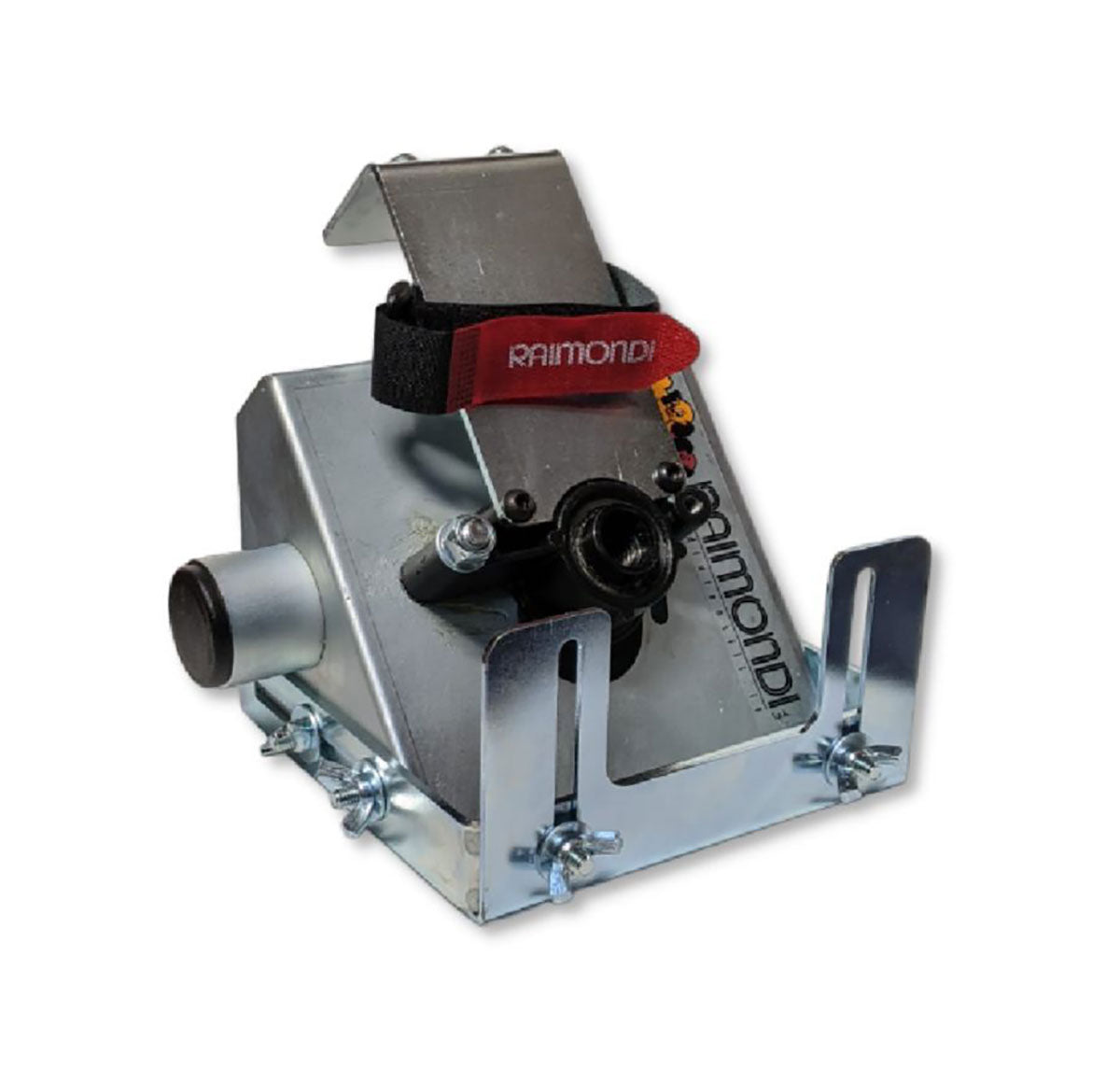

ADJUSTABLE CUTTING BOX

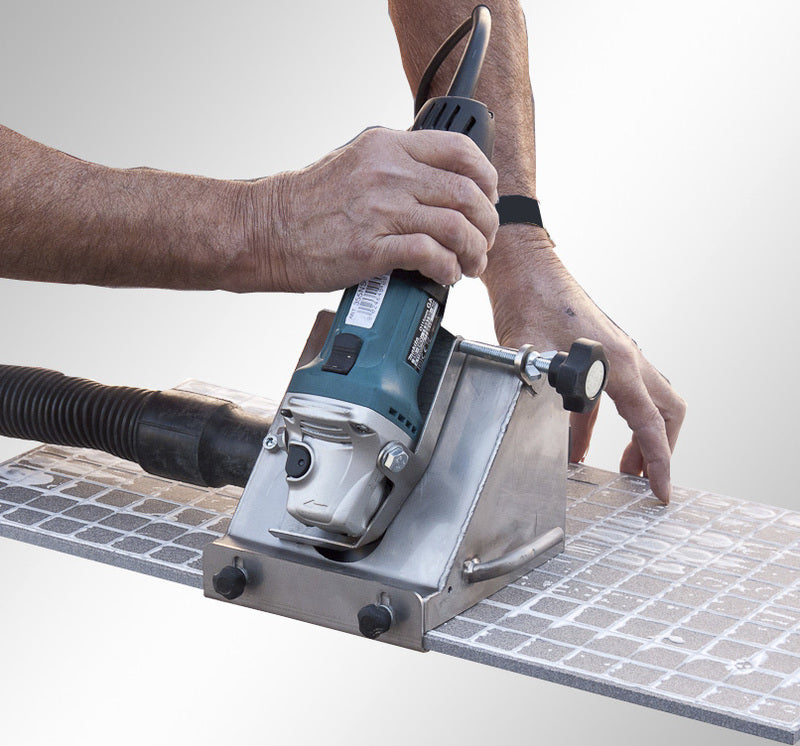

The adjustable stainless steel cutting box helps guide the diamond disc while creating the required groove in the back of the tile or slab. It is designed for controlled, repeatable cutting during preparation for mechanical tile fixing.

VACUUM DUST EXTRACTION CONNECTION

The RAI-CUT MkII includes a dedicated connection point for attaching a compatible vacuum dust extractor. Connecting a suitable dust collection system helps manage dust generated during dry cutting.

AVAILABLE ARBOR CONNECTION OPTIONS

  • M14 Attachment: Raimondi part number 299PFMK2EU, for compatible M14 angle grinders.
  • 5/8"-11 Attachment: Raimondi part number 299PFMK2US, for compatible 5/8"-11 angle grinders.

Check the arbor connection of your angle grinder before selecting the correct RAI-CUT MkII version.

PRODUCT SPECIFICATIONS

  • Manufacturer: Raimondi
  • Product: RAI-CUT MkII
  • Product Type: Mechanical Tile Grooving Tool
  • Primary Application: Raimondi RAI-FIX Mechanical Fixing System
  • Construction: Stainless steel
  • Minimum Tile Thickness: 5mm (3/16")
  • Diamond Disc Diameter: 125mm (5")
  • Cutting Method: Dry cutting
  • Compatible Angle Grinder Power: 600W to 1,100W
  • Arbor Options: M14 or 5/8"-11
  • Dust Extraction: Vacuum connection provided
  • Tool Weight: Approximately 4.8 lbs
  • Packaged Weight: Approximately 5.3 lbs

WHAT IS INCLUDED

  • 1 Raimondi RAI-CUT MkII adjustable stainless steel grooving tool.
  • 1 Compatible angle grinder.
  • 1 5" (125mm) diamond cutting disc.
  • Operating and maintenance instructions.

IMPORTANT: ANGLE GRINDER NOT INCLUDED

The RAI-CUT MkII is supplied without an angle grinder. A compatible angle grinder with a power rating between 600W and 1,100W is required for operation. Select the correct M14 or 5/8"-11 attachment according to your grinder's arbor connection.

WHY CHOOSE THE RAIMONDI RAI-CUT MkII?

Preparing the back of large format porcelain tiles and stone slabs for mechanical wall fixing requires a specialized cutting tool. The Raimondi RAI-CUT MkII provides a dedicated solution for creating the grooves required by the RAI-FIX system.

Its adjustable cutting box, stainless steel construction, 125mm diamond disc and compatibility with popular angle grinders make it an essential tool for professional installers working with mechanical tile and slab fixing systems.
