Raimondi RAI-FIX 8mm Stainless Steel Safety Withholding Hooks
Concealed mechanical safety support for vertical tile and large format slab installations. Designed for tiles with a minimum thickness of 8mm (5/16 inch).
PRODUCT OVERVIEW
The Raimondi RAI-FIX 8mm Safety Withholding Hook is a concealed mechanical retaining system designed to provide additional security for ceramic, porcelain and natural stone tiles installed vertically with adhesive.
Installed in a specially prepared groove on the back of the tile or slab and mechanically anchored to the supporting wall, the RAI-FIX hook provides secondary retention in the event that the adhesive loses its grip. Instead of falling away from the wall, the tile is held in place by the stainless steel mechanical hook.
Designed for professional tile installers, contractors and façade applications, the RAI-FIX system offers an effective way to incorporate concealed mechanical retention into large format tile installations without affecting the finished appearance.
KEY FEATURES & BENEFITS
- 8mm Tile Compatibility: Designed for tiles and slabs with a minimum thickness of 8mm (5/16 inch).
- Premium Stainless Steel: Manufactured from stainless steel for strength and durability.
- Concealed Installation: The hook is positioned between the tile and supporting wall and remains completely hidden after installation.
- Mechanical Safety Retention: Helps prevent tiles and slabs from falling in the event of adhesive failure.
- Designed for Vertical Installations: Suitable for ceramic, porcelain and natural stone tiles installed on walls and façades.
- Prepared Groove Installation: The hook fits into a specially prepared slot in the back of the tile or slab.
- Wall Anchoring: The hook is mechanically secured to the supporting wall using an appropriate anchor.
- On-Site Installation: Designed for installation directly at the jobsite as part of the tile installation process.
HOW THE RAI-FIX SYSTEM WORKS
The RAI-FIX system works together with the tile adhesive to provide an additional mechanical retaining point. Under normal conditions, the tile is bonded to the wall with the specified adhesive. If the adhesive loses its grip, the RAI-FIX hook acts as a mechanical retainer to help hold the tile in place.

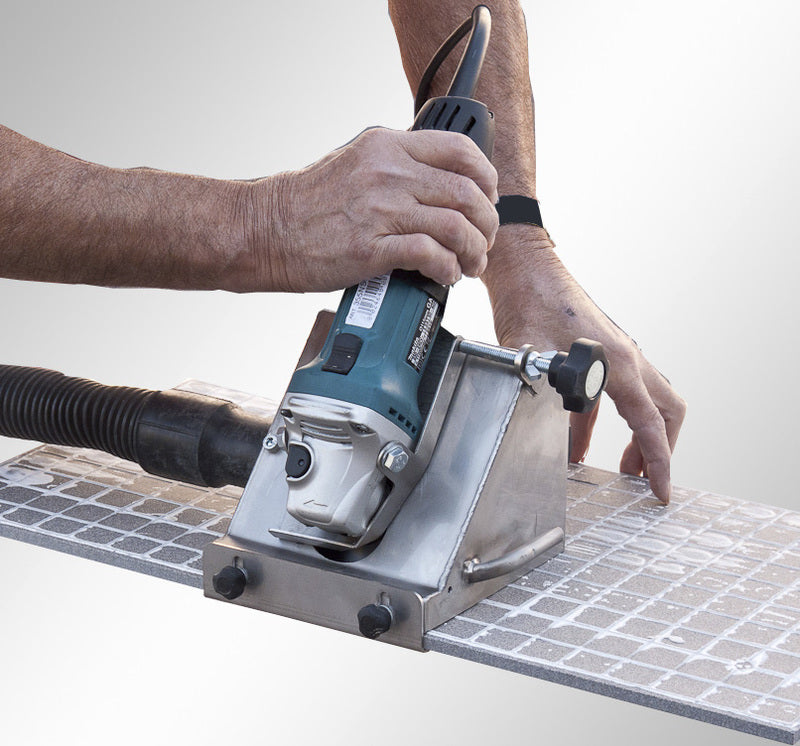

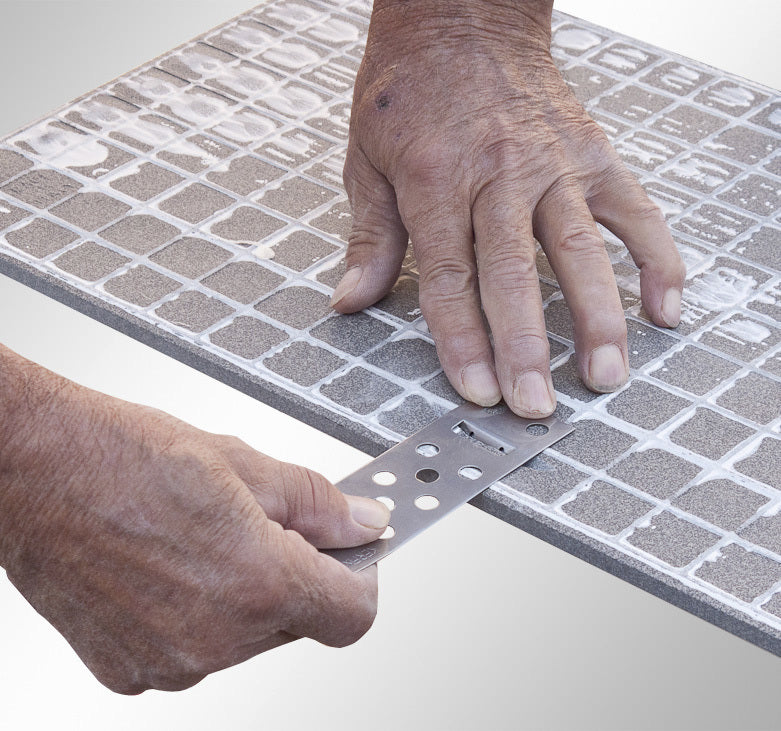

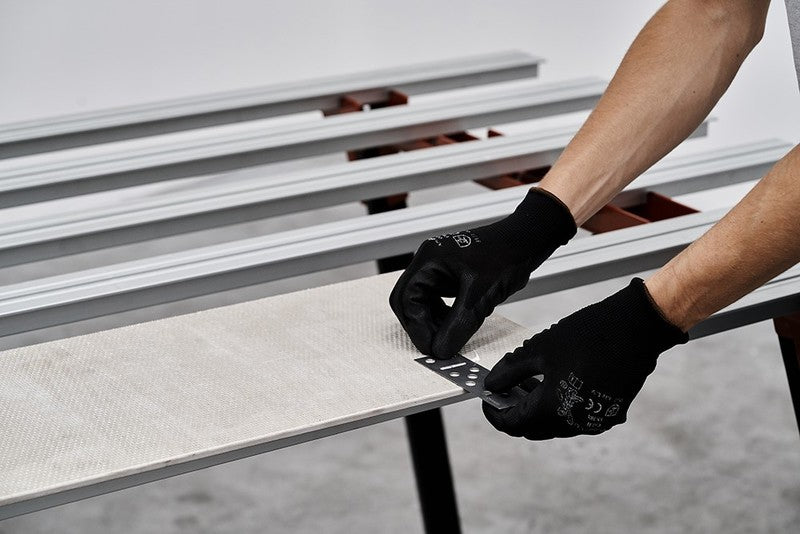

The stainless steel hook is inserted into a groove prepared in the back of the tile using the Raimondi RAI-CUT MkII Grooving Tool. The hook is then anchored to the wall through one of its mounting holes.

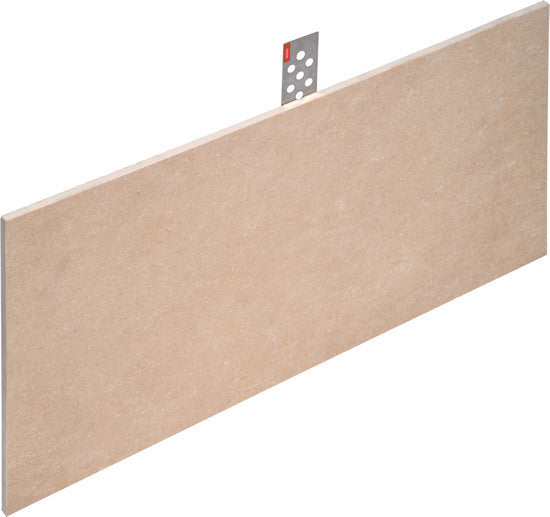

Once the tile installation is completed, the hook is concealed between the tile and the wall, maintaining a clean, uninterrupted finished surface.
DESIGNED FOR LARGE FORMAT TILE & FAÇADE INSTALLATIONS
Large format porcelain panels and natural stone slabs are increasingly used in architectural wall and façade applications. Their dimensions and weight make additional mechanical retention an important consideration in many installation designs.
RAI-FIX provides a concealed mechanical retaining solution that works alongside the adhesive installation. It helps address the risk of tile detachment while preserving the appearance of the finished surface.
STAINLESS STEEL CONSTRUCTION

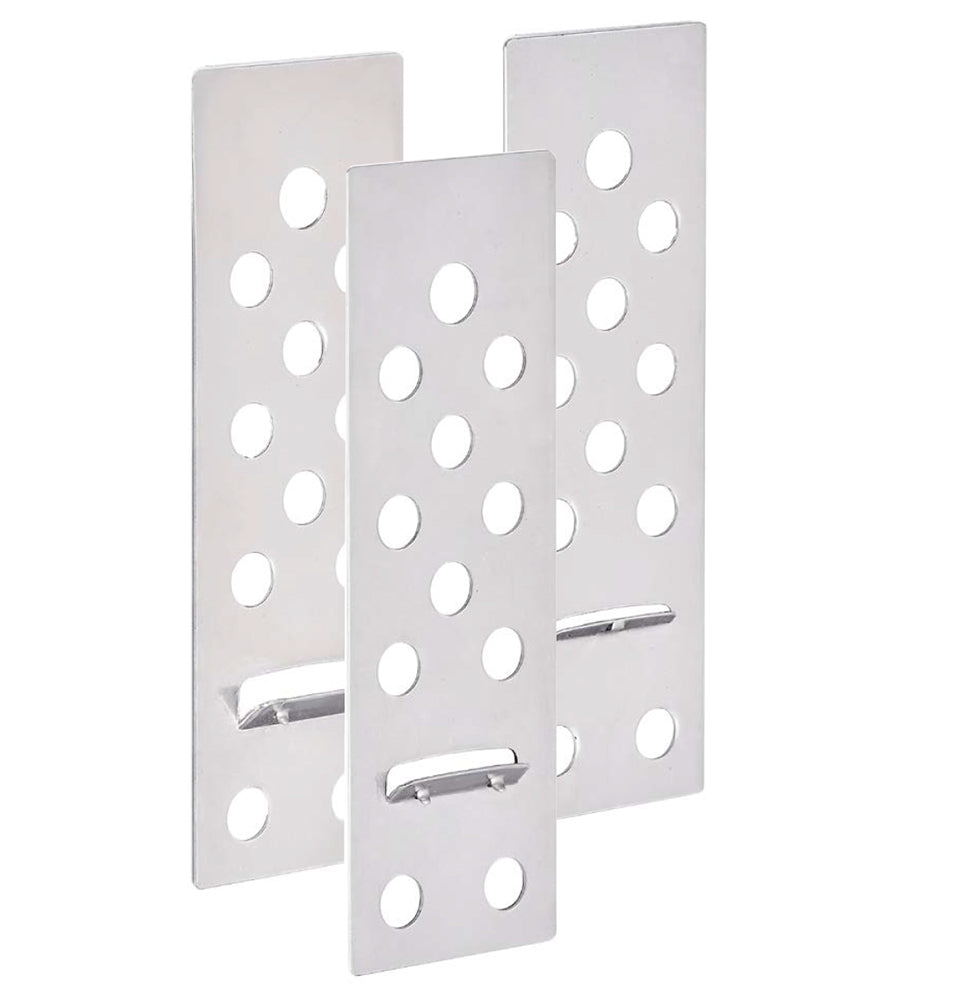

Each RAI-FIX hook is manufactured from stainless steel and designed to provide a durable mechanical connection between the tile or slab and the supporting wall. Its perforated mounting plate provides multiple anchoring positions for selecting an appropriate wall fixing location.

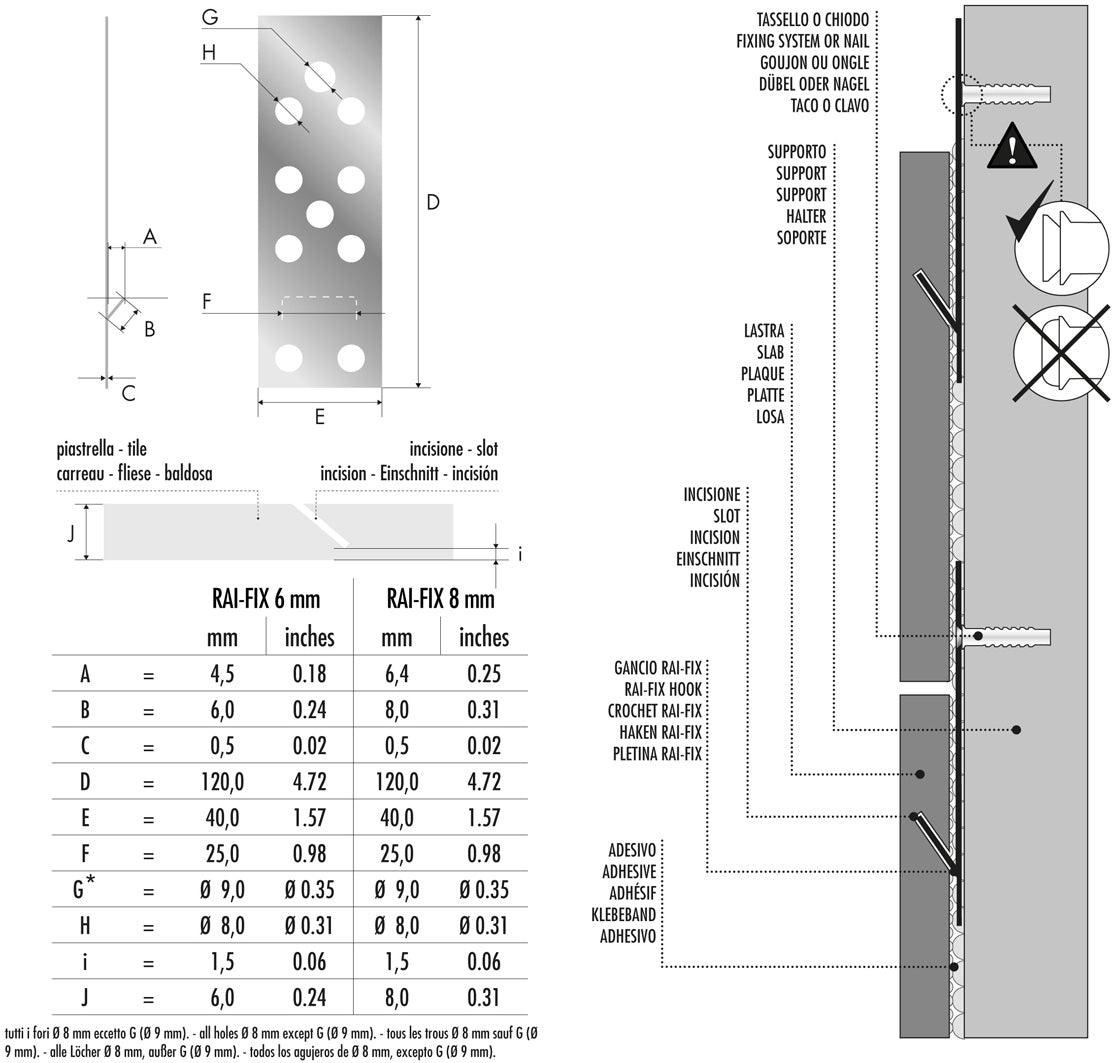

8MM RAI-FIX TECHNICAL INFORMATION
- Manufacturer: Raimondi
- Product: RAI-FIX Safety Withholding Hook
- Hook Version: 8mm (G8)
- Material: Stainless steel
- Minimum Tile Thickness: 8mm (5/16 inch)
- Installation: Concealed mechanical retaining hook
- Application: Vertical tile and slab installations
- Compatible Materials: Ceramic, porcelain and natural stone
- Installation Tool: Raimondi RAI-CUT MkII Grooving Tool
- Installation Method: Prepared rear tile groove and mechanical wall anchoring
LABORATORY TESTING & LOAD GUIDELINES
Raimondi commissioned laboratory testing of its RAI-FIX retaining hooks to evaluate the mechanical resistance of the hook and tile assembly. The 8mm configuration was tested with an 8mm-thick tile, using the hook installed in a prepared groove.
Raimondi's technical report provides approximate design guidance for the 8mm version based on tile dimensions and the number of hooks used:
- Tile side up to 24 inches: 1 hook, approximate maximum slab weight 81 lbs.
- Tile side over 24 inches up to 79 inches: 2 hooks, approximate maximum slab weight 163 lbs.
- Tile side over 79 inches up to 126 inches: 3 hooks, approximate maximum slab weight 244 lbs.
These are manufacturer's approximate design reference values, not a universal load rating for an individual hook. The required number and positioning of hooks must be determined by the qualified project designer based on tile dimensions, slab weight, substrate, anchors and site conditions.
IMPORTANT INSTALLATION & SAFETY INFORMATION
RAI-FIX is an additional mechanical retaining system used together with the specified tile adhesive. It does not replace proper adhesive application or the need for appropriate wall preparation.
- Use the correct RAI-FIX hook size for the actual tile thickness.

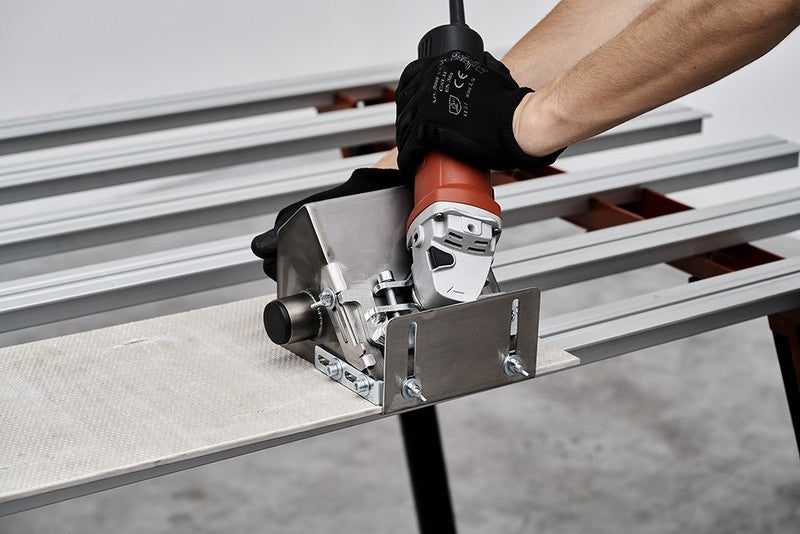

- Prepare the groove using the Raimondi RAI-CUT MkII according to the manufacturer's instructions.

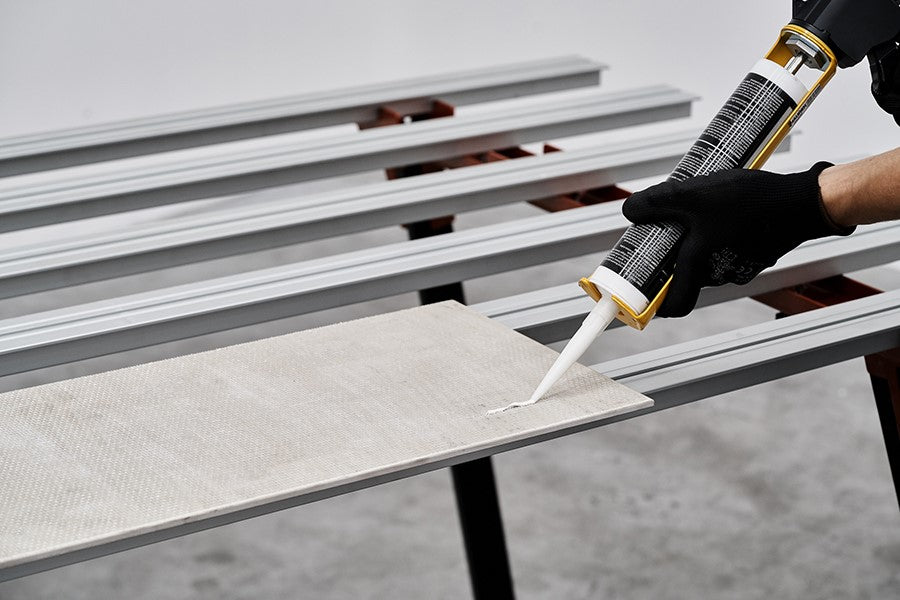

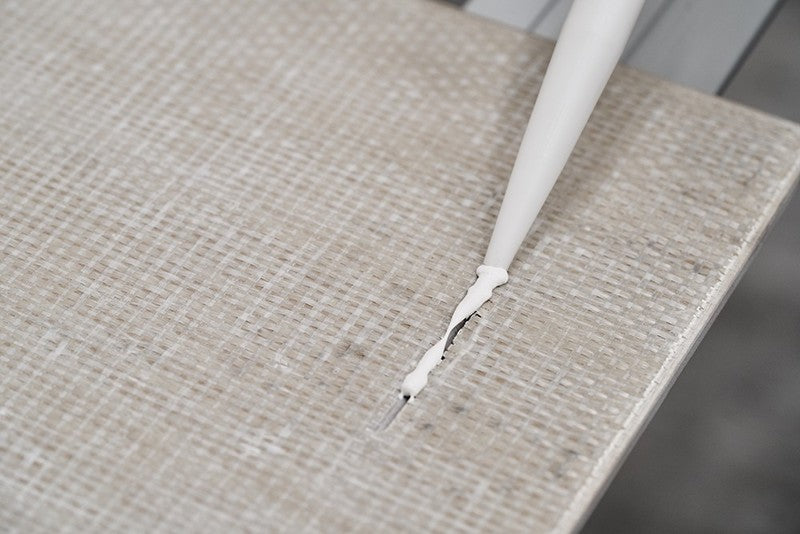

- Clean the groove and hook before installation and follow the specified installation procedure.
- Use suitable mechanical anchors compatible with the supporting wall substrate.
- Determine hook quantity and positioning according to the tile dimensions, weight and installation conditions.
- Follow the applicable building codes and project-specific engineering requirements.
The selection and installation of a mechanical tile retaining system should be reviewed by the responsible architect, engineer or other qualified technical professional. Always consult the manufacturer's technical documentation before installation.
WHY CHOOSE RAIMONDI RAI-FIX?
The Raimondi RAI-FIX system offers a practical concealed mechanical retention solution for professional vertical tile and slab installations. Its stainless steel construction, prepared-groove attachment and hidden installation make it suitable for projects where additional mechanical support is desired without compromising the finished appearance.
For architects, builders and professional tile installers, RAI-FIX provides an additional level of retention working alongside the tile adhesive system.
