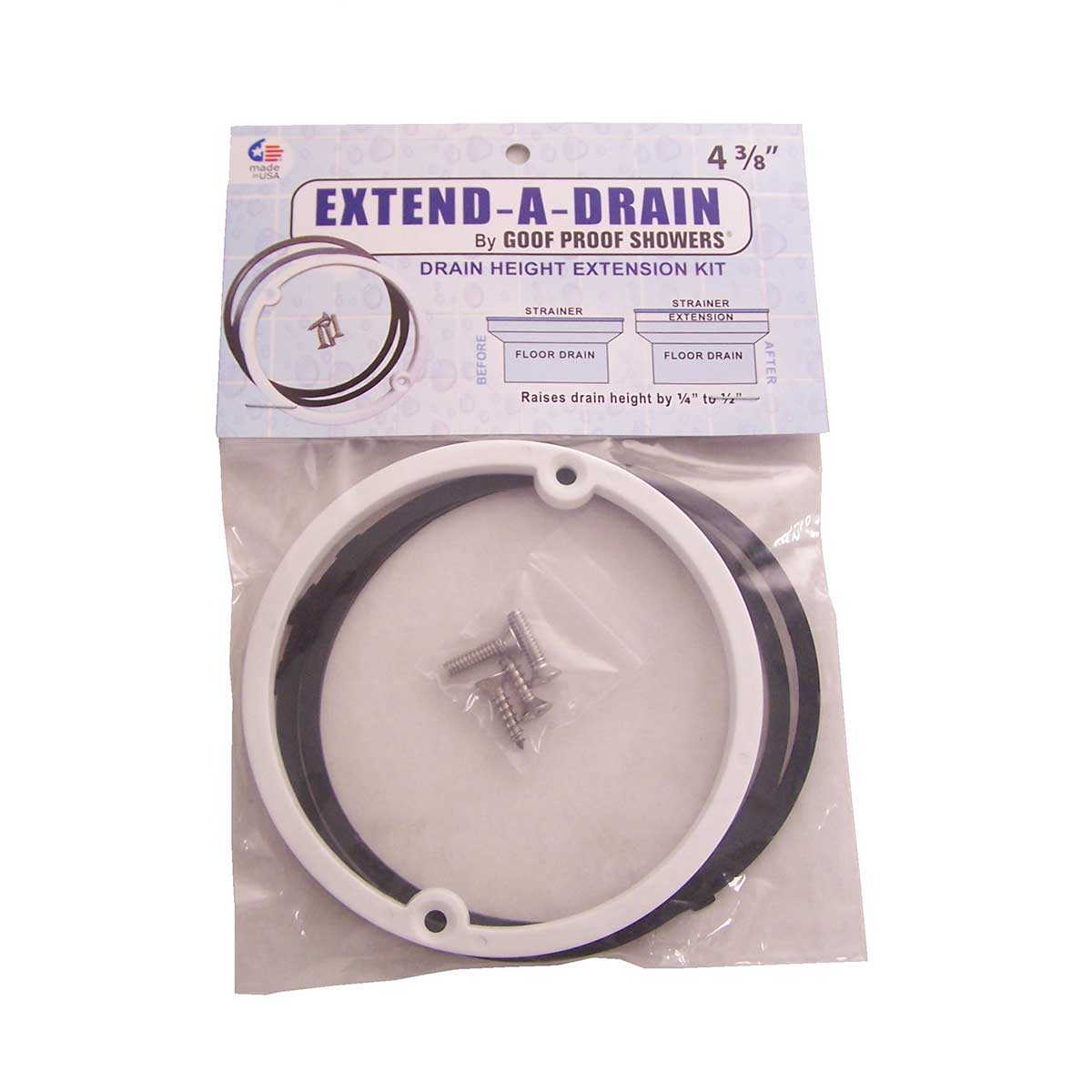

Mark E Industries Extend-A-Drain Kit 4-3/8 Inch Drain Grate Extension Ring

Mark E Industries Extend-A-Drain Kit 4-3/8 Inch Drain Grate Extension Ring

The Mark E Industries Extend-A-Drain Kit 4-3/8 Inch is an easy and effective solution for raising low floor drain grates after installing ceramic tile, porcelain tile, natural stone, or other finished flooring. By bringing the drain grate closer to the finished floor surface, this kit creates a cleaner, more professional appearance while helping eliminate the recessed look that can occur after new flooring is installed.

Designed for drain grates with mounting screw holes spaced 4-3/8 inches on center, each kit includes a durable 1/4 inch thick plastic extension ring, three rubber washers, and your choice of two pairs of screws to fit most drain types. If additional height is needed, multiple Extend-A-Drain kits can be stacked together to raise the drain grate more than 1/2 inch.

Features

• Fits floor drain grates with 4-3/8 inch screw hole spacing.
• Raises low drain grates for a clean, finished appearance.
• Ideal for ceramic tile, porcelain tile, stone, and other finished floors.
• Additional kits can be stacked for greater height adjustment.
• Durable 1/4 inch thick plastic extension ring.
• Compatible with many common residential and commercial floor drains.
• Quick and easy installation using the included hardware.

Kit Includes

• One 1/4 inch thick plastic drain height extension ring.
• Three rubber washers.
• Your choice of two pairs of mounting screws to fit most drain types.

Applications

This drain extension kit is ideal for bathroom floors, showers, laundry rooms, utility rooms, garages, commercial buildings, and remodeling projects where the finished floor sits higher than the existing drain. It provides a simple way to improve both the appearance and functionality of recessed floor drains.

Choosing the Correct Size

Measure the distance between the center of the existing drain grate screw holes before ordering. This model fits drain grates with 4-3/8 inch screw spacing. A 3-3/8 inch version is also available for smaller drain grates.

Installation Notes

• Measure the existing drain grate screw spacing before purchasing.
• Position the extension ring between the drain body and the drain grate.
• Use the supplied rubber washers and the appropriate screws for your drain.
• Stack additional Extend-A-Drain kits if more than 1/2 inch of height adjustment is required.

Specifications

• Manufacturer: Mark E Industries
• Product: Extend-A-Drain Kit
• Drain Size: 4-3/8 inch screw hole spacing (on center)
• Ring Thickness: 1/4 inch
• Material: Durable plastic
• Includes: One extension ring, three rubber washers, and two pairs of mounting screws
