Quartz Linear Shower Drain Pixel Grate - Electro Polished Stainless Steel 36 Inch

Quartz Linear Shower Drain Pixel - Electro Polished Stainless Steel 36

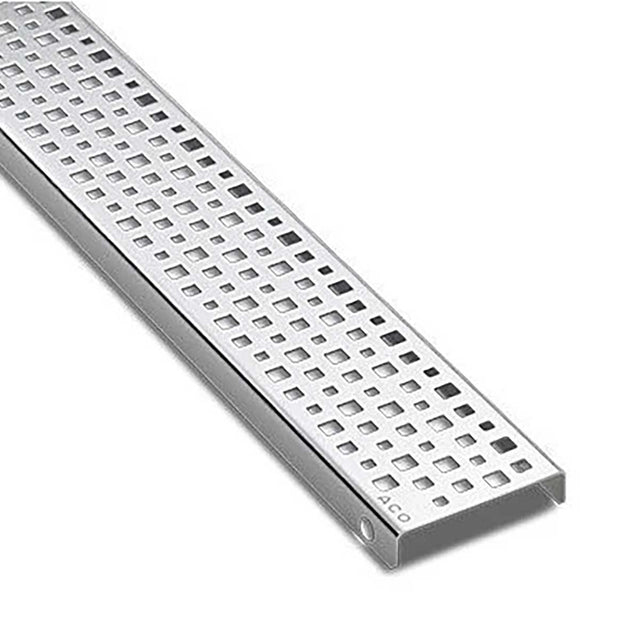

Modern Pixel Grate Featuring Random Square Perforations

Complete Set Channel Body, Pixel Grate Cover, Lifting Key, Adjustable Feet, Hardware

Designed for wood joist shower installations with CPE waterproof membranes

Specifications

Length 35.43" x 3.31" (900mm)
Intake: 20.03 sq. in.

Linear Shower Channel Drains Deliver Superior Performance and Contemporary Design

Features

• Distinctive Pixel grate with random square perforations
• 2" diameter central vertical outlet
• Flow rate: 6.3 GPM (0.6 l/s) at the entrance and 9.5 GPM (0.6 l/s) against the wall
• 3.3" (84mm) wide channel body
• Premium stainless steel construction
• Plastic support feet simplify installation and leveling
• Lifting key included for easy grate removal and cleaning
• Optional accessories include plumbing connectors, debris strainer, and water-activated LED light
• Available in Electro Polished Stainless Steel and Oil-Rubbed Bronze finishes

Electro Polished Stainless Steel Finish

The Quartz Pixel linear shower drain features a contemporary grate with randomly positioned square openings that create a distinctive architectural appearance while providing outstanding drainage performance. The geometric pattern complements modern bathrooms, large-format tile, porcelain, ceramic, and natural stone installations.

The electro-polishing process creates a brilliant, smooth, defect-free stainless steel surface that enhances corrosion resistance while minimizing cleaning and maintenance. The subtle texture of the Pixel grate helps reduce the appearance of fingerprints, water spots, and soap residue, making it ideal for busy residential and commercial showers.

The 36 inch length is ideal for standard residential showers, guest bathrooms, and bathroom remodeling projects. Its efficient channel design provides excellent water collection while maintaining the clean architectural appearance expected in today's modern shower designs.

Built for both residential and commercial applications, the Quartz Pixel linear shower drain combines premium stainless steel construction with precision European engineering. The removable grate, adjustable support feet, and included lifting key simplify installation, maintenance, and routine cleaning while delivering years of dependable performance.

Unlike traditional center drains, Quartz linear shower drains allow a single-direction floor slope that simplifies tile installation and eliminates difficult tile cuts around conventional drains. The drain can be installed against a wall, at the shower entrance, or in the center of the shower floor, making it ideal for curbless showers and accessible bathroom designs.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO 36 Inch Pixel Linear Shower Drain with Electro Polished Stainless Steel Grate delivers dependable drainage, contemporary architectural styling, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that will perform reliably for years in both residential and commercial applications.
