Quartz by ACO Wave Linear Shower Drain Polished Chrome

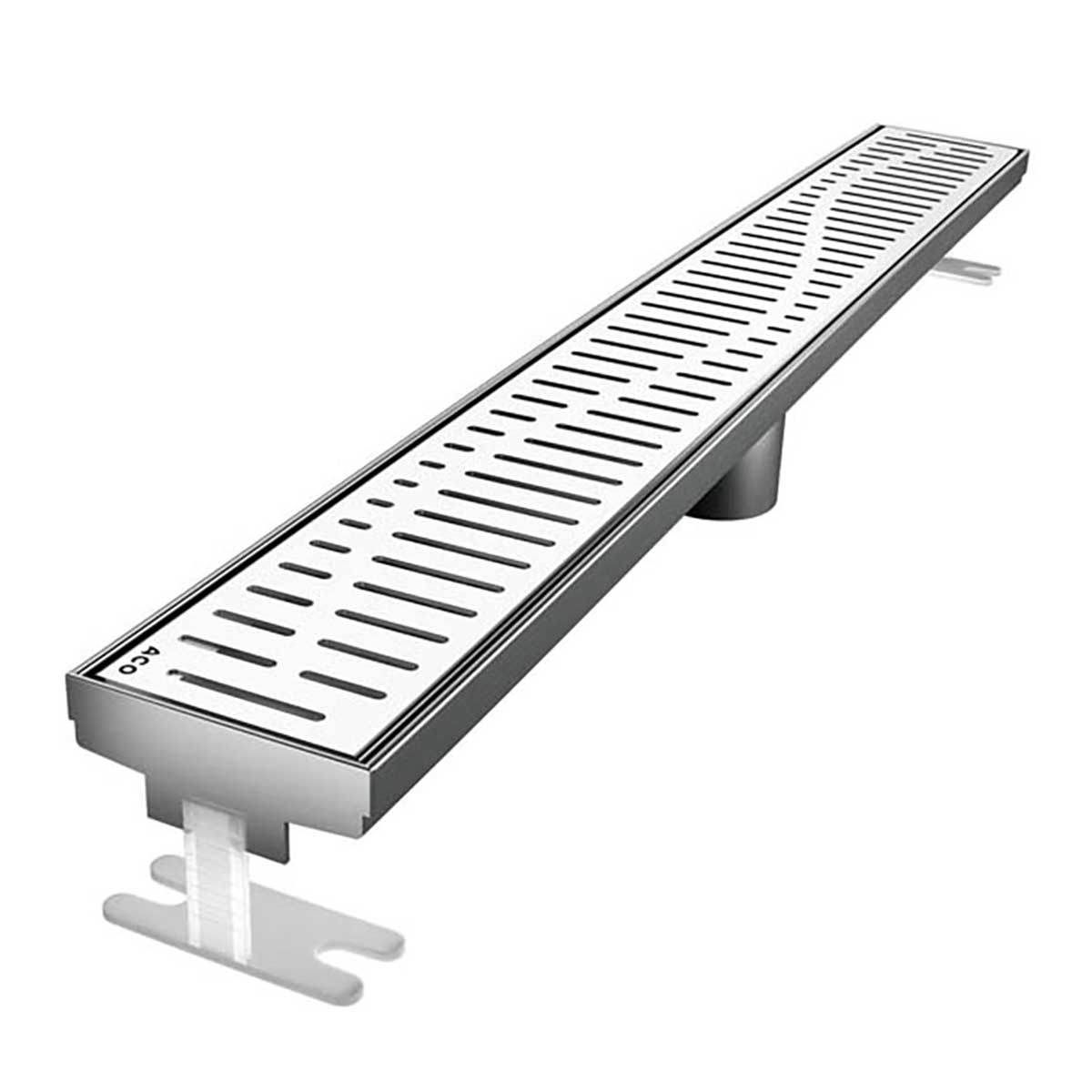

Quartz by ACO Wave Linear Shower Drain with Polished Chrome Grate

Premium linear shower drain featuring the elegant Wave grate design with a brilliant Polished Chrome finish.

The Quartz by ACO Wave Linear Shower Drain combines exceptional drainage performance with a graceful flowing grate pattern inspired by the movement of water. Designed for modern residential and commercial showers, this premium linear drain creates a clean architectural appearance while delivering reliable drainage. Available in multiple lengths, the Wave collection offers the flexibility needed for everything from compact showers to large walk-in and curbless installations.

Complete Drain Kit Includes

• Stainless steel channel body
• Wave decorative grate in Polished Chrome finish
• Lifting key
• Adjustable installation feet
• Installation hardware

Designed for Wood Joist Installations

This linear shower drain is designed for wood joist applications using a traditional CPE shower pan membrane. Proper installation according to the manufacturer's recommendations helps ensure dependable waterproofing and years of reliable performance.

Available Sizes

• 28 inch (700 mm) - Intake 13.66 sq. in.
• 32 inch (800 mm) - Intake 15.57 sq. in.
• 36 inch (900 mm) - Intake 17.48 sq. in.
• 40 inch (1000 mm) - Intake 19.39 sq. in.
• 48 inch (1200 mm) - Intake 23.20 sq. in.
• 55 inch (1400 mm) - Intake 27.01 sq. in.
• 60 inch (1500 mm) - Intake 31.33 sq. in.

Specifications

• 2 inch diameter central vertical outlet
• Flow rate at entrance: 6.3 GPM (0.6 l/s)
• Flow rate against the wall: 9.5 GPM (0.6 l/s)
• Channel width: 3.3 inches (84 mm)
• Adjustable plastic support feet for easier installation
• Optional accessories include plumbing connectors, water-activated LED light, and debris strainer

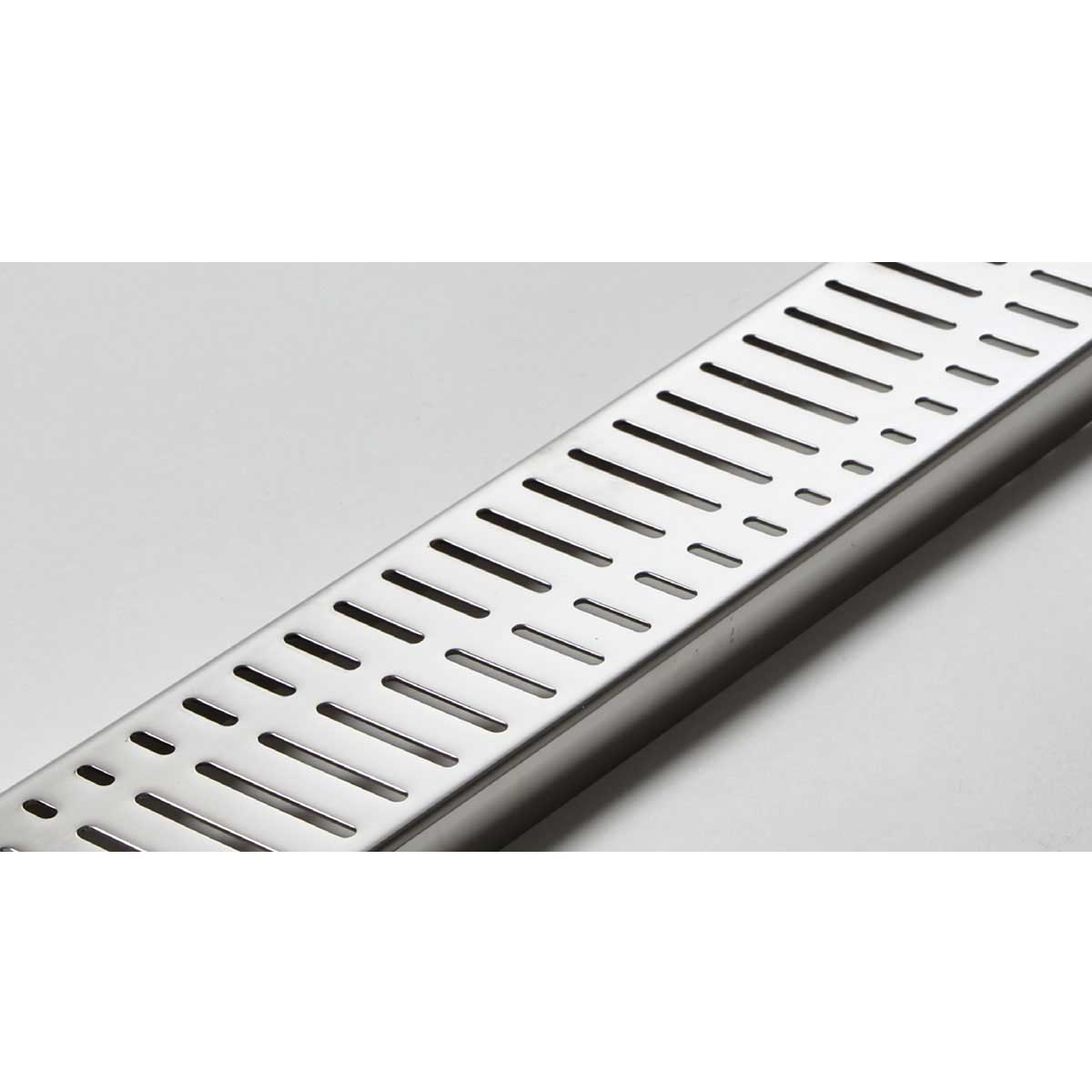

Wave Decorative Grate

The Wave grate features elongated offset slots that form a flowing wave pattern across the drain surface. This elegant design complements a wide variety of tile styles, from porcelain and ceramic to natural stone and large-format tile, creating a sophisticated focal point without overwhelming the shower floor.

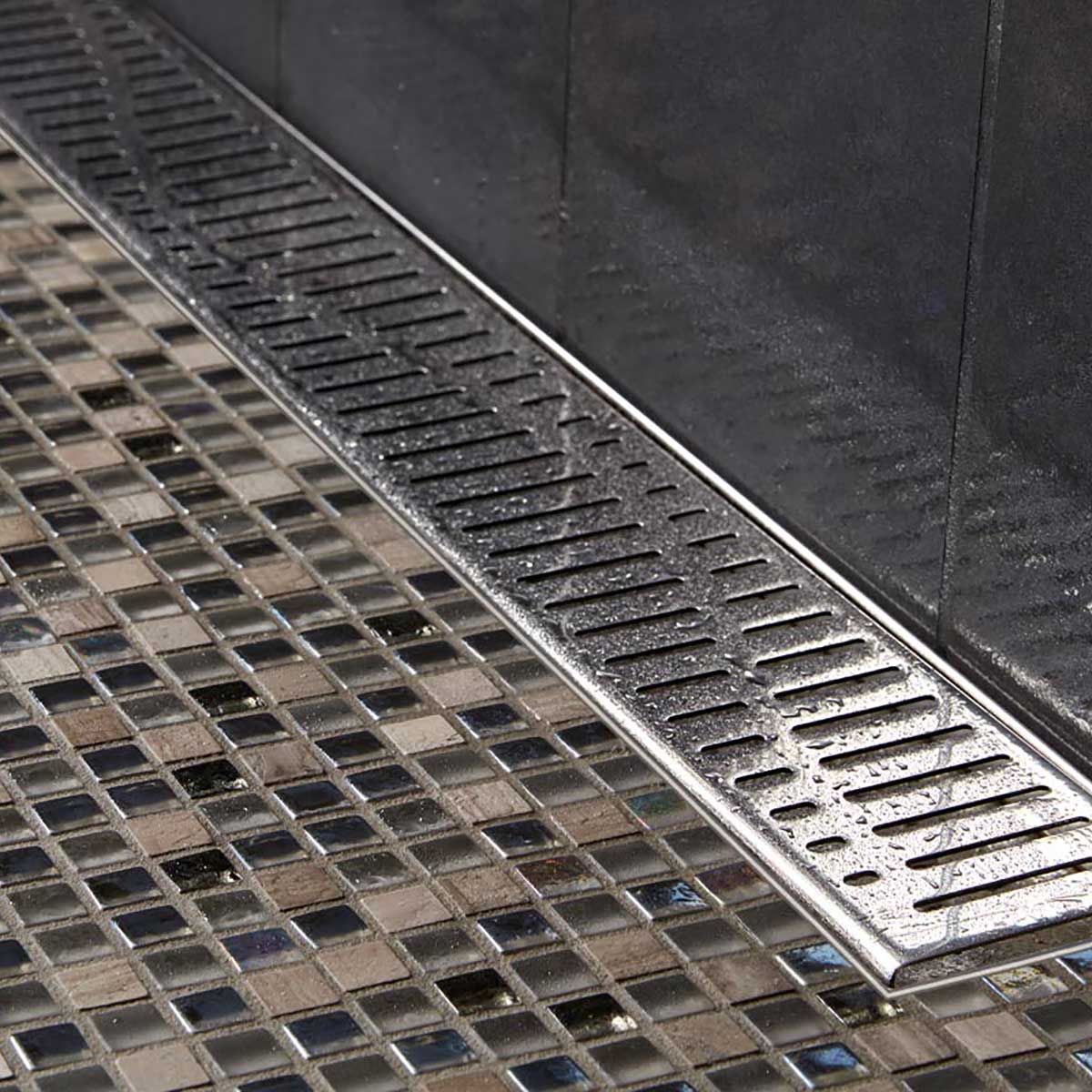

Polished Chrome Finish

The Polished Chrome finish delivers a brilliant mirror-like appearance that enhances contemporary and transitional bathrooms. Designed to coordinate with chrome faucets, shower fixtures, and polished hardware, this reflective finish creates a bright, luxurious look while providing the long-lasting durability of stainless steel construction.

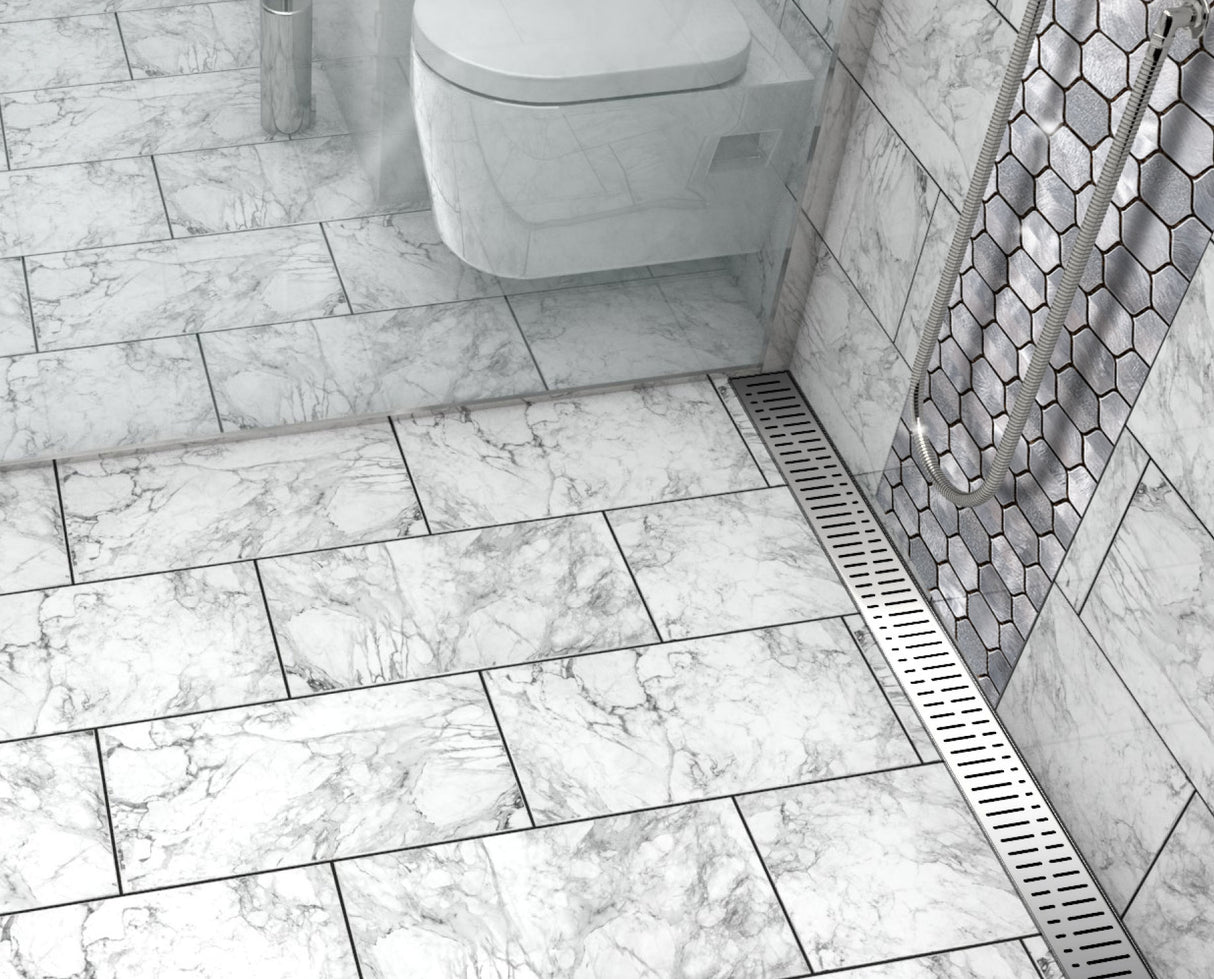

Advantages of a Linear Shower Drain

Unlike traditional center drains, a linear shower drain allows greater flexibility in shower layout and floor design. It can be positioned along a wall, at the shower entrance, or in the center of the shower floor, making it ideal for curbless showers and barrier-free bathroom designs. The linear configuration simplifies floor sloping while reducing complicated tile cuts, creating a cleaner and more professional installation.

Manufactured from premium stainless steel, Quartz by ACO linear shower drains combine European-inspired engineering with dependable drainage performance. Designed for both residential and commercial applications, they provide a durable, low-maintenance drainage solution that delivers years of reliable service when installed according to the manufacturer's instructions.

Helpful Resources

• Complete Guide to Design, Installation and Planning
• How to Install a Linear Shower Drain on a Joisted Wood Floor
• Quartz Linear Shower Drain Concrete Slab Installation Guide

Related Collections

• Quartz by ACO Shower Drains
• SereneDrains Shower Drains
• Shower Waterproofing Products

When installed correctly, the Quartz by ACO Wave Linear Shower Drain with Polished Chrome Grate delivers dependable drainage, a refined architectural appearance, and long-lasting performance. Proper planning, waterproofing, and accurate installation help create a professional shower system that performs reliably for years in both residential and commercial applications.
