ProPan Complete Waterproof Shower Kit 48" x 48" with ProPanel Wall Boards

ProPan Complete Waterproof Shower Kit 48" x 48" with ProPanel Wall Boards

Complete Waterproof Shower System Including Shower Pan, Wall Boards, Drain, Curb, and Installation Components

The ProPan Complete Waterproof Shower Kit provides everything needed to create a fully waterproof tiled shower system. Unlike standard shower pan kits, this package includes both the ProPan ready-to-tile shower base and ProPanel lightweight waterproof backer boards, creating a complete shower solution designed to reduce installation time while delivering long-term waterproof performance.

Size: 48" x 48" Center Drain Complete Waterproof Shower Kit

Designed for residential and commercial applications, this complete shower kit includes enough ProPanel waterproof backer board to cover shower walls up to 80 inches high, eliminating the need to purchase wall boards separately.

Ready for Any Job... Any Situation. Ready to Tile in Minutes.

Manufactured in the USA, the ProPan shower base is constructed from high-density polystyrene reinforced with fiberglass mesh and coated with a durable polymer cement layer. Combined with ProPanel XPS waterproof backer boards, the system provides a complete waterproof shower assembly that is lightweight, durable, and easy to install.

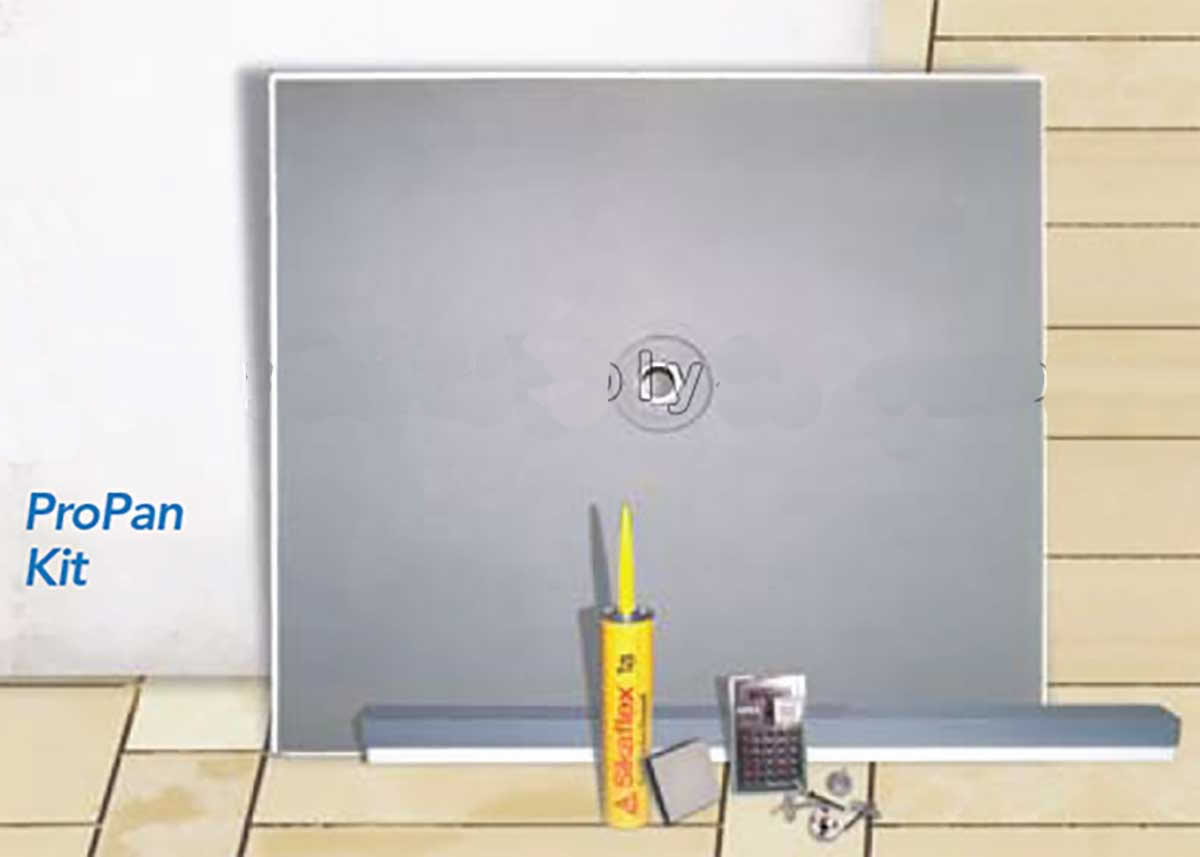

Complete Shower Kit Includes:

• 1 ProPan Ready-to-Tile Shower Base - 48" x 48.5"
• 1 ProPan Shower Curb - 48"
• 6 ProPanel Waterproof Backer Boards - 3' x 5' x 1/2"
• 6 Tubes Polyurethane Sealant - 10.3 oz
• 250 Corrosion Resistant Cap Nail Fasteners
• 1 Ebbe Square Drain Assembly
• 1 Ebbe Drain Hair Trap

Complete Waterproof Wall System Included

This shower kit includes enough ProPanel lightweight waterproof backer board to cover shower walls up to 80 inches high. ProPanel boards are lightweight, easy to cut, completely waterproof, and designed to create a durable tile-ready substrate for residential and commercial shower installations.

Professional Waterproof Shower System

ProPan shower bases feature a factory-built 1/4" per foot slope to ensure proper drainage while eliminating the need for traditional mud beds, shower liners, pre-sloping, and additional waterproofing systems. The shower pan can be cut, modified, or extended on-site using standard tools to accommodate unique project requirements.

Key Features:

• Complete shower pan and waterproof wall board system
• Includes enough wall boards to cover shower walls up to 80 inches high
• 100% waterproof shower installation system
• Ready-to-tile shower base and wall assembly
• Can be installed and tiled the same day
• Lightweight and easy to transport and install
• Compatible with standard thin-set mortar installation
• Includes Ebbe Square Drain with your choice of grate finish
• Includes polyurethane sealant and corrosion resistant fasteners
• Can be cut and modified on-site
• Superior resistance to mold and moisture damage
• Suitable for residential and commercial installations
• Custom sizes available upon request
• Made in the USA

NEW FEATURE - Compression Drain Assembly Option

ProPan is available with a field-installed compression drain assembly. Many local building codes allow connection to an existing floor drain stub using a compression drain without requiring a licensed plumber. Always verify local plumbing and building code requirements before installation.

Installation Benefits:

• No traditional mud bed required
• No pre-slope construction required
• No shower liner installation required
• No separate waterproofing membrane required
• Uses standard thin-set mortar for tile installation
• Compatible with tile, stone, porcelain, and ceramic installations
• No special training required

Certifications & Standards:

• Listed by IAPMO to comply with UPC PS 106-2010 requirements
• Suitable for residential and commercial shower installations
• Approved for use with ProPanel waterproof backer board systems

35-Year Limited Warranty

When installed according to manufacturer guidelines, the ProPan shower system is backed by a 35-year limited warranty.

Made in the USA

Helpful Resources

• ProPan Specification and Installation Procedure
• How to Install ProPan with ProPanel Shower Pan System
• ProPan Shower Pan MSDS
