PreFormed Ready-to-Tile Shower Pan Dallas Specialty 42" x 42" ABS Square Drain - Discontinued

PreFormed Ready-to-Tile Shower Pan Dallas Specialty 42" x 42" ABS Square - Discontinued

DISCONTINUED PRODUCT NOTICE

This PreFormed Ready-to-Tile Shower Pan has been discontinued by the manufacturer and is no longer in production.

We may still have limited inventory available while supplies last. Once remaining inventory is sold, this model will no longer be available.

Looking for a replacement? We recommend our newer ProPan® Ready-to-Tile Waterproof Shower Pan Systems, which offer improved waterproofing technology, modern drain options, and complete shower system solutions.

42" x 42" ABS Square

PreFormed Shower Pan "Excess Inventory Sale". These select models feature the formerly used Dallas Specialty Square Drain Grate. All available units are in original packaging and ready to install and tile in the same day.

Don't be fooled by cheap imitations. We are the original preformed shower pan supplier.

The curbs are placed on the 2nd listed dimension above.

Curb sizes: front high 5 3/8" - inside curb high 2" - top curb 3 3/8"

Use any thin-set setting material for installation

35-Year Warranty

DESCRIPTION:

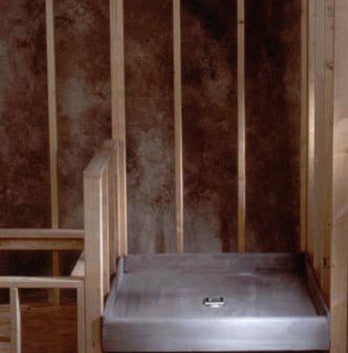

PreFormed Shower Pan is a ready-to-tile waterproof shower pan that can be installed in minutes, reducing the time and labor associated with traditional mud bed shower construction.

No need to build a frame. Simply set the pan in place and begin your tile installation.

Includes square shower drain - screw-less design.

The only heavy-duty solid unit, not hollow parts.

It is lightweight and features a built-in drain connection, making it easy to handle and install.

The material used to construct the Fin Pan PreFormed Shower Pan is 100% waterproof and rot resistant.

FEATURES:

• Waterproof and rot resistant
• Lightweight and easy to handle and install
• Time and labor savings
• Can be installed and tiled the same day
• Drain assembly and curb included
• No special training necessary
• Custom sizes can be ordered
• Sloped per industry standards

Materials: Latex modified thin-set, 1/2" x 1/2" square notched trowel for installing pan, PVC or ABS solvent for drain connection, and polyurethane sealant for sealing the joint between the pan and walls.

PREPARATORY WORK

1. Plug the inside of the drainpipe and fill the pan with water for 24 hours. Note: Shower pans are 100% waterproof from the factory. It is the user's responsibility to ensure waterproof integrity is still intact after shipping.

2. Ensure that walls are square and plumb for proper fit of pan.

3. Subfloor under pan must be clean and level. Cut floor drainpipe 5/8" above the subfloor.

4. Remove square strainer from the drain and test fit pan to ensure it fits over the drainpipe properly and sits flush and level with the floor.

5. Remove the pan.

INSTALLATION

1. Apply a medium-bed latex modified thin-set to the floor area and the underside of the pan. Use a 1/2" x 1/2" square notched trowel.

2. Apply a liberal coat of PVC or ABS cleaner and then solvent cement to the drainpipe and inside the drain where the connection will be made. Follow the solvent manufacturer's instructions.

3. Set the pan into the wet thin-set and apply pressure to achieve complete coverage.

4. Apply 1/2" backer board to the walls, bringing it flush with the top of the pan walls.

5. Seal the joint between the backer board and pan using WaterArmor Liquid Waterproofing and fiberglass mesh, or polyurethane sealant.

6. Screw the square strainer down to the correct height to match tile thickness. Pack thin-set or pea gravel into the area cut out for strainer adjustment.

7. Install tile according to Tile Council of North America (TCNA) guidelines.
