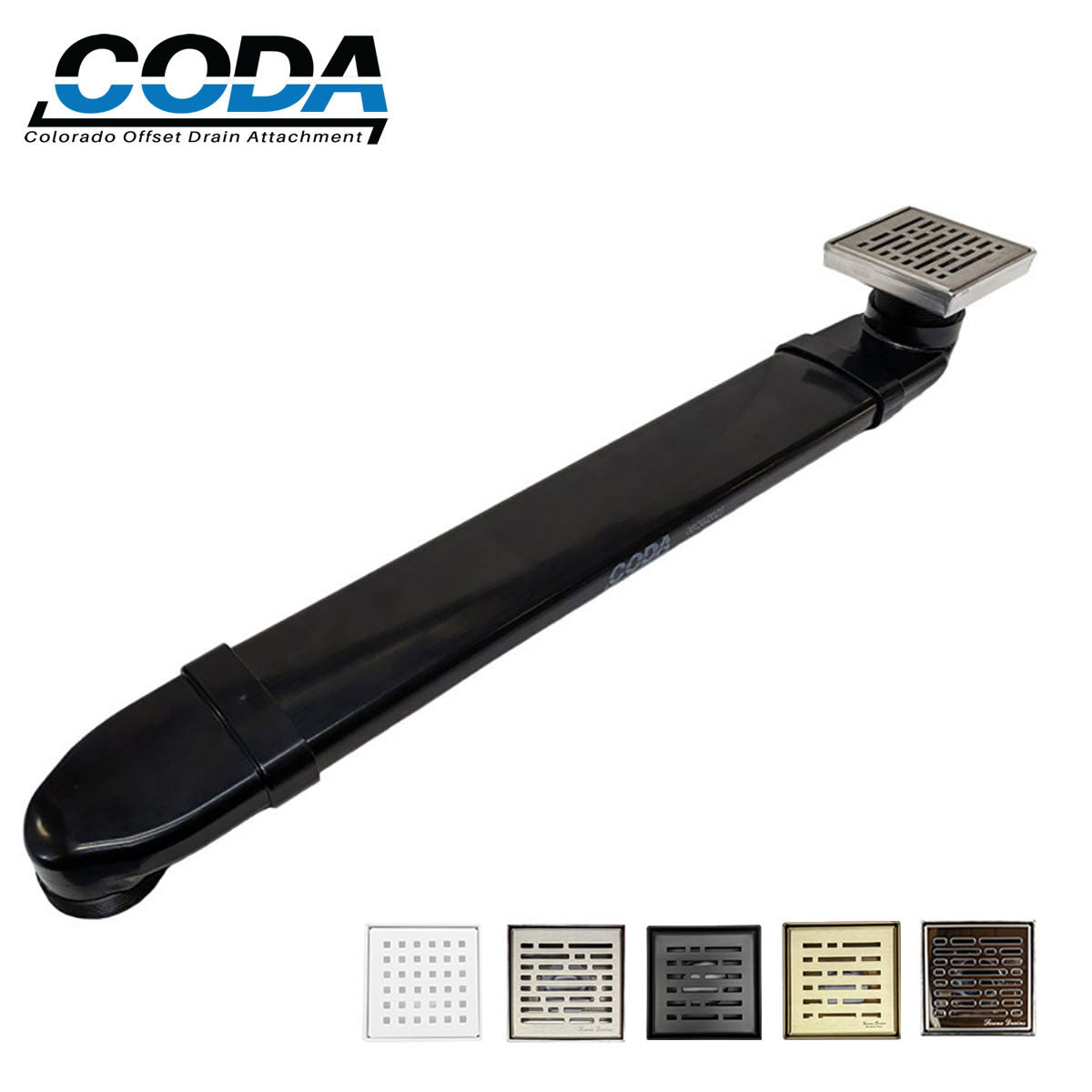

CODA-A Shower Drain Relocator
Innovative Shower Drain Relocation System for Remodels and New Construction

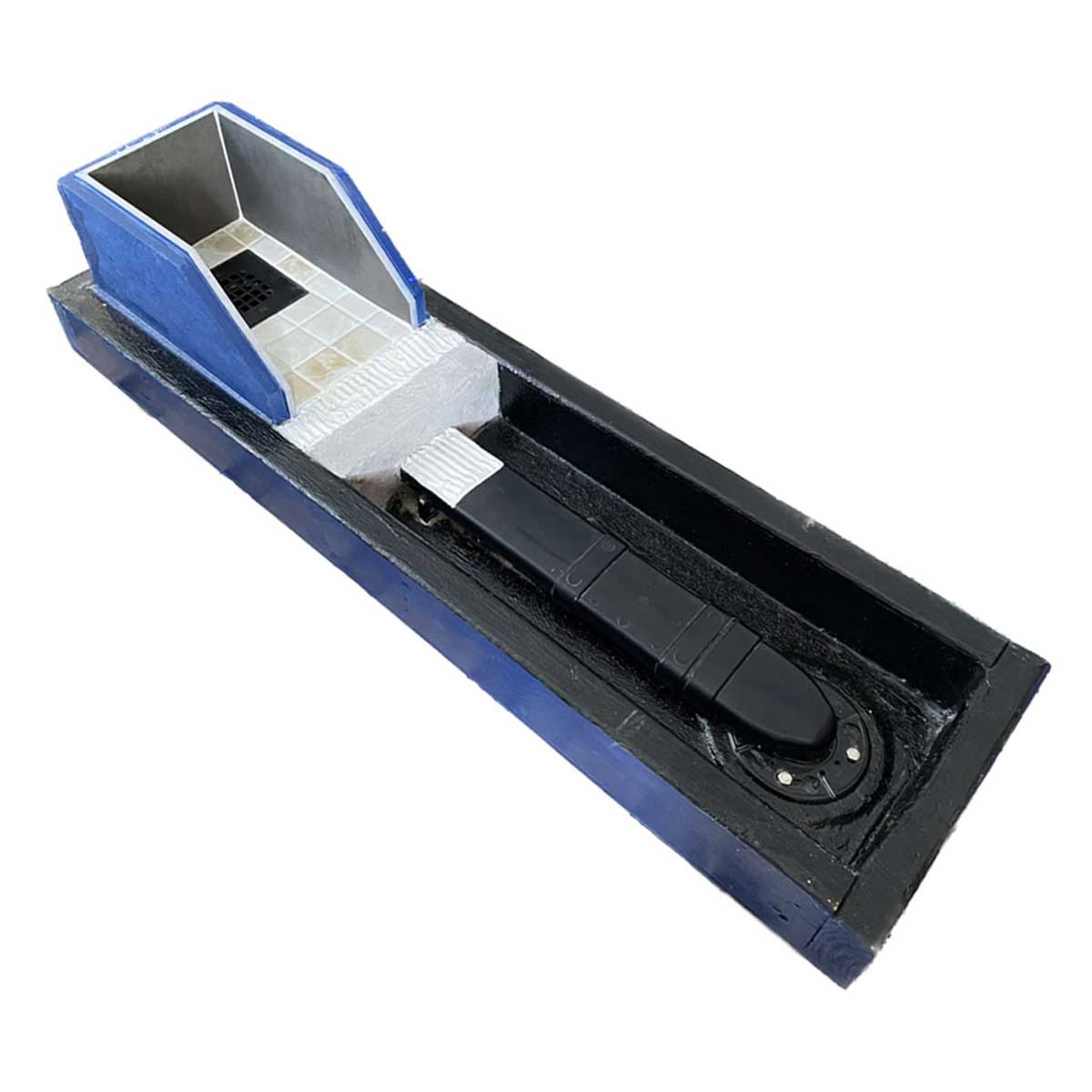

The CODA Shower Drain Relocator is a revolutionary plumbing solution designed to relocate shower drains without costly demolition. Perfect for bathroom remodels, shower conversions, and new construction projects, CODA screws directly into the existing drain and extends up to 32 inches in virtually any direction.
Choosing the Right CODA Drain Relocator

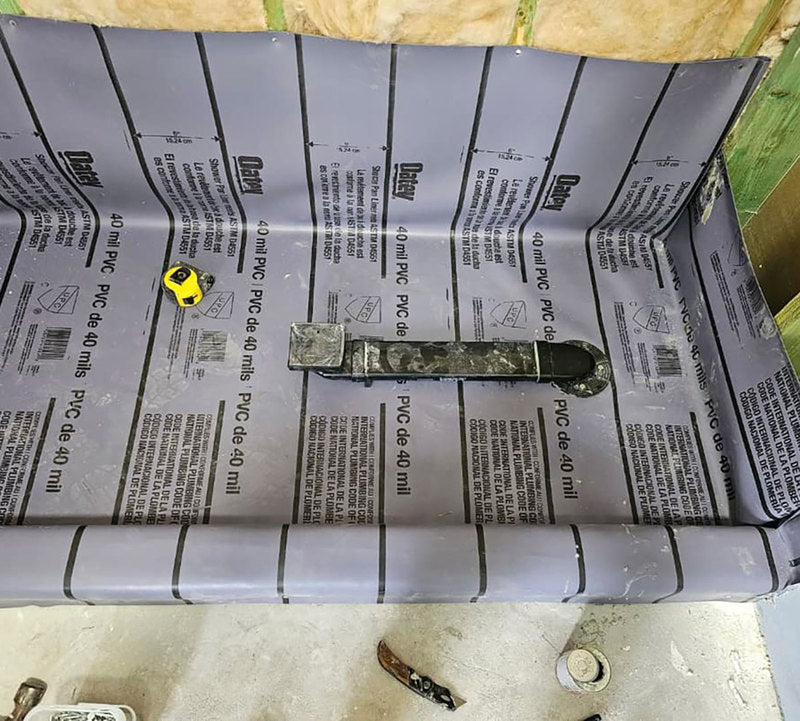

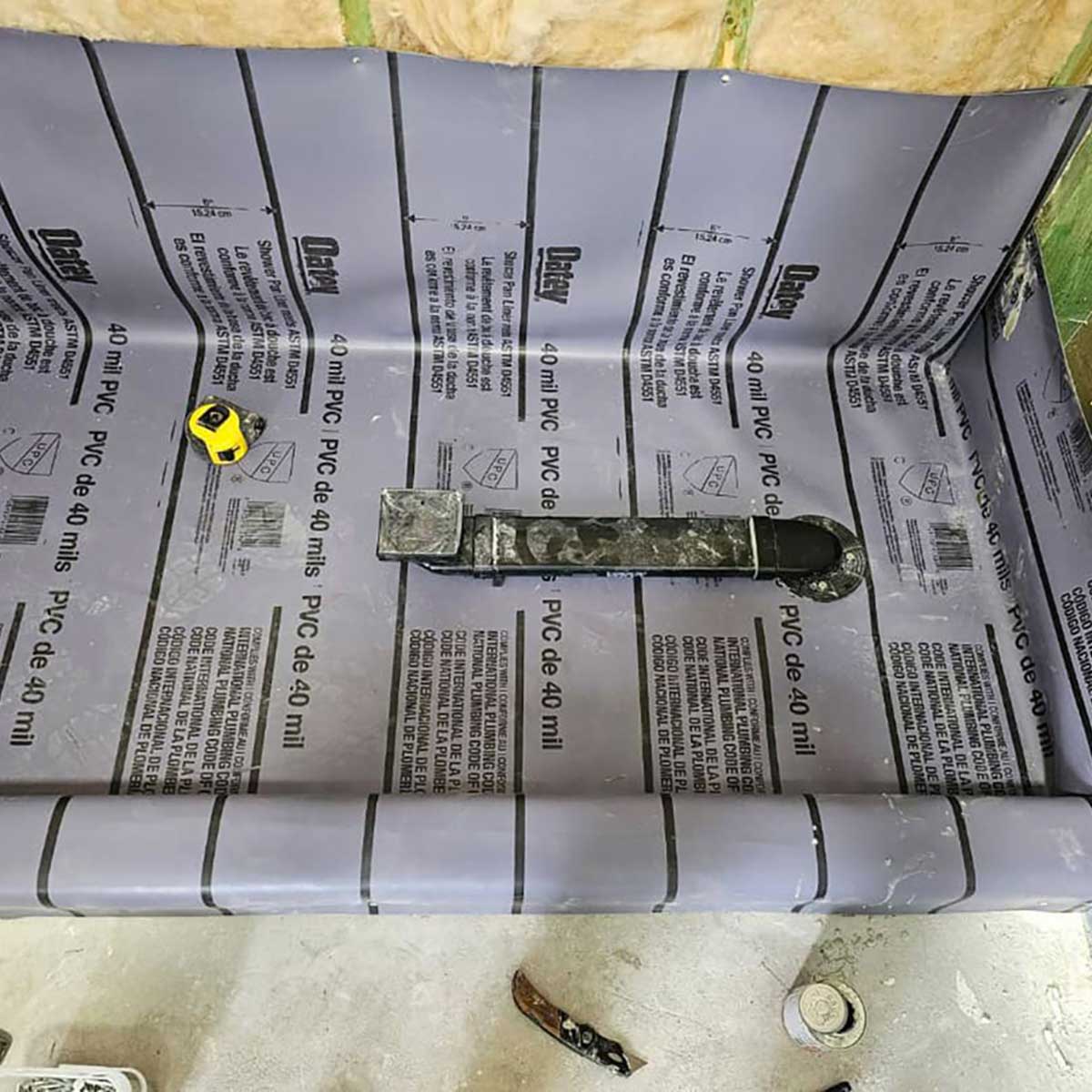

CODA-A is designed for traditional clamping drains, PVC liner systems, and mud-set shower pans. If your shower uses a bond flange drain, foam shower pan, or topical waterproofing membrane, CODA-B is typically the better choice.
Designed for contractors, tile installers, plumbers, builders, and DIY homeowners, CODA helps simplify shower drain relocation while reducing labor costs, plumbing work, and installation delays.

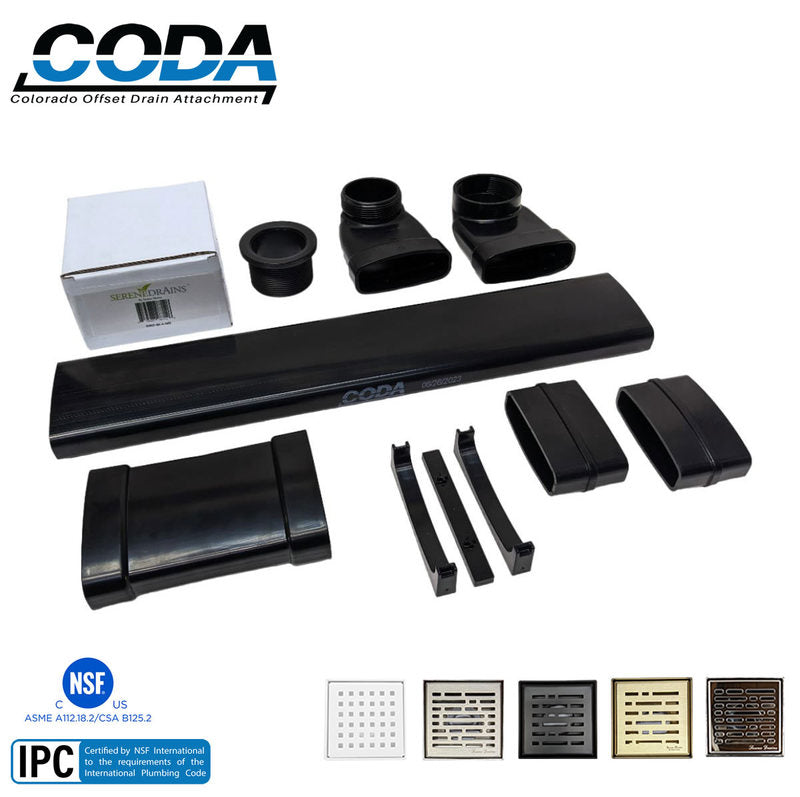

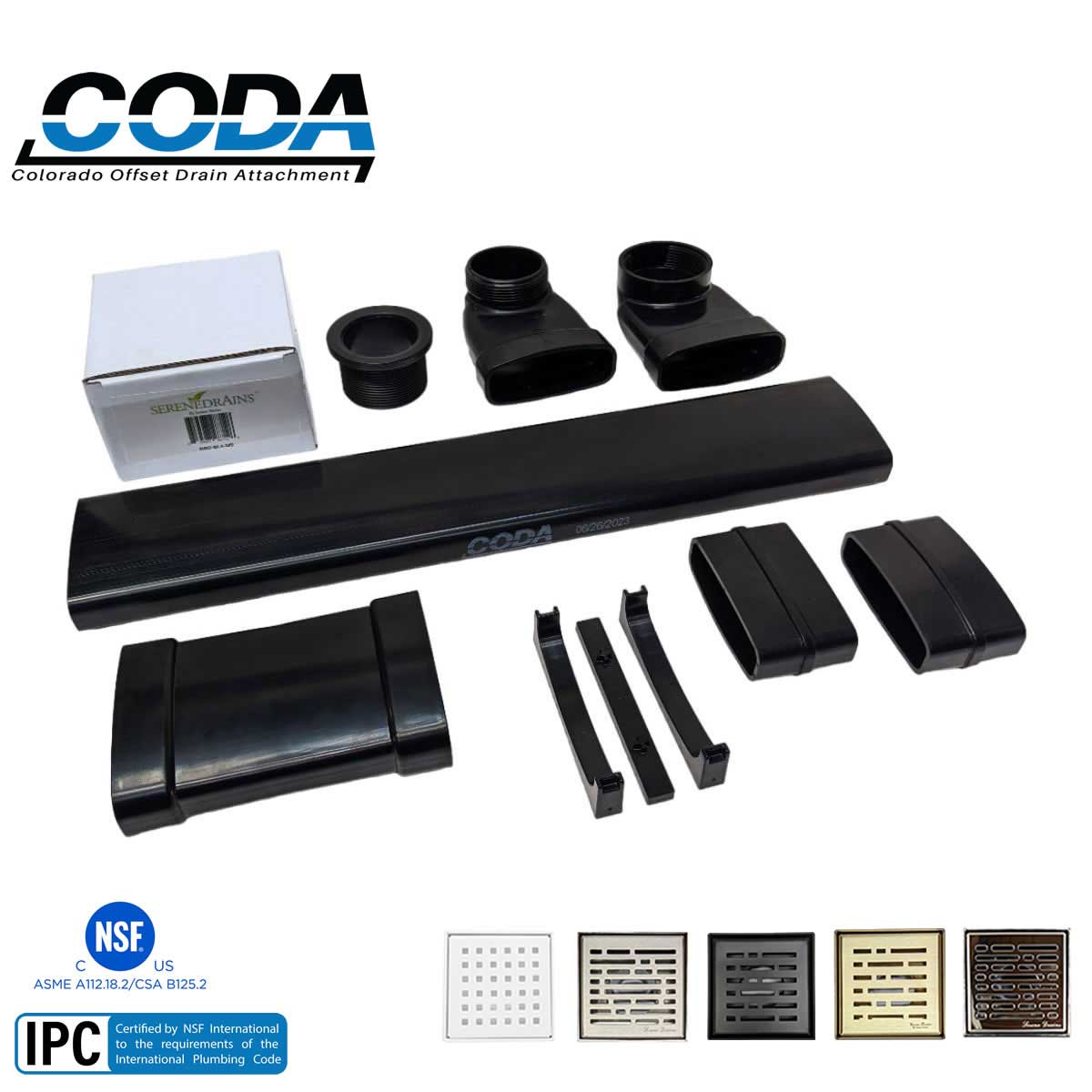

List of Parts Included
- 1 Male Elbow
- 1 Female Elbow
- 1 Extension - 18"
- 1 Extension - 5.5"
- 2 Couplers
- 2 U-Shims
- 1 Flat Shim
- 1 2" Threaded Gage
ABS Primer & Glue Required - Not Included

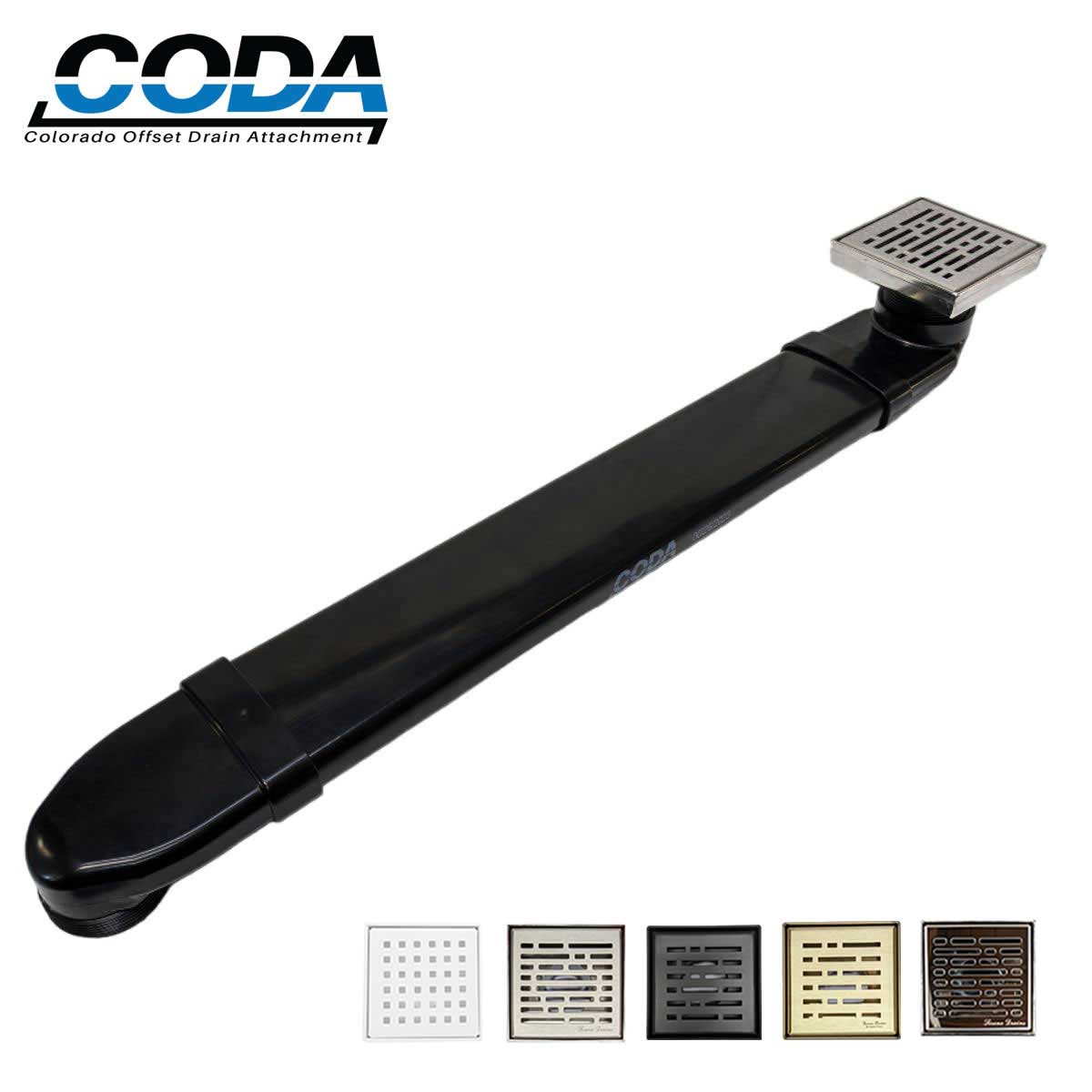

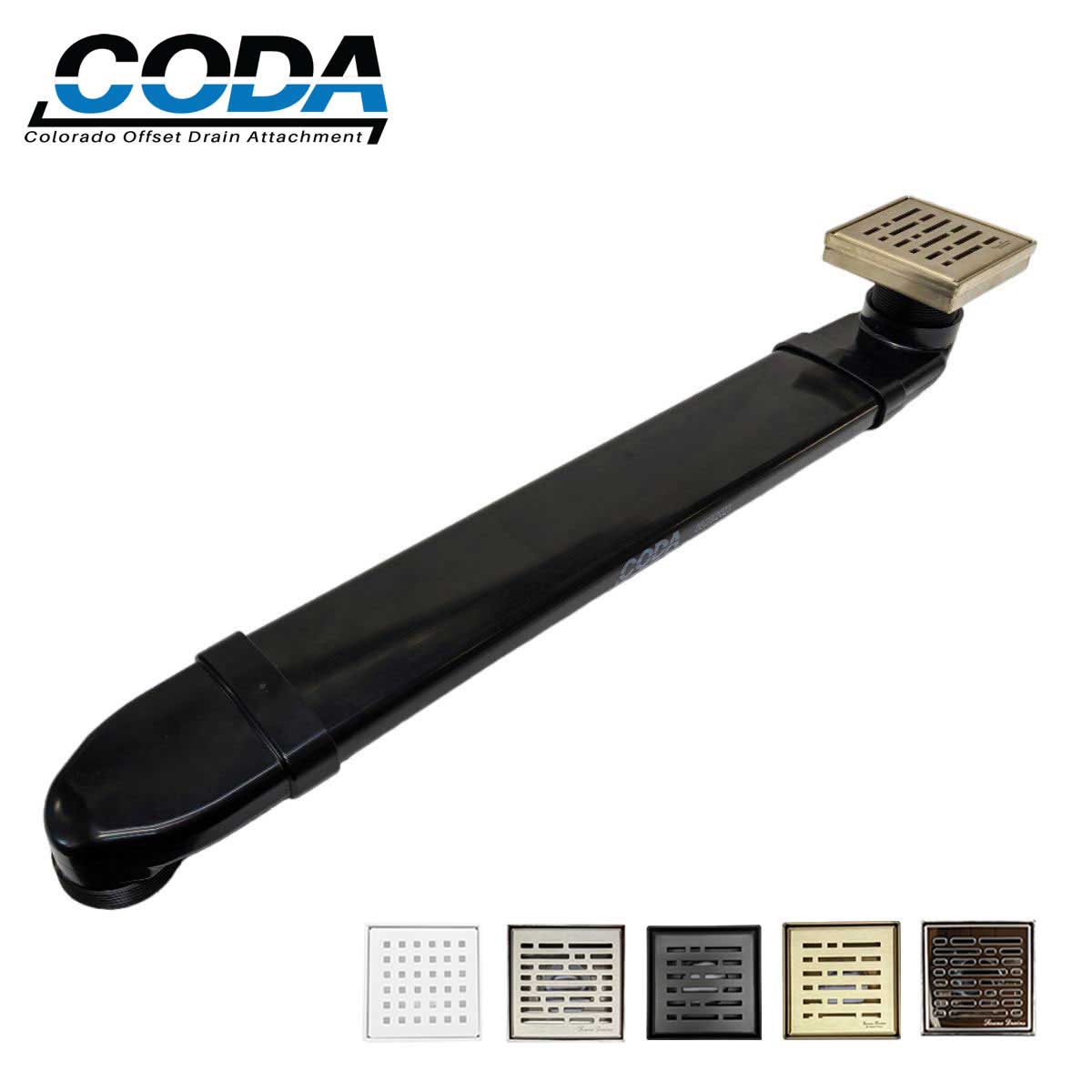

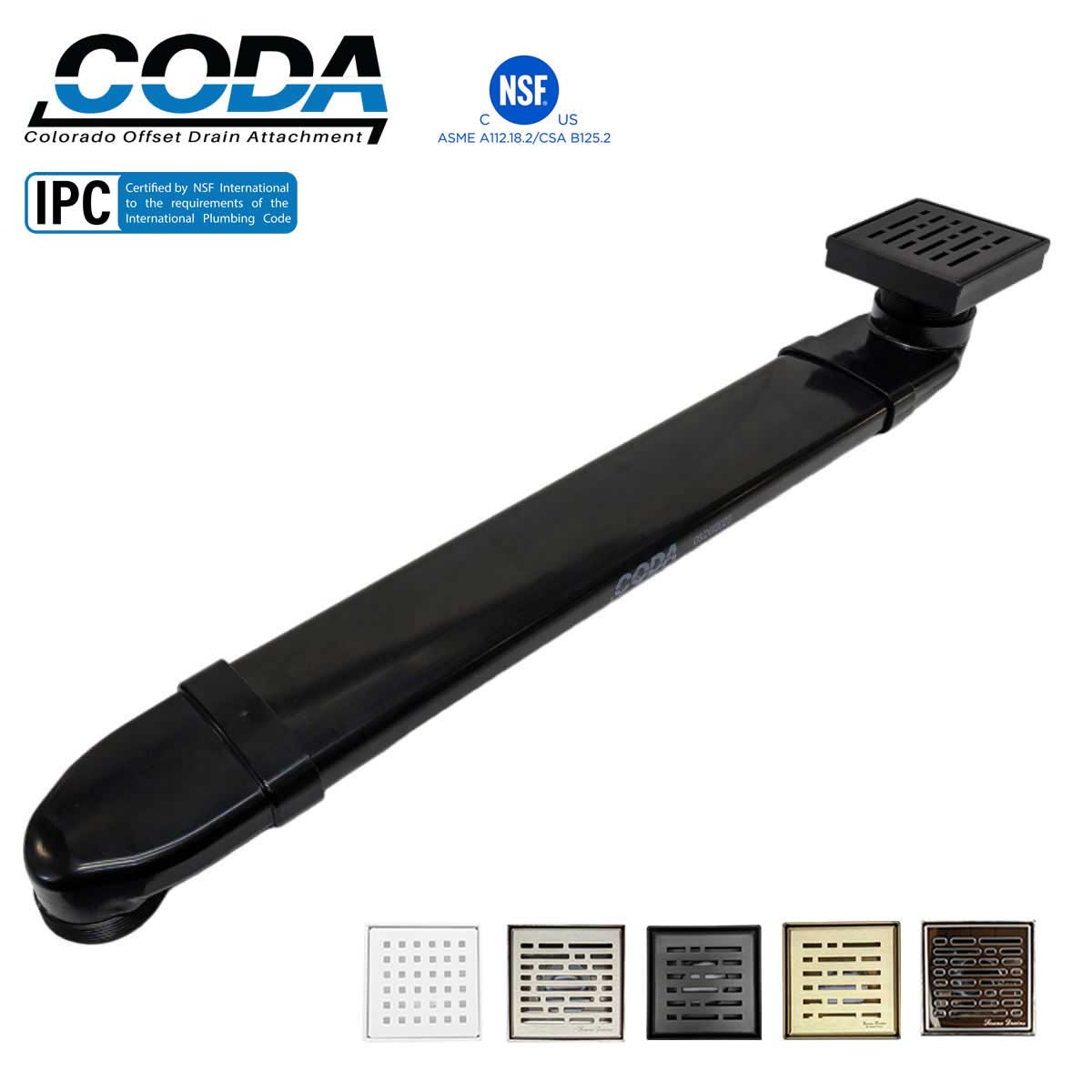

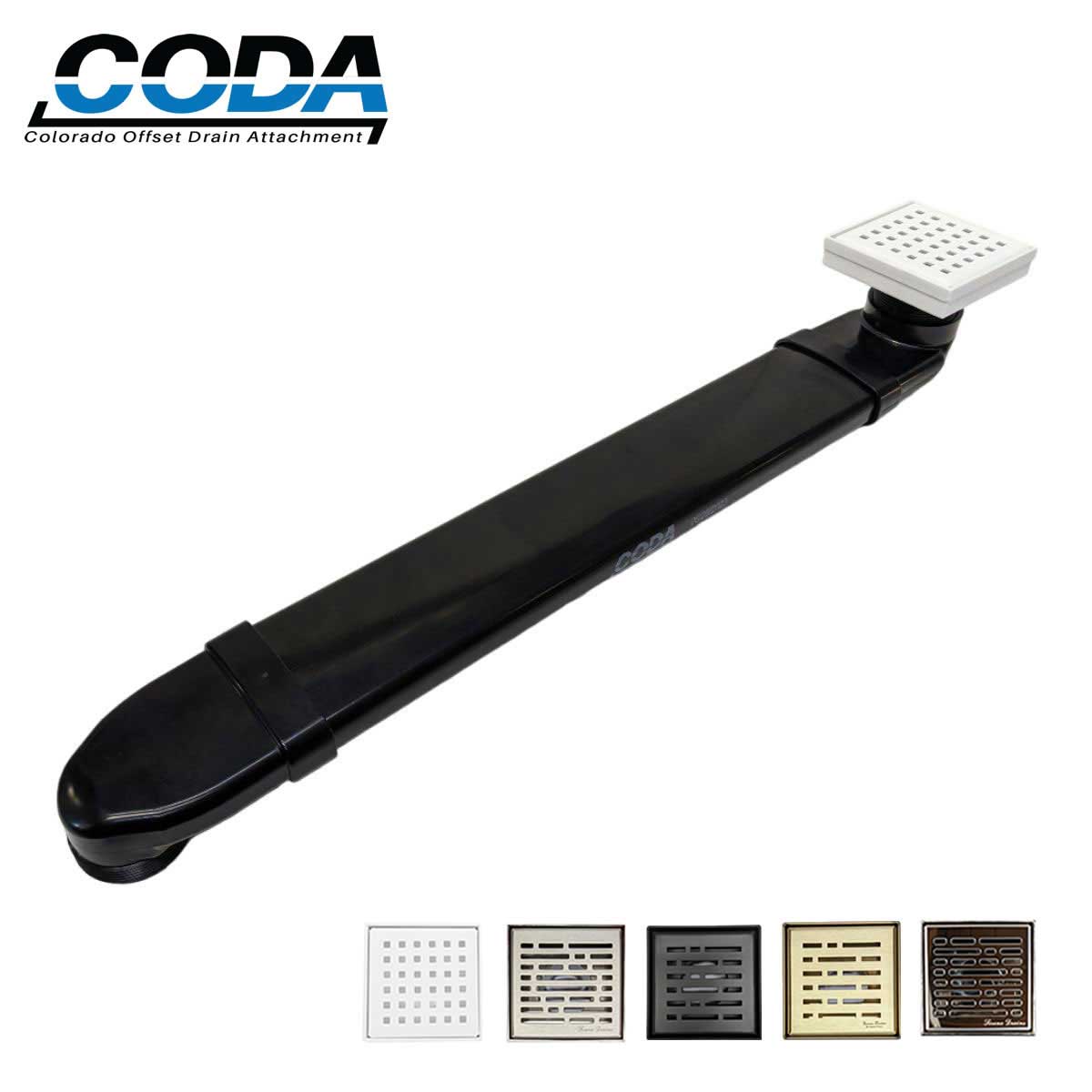

CODA can be installed with round, square, or linear shower drains and works with standard 2-inch drain systems.
Perfect For:
- Bathroom remodels
- Shower drain relocation projects
- Linear drain conversions
- Bathtub to shower conversions
- Residential construction
- Commercial shower installations
- Tile shower renovations
- DIY shower projects
Easy Installation

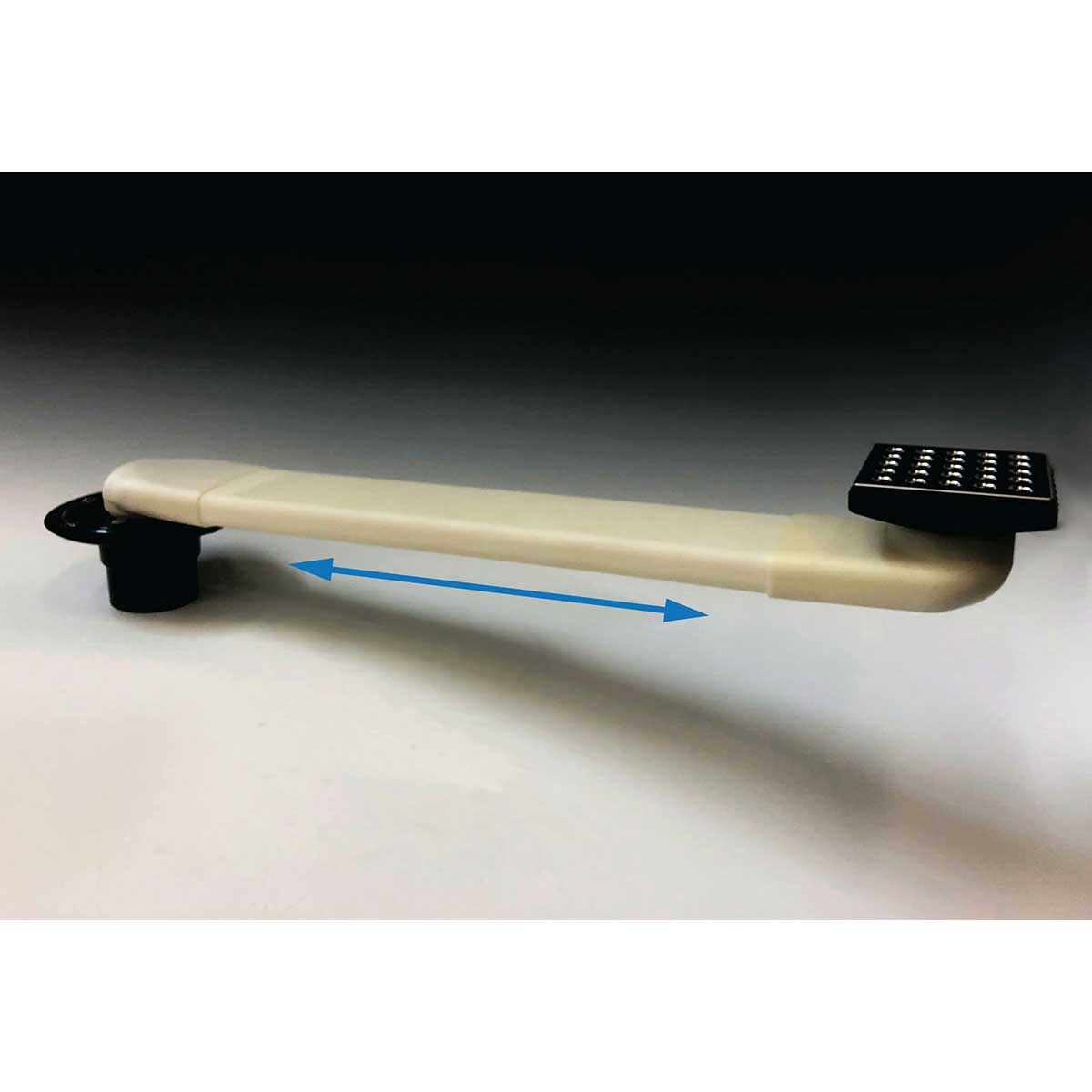

Anyone can install the CODA attachment in minutes. The system allows you to extend from 1 inch to 30 inches center-to-center in virtually any direction needed. CODA is also available in multiple configurations, including dual drain systems.
Cost Effective Solution
The demolition and plumbing work normally required to relocate or enlarge a shower can cost thousands of dollars and delay projects. CODA provides a fast, affordable, and time-saving alternative without removing the existing drain system.
Flexible Drain Placement
CODA gives installers complete flexibility and control to relocate shower drains exactly where needed for modern shower layouts and custom tile designs.
Features & Benefits
- Eliminates demolition and job delays

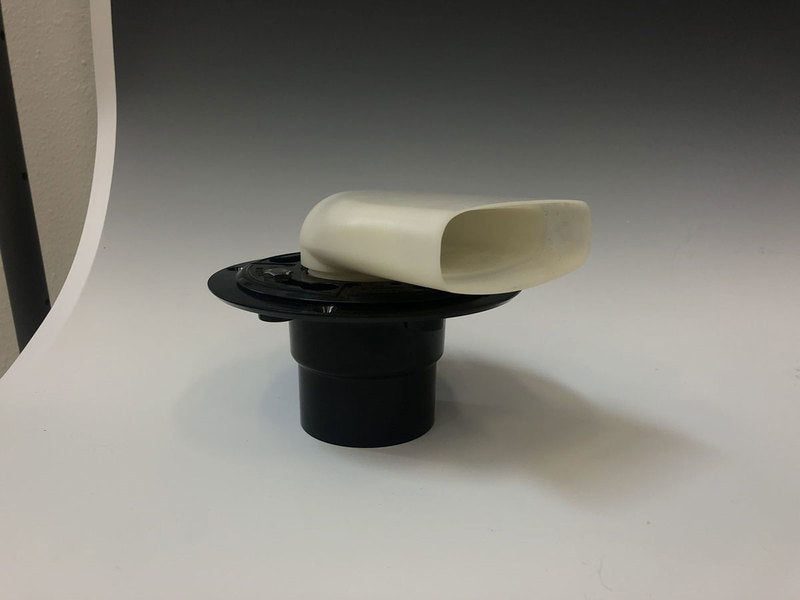

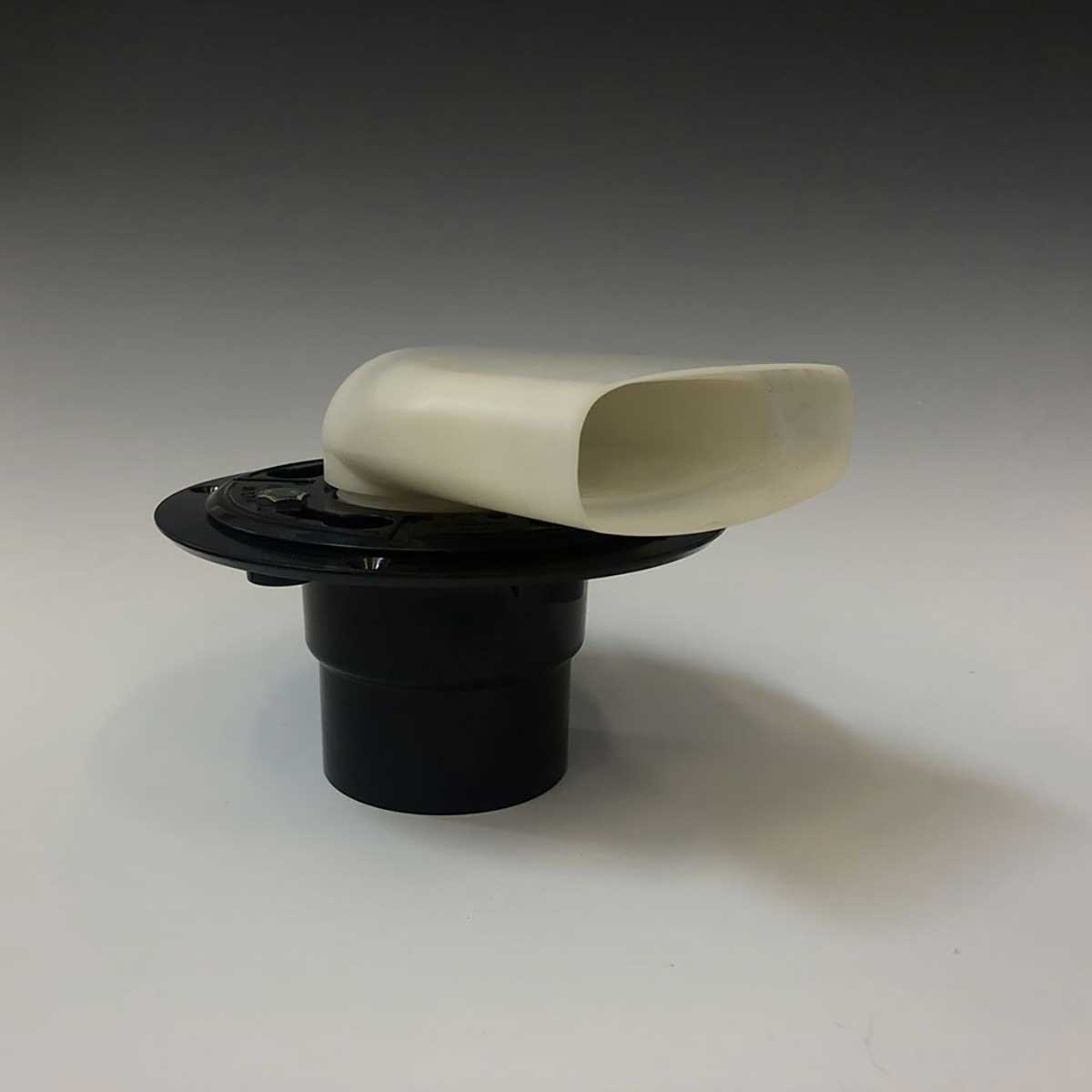

- Installs directly into existing drains
- Extends shower drains up to 32 inches
- Durable black ABS construction
- Compatible with linear, square, and round drains
- Ideal for remodeling and new construction
- Supports flexible shower drain placement
- Designed for residential and commercial use
Frequently Asked Questions
Can CODA convert a center drain to a linear drain?
Yes. CODA can move standard center drains toward the shower wall for linear drain installations.
Does CODA require glue?
Yes. ABS primer and glue are recommended to securely seal all joints.
Can CODA be extended beyond 32 inches?
Additional CODA kits can be combined if longer extensions are required. Always verify local plumbing code requirements.
Can the extensions be cut?
Only the 18-inch extension is designed to be cut for custom sizing.
Helpful Resources
- CODA-B Shower Drain Relocator Installation Instructions & Guide
- CODA Shower Drain Relocator Installation Video
- CODA Shower Drain Relocator Installation PDF

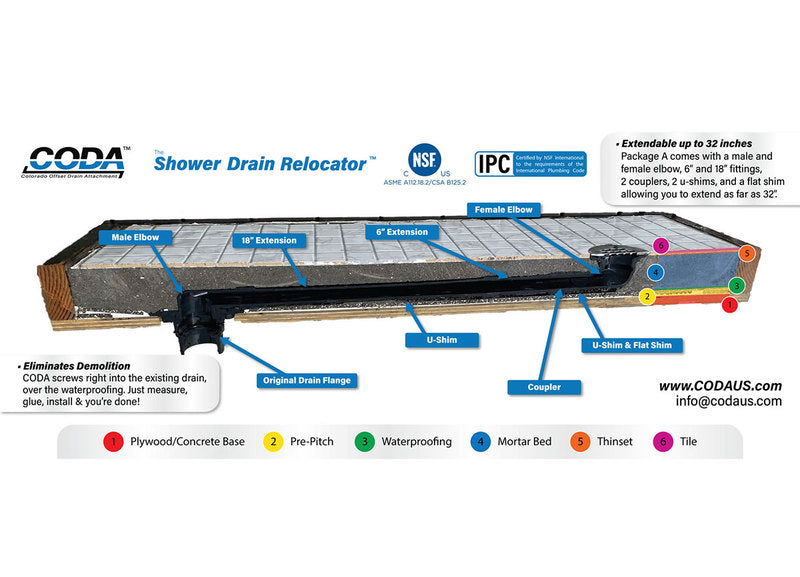

- CODA Cutaway PDF
