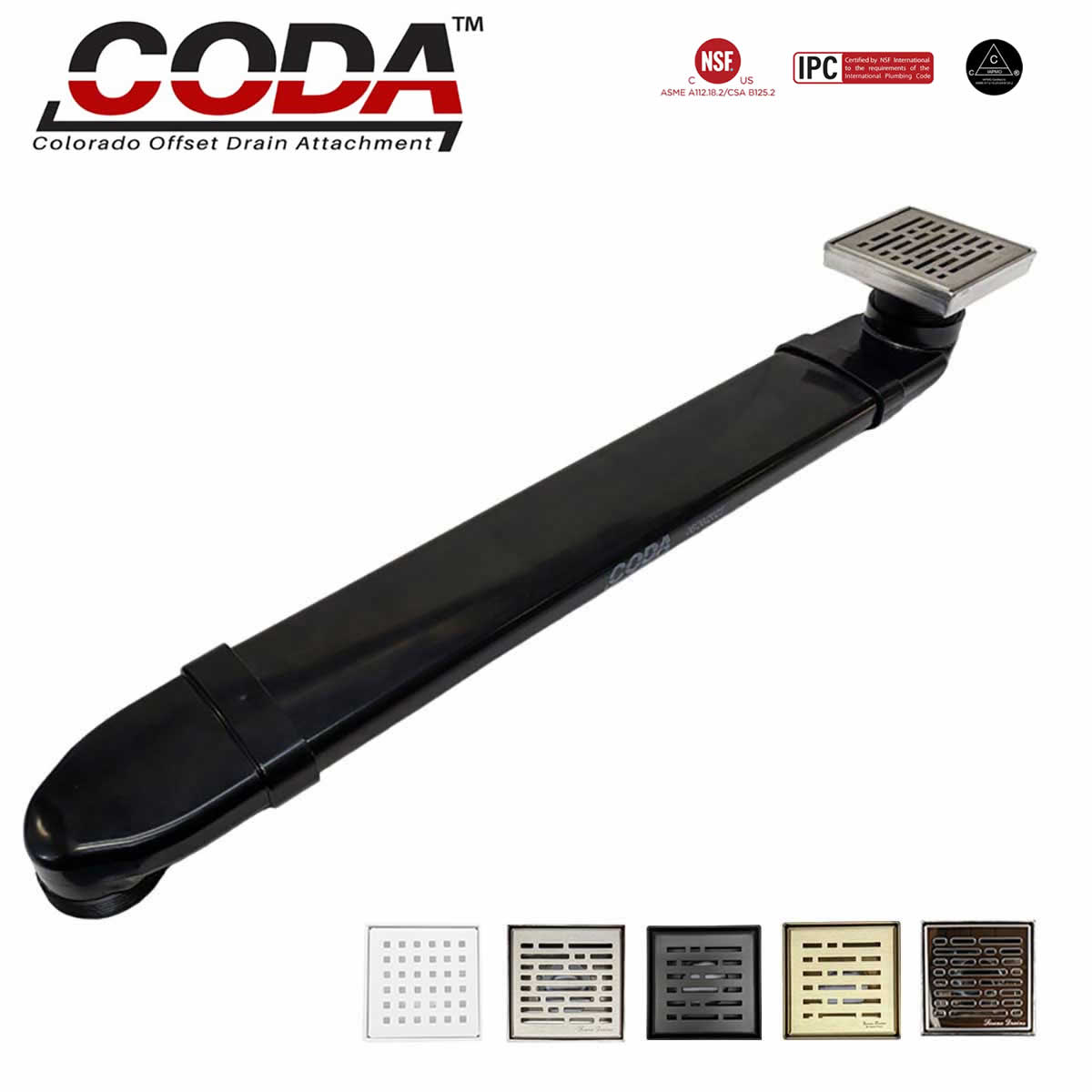

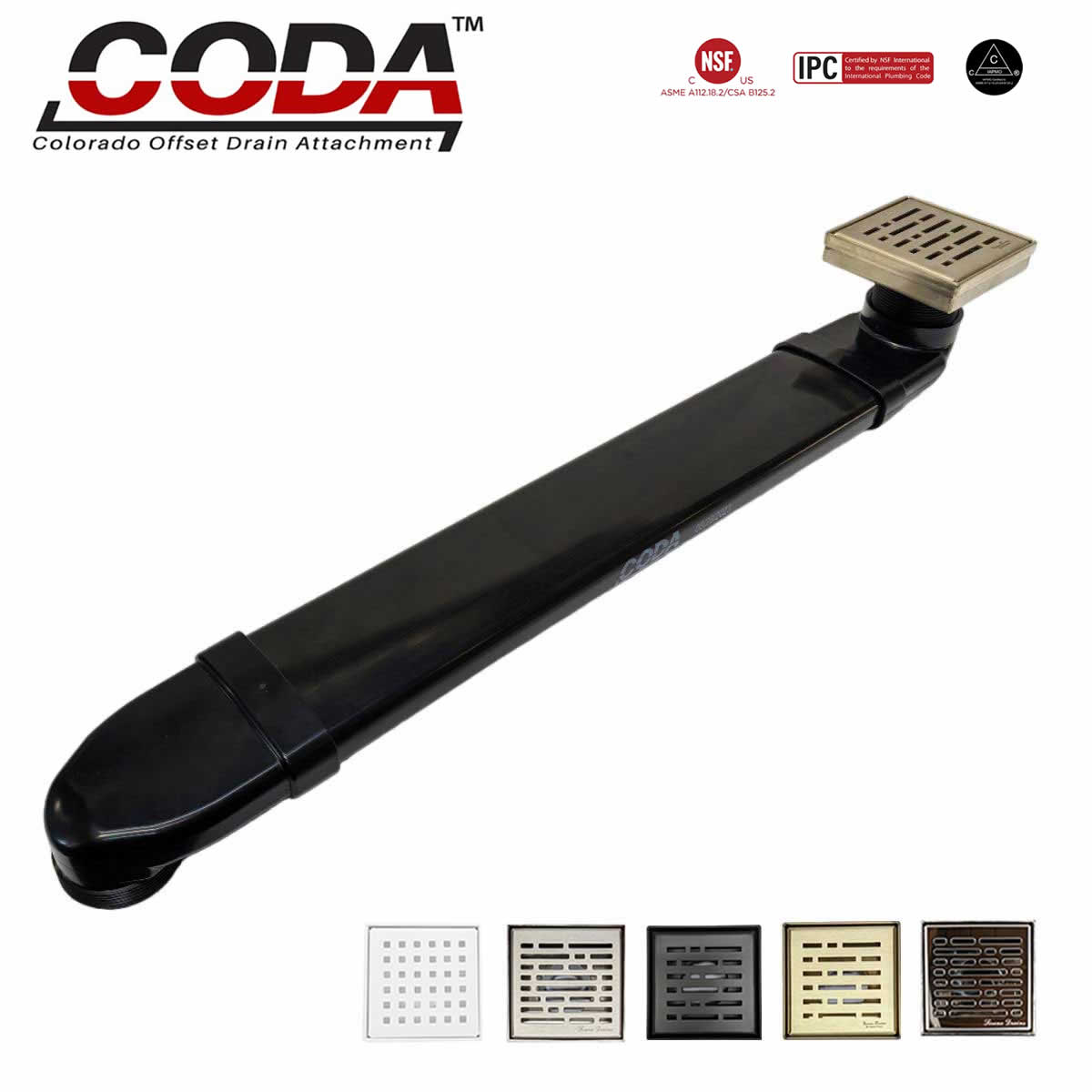

CODA-B the Shower Drain Relocator

CODA-B the Shower Drain Relocator

Innovative Shower Drain Relocation System for 2" ABS Drain Applications

The CODA-B Shower Drain Relocator is a revolutionary plumbing solution designed to relocate shower drains without costly demolition. Engineered for 2-inch ABS drain systems, CODA-B allows installers to relocate an existing shower drain up to 30 inches center-to-center while avoiding expensive plumbing modifications, concrete removal, and project delays.

Choosing the Right CODA Drain Relocator

CODA-B is designed for bond flange drains, foam shower pans, and modern waterproofing systems. If your shower uses a traditional clamping drain, PVC liner system, and mud-set shower pan, CODA-A is typically the better choice.

Perfect for bathroom remodels, shower expansions, bathtub-to-shower conversions, and new construction projects, CODA-B provides contractors, plumbers, tile installers, builders, and DIY homeowners with a fast and cost-effective way to reposition shower drains exactly where they are needed.

Unlike traditional drain relocation methods that often require opening floors and extensive plumbing work, CODA-B installs directly into compatible drain systems and extends up to 32 inches overall in virtually any direction, providing maximum flexibility for custom shower layouts and modern drain designs.

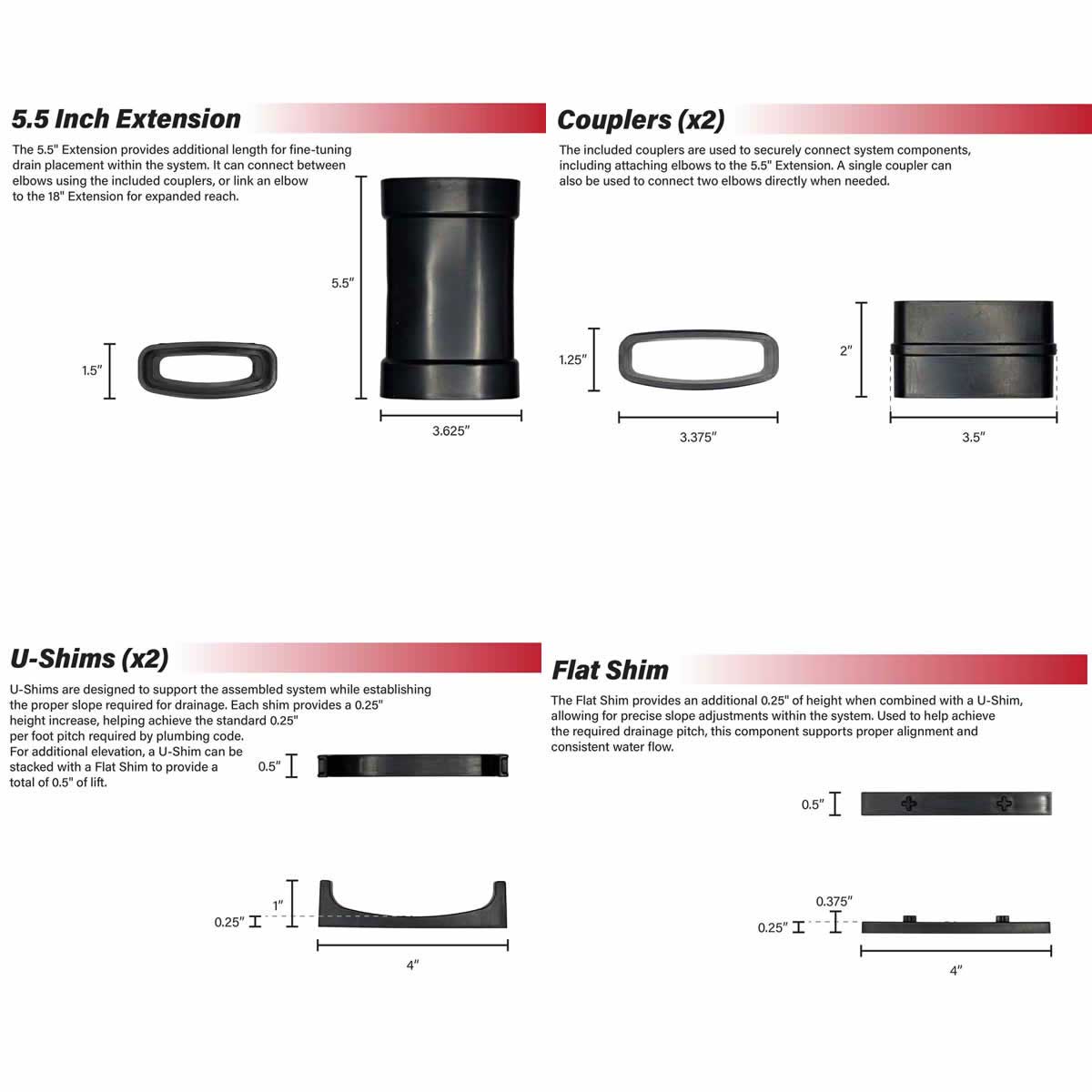

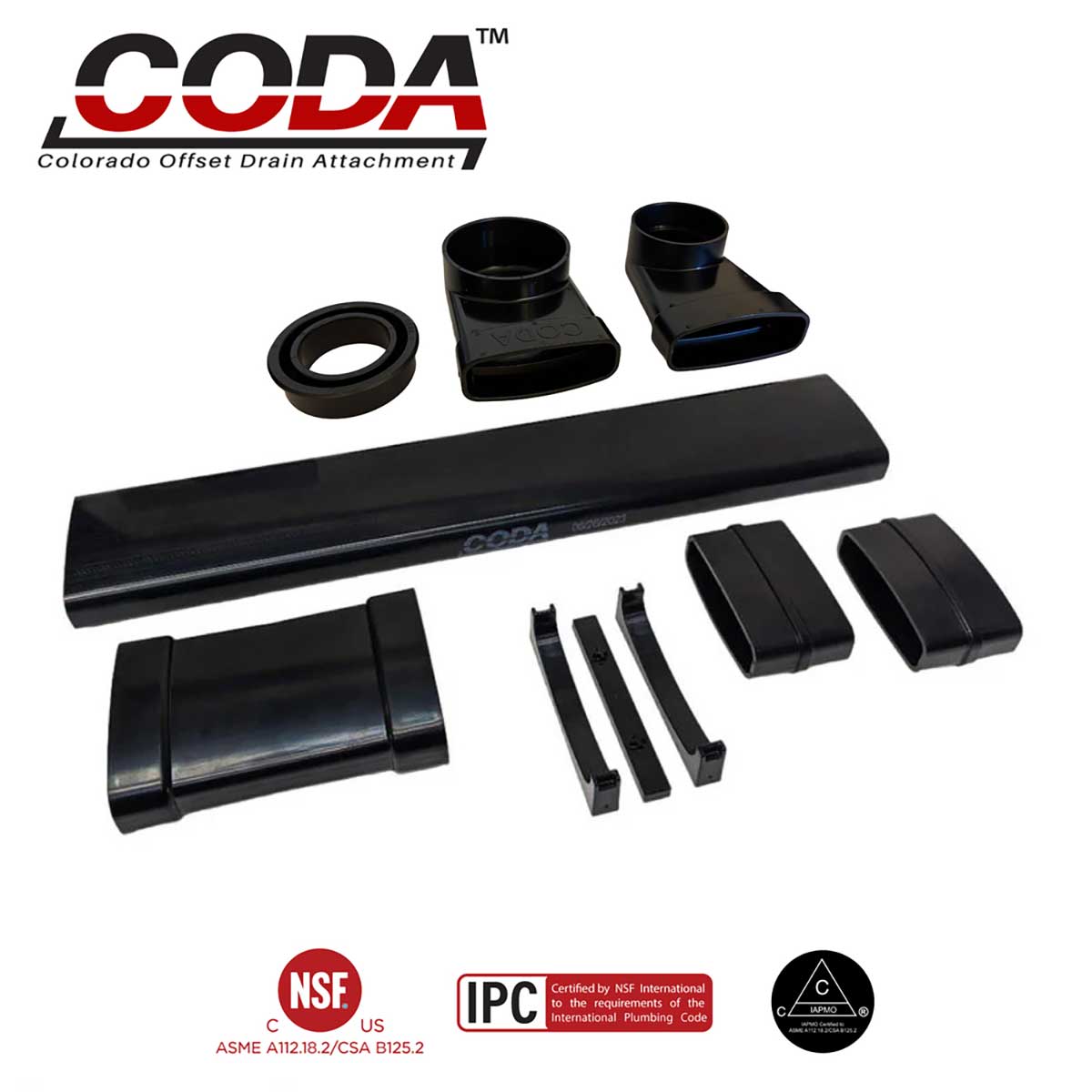

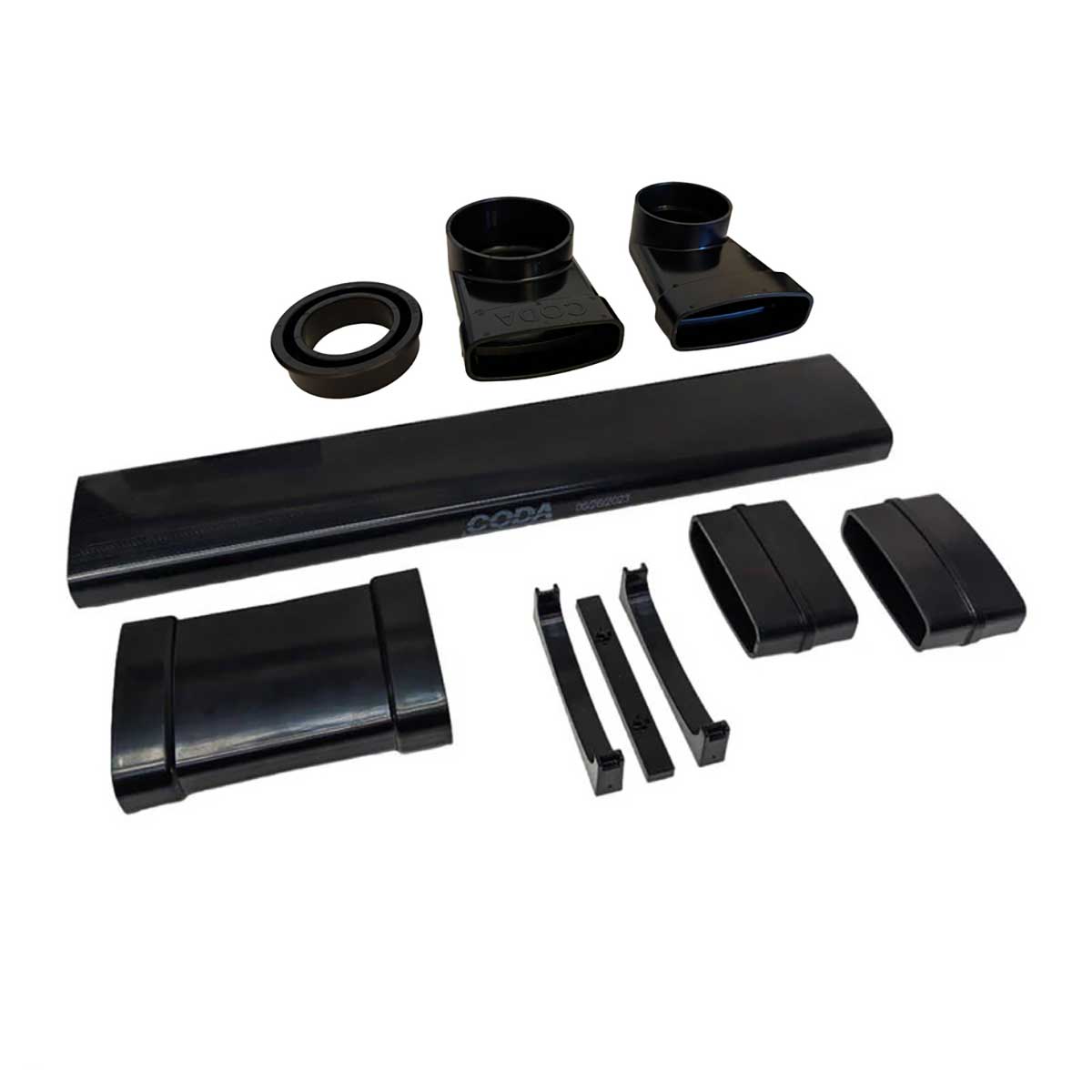

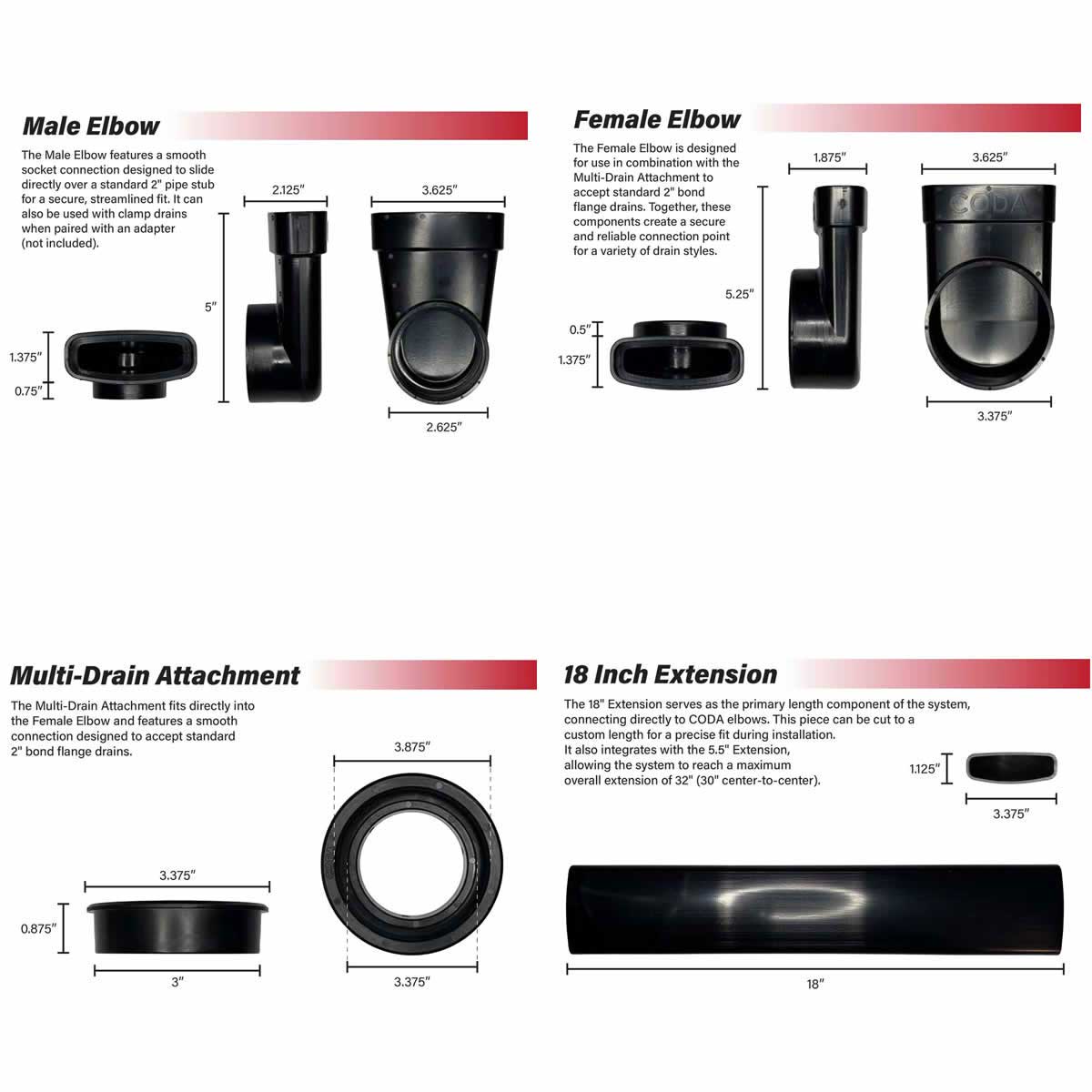

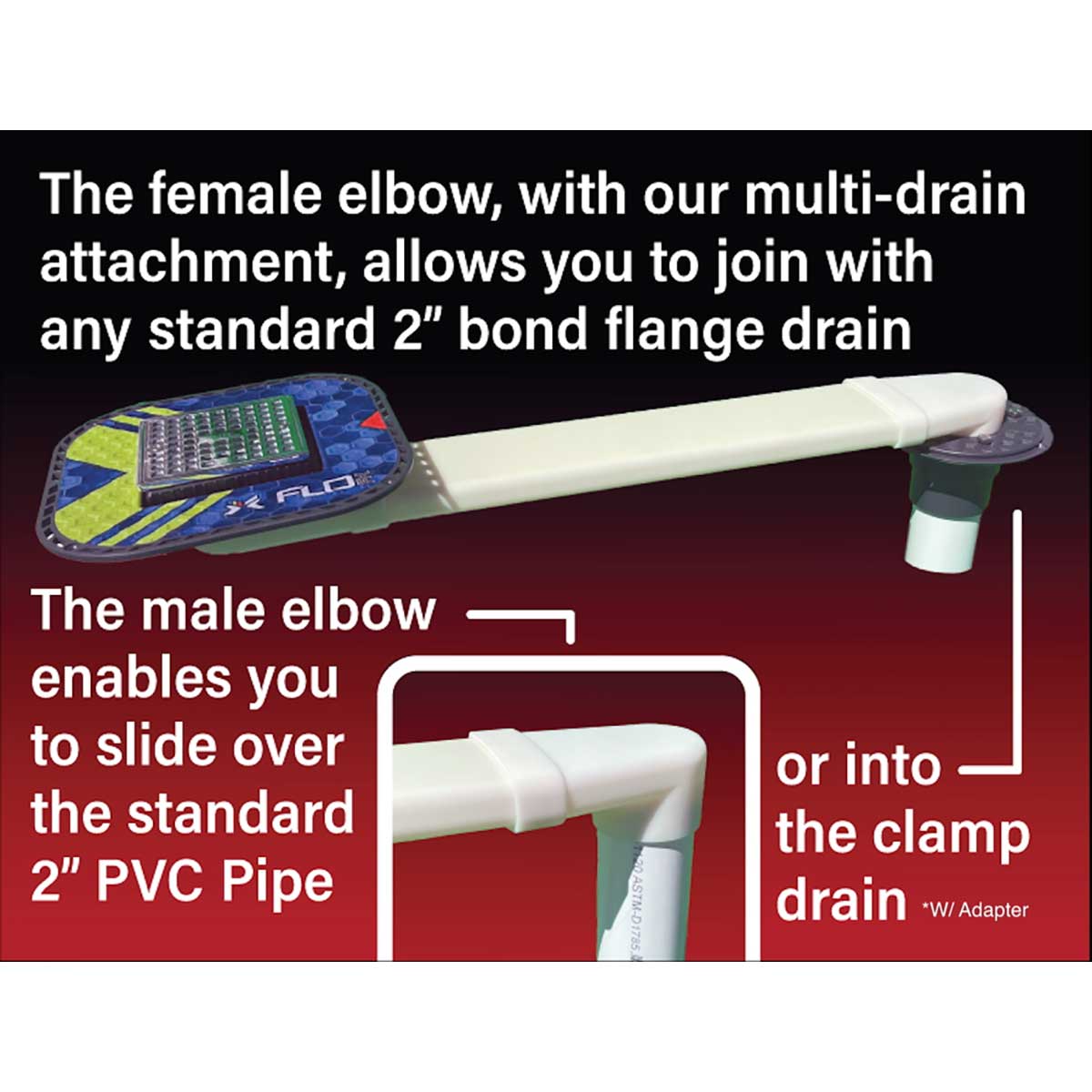

List of Parts Included

• 1 Male Elbow
• 1 Female Elbow
• 1 Extension - 18"
• 1 Extension - 5.5"
• 2 Couplers
• 2 U-Shims
• 1 Flat Shim
• Socket Configuration Components for ABS Drain Applications

ABS Primer & Glue Required - Not Included

CODA-B is designed for use with 2-inch ABS drain systems and can be used with round, square, and linear shower drain installations depending on project requirements.

Perfect For

• Bathroom remodels
• Shower drain relocation projects
• Bathtub to shower conversions
• Linear drain installations
• Custom shower layouts
• Residential construction
• Commercial shower installations
• Tile shower renovations
• Curbless shower projects
• DIY bathroom remodeling

Easy Installation

CODA-B is designed for fast installation and allows users to relocate a shower drain from 1 inch up to 30 inches center-to-center in virtually any direction. The system helps eliminate unnecessary demolition while providing flexibility for modern bathroom layouts and drain positioning.

Cost Effective Solution

Traditional shower drain relocation often requires costly demolition, plumbing modifications, and project delays. CODA-B provides a practical alternative that helps reduce labor costs and installation time while maintaining flexibility in shower design.

Flexible Drain Placement

Whether moving a center drain, converting to a linear drain layout, or redesigning a shower footprint, CODA-B provides installers with greater control over drain placement without extensive reconstruction.

Features & Benefits

• Eliminates demolition and job delays
• Designed for 2-inch ABS drain systems
• Extends shower drains up to 32 inches overall
• Allows relocation up to 30 inches center-to-center
• Durable ABS construction
• Compatible with many round, square, and linear drain installations
• Ideal for remodeling and new construction
• Supports custom shower layouts and drain placement
• Fast installation compared to traditional drain relocation methods
• Suitable for residential and commercial applications

Frequently Asked Questions

Can CODA-B convert a center drain to a linear drain?

Yes. CODA-B can help reposition an existing drain location to accommodate many linear drain installations and custom shower layouts.

Does CODA-B require glue?

Yes. ABS primer and glue are required to properly secure and seal all connections.

Can CODA-B be extended beyond 32 inches?

Additional CODA components may be used where permitted. Always verify local plumbing code requirements before installation.

Can the extensions be cut?

The 18-inch extension may be trimmed for custom sizing when necessary.

Specifications

• Product: CODA-B the Shower Drain Relocator
• Application: Shower drain relocation
• Drain Size: 2 inch
• Material: ABS
• Configuration: Socket Connection Design
• Maximum Extension: 32 inches overall
• Maximum Relocation Distance: 30 inches center-to-center
• Suitable For: Residential and commercial installations
• Installation Type: Remodels and new construction

Not Sure Whether You Need CODA-A or CODA-B?

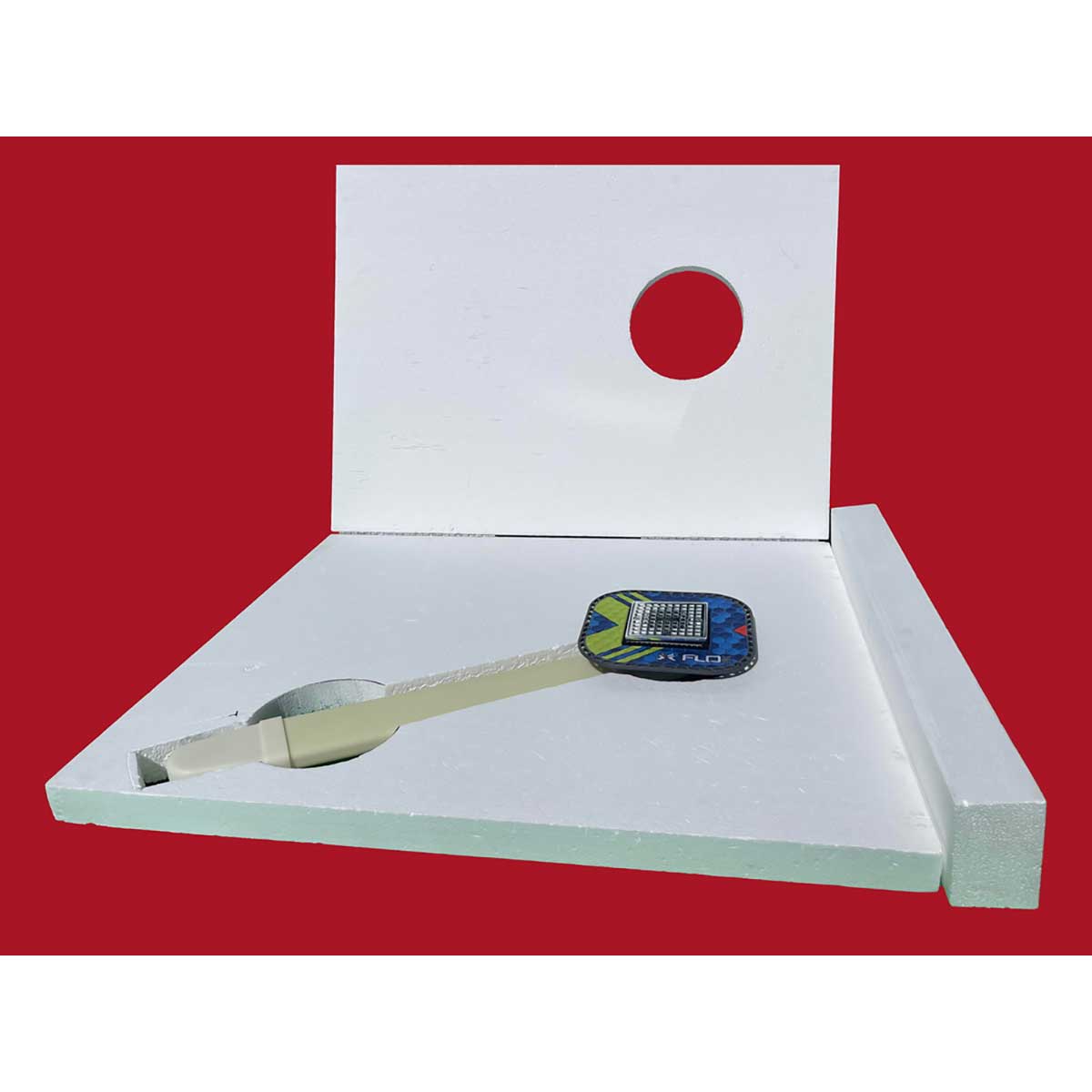

CODA-B is designed for modern shower systems that use bond flange drains, topical waterproofing membranes, and foam shower pans.

Choose CODA-B if your project includes:

• Foam shower pans or shower trays
• Bond flange drains
• Topical waterproofing membranes
• Modern waterproofed shower systems
• Many linear and square drain installations

CODA-B is commonly used with drain systems from manufacturers such as FloFX, Hydro-Blok, Gruen, and other bond flange drain systems.

Helpful Resources

• CODA-B Shower Drain Relocator Installation Instructions & Guide
• CODA Shower Drain Relocator Installation Video
• CODA Cutaway PDF
