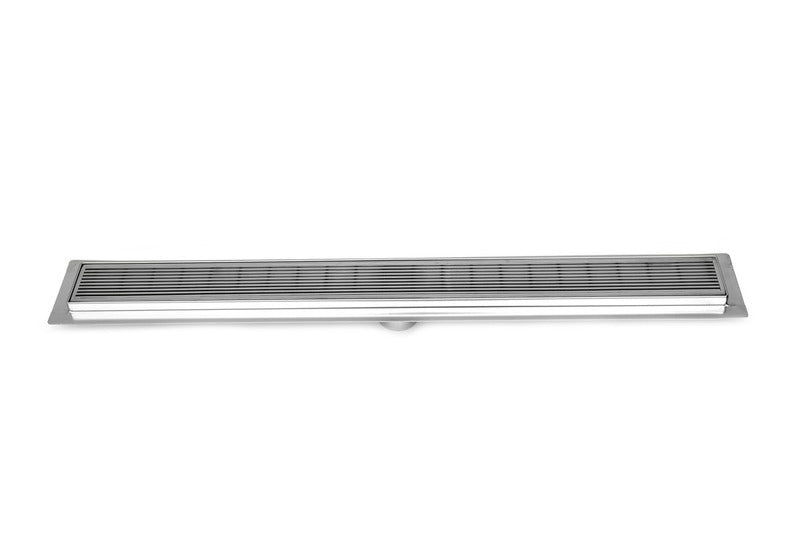

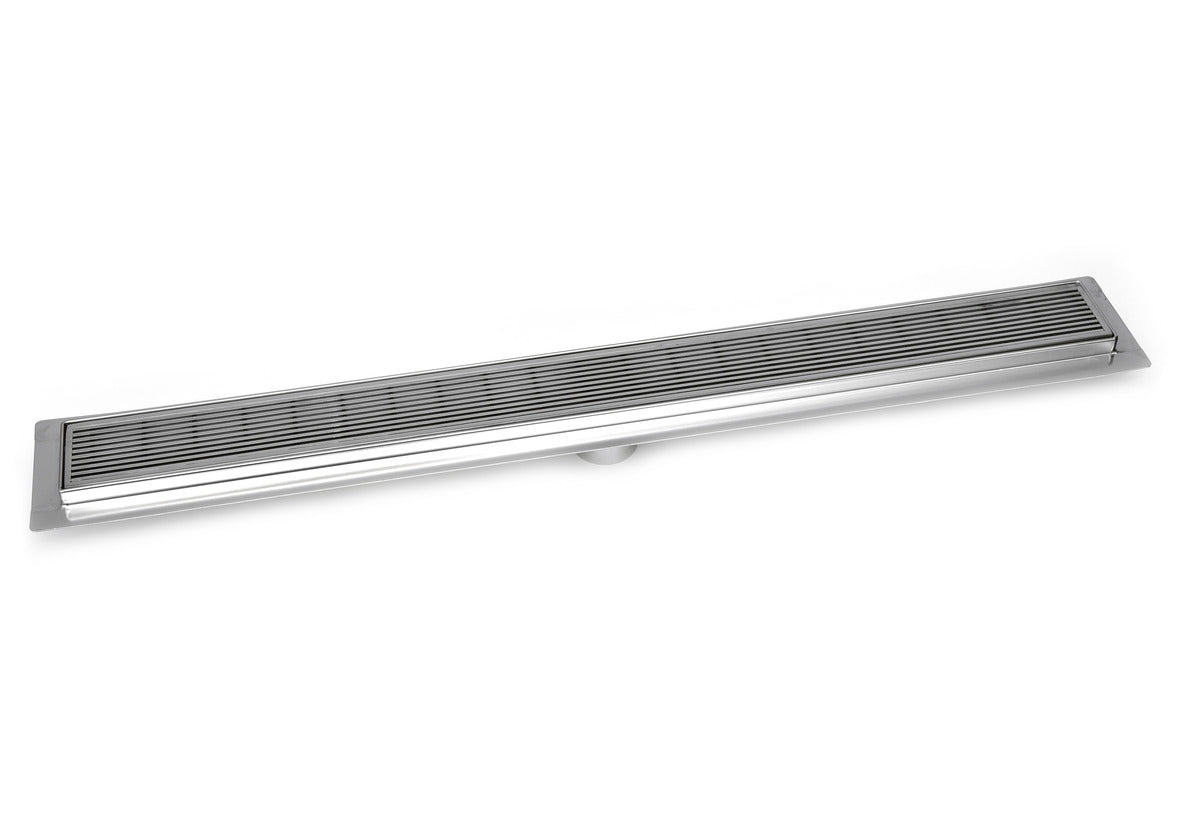

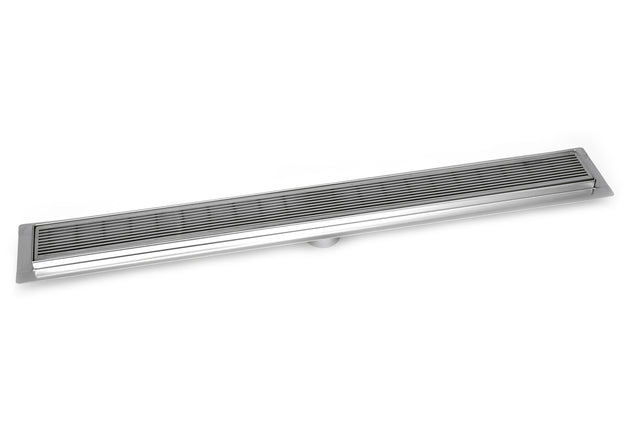

SereneDrains Linear Shower Drain Linear Wedge - Polished 35

SereneDrains Linear Shower Drain Linear Wedge - 35 - Polished Chrome

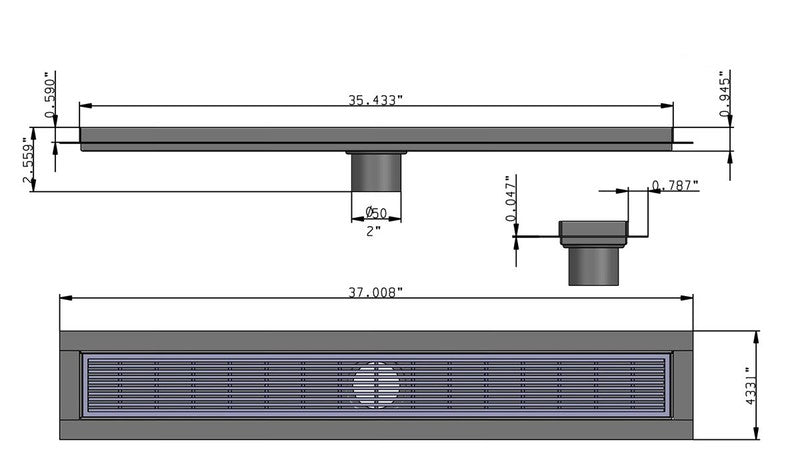

Overall Size 37.01" x 4 3/8" - Net Size 35 3/8" x 2 3/4"

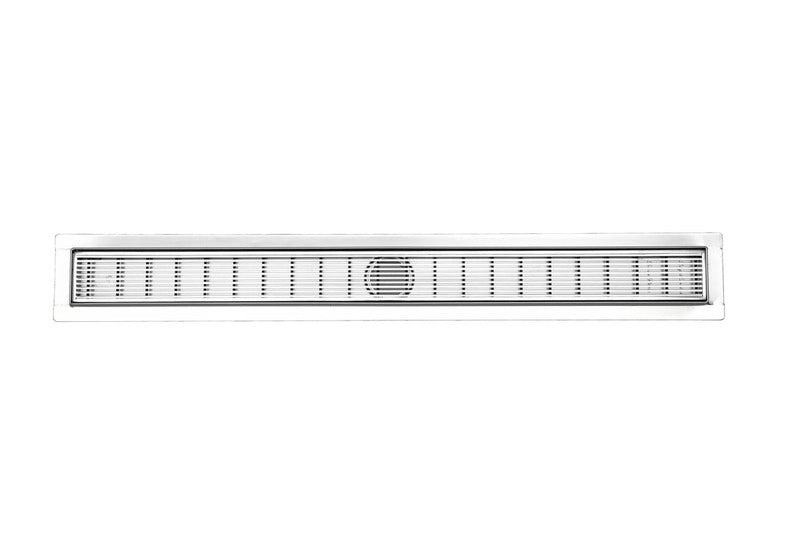

Wedge - linear wedge-style pattern for a sleek modern look

Available Colors: Brushed Stainless, Polished Stainless (both with side drain outlet)

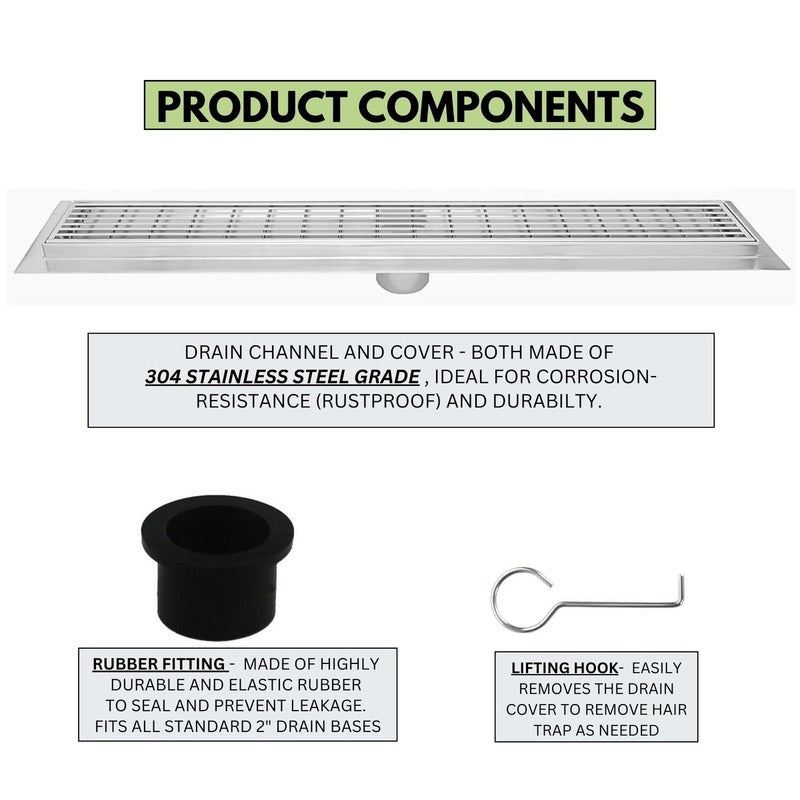

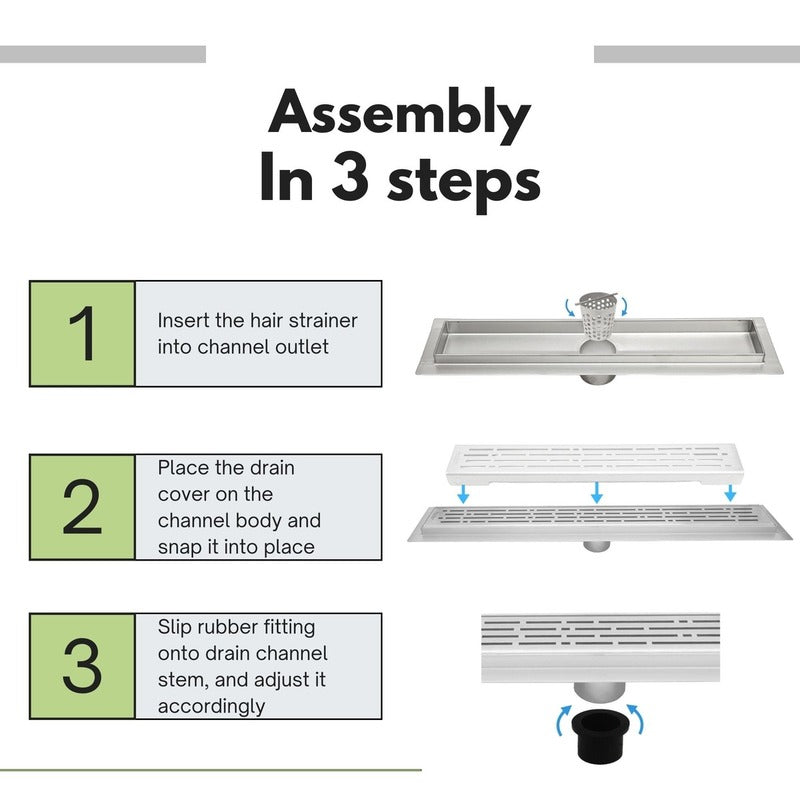

COMPLETE SET - Channel Body, Linear Wedge Grate, Drain Rubber Fitting, Drain Puller Key, Waterproofing Membrane Sheet around the drain flange (not required but included)

Foot-friendly grate with anti-slip nodules.

Optional: ABS, PVC, or Cast Iron CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap

Square shape. It is easier to cut tile for a square drain than to cut, nip, and grind it to fit a round one.

Superior quality at an affordable price.

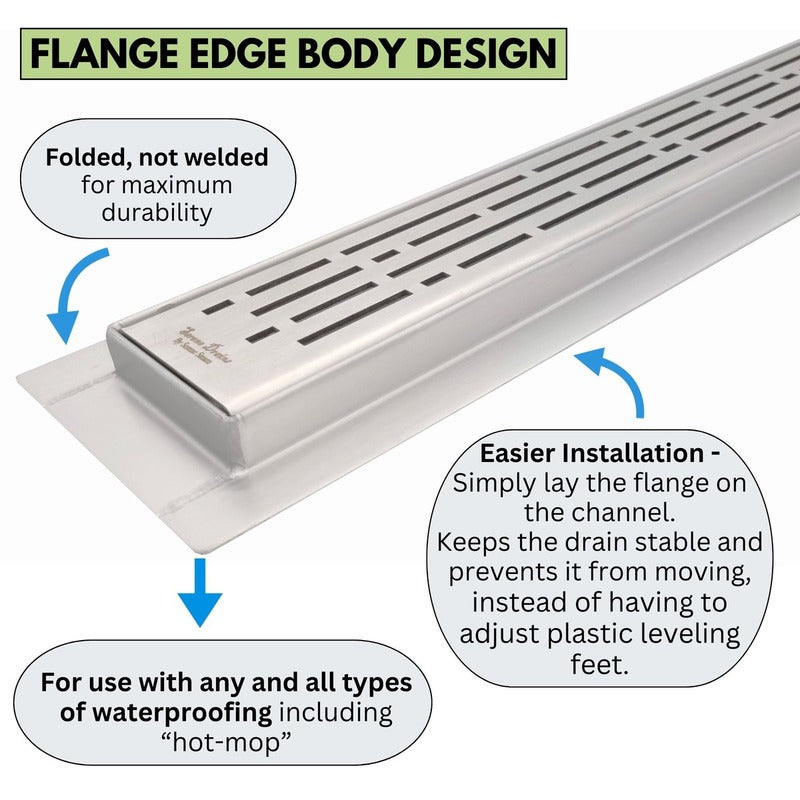

Flange body edge designed for use with all types of waterproofing, including but not limited to hot-mop, liquid membranes, sheet membranes, and vinyl waterproofing.

Approximate Dimensions:

Length 16" (400mm), Intake 10.44 sq. in.
Length 24" (600mm), Intake 15.66 sq. in.
Length 30" (762mm), Intake 19.94 sq. in.
Length 35.43" (900mm), Intake 28.85 sq. in.
Length 39.37" (1000mm), Intake 31.36 sq. in.
Length 47.25" (1200mm), Intake 36.37 sq. in.
Length 59.05" (1500mm), Intake 44.74 sq. in.

Construction

• Pre-sloped channel
• 5 mm (6-gauge) stainless steel 304 grate
• 2" diameter central vertical outlet
• Flow rate: entrance of shower - 6.3 GPM (0.4 L/s); against the wall - 9.5 GPM (0.6 L/s)
• Channel width: 2 3/4" (70 mm)
• Bodies are fully welded and leak-tested prior to dispatch
• Compatible with tiles up to 10 mm depth (14 mm lip)
• Stainless steel clad flexible coupling connects outlet to pipe system (optional)
• Optional accessories include plumbing connectors and debris strainer
• Stainless steel 16-gauge 304 grate
• Superior quality
• Most durable finishes available
• Easy to maintain - no special cleaning required

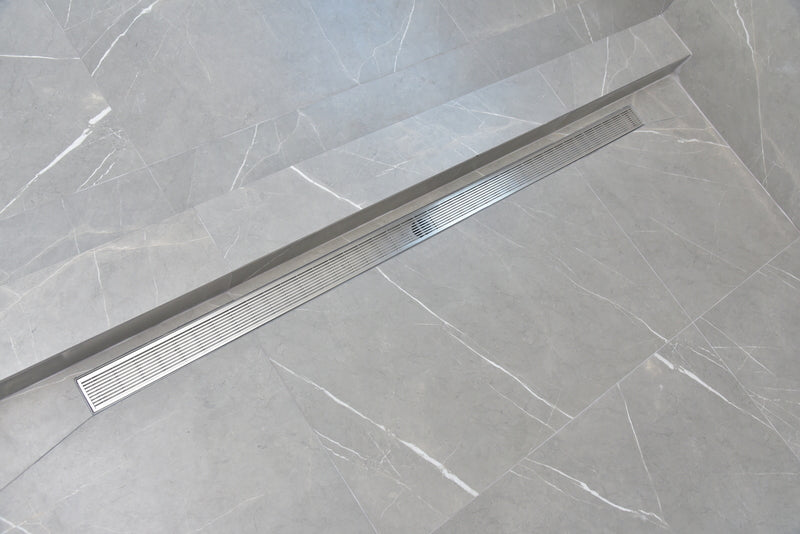

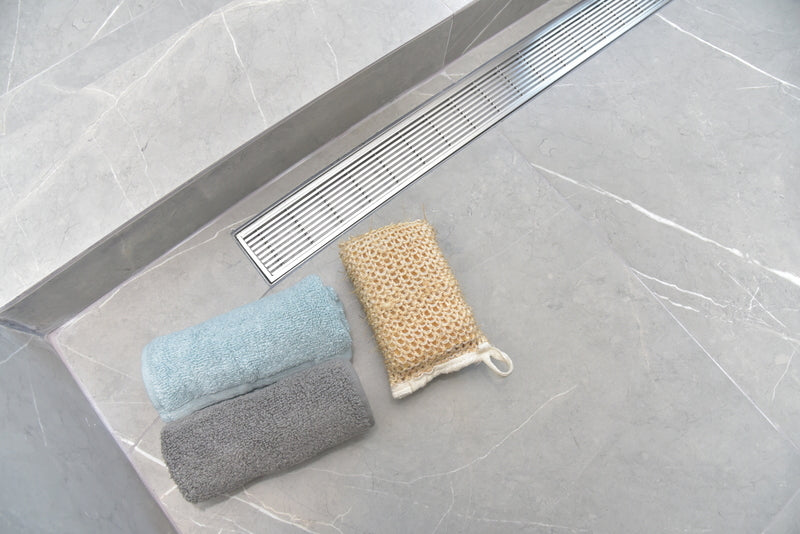

The SereneDrains Linear Wedge Style Linear Shower Drain is a premium and reliable solution for modern bathrooms. Featuring a sleek wedge-style pattern, it adds a contemporary and refined look to your shower floor.

Crafted from high-quality 304 stainless steel, this linear drain offers excellent durability and corrosion resistance. The 6-gauge grate provides added strength, ensuring long-lasting performance.

Its efficient drainage system quickly removes excess water, helping keep your shower area clean, dry, and safe. The wedge-style design enhances both function and visual appeal.

This drain combines performance with modern aesthetics, delivering dependable water flow and a stylish finish that elevates any bathroom space.

Superior Quality - Heavy Drain Grate - Minimal Grout Rim - Designer Finishes

In Stock - Ships Same Day
