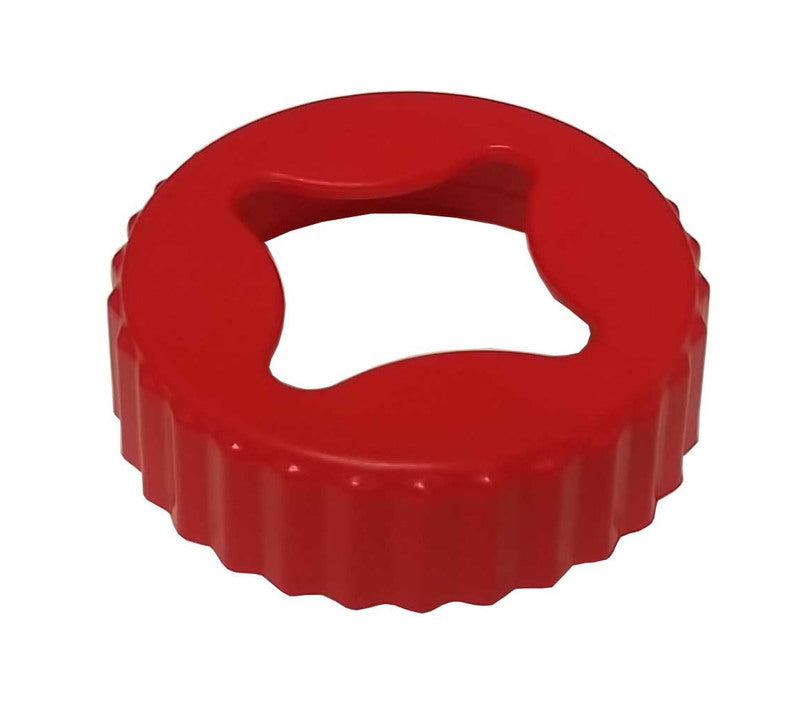

Proleveling Universal Rotating Pommel Cap 50

Proleveling Universal Rotating Pommel Cap 50

Quantity - 50/bag

In stock - Ship Same Day

Proleveling System is a revolutionary and innovative leveling system when laying medium and large materials with a thickness between 2 and 40 mm.

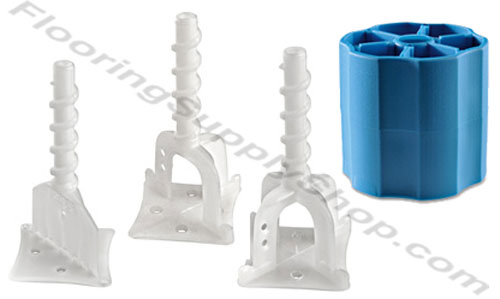

The patented system is made of 2 elements:

– A leveling base (1-2-3 mm size) with spaced notches that allow spacing/separating/ joining floors of any type and material in a way that is: linear, cross and half cross with joints to be chosen between 1 mm, 2 mm and 3 mm.
– The threaded stem is attached perpendicularly to the base in a way that allows for easy adjustment with turns of the cap during installation. Removal of the cap and Stem after the materials are set is made easy with strategically placed breakage points that release with either increased pressure by turning the cap or by kicking the cap in the direction of the joint. One cap fits all threaded stems and can be reused an infinite amount of times for big cost savings.
The new PPLS (patented) system assists in the reduction or elimination of legging and lippage in the installation of various types of materials that are applied to floors or walls with mortar including: Large Format Tile, Natural Stone, Thin Profile Tile and many others.

Advantages of the Proleveling System Levelers

• No Tools (GUN) needed!
• Simple and quick to lay with only 2 elements: Leveler & Cap. No need for expensive hand tools.
• Built in spacers are available to accommodate “+” intersections as well as “T” joints with a single leveler saving up to 3 pieces per joint.
• The only System capable of leveling 2 to 40 mm floors and wall coverings with only 2 parts: Leveler & Cap. Simply flip the cap over to work with various thicknesses.
• Current joint sizes are 1 mm, 2 mm and 3 mm with more in development.
  Vertical compression reduces movement and widening of joints.
• The thin base of the leveler allows for easy placement without mortar accumulation
• The shaped hole in the middle of the cross- and T-shaped levelers allows a perfect control of the tiles lining up. Moreover the holes on their base enable a perfect anchoring between adhesive and tile

Proleveling System is a revolutionary and innovative leveling system when laying medium and large materials with a thickness between 2 and 40 mm. The patented system is made of 2 elements: – A leveling base (1-2-3 mm size) with spaced notches that allow spacing/separating/ joining floors of any type and material in a way that is: linear, cross and half cross with joints to be chosen between 1 mm, 2 mm and 3 mm.

The threaded stem is attached perpendicularly to the base in a way that allows for easy adjustment with turns of the cap during installation.
Removal of the cap and Stem after the materials are set is made easy with strategically placed breakage points that release with either increased pressure by turning the cap or by kicking the cap in the direction of the joint. One cap fits all threaded stems and can be reused an infinite amount of times for big cost savings.
The new PPLS (patented) system assists in the reduction or elimination of ledging and lippage in the installation of various types of materials that are applied to floors or walls with mortar including: Large Format Tile, Natural Stone, Thin Profile Tile and many others.

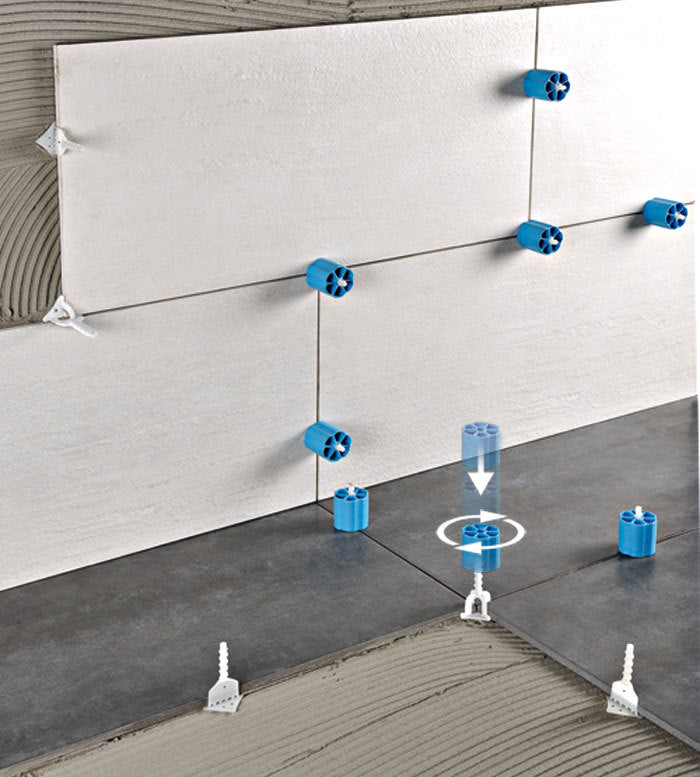

Laying System

• 1. Choose the desired type of Leveler (spacers) based on the requested joints and joining:

* 1 mm Linear Version
* 2 mm Linear, Cross and Half Cross Version
* 3 mm Linear, Cross and Half Cross Version

• 2. Apply the thinset or mortar on a level base with the proper notched trowel as called out in the setting materials manufacturer’s installation instructions.
• 3. During the application of the tile or other materials, position the base of the chosen Leveler under the edge of the tile at the appropriate joint location and continue laying in sequence.
• 4. Attach the cap to the threaded stem by rotating it clockwise. Level the joint by rotating the cap using the minimum amount of pressure needed.
• 5. Once the setting materials have become solid and the floor or wall is ready for grout:

* Kick the cap in the direction of the joint to detach connection points between Base and stem.
